PK1201 - Fridge PROGRESS - Free user manual and instructions

Product Type	Refrigerator
Brand	Progress
Model	PK1201
Built-in niche dimensions (H x W x D)	1225 x 560 x 550 mm
Voltage	230-240 V
Frequency	50 Hz
Climate class	SN, N, ST, T (from +10°C to +43°C)
Refrigerant	Isobutane (R600a)
Temperature adjustment	Rotary thermostat knob (positions from min cold to max, stop at O)
Temperature indicator	Yes, in the coldest zone (lower glass shelf)
Defrosting	Automatic for the refrigerator compartment
Interior accessories	Removable shelves, adjustable door bins, vegetable drawer
Interior lighting	Replaceable bulb (max power indicated on the diffuser)
Door reversibility	Yes, right or left opening
Installation type	Built-in (requires ventilation, minimum distance of 200 cm²)
Energy consumption	Not specified (see rating plate)
Noise level	Not specified
Maintenance	Interior cleaning with warm soapy water; condenser cleaning
Safety	Child lock (not specified); flammable refrigerant circuit; mandatory grounding
Weight	Not specified

Frequently Asked Questions - PK1201 PROGRESS

How to adjust the refrigerator temperature?

Turn the thermostat knob clockwise for a colder temperature, and counterclockwise for a less cold temperature. The middle position is most suitable. Wait at least 12 hours between each adjustment to stabilize the temperature.

How to reverse the door opening direction?

The appliance comes with a right-hand opening. To change it to left, unscrew the top hinge, remove the door, loosen the bottom rod with a wrench, then reverse the hinges. Refer to the Installation chapter for detailed steps.

What to do if water accumulates in the refrigerator?

Check that the defrost water drain gutter is not clogged. Clean it using the special stick provided. Ensure that food does not touch the back plate, which could hinder drainage.

How to clean the interior of the refrigerator?

Unplug the appliance. Use warm water with a little liquid soap. Avoid abrasive products, scouring powders, and metal sponges. Rinse and dry thoroughly before plugging back in.

Is defrosting automatic?

Yes, the refrigerator compartment defrosts automatically each time the compressor stops. The defrost water evaporates in a tray at the back of the appliance. Clean the drain hole regularly to prevent overflows.

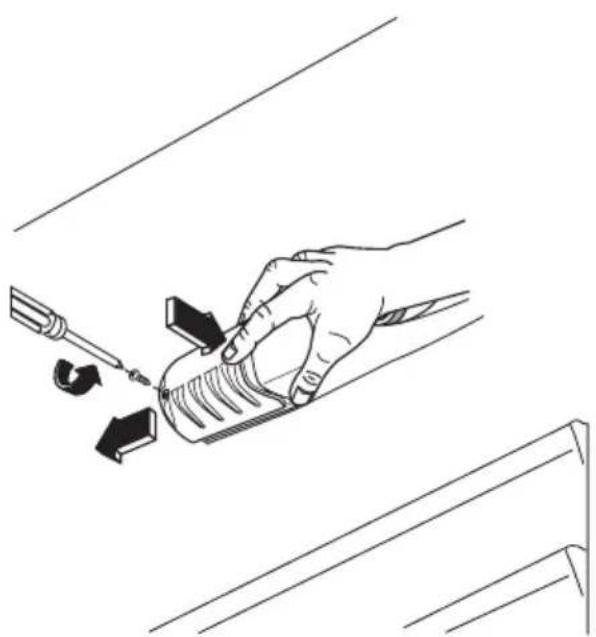

How to replace the light bulb?

Unplug the appliance. Remove the diffuser screw and the diffuser. Replace the bulb with a new one of the same wattage (indicated on the diffuser), specifically designed for household appliances. Reinstall the diffuser and screw it back.

What to do if the door does not close properly?

Clean the door gaskets. If necessary, adjust the door position following the instructions in the Installation chapter. If the gaskets are defective, contact customer service to replace them.

Is it normal for the compressor to run continuously?

This may be normal if the ambient temperature is high, the door is opened frequently, or the appliance is heavily loaded. If frost forms abnormally, set the thermostat to a higher position (less cold) to allow the compressor to stop.

How to save energy with this refrigerator?

Do not open the door too often or for too long. Place the appliance away from heat sources and ensure good ventilation at the back. Clean the condenser (black grid) regularly to improve performance.

What to do in case of a prolonged power outage?

If the appliance must remain off for a long time, unplug it, remove all food, defrost if necessary, clean the interior, and leave the door ajar to prevent odors. If you cannot empty the appliance, have it checked periodically for proper operation.

USER MANUAL PK1201 PROGRESS

Simple diagram with a black circle and a warning symbol (no text or labels)

Line drawing of a hand using a tool to lift or lift a wooden beam, with an upward arrow indicating force (no text or symbols)

Line drawing of a door frame with a double door and an arrow indicating upward motion (no text or symbols)

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Stillstandzeiten

Line drawing of a hand using a screwdriver to adjust or install a cylindrical component on a metal shelf (no text or symbols)

Schließen der Tür

Diagram showing a tool interacting with a mechanical component, with an arrow indicating direction (no text or symbols present)

Technical diagram showing mechanical assembly with magnified insets highlighting component positioning

Technical diagram illustrating door frame installation with magnified views and dimension labels

Diagram of a mechanical or electrical component with labeled parts 1 and 2, showing directional arrows indicating movement.

Technical diagram showing structural connection details with magnified views of components and a labeled section marked 'I'

3D diagram of a block with a curved arrow indicating direction, no text or symbols present

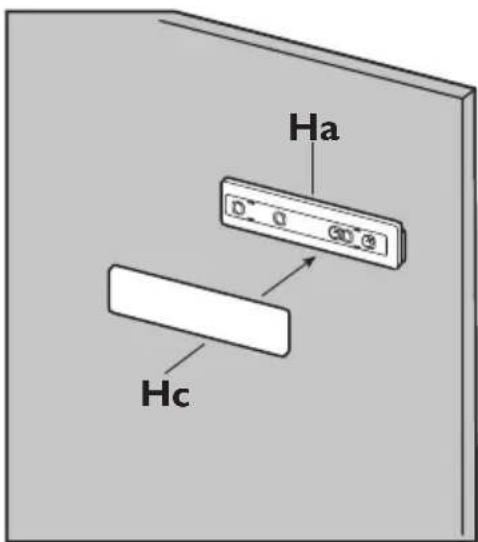

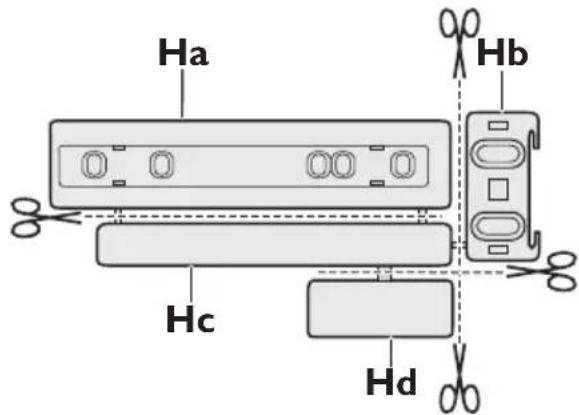

Ha Hb Hc Hd

8 mm Ha Hb

8 mm K Ha

Technical diagram of a mechanical assembly with two plates and a labeled component Hb (no text or symbols beyond label)

Simple diagram with a black circle and a warning sign inside a rounded rectangle (no text or symbols)

Line drawing of a hand holding a wooden beam with an upward arrow, no text or symbols present

Line drawing of a door frame with a curved panel and an arrow indicating upward motion (no text or symbols)

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Line drawing of a hand using a screwdriver to adjust or install a component on a metal bracket (no text or symbols)

TECHNISCHE GEGEVENS

Diagram showing a tool interacting with a mechanical component, with an arrow indicating direction (no text or symbols present)

Technical diagram showing mechanical assembly with magnified insets and component views

Ventilatievereisten

Technical diagram illustrating a door mechanism with labeled parts and directional arrows indicating movement or adjustment.

Diagram of a mechanical or electrical component with labeled parts 1 and 2, showing directional arrows indicating movement.

1. Stel het apparaat af in de nis.

Technical line drawing of a mechanical bracket assembly with two views (top and side), no text or symbols present.

3D diagram of a block with a curved arrow indicating direction, no text or symbols present

Ha Hb Hc Hd

8 mm Ha Hb

8 mm K Ha

Technical diagram of a mechanical bracket with two mounting holes and a labeled component Hb (no text or symbols beyond label)

HET MILIEU

Simple diagram with a black circle and a warning sign (no text or symbols)

Line drawing of a hand holding a wooden plank with an upward arrow, no text or symbols present

Line drawing of a door frame with a double tab and an arrow indicating upward motion (no text or symbols)

CONSEILS UTILES

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Line drawing of a hand using a tool to apply a component to a surface, with arrows indicating direction (no text or symbols)

Diagram showing a tool interacting with a mechanical component, with an arrow indicating direction (no text or symbols present)

Du côté opposé :

Technical diagram showing mechanical assembly with two views of a bolted component (no text or symbols)

Technical diagram illustrating door frame installation with magnified views and dimension labels

Technical diagram showing a 3D block with two labeled components (1 and 2) and directional arrows indicating flow or movement.

Technical diagram showing structural connection details with magnified insets and labeled component 'I'

3D diagram of a block with a curved arrow indicating direction, no text or symbols present

Technical diagram showing mechanical assembly with labeled components (D, C, E) and directional arrows indicating motion or assembly.

Ha Hb Hc Hd

8 mm Ha Hb

8 mm K Ha

Technical diagram of a mechanical assembly with two components labeled Hb, showing alignment between them (no text or symbols beyond label)

Helpful hints and tips 42

Care and Cleaning 43

What to do if... 43 41

Technical data 45

Installation

Environmental concerns 49

Subject to change without notice.

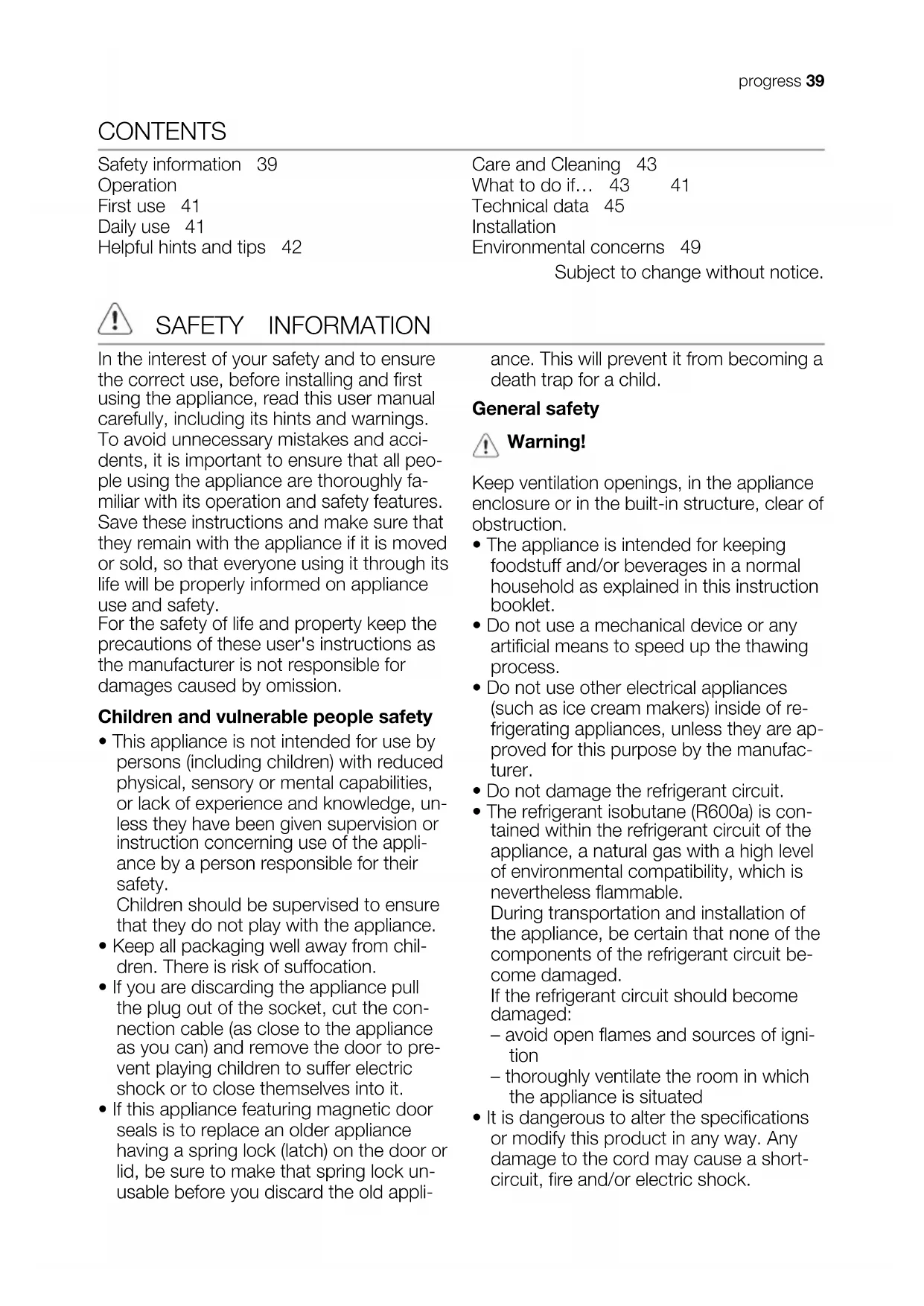

SAFETY INFORMATION

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Keep all packaging well away from children. There is risk of suffocation.

- If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appli-

ance. This will prevent it from becoming a death trap for a child.

General safety

Warning!

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
  During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
  If the refrigerant circuit should become damaged:
• avoid open flames and sources of ignition
  – thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

Warning! Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid hazard.

1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
3. Make sure that you can come to the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance without the lamp cover (if foreseen) of interior lighting.

7. This appliance is heavy. Care should be taken when moving it.

8. Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
9. Avoid prolonged exposure of the appliance to direct sunlight.
10. Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination.

Daily use

• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked,

water will collect in the bottom of the appliance.

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only (If a water connection is foreseen).

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appli-

ance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol 🌐 are recyclable.

OPERATION

Switching on

Insert the plug into the wall socket.

Turn the Temperature regulator clockwise to a medium setting.

Switching off

To turn off the appliance, turn the Temperature regulator to the "O" position.

Temperature regulation

The temperature is automatically regulated. To operate the appliance, proceed as follows:

• turn the Temperature regulator toward lower settings to obtain the minimum coldness.
• turn the Temperature regulator toward higher settings to obtain the maximum coldness.

i A medium setting is generally the most suitable.

However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

• room temperature
  • how often the door is opened
  • the quantity of food stored
  • the location of the appliance.

Important! If the ambient temperature is high or the appliance is fully loaded, and the appliance is set to the lowest temperatures, it may run continuously causing frost to form on the rear wall. In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption.

FIRST USE

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

DAILY USE

Important! this appliance is sold in France. In accordance with regulations valid in this country it must be provided with a special device (see figure) placed in the lower compartment of the fridge to indicate the coldest zone of it.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Simple diagram with a black circle and a warning symbol (no text or labels)

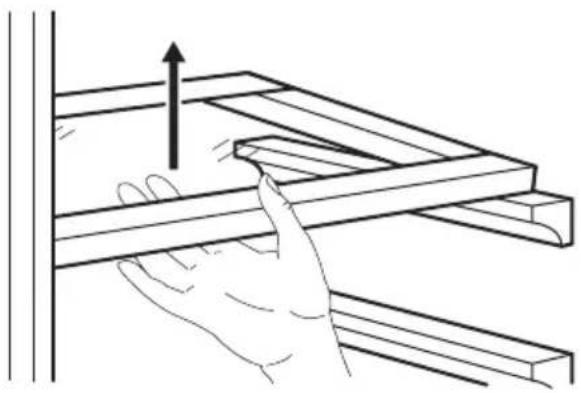

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Line drawing of a hand holding a wooden beam with an upward arrow, no text or symbols present

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

To make these adjustments proceed as follows:

gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required.

Line drawing of a door frame with a double tab and an arrow indicating upward motion (no text or symbols)

HELPFUL HINTS AND TIPS

Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour

- position foods so that air packed, must not be kept in the refrigerator.

Hints for refrigeration

Useful hints:

Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer.

For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

CARE AND CLEANING

Caution! Unplug the appliance before carrying out any maintenance operation.
This appliance contains hydrocarbons in its cooling unit; maintenance and re-charging must therefore only be carried out by authorized technicians.

Periodic cleaning

The equipment has to be cleaned regularly:

- clean the inside and accessories with lukewarm water and some neutral soap.

- regularly check the door seals and wipe clean to ensure they are clean and free from debris.

- rinse and dry thoroughly.

Important! Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption.

Important! Take care of not to damage the cooling system.

Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added.

After cleaning, reconnect the equipment to the mains supply.

Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates. It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping on-to the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole.

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

• disconnect the appliance from electricity supply
• remove all food
• defrost (if foreseen) and clean the appliance and all accessories
• leave the door/doors ajar to prevent unpleasant smells.

If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

WHAT TO DO IF...

Warning! Before troubleshooting, disconnect the mains plug from the mains socket.

Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible cause Solution
The appliance does not operate. The lamp does not operate.	The appliance is switched off. Switch on the appliance.
The mains plug is not connected to the mains socket correctly.		Connect the mains plug to the mains socket correctly.
The appliance has no power.	There is no voltage in the mains socket.	Connect a different electrical appliance to the mains socket. Contact a qualified electrician.
The lamp does not work.	The lamp is in stand-by.	Close and open the door.
	The lamp is defective.	Refer to "Replacing the lamp".
The compressor operates continually.	The temperature is not set correctly.	Set a higher temperature.
	The door is not closed correctly.	Refer to "Closing the door".
The door has been opened too frequently.		Do not keep the door open longer than necessary.
The product temperature is too high.		Let the product temperature decrease to room temperature before storage.
The room temperature is too high.		Decrease the room temperature.
Water flows on the rear plate of the refrigerator.	During the automatic defrosting process, frost defrosts on the rear plate.	This is correct.
Water flows into the refrigerator.	The water outlet is clogged. Clean the water outlet.
Products prevent that water flows into the water collector.		Make sure that products do not touch the rear plate.
Water flows on the ground.	The melting water outlet does not flow in the evaporative tray above the compressor.	Attach the melting water outlet to the evaporative tray.
The temperature in the appliance is too low.	The temperature regulator is not set correctly.	Set a higher temperature.
The temperature in the appliance is too high.	The temperature regulator is not set correctly.	Set a lower temperature.

Replacing the lamp

1. Disconnect the mains plug from the mains socket.
2. Remove the screw from the lamp cover.
3. Remove the lamp cover (refer to the illustration).

4. Replace the used lamp with a new lamp of the same power and specifically designed for household appliances. (the maximum power is shown on the lamp cover).

5. Install the lamp cover.

6. Tighten the screw to the lamp cover.
7. Connect the mains plug to the mains socket.
8. Open the door. Make sure that the lamp comes on.

Line drawing of a hand using a screwdriver to apply a screwdriver to a component on a metal bracket (no text or symbols)

Closing the door

1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "Installation".
3. If necessary, replace the defective door gaskets. Contact the Service Center.

TECHNICAL DATA

Dimension of the recess
Height 1225 mm
Width 560 mm
Depth 550 mm
Voltage 230-240 V
Frequency 50 Hz

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

INSTALLATION

Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appli-

ance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not ob-served.

This appliance complies with the E.E.C. Directives.

Door reversibility

The door of the appliance opens to the right. If you want to open the door to the left, follow these steps before you install the appliance:

1. Loosen and remove the upper pin.
2. Remove the door.
3. Remove the spacer.
4. With a key, loosen the lower pin.

Diagram showing a tool interacting with a mechanical component, with arrows indicating direction (no text or symbols present)

On the opposite side:

1. Tighten the lower pin.
2. Install the spacer.
3. Install the door.
4. Tighten the upper pin.

Technical diagram showing mechanical assembly with magnified views of a bolt and bracket components

Ventilation requirements

The airflow behind the appliance must be sufficient.

min. 200 cm² min. 200 cm²

Installing the appliance

Caution! Make sure that the mains cable can move freely.

Do the following steps:

1. If necessary cut the adhesive sealing strip and then apply it to the appliance as shown in figure.

Technical diagram illustrating mechanical assembly steps with magnified views and dimension labels

1. Install the appliance in the niche. Push the appliance in the direction of the arrows (1) until the upper gap cover stops against the kitchen furniture. Push the appliance in the direction of the arrows (2) against the cupboard on the opposite side of the hinge.

Technical diagram showing a 3D block with two labeled components (1 and 2) and directional arrows indicating flow or movement.

1. Adjust the appliance in the niche. Make sure that the distance between the appliance and the cupboard front-edge is 44 mm. The lower hinge cover (in the accessories bag) makes sure that the distance between the appliance and the kitchen furniture is correct. Make sure that the clearance between the appliance and the cupboard is 4 mm. Open the door. Put the lower hinge cover in position.

4mm 44mm

1. Attach the appliance to the niche with 4 screws.

Technical diagram showing two views of a structural connection with mounting brackets and anchor bolts (no text or symbols)

1. Remove the correct part from the hinge cover (E). Make sure to remove the part DX, in the case of right hinge, SX in opposite case.

3D diagram of a rectangular block with a dashed line and a black arrow pointing downward (no text or symbols)

1. Attach the covers (C, D) to the lugs and the hinge holes.

Attach the hinge covers (E) to the hinge.

Technical diagram showing mechanical assembly with labeled components (D, C, E) and directional arrows indicating movement or force.

1. Disconnect the parts (Ha), (Hb), (Hc) and (Hd).

Ha Hb Hc Hd

1. Install the part (Ha) on the inner side of the kitchen furniture.

ca. 50 mm 90° 21 mm 90° ca. 50 mm 21 mm

1. Push the part (Hc) on the part (Ha).

Ha Hc

1. Open the appliance door and the kitchen furniture door at an angle of 90^ . Insert the small square (Hb) into guide (Ha). Put together the appliance door and the furniture door and mark the holes.

8 mm Ha Hb

1. Remove the brackets and mark a distance of 8 mm from the outer edge of the door where the nail must be fitted (K).

8 mm K Ha

1. Place the small square on the guide again and fix it with the screws supplied. Align the kitchen furniture door and the appliance door by adjusting the part Hb.

Technical diagram of a mechanical assembly with two mounting holes and a labeled component Hb (no text or symbols beyond label)

1. Press the part (Hd) on the part (Hb).

Hb Hd

Do a final check to make sure that:

• All screws are tightened.
• The magnetic sealing strip is attached tightly to the cabinet.
• The door opens and closes correctly.

ENVIRONMENTAL CONCERNS

The symbol 📀 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this

product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please

contact your local council, your household waste disposal service or the shop where you purchased the product.
