USER MANUAL FN 130920 BEKO

FN 130920 FN 130930 Refrigerator Kühlschrank/Gefrierschrank Congélateur/Réfrigérateur Koelkast FrigoriferoPlease read this manual first! Dear Customer, We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service. For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references. This manual

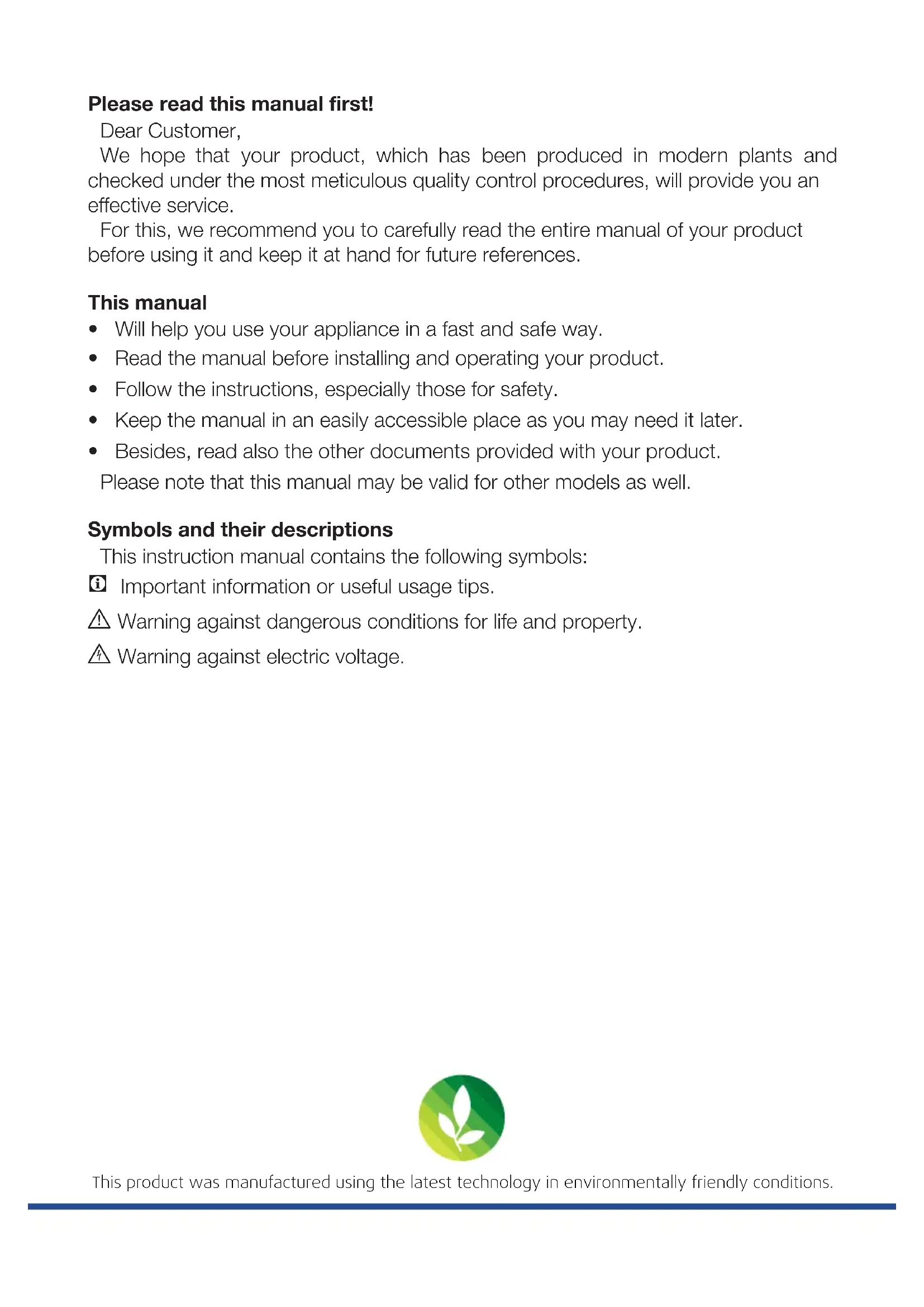

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product. Please note that this manual may be valid for other models as well. Symbols and their descriptions This instruction manual contains the following symbols: C Important information or useful usage tips. A Warning against dangerous conditions for life and property. B Warning against electric voltage. www.beko.com This product was manufactured using the latest technology in environmentally friendly conditions.EN

• 1 Your Freezer 3 2 Important Safety Warnings 4 Intended use p. 4
• For products with a water dispenser; .6 Child safety p. 6
• Compliance with WEEE Directive and Disposing of the Waste Product: p. 6
• Compliance with RoHS Directive: p. 7
• Package information p. 7
• HCA Warning p. 7
• Things to be done for energy saving p. 7
• 3 Installation 8 Points to be considered when re- transporting your refrigerator p. 8
• Before operating your refrigerator p. 8
• Disposing of the packaging p. 9
• Disposing of your old refrigerator p. 9
• Placing and Installation p. 9
• 4 Preparation 10 Adjusting the feet p. 11
• Open door warning p. 11
• 5 Using your refrigerator 13 Setting the operating temperature p. 13
• Freezing p. 14
• Ice Pack p. 15
• Freezing fresh food p. 16
• Recommendations for preservation of frozen food p. 16
• Placing the food p. 17
• Deep-freeze information p. 17
• 6 Maintenance and cleaning 18 Protection of plastic surfaces 7 Recommended solutions for the problems 19 CONTENTSEN p. 18

C Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

4. Adjustable front feet

2 Important Safety Warnings Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid. The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described. Intended use This product is intended to be used

• indoors and in closed areas such as homes;

• in closed working environments such as stores and offices;

• in closed accommodation areas such as farm houses, hotels, pensions.

• This product should not be used outdoors. General safety

• When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.

• Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

• For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

• For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

• Do not touch frozen food by hand; they may stick to your hand.

• Unplug your refrigerator before cleaning or defrosting.

• Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

• Never use the parts on your refrigerator such as the door as a means of support or step.

• Do not use electrical devices inside the refrigerator.

• Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

• Do not cover or block the ventilation holes on your refrigerator with any material.

• Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.EN

• In case of any failure or during a maintenance or repair work, disconnect your refrigerator’s mains supply by either turning off the relevant fuse or unplugging your appliance.

• Do not pull by the cable when pulling off the plug.

• Place the beverage with higher proofs tightly closed and vertically.

• Never store spray cans containing flammable and explosive substances in the refrigerator.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product

• Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.

• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.

• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.

• Contact authorized service when there is a power cable damage to avoid danger.

• Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.

• This refrigerator is intended for only storing food items. It must not be used for any other purpose.

• Label of technical specifications is located on the left wall inside the refrigerator.

• Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.

• If there is a blue light on the refrigerator, do not look at the blue light with optical tools.

• For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.

• This operation manual should be handed in to the new owner of the product when it is given to others.

• Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product.

• Do not plug the refrigerator if the wall outlet is loose.EN

• Water should not be sprayed directly on inner or outer parts of the product for safety purposes.

• Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.

• Never place containers filled with water on top of the refrigerator, otherwise this may cause electric shock or fire.

• Do not overload your refrigerator with excessive amounts of food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door. Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.

• As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.

• If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.

• The plug's tip should be regularly cleaned; otherwise, it may cause fire.

• The plug’s tip should be cleaned regularly with a dry cloth; otherwise, it may cause fire.

• Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.

• When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.

• When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified. For products with a water dispenser; Pressure of water mains should be minimum 1 bar. Pressure of water mains should be maximum 8 bars.

• Use only potable water. Child safety

• If the door has a lock, the key should be kept away from reach of children.

• Children must be supervised to prevent them from tampering with the product. Compliance with WEEE Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.EN

Compliance with RoHS Directive: The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive. Package information Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities. HCA Warning If your product's cooling system contains R600a: This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed. Ignore this warning if your product's cooling system contains R134a. Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator. Never throw the product in fire for disposal. Things to be done for energy saving

• Do not leave the doors of your refrigerator open for a long time.

• Do not put hot food or drinks in your refrigerator.

• Do not overload your refrigerator so that the air circulation inside of it is not prevented.

• Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.

• Pay attention to keep your food in closed containers.

• For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.

• Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.EN

3 Installation B Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed. Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be

emptied and cleaned prior to any transportation.

2. Shelves, accessories, crisper and etc.

in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.

3. Packaging must be tied with thick

tapes and strong ropes and the rules of transportation printed on the package must be followed. Please do not forget… Every recycled material is an indispensable source for the nature and for our national resources. If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities. Before operating your refrigerator Before starting to use your refrigerator check the following:

1. Is the interior of the refrigerator dry

and can the air circulate freely in the rear of it?

2. Please install the 2 plastic wedges

as illustrated in the figure. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation. (The illustrated figure is only an example and does not match exactly with your product.)

3. Clean the interior of the refrigerator as

recommended in the “Maintenance and cleaning” section.

4. Plug the refrigerator into the wall

outlet. When the fridge door is open, the fridge compartment interior light will come on.

5. You will hear a noise as the

compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.

6. Front edges of the refrigerator may

feel warm. This is normal. These areas are designed to be warm to avoid condensation.EN

Electric connection Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity. Important:

• The connection must be in compliance with national regulations.

• The power cable plug must be easily accessible after installation.

• The specified voltage must be equal to your mains voltage.

• Extension cables and multiway plugs must not be used for connection. B A damaged power cable must be replaced by a qualified electrician. B Product must not be operated before it is repaired! There is danger of electric shock! Disposing of the packaging The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions. Do not dispose of them along with the normal household waste. The packing of your refrigerator is produced from recyclable materials. Disposing of your old refrigerator Dispose of your old refrigerator without giving any harm to the environment.

• You may consult your authorised dealer or waste collection center of your municipality about the disposal of your refrigerator. Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger. Placing and Installation A If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorised service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that

2. Keep your refrigerator away from heat

sources, humid places and direct sunlight.

3. There must be appropriate air

ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. If the floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.

4. Place your refrigerator on an even

• Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.

• It ‘s recommended to place ice- acumulator directly on the food at the top compartment for energy saving.

• Please make sure that the interior of your refrigerator is cleaned thoroughly.

• If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.

• When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

• The door should not be opened frequently.

• It must be operated empty without any food in it.

• Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

• Original packaging and foam materials should be kept for future transportations or moving.

• This appliance is designed to operate at temperatures specified in the table below is equipped with Advanced Electronic Temperature Control System [AETCS] which ensures that at the advised setting [4 - four on the knob] the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. When first installed the product MUST NOT be placed in low ambient temperatures because the freezer will not reduce to it’s standard operating temperature. Once it has reached its steady operating state it can be re-located. So you may then install your appliance in a garage or an unheated room without having to worry about frozen food in the freezer being spoilt. However at low ambient temperatures mentioned above, fridge contents are likely to freeze, so check and consume food in the fridge accordingly. When the ambient temperature returns to normal, you may change the knob setting to suit your needs.

• If the ambient temperature is below 0°C, the food in the fridge compartment will freeze.So, we recommend you don’t use the fridge compartment in such low ambient conditions. You can continue using the freezer compartment as usual.EN

Adjusting the feet If your refrigerator is unbalanced; You can balance your refrigerator by turning the front legs as shown in the illustration below. The corner where the leg exists is lowered when you turn it in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process. Open door warning An audio warning will be given when the fridge or freezer compartment door of your product is left open for a certain period of time. This audio warning signal will mute when any button on the indicator is pressed or when the door is closed.EN

5 Using your refrigerator Setting the operating temperature Warm Cold The operating temperature is regulated by the temperature control. 1 = Lowest cooling setting (Warmest setting) MAX. = Highest cooling setting (Coldest setting)

• Additionaly activities quıck fridge function . Please choose the setting according to the desired temperature. The interior temperature also depends on ambient temperature, the frequency with which the door is opened and the amount of foods kept inside. Frequently opening the door causes the interior temperature to rise. For this reason, it is recommended to close the door again as soon as possible after use. The normal storage temperature of your appliance should be -18 °C (0 °F). Lower temperatures can be obtained by adjusting the thermostat knob towards Position MAX. We recommend checking the temperature with a thermometer to ensure that the storage compartments are kept to the desired temperature. Remember to take the reading immediately since the thermometer temperature will rise very rapidly after you remove it from the freezer.EN

Thermostat knob The thermostat knob is located on the top trim. Important: When you press the fast-freeze switch or adjust the set temperature, there may be a short delay before the compressor starts to operate. This is normal and not a compressor fault. Freezing Freezing food You can use the appliance for freezing fresh food as well as for storing pre- frozen food. Please refer to the recommendations given on the packaging of your food.

• Attention Do not freeze fizzy drinks, as the bottle may burst when the liquid in it is frozen. Be careful with frozen products such as coloured ice-cubes. Do not exceed the freezing capacity of your appliance in 24 hours. See the rating label. In order to maintain the quality of the food, the freezing must be effected as rapidly as possible. Thus, the freezing capacity will not be exceeded, and the temperature inside the freezer will not rise.

• Attention Keep the already deep-frozen food always separated with freshly placed food. When deep-freezing hot food, the cooling compressor will work until the food is completely frozen. This can temporarily cause excessive cooling of the refrigeration compartment. If you find the freezer door difficult to open just after you have closed it, don’t worry. This is due to the pressure difference which will equalize and allow the door to open normally after a few minutes. You will hear a vacuum sound just after closing the door. This is quite normal.EN

Fast freeze If large amounts of fresh food are going to be frozen, adjust the control knob to max. 24 hours before putting the fresh food in the fast freeze compartment. It is strongly recommended to keep the knob at MAX. position at least 24 hours to freeze maximum amount of fresh food declared as freezing capacity. Take special care not to mix frozen food and fresh food. Remember to turn the thermostat knob back to its previous position once food has frozen. You can freeze the amount of fresh food whıch is indicated on rating label of your freezer, by following below steps

1. Active”quıck freeze function” at least

24 hour before loading fresh food.

3. Place fresh food on the shelves of

2 nd&3rd from the bottom (maximum capacıty is achieved by removing the drawers. Ice Pack Ice subsitute pack decelerates thawing of stored frozen food in case of blackout or malfunction. Placing the pack directly on top of the food will enable the longest storing period. Ice substitute pack can also be used to keep food temporarily cold, e.g. in a cooler bag.EN

• It must be preferred to wrap or cover the food before placing them in the refrigerator.

• Hot food must cool down to the room temperature before putting them in the refrigerator.

• The foodstuff that you want to freeze must be fresh and in good quality.

• Foodstuff must be divided into portions according to the family’s daily or meal based consumption needs.

• The foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.

• Materials to be used for packaging must be tear-proof and resistant to cold, humidity, odor, oils and acids and they must also be airtight. Moreover, they must be well closed and they must be made from easy- to-use materials that are suitable for deep freeze usage.

• Frozen food must be used immediately after they are thawed and they should never be re-frozen.

• Please observe the following instructions to obtain the best results.

1. Do not freeze too large quantities

of food at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.

2. Placing warm food into the freezer

compartment causes the cooling system to operate continuously until the food is frozen solid.

3. Take special care not to mix already

frozen food and fresh food. Recommendations for preservation of frozen food

• Prepacked commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a ( 4 star) frozen food storage compartment.

• To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:

1. Put packages in the freezer as quickly

as possible after purchase.

2. Ensure that contents are labeled and

Before" dates on the packaging. Defrosting The freezer compartment defrosts automatically.EN

Placing the food Freezer compartment shelves Various frozen food such as meat, fish, ice cream, vegetables and etc. Egg tray Egg Fridge compartment shelves Food in pans, covered plates and closed containers Fridge compartment door shelves Small and packaged food or drinks (such as milk, fruit juice and beer) Crisper Vegetables and fruits Freshzone compartment Delicatessen products (cheese, butter, salami and etc.) Deep-freeze information Food must be frozen as rapidly as possible when they are put in a refrigerator in order to keep them in good quality. The TSE norm requires (according to certain measurement conditions) the refrigerator to freeze at least 4.5 kg of foodstuff at 32°C ambient temperature to -18°C or lower within 24 hours for every 100-liters of freezer volume. It is possible to keep the food for a long time only at -18°C or lower temperatures. You can keep the freshness of food for many months (at -18°C or lower temperatures in the deep freeze). WARNING! A

• Foodstuff must be divided into portions according to the family’s daily or meal based consumption needs.

• Foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.

• Materials necessary for packaging:

• Pen Materials to be used for packaging the foodstuff must be tear-proof and resistant to cold, humidity, odor, oils and acids. Foodstuff to be frozen should not be allowed to come in contact with the previously frozen items to prevent their partial thawing. Frozen food must be used immediately after they are thawed and they should never be re-frozen.EN

6 Maintenance and cleaning A Never use gasoline, benzene or similar substances for cleaning purposes. B We recommend that you unplug the appliance before cleaning. B Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning. C Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry. C Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry. B Make sure that no water enters the lamp housing and other electrical items. B If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar. C Check door seals regularly to ensure they are clean and free from food particles. A To remove door racks, remove all the contents and then simply push the door rack upwards from the base. ANever use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces. Protection of plastic surfaces C Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.EN

7 Recommended solutions for the problems Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product. The refrigerator does not operate.

• Istherefrigeratorproperlypluggedin?Inserttheplugtothewallsocket.

• Isthefuseofthesocketwhichyourrefrigeratorisconnectedtoorthemainfuse blown out? Check the fuse. Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

• Verycoldambientconditions.Frequentopeningandclosingofthedoor.Highly humid ambient conditions. Storage of food containing liquid in open containers. Leaving the door ajar. Switching the thermostat to a colder degree.

• Decreasingthetimethedoorleftopenorusingitlessfrequently.

• Protectivethermicofthecompressorwillblowoutduringsuddenpower failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. Your refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.

• Powermightbecutoff.EN

The fridge is running frequently or for a long time.

• Yournewproductmaybewiderthanthepreviousone.Thisisquitenormal. Large refrigerators operate for a longer period of time.

• Theambientroomtemperaturemaybehigh.Thisisquitenormal.

• Therefrigeratormighthavebeenpluggedinrecentlyormighthavebeenloaded with food. Cooling down of the refrigerator completely may last for a couple of hours longer.

• Largeamountsofhotfoodmighthavebeenputintherefrigeratorrecently.Hot food causes longer running of the refrigerator until they reach the safe storage temperature.

• Doorsmighthavebeenopenedfrequentlyorleftajarforalongtime.Thewarm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently.

• Freezerorfridgecompartmentdoormighthavebeenleftajar.Checkifthedoors are tightly closed.

• Therefrigeratorisadjustedtoaverylowtemperature.Adjusttherefrigerator temperature to a warmer degree and wait until the temperature is achieved.

• Doorsealofthefridgeorfreezermaybesoiled,wornout,brokenornotproperly seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature. Freezer temperature is very low while the fridge temperature is sufficient.

• Thefreezertemperatureisadjustedtoaverylowtemperature.Adjustthefreezer temperature to a warmer degree and check. Fridge temperature is very low while the freezer temperature is sufficient.

• Thefridgetemperaturemighthavebeenadjustedtoaverylowtemperature. Adjust the fridge temperature to a warmer degree and check. Food kept in the fridge compartment drawers are freezing.

• Thefridgetemperaturemighthavebeenadjustedtoaverylowtemperature. Adjust the fridge temperature to a warmer degree and check.EN

Temperature in the fridge or freezer is very high.

• Thefridgetemperaturemighthavebeenadjustedtoaveryhighdegree. Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches to a sufficient level.

• Doorsmighthavebeenopenedfrequentlyorleftajarforalongtime;openthem less frequently.

• Doormighthavebeenleftajar;closethedoorcompletely.

• Largeamountofhotfoodmighthavebeenputintherefrigeratorrecently.Wait until the fridge or freezer reaches the desired temperature.

• Therefrigeratormighthavebeenpluggedinrecently.Coolingdownofthe refrigerator completely takes time. The operation noise increases when the refrigerator is running.

• Theoperatingperformanceoftherefrigeratormaychangeduetothechangesin the ambient temperature. It is normal and not a fault. Vibrations or noise.

• Thefloorisnotevenoritisweak.Therefrigeratorrockswhenmovedslowly. Make sure that the floor is strong enough to carry the refrigerator, and level.

• Thenoisemaybecausedbytheitemsputontotherefrigerator.Itemsontopof the refrigerator should be removed. There are noises coming from the refrigerator like liquid spilling or spraying.

• Liquidandgasflowshappeninaccordancewiththeoperatingprinciplesofyour refrigerator. It is normal and not a fault. There is a noise like wind blowing.

• Doorsmighthavebeenleftajar;makesurethatthedoorsareclosedfully.

• Doorsmighthavebeenopenedfrequentlyorleftajarforalongtime;openthem less frequently.EN

www.bek o.com Humidity occurs on the outside of the refrigerator or between the doors.

• Theremightbehumidityintheair;thisisquitenormalinhumidweather.When the humidity is less, condensation will disappear. Bad odour inside the refrigerator.

• Insideoftherefrigeratormustbecleaned.Cleantheinsideoftherefrigeratorwith a sponge, lukewarm water or carbonated water.

• Somecontainersorpackagematerialsmightcausethesmell.Useadifferent container or different brand packaging material. The door is not closing.

• Foodpackagesmaypreventthedoor'sclosing.Replacethepackagesthatare obstructing the door.

• Therefrigeratorisnotcompletelyuprightonthefloorandrockingwhenslightly moved. Adjust the elevation screws.

• Thefloorisnotlevelorstrong.Makesurethatthefloorislevelandcapableto carry the refrigerator. Crispers are stuck.
