Brand	Blomberg
Model	BRFB 1812 SSN
Product type	Fridge-freezer with 4-star freezer compartment

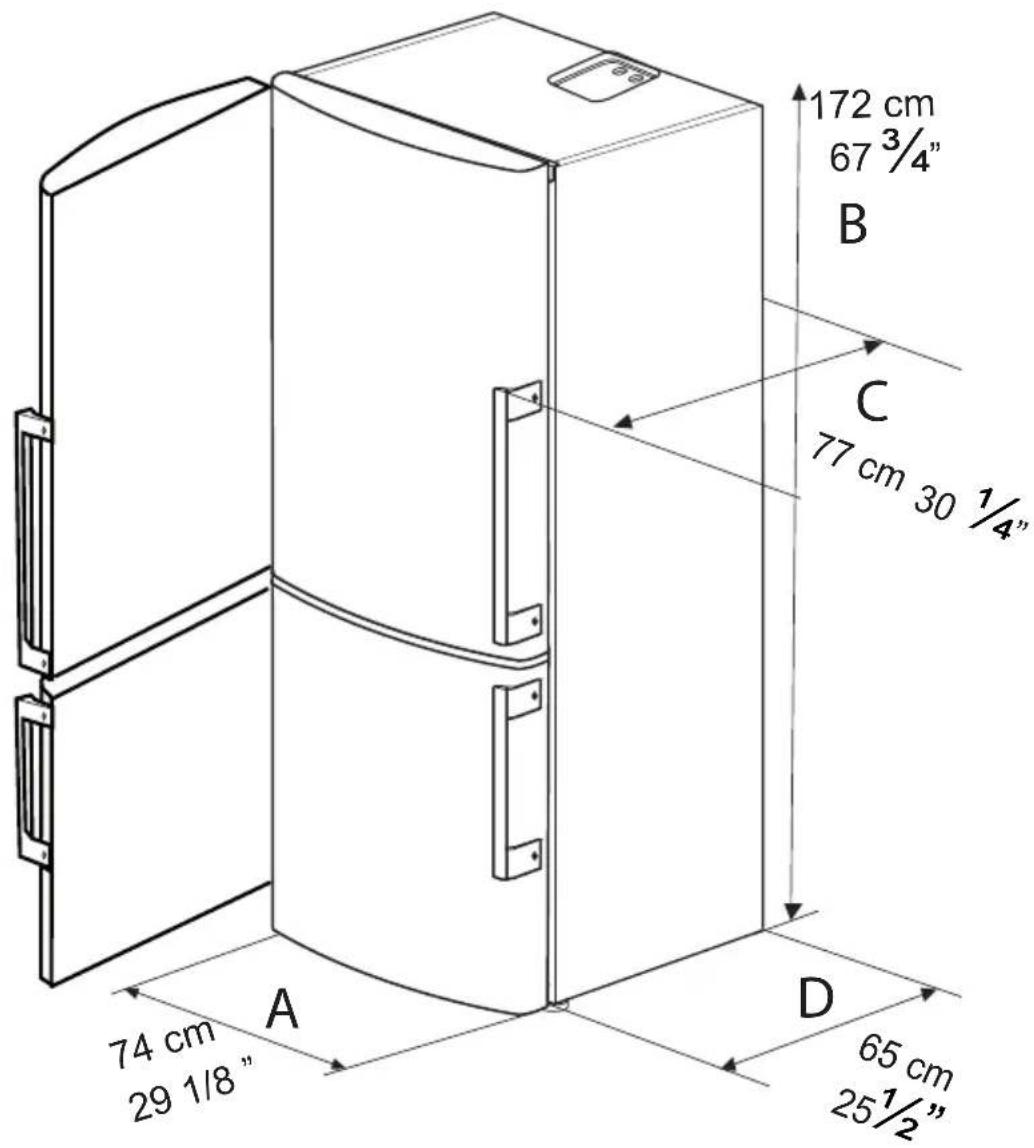

Dimensions (H x W x D)	172 x 74 x 77 cm
Net weight	94.6 kg
Gross weight	101.5 kg
Power supply	220-240 V ~ 50 Hz
Refrigerant	R600a (flammable)
Cooling system	Dual (Dual Cooling) – separate fridge and freezer compartments
Defrost	Automatic (freezer compartment)
Interior lighting	LED (do not replace yourself)
Ice maker	Automatic (on some models)
Odor filter	Yes, cleanable once a year (exposure to sunlight)
Vacation function	Yes (stops cooling in the fridge)
Open door alarm	Yes (1 minute)
Electronic display	Yes, with temperature and malfunction indicators
Door reversibility	No
Egg tray	Yes
Vegetable drawer	Yes, with Blue Light to preserve vitamins
Maintenance	Interior cleaning: warm water and baking soda; exterior surfaces: damp microfiber cloth
Warranty	1 year parts and labor (according to terms)

Frequently Asked Questions - BRFB 1812 SSN BLOMBERG

How to activate the Vacation function?

Press the Vacation button for 3 seconds. The screen displays '- -' in the refrigerator compartment. The other compartments continue cooling.

What to do if the screen displays 'E' and a number?

This is an error code indicating a malfunction. Note the displayed number (e.g., E1, E2) and contact an authorized service center.

How to clean the odor filter?

Pull the filter cover to remove it, expose it to direct sunlight for a day, then put it back. Perform this operation once a year.

What is the ideal freezer temperature?

The recommended temperature is -18 °C (Economy mode) or lower as needed, down to -24 °C.

How to adjust the temperature?

Use the compartment selection button to choose fridge or freezer, then press the temperature adjustment button to change the value (in 1 °C increments).

What to do if the fridge is not cooling?

Check that the plug is connected, the fuse hasn't blown, and the temperature is not set too high. If the compressor doesn't start, wait 6 minutes after a power outage.

How to defrost the freezer compartment?

Defrosting is automatic. No manual intervention is needed. If frost persists, check that the door closes properly.

Are the doors reversible?

No, the doors of this model are not reversible.

How to use the ice maker?

Connect the water supply hose (if provided). The first ice cubes will be ready in about 4 hours. Use the ice drawer to collect them. Do not pour water into the tray.

What is the warranty period?

The full warranty is 1 year parts and labor from the installation date. For some components (compressor, evaporator), the parts warranty may extend up to 5 years.

USER MANUAL BRFB 1812 SSN BLOMBERG

Simple line drawing of a refrigerator with two vertical bars (no text or symbols)

BRFB1812SSL

BRFB1822SSL

BRFB1822SS

BRFB1812SS

BRFB1822WH

BRFB1822SSN

BRFB1822SSLN

BRFB1812SSN

BRFB1812SSLN

BRFB1800WHIM

BRFB1800SSIM

BRFB1800SS

Red maple leaf illustration on white background (no text or symbols)

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
  Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

i Important information or useful tips.

⚠ Warning against dangerous conditions for life and property.

⚠ Warning against electric voltage.

CONTENTS

1 Refrigerator 3

2 Important Safety Warnings 5

Intended use ....5

For products with a water dispenser; .7

Child safety 7

Compliance with WEEE Directive and

Disposing of the Waste Product: .....7

Compliance with RoHS Directive: .....8

Package information 8

HCA Warning 8

Things to be done for energy saving ..9

Recommendations for the fresh food compartment ....9

3 Installation 10

Points to be considered when re-transporting your refrigerator .....10

Before operating your refrigerator ....10

Electric connection ....10

Disposing of the packaging .....11

Disposing of your old refrigerator .....11

Placing and Installation .....11

Adjusting the legs 11

Changing the illumination lamp .....11

Changing the door opening direction 11

4 Preparation 12

5 Using your refrigerator 15

Indicator panel 15

5 Using your refrigerator 17

Indicator panel 17

Door Open Warning 19

Freezing fresh food 19

Recommendations for preservation of frozen food ....20

Placing the food 20

Egg section 21

Blue light 21

Ice Machine 21

Description and cleaning of odor filter 22

6 Maintenance and cleaning 23

Protection of plastic surfaces .....23

7. Troubleshooting 24

1 Refrigerator

BRFB1822SSN

BRFB1812SSN

BRFB1812SS

BRFB1822SS

BRFB1822WH

BRFB1800SSIM

BRFB1800SS

13 14 *10 *9 *8 *7 *6 *5 *3 *2 12

1. Egg holder
2. Fridge compartment shelf
3. Bottle shelf
4. Freezer compartment drawers
5. Ice container
6. Ice machine

7. Drawer

8. Crisper

9. Adjustable glass shelves
10. Bottle holder
11. Illumination lens
12. Fan
13. Fridge compartment
14. Freezer compartment

\*OPTIONAL

i Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

BRFB1822SSLN

BRFB1812SSLN

BRFB1822SSL

BRFB1812SSL

BRFB1800WHIM

1 2 3 4 5 6 7 8* 9 10 11 12 13 14

1. Egg holder
2. Fridge compartment shelf
3. Bottle shelf
4. Freezer compartment drawers
5. Ice container
6. Ice machine

7. Drawer

8. Crisper

9. Adjustable glass shelves
10. Bottle holder
11. Illumination lens
12. Fan
13. Fridge compartment
14. Freezer compartment

\*OPTIONAL

i Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.

Intended use

— WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in

structure, clear of obstruction.

- WARNING: Do not use mechanical devices or other means to accelerate the defrosting

process, other than those recommended by the manufacturer.

- WARNING: Do not damage the refrigerant circuit.

NOTE : This warning is only applicable to appliances with refrigerating circuits which are accessible to the

user.

- WARNING: Do not use electrical appliances inside the food storage compartments of the

appliance, unless they are of the type recommended by the manufacturer.

This appliance is intended to be used in household and similar applications such as

– staff kitchen areas in shops, offices and other working environments;

– farm houses and by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;
  – catering and similar non-retail applications.

General safety

• When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.
• Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.
• For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)
• For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.
• Do not touch frozen food by hand; they may stick to your hand.
• Unplug your refrigerator before cleaning or defrosting.
• Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

• Never use the parts on your refrigerator such as the door as a means of support or step.

• Do not use electrical devices inside the refrigerator.

• Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.
• Do not cover or block the ventilation holes on your refrigerator with any material.
• Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.
• In case of any failure or during a maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.
• Do not pull by the cable when pulling off the plug.
• Place the beverage with higher proofs tightly closed and vertically.
• Never store spray cans containing flammable and explosive substances in the refrigerator.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product

- Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.

- Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.

- Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.

- Contact authorized service when there is a power cable damage to avoid danger.

- Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.

- This refrigerator is intended for only storing food items. It must not be used for any other purpose.

- Label of technical specifications is located on the left wall inside the refrigerator.

- Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.

- If there is a blue light on the refrigerator, do not look at the blue light with optical tools.

- For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.

- This operation manual should be handed in to the new owner of the product when it is given to others.

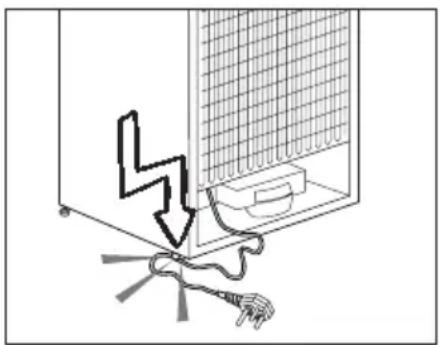

- Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

• Do not plug the refrigerator if the wall outlet is loose.
• Water should not be sprayed directly on inner or outer parts of the product for safety purposes.
• Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.
• Never place containers filled with water on top of the refrigerator, otherwise this may cause electric shock or fire.
• Do not overload your refrigerator with excessive amounts of food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door. Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.
• As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.
• If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.

• Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.

• When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.

• When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.

For products with a water dispenser;

• Pressure for cold water inlet shall be maximum 90 psi (620 kPa). If your water pressure exceeds 80 psi (550 kPa), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.
• Use only potable water.

Child safety

• If the door has a lock, the key should be kept away from reach of children.
• Children must be supervised to prevent them from tampering with the product.

Compliance with WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE

Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This product has been manufactured with

high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and

electronic equipment. Please consult your local authorities to learn about these collection centers.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

⚠️DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

• Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.

HCA Warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

⚠️DANGER – Risk Of Fire or Explosion. Flammable Refrigerant Used. Do Not Use Mechanical Devices To Defrost Refrigerator. Do Not Puncture Refrigerant Tubing”.

⚠️DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing".

⚠️CAUTION – Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair Manual/Owner’s Guide Before Attempting To Service This Product. All Safety Precautions Must be Followed.

⚠️CAUTION – Risk Of Fire Or Explosion. Dispose Of Properly In Accordance With Federal Or Local Regulations. Flammable Refrigerant Used.

⚠️CAUTION– Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling Instructions Carefully. Flammable Refrigerant Used”.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

Things to be done for energy saving

• Do not leave the doors of your refrigerator open for a long time.
• Do not put hot food or drinks in your refrigerator.
• Do not overload your refrigerator so that the air circulation inside of it is not prevented.
• Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.
• Pay attention to keep your food in closed containers.
• For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.
• Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

Recommendations for the fresh food compartment \*May not be available in all models

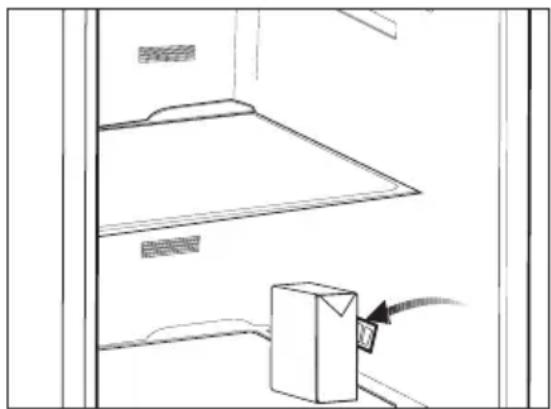

Do not allow the food to touch the temperature sensor in fresh food compartment. To allow the fresh food compartment keep its ideal storage temperature, sensor must not be hindered by food.

Do not place hot foods in the product.

Line drawing of a cabinet interior with a box and cable inserted (no text or symbols)

3 Installation

⚠️ Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation.
2. Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.
3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget...

Every recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1. Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?
2. Please keep 50 mm distance between the backside of the refrigerator and the wall"

3. Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section.

4. Plug the refrigerator into the wall outlet. When the fridge door is open, the fridge compartment interior light will come on.

5. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
6. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

• The connection must be in compliance with national regulations.
• The power cable plug must be easily accessible after installation.
• The specified voltage must be equal to your mains voltage.
• Extension cables and multiway plugs must not be used for connection.

A damaged power cable must be replaced by a qualified electrician.

⚠️ Product must not be operated before it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions stated by your local authorities. Do not dispose of them along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

- You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

⚠️ If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorized service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows ease of use.

2. Keep your refrigerator away from heat sources, humid places and direct sunlight.

3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 50 mm distance with the ceiling and at least 50 mm with the wall. If the floor is covered with a carpet, your product must be elevated 25 mm from the floor.

4. Place your refrigerator on an even floor surface to prevent jolts.

Adjusting the legs

If your refrigerator is unbalanced; You can balance your refrigerator by turning its front legs as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion (no text or symbols)

Changing the illumination lamp

To change the Bulb/LED used for illumination of your refrigerator, call your Authorized Service.

Changing the door opening direction

⚠ This product's doors could not be reversible.

4 Preparation

i Your refrigerator should be installed at least 300 mm away from heat sources such as hobs, ovens, central heater and stoves and at least 50 mm away from electrical ovens and should not be located under direct sunlight.
The ambient temperature of the room where you install your refrigerator should at least be 10^ C. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency.
i Please make sure that the interior of your refrigerator is cleaned thoroughly.
If two refrigerators are to be installed side by side, there should be at least 20 mm distance between them.
When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

- The door should not be opened frequently.

- It must be operated empty without any food in it.

- Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

i Original packaging and foam materials should be kept for future transportations or moving.

172 cm 67 3/4" B 77 cm 30 1/4" C D 65 cm 25 1/2" A 74 cm 29 1/8"

(B) Height (cm/inch) unpacked	172 - 67 34"
(A) Width (cm/inch) unpacked	74 -29 1/8"
(C) Depth (cm/inch) unpacked(with door handle)	77 - 30 14"
(B) Height (cm/inch)packed	182.6-28 3/8 "
(A) Width (cm/inch)packed	81.3 -32 "
(C) Depth (cm/inch) packed	77.6-30 1/2"
Gross Weight (Kg) /lbs	101.5 -223.3
Net Weight (Kg) /lbs	94.6 -208.1

172 cm 67 3/4" B C 77 cm 30 1/4" A 74 cm 29 1/8" D 65 cm 25 1/2"

(B) Height (cm/inch) unpacked	172 - 67 34 "
(A) Width (cm/inch) unpacked	74 -29 1/8"
(C) Depth (cm/inch) unpacked(with door handle)	77- 30 14 "

(B) Height (cm/inch)packed	182.6-28 3/8 "
(A) Width (cm/inch)packed	81.3 -32 "
(C) Depth (cm/inch) packed	77.6-30 1/2"

Gross Weight (Kg) /lbs	101.5 -223.3
Net Weight (Kg) /lbs	94.6 -208.1

5 Using your refrigerator

Indicator panel

Indicator panels may vary according to the product model.

Audio – visual functions on the indicator panel helps you in using your product.

8 1 2 3 9 * 10 7 6 5 4

1. Fridge Compartment Indicator
2. Error status indicator
3. Temperature indicator
4. Vacation function button
5. Temperature setting button
6. Compartment selection button
7. Freezer compartment indicator
8. Economy mode indicator
9. Vacation function indicator
10. Automatic Ice Machine Off/On indicator
    *optional

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

1. Fridge compartment indicator

Fridge compartment light is illuminated while the fridge compartment temperature is set.

2. Error status indicator

If your refrigerator does not perform enough cooling or in case of a sensor fault, this indicator is activated. When this indicator is activated, “E” is displayed on the freezer compartment temperature indicator, and numbers such as “1,2,3...” are displayed on the fridge compartment temperature indicator. These numbers on the indicator inform service personnel about the error.

3. Temperature indicator

Indicates freezer, fridge compartment temperature.

4. Vacation function button

Press on Vacation Button for 3 seconds to activate this function. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature.

To cancel this function press

Vacation button again.

5. Temperature setting button

Changes the temperature of the relevant compartment between -24^ ... -18^ and 8^ ... 1^ .

6. Compartment selection button

Selection button: Press compartment selection button to switch between fridge and freezer compartments.

7. Freezer compartment indicator

Fridge compartment light is illuminated while the freezer compartment temperature is set.

8. Economy mode indicator

Indicates that the refrigerator operates in energy saving mode. This display shall be activated if the freezer compartment temperature is set to -18^ .

9. Vacation function indicator

Indicates that vacation is activated.

10. Automatic Ice Machine Off/On indicator

This symbol appears on the display when Ice Off function is activated.

5 Using your refrigerator

Indicator panel

Indicator panels may vary according to the product model.

Audio – visual functions on the indicator panel helps you in using your product.

8 1 2 3 e -88 9 7 6 5 4

1. Fridge Compartment Indicator
2. Error status indicator
3. Temperature indicator
4. Vacation function button
5. Temperature setting button
6. Compartment selection button
7. Freezer compartment indicator
8. Economy mode indicator
9. Vacation function indicator

\*optional

i Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

1. Fridge compartment indicator

Fridge compartment light is illuminated while the fridge compartment temperature is set.

2. Error status indicator

If your refrigerator does not perform enough cooling or in case of a sensor fault, this indicator is activated. When this indicator is activated, “E” is displayed on the freezer compartment temperature indicator, and numbers such as “1,2,3...” are displayed on the fridge compartment temperature indicator. These numbers on the indicator inform service personnel about the error.

3. Temperature indicator

Indicates freezer, fridge compartment temperature.

4. Vacation function button

Press on Vacation Button for 3 seconds to activate this function. When the vacation function is activated, “- -” is displayed on the fridge compartment temperature indicator and no active cooling is performed on the fridge compartment. It is not suitable to keep the food in the fridge compartment when this function is activated. Other compartments shall be continued to be cooled as per their set temperature.

To cancel this function press

Vacation button again.

5. Temperature setting button

Changes the temperature of the relevant compartment between -24^ ... -18^ and 8^ ... 1^ .

6. Compartment selection button

Selection button: Press compartment selection button to switch between fridge and freezer compartments.

7. Freezer compartment indicator

Fridge compartment light is illuminated while the freezer compartment temperature is set.

8. Economy mode indicator

Indicates that the refrigerator operates in energy saving mode. This display shall be activated if the freezer compartment temperature is set to -18^ .

9. Vacation function indicator

Indicates that vacation is activated.

Door Open Warning

\*May not be available in all models

An audio warning signal will be given when the door of your product is left open for at least 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.

Freezer Compartment Adjustment	Fridge Compartment Adjustment	Explanations
5°F/-15°C 40°F/4°C.	This is the normal	recommended setting.
-18°C/0°F or-5°F -21°C	40°F/4°C. These	settings are recommended when the ambient temperature exceeds 86°F/4°C.
Quick Freeze 40°F/4°C. Use when you wish to freeze your food in a short time. Your refrigerator will return to its previous mode when the process is over.
-15°C/5°F or colder	37°F/2°C.	If you think that your fridge compartment is not cold enough because of the hot conditions or frequent opening and closing of the door.
-15°C/5°F or colder Quick Freeze You can use it when your fridge compartment is overloaded or if you wish to cool down your food rapidly. It is recommended that you activate quick fridge function 4-8 hours before placing the food.

Recommended Using Temperature: FF: 4°C /40 °F Frz : -15°C/5 °F

Freezing fresh food

• It must be preferred to wrap or cover the food before placing them in the refrigerator.
• Hot food must cool down to the room temperature before putting them in the refrigerator.
• The foodstuff that you want to freeze must be fresh and in good quality.

• Foodstuff must be divided into portions according to the family's daily or meal based consumption needs.

• The foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.

• Materials to be used for packaging must be tear-proof and resistant to cold, humidity, odor, oils and acids and they must also be airtight. Moreover, they must be well closed and they must be made from easy-to-use materials that are suitable for deep freeze usage.

• Frozen food must be used immediately after they are thawed and they should never be re-frozen.

• Please observe the following instructions to obtain the best results.

• Do not freeze too large quantities of food at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.

• Placing warm food into the freezer compartment causes the cooling system to operate continuously until the food is frozen solid.
• Take special care not to mix already frozen food and fresh food.

Recommendations for preservation of frozen food

• Prepacked commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a ^* ( ^4 star) frozen food storage compartment.

• To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:

• Put packages in the freezer as quickly as possible after purchase.

• Ensure that contents are labeled and dated.
• Do not exceed "Use By", "Best Before" dates on the packaging.

Defrosting

The freezer compartment defrosts automatically.

Placing the food

Freezer compartment shelves

Various frozen food such as meat, fish, ice cream, vegetables and etc.

Egg tray Egg
Fridge compartment shelves	Food in pans, covered plates and closed containers
Fridge compartment door shelves	Small and packaged food or drinks (such as milk, fruit juice and beer)
Crisper	Vegetables and fruits
Freshzone compartment	Delicatessen products (cheese, butter, salami and etc.)

WARNING!

• Foodstuff must be divided into portions according to the family's daily or meal based consumption needs.
• Foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.
• Materials necessary for packaging:
• Cold resistant adhesive tape
• Self adhesive label
• Rubber rings
• Pen

Materials to be used for packaging the foodstuff must be tear-proof and resistant to cold, humidity, odor, oils and acids.

Foodstuff to be frozen should not be allowed to come in contact with the previously frozen items to prevent their partial thawing.

Frozen food must be used immediately after they are thawed and they should never be re-frozen.

Blue light

\*May not be available in all models

Foodstuff stored in the crispers that are enlightened with a blue light continue their photosynthesis by means of the wavelength effect of blue light and thus, preserve their freshness and increase their vitamin content.

Line drawing of an oven with ventilation grilles and a side door (no text or symbols)

Egg section

You can place the egg section in any of the door shelves. If it is going to be placed in the body, the lower shelves are recommended due them being cooler.

Never store eggs in the freezer compartment.

Avoid direct contact between eggs and other foods.

Simple line drawing of a multi-tiered cylindrical object with no text or symbols

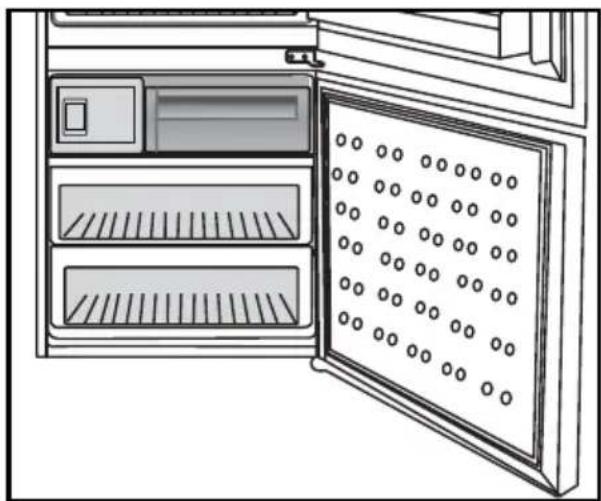

Ice Machine

(in some models)

Auto Ice machine system allows you to obtain ice from the refrigerator easily. After the water system pipe connection will be done, the ice can be taken from the ice drawer. First ice cubes will be ready in approximately 2 hours in the Ice machine drawer located in the freezer compartment. Do not put water in it to make ice as it may break. The ice container is not used for storing foods.

Line drawing of an open refrigerator with multiple drawers and a door, showing no text or symbols.

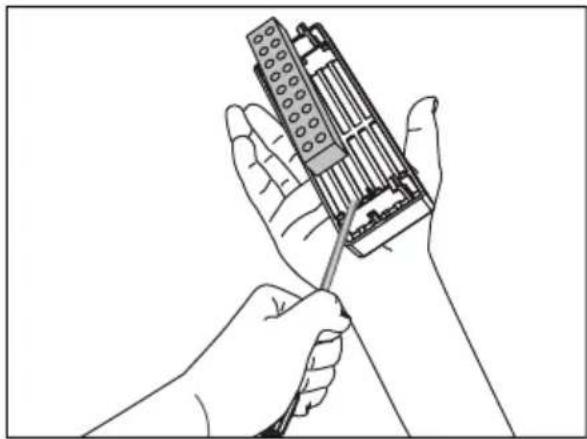

Description and cleaning of odor filter \*May not be available in all models

Odor filter prevents unpleasant odor build-up in your refrigerator.

Pull the cover into which the odor filter is installed downwards from the front section and remove as illustrated.

Leave the filter under sunlight for one day. Filter will be cleaned during this time. Install the filter back to its place.

Odor filter must be cleaned once in a year.

Line drawing of a hand placing a component into a storage cabinet shelf (no text or symbols)

Line drawing of a hand holding an open electronic device with a grid-patterned body (no text or symbols)

Line drawing of a hand holding a mechanical component with a screwdriver (no text or symbols)

6 Maintenance and cleaning

⚠️Never use gasoline, benzene or similar substances for cleaning purposes.
△We recommend that you unplug the appliance before cleaning.
△Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.
Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
Make sure that no water enters the lamp housing and other electrical items.
△If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
Check door seals regularly to ensure they are clean and free from food particles.
⚠️To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

⚠️Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.
⚠️Do not use sharp, abrasive tools, soap, household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then wipe it dry.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Troubleshooting

Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product.

The refrigerator is not working.

• The power plug is not fully settled. >>> Plug it in to settle completely into the socket.
• The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses.

Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE).

• The door is opened too frequently >>> Take care not to open the product's door too frequently.
• The environment is too humid. >>> Do not install the product in humid environments.
• Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders.
• The product's door is left open. >>> Do not keep the product's door open for long periods.
• The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature.

Compressor is not working.

• In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product's cooling system is not balanced, which triggers the compressor thermic safeguard. The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service.
• Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically.
• The product is not plugged in. >>> Make sure the power cord is plugged in.
• The temperature setting is incorrect. >>> Select the appropriate temperature setting.
• The power is out. >>> The product will continue to operate normally once the power is restored.

The refrigerator's operating noise is increasing while in use.

- The product's operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction.

The refrigerator runs too often or for too long.

- The new product may be larger than the previous one. Larger products will run for longer periods.

• The room temperature may be high. >>> The product will normally run for long periods in higher room temperature.
• The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal.
• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.
• The doors were opened frequently or kept open for long periods. >>>The warm air moving inside will cause the product to run longer. Do not open the doors too frequently.
• The freezer or cooler door may be ajar. >>> Check that the doors are fully closed.
• The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature.
• The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature.

The freezer temperature is very low, but the cooler temperature is adequate.

- The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The cooler temperature is very low, but the freezer temperature is adequate.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The food items kept in cooler compartment drawers are frozen.

- The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again.

The temperature in the cooler or the freezer is too high.

• The cooler compartment temperature is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer compartments.

• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently.
  • The door may be ajar. >>> Fully close the door.

• The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside.

• Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product.

Shaking or noise.

• The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product.
• Any items placed on the product may cause noise. >>> Remove any items placed on the product.

The product is making noise of liquid flowing, spraying etc.

- The product's operating principles involve liquid and gas flows. >>> This is normal and not a malfunction.

There is sound of wind blowing coming from the product.

- The product uses a fan for the cooling process. This is normal and not a malfunction.

There is condensation on the product's internal walls.

• Hot or humid weather will increase icing and condensation. This is normal and not a malfunction.
• The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door.
  • The door may be ajar. >>> Fully close the door.

There is condensation on the product's exterior or between the doors.

- The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced.

The interior smells bad.

• The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water.
• Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without free of odour.
• The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product.

The door is not closing.

• Food packages may be blocking the door. >>> Relocate any items blocking the doors.
• The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product.

- The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product.

The vegetable bin is jammed.

- The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer.

If The Surface Of The Product Is Hot.

- High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance! Be careful when touching these areas.

WARNING:

If the problem persists after following the instructions in this section, contact your vendor or an Authorised Service. Do not try to repair the product.

WARNING:

• This product can expose you to chemicals including Nickel (Metallic) which is known to the State of California to cause cancer.
• For more information go to www.P65Warnings.ca.gov
• Note : Nickel is a component in all stainless steel and some other metal components.

WARRANTY STATEMENT FOR THE BLOMBERG REFRIGERATORS

The warranties provided by Blomberg in these statements only apply to Blomberg refrigerators sold to the original purchaser or homeowner in the US and Canada. The warranty is not transferable. To obtain warranty service, please contact our nearest distributor as listed by state and province. You will need your refrigerator model number, serial number, retailer name and address, where purchased and purchase date / installation date. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Also, please make sure you register your product for warranty at www.blombergappliances.com.

1 year (\*) full warranty from date of first installation

Blomberg will repair or replace at no cost to the consumer any defective parts of the refrigerator if used under normal household conditions

(warranty is void if the product is used commercially e.g., bed + breakfast, nursing home etc.). Service must also be performed by an authorized Blomberg service agency. (Cosmetic defects must be reported within 10 business days from installation). 1 year warranty on the accessories is for the parts only and does not include labor.

2 year*++ limited warranty from date of first installation (Parts only) Blomberg will repair or replace any parts at no cost to the consumer if material defects or workmanship have caused the damage or failure of these components. Again the refrigerator must have been used under normal household conditions and not commercially as stated above (Labor charges are the responsibility of the consumer).

2-5 year (\*, \*\*) limited warranty from date of first installation

(parts only 2-5 years) Blomberg will repair or replace any compressors, evaporators, condensers and dryers at no cost to the consumer if material defects or workmanship have caused the damage or failure of these components.

The refrigerator must have been used under normal household conditions and not commercially (Labor charges are the responsibility of the consumer)

Disclaimers of warranties and exclusions:

Warranty does not cover service costs by an authorized service agent to correct installation, electrical problems or educational instruction on the use of the refrigerator. The warranty also does not cover defects or damage caused by an act of God (such as storms, floods, fires, mudslides, etc.), damage cause by use of the refrigerator for purposes other than those for which it was designed, misuse, abuse, accident, alteration, improper installation, maintenance, travel fees, service calls outside normal service hours, pick up and delivery, any food loss due to product failure, unauthorized service work or work.

This product is fully tested and went through official quality assurance inspections before leaving the original manufacturing site. Warranty terms for this Blomberg household appliance is not valid if the product is altered, tampered, modified, additional parts assembled, fixed and re-packed by an authorized distributor, servicer, a third party retailer, reseller or by any other unauthorized person(s).

TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESSED AND IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. BLOMBERG UNDERTAKES NO RESPONSIBILITY FOR THE QUALITY OF THIS PRODUCT EXCEPT AS OTHERWISE PROVIDED IN THIS WARRANTY STATEMENT. BLOMBERG ASSUMES NO RESPONSIBILITY THAT THE PRODUCT WILL BE FIT FOR ANY PARTICULAR PURPOSE FOR WHICH YOU MAY BE BUYING THIS PRODUCT, EXCEPT AS OTHERWISE PROVIDED IN THIS WARRANTY STATEMENT.

Blomberg does not assume any responsibility for incidental or consequential damages. Such damages include, but are not limited to, loss of profits, loss of savings or revenue, loss of use of the refrigerator or any associated equipment, cost of capital, cost of any substitute equipment, facilities or services, downtime, the claims of third parties, and injury to property. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusion may not apply to you.

(*) Installation date shall refer to either purchase date or 5 business days after delivery of the product to the home, whichever is later.

(**) Parts replaced will assume the identity of the original parts + their original warranty.

No Other Warranties. This Warranty Statement is the complete and exclusive warranty from the manufacturer. No employee of Blomberg or any other party is authorized to make any warranty statements in addition to those made in this Warranty Statement.

Please keep this warranty card, user manual and your sales slip for future reference.

HOW TO GET SERVICE

Please contact the Distributor for your State or Province as listed on the Distributor Contact List, or call our Toll Free Number at 1 800 459 9848 for direction to an Authorized Blomberg Service Agent.

Diagram showing a mechanical or electrical component with a lightning bolt and wiring, no text or symbols present

Diagram of a kitchen interior showing a hand holding eggs with arrows indicating direction (no text or symbols)

MILK JUICE etc. temperature sensor

3 Installation

Pure diagram of a rectangular structure with directional arrows and curved arrows, no text or symbols present.

Simple line drawing of a multi-tiered cylindrical object with a base, resembling a mechanical or architectural component (no text or symbols)

Bluelight

\*en option

Line drawing of a microwave oven with ventilation grilles and top panel (no text or symbols)

Line drawing of an open refrigerator with multiple drawers and a door, no text or symbols present

Line drawing of a hand placing a component into a storage cabinet (no text or symbols)

Line drawing of a hand holding an electronic device with a grid-like internal structure (no text or symbols)

Line drawing of a hand holding a handheld electronic device with a screwdriver inserted (no text or symbols)

Diagram of an open refrigerator with numbered compartments and ventilation slots, showing internal structure and labeling.

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Pure electrical circuit lines without any symbols

food temperature sensor

MILK juice etc. temperature sensor

3 Instalación

Pure diagram of a rectangular structure with directional arrows and curved arrows, no text or symbols present.

Simple line drawing of a multi-tiered cylindrical object with no text or symbols

Máquina de hielo

Line drawing of an open refrigerator with multiple drawers and a door, showing no text or symbols

Luz azul

Line drawing of a microwave oven with ventilation grilles and top panel (no text or symbols)

Line drawing of a hand placing a component into a storage cabinet shelf (no text or symbols)

Line drawing of a hand holding an open electronic device with ports and buttons (no text or symbols)

Line drawing of a hand holding a mechanical component, no text or symbols present

www.blombergappliances.com

[e-mail]

57 2515 0000/AV

EN-FR-ES
