USER MANUAL KND 9920 P BLOMBERG

Please read this manual first! Dear Customer, We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service. For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references. This manual

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product. Please note that this manual may be valid for other models as well. Symbols and their descriptions This instruction manual contains the following symbols: C Important information or useful tips. A Warning against dangerous conditions for life and property. B Warning against electric voltage. This product is supplied with the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities. Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. RecyclingEN

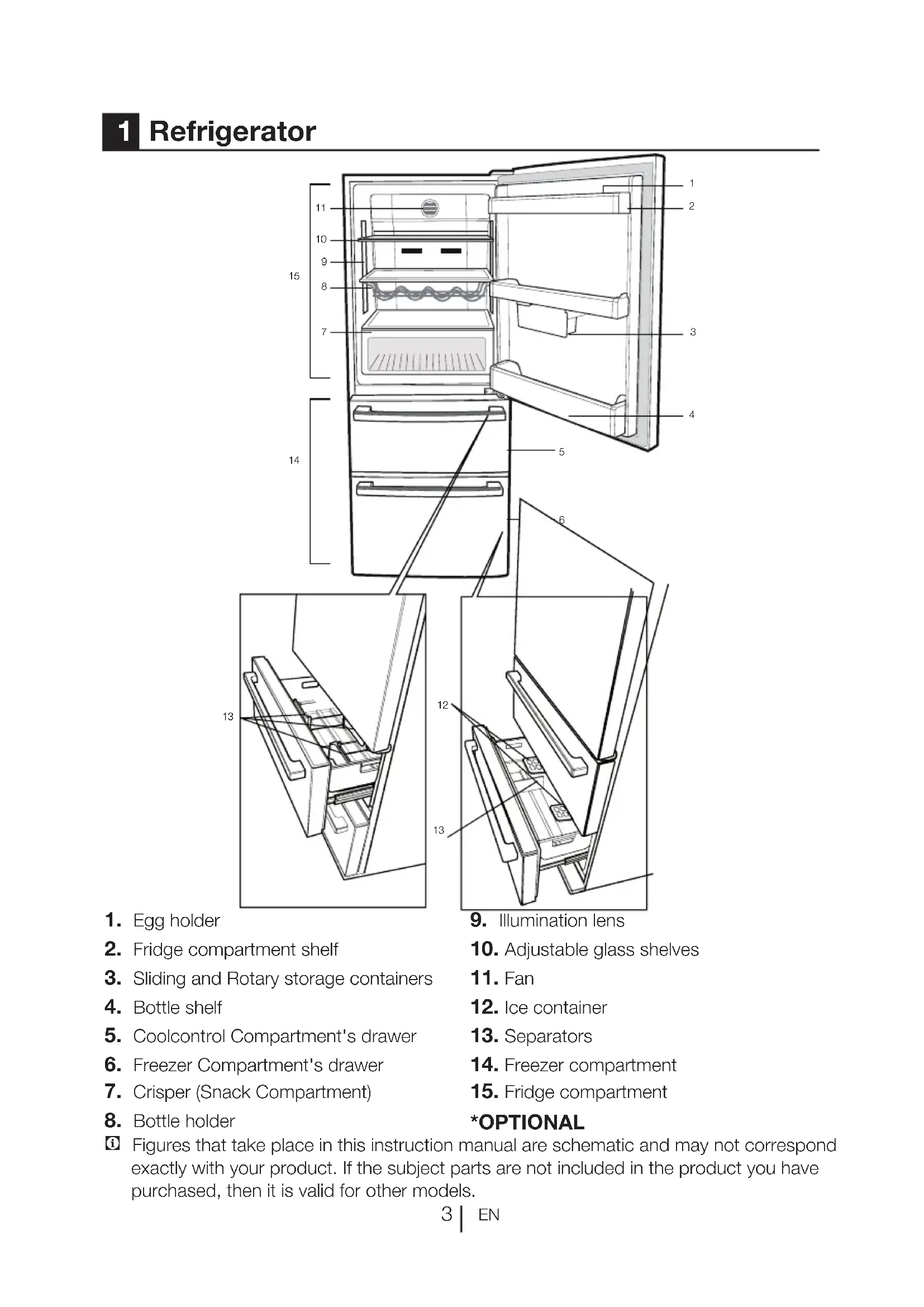

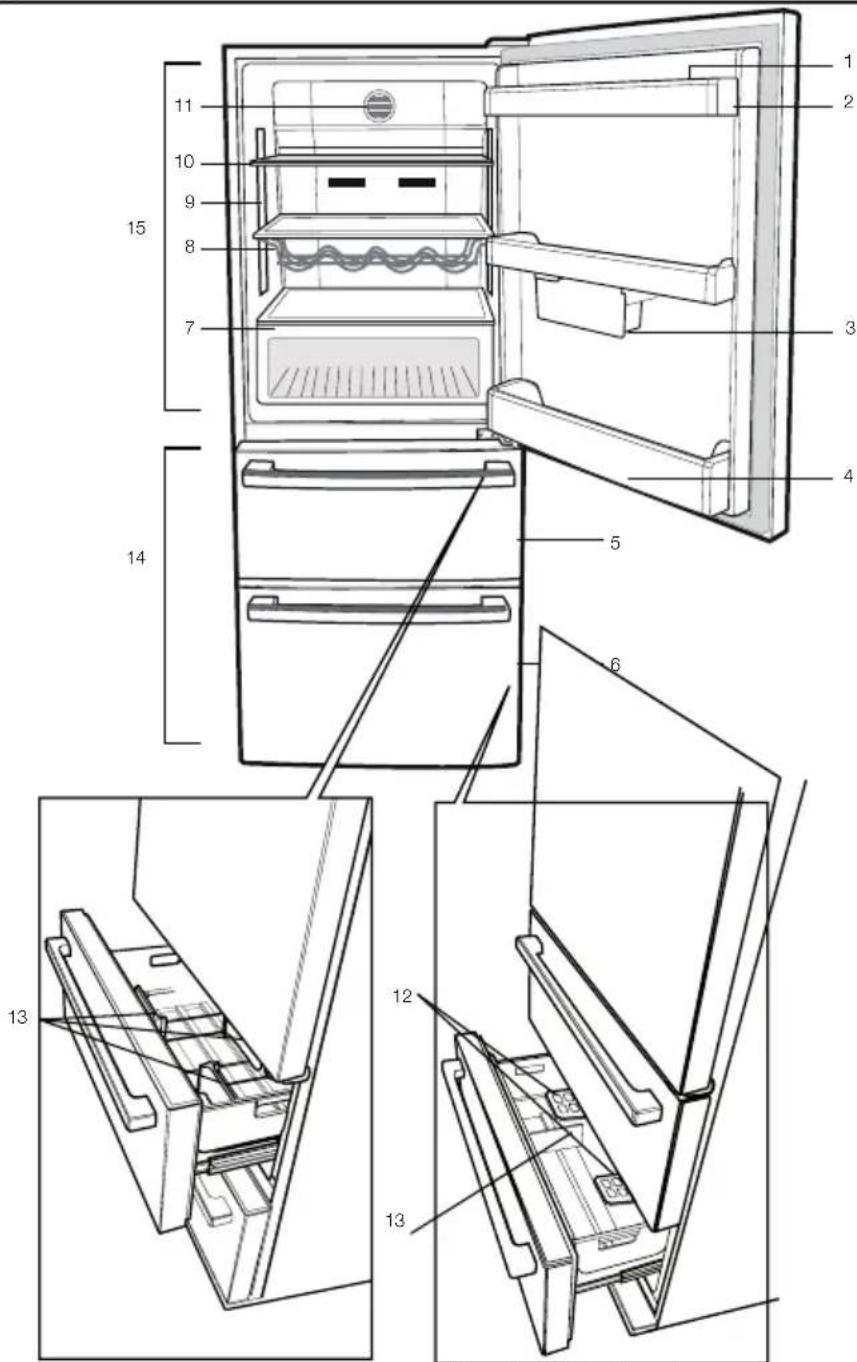

2. Fridge compartment shelf

3. Sliding and Rotary storage containers

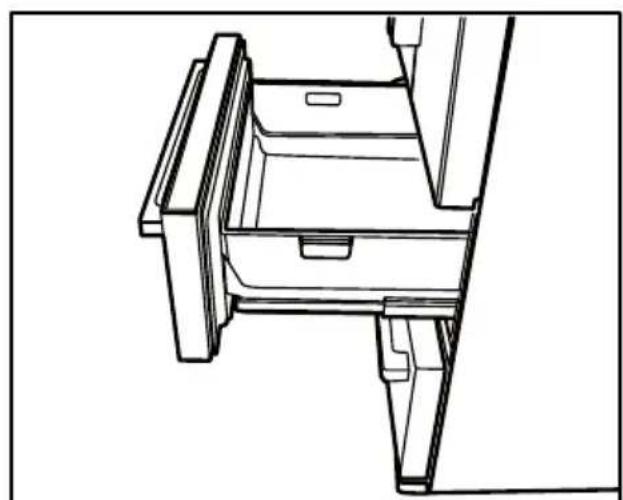

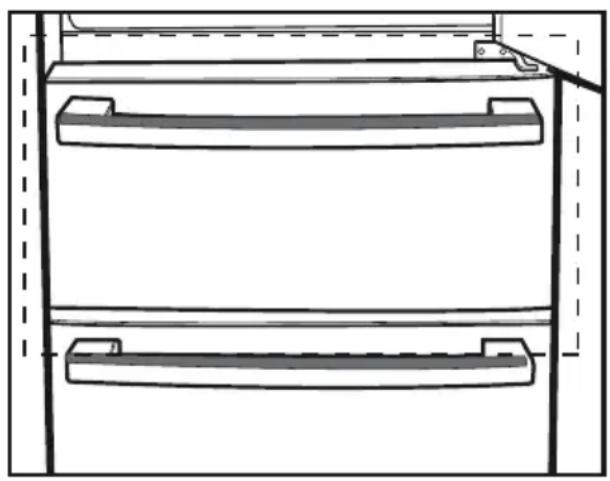

5. Coolcontrol Compartment's drawer

6. Freezer Compartment's drawer

7. Crisper (Snack Compartment)

C Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

10. Adjustable glass shelves

14. Freezer compartment

15. Fridge compartment

2 Important Safety Warnings Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid. The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described. Intended use This product is intended to be used – indoors and in closed areas such as homes; – in closed working environments such as stores and offices; – in closed accommodation areas such as farm houses, hotels, pensions.

• This product should not be used outdoors. General safety

• When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.

• Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

• For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

• For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

• Do not touch frozen food by hand; they may stick to your hand.

• Unplug your refrigerator before cleaning or defrosting.

• Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

• Never use the parts on your refrigerator such as the door as a means of support or step.

• Do not use electrical devices inside the refrigerator.

• Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

• Do not cover or block the ventilation holes on your refrigerator with any material.

• Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.

• In case of any failure or during a maintenance or repair work, disconnect your refrigerator’s mains supply by either turning off the relevant fuse or unplugging your appliance.

• Do not pull by the cable when pulling off the plug.

• Place the beverage with higher proofs tightly closed and vertically.

• Never store spray cans containing flammable and explosive substances in the refrigerator.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.EN

• This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product

• Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.

• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.

• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.

• Contact authorized service when there is a power cable damage to avoid danger.

• Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.

• This refrigerator is intended for only storing food items. It must not be used for any other purpose.

• Label of technical specifications is located on the left wall inside the refrigerator.

• Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.

• If there is a blue light on the refrigerator, do not look at the blue light with optical tools.

• For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.

• This operation manual should be handed in to the new owner of the product when it is given to others.

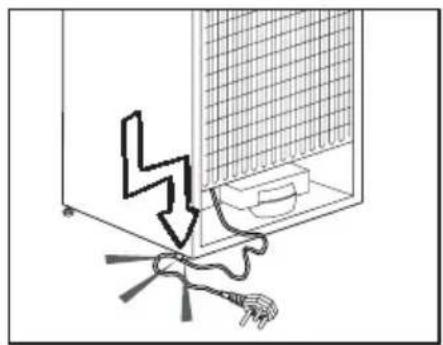

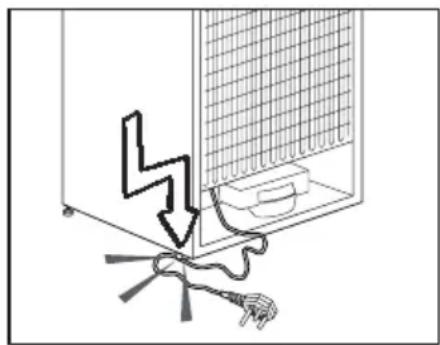

• Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product.

• Do not plug the refrigerator if the wall outlet is loose.

• Water should not be sprayed directly on inner or outer parts of the product for safety purposes.

• Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.

• Never place containers filled with water on top of the refrigerator, otherwise this may cause electric shock or fire.

• Do not overload your refrigerator with excessive amounts of food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door. Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.

• As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.

• If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.

• The plug's tip should be regularly cleaned; otherwise, it may cause fire.

• The plug’s tip should be cleaned regularly with a dry cloth; otherwise, it may cause fire.

• Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.EN

• When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.

• When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified. For products with a water dispenser; Pressure of water mains should be minimum 1 bar. Pressure of water mains should be maximum 8 bars.

• Use only potable water. Child safety

• If the door has a lock, the key should be kept away from reach of children.

• Children must be supervised to prevent them from tampering with the product. HCA Warning If your product's cooling system contains R600a: This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed. Ignore this warning if your product's cooling system contains R134a. Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator. Never throw the product in fire for disposal. Things to be done for energy saving

• Do not leave the doors of your refrigerator open for a long time.

• Do not put hot food or drinks in your refrigerator.

• Do not overload your refrigerator so that the air circulation inside of it is not prevented.

• Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.

• Pay attention to keep your food in closed containers.

• For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.

• Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.EN

3 Installation BPlease remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed. Points to be considered when re-transporting your refrigerator 1.Your refrigerator must be emptied and cleaned prior to any transportation. 2.Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging. 3.Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed. Please do not forget… Every recycled material is an indispensable source for the nature and for our national resources. If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities. Before operating your refrigerator Before starting to use your refrigerator check the following: 1.Is the interior of the refrigerator dry and can the air circulate freely in the rear of it? 2.Please install the 2 plastic wedges as illustrated in the figure. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation. (The illustrated figure is only an example and does not match exactly with your product.) 3.Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section. 4.Plug the refrigerator into the wall outlet. When the fridge door is open, the fridge compartment interior light will come on. 5.You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal. 6.Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation Electric connection Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity. Important:

• The connection must be in compliance with national regulations.

• The power cable plug must be easily accessible after installation.

• The specified voltage must be equal to your mains voltage.

• Extension cables and multiway plugs must not be used for connection.EN

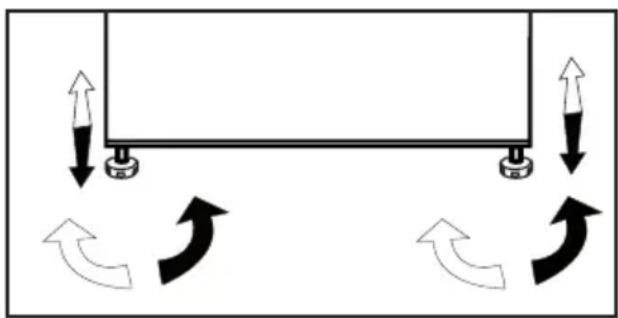

Adjusting the legs If your refrigerator is unbalanced; You can balance your refrigerator by turning its front legs as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process. BA damaged power cable must be replaced by a qualified electrician. BProduct must not be operated before it is repaired! There is danger of electric shock! Disposing of the packaging The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions. Do not dispose of them along with the normal household waste. The packing of your refrigerator is produced from recyclable materials. Disposing of your old refrigerator Dispose of your old refrigerator without giving any harm to the environment.

• You may consult your authorised dealer or waste collection center of your municipality about the disposal of your refrigerator. Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger. Placing and Installation

If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorised service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows

2. Keep your refrigerator away from heat

sources, humid places and direct sunlight.

3. There must be appropriate air ventilation

around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. If the floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.

4. Place your refrigerator on an even floor

surface to prevent jolts.

5. Do not keep your refrigerator in ambient

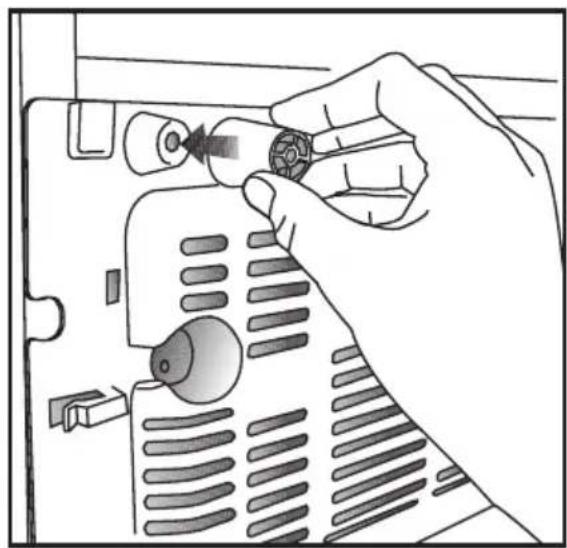

4 Preparation C Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight. C The ambient temperature of the room where you install your refrigerator should at least be 10°C. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency. C Please make sure that the interior of your refrigerator is cleaned thoroughly. C If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them. C When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours. - The door should not be opened frequently. - It must be operated empty without any food in it. - Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section. C Original packaging and foam materials should be kept for future transportations or moving.EN

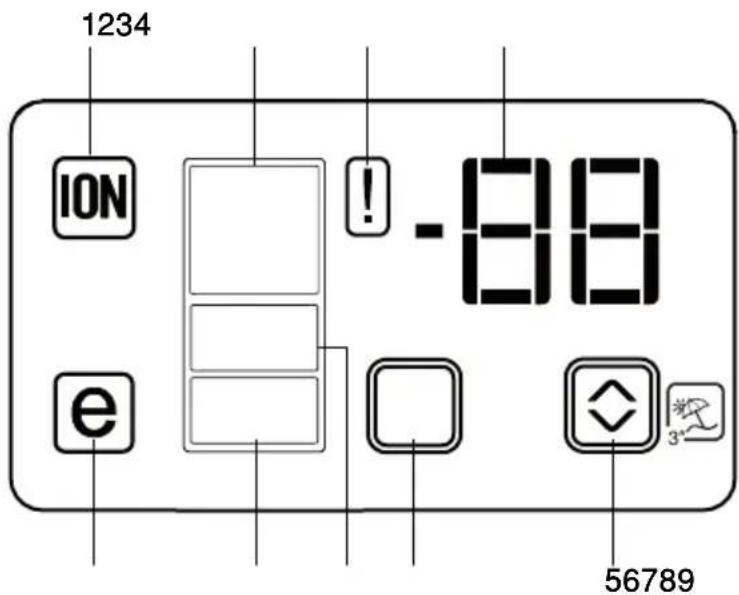

Indicator Panel Indicator panel aids in using your refrigerator with its audio and visual functions.

Fridge Compartment Indicator

Indicator light lights up continuously. This light indicates that your refrigerator is protected against the bacteria.

2. Fridge Compartment Indicator

Fridge compartment light illuminates when adjusting the fridge compartment temperature. 5 Using your refrigerator Indicator panels may vary depending on your product's model.

6. Refrigerator Compartment Selection

Flexi zone Compartment Indicator

Freezer Compartment Indicator

If your refrigerator does not cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, temperature indicator will display "e" and the numbers 1,2,3... These numbers on the indicator provide information about the error to the service personnel.EN

Indicates the temperature of the fridge, freezer and Flexi zone compartment.

5. Temperature Setting / Vacation

Button After selecting the compartment for which you will set the temperature, perform the temperature setting by means of pressing this button. Press and hold the same button for 3 seconds to activate the Vacation function for the fridge compartment. Press this button again to deactivate the selected function. If this function is active, "- -" appears on the indicator of the fridge compartment and no cooling is performed in the fridge compartment. Other compartments will be cooled in accordance with the temperature set for them.

6. Refrigerator Compartment Selection

Button Press Refrigerator Compartment Selection Button to switch between fridge, freezer and Flexi zone compartments.

7. Flexi zone Compartment Indicator

Flexi zone compartment light illuminates when adjusting the Flexi zone temperature.

8. Freezer Compartment Indicator

Freezer compartment light illuminates when adjusting the freezer compartment temperature.

9. Economy Mode Indicator

Indicates that the refrigerator is running in energy-efficient mode. This indicator will be active if the temperature of Freezer Compartment is set to -18 and energy efficient cooling is being performed.EN

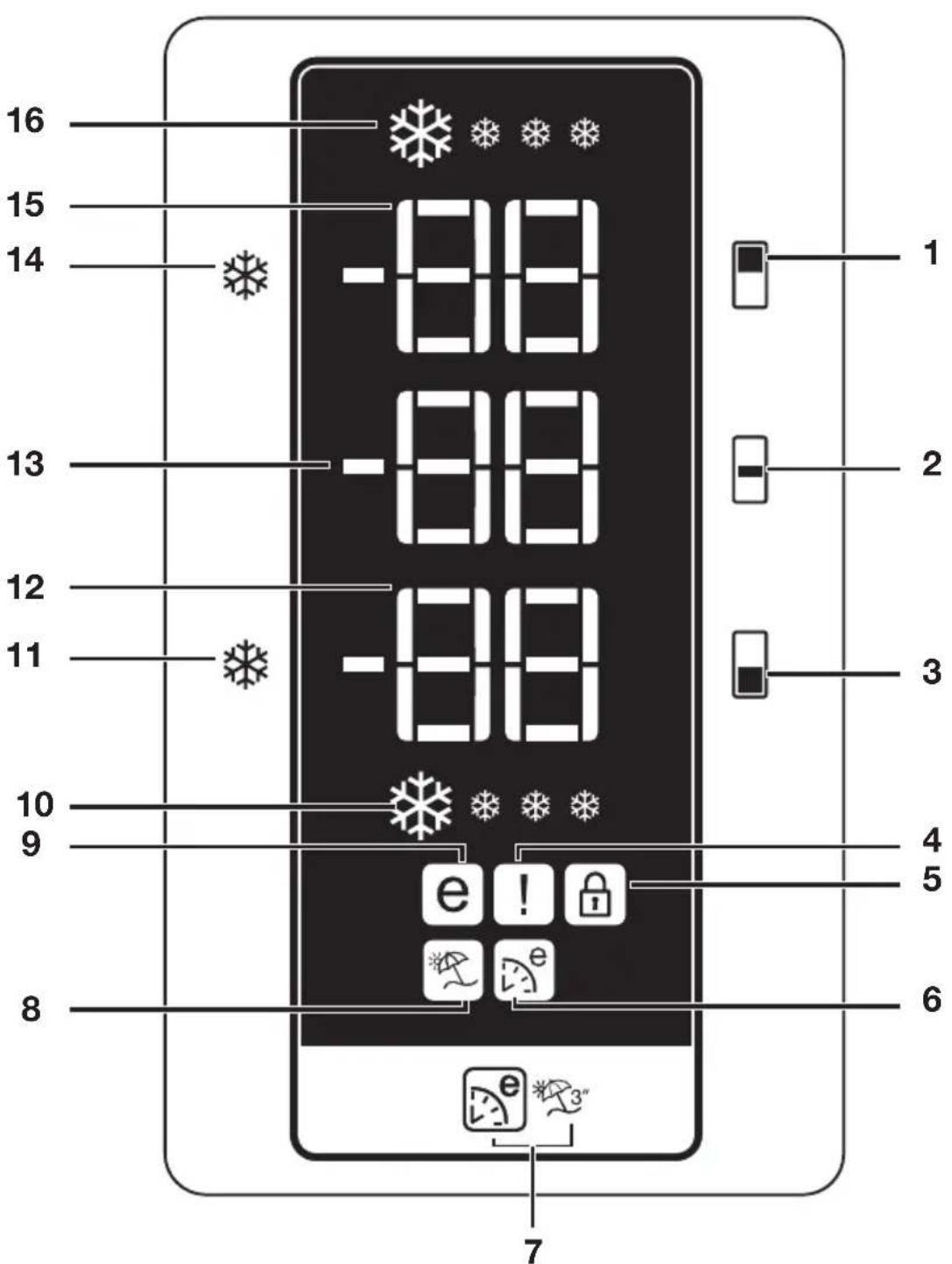

Freezer compartment setting button

2. Flexi zone compartment setting button

3. Fridge compartment setting button

12. Freezer compartment temperature

13. Flexi zone compartment temperature

15. Fridge compartment temperature setting

1. Freezer Compartment Setting

This function allows you to make the freezer compartment temperature setting. Press this button to set the temperature of the freezer compartment to -18,-19, -20,- 21,-22,-23and -24, respectively.

2. Flexi zone Compartment

Temperature Setting Button You can set the Flexi zone Compartment either as a Freezer or a Cooler. Press and hold this button for 3 seconds to set the Flexi zone Compartment either as a Freezer or a Cooler. This compartment is set as a Freezer Compartment at factory. If the Flexi zone Compartment is set as a Freezer, then the temperature of the Flexi zone Compartment will change as -18,-19,- 20,-21,-22,-23 -24, -18... respectively each time you press this button. If the Flexi zone Compartment is set as a Fridge, then the temperature of the Flexi zone Compartment will change as 10, 8, 6, 4, 2, 0, -2, -6, ... respectively each time you press this button.

3. Fridge Compartment Setting Button

This function allows you to make the fridge compartment temperature setting. Press this button to set the temperature of the fridge compartment to 8,7,6,5,4,3,2 respectively.

4. Error Status Indicator

If your refrigerator does not cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, Freezer Compartment Temperature indicator will display "E" and Fridge Compartment Temperature Indicator will display numbers such as "1,2,3…". These numbers on the indicator provides information about the error to the service personnel. When you place hot food into the freezer compartment or if you leave the door open for a long time, exclamation mark can illuminate for some time. This is not a failure; this warning will disappear when the food cools down.

5. Key Lock Indicator

Use this function if you do not want your refrigerator temperature setting changed. To activate this function, you should press and hold Fast Freeze and Quick Fridge buttons together for 3 seconds.

6. Eco Extra Function Indicator

It indicates that the Eco-Extra function is active. If this function is active, your refrigerator will automatically detect the least usage periods and energy-efficient cooling will be performed during those times. Economy indicator will be active while energy-efficient cooling is performed. Press the relevant button again to deactivate this function.

7. Eco Extra / Vacation Button

Press this button briefly to activate the Eco Extra function. Press and hold this button for 3 sec. to activate the Vacation function. Press this button again to deactivate the selected function.EN

8.. Vacation Function Indicator Indicates that the vacation function is active. If this function is active, "- -" appears on the temperature indicator of the fridge compartment and no cooling is performed in the fridge compartment. Other compartments will be cooled in accordance with the temperature set for them. Press the relevant button again to deactivate this function.

9. Economy Mode Indicator

Indicates that the refrigerator is running in energy-efficient mode. Freezer Compartment temperature This indicator will be active if the function is set to -18 or the energy efficient cooling is being performed due to Eco-Extra function.

10. Quick Fridge Indicator

This icon flashes in an animated style when the Quick Fridge function is active.

11. Quick Fridge Function

When you press the Quick Fridge button, the temperature of the compartment will be colder than the adjusted values. This function can be used for food placed in the fridge compartment and required to be cooled down rapidly. If you want to cool large amounts of fresh food, it is recommended to activate this feature before putting the food into the fridge. Quick Fridge indicator turns on when the Quick Fridge function is on. To cancel this function, press Quick Fridge button again. If you do not cancel it, Quick Fridge will cancel itself automatically after 2 hours or when the fridge compartment reaches to the required temperature. This function is not recalled when power restores after a power failure.

12. Freezer Compartment Temperature

Setting Indicator Indicates the temperature set for the Freezer Compartment.

13. Flexi zone Compartment

Temperature Indicator It indicates the temperature set for Flexi zone compartment.

14. Fast Freeze Function

Fast Freeze indicator turns on when the Fast Freeze function is active. To cancel this function, press Fast Freeze button again. Fast Freeze indicator will turn off and return to its normal settings. If you do not cancel it, Fast Freeze will cancel itself automatically after 8 hours or when the freezer compartment reaches to the required temperature. If you want to freeze large amounts of fresh food, press the Fast Freeze button before putting the food into the freezer compartment. If you press the Fast Freeze button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately. This function is not recalled when power restores after a power failure.

15. Fridge Compartment Temperature

Setting Indicator Indicates the temperature set for the Fridge Compartment.

16. Fast Freeze Indicator

This icon flashes in an animated style when the Fast Freeze function is active.EN

• Wrap or cover the food before placing them in the refrigerator.

• Hot food must cool down to the room temperature before putting them in the refrigerator.

• The foodstuff that you want to freeze must be fresh and in good quality.

• Foodstuff must be divided into portions according to the family’s daily or meal based consumption needs.

• The foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.

• Materials to be used for packaging must be tear-proof and resistant to cold, humidity, odor, oils and acids and they must also be airtight. Moreover, they must be well closed and they must be made from easy-to-use materials that are suitable for deep freeze usage.

• Frozen food must be used immediately after they are thawed and they should never be re-frozen.

• Please observe the following instructions to obtain the best results.

1. Do not freeze too large quantities of food

at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.

2. Placing warm food into the freezer

compartment causes the cooling system to operate continuously until the food is frozen solid.

3. Take special care not to mix already frozen

food and fresh food. Freezer Compartment Setting Fridge Compartment Setting Explanations -18°C 4°C This is the normal recommended setting. -20,-22 or -24°C 4°C These settings are recommended when the ambient temperature exceeds 30°C. Quick Freeze 4°C Use when you wish to freeze your food in a short time. Your refrigerator will return to its previous mode when the process is over. -18°C or colder 2°C If you think that your fridge compartment is not cold enough because of the hot conditions or frequent opening and closing of the door. -18°C or colder Quick Fridge You can use it when your fridge compartment is overloaded or if you wish to cool down your food rapidly. It is recommended that you activate quick fridge function 4-8 hours before placing the food. Door Open Warning (This feature may vary depending on the door of the product and may not exist in some models.) An audio warning signal will be given when the door of your product is left open for at least 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.EN

Recommendations for preservation of frozen food

• Prepacked commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a ( 4 star) frozen food storage compartment.

• To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:

1. Put packages in the freezer as quickly as

possible after purchase.

2. Ensure that contents are labeled and

dates on the packaging. Defrosting The freezer compartment defrosts automatically. Placing the food Freezer compartment shelves Various frozen food such as meat, fish, ice cream, vegetables and etc. Egg holder Egg Fridge compartment shelves Food in pans, covered plates and closed containers Fridge compartment door shelves Small and packaged food or drinks (such as milk, fruit juice and beer) Crisper Vegetables and fruits Freshzone compartment Delicatessen products (cheese, butter, salami and etc.)EN

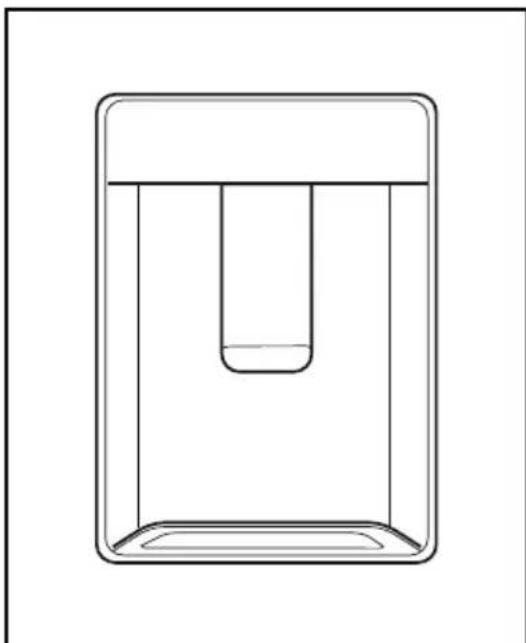

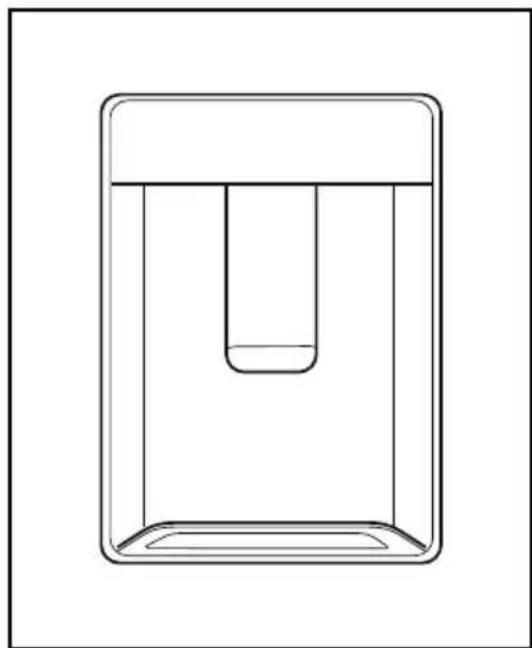

Water Dispenser (in some models) Water dispenser is a very useful feature based on reaching cold water without opening the door of your refrigerator. As you will not have to open your refrigerator door frequently, you will have saved energy. Filling the water dispenser's tank Water tank filling reservoir is located inside the door rack. Open the reservoir cover and fill in clean potable water. And then, close the lid. Using the water spring Push the arm of the water dispenser with your glass. The dispenser will cease operating once you release the arm. When operating the water dispenser, maximum flow can be obtained by pressing the arm fully. Please remember that the amount of flow from the dispenser is subject to the degree you press the arm. As the level of the water in your glass/ container rises, slightly lessen the pressure on the arm to prevent the overspill. If you slightly press the arm, the water will drip; this is quite normal and not a failure. Warning!

• Do not fill the water tank with any other liquid except for water such as fruit juices, carbonated beverages or alcoholic drinks which are not suitable to use in the water dispenser. Water dispenser will be irreparably damaged if these kinds of liquids are used. Warranty does not cover such usages. Some chemical substances and additives contained in these kinds of drinks/liquids may damage the water tank.EN

• Use clean and pure potable water only.

• Capacity of the water tank is 3 liters; do not overfill.

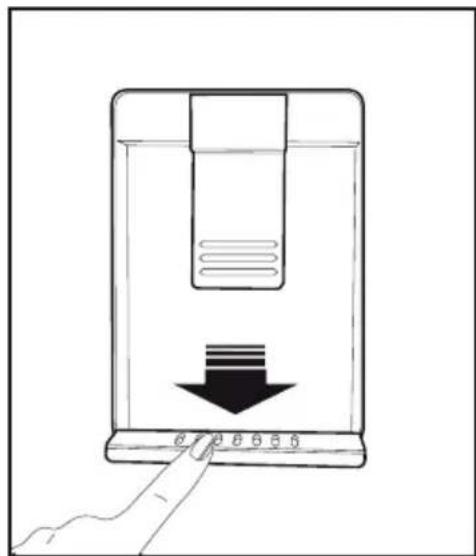

• Push the arm of the water dispenser with a rigid glass. If you are using disposable plastic glasses, push the arm with your fingers from behind the glass. Cleaning the water tank

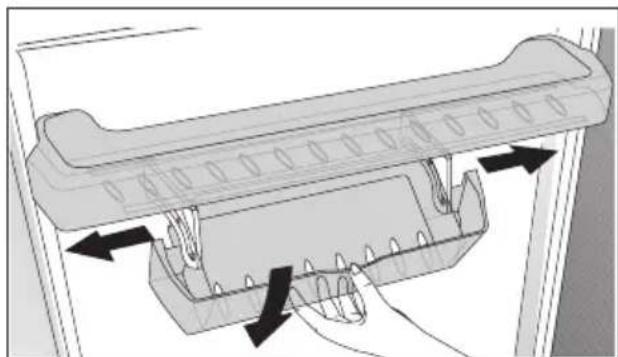

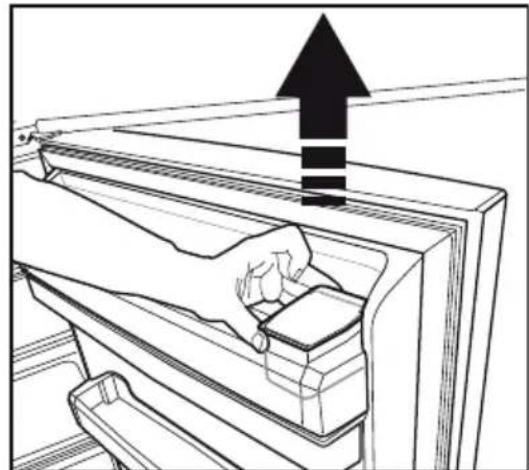

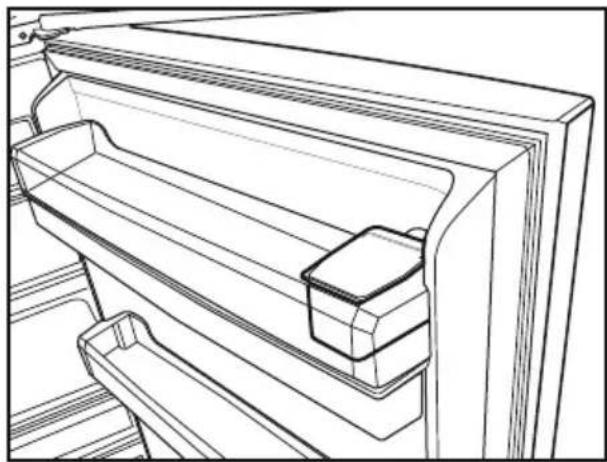

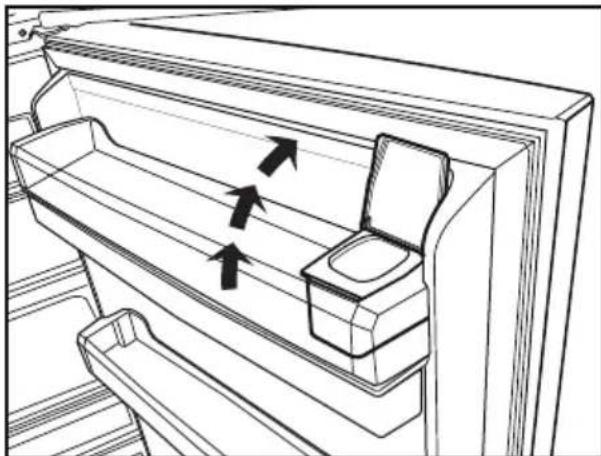

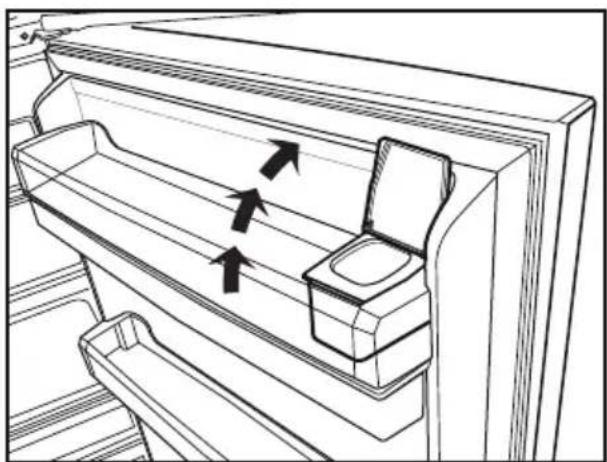

• Remove the water filling reservoir inside the door rack.

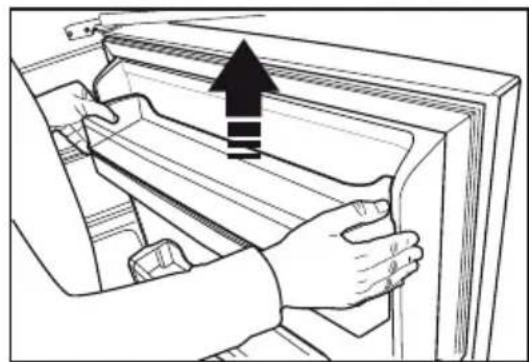

• Remove the door rack by holding from both sides.

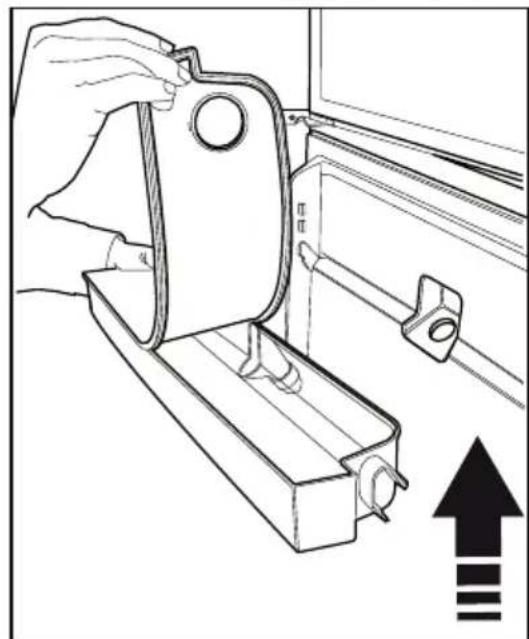

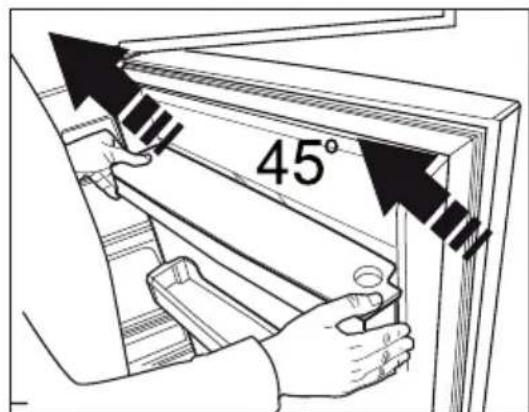

• Grab the water tank from both sides and remove it with an angle of 45°C.

• Clean the water tank by removing its lid. Important: Components of the water tank and water dispenser should not be washed in dishwasher. Water tray Water that dripped while using the water dispenser accumulates in the spillage tray. Take out the plastic strainer as shown in the figure. With a clean and dry cloth, remove the water that has accumulated CAUTION: Connect only to a potable water line.EN

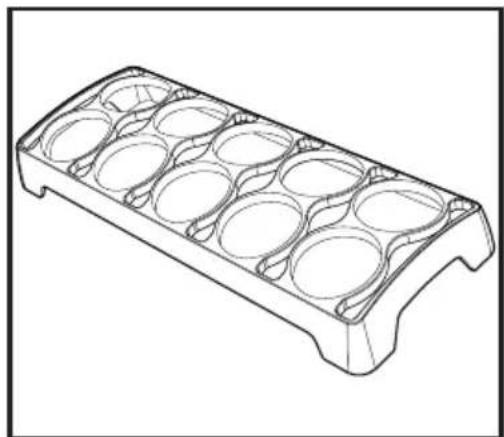

Egg holder You can install the egg holder to the desired door or body shelf. Never store the egg holder in the freezer compartment Blue light (in some models) Foodstuff stored in the crispers that are enlightened with a blue light continue their photosynthesis by means of the wavelength effect of blue light and thus, preserve their freshness and increase their vitamin content. Sliding storage container (in some models) This accessory is designed to increase the usage volume of the door shelves. It allows you to easily place the tall bottles, jars and tins to the lower bottle shelf thanks to its ability to move right or left. (The illustrated figure is only an example and does not match exactly with your product.)EN

Deep-freeze information Food must be frozen as rapidly as possible when they are put in a refrigerator in order to keep them in good quality. The TSE norm requires (according to certain measurement conditions) the refrigerator to freeze at least 4.5 kg of foodstuff at 32°C ambient temperature to -18°C or lower within 24 hours for every 100-liters of freezer volume. It is possible to keep the food for a long time only at -18°C or lower temperatures. You can keep the freshness of food for many months (at -18°C or lower temperatures in the deep freeze). A CAUTION!

• Foodstuff must be divided into portions according to the family’s daily or meal based consumption needs.

• Foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time. Materials necessary for packaging:

• Pen Materials to be used for packaging the foodstuff must be tear-proof and resistant to cold, humidity, odor, oils and acids. Foodstuff to be frozen should not be allowed to come in contact with the previously frozen items to prevent their partial thawing. Frozen food must be used immediately after they are thawed and they should never be re-frozen. Flexi zone Storage Compartment The Flexi zone Storage Compartment of your refrigerator may be used in any desired mode by adjusting it to fridge (2/4/6/8 °C) or freezer (-18/-19/-20/- 21/-22/-23/-24) temperatures. You can keep the compartment in the desired temperature with the Flexi zone Storage Compartment's Temperature Setting Button. The temperature of Flexi zone Storage Compartment can be adjusted to -6, -2, 0 and 10 in addition to fridge compartment temperatures. "0" degree is used to store the deli products longer, and -6 degree is used to keep the meat up to 2 weeks in an easily cuttable condition.EN

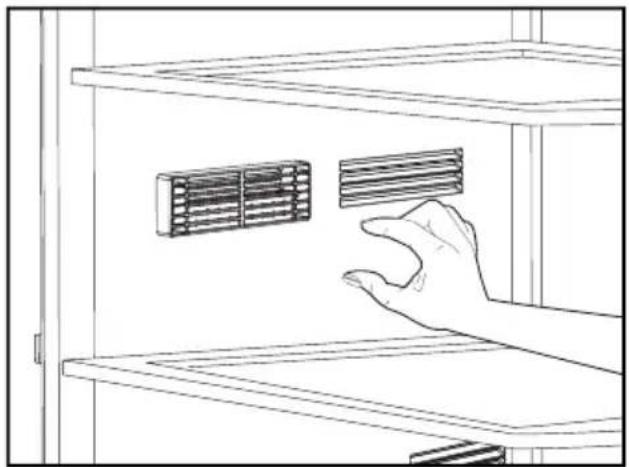

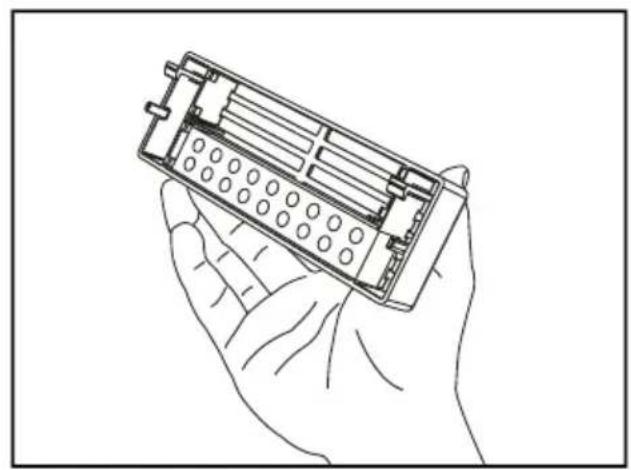

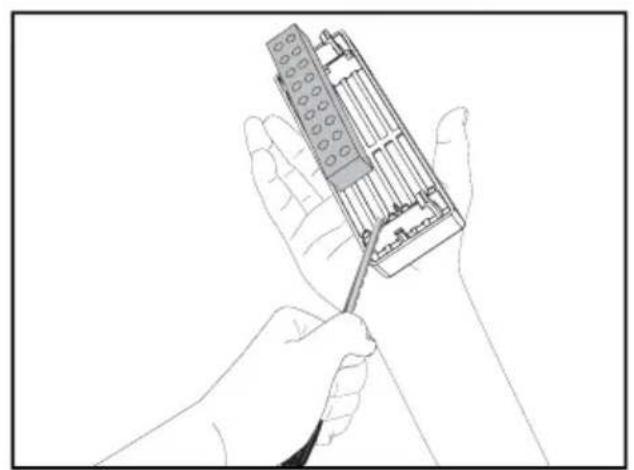

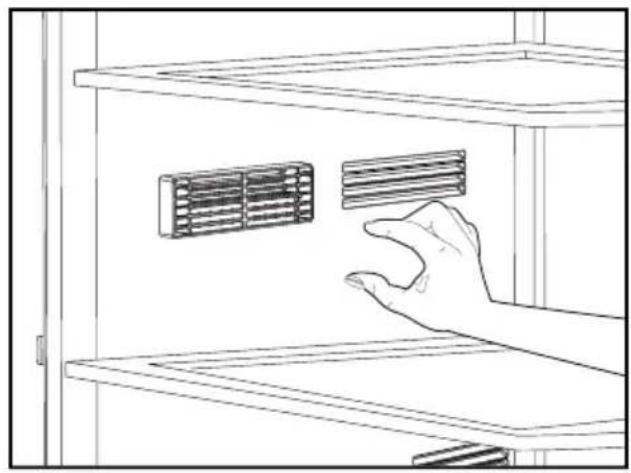

Description and cleaning of odor filter: Odor filter prevents unpleasant odor build- up in your refrigerator. Pull the cover, into which the odor filter is installed, downwards and remove as illustrated. Leave the filter under sunlight for one day. Filter will be cleaned during this time. Install the filter back to its place. Odor filter must be cleaned once in a year. Telescopic Drawer Pay attention not to squeeze any parts of your body such as hands, feet and etc. between the movable parts while the drawer is in use in order to avoid any injury. You can remove the partition in the drawer as illustrated when you want to clean it. You can remove the drawers only for cleaning. It is not possible to group the drawers in their places after loading them with food when they are removed.EN

6 Maintenance and cleaning A Never use gasoline, benzene or similar substances for cleaning purposes. B We recommend that you unplug the appliance before cleaning. B Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning. C Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry. C Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry. B Make sure that no water enters the lamp housing and other electrical items. B If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar. C Check door seals regularly to ensure they are clean and free from food particles. A To remove door racks, remove all the contents and then simply push the door rack upwards from the base. Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.EN

7 Recommended solutions for the problems Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product. The refrigerator does not operate.

• Is the refrigerator properly plugged in? Insert the plug to the wall socket.

• Is the fuse of the socket which your refrigerator is connected to or the main fuse blown out? Check the fuse. Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

• Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Storage of food containing liquid in open containers. Leaving the door ajar. Switching the thermostat to a colder degree.

• Decreasing the time the door left open or using it less frequently.

• Covering the food stored in open containers with a suitable material.

• Wipe the condensation using a dry cloth and check if it persists. Compressor is not running

• Protective thermic of the compressor will blow out during sudden power failures or plug- out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. Your refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.

• The fridge is in defrost cycle. This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.

• Your refrigerator is not plugged into the socket. Make sure that the plug is properly fit into the socket.

• Are the temperature adjustments correctly made?

• Power might be cut off. The fridge is running frequently or for a long time.EN

• Your new product may be wider than the previous one. This is quite normal. Large refrigerators operate for a longer period of time.

• The ambient room temperature may be high. This is quite normal.

• The refrigerator might have been plugged in recently or might have been loaded with food. Cooling down of the refrigerator completely may last for a couple of hours longer.

• Large amounts of hot food might have been put in the refrigerator recently. Hot food causes longer running of the refrigerator until they reach the safe storage temperature.

• Doors might have been opened frequently or left ajar for a long time. The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently.

• Freezer or fridge compartment door might have been left ajar. Check if the doors are tightly closed.

• The refrigerator is adjusted to a very low temperature. Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.

• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature. Freezer temperature is very low while the fridge temperature is sufficient.

• The freezer temperature is adjusted to a very low temperature. Adjust the freezer temperature to a warmer degree and check. Fridge temperature is very low while the freezer temperature is sufficient.

• The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check. Food kept in the fridge compartment drawers are freezing.

• The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check. Temperature in the fridge or freezer is very high.

• The fridge temperature might have been adjusted to a very high degree. Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches to a sufficient level.

• Doors might have been opened frequently or left ajar for a long time; open them less frequently.

• Door might have been left ajar; close the door completely.

• Large amount of hot food might have been put in the refrigerator recently. Wait until the fridge or freezer reaches the desired temperature.

• The refrigerator might have been plugged in recently. Cooling down of the refrigerator completely takes time. The operation noise increases when the refrigerator is running.

• The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault. Vibrations or noise.EN

• The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make sure that the floor is strong enough to carry the refrigerator, and level.

• The noise may be caused by the items put onto the refrigerator. Items on top of the refrigerator should be removed. There are noises coming from the refrigerator like liquid spilling or spraying.

• Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault. There is a noise like wind blowing.

• Fans are used in order to cool the refrigerator. It is normal and not a fault. Condensation on the inner walls of refrigerator.

• Hot and humid weather increases icing and condensation. It is normal and not a fault.

• Doors might have been left ajar; make sure that the doors are closed fully.

• Doors might have been opened frequently or left ajar for a long time; open them less frequently. Humidity occurs on the outside of the refrigerator or between the doors.

• There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear. Bad odour inside the refrigerator.

• Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a sponge, lukewarm water or carbonated water.

• Some containers or package materials might cause the smell. Use a different container or different brand packaging material. The door is not closing.

• Food packages may prevent the door's closing. Replace the packages that are obstructing the door.

• The refrigerator is not completely upright on the floor and rocking when slightly moved. Adjust the elevation screws.

• The floor is not level or strong. Make sure that the floor is level and capable to carry the refrigerator. Crispers are stuck.

• The food might be touching the ceiling of the drawer. Rearrange food in the drawer.DE

P@#@'Y1;>%&'L3I)'-F 'GAR

'C1Hb.@'3E'L381O'3E^!>+1I'-&3@'kE'

1)T6"'W3,H@'U18%&'9A,&3 'L@'-IM,D%'Y1b,.18'U18%&'=B'UAP,%&'d.&3@'n5H8'YF '

'=B'1@8q'-&ABK&'!>P&38'Y&-Z,P#%'-;
