Product Type	Built-in Dishwasher
Brand	Samsung
Model	DW80K5050US
Capacity	15 place settings
Dimensions (W x D x H)	605 x 627 x 860 mm (23 7/8 x 24 3/4 x 33 7/8 in)
Weight (unpacked)	43 kg (94.8 lb)
Power Supply	120 V, 60 Hz, 15 A
Required Water Pressure	20-120 psi (140-830 kPa)
Wash Programs	Auto, Normal, Heavy, Delicate, Express 60, Rinse Only
Options	Lower Rack, StormWash, High Temp Wash, Sanitize, Delay Start, Control Lock, AutoRelease Dry
Control Type	Touch with Digital Display
Tub Material	Stainless Steel
Filtration System	Washable filters (insert, fine filter)
Spray Arms	Lower, Center, Upper Rack Integrated (removable and cleanable)
Racks	Height-adjustable upper rack, lower rack with StormWash zone, 3rd rack (cutlery) on select models
Safety Feature	Control Lock, auto stop when door is opened
Noise Level	Not specified in the manual
Water Consumption	Varies by program (from 4.9 to 8.7 gallons)
Program Duration	From 17 min (Rinse) to 170 min (Normal)
Warranty	1 year parts and labor, 5 years printed circuit board and racks, lifetime stainless steel tub (leaks)

Frequently Asked Questions - DW80K5050US SAMSUNG

How to start a wash cycle?

Press Power, select a program using the selector, then press Start and close the door within 3 seconds. The drain begins then the cycle starts.

What to do if the dishwasher does not start?

Check that the door is properly closed, a program is selected, the power cord is plugged in, the water valve is open, and the control lock is not activated. If the problem persists, reset the circuit breaker.

How to use the Sanitize option?

Press Sanitize before starting a cycle. The temperature rises to 73 °C during the final rinse to disinfect. Not available with Delicate and Rinse Only programs.

How to adjust the height of the upper rack?

To lower, pull the adjustment handles on the sides while pushing down. To raise, simply pull the rack upwards. It is recommended to do this before loading dishes.

How to clean the filters?

Turn off the appliance, turn the filter insert counterclockwise to remove it, take out the fine filter, rinse the filters under running water, then reassemble in reverse order. Improper assembly reduces performance.

Why is the dishes not dry at the end of the cycle?

Add rinse aid to the dedicated reservoir. Use the Sanitize option to increase temperature. Make sure AutoRelease Dry mode is enabled (setting A1). Avoid overloading the appliance.

What do the error codes mean?

Examples: 4C = water supply problem (valve closed or hose frozen), 5C = drain problem, LC = leak detected. Refer to the manual for the full meaning and actions to take.

How to lock the control panel?

Press and hold the Sanitize button for 3 seconds when the appliance is on. Repeat to unlock. This prevents children from accidentally starting a cycle.

What detergents to use?

Use only dishwasher-specific products (powder, gel or tablets). Do not use ordinary detergent which would create too much foam. For pre-wash, you can add a small amount on the door.

How to maintain the interior of the dishwasher?

Wipe the interior regularly with a damp cloth. Run an empty cycle with detergent and the Sanitize option. For bad odors, place a cup of white vinegar in the lower rack and run a Normal cycle.

USER MANUAL DW80K5050US SAMSUNG

Dishwasher user manual

imagine the possibilities

Thank you for purchasing this Samsung product.

SETTING UP YOUR DISHWASHER

6 Unpacking your dishwasher

6 Checking parts

7 Control panel

9 Cycle selector

10 Meeting installation requirements

USING YOUR DISHWASHER

11 Basic guidelines

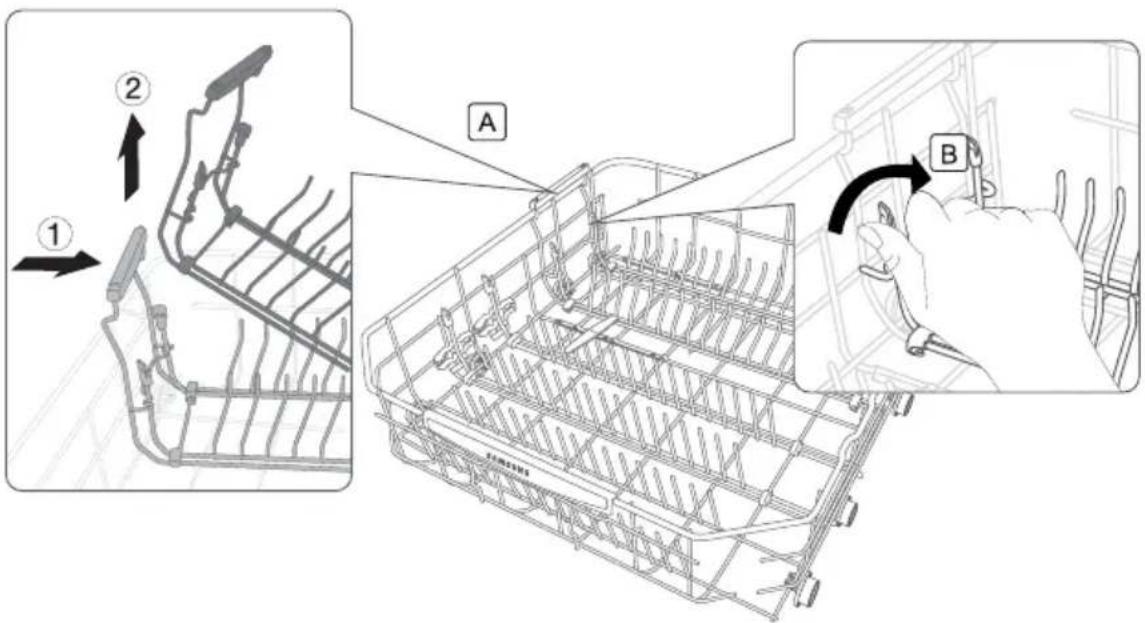

14 Adjusting the angle of the plate supports

15 Adjusting the height of the upper rack

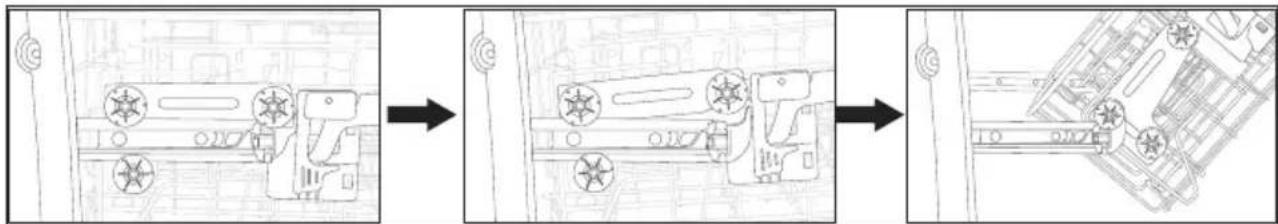

15 Removing the upper rack

16 Loading the lower rack

17 Loading the upper rack

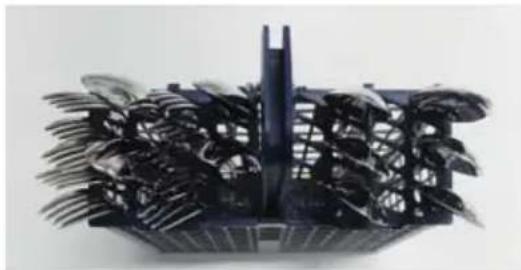

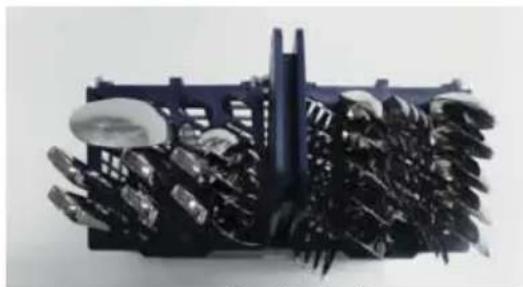

18 Using the cutlery rack

19 Using the 3cutlery) rack

(For applicable models)

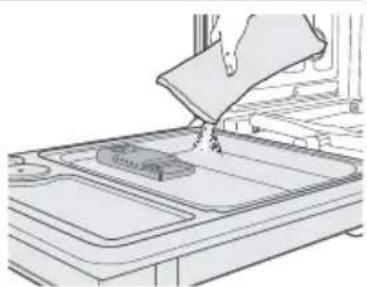

20 Using detergent

CLEANING AND MAINTAINING YOUR DISHWASHER

22 Cleaning the exterior

22 Cleaning the interior

22 Cleaning the fi Iters (DW80K7050 series)

23 Cleaning the nozzles

24 Storing your dishwasher

CYCLES

25 Cycle chart

TROUBLESHOOTING

27 Check these points if your dishwasher...

30 Information codes

APPENDIX

31 Helping the environment

31 Specifications

safety information

Throughout this manual, you'll see Warning and Caution notes. These important safety instructions do not cover all possible situations that might occur. It is your responsibility to use caution when installing, maintaining, and operating your dishwasher. Samsung will not be liable for any damage resulting from improper use.

IMPORTANT SAFETY INSTRUCTIONS

What the icons and signs in this user manual mean :

WARNING	Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION	Hazards or unsafe practices that may result in personal injury or property damage.
CAUTION	To reduce the risk of fi re, explosion, electric shock, or personal injury when using your dishwasher, follow these basic safety precautions:
	Do NOT attempt.
	Do NOT disassemble.
	Do NOT touch.
	Follow directions explicitly.
	Unplug the power plug from the wall socket.
	Make sure the machine is grounded to prevent electric shock.
	Call the service center for help.

WARNING

State of California Proposition 65 Warning (US only)

This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

WARNING - When using the dishwasher, follow basic precautions, including the following:

Read all instructions before using the dishwasher.

As with any equipment using electricity, water, and moving parts, potential hazards exist.

Use the dishwasher only for its intended function.

Use only detergents or wetting agents recommended for use in a dishwasher, and keep them out of the reach of children.

When loading items to be washed:

- Locate sharp items so that they are not likely to damage the door seal, and

- Load sharp knives with the handles up to reduce the risk of cut-type injuries.

SAVE THESE INSTRUCTIONS

Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.

Do not touch the HEATING ELEMENT during or immediately after use.

WARNING

WARNING : When using your dishwasher, follow basic precautions, including the following:

1. Read all instructions before using the dishwasher.
2. Use the dishwasher only for its intended function.
3. Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of the reach of children.
4. When loading items to be washed:
5. locate sharp items so that they are not likely to damage the door seal, and
6. load sharp knives with the handles up to reduce the risk of cut-type injuries.

7. Do not wash plastic items unless they are marked "dishwasher safe" or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.

8. Do not touch the HEATING ELEMENT during or immediately after use.

9. Do not operate your dishwasher unless all ENCLOSURE panels are properly in place.

10. Do not tamper with the controls.

11. Do not abuse, sit on, or stand on the door or on a dish rack of the dishwasher.

12. To reduce the risk of injury, do not allow children to play in or on the dishwasher.

13. Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

14. Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

After unpacking the dishwasher, keep the packaging out of the reach of children.

The dishwasher is extremely heavy. Do not attempt to move or carry the dishwasher by yourself. Two or more people are needed to move a dishwasher and avoid potential injuries.

Do not install the dishwasher near electrical components. Keep the dishwasher away from open flames.

Install and level your dishwasher on an uncarpeted floor that can support its weight.

Your dishwasher must be properly grounded. Never connect it to an ungrounded outlet. See page 10 for more information on grounding your dishwasher.

Connect the ground wire to the green ground connector in the terminal box.

After the dishwasher is installed, check that the drain hose is properly connected and that there is no leakage from the hose connectors. If the drain hose is loose, it may cause property damage.

The water supply line is susceptible to breakage. As time goes by, it becomes less flexible. Check the line periodically. If it is swollen, torn, cut, or there is a water leak, replace it immediately.

SAVE THESE INSTRUCTIONS

To safely operate this appliance, familiarize yourself with its operations and exercise care when using it.

Do not put gasoline, solvents, or other flammable materials inside the dishwasher. Do not wash dishes exposed to these materials.

Keep your dishwasher detergent out of the reach of children. Detergent has an adverse effect on human organs. It contains elements for polishing and is corrosive. Avoid letting the detergent come into contact with your skin and eyes.

Do not push or place pressure on the door when it is open, as this may damage the dishwasher or cause harm.

Do not allow children to play in or on the dishwasher. They may harm themselves or damage the dishwasher.

Disconnect the power cable (or set the circuit breaker to off) before servicing your dishwasher.

Do not repair, replace, or service any part of your dishwasher yourself. Disassembly, repairs and modifi cations must be performed by authorized service technicians only. Work done by an unauthorized person may void your warranty.

Before disposing of your dishwasher, remove the door of the washing compartment or the door latch so that children or small animals do not get trapped inside.

If the dishwasher is left unused for an extended period of time, turn off the water supply.

This dishwasher is intended for residential use only.

BEFORE USING YOUR DISHWASHER

WARNING

Tip-Over Hazard

• Do not use the dishwasher until it is correctly installed.
• Do not push down on an open door.
• Do not place excessive weight on the open door.

Electric Shock Hazard

Failure to follow these instructions can result in death, fire, or electric shock:

• Electrically ground the dishwasher
• Connect the ground wire to the green ground connector in the junction box.
• Do not use an extension cord.

SAVE THESE INSTRUCTIONS

setting up your dishwasher

Be sure to have your installer follow these instructions closely so that your new dishwasher works properly and that you're not at risk of injury when washing dishes.

UNPACKING YOUR DISHWASHER

• Once your new dishwasher has been delivered to you, carefully unpack it and check for any damage. If the dishwasher has been damaged, make note of it on the waybill and keep a copy. Do not install the dishwasher, and contact Samsung Customer Service at the number listed below.
• If there is no damage to the product, you can proceed with the installation. If you are going to install it yourself, make sure to read through the installation guide and follow the directions inside.
  • After unpacking your dishwasher, keep the packaging out of the reach of children to ensure their safety.

CHECKING PARTS

When your dishwasher has been unpacked, make sure you've received all the parts shown below. If your dishwasher was damaged during shipping, or if you do not have all the parts, contact Samsung Customer Service at 1-800-SAMSUNG (726-7864)

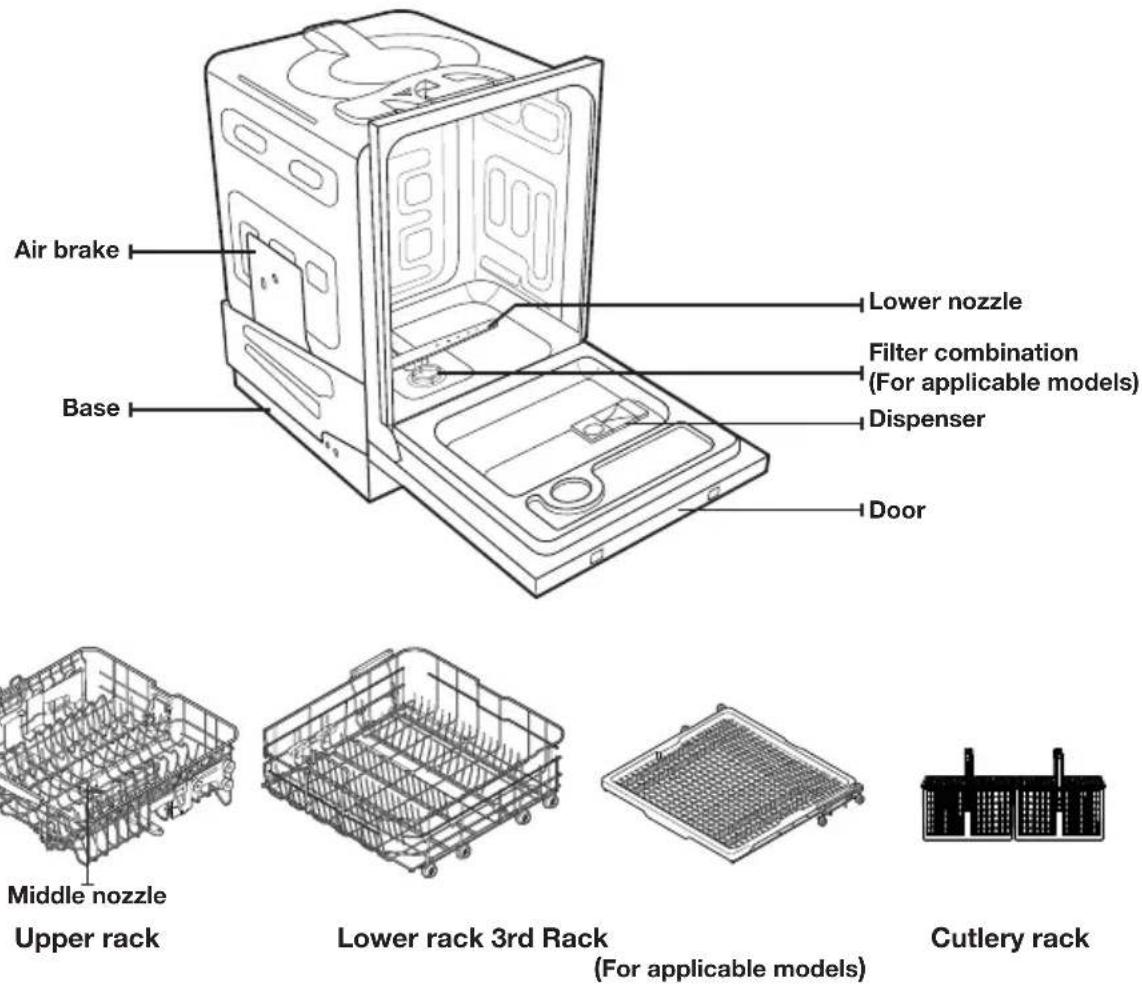

Air brake Lower nozzle Filter combination (For applicable models) Dispenser Base Door Middle nozzle Upper rack Lower rack 3rd Rack (For applicable models) Cutlery rack

Accessory parts - User/Installation manual, Installation Kit.

DW80K7050, DW80K5050 Series

Light indicator	● Power	● Auto | Normal | Heavy | Delicate | Express 60 | Rinse Only	● Lower Rack | Storm Wash | Hi-Temp Wash | Sanitize	● Wash | Rinse Dry | Time Left | Delay Start | START Cancel (sec)
1	Light indicator Indicates that the product is operating.
2	Power	When you press the Power button, the entire display turns on and off, and then the light of the most recently fi nished cycle lights up.When the selected cycle is complete, the dishwasher powers off automatically.
3	Cycle Selector	Select the appropriate wash cycle depending on the soil level of your dishes. After you select a cycle, the Cycle On light for that cycle lights up.
4	Lower Rack	Select this option to wash a small load of dishes. We recommend that you place dishes in the lower rack when you use this feature.When you select Lower Rack, the dishwasher will not wash dishes placed in the upper rack.
5	StormWashTM	Use this option when you want to wash pots and pans, durable serving bowls, and other large, very dirty, hard to clean dishes.To use StormWashTM, place the dishes face down in the marked StormWashTM area in the lower basket.StormWashTM is not available with the Delicate and Rinse only cycles.
6	Hi-Temp Wash	Raises the main wash temperature to improve cleaning for loads containing tough, baked-on food.Hi-Temp Wash is not available for the Delicate and Rinse only cycles.
7	Sanitize / (3sec) (Control Lock)	The temperature rises to 163 °F (73 °C) in the fi nal rinse cycle for high temperature sanitization.If you select the Sanitize option, the “Sanitize” lamp blinks when the water temperature reaches the sanitary temperature (over 155 °F (68 °C)), and then remains illuminated until the Sanitize option ends. When you press the Power button, the “Sanitize” lamp turns off.Sanitize is not available for the Delicate and Rinse only cycles.The Normal Cycle with the Sanitize option selected is NSF certifi ed.The Sanitize feature operates in accordance with NSF/ANSI Standard 184 for Residential Dishwashers. Certifi ed residential dishwashers are not intended for licensed food establishments. Only the DW80K7050 model dishwasher is NSF Certifi ed.

setting up your dishwasher

[0YKK]	Sanitize /(3sec)(Control Lock)	Control Lock allows you to lock the buttons on the control panel so children cannot accidentally start the dishwasher by pressing the buttons on the panel.To lock and unlock the buttons on the control panel, hold the Sanitize button down for three (3) seconds when power is On.
[27HT]	Delay Start(DISPLAY)	Delay a cycle for up to 24 hours in one-hour increments. The hour displayed indicates the time at which the wash will be started.Displays wash information, Delay Start hours, and Error messages.If an trouble occurs during an operation, an check message is displayed with a warning sound. Refer to “Information codes” on page 30.
[4T30]	Start	To start a cycle, press the Start button before closing the door.To cancel the cycle, press and hold the Start button for 3 seconds or press the Power button to power off.

You can select options (Lower Rack, StormWash™, Hi-Temp Wash, Sanitize) before starting a cycle. If you change the cycle after selecting an option, the original cycle is reset.

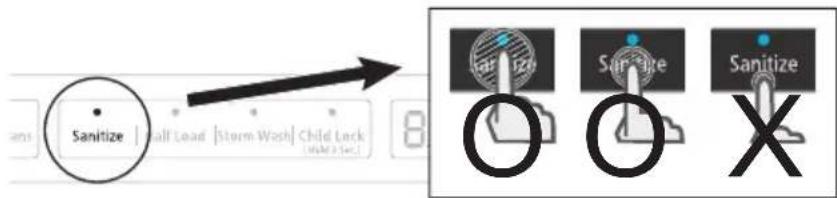

To prevent the touchpad from losing response sensitivity, follow these instructions:

• Touch the center of each keypad using one finger. Do not push.
• Clean the touch control's surface regularly with a soft, damp cloth.
• Be careful not to touch more than one touch key pad at a time, except as directed.

When you pause a cycle by opening the door during operation, press the Start button before closing the door to continue the cycle.

Push door firmly closed within 3 seconds of pressing Start button. If the door is not closed within 3 seconds, the cycle will not start.

Sanitize | Half Load | Storm Wash | Child Lock 8 Sanitize O O Sanitize X

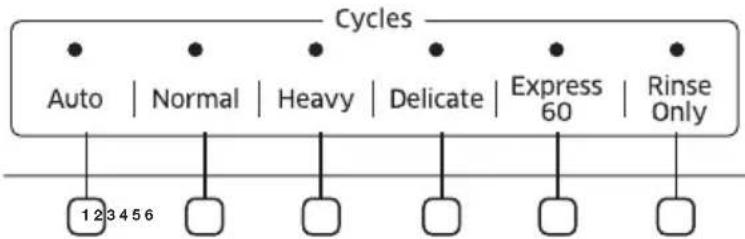

CYCLE SELECTOR

DW80K7050, DW80K5050 Series

1	Auto	This cycle detects the level of soil and automatically initiates the optimal cycle after a few minutes of operation.
2	Normal Use this cycle for normally soiled dinner dishes.
3	Heavy Use this cycle for heavily soiled dishes and dishes with heavy soil.
4	Delicate Use this cycle for normally soiled dishes or fragile items such as glasses.
5	Express 60	Use this cycle for lightly soiled dishes.
6	Rinse only	Use for rinsing dishes, glasses, and silverware that will not be washed right away. Do not use detergent.

MEETING INSTALLATION REQUIREMENTS

Electrical supply and grounding

To prevent the risk of fire, electric shock, or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and local codes and ordinances. It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance.

Never use an extension cord.

When preparing for installation, ensure that you provide:

- An individual branch circuit with a 120 V, 60Hz, 15 AMP fuse or circuit breaker that serves only your dishwasher.

Your dishwasher must be grounded. If your dishwasher malfunctions or breaks down, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current.

Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

GROUNDING INSTRUCTIONS

For a permanently connected appliance:

This appliance must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and then connected to the equipment-grounding terminal or lead on the appliance.

Water supply

The hot water supply line pressure must be between 20-120 psi (140-830 kPa).

Adjust the water heater to deliver water between 120 °F (49 °C) - 149 °F (65 °C).

Most plumbing supply stores sell water supply lines of various lengths up to 10 feet (305 cm) long.

You can reduce the risk of leaks and water damage by:

• Making water faucets easily accessible.
• Turning off faucets when the dishwasher is not in use.
  • Periodically checking for leaks at water supply line fittings.

Before using your dishwasher for the first time, check all connections at the water supply valve and faucets for leaks.

Flooring

For safety, your dishwasher must be installed on a solidly constructed floor.

Never install your dishwasher on a platform or poorly supported structure.

Your dishwasher must be properly installed in accordance with the Installation Guide before you use it. If you did not receive an Installation Guide with your dishwasher, you can obtain one by visiting our website at www.samsung.com.

BASIC GUIDELINES

1. Open the door and load your dishes (see page 14).

2. Place dishes into the upper and lower racks, unless you have selected Lower Rack.

3. Remove any food remains from the dishes before placing them in the FlexLoad™ rack(s).
4. After placing the dishes into the FlexLoad™ racks, rotate the nozzles by hand to check whether any of the dishes will interfere with them.

5. Make sure the dishes will not prevent the detergent dispenser from opening.

6. Add detergent to the dispenser (see page 20).

7. Make sure to use only automatic dishwasher detergent and rinse aid.

8. Refer to "Using detergent" on page 20 for instructions explaining how to add detergent and rinse aid.

9. Press the Power button.

10. When you press the Power button, the entire display turns on and off, and then the indicator of the most recently finished cycle lights up.

11. If "Low Rinse" ( ✉) is illuminated, you should refill the rinse aid dispenser to improve washing and drying performance.

12. Select an appropriate cleaning cycle depending on the soil level of the dishes. (See pages 9 and 25.)

13. Press the appropriate cycle button.

14. When you press a cycle button, the cycle indicator lights up.

15. Press the Start button, and then close the door within 3 seconds.

16. The dishwasher will start draining after a few seconds, and then start the selected cycle.

17. Make sure to close the door firmly. If the door is not closed properly, the selected cycle will not start automatically.

18. When the wash cycle is completed.

19. The light illuminates and the dishwasher sounds a chime.

20. The dishwasher powers off automatically.
21. The door opens automatically 5 \~ 15 minutes before the cycle ends to improve drying performance.

• If you want to load more dishes or pause the dishwasher while it is already running, make sure to open the door slowly and carefully as there is a possibility of injury from the hot steam inside the dishwasher.
• If the door is opened while the dishwasher is running, a safety mechanism is activated and stops the cycle.
• To resume operation, press the Start button, and then close the door within 3 seconds.
• Adding dishes several minutes after the dishwasher starts operating may affect its performance.
• If you open the door while the dishwasher is running at high temperature, it will drain the hot water automatically to protect you from scalding.

You should use rinse aids for better drying performance. You can further improve drying performance by also selecting the Sanitize option.

After a cycle is complete, the door automatically opens to let steam out. This is normal and not a product malfunction.

using your dishwasher

Touch controls

Touch controls allow you to operate the dishwasher easily.

• They are convenient to operate, requiring only a soft touch.
• Have a simple and stylish design.
- Are easy to clean.

If you have children or you want to clean the Control Interface, we recommend activating the Control Lock feature to lock the control buttons. See page 8.

• Children will not be able to accidentally start the dishwasher by touching the controls with this option selected.
• If a cycle is running, the buttons will not respond. (except the Power button)
• If dishwasher is off, only the Power button responds.

Setting Mode

The Setting Mode lets you change the dishwasher's Sound, Light indicator, and AutoRelease™ Dry settings. To enter the Setting mode, press the Delay Start + Sanitize buttons for 3 seconds while the dishwasher is on. Press the Sanitize button to select a sub-setting menu and then press the Delay Start button to change a setting.

• Sound Setting: Press the Sanitize button until "U1" or "U0" is displayed. To change the setting, press the Delay Start button. "U0" turns the sound off for all cycles. "U1" turns the sound on.
  The dishwasher maintains the Sound Setting you have selected until you change it.
• Light indicator Setting: Press the Sanitize button until "B1" or "B0" is displayed. To change the setting, press the Delay Start button. "B0" turns the light off for all cycles. "B1" turns the light on.
• AutoRelease™ Dry setting: Press the Sanitize button until "A1" or "A0" is displayed. Press the Delay Start button to enable or disable AutoRelease™ Dry. "A0" disables AutoRelease™ Dry. "A1" activates AutoRelease™ Dry.

* Once the door opens in the AutoRelease™ Dry mode, the door cannot be closed manually for the next 2 minutes.
* The AutoRelease™ Dry mode will be disabled for the Rinse only cycle.

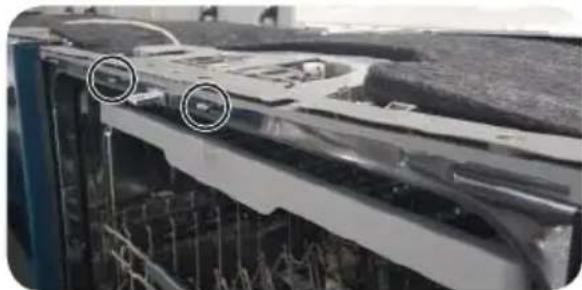

Close-up of a damaged metal panel with two circled annotations (no readable text or symbols)

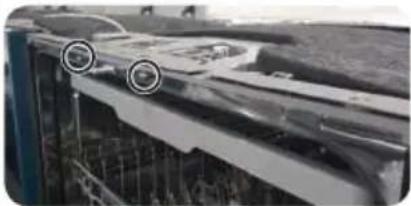

The door opens automatically 5 \~ 15 minutes before the cycle ends to improve drying performance.

Changing the "AutoRelease™ Dry" setting can influence drying results. Select "A1" mode for better drying results. ("A1" is the default setting.)

After a cycle is complete, the door automatically opens to let steam out. This is normal and not a product malfunction.

Delay start

When you select the Delay Start option, your dishwasher will:

- Start draining to remove remaining water at once (pre-drain).

Your dishwasher will operate the selected cycle when the delay time expires.

When using the dishwasher, try to arrange the dishes properly as described on page 16 to 19.

• You should remove food remains such as bones, fruit seeds, etc. and any other waste such as toothpicks, paper, etc. from the dishes as these may cause damage to the dishes, create noise, or cause the dishwasher to malfunction.
• Select the appropriate cycle depending on the level of soil and the type of dishes.
• Use only the proper amount of detergent and rinsing agent.

Do not wash the following items

• Acrylic or Aluminum items: Dishes with printed gold rim decoration may become discolored.
• Dishes treated with adhesive: Treated plastics, wood, ivory, copper, and tin may come loose.
• Plastics with a temperature tolerance less than 194 °F (90 °C): Thin plastics wash and dry poorly, and may be damaged due to elevated wash temperatures.
• Tin: Tin should be washed by hand and dried immediately as it may rust.
• Wooden utensils: Wooden items may crack.

using your dishwasher

ADJUSTING THE ANGLE OF THE PLATE SUPPORTS

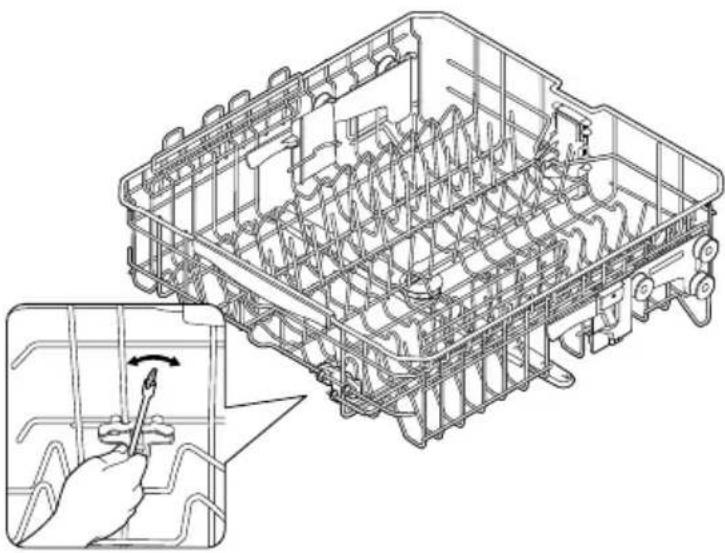

You can adjust the angle of the tines in the upper rack to three different positions to match the size and shape of your dishes. To adjust the tines, grasp the handle at the back of the rack and push it left or right. See the illustration below.

In the lower rack, you can easily remove the plate support to make room for large items such as pots and pans. To remove the plate support, lift up the handles (A). To refi t the plate support, align it so it is in place, and then push down on the handles (A). To fold down the fold-down tines on the lower rack, remove the rack from the dishwasher, turn the rack over, grasp the tine (B), and then adjust it backward. See the illustration below.

Upper rack

Technical line drawing of a mechanical component with internal structure and a magnified inset showing a hand using a tool (no text or symbols present)

Lower rack

Technical diagram showing assembly steps of a mechanical component with labeled parts A and B, including directional arrows and component details.

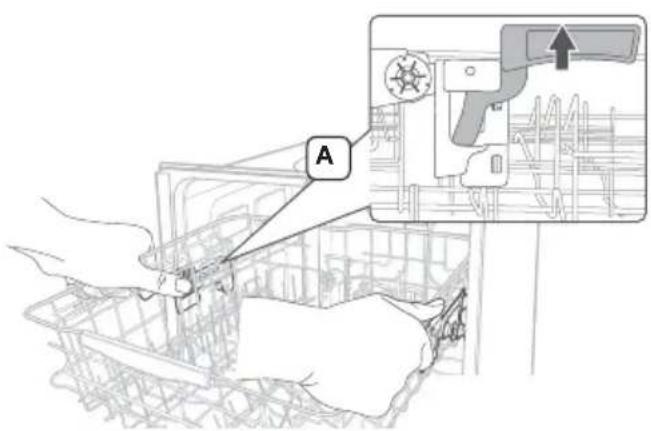

ADJUSTING THE HEIGHT OF THE UPPER RACK

You can adjust the height of the upper rack in your Samsung dishwasher so that the lower rack can accommodate larger sized dishes. With the upper rack set at the highest position, the lower rack can accommodate plates up to 12 in. (30 cm) in diameter and the upper rack can accommodate plates up to 8 in. (20 cm) in diameter.

DW80K7050, DW80K5050 Series

1. To lower the upper rack by 2 in. (5 cm), pull the adjustment handles located at the left and right sides of the upper rack and push the upper rack downwards slightly at the same time.

2. To raise the upper rack, just pull the upper rack upwards. The adjuster handle will latch and the upper rack will move to the high position.

We recommend adjusting the height of the upper rack before loading dishes into the rack. If you adjust the the rack after loading the dishes, you may damage the dishes.

A

REMOVING THE UPPER RACK

Pull the upper rack towards the front and then remove it by lifting it up slightly and pulling it towards the front. See the illustrations below.

While the upper rack is removable, it must be installed for the dishwasher to operate properly. If you attempt to operate the dishwasher without the rack, noise will occur and the dishwasher will perform poorly.

Step 1. Step 2. Step 3.

using your dishwasher

LOADING THE LOWER RACK

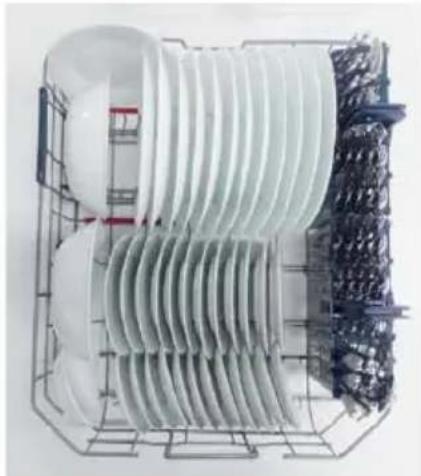

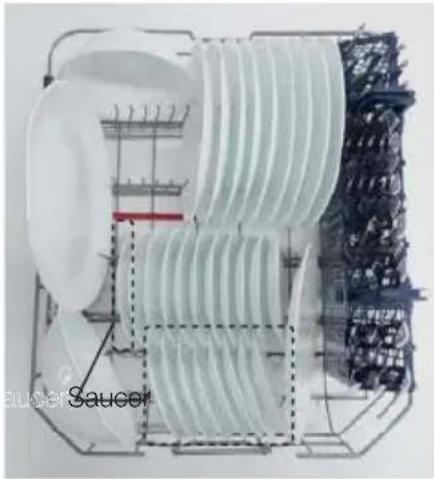

The lower rack has been especially designed for dinner dishes, soup bowls, plates, pots, lids, casserole dishes, and plates.

Load large items such as pans and pots into the dishwasher so their open sides face downwards. We recommend loading cups, stemware, and small plates into the upper rack.

See the recommended loading patterns below.

3D rendering of a mechanical assembly with layered components and structural framework (no visible text or symbols)

10 place setting 12 place setting

3D rendering of a mechanical structure with layered white components and a metallic frame (no visible text or symbols)

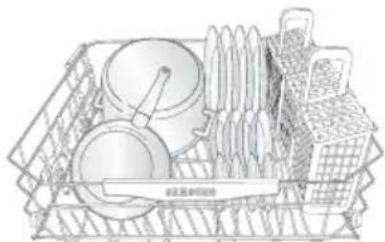

Loading the large items into the StormWash™ zone

You can load large items such as pots and pans into the StormWash™ Zone - identifi ed by red guide lines - In the lower rack for more effective cleaning. When you select the StormWash™ option, an additional, powerful jet is activated and directed at items in the StormWash™ Zone. Make sure pot handles and other items do not interfere with the rotation of the nozzles.

Illustration of a shopping basket with kitchen utensils and a handbag (no text or symbols)

LOADING THE UPPER RACK

The upper rack has been designed for small plates, mugs, glasses, and plastic items marked “dishwasher safe”. Load your plates into the dishwasher in two half rows, so that the front of each plate faces the back of the plate in front of it, and the open sides of the plates at the center of the dishwasher face each other. See the illustrations below.

Make sure the loaded dishes do not interfere with the rotation of the nozzle which is located at the bottom of the upper rack. (Check this by rotating the nozzle by hand.)

When loading dishes, pull the upper rack out sufficiently so you can load it without striking the counter above.

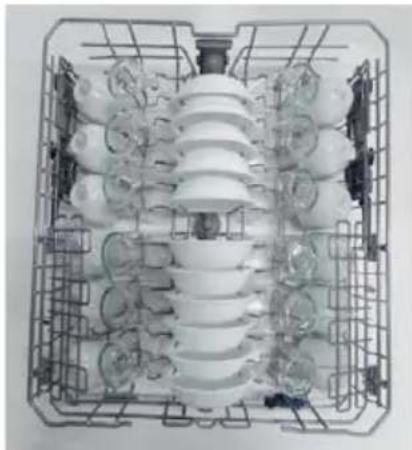

Top-down view of a multi-tiered kitchen appliance with white plastic cups and purple floral decorations (no text or symbols visible)

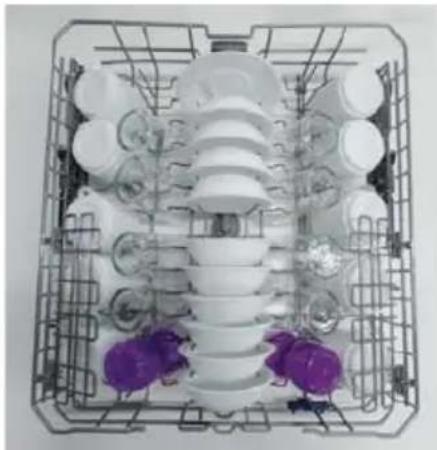

Top-down view of a multi-tiered appliance rack with glass domes and metal frame (no visible text or labels)

10 place setting 12 place setting

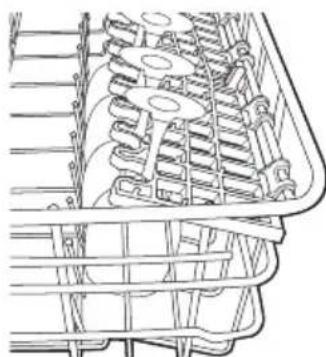

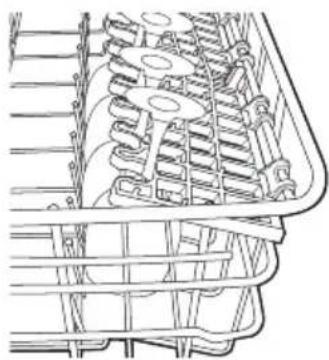

Using the glass support

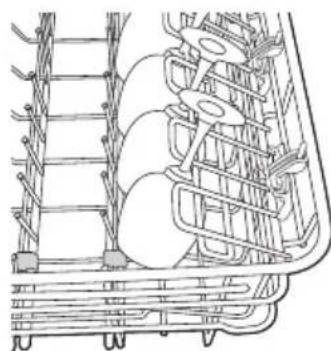

You can load cups or glasses onto the glass support. This is also very convenient for washing wine glasses. Hang your wine glasses onto the pegs of the glass support.

You can fold the glass support back when it is not being used.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

DW80K7050 Series DW80K5050 Series

using your dishwasher

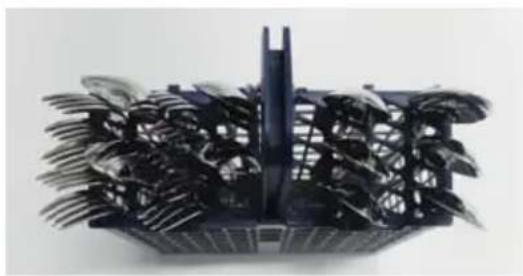

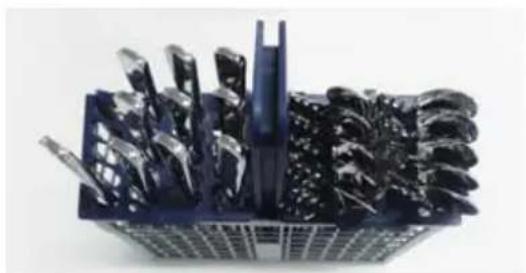

USING THE CUTLERY RACK

The cutlery rack consists of two compartments.

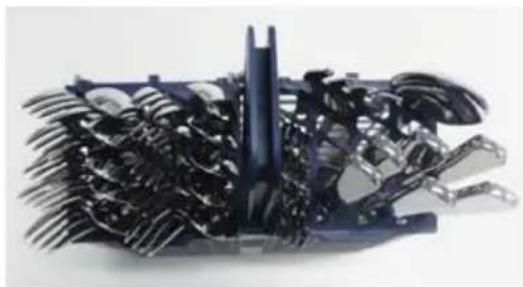

You can place each knife, spoon, or fork separately into the spoon stands in the basket's covers to prevent chipping and discoloration.

You can use the cutlery rack with the cover open. Refer to the illustration to the right.

Simple line drawing of a grid-patterned container with a top panel and label 'C' (no text or symbols on the diagram itself)

Metallic mechanical component with multiple teeth arranged in a grid pattern (no visible text or symbols)

Left Right

Black plastic tray with leaf-like structures arranged in a grid (no text or symbols visible)

10 place setting

Close-up of a mechanical component with metallic blades and a central shaft (no visible text or symbols)

Left Right

Close-up of a mechanical component with intricate metallic blades and a central spike (no visible text or symbols)

12 place setting

The spoon stands as seen from above with the suggested placement of cutlery items. Match the numbers in the diagram to the numbers in the list of cutlery items below.

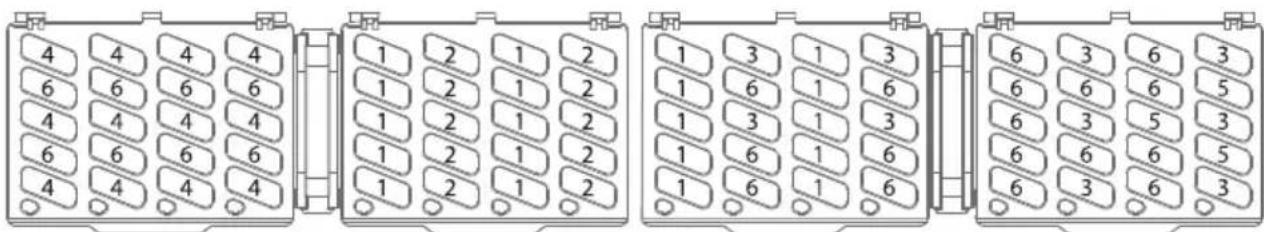

4 4 4 4 6 6 6 6 4 4 4 4 6 6 6 6 4 4 4 4 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 2 1 3 1 3 1 6 1 6 1 3 1 3 1 6 1 6 1 6 1 6 6 3 6 3 6 6 6 5 6 3 5 3 6 6 6 5 6 3 5 6 6 6 5 6 3 6 3

DO NOT let any item extend through the bottom.

1 Forks

2 Tea spoons

③ Dinner spoons

4 Knives

5 Serving spoons and Serving forks

6 Remaining items

13425

USING THE 3 ^RD (CUTLERY) RACK (FOR APPLICABLE MODELS)

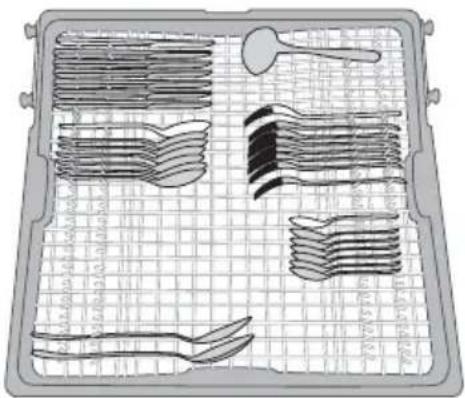

Loading the cutlery rack

Illustration of various kitchen utensils arranged in a grid, including a spoon, fork, and knife (no text or labels visible)

In addition to the standard cutlery basket in the lower rack, some models come with a cutlery rack.

The cutlery rack is best suited for flatware and cooking or serving utensils. You can place cutlery and utensils randomly or regularly on the cutlery rack.

Heavily soiled utensils or items with baked on foods should be placed in the lower cutlery basket for the most effective cleaning.

Removing the Cutlery Rack

The entire cutlery rack can be removed if more space is needed on the upper rack for larger items.

* When loading the cutlery and utensils onto the cutlery rack, make sure they do not interfere with the top nozzle of the rack. If they interfere, remove the cutlery pad and try again.

using your dishwasher

USING DETERGENT

All dishwasher cycles require detergent in the detergent compartment.

Add the correct amount of detergent for the selected cycle to ensure the best performance.

Use dishwasher detergent only. Regular detergent produces too much foam, which may decrease the dishwasher's performance or cause it to malfunction.

Do not swallow dishwasher detergent. Avoid breathing in the fumes. Dishwasher detergent contains irritants and caustic chemicals that can induce respiratory conditions. If you have swallowed dishwasher detergent or inhaled the fumes, seek medical attention immediately.

Keep dishwasher detergent out of the reach of children.

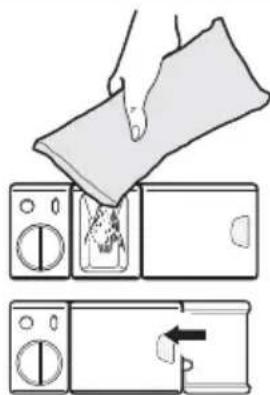

Filling the detergent dispenser

1. Open the detergent dispenser flap by pushing the detergent dispenser release catch.

The flap is always open at the end of a dishwashing cycle.

Diagram showing hand pressing down on a microwave oven with a brush, followed by a close-up of the device's interior panel.

1. Add the recommended amount of detergent to the main wash detergent compartment.

2. Close the flap by sliding it to the left and then pressing it down.

Illustration of a hand cleaning a microwave oven with a cloth cover (no text or symbols)

1. For better cleaning result, especially if you have very dirt items, pour a small amount (about 1/2 of an ounce or 15 g) of detergent onto the door.

The additional detergent will activate during the pre-wash phase.

Illustration of a hand pouring liquid into a tray with a small container (no text or symbols visible)

The cover opens automatically to dispense the detergent during the wash.

CYCLE	AMOUNT OF DETERGENT
	Main wash dispenser Onto	the door for pre-wash
Auto, Normal 3/4 oz (20 g)	1/3 oz (10 g)
Heavy, Express 60' 1 oz (30 g)	1/2 oz (15 g)
Delicate 3/4 oz (20 g)	1/5 oz (5 g)

The numbers inside the dispenser refer to grams.

Filling the rinse aid reservoir

When the Rinse Refi II indicator lights up on the control panel, refi II the reservoir with rinse aid. Your dishwasher has been designed to use liquid rinse aid only. Using a powdered rinse aid will clog the reservoir opening and cause the dishwasher to malfunction.

Rinse aid improves the drying performance of the dishwasher.

Do not add regular detergent to the rinse aid reservoir.

1. Remove the rinse aid reservoir cap by rotating it counterclockwise.

Line drawing of a hand inserting a camera into a device (no text or symbols)

1. Fill the rinse aid reservoir with rinse aid.

Use the viewing port when filling the rinse aid reservoir.

Do not fill the reservoir above the full level indicator. Excess rinse aid can overflow during the wash cycle.

Diagram showing a cable being inserted into a door panel (no text or symbols present)

1. Turn the rinse aid indicator dial to a number between 1 and 6. The higher the number, the more rinse aid the dishwasher uses. If you are unable to rotate the rinse aid dial easily, try using a coin.

Line drawing of a hand inserting a button into a device panel (no text or symbols)

1. Close the rinse aid reservoir cap by rotating it clockwise.

cleaning and maintaining your dishwasher

Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and lengthens its life.

CLEANING THE EXTERIOR

It's best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on the control panel to gently wipe away spills and dust. Do not use benzene, wax, thinner, chlorine bleach, or alcohol. These materials may discolor the inner walls and cause stains. Do not clean the dishwasher by sprinkling water over it and avoid letting water come into contact with any of the electrical parts.

If your dishwasher has a stainless steel door panel, you can clean it with a stainless steel cleaner for Home Appliances or a similar product using a clean, soft cloth.

CLEANING THE INTERIOR

Clean the interior of your dishwasher periodically to remove any dirt or food particles. Wipe the inside of the dishwasher and the inner part of the door with a wet dishcloth. We recommend filling the detergent dispenser with dish detergent, and then running the dishwasher empty periodically using either the Normal or Express 60 cycle with the sanitize option. This will keep your dishwasher clean.

If white spots and odor are still present in your dishwasher, run the Normal cycle with the dishwasher empty and without detergent until it fl ushes. Then, interrupt the cycle and put an 8 ounce cup of white vinegar into the lower basket. Close the dishwasher and let the cycle fi nish.

Do not remove the tub front seal (the long rubber seal enclosing the opening of the dishwasher).

CLEANING THE FILTERS (DW80K7050 SERIES)

1. Turn off the dishwasher.

Diagram of a kitchen sink with a drain cover and a horizontal bar, showing no text or symbols.

1. Rotate the filter insert counterclockwise to unfasten and then detach the filter insert.

Hand holding a mechanical component with an arrow indicating rotation (no text or symbols)

1. Remove the fi ne fi Iter (fl at, rectangular).

Diagram of a kitchen sink with a hand holding a tray and a small container, no text or symbols present

1. Remove any dirt or other remains from the filters, and then rinse them under running water.

Line drawing of hands using a tool on a kitchen sink (no text or symbols)

1. Reassemble the fi Iters in the reverse order of the dissassembly, replace the fi Iter insert, and rotate clockwise to the close arrow.

If the filter insert is not closed properly, its performance will be decreased.

Diagram showing a circular component with a rotating arrow and triangular symbols, next to a curved surface (no text or labels)

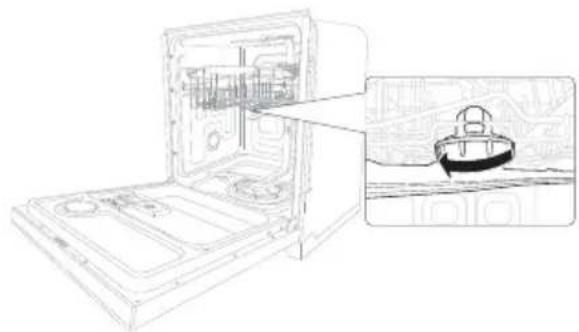

CLEANING THE NOZZLES

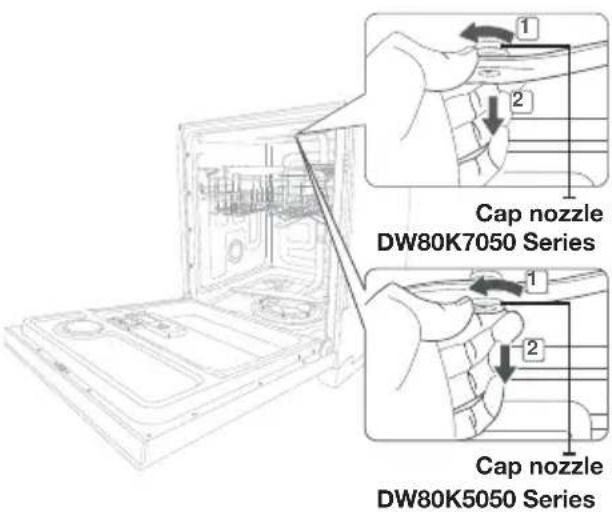

If your dishwasher does not seem to be cleaning adequately or the nozzles seem clogged, you can clean each of the nozzles. When removing the nozzles, take care as they may break.

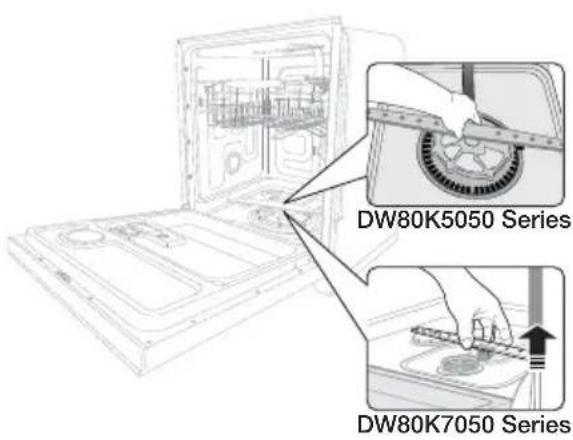

Lower nozzle

1. Check whether the nozzle holes are clogged by food particles.
2. If cleaning is needed, remove the nozzle by pulling it upwards.
3. Clean the nozzle, and then push it back into place.
4. Check whether the nozzle is engaged correctly by rotating it by hand.

DW80K5050 Series DW80K7050 Series

cleaning and maintaining your dishwasher

Middle nozzle

1. Pull the upper rack towards the front and remove it.

2. Check whether the nozzle holes are clogged by food particles.

3. If cleaning is needed, remove the nozzle.

4. To remove the nozzle, unfasten and remove the nut, and then remove the nozzle.

5. Clean the nozzle, re-insert it, and fasten the nut.

6. When fastening the nut, turn it firmly by hand.

7. Check whether the nozzle is engaged correctly by rotating it by hand.

Line drawing of an open refrigerator with internal compartments and a close-up inset showing a boat on water (no text or symbols)

Upper nozzle

1. Check whether the nozzle holes are clogged by food particles.

2. If cleaning is needed, remove the nozzle.

3. To remove the nozzle, pull out the upper rack fi rst, unfasten the nozzle cap by turning it counterclockwise, and then remove the upper nozzle.

4. Clean the nozzle, re-insert it, and then fasten the nozzle cap to the nozzle by turning the cap clockwise.

5. Check whether the nozzle is engaged correctly by rotating it by hand.

Cap nozzle DW80K7050 Series Cap nozzle DW80K5050 Series

STORING YOUR DISHWASHER

If you need to store your dishwasher for an extended period of time, first drain and disconnect it. If you leave water in the hoses and internal components, you can damage the dishwasher.

After draining and disconnecting the dishwasher, be sure to turn off the water supply valve and circuit breaker.

CYCLE CHART

DW80K7050 Series

Cycle	Pre-wash1	Pre-wash2	Pre-wash3	Main wash	Rinse1	Rinse2	Rinse3	Last Rinse [Sanitize]	Dry	Water [gal(ℓ)]	Time (min)
Auto	●	●	●	122-140 °F (50-60 °C)	●	○	○	136-154 °F (58-68 °C) [163 °F (73 °C)]	●	4.5-6.5 (16.9-24.7)	128-144
Normal	●	○		113-144 °F (45-62 °C)	●	○	○	136-149 °F (58-65 °C) [163 °F (73 °C)]	●	2.3-6.6 (9.0-25.1)	100-167
Heavy	●	●	●	149 °F (65 °C)	●	●	●	154 °F (68 °C) [163 °F (73 °C)]	●	7.7 (29.0) 163
Delicate	●			122 °F (50 °C)	149 °F (65 °C)			●	●	3.8 (14.3) 101
Express 60				122 °F (50 °C)	●			140 °F (60 °C) [163 °F (73 °C)]	●	3.0 (11.4) 60
Rinse only					104 °F (40 °C)					1.1 (4.2) 14

(●: Basic, ○: Optional step)

DW80K5050 Series

Cycle	Pre-wash1	Pre-wash2	Pre-wash3	Main wash	Rinse1	Rinse2	Rinse3	Last Rinse [Sanitize]	Dry	Water [gal(l)]	Time (min)
Auto	●	○		131-145 °F(55-63 °C)	●	○	○	136-154 °F(58-68 °C)[163 °F (73 °C)]	●	4.9-8.4(18.4-31.9)	110-149
Normal	●	○		113-145 °F(45-63 °C)	●	○	○	131-149 °F(55-65 °C)[163 °F (73 °C)]	●	3.1-7.2(11.7-27.2)	103-170
Heavy	●	●		149 °F (65 °C)	●	●	●	154 °F (68 °C)[163 °F (73 °C)]	●	8.7 (33.1) 166
Delicate	●			122 °F (50 °C)	149 °F (65 °C)			●	●	5.0 (19.0) 103
Express 60				122 °F (50 °C)	●			140 °F (60 °C)[163 °F (73 °C)]	●	3.8 (14.3) 60
Rinse only					104 °F(40 °C)					1.3 (4.9) 17

(●: Basic, ○: Optional step)

cycles

• The numbers in parentheses in the Last Rinse column represent the temperature when you select Sanitize.
• When you select the Auto or Normal cycle, you can eliminate optional steps depending on the soil level of the dishes.
• The water consumption and wash time varies depending on the steps or options you add, and on the pressure and temperature of the supplied water.
• When you select any options, the cycle time can be changed.
• When the Rinse Aid is empty, wash time and Last Rinse temperature will be increased.

CHECK THESE POINTS IF YOUR DISHWASHER...

PROBLEM POSSIBLE	CAUSE SOLUTION
Will not start.	The door is not closed completely. Check if the door is latched and closed completely.
	No cycle is selected. Select a proper cycle.
	The power cable is not connected. Connect the power cable properly.
	The water supply does not work. Check if the water supply valve is open.
	The Control Panel is locked. Unlock the child lock, (See page 8.)
	A circuit breaker is open. Reset the circuit breaker.
It's taking too long with an operation or cycle.	Cold water is being supplied. Check if the water supply line is connected to a hot water supply.(Additional time is required to heat cold water.)
There are food particles remaining on dishes.(Not cleaning properly.)	You selected an inappropriate cycle.	Select a cycle according to the number and soil level of the dishes, as directed in this manual.
	The water temperature is low. Connect the water supply line to a hot water supply.For best performance, the temperature of the supplied water should be 120 °F (49 °C).
	Low water pressure. The water pressure should be between 20 and 120 psi (140 - 830 kPa).
	The water is too hard. Use high-quality, fresh detergent with rinse aid.
	Dishwasher detergent was not used.	Use automatic dishwasher detergent.We recommend a powder or gel type dishwasher detergent.
	Detergent remains in the dispenser.	Make sure large items such as cookie sheets, cutting boards, or containers, etc. are not blocking the detergent dispenser and preventing it from opening properly.Rearrange the dishes so they do not interfere with detergent dispenser operation.
	There is no rinse aid. Check the dispenser and add rinse aid.Use liquid type rinse aid.
	A nozzle is clogged. Clean the nozzle. See page 23.
	The dishes are improperly loaded.Too many dishes have been loaded.	Rearrange the dishes so they do not interfere with nozzle rotation and detergent dispenser operation.Load only an appropriate number of dishes.Load your dishes as recommended. (See page 16.)

troubleshooting

PROBLEM POSSIBLE	CAUSE SOLUTION
Leaves glasses with a dim polish.	The water supplied is soft and too much detergent was used.	Underload the dishwasher and use a rinse aid to minimize this.
	Aluminum dishes were included in the wash load.	Remove the marks on the dishes using a low sensitivity cleaner.
Leaves a yellow or brown fi lm on the inside of the dishwasher.	This is caused by coffee and tea soils.	Remove the soils using a spot cleaner.
Does not dry dishes well.	There is no rinse aid in the dispenser.	Check the dispenser and add rinse aid. Use a liquid type rinse aid.
	The temperature of the water is low when the dishwasher is running.	Connect the water supply line to a hot water supply. Use rinse aid with the Sanitize option.
	Too many dishes have been loaded.	Proper loading of items can affect drying. Load your dishes as recommended. (See page 16.)
	Glasses and cups with concave bottoms hold water. This water may spill onto other items when unloading.	After the cycle fi nishes, empty the lower rack fi rst and then the upper rack. This will prevent water from dripping from the upper rack onto the dishes in the lower rack.
	AutoReleaseTM Dry mode is not in use.	Activate the AutoReleaseTM Dry mode. (See page 12.)
Has a bad odor.	Water was left over from an incomplete cycle.	Insert detergent without loading dishes, and run the Normal cycle to clean the dishwasher.
	The Drain Hose is obstructed. Contact a qualifi ed service technician to remove any obstruction from the drain hose.
	The dishwasher is not used daily or soiled dishes are left in unit too long.	With the dishwasher empty and no detergent, place a glass with 8 ounces of vinegar upright into the lower rack, and then run a Normal cycle.
Is too noisy.	Sound is generated when the dispenser cover is open and the drain pump is operating in an early stage.	This is normal operation.
	The dishwasher is not level. Ensure the dishwasher is level.
	Foreign material (a screw, a plastic piece) is in the pump chamber.	Contact a qualifi ed service technician to remove foreign material from the pump chamber.
	There is a ‘chopping’ sound because a nozzle is bumping against the dishes.	Rearrange the dishes.
Does not have a smoothly rotating nozzle.	The nozzle hole is clogged with food particles.	Clean the nozzle hole. See page 23.
	The nozzle is blocked by a dish or pot and cannot rotate.	After placing the dishes into the racks, rotate the nozzles by hand to check whether any of the dishes interfere with them.
Water won't pump out of the dishwasher.	The drain is clogged. Contact a qual ifi ed service technician to remove any obstruction from the drain hose and check the drain pump operation.
Has a bent upper rack after loading dishes.	The dishes are not loaded properly.	Load your dishes as recommended.(See page 16.)
Cannot close the door.	AutoReleaseTM Dry mode is in operation.	Once the door opens in the AutoReleaseTM Dry mode, the door cannot be closed manually for the next 2 minutes. You may close the door after 2 minutes.

INFORMATION CODES

The Control Panel displays information codes to help you understand what is occurring with your dishwasher.

Code Action
OC	Over-level water checkFunctional check. Close the water supply valve and go to your house circuit breaker panel, set the dishwasher's circuit breaker switch to off, and then contact an authorized Samsung service center.
LC	Leakage checkIf a water supply valve connection leak occurs, close the water supply valve and go to your house circuit breaker panel, set the dishwasher's circuit breaker switch to off, and then contact the installer to fix.If the problem continues, contact an authorized Samsung service center.
4C	Water supply checkCheck if the water supply valve is closed, the water supply is suspended, or the water inlet valve or line is frozen or clogged by foreign particles.If the problem continues, close the water supply valve, and then contact an authorized Samsung service center.
5C	Drain checkAfter closing the water supply valve, check whether the drain hose is clogged or folded. Also, check whether drain hole inside sump is clogged.If the problem continues, contact an authorized Samsung service center.
HC	High temperature heating checkThe product ensure that the temperature for hot water line is not too high and adjusts to appropriate temperature (120°F (49°C) - 149°F (65°C)) automatically.If the problem continues, go to your house circuit breaker panel, set the dishwasher's circuit breaker switch to off, and then contact an authorized Samsung service center.
3C	Pump operation checkFunctional check. Turn off the dishwasher and try to start it again.If the problem continues, contact an authorized Samsung service center.

For any codes not listed above, call 1-800-SAMSUNG (726-7864)

HELPING THE ENVIRONMENT

• Your dishwasher is manufactured from recyclable materials. If you decide to dispose of it, please observe local waste disposal regulations. Cut off the power cable so that the appliance cannot be connected to a power source.
• Remove the door so that animals and small children cannot get trapped inside the appliance.
• Do not exceed the detergent quantities recommended in the detergent manufacturers' instructions.

SPECIFICATIONS

Model DW80K7050**,DW80K5050**
Type Built-in Dishwasher	Wash capacity 15 place settings
Power	120 V~, 60 Hz only,15 A circuit breaker	Used water pressure	20 - 120 psi(140 - 830 kPa)
Rated power uasge	Wash Motor	DW80K7050 Series : 60 ~ 100 W
		DW80K5050 Series : 150 ~ 190 W
	Heater 1100 W
Dimensions(Width × Depth × Height)	2378 × 2434 × 378 in. (605 × 627 × 860 mm)
Weight Unpacked		DW80K7050 Series : 97 lb (44 kg)
		DW80K5050 Series : 94.8 lb (43 kg)

SAMSUNG DISHWASHER

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by USA: SAMSUNG ELECTRONICS AMERICA, INC./CANADA: SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) Year All Parts and Labor, Five (5) Years Printed Circuit Board, Racking (Labor Charges for in-home service starting from the 2nd year is customer's responsibility), and Lifetime Stainless Door Liner & Tub for leakage. If the unit cannot be repaired, Samsung will replace your unit with same or current model (that is better or equivalent in functionality) (Labor related to replacement is customer's responsibility).

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States/Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the contiguous United States/Canada. In home service is not available in all areas.

To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized service center.

SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior fi nish; accidents, abuse, neglect, fi re, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, fl uctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fi xing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product.

EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE.

WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state.

To obtain warranty service, please contact SAMSUNG at:

In USA

Samsung Electronics America, Inc.

85 Challenger Road Ridgefi eld Park, NJ 07660

Samsung Electronics Canada Inc.

2050 Derry Road West, Mississauga, Ontario L5N 0B9 Canada

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

memo

memo

SAMSUNG

QR code image containing encoded data, no visible human-readable text

bit.ly/samsungdishwashers

Scan the QR code* or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Shows

*Requires reader to be installed on your smartphone

Questions or Comments?

COUNTRY CALL OR VISIT US ONLINE AT
U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com/us/support
CANADA 1-800-SAMSUNG (726-7864)	www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French)

Sanitize | Half Load | Storm Wash | Child Lock 8 Sanitize Sorigere Sanitize O O X

SÉLECTEUR DE PROGRAMME

Série DW80K7050 et DW80K5050

Close-up of a car's front panel with visible structural components and two circled annotations (no text or symbols)

Technical line drawing of a mechanical component with internal structure and a magnified inset showing a hand using a tool (no text or symbols present)

Panier inférieur

Technical diagram showing assembly steps of a mechanical component with labeled parts A and B, including directional arrows and component details.

RÉGLAGE DE LA HAUTEUR DU PANIER SUPÉRIEUR

Technical diagram showing a hand operating a device with labeled component 'A' and an inset view of a gun mechanism.

RETRAIT DU PANIER SUPÉRIEUR

Three-step diagram showing a mechanical assembly with mounting holes and structural components, no text or symbols present.

3D schematic of a power transmission system with insulators and coil (no text or symbols)

3D rendering of a server rack with coiled insulation and a meshed unit (no visible text or symbols)

Line drawing of a kitchen appliance basket with plates, utensils, and a shopping cart (no text or symbols)

CHARGEMENT DU PANIER SUPÉRIEUR

Top-down view of a multi-tiered kitchen appliance with white plastic cups and purple floral decorations (no text or symbols visible)

Top-down view of a white appliance rack with multiple circular components arranged in rows (no visible text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Série DW80K7050 Série DW80K5050

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

UTILISATION DU PANIER À COUVERTS

C and above: Solar panel, solar panel 10 if solar panel is open, solar panel is closed

Black plastic drill bit stack with multiple drill bits arranged in a grid (no text or symbols visible)

Gauche Droite

Black plastic basket with intricate leaf-like patterns, no visible text or symbols

10 couverts

Close-up of a mechanical component with metallic blades and a central shaft, no visible text or symbols

Gauche Droite

Close-up of a mechanical component with metallic blades and a central spike (no visible text or symbols)

12 couverts

Illustration of dental tools arranged in a grid, including bandaged and toothed variants (no text or labels visible)

Diagram showing hand pressing down on a microwave oven with a brush, next to a close-up of the door panel.

Illustration of a hand cleaning a microwave oven with a cloth cover (no text or symbols)

Line drawing of a kitchen appliance with a hand pouring liquid from a tray (no text or symbols)

Line drawing of a hand inserting a camera into a mobile phone (no text or symbols)

Diagram showing a hand inserting a plug into a device with a rotary knob (no text or symbols)

Line drawing of a hand inserting a button into a device panel (no text or symbols)

Diagram of a kitchen sink with a circular component and a curved handle (no text or symbols)

Hand holding a cylindrical object on a surface with an arrow indicating direction (no text or symbols)

Diagram of a kitchen sink with a hand holding a tray and a small container, showing no text or symbols.

Line drawing of hands using a tool on a kitchen sink, no text or symbols present

Diagram showing airflow around a circular component with directional arrows, no text or symbols present

NETTOYAGE DES GICLEURS

Line drawing of an open refrigerator with internal compartments and a close-up inset showing a hand holding a device (no text or symbols)

85 Challenger Road Ridgefi eld Park, NJ 07660

Samsung Electronics Canada Inc.

2050 Derry Road West, Mississauga, Ontario L5N 0B9 Canada

www.samsung.com/ca/support (English)

www.samsung.com/ca_fr/support (French)

notes

notes

SAMSUNG

QR code image containing encoded data, no visible human-readable text

bit.ly/samsungdishwashers

Scan the QR code* or visit www.samsung.com/spsn to view our helpful How-to Videos and Live Shows

*Requires reader to be installed on your smartphone
