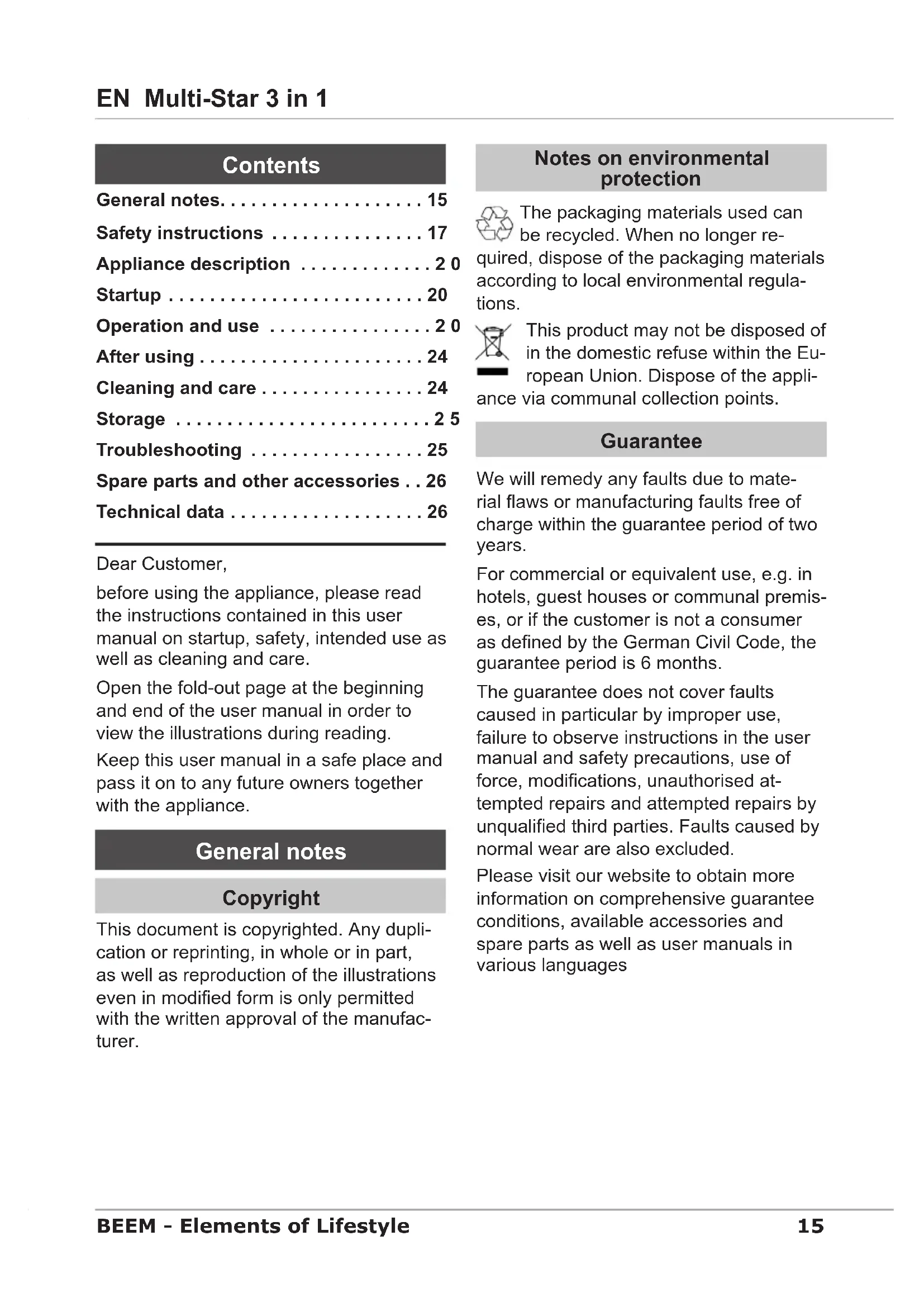

USER MANUAL MultiStar 3 in 1 B16.001 BEEM

Safety instructions 17

Appliance description 20

Startup 20

Operation and use 20

After using 24

Cleaning and care 24

Storage 25

Troubleshooting 25

Spare parts and other accessories . . 26

Technical data 26

Dear Customer,

before using the appliance, please read the instructions contained in this user manual on startup, safety, intended use as well as cleaning and care.

Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.

Keep this user manual in a safe place and pass it on to any future owners together with the appliance.

General notes

Copyright

This document is copyrighted. Any duplication or reprinting, in whole or in part, as well as reproduction of the illustrations even in modified form is only permitted with the written approval of the manufacturer.

Notes on environmental protection

The packaging materials used can be recycled. When no longer required, dispose of the packaging materials according to local environmental regulations.

This product may not be disposed of in the domestic refuse within the European Union. Dispose of the appliance via communal collection points.

Guarantee

We will remedy any faults due to material flaws or manufacturing faults free of charge within the guarantee period of two years.

For commercial or equivalent use, e.g. in hotels, guest houses or communal premises, or if the customer is not a consumer as defined by the German Civil Code, the guarantee period is 6 months.

The guarantee does not cover faults caused in particular by improper use, failure to observe instructions in the user manual and safety precautions, use of force, modifications, unauthorised attempted repairs and attempted repairs by unqualified third parties. Faults caused by normal wear are also excluded.

Please visit our website to obtain more information on comprehensive guarantee conditions, available accessories and spare parts as well as user manuals in various languages

Symbols used

DANGER

This indicates an imminent hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid danger.

WARNING

This indicates a possible hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid danger.

CAUTION

This indicates a potentially hazardous situation, which could lead to minor injuries or material damage.

Follow these instructions to avoid danger.

NOTE

A note contains additional tips to facilitate the use of the appliance.

Symbols on the appliance

Symbol Meaning

Warning of hot surfaces

Intended use

This appliance is intended primarily for non-commercial use in closed rooms for grilling/toasting food and baking waffles in in normal household quantities. Any use other than previously stated is considered as improper use.

WARNING

If not used for its intended purpose and/or used in any other way, the appliance may be or become a source of danger.

Use the only for its intended pur- pose.

Observe the procedures described in this user manual.

No claims of any kind will be accepted for damage resulting from use of the for other than its intended purpose.

The risk must be borne solely by the user. If used commercially, please pay attention to the changes in the guarantee period.

Declaration of Conformity

BEEM hereby declares that this appliance complies with the fundamental requirements and other relevant provisions of 2006/95/EC and 2004/108/EC directives. The full declaration of conformity can be found under www.beem.de.

Limitation of liability

All technical information, data and instructions contained in this user manual represent the latest status at the time of printing.

No claims can be made based on the specifications, illustrations and descriptions of this user manual.

The manufacturer assumes no liability for damage or injury resulting from failure to observe the user manual, use for other than the intended purpose, unprofessional repairs, unauthorised modifications or use of non-approved spare parts and/or consumables.

Safety instructions

Inspect the appliance for visible signs of damage before use. Do not use a damaged appliance.

This appliance may be used by children under the age 8 years and by persons with reduced physical, sensory or mental abilities or lack of experience and/or knowledge only if they are supervised or were instructed on using the appliance and have understood the possible dangers.

Children may not play with the appliance.

Cleaning and care of the appliance may not be performed by children who are not under supervision.

Store the appliance and accessory parts out of the reach of children under 8 years of age.

Do not leave the appliance unattended during operation.

Only allow repairs to the appliance to be carried out by an authorised specialist or by the works customer service; this particularly applies to replacing a damaged connecting cable. Unqualified repairs can lead to considerable danger for the user. They will also invalidate the guarantee.

Repairs to the appliance during the guarantee period may only be carried out by service centres authorised by the manufacturer, otherwise the guarantee will become invalid in the event of damage or subsequent damage.

Defective parts may only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.

Only use spare parts from the manufacturer or spare parts that are specifically recommended by the manufacturer. The guarantee will otherwise be invalidated.

Do not use this appliance together with an external timer or a separate remote control system.

DANGER

Danger from electric current!

Do not use the appliance if the mains cable or mains plug is damaged.

Never open the housing of the ap- pliance. Danger from electric current if live connections are touched and/ or the electrical and mechanical configuration is changed.

Never immerse the appliance or the mains plug in water or other liquids.

Pull the plug out of the mains socket, when changing the inserts, - if you are not using the appliance, - if a malfunction occurs during operation,

before you clean the appliance. -

Risk of suffocation!

Never play with packaging material.

Risk of suffocation.

WARNING

Danger of burns!

This electrical appliance has a heating function. Surfaces, even other than the functional surfaces can develop high temperatures. Since temperatures are sensed differently by different people, this appliance must be used CAREFULLY. Only hold the appliance using the intended gripping surfaces and use gloves or pot holders to protect against heat. Surfaces not intended to be used for gripping must be allowed sufficient time to cool down.

Do not touch the hot surfaces of the appliance during operation.

Do not move the appliance during operation.

Use the handle to hold the appliance while it is in operation.
Keep all parts of your body away from possible escaping steam.
Before cleaning or changing parts, allow the appliance to cool down.

Fire risk

Food can burn. Never use the appliance in the vicinity of or underneath flammable materials such as curtains.

CAUTION

Only operate the appliance when the upper part is folded down.

Do not operate the appliance when it is empty.

Do not pull the connecting cable to remove the plug from the mains socket.

Do not use hard objects or abrasive cleaning agents to clean the surfaces.

Never lift or move the appliance with the mains cable.

Requirements for the place of use

For safe and trouble-free operation of the appliance, the installation location must satisfy the following requirements:

Place the appliance on a firm, dry, flat, waterproof and heat-resistant surface.

Do not install the appliance in a hot, wet or very humid environment.

The mains socket must be easily accessible and allow fast disconnection in the event of an emergency.

The surface finishes on furniture may contain substances that can be detrimental to the silicon feet of the appliance. If necessary, place a mat under the feet of the appliance.

Allow enough room around the appli- ance so that air can circulate freely.

Select a location that does not allow children to reach the hot surfaces of the appliance.

Electrical connection

For safe and trouble-free operation of the appliance, the following instructions must be observed for the electrical connection:

Before connecting the appliance, compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. This data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.

The mains socket must be protected by at least a 10 A automatic circuit breaker.

Ensure that the mains lead is undamaged and is not laid over sharp edges.
The mains cable must not pulled tightly, bent or come into contact with hot surfaces.

Always unwind the mains cable completely before connecting the appliance to the mains socket.

Route the cable to prevent risk of tripping.

The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician. The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.

Appliance description

(See illustration on the left fold-out page)

Sandwich griller1

Power indicator light (red)2

Temperature indicator light (green)3

Handle4

Lid locking latch5

Lid6

Locking the upper hotplate7

Upper hotplate (grilling plate)8

Lower hotplate (grilling plate)9

Locking the lower hotplate10

Mounting for the lid locking latch11

Cable winder (underneath)12

Waffle plates13

14 Sandwich plates
15 User manual (not illustrated)

Power indicator

Lamp | Function

red

Lights up when the appliance is connected to the mains.

green

Lights up when the appliance is heating up

Startup

Unpacking

Remove the appliance, all accessory parts and the user manual from the box.
Remove all packaging materials and protective foils from the product and the accessories before using it for the first time.

NOTE

Do not remove the rating plate or any warning signs on the appliance.
If possible, keep the original packaging during the guarantee period in order to be able to pack the appliance properly in the event of a guarantee claim. Transport damage will invalidate the guarantee.

Check the delivery contents

Check for visible signs of damage or missing items.
Report incomplete or damaged contents to your supplier immediately.

Operation and use

Replacing the hotplates

The appliance is supplied with 3 different hotplate sets:

Hotplates

Grilling plates (8/9)

Use

For grilling meat, sausages or vegetables

Waffle plates (13)

for preparing waffles.

Sandwich plates (14)

for preparing sandwiches.

NOTE

The upper and lower hotplate are identical.

WARNING

Danger of burns!

• Allow the appliance to cool down before replacing the hotplates.

To replace the hotplates, proceed as follows:

Lift up the lid locking latch (5) and open the lid (6).

Push up both locks of the upper hot-plate (7) at the same time and fold the hotplate (8) forwards.

Remove the upper hotplate and insert the new hotplate into the lower guide.

Fold the hotplate towards the lid until it audibly snaps in.

To replace the lower hotplate, push forward both locks of the lower hotplate (10) at the same time and fold the hotplate (9) upwards.

Remove the lower hotplate and insert the new hotplate into the rear guide.

Fold the hotplate downwards until it audibly snaps in.

NOTE

Always use two hotplates of the same type.

Before using, check that the hot- plates are seated properly.

Opening/closing the lid

To open the lid, push the lid locking latch (5) forward and lift the lid (6).

To close the lid, slowly press the lid (6) down and push the lid locking latch (5) over the recess for the lid locking latch (11).

Before using for the first time

Insert a hotplate set into the appliance as described in the section Replacing the hotplates.

Wipe the hotplates (8 and 9) with a damp cloth.

ightly oil the hotplates with vegetable oil and fold the lid down.

Insert the plug into a mains socket. The red power indicator (2) lights up, the green temperature indicator (3) lights up and the appliance starts heating. This can take a few minutes.

NOTE

Due to production residue (grease), it is possible that a new appliance may smoke lightly. Ensure sufficient ventilation.

Wait until the green temperature indicator (3) extinguishes.
pull the plug out of the mains socket and allow the appliance to cool down completely.
Clean the appliance and the accessories as described in the section Cleaning and care.

Switching the appliance ON/OFF

The appliance is not equipped with an on/off switch. The appliance is in operation when the mains plug is plugged in.

Sandwiches

To make sandwiches with the appliance, proceed as follows:

Insert the sandwich plates (14) into the appliance as described in the section Replacing the hotplates.

Fold the lid (6) downwards.

Insert the plug into the mains socket. The red power indicator (2) lights up, the green temperature indicator (3) lights up and the appliance starts heating. This can take a few minutes.

NOTE

In the mean time, prepare your sandwiches and fill then to taste, e. g., with salami and cheese.

Do not use too much cheese. Melted cheese can ooze out of the sides of the sandwiches.

Wait until the green temperature indicator (3) extinguishes.

Open the lid (6) of the appliance and lay the prepared sandwiches onto the lower hotplate.

Slowly press the lid (6) downwards and fold down the lid locking latch (5).

Check the browning of the sandwich intermittently by briefly opening the lid (6). Depending on the filling, this will take between 4 and 6 minutes.

Open the lid (6) and remove the fin- 1ished sandwiches with a wooden or heat-proof spatula.

NOTE

If you wish to prepare further sand-wiches, wait until the green temperature indicator (3) has extinguished. the appliance has then reached the ideal temperature.

Waffles

To prepare waffles with the appliance, proceed as follows:

Recipe for butter waffles (approx. 10 pieces)

100 g of soft butter
100 g of sugar
packet of vanilla sugar
eggs
250 g of flour
Teaspoon of baking powder
420 ml milk

Stir sugar and vanilla sugar into the softened butter and then each egg one at a time. Finally add the flour with the baking powder and the milk. Stir everything to smooth mass.

NOTE

The waffle mixture should have a thick texture but still smoothly flow off the spoon.

The ingredients used should be fresh and be at room temperature.

Waffles taste best when they are freshly prepared.

Work quickly so that the waffle mixture does not burn onto the lower hotplate.

Preparation:

Prepare the waffle mixture.

Insert the waffle plates (13) into the appliance as described in the section

Replacing the hotplates.

Oil the hotplates each time before using - not before each waffle. Saturate a kitchen roll with vegetable oil and wipe it over the hotplates.

Fold the lid (6) downwards.

Insert the plug into the mains socket. The red power indicator (2) lights up, the green temperature indicator (3) lights up and the appliance starts heating. This can take a few minutes.

Fold up the lid (6).

Fill the middle of the left and right halves of the lower hotplate with the waffle mixture.

Fold the lid down without locking it.

NOTE

If too much waffle mixture is used, it can ooze out of the side of the appliance. This particularly applies to mixtures with raising agents. Use less mixture when filling the next time.
If you fill with too little mixture, the waffle form will be smaller.
During baking, lift up the lid briefly to inspect the waffle. Allow it to bake to a golden brown colour.

NOTE

The first waffles may stick to the upper hotplate although it was oiled. This will stop happening after a few times.

Remove the freshly baked waffle.

NOTE

In order not to damage the coating of the hotplate, only use heat-resistant cutlery made of plastic or wood.

To prevent the waffles from softening, do not lay the finished waffles on top of each other.

Grilling

To grill meat or vegetables with the appliance, proceed as follows:

Insert the grilling plates (8/9) into the appliance as described in the section Replacing the hotplates.

Lightly oil the hotplates each time before using. Saturate a kitchen roll with vegetable oil and wipe it over the hotplates.

Fold the lid (6) downwards.

Insert the plug into the mains socket. The red power indicator (2) lights up, the green temperature indicator (3) lights up and the appliance starts heating. This can take a few minutes.

Wait until the green temperature indicator (3) extinguishes.
fold up the lid (6).
Lay the items to be grilled onto the lower grilling plate.
old the lid down without locking it.
Periodically check the grilling progress. Use kitchen paper to absorb escaping gravity so that it does not run out of the appliance.
Open the lid (6) and remove the finished grilled items with a wooden or heat-proof spatula.

After using

Clean the appliance and the accessories used as described in the section Cleaning and care.

Cleaning and care

Before beginning work, pay attention to the safety instructions in the section on safety!

Cleaning the appliance

Switch off the appliance and pull the plug out of the mains socket.

Allow the appliance to cool down completely.

Remove the hotplates and clean them in a warm washing-up liquid solution or in the dishwasher.

Wipe the outside and inside of the housing of the appliance (1) with a lightly damp cloth.

Dry all parts of the appliance thor- roughly after cleaning.

NOTE

Dried and caked food residues on the hotplates can be removed more easily if you allow them to soak in warm washing-up liquid solution for 10 minutes before cleaning.

Do not use sharp objects or household cleaners to clean the appliance.

Storage

If you do not intend to use the appliance for a longer period of time, clean it as described in the section Cleaning and care.

Store the appliance at a dry, clean and frost-free place which is protected against direct sunlight.

Troubleshooting

The following table helps in localising and remedying minor faults:

Fault Possible cause Remedy
The appliance does not function	Plug not inserted into socket. Insert plug.
	Automatic circuit breaker in electrical distribution board tripped.	Switch on the automatic circuit breaker again.
	The internal safety switch has switched off the appliance as a result of overheating.	Allow the appliance to cool down.
The automatic circuit breaker in the electrical distribution board trips	Too many appliances connect-ed to the same power circuit.	Reduce the number of appliances on the power circuit.
	Appliance is defective.	Contact customer service.
Waffle mixture oozes out of the sides.	Too much waffle mixture filled.	Fill with less waffle mixture.
	Too much baking powder in the mixture.	Reduce the amount of baking powder in subsequent mixtures
Cheese oozes out of the sides.	Too much cheese on the sandwich.	Use less cheese

NOTE

If you cannot resolve the problem with the steps described above, please contact

Spare parts and other accessories

Item* Article No. Designation
14 900715001 Sandwich plates (set)
13 900715006 Waffle plates (set)
8, 9 900715011 Grilling plates (set)

• numbering according to the description of the appliance

Technical data

Model	Sandwich toaster Multi-Star 3 in 1
Type number B16.001
Dimensions (W x H x D) 237 x 225 x 80 mm
Net weight 1.85 kg
Approx. gross weight 2.55 kg
Operating voltage 220 - 240 V~
Mains frequency 50/60 Hz
Nom. / Max. power 600 W / 700 W
Protection class	I
Type of protection	IPX0

Table des matieres

Sandwiches / tosti's

Customer service points:

Bureau de serviceAprès-ventes:

Klantenservice:

BEEM GmbH

Customer Service

Dieselstrasse 19-21

D-61191 Rosbach v.d.H.

Germany

Telephone [phone]

Facsimile [phone]

(14 ct/min from a German land line. Maximum mobile phone price 42 ct/min.

Other countries: price depending on tariff.)

email: [e-mail]

Website: www.beem.de

© 2011 by BEEM GmbH

Subject to printing errors

For customer service in other countries, please contact your local retailer.
