USER MANUAL KA CV 7 KALORIK

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Front cover page (first page) Assembly page 1/24

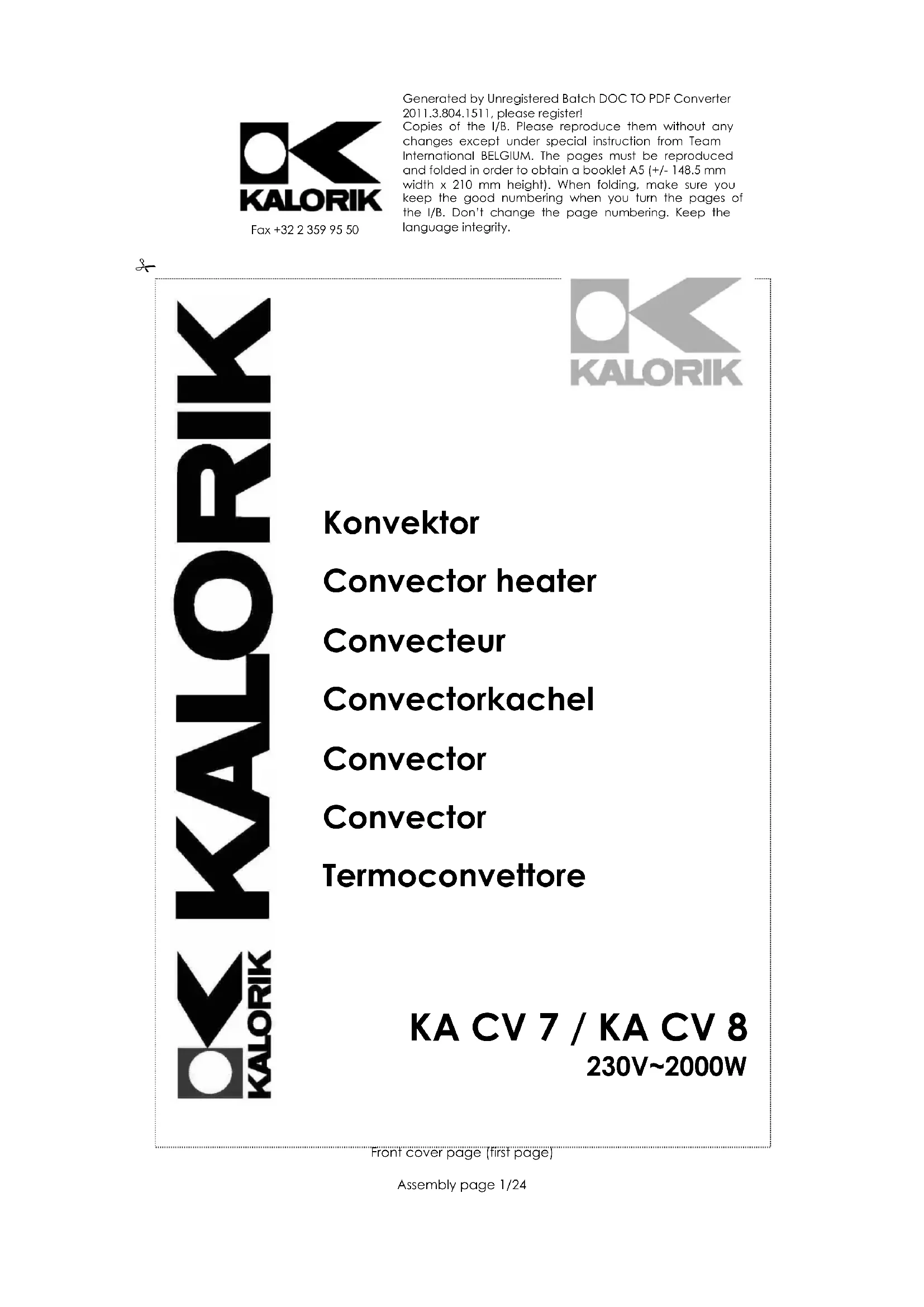

Konvektor Convector heater Convecteur Convectorkachel Convector Convector Termoconvettore KA CV 7 / KA CV 8 230V~2000W Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 2 KA CV 7/CV8 - 050825

Fax +32 2 359 95 50 Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 3 KA CV 7/CV8 - 050825

Fax +32 2 359 95 50 Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 4 KA CV 7/CV8 - 050825

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Check that your mains voltage corresponds to that stated on the rating plate of the appliance. Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons. From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service

. Should the cord be damaged, it must be replaced by a competent qualified service (*) Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. When cleaning the appliance, refer to the instructions in the paragraph “Cleaning and care” because the water penetration through the openings can be very dangerous for your appliance. Never use the appliance near hot surfaces. Before cleaning and when you do not use the appliance, always unplug the appliance from the power supply. Do not attempt to remove the plug from the wall socket with wet hands. Never use the appliance outside and always place it in a dry environment. Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Stand the appliance on a stable surface so that it cannot fall. In order to avoid overheating, do not place the appliance under a power socket. The power socket must not be in the hot airflow of the appliance. Always position the heater in such a way that inflammable materials (such as curtains) cannot be ignited. Ensure at all times that the unit is installed solidly. Make sure that the air inlet and outlet openings are not blocked. To avoid any risk of overheating or fire, do not cover the heater (ex. With clothes). The heater should only be operated at a minimum distance of 1 meter from combustibles and at least 50cm from any other object.

Warning: Do not operate the heater near baths, showers, washbasins, swimming pools or

any other water container. It must be impossible to reach the commands of your appliance when you are in contact with water. The temperature of the grids may be very high when the appliance is in use. Avoid contact with the skin. Never use the appliance near inflammable or explosive materials. Do not insert any objects through the grille or into the interior of the appliance.

Competent qualified service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this service. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 8 KA CV 7/CV8 - 050825

Caution: We cannot be held responsible for any damage due to the wrong use or the non- observance of this instruction manual. The convection heater should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with CE-directives. BEFORE USE Before using the convection heater for the first time, you must either attach the feet to the base of the unit or mount the appliance on the wall. (See pages 2 and 3) Floor-standing Attach each foot underneath the appliance by tightening sliding them in the slots foreseen; as indicated on page 3, fig. 4. Make sure to install the appliance at a minimum distance of 50 cm to other objects. Never use the appliance without its feet, except in case of wall-mounting, see below. Wall-mounting Caution: - there should be a distance of at least 18 cm between the lower part of the appliance and the floor. - the feet must be removed before mounting the appliance on the wall To mount your appliance onto the wall, take 2 adequate screws and 2 corresponding plugs. Measure the distance between the holes situated at the back of the appliance and drill two holes in the wall at the same distance. Put a plug in the holes and screw the screws in the holes by letting them more or less 4 millimetres out of the wall. Attach the appliance by putting the screws into the widest part of the holes situated at the back of the appliance and slide the appliance downwards. OPERATION After having installed your convection heater, insert the plug into an earthed power socket. When the appliance is switched on for the first time, a slight smell may be emitted. Please ensure sufficient ventilation. This smell will disappear very quickly. The power selector allows you to choose the desired power. The higher the power, the faster the heating. The thermostat regulates the temperature in the room. Power selector 0 OFF 1 750 W 2 1250 W 3 2000 W KA CV 8: To increase the air circulation, the fan will be activated when choosing power setting

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 9 KA CV 7/CV8 - 050825

Fax +32 2 359 95 50 Thermostatic selection range MIN. ------> MAX. Caution: the metallic parts of this appliance become hot during use so if you need to move the appliance during use, use the side handles. OVERHEAT PROTECTION This heater is protected with an overheat protection that switches off the appliance automatically in case of overheat, e.g. due to the total or partial obstruction of the grids. In this case, unplug the appliance, wait about 10 minutes for it to cool and remove the object that is obstructing the grids. Then switch it back on as described above. The appliance should operate normally. Should the problem persist, please contact the nearest customer service.

Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely. To avoid the risk of electric shock, do not clean the heater with water and do not immerse it. Clean the housing with a damp cloth. If necessary, dust particles accumulated in the air outlet openings may be removed with a vacuum cleaner. This maintenance should be done regularly to assure the good operation of the appliance.

PROTECTION OF THE ENVIRONMENT– DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label, your appliance should not be disposed of as unsorted municipal waste but should either be returned to the vendor, or disposed of in a separate collection point performing waste recovery by means of reuse, recycling or use for other applications. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. 10 KA CV 7/CV8 - 050825
