MSDK 700 - Range hood M-SYSTEM - Free user manual and instructions

Product type	Range hood
Brand	M-System
Model	MSDK 700
Minimum installation height	65 cm above the cooking surface
Exhaust diameter	125 mm minimum
Operating modes	Extraction (external exhaust) or recirculation (with charcoal filter)
Suction speeds	3 (minimum, medium, maximum)
Lighting	Halogen bulb 20 W max
Grease filter	Metal, monthly cleaning (dishwasher safe at low temperature)
Charcoal filter (recirculation)	Replace every 4 months under normal use
Power supply	Refer to the label inside the hood
Power cord length	Not specified
Hood material	Stainless steel or equivalent (not specified)
Dimensions	Not specified
Weight	Not specified
Noise level	Not specified
Controls	Mechanical keys (ON/OFF lights, OFF motor, 3 speeds)
Maintenance and cleaning	Clean inside and outside regularly with a cloth and neutral detergent. Respect filter cleaning/replacement intervals.
Safety	Never flambé under the hood. Monitor frying. Ensure good ventilation if used simultaneously with non-electric appliances.
Repairability	Replaceable halogen bulbs. Other parts: contact the manufacturer (Boretti).

Frequently Asked Questions - MSDK 700 M-SYSTEM

What is the minimum installation height of the MSDK 700 hood?

The hood must be installed at a minimum height of 65 cm above the cooking surface. If your hob's manual indicates a greater distance, follow that.

How to clean the grease filter?

The grease filter should be cleaned once a month with a non-aggressive detergent, by hand or in the dishwasher at low temperature on a short cycle. Dishwasher washing may cause discoloration but does not affect performance.

How often should I replace the charcoal filter?

Under normal use, the charcoal filter must be replaced every 4 months. This filter is neither washable nor recyclable.

Can I use the hood without external exhaust?

Yes, you can use the hood in recirculation mode by installing charcoal filters. The filtered air will be redistributed into the kitchen through the side openings.

How to change the hood's bulb?

Unplug the hood. Ensure the bulb is cold. Carefully remove the glass cover using a screwdriver. Replace with a halogen bulb of 20 W max. Avoid touching the bulb with bare hands. Replace the glass.

What types of products should I not use under the hood?

It is strictly forbidden to flambé food under the hood. Flames can damage the filters and cause a fire. Also monitor frying to prevent oil overheating.

What should I do if the hood does not work properly?

First check the power supply and connection. Ensure the filters are not clogged. If the problem persists, contact the after-sales service of Boretti (address on the back of the manual).

Can I clean the hood with abrasive products?

No, only use a cloth dampened with neutral liquid detergent. Abrasive products may damage the hood's surface.

What exhaust duct diameter is recommended?

The minimum exhaust duct diameter is 125 mm. The duct is not supplied with the hood.

Is the hood compatible with a speed controller?

The manual does not mention an external speed controller. The hood has 3 speeds preset via the keys (1, 2, 3). Use these original controls.

USER MANUAL MSDK 700 M-SYSTEM

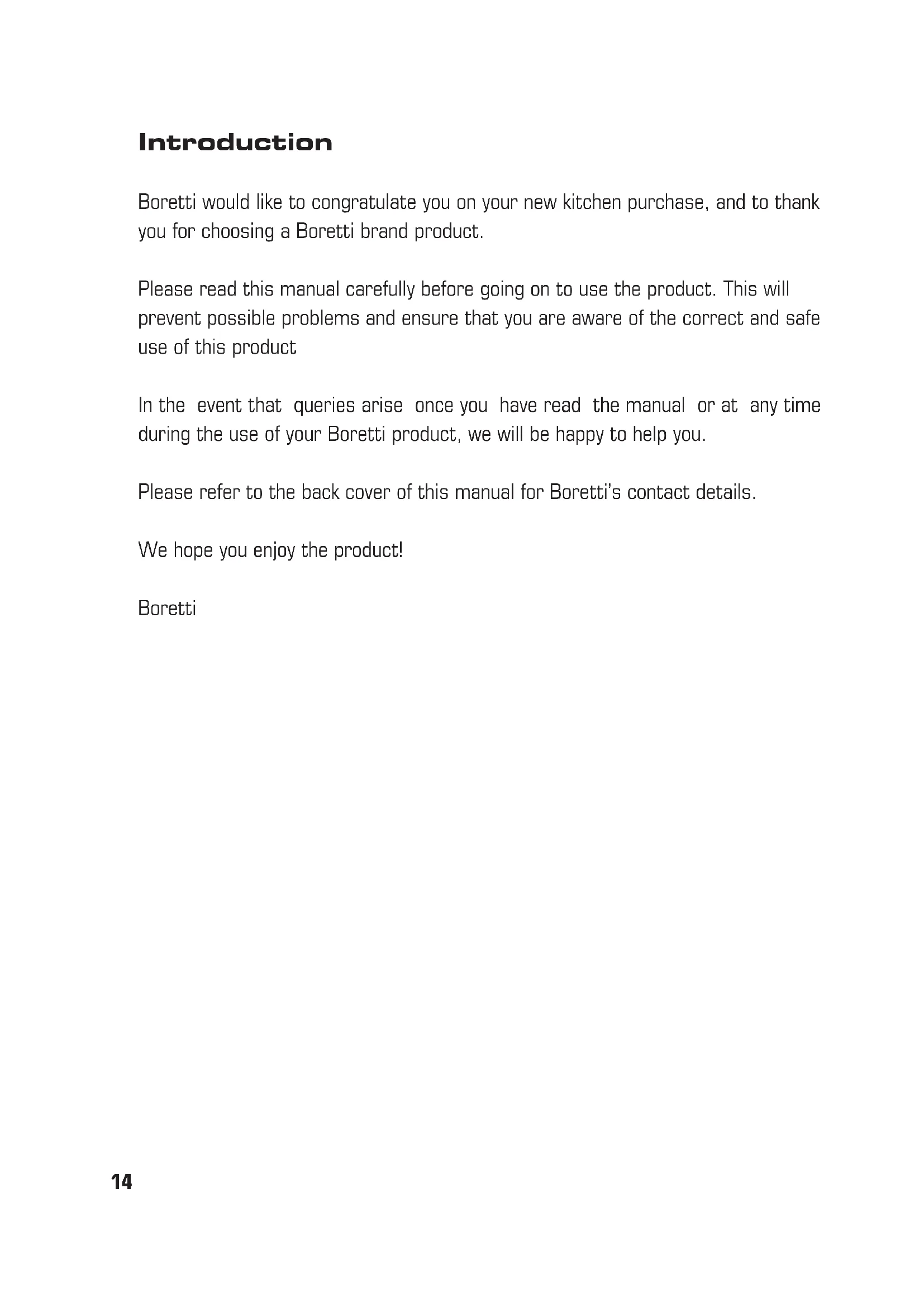

Boretti would like to congratulate you on your new kitchen purchase, and to thank you for choosing a Boretti brand product.

Please read this manual carefully before going on to use the product. This will prevent possible problems and ensure that you are aware of the correct and safe use of this product

In the event that queries arise once you have read the manual or at any time during the use of your Boretti product, we will be happy to help you.

Please refer to the back cover of this manual for Boretti's contact details.

We hope you enjoy the product!

Boretti

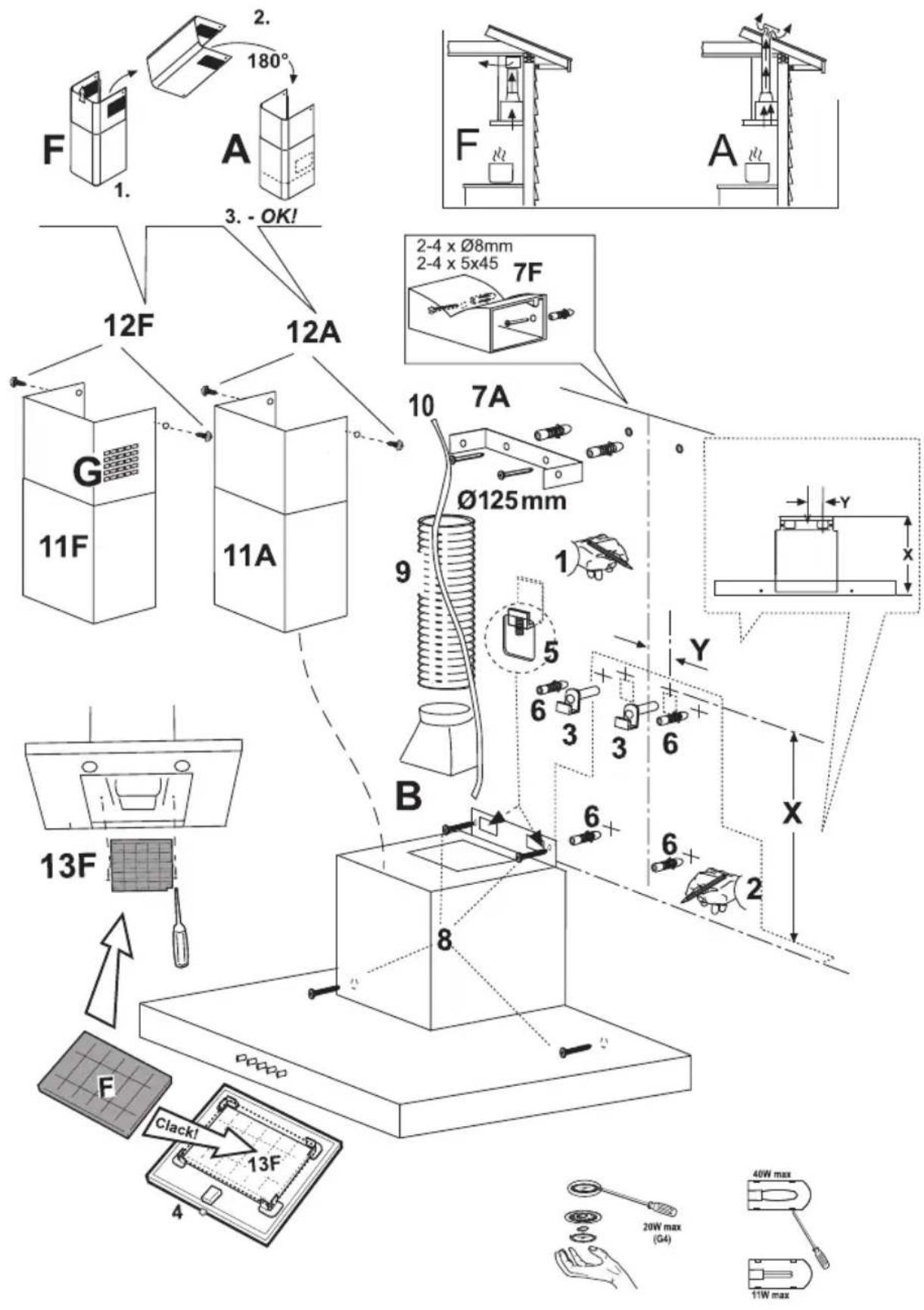

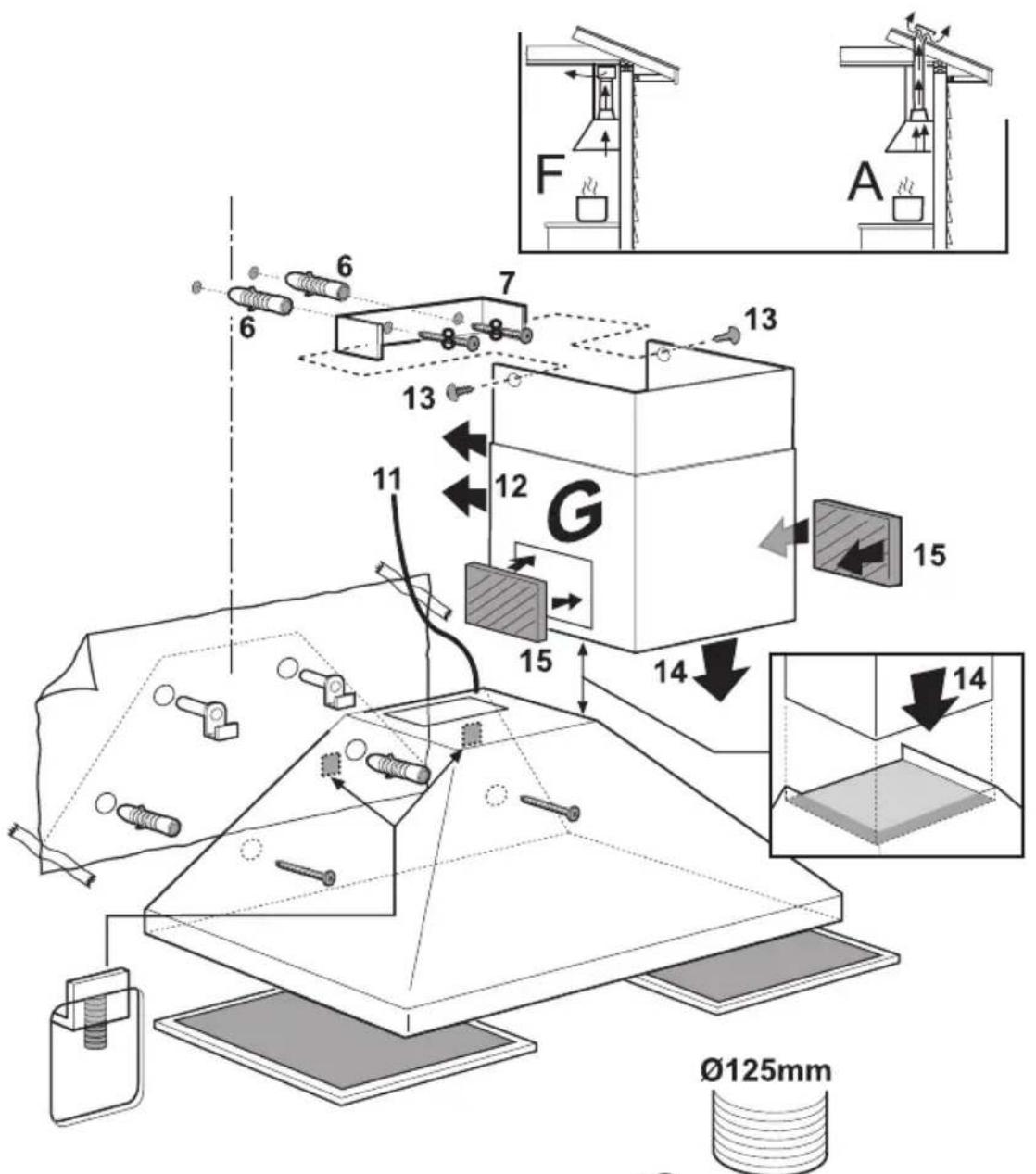

Consult the drawings in the last pages referenced in the text by alphabet letters.

Closely follow the instructions set out in this manual.

All responsibility, for any eventual inconvenience, damages or fires caused by not complying with the instructions in this manual, is declined.

Installation

The cooker hood must be placed at a minimum distance of 65 cm from the cooking plane. In the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

The exhaust hood must be connected to a discharge duct with a diameter of at least 125 mm. This is of great importance for the lifespan of your exhaust hood.

Exhaust pipe

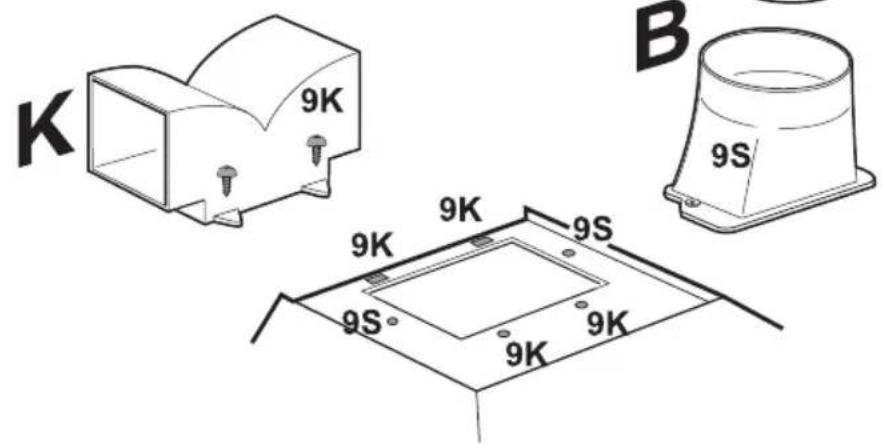

The exhaust hood includes a connection (B) on top for the discharge of steam outdoors (discharge duct not included). In situations in which it is not possible to discharge steam outdoors, the filter version of the exhaust hood - F (recirculation) - can be used in combination with carbon filters. The filtered air is returned to the kitchen via the openings on the side.

Electrical connection

The electrical tension must correspond to the tension noted on the label placed inside the cooker hood.

Environmental Regulations

Should you wish to discard the appliance for any reason, please comply with the following: Take the machine to the local authorized company that collects discarded household appliances. Correct processing enable valuable materials to be recycled in an intelligent manner. Before discarding your machine it is important that you cut off the power supply cord and remove it together with the plug. This machine has been accorded the appropriate mark in accordance with European Directive 2002/96EG regarding discarded electric and electronic equipment. This directive determines the standards for the collection and recycling of discarded equipment that apply to the entire territory of the European Union.

Operation instructions

The cooker hood is provided with 5 keys.

AB123

A: ON/OFF lights
B:Motor OFF

1-2-3: Suction power: Minimum (1), medium (2), maximum (3)

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The cooker hood should be cleaned regularly internally and externally. For cleaning use a cloth moistened with denatured alcohol or neutral liquid detergents. Avoid abrasive detergents.

Warning: Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

The anti-grease filter must be cleaned once a month, with non abrasive detergents by hand, or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal Filter - (only for filter version)

The active charcoal filters are not washable nor regenerative. It should be changed every 4 months in normal use.

Replacing light bulbs

Warning! Before touching the bulbs, make sure they are cool.

Carefully remove the glass lamp cover with a screwdriver (refer to the drawings on the last pages). Remove the defective bulb. Use only halogen bulbs with a maximum rating of 20W and make sure you do not touch them with your bare hand. Then fit the glass lamp cover in its original position.

Caution

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Do not use the cooker hood where the grill is not correctly fixed! The suctioned air must not be conveyed in the same channel used for fumes discharged by appliances powered by other than electricity. The environment must always be adequately aerated when the cooker hood and other appliances powered by other than electricity are used at the same time. Flambé cooking with a cooker hood is prohibited. The use of a free flame is damaging to the filters and may cause fire accidents, therefore free flame cooking must be avoided. Frying of foods must be kept under close control in order to avoid overheated oil catching fire. Carry out fumes discharging in accordance with the regulations in force by local laws for safety and technical restrictions.

BORETTI B.V.

De Dollard 17

1454 AT Watergang

T +31[0]20-4363439

F +31[0]20-4361326

S 0900-2352673 (service)

[e-mail]

The Netherlands

N.V. BORETTI S.A.

Ruperlweg 16

2850 Boom

T [phone]

F [phone]

E [e-mail]

Belgium

BORETTI S.L.
