Product type	Range hood
Brand	M-System
Model	MSDK 900 IX
Width	90 cm
Minimum installation height	65 cm above the cooking surface
Ventilation diameter	125 mm minimum
Power supply	Electric, voltage according to label (220-240 V)
Suction power	3 speeds (min, med, max)
Lighting	Halogen bulb 20 W max
Grease filter	Metal, washable once a month
Charcoal filter	For recirculation version, replace every 4 months
Controls	5 buttons (light ON/OFF, motor stop, 3 speeds)
Operation	External exhaust or recirculation (with charcoal filter)
Material	Stainless steel
Maintenance	Clean with cloth and neutral liquid detergent
Safety	Unplug before maintenance; do not flambé under the hood
Filter version	Available with charcoal filter for recirculation
Dimensions (W x D x H)	90 cm x 50 cm x 30 cm (estimated)
Net weight	Approximately 18 kg (estimated)

Frequently Asked Questions - MSDK 900 IX M-SYSTEM

At what height should the MSDK 900 IX hood be installed?

The hood must be installed at a minimum height of 65 cm above the cooking surface. If your cooktop instructions specify a greater distance, follow that.

How to clean the grease filter?

The metal grease filter should be cleaned once a month with a non-aggressive detergent, by hand or in the dishwasher on a low-temperature short cycle. Dishwashing may discolor the filter without affecting its efficiency.

When should the charcoal filter be replaced?

The activated charcoal filter is neither washable nor recyclable. Under normal use, it should be replaced every 4 months.

How to change the hood's bulb?

Before touching the bulb, make sure it is cold. Carefully remove the protective glass with a screwdriver. Replace with a halogen bulb of 20 W max. Avoid touching the bulb with bare hands, then replace the glass.

What are the control buttons?

The hood has 5 buttons: A (light ON/OFF), B (motor OFF), 1 (minimum speed), 2 (medium speed), 3 (maximum speed).

What if I cannot vent the air outside?

You can use the hood in recirculation mode by installing charcoal filters. The filtered air will be recirculated into the kitchen through the side openings.

What safety precautions should be observed?

Never flambé food under the hood. Monitor deep frying to prevent oil ignition. Ensure good ventilation if using non-electric combustion appliances at the same time. Always unplug the hood before maintenance.

Can the hood be used without the grease filter?

No, it is essential to properly install the grease filter/grid. Using it without the filter increases the risk of fire and damages the appliance.

What detergent to use for cleaning?

Use a cloth soaked with neutral liquid detergent. Avoid abrasive products that scratch the surface.

How to dispose of the hood at the end of its life?

Do not dispose of the appliance with household waste. Take it to a collection center for household appliances. Before that, cut the power cable. The hood complies with European Directive 2002/96/EC for recycling.

USER MANUAL MSDK 900 IX M-SYSTEM

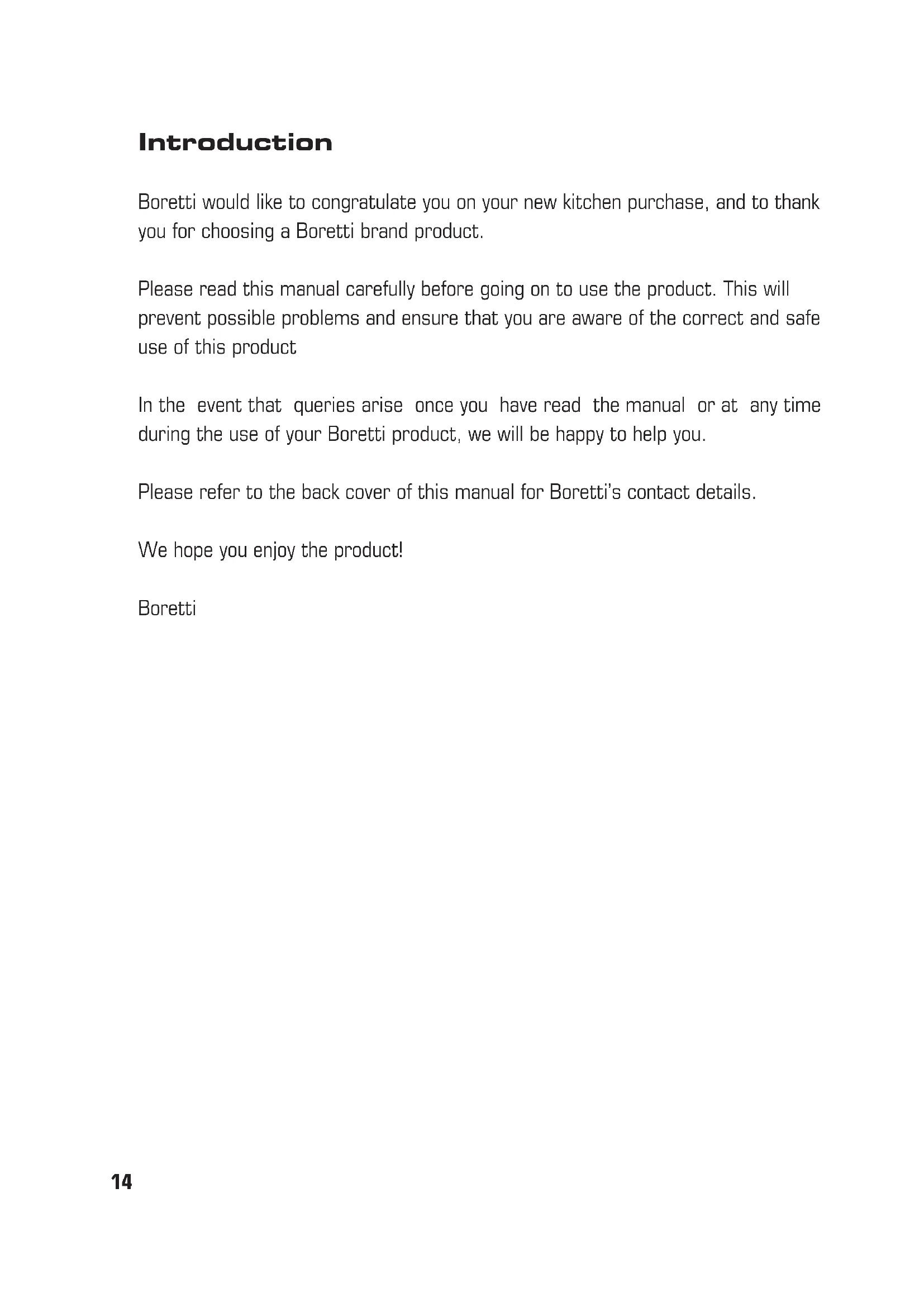

Boretti would like to congratulate you on your new kitchen purchase, and to thank you for choosing a Boretti brand product.

Please read this manual carefully before going on to use the product. This will prevent possible problems and ensure that you are aware of the correct and safe use of this product

In the event that queries arise once you have read the manual or at any time during the use of your Boretti product, we will be happy to help you.

Please refer to the back cover of this manual for Boretti's contact details.

We hope you enjoy the product!

Boretti

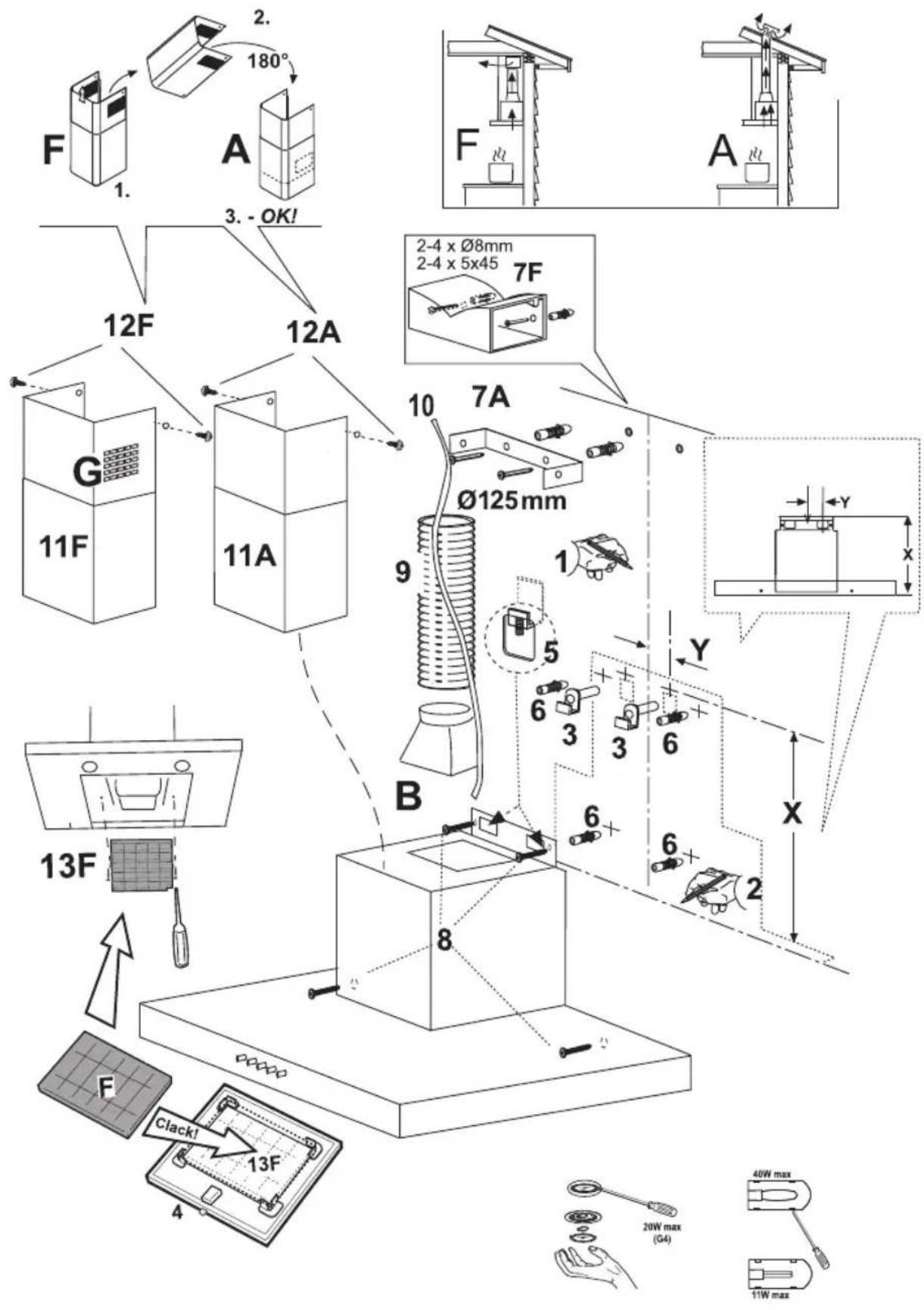

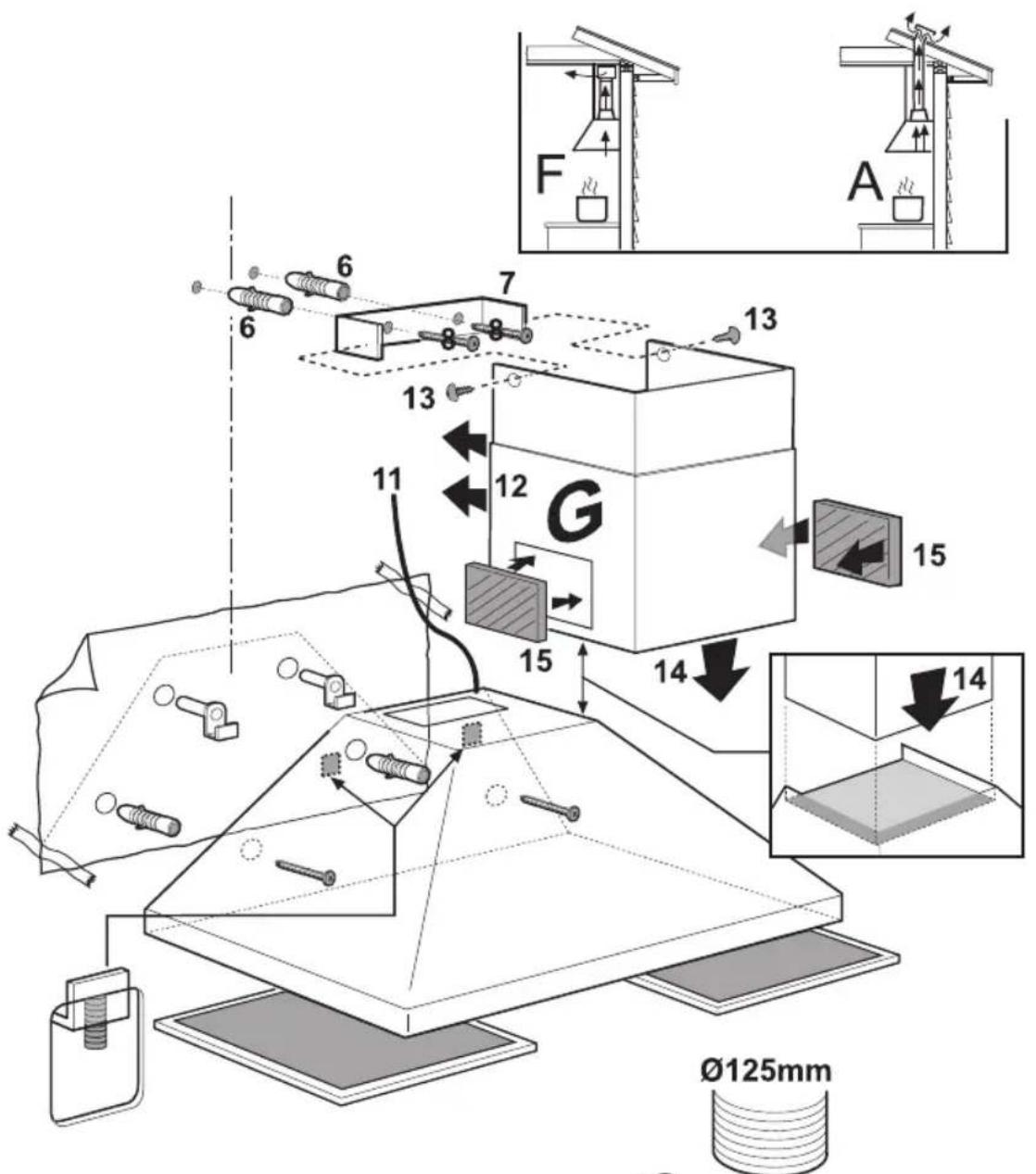

Consult the drawings in the last pages referenced in the text by alphabet letters.

Closely follow the instructions set out in this manual.

All responsibility, for any eventual inconvenience, damages or fires caused by not complying with the instructions in this manual, is declined.

Installation

The cooker hood must be placed at a minimum distance of 65 cm from the cooking plane. In the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

The exhaust hood must be connected to a discharge duct with a diameter of at least 125 mm. This is of great importance for the lifespan of your exhaust hood.

Exhaust pipe

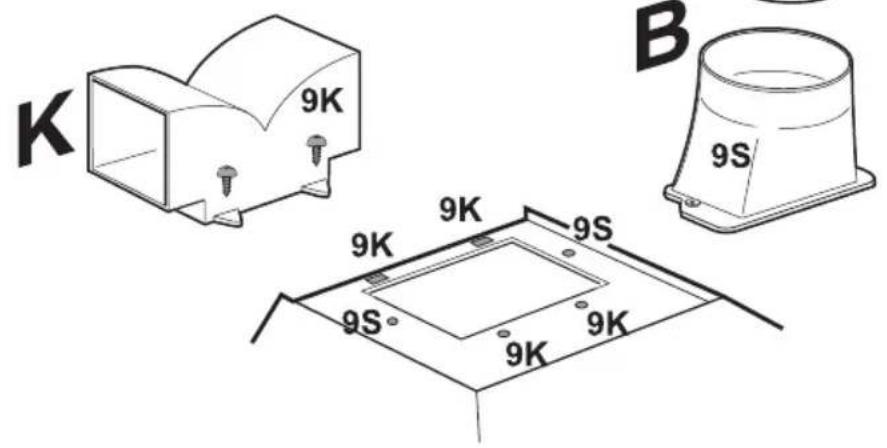

The exhaust hood includes a connection (B) on top for the discharge of steam outdoors (discharge duct not included). In situations in which it is not possible to discharge steam outdoors, the filter version of the exhaust hood - F (recirculation) - can be used in combination with carbon filters. The filtered air is returned to the kitchen via the openings on the side.

Electrical connection

The electrical tension must correspond to the tension noted on the label placed inside the cooker hood.

Environmental Regulations

Should you wish to discard the appliance for any reason, please comply with the following: Take the machine to the local authorized company that collects discarded household appliances. Correct processing enable valuable materials to be recycled in an intelligent manner. Before discarding your machine it is important that you cut off the power supply cord and remove it together with the plug. This machine has been accorded the appropriate mark in accordance with European Directive 2002/96EG regarding discarded electric and electronic equipment. This directive determines the standards for the collection and recycling of discarded equipment that apply to the entire territory of the European Union.

Operation instructions

The cooker hood is provided with 5 keys.

AB123

A: ON/OFF lights
B:Motor OFF

1-2-3: Suction power: Minimum (1), medium (2), maximum (3)

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The cooker hood should be cleaned regularly internally and externally. For cleaning use a cloth moistened with denatured alcohol or neutral liquid detergents. Avoid abrasive detergents.

Warning: Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

The anti-grease filter must be cleaned once a month, with non abrasive detergents by hand, or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal Filter - (only for filter version)

The active charcoal filters are not washable nor regenerative. It should be changed every 4 months in normal use.

Replacing light bulbs

Warning! Before touching the bulbs, make sure they are cool.

Carefully remove the glass lamp cover with a screwdriver (refer to the drawings on the last pages). Remove the defective bulb. Use only halogen bulbs with a maximum rating of 20W and make sure you do not touch them with your bare hand. Then fit the glass lamp cover in its original position.

Caution

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Do not use the cooker hood where the grill is not correctly fixed! The suctioned air must not be conveyed in the same channel used for fumes discharged by appliances powered by other than electricity. The environment must always be adequately aerated when the cooker hood and other appliances powered by other than electricity are used at the same time. Flambe cooking with a cooker hood is prohibited. The use of a free flame is damaging to the filters and may cause fire accidents, therefore free flame cooking must be avoided. Frying of foods must be kept under close control in order to avoid overheated oil catching fire. Carry out fumes discharging in accordance with the regulations in force by local laws for safety and technical restrictions.
