Product type	Extractor hood
Brand	M-System
Model	MSDK 901
Minimum installation height	65 cm above the cooking surface
Extraction duct diameter	125 mm minimum
Number of extraction speeds	3 (1: low, 2: medium, 3: high)
Lighting	Halogen bulb 20 W max
Grease filter	Monthly cleaning (dishwasher safe at low temperature)
Charcoal filter	Replace every 4 months (recirculation mode)
Extraction type	External (duct not supplied) or recirculation with charcoal filter
Power supply	According to voltage indicated on the hood label
Maintenance	Disconnect before any intervention; external cleaning with cloth and neutral detergent
Safety	Do not flambé under the hood; monitor frying; do not use without grid
Grease filter material	Metal (washable)
Control	Buttons: lights ON/OFF, motor OFF, 3 speeds (1,2,3)
Number of bulbs	1 (as per illustration)

Frequently Asked Questions - MSDK 901 M-SYSTEM

How to clean the grease filter?

It must be cleaned once a month with a non-aggressive detergent, by hand or in the dishwasher at low temperature on a short cycle. Washing in the dishwasher may discolor the filter but does not affect its performance.

When should I replace the charcoal filter?

Every 4 months under normal use. It is neither washable nor recyclable.

How to change the bulb?

Before touching the bulb, make sure it is cold. Remove the protective glass with a screwdriver, replace with a halogen bulb of 20 W max, avoid touching the bulb with bare hands, then replace the glass.

What is the minimum installation height?

65 cm above the cooking surface. If the instructions of the cooking appliance specify a greater distance, follow those.

Can I use the hood without external extraction?

Yes, in recirculation mode with a charcoal filter. The filtered air is recirculated into the kitchen through the side openings.

What to do if the hood does not work?

Check the power supply and that the voltage matches. Ensure the hood is properly plugged in. If the problem persists, consult the manual or contact customer service.

How to adjust the extraction power?

Use buttons 1, 2, 3 for low, medium, high. Button B stops the motor.

Can I wash the grease filter in the dishwasher?

Yes, at low temperature on a short cycle. Discoloration may occur but does not affect efficiency.

Does the hood have a warranty?

The manual does not mention a specific warranty. Please contact the manufacturer Boretti (brand mentioned in the manual) for more information.

What to do if the lights do not turn on?

Check the bulb and replace it if necessary. Ensure the hood is powered.

USER MANUAL MSDK 901 M-SYSTEM

Boretti would like to congratulate you on your new kitchen purchase, and to thank you for choosing a Boretti brand product.

Please read this manual carefully before going on to use the product. This will prevent possible problems and ensure that you are aware of the correct and safe use of this product

In the event that queries arise once you have read the manual or at any time during the use of your Boretti product, we will be happy to help you.

Please refer to the back cover of this manual for Boretti's contact details.

We hope you enjoy the product!

Boretti

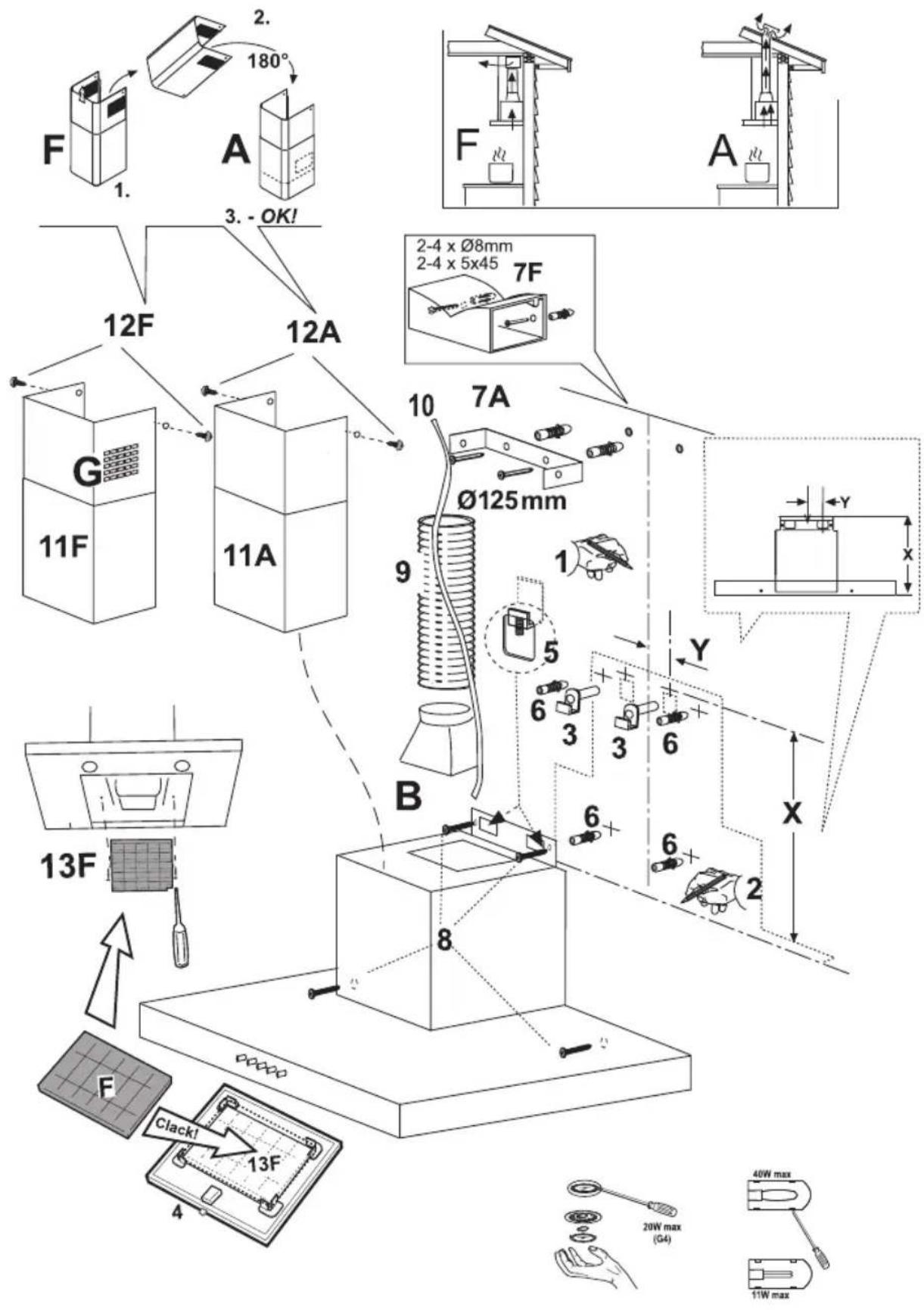

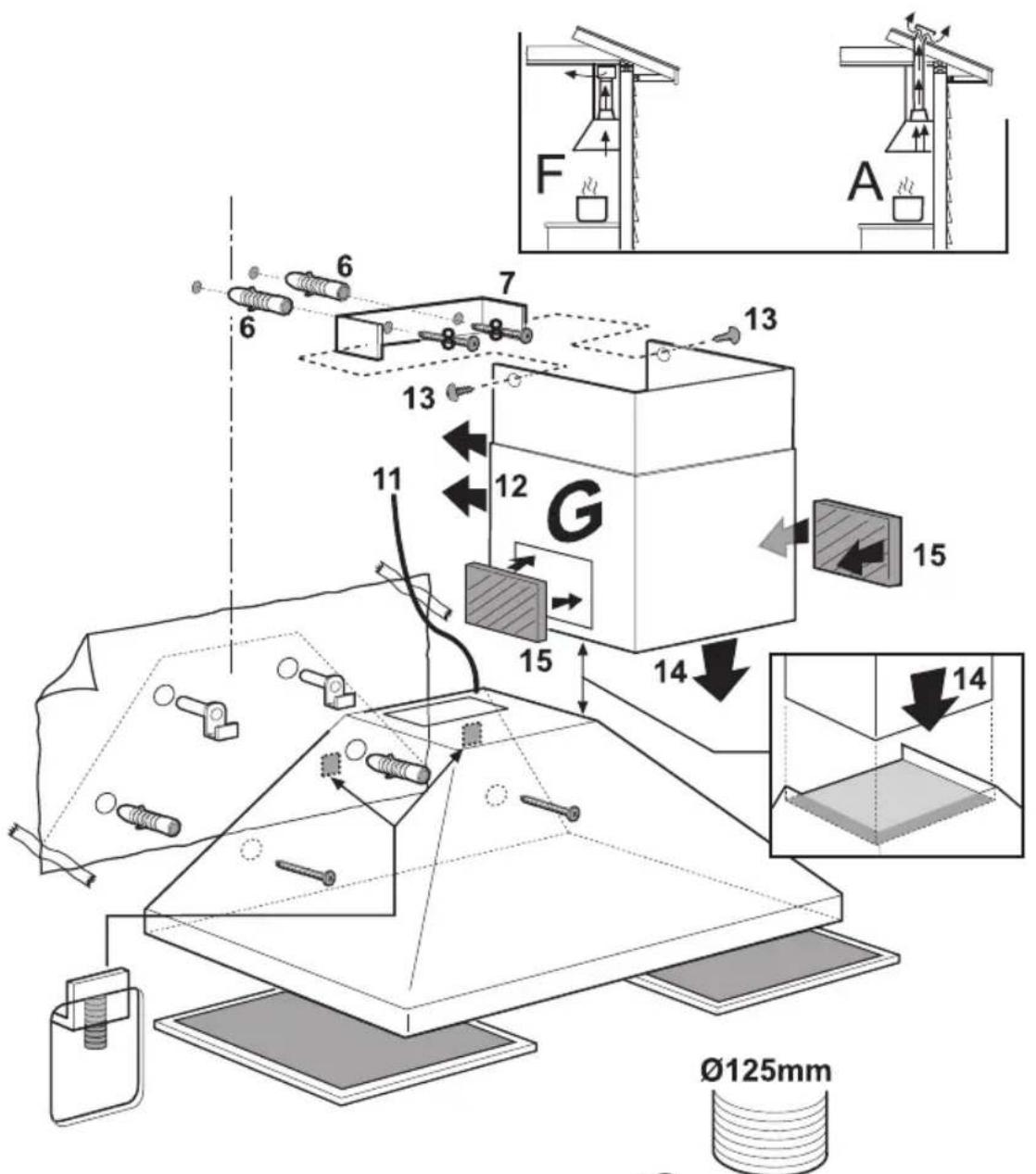

Consult the drawings in the last pages referenced in the text by alphabet letters.

Closely follow the instructions set out in this manual.

All responsibility, for any eventual inconvenience, damages or fires caused by not complying with the instructions in this manual, is declined.

Installation

The cooker hood must be placed at a minimum distance of 65 cm from the cooking plane. In the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

The exhaust hood must be connected to a discharge duct with a diameter of at least 125 mm. This is of great importance for the lifespan of your exhaust hood.

Exhaust pipe

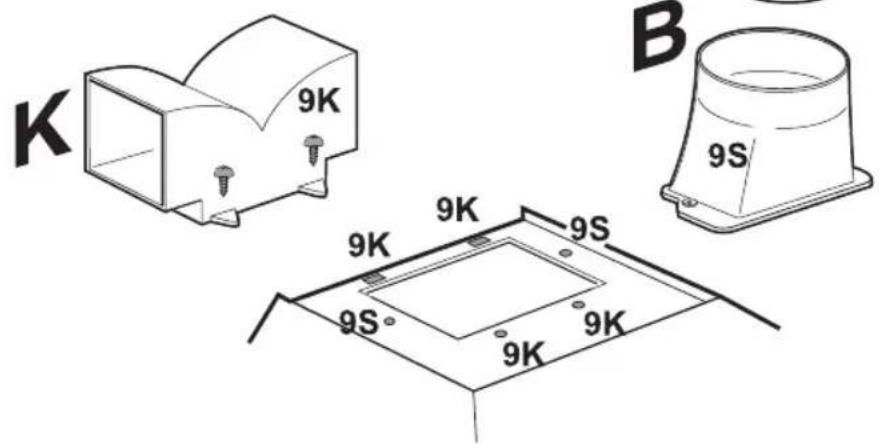

The exhaust hood includes a connection (B) on top for the discharge of steam outdoors (discharge duct not included). In situations in which it is not possible to discharge steam outdoors, the filter version of the exhaust hood - F (recirculation) - can be used in combination with carbon filters. The filtered air is returned to the kitchen via the openings on the side.

Electrical connection

The electrical tension must correspond to the tension noted on the label placed inside the cooker hood.

Environmental Regulations

Should you wish to discard the appliance for any reason, please comply with the following: Take the machine to the local authorized company that collects discarded household appliances. Correct processing enable valuable materials to be recycled in an intelligent manner. Before discarding your machine it is important that you cut off the power supply cord and remove it together with the plug. This machine has been accorded the appropriate mark in accordance with European Directive 2002/96EG regarding discarded electric and electronic equipment. This directive determines the standards for the collection and recycling of discarded equipment that apply to the entire territory of the European Union.

Operation instructions

The cooker hood is provided with 5 keys.

AB123

A: ON/OFF lights
B:Motor OFF

1-2-3: Suction power: Minimum (1), medium (2), maximum (3)

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The cooker hood should be cleaned regularly internally and externally. For cleaning use a cloth moistened with denatured alcohol or neutral liquid detergents. Avoid abrasive detergents.

Warning: Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

The anti-grease filter must be cleaned once a month, with non abrasive detergents by hand, or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal Filter - (only for filter version)

The active charcoal filters are not washable nor regenerative. It should be changed every 4 months in normal use.

Replacing light bulbs

Warning! Before touching the bulbs, make sure they are cool.

Carefully remove the glass lamp cover with a screwdriver (refer to the drawings on the last pages). Remove the defective bulb. Use only halogen bulbs with a maximum rating of 20W and make sure you do not touch them with your bare hand. Then fit the glass lamp cover in its original position.

Caution

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Do not use the cooker hood where the grill is not correctly fixed! The suctioned air must not be conveyed in the same channel used for fumes discharged by appliances powered by other than electricity. The environment must always be adequately aerated when the cooker hood and other appliances powered by other than electricity are used at the same time. Flambé cooking with a cooker hood is prohibited. The use of a free flame is damaging to the filters and may cause fire accidents, therefore free flame cooking must be avoided. Frying of foods must be kept under close control in order to avoid overheated oil catching fire. Carry out fumes discharging in accordance with the regulations in force by local laws for safety and technical restrictions.
