MSDK 961 - Range hood M-SYSTEM - Free user manual and instructions

Product type	Range hood
Brand	M-System
Model	MSDK 961
Minimum installation height	65 cm above cooking surface
Duct diameter	125 mm minimum
Evacuation mode	External extraction or recirculation with charcoal filter
Number of speeds	3 speeds (minimum, medium, maximum)
Controls	5 buttons: A (light), B (motor stop), 1-2-3 (speeds)
Lighting	Halogen bulb, 20 W max
Grease filter	Metal, dishwasher-safe (monthly cleaning)
Charcoal filter	Replace every 4 months (recirculation version)
Power supply	Mains electricity (voltage indicated on label)
Energy consumption	Not specified
Noise level	Not specified
Width	Typically 60 cm (not confirmed)
Weight	Not specified
Maintenance	Regular cleaning with neutral liquid detergent
Safety	Do not use without filter, do not flambé under the hood, monitor frying
Environmental directives	Comply with directive 2002/96/EC for disposal

Frequently Asked Questions - MSDK 961 M-SYSTEM

At what height should the MSDK 961 hood be installed?

The hood must be installed at a minimum height of 65 cm above the cooking surface. Also consult your cooking appliance instructions, which may require a greater distance.

How to clean the grease filter?

The metal grease filter must be cleaned once a month, by hand with a non-aggressive detergent or in the dishwasher on a short low-temperature cycle. Dishwasher washing may cause discoloration, but filtering performance is not affected.

When to replace the charcoal filter?

For the recirculation version, the charcoal filter must be replaced every 4 months under normal use. It is neither washable nor recyclable.

How to change the hood bulb?

Make sure the bulb is cold. Carefully remove the protective glass with a screwdriver and replace the bulb with a halogen bulb of 20 W max. Avoid touching the bulb with bare hands, then put the glass back in place.

Can I use the hood without an exhaust duct?

Yes, in recirculation mode. You must then equip the hood with charcoal filters to purify the air before redistributing it into the kitchen through the side openings.

What is the meaning of the buttons A, B, 1, 2, 3?

Button A turns the light on/off, B stops the motor, and buttons 1, 2, 3 correspond to the suction powers: minimum, medium, and maximum.

What to do if cleaning instructions are not followed?

Failure to comply with cleaning and filter replacement rules can lead to fire hazards. It is strongly recommended to follow the instructions carefully.

Can the hood be used without the grease filter?

No, never use the hood without having properly installed the grill (grease filter). This is essential for safety and proper operation.

How to connect the hood electrically?

The mains voltage must correspond to the characteristics indicated on the label inside the hood. Connection must be carried out by a qualified professional if necessary.

What to do in case of hood malfunction?

First check the power supply and fuses. If the problem persists, consult the complete manual or contact Boretti after-sales service (contact details on the back of the manual). Do not attempt to repair the appliance yourself.

USER MANUAL MSDK 961 M-SYSTEM

Boretti would like to congratulate you on your new kitchen purchase, and to thank you for choosing a Boretti brand product.

Please read this manual carefully before going on to use the product. This will prevent possible problems and ensure that you are aware of the correct and safe use of this product

In the event that queries arise once you have read the manual or at any time during the use of your Boretti product, we will be happy to help you.

Please refer to the back cover of this manual for Boretti's contact details.

We hope you enjoy the product!

Boretti

Consult the drawings in the last pages referenced in the text by alphabet letters.

Closely follow the instructions set out in this manual.

All responsibility, for any eventual inconvenience, damages or fires caused by not complying with the instructions in this manual, is declined.

Installation

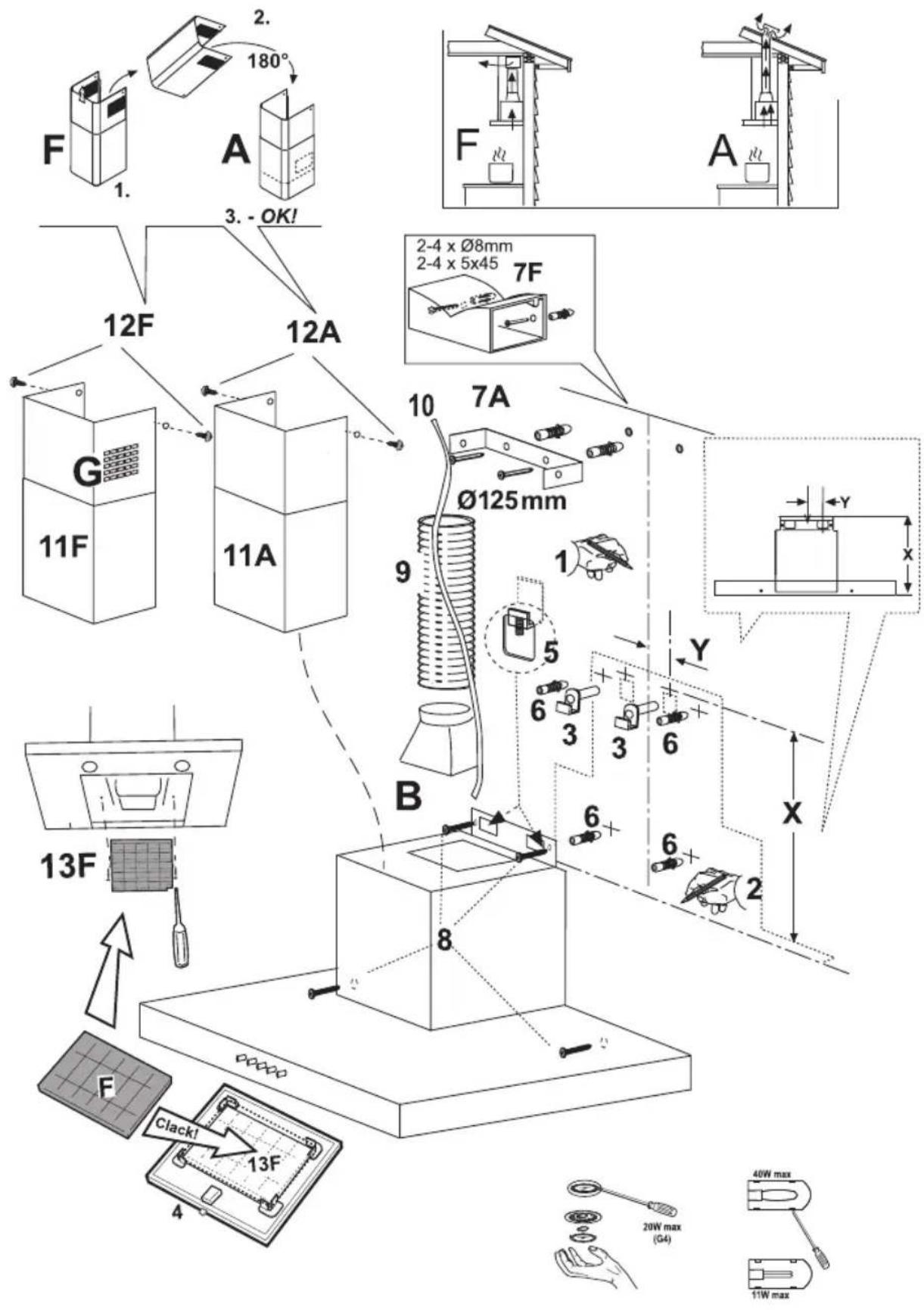

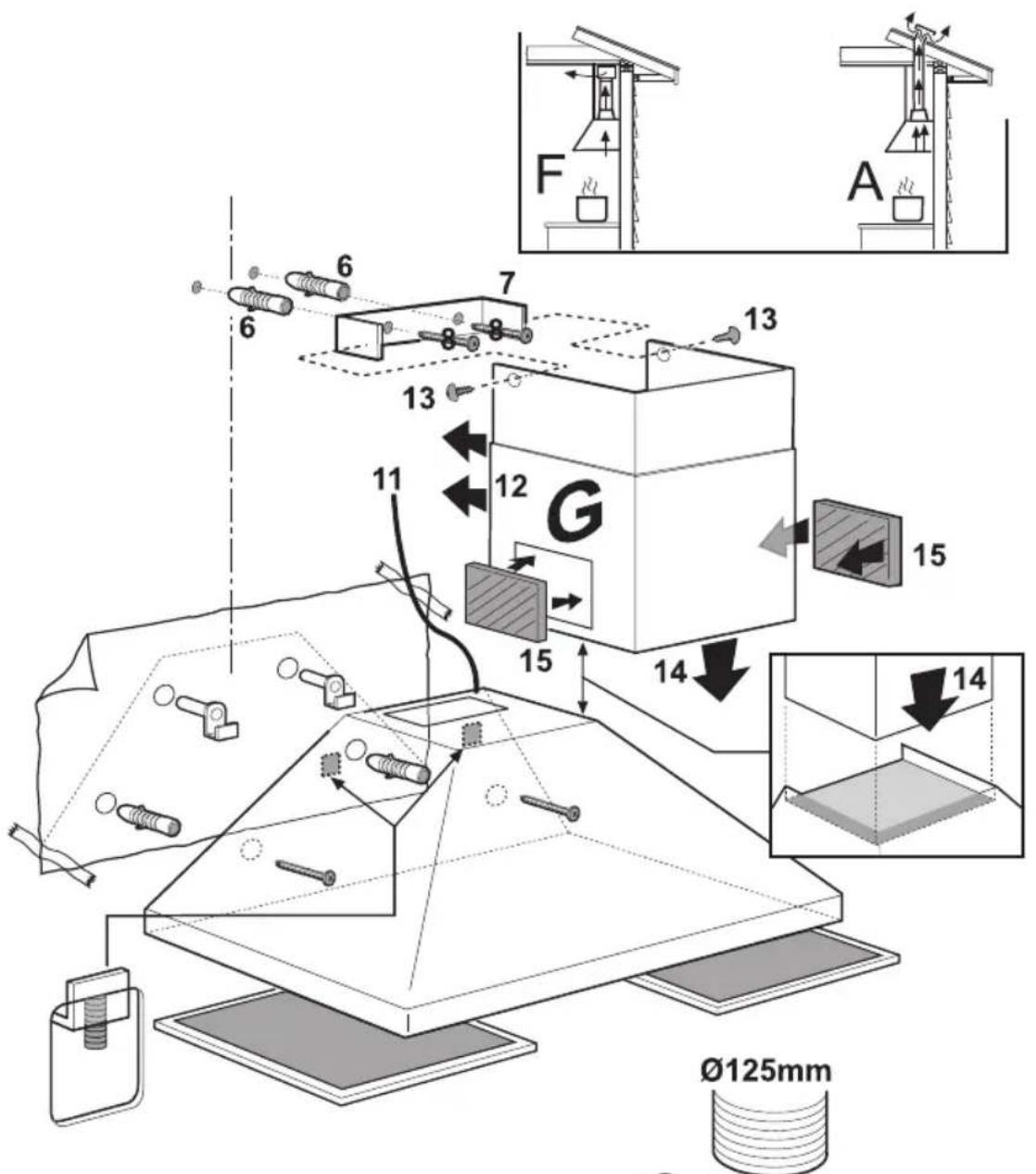

The cooker hood must be placed at a minimum distance of 65 cm from the cooking plane. In the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

The exhaust hood must be connected to a discharge duct with a diameter of at least 125 mm. This is of great importance for the lifespan of your exhaust hood.

Exhaust pipe

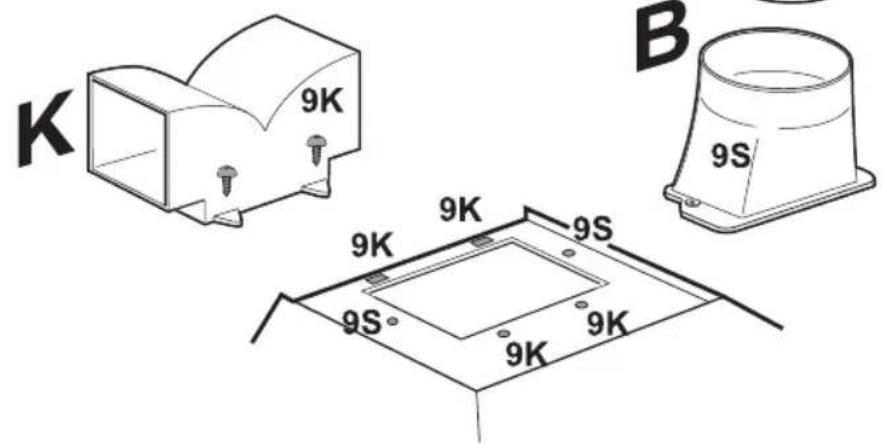

The exhaust hood includes a connection (B) on top for the discharge of steam outdoors (discharge duct not included). In situations in which it is not possible to discharge steam outdoors, the filter version of the exhaust hood - F (recirculation) - can be used in combination with carbon filters. The filtered air is returned to the kitchen via the openings on the side.

Electrical connection

The electrical tension must correspond to the tension noted on the label placed inside the cooker hood.

Environmental Regulations

Should you wish to discard the appliance for any reason, please comply with the following: Take the machine to the local authorized company that collects discarded household appliances. Correct processing enable valuable materials to be recycled in an intelligent manner. Before discarding your machine it is important that you cut off the power supply cord and remove it together with the plug. This machine has been accorded the appropriate mark in accordance with European Directive 2002/96EG regarding discarded electric and electronic equipment. This directive determines the standards for the collection and recycling of discarded equipment that apply to the entire territory of the European Union.

Operation instructions

The cooker hood is provided with 5 keys.

AB123

A: ON/OFF lights
B:Motor OFF

1-2-3: Suction power: Minimum (1), medium (2), maximum (3)

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The cooker hood should be cleaned regularly internally and externally. For cleaning use a cloth moistened with denatured alcohol or neutral liquid detergents. Avoid abrasive detergents.

Warning: Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

The anti-grease filter must be cleaned once a month, with non abrasive detergents by hand, or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal Filter - (only for filter version)

The active charcoal filters are not washable nor regenerative. It should be changed every 4 months in normal use.

Replacing light bulbs

Warning! Before touching the bulbs, make sure they are cool.

Carefully remove the glass lamp cover with a screwdriver (refer to the drawings on the last pages). Remove the defective bulb. Use only halogen bulbs with a maximum rating of 20W and make sure you do not touch them with your bare hand. Then fit the glass lamp cover in its original position.

Caution

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Do not use the cooker hood where the grill is not correctly fixed! The suctioned air must not be conveyed in the same channel used for fumes discharged by appliances powered by other than electricity. The environment must always be adequately aerated when the cooker hood and other appliances powered by other than electricity are used at the same time. Flambe cooking with a cooker hood is prohibited. The use of a free flame is damaging to the filters and may cause fire accidents, therefore free flame cooking must be avoided. Frying of foods must be kept under close control in order to avoid overheated oil catching fire. Carry out fumes discharging in accordance with the regulations in force by local laws for safety and technical restrictions.
