Brand	M-System (marketed by Boretti)
Model	MSPK 661
Product type	Range hood
Use	Cooking, extraction of smoke and steam
Installation	Wall mounting, minimum height 65 cm above the cooking surface
Dimensions (W x D x H)	Approximately 60 cm x 50 cm x 30 cm (typical estimate)
Weight	Approximately 8 kg (estimate)
Power supply	220-240 V ~ 50 Hz (typical)
Motor power	Not specified (estimated 150 W)
Suction speeds	3 speeds (low, medium, high)
Lighting	1 halogen bulb 20 W max (GU10 or similar type)
Control	5 buttons: light on/off (A), motor stop (B), speeds 1-2-3
Extraction type	External (duct min. diameter 125 mm) or recirculation with charcoal filter
Grease filter	Metallic, dishwasher-safe or hand washable (monthly)
Charcoal filter (recirculation version)	Replacement every 4 months, not washable
Exterior maintenance	Soft cloth and mild detergent, avoid abrasives
Safety	Do not flambé under the hood, monitor frying, respect distances
Environmental instructions	Electronic waste, recycling via waste disposal center, cut the cable before disposal
Spare parts	Halogen bulb, charcoal filter, grease filter
Repairability	Not evaluated (parts available from manufacturer)

Frequently Asked Questions - MSPK 661 M-SYSTEM

What is the minimum installation height of the hood?

The hood must be installed at least 65 cm above the cooking surface. If the cooking hob instructions indicate a greater distance, follow that.

How to clean the grease filter?

Clean the metal grease filter once a month with a non-aggressive detergent, by hand or in a dishwasher on a short low-temperature cycle. Dishwashing may discolor the filter without affecting its efficiency.

When to replace the charcoal filter?

In recirculation mode, the charcoal filter must be replaced every 4 months. This filter is neither washable nor recyclable.

How to change the hood bulb?

Make sure the bulb is cool. Carefully remove the protective glass with a screwdriver, replace the defective bulb with a halogen bulb of 20 W max (do not touch with bare hands), then replace the glass.

Can I use the hood without filters?

No, it is dangerous to use the hood without properly installing the grille and filters. This can lead to fire hazards.

What to do if the hood is not extracting well?

Check that the grease filter is not clogged, clean it. In recirculation mode, replace the charcoal filter. Make sure the exhaust duct (or air outlets) is not blocked.

How to switch from external extraction to recirculation?

If you cannot exhaust air to the outside, you must equip the hood with charcoal filters (not supplied) to operate in recirculation mode. The filtered air will be redistributed into the kitchen through the side openings.

What cleaning products to use for the exterior?

Use a soft cloth dampened with a mild liquid detergent. Avoid abrasive products, solvents, and metal sponges.

What to do in case of damage or fire?

Unplug the hood immediately. Do not use water to extinguish a grease fire. Follow safety instructions: never leave frying unattended and do not flambé under the hood.

Where to find the full user manual?

The full manual is available for free download in PDF format on the website notice-facile.com for the model MSPK 661 by M-System.

USER MANUAL MSPK 661 M-SYSTEM

Boretti would like to congratulate you on your new kitchen purchase, and to thank you for choosing a Boretti brand product.

Please read this manual carefully before going on to use the product. This will prevent possible problems and ensure that you are aware of the correct and safe use of this product

In the event that queries arise once you have read the manual or at any time during the use of your Boretti product, we will be happy to help you.

Please refer to the back cover of this manual for Boretti's contact details.

We hope you enjoy the product!

Boretti

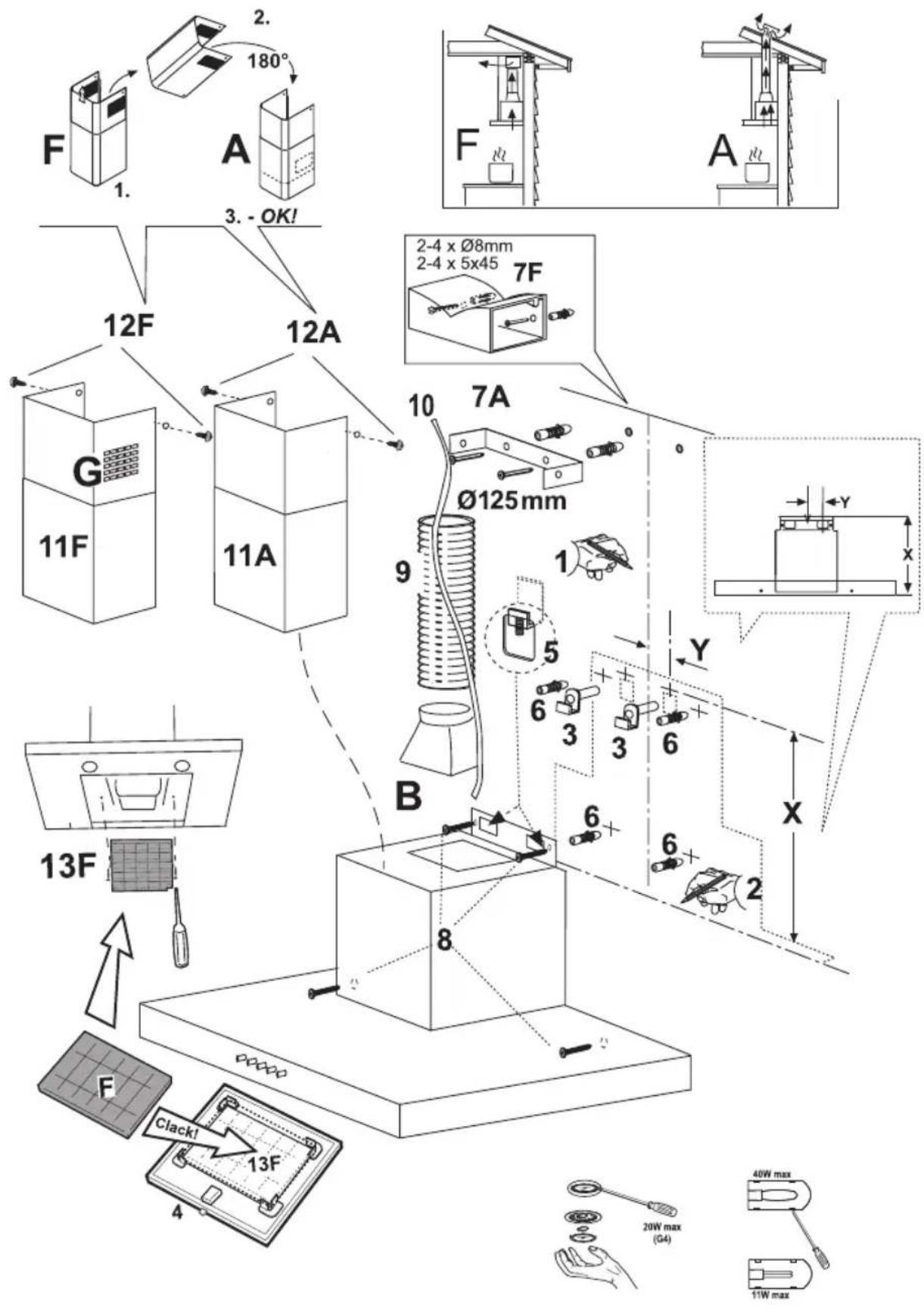

Consult the drawings in the last pages referenced in the text by alphabet letters.

Closely follow the instructions set out in this manual.

All responsibility, for any eventual inconvenience, damages or fires caused by not complying with the instructions in this manual, is declined.

Installation

The cooker hood must be placed at a minimum distance of 65 cm from the cooking plane. In the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

The exhaust hood must be connected to a discharge duct with a diameter of at least 125 mm. This is of great importance for the lifespan of your exhaust hood.

Exhaust pipe

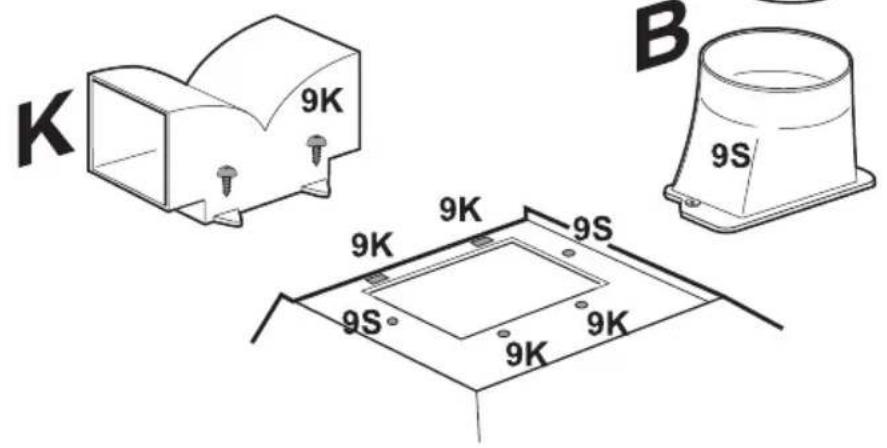

The exhaust hood includes a connection (B) on top for the discharge of steam outdoors (discharge duct not included). In situations in which it is not possible to discharge steam outdoors, the filter version of the exhaust hood - F (recirculation) - can be used in combination with carbon filters. The filtered air is returned to the kitchen via the openings on the side.

Electrical connection

The electrical tension must correspond to the tension noted on the label placed inside the cooker hood.

Environmental Regulations

Should you wish to discard the appliance for any reason, please comply with the following: Take the machine to the local authorized company that collects discarded household appliances. Correct processing enable valuable materials to be recycled in an intelligent manner. Before discarding your machine it is important that you cut off the power supply cord and remove it together with the plug. This machine has been accorded the appropriate mark in accordance with European Directive 2002/96EG regarding discarded electric and electronic equipment. This directive determines the standards for the collection and recycling of discarded equipment that apply to the entire territory of the European Union.

Operation instructions

The cooker hood is provided with 5 keys.

AB123

A: ON/OFF lights
B:Motor OFF

1-2-3: Suction power: Minimum (1), medium (2), maximum (3)

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The cooker hood should be cleaned regularly internally and externally. For cleaning use a cloth moistened with denatured alcohol or neutral liquid detergents. Avoid abrasive detergents.

Warning: Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

The anti-grease filter must be cleaned once a month, with non abrasive detergents by hand, or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal Filter - (only for filter version)

The active charcoal filters are not washable nor regenerative. It should be changed every 4 months in normal use.

Replacing light bulbs

Warning! Before touching the bulbs, make sure they are cool.

Carefully remove the glass lamp cover with a screwdriver (refer to the drawings on the last pages). Remove the defective bulb. Use only halogen bulbs with a maximum rating of 20 W, and make sure you do not touch them with your bare hand. Then fit the glass lamp cover in its original position.

Caution

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Do not use the cooker hood where the grill is not correctly fixed! The suctioned air must not be conveyed in the same channel used for fumes discharged by appliances powered by other than electricity. The environment must always be adequately aerated when the cooker hood and other appliances powered by other than electricity are used at the same time. Flambé cooking with a cooker hood is prohibited. The use of a free flame is damaging to the filters and may cause fire accidents, therefore free flame cooking must be avoided. Frying of foods must be kept under close control in order to avoid overheated oil catching fire. Carry out fumes discharging in accordance with the regulations in force by local laws for safety and technical restrictions.
