Brand	M-System
Model	MSPK 660 IX
Product type	Extractor hood
Width	60 cm
Minimum mounting height	65 cm above the cooking surface
Extraction diameter	Min. 125 mm
Power supply	220-240 V ~ 50 Hz
Suction power	3 speeds (minimum, medium, maximum)
Lighting	Halogen bulb 20 W max.
Operating mode	External extraction or recirculation with charcoal filter
Grease filter	Metallic, dishwasher-safe (monthly cleaning)
Charcoal filter	Replace every 4 months (recirculation version)
Controls	Buttons: A (light ON/OFF), B (motor OFF), 1/2/3 (speeds)
Material	Stainless steel
Weight	Approximately 12 kg
Exterior maintenance	Soft cloth and neutral liquid detergent
Safety instructions	Never use without filter; minimum height 65 cm; do not flambé under the hood
Environmental guidelines	Follow directive 2002/96/EC for recycling

Frequently Asked Questions - MSPK 660 IX M-SYSTEM

What is the minimum mounting height?

The hood must be installed at least 65 cm above the cooking surface, unless otherwise specified by the stove manufacturer.

How to clean the grease filter?

The metallic grease filter should be cleaned once a month with a non-aggressive detergent, by hand or in the dishwasher on a short, low-temperature cycle.

When to replace the charcoal filter?

Under normal use, the charcoal filter must be replaced every 4 months to ensure optimal efficiency.

How to change the bulb?

Make sure the bulb is cool, then gently remove the protective glass with a screwdriver. Replace with a 20 W max halogen bulb without touching the bulb with bare hands.

Can I use the hood without filter?

No, it is strictly forbidden to use the hood without properly installing the grille and filters, due to fire risk.

How to switch to recirculation mode?

If external extraction is not possible, install charcoal filters (not supplied) so that the filtered air is recirculated into the kitchen through the side openings.

What is the maximum suction power?

The hood has 3 speeds: minimum (1), medium (2), and maximum (3). The exact power in m³/h is not specified, but it is suitable for domestic kitchens.

What to do in case of power outage?

The hood is plugged into the mains. In case of outage, check the circuit breaker. If the problem persists, contact a professional.

How to clean the exterior of the hood?

Use a cloth moistened with neutral liquid detergent. Avoid abrasive products that might scratch the surface.

The hood makes noise, is this normal?

A slight noise is normal, especially at maximum speed. If the noise is excessive, check that the filters are clean and properly installed.

USER MANUAL MSPK 660 IX M-SYSTEM

Boretti would like to congratulate you on your new kitchen purchase, and to thank you for choosing a Boretti brand product.

Please read this manual carefully before going on to use the product. This will prevent possible problems and ensure that you are aware of the correct and safe use of this product

In the event that queries arise once you have read the manual or at any time during the use of your Boretti product, we will be happy to help you.

Please refer to the back cover of this manual for Boretti's contact details.

We hope you enjoy the product!

Boretti

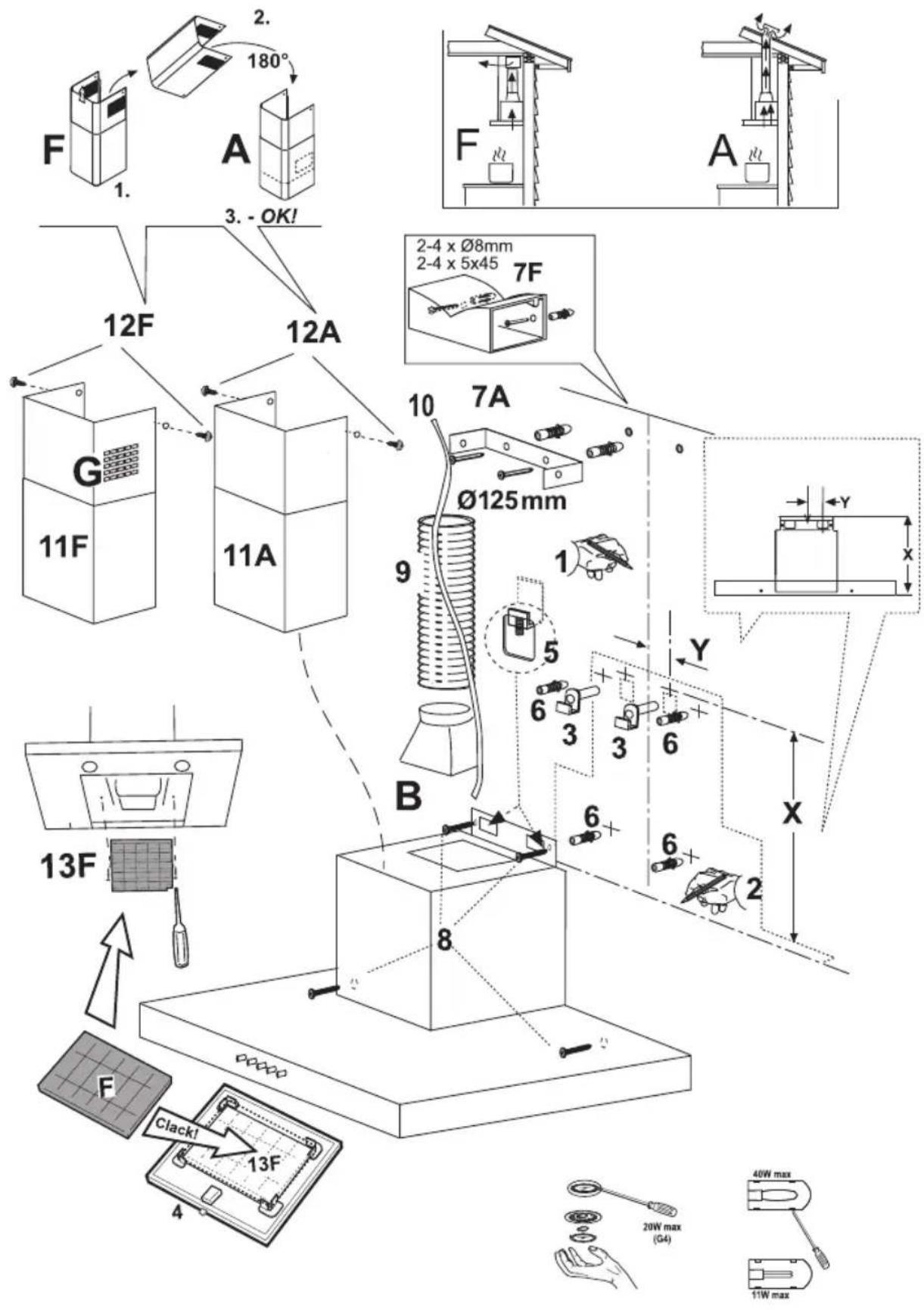

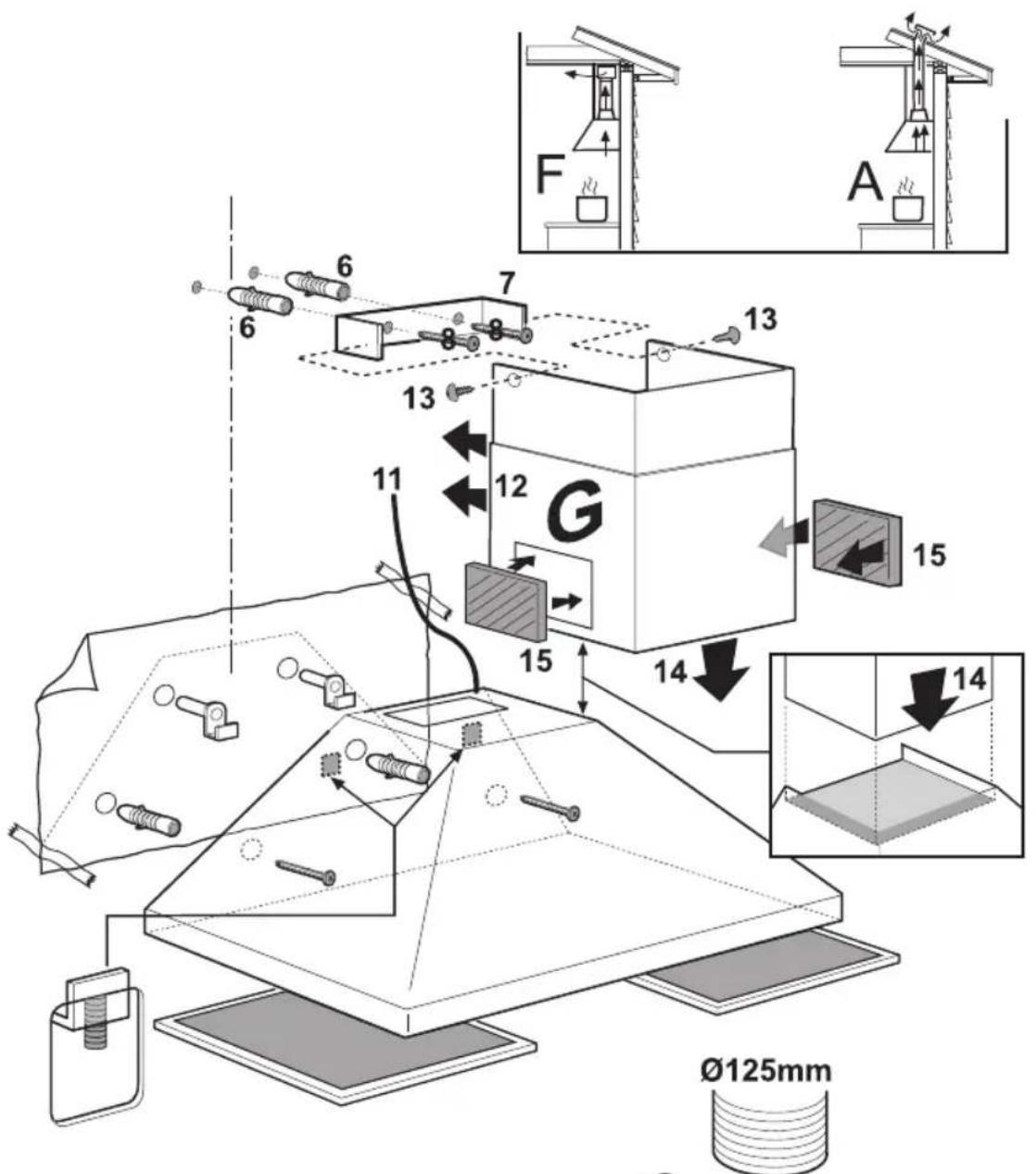

Consult the drawings in the last pages referenced in the text by alphabet letters.

Closely follow the instructions set out in this manual.

All responsibility, for any eventual inconvenience, damages or fires caused by not complying with the instructions in this manual, is declined.

Installation

The cooker hood must be placed at a minimum distance of 65 cm from the cooking plane. In the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

The exhaust hood must be connected to a discharge duct with a diameter of at least 125 mm. This is of great importance for the lifespan of your exhaust hood.

Exhaust pipe

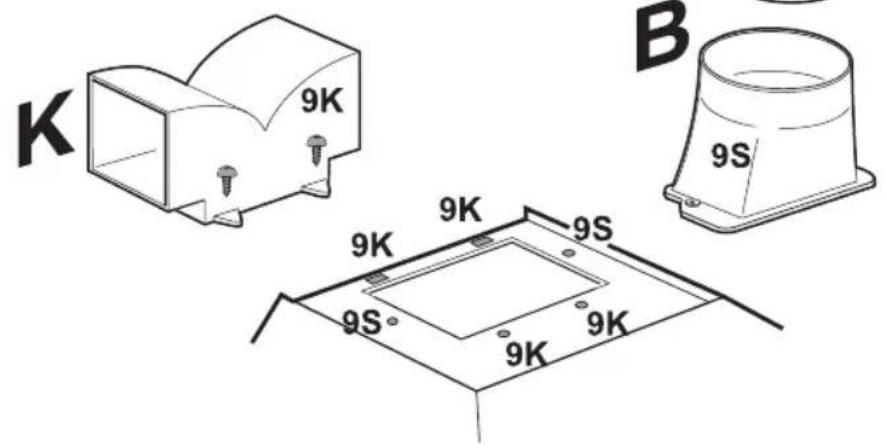

The exhaust hood includes a connection (B) on top for the discharge of steam outdoors (discharge duct not included). In situations in which it is not possible to discharge steam outdoors, the filter version of the exhaust hood - F (recirculation) - can be used in combination with carbon filters. The filtered air is returned to the kitchen via the openings on the side.

Electrical connection

The electrical tension must correspond to the tension noted on the label placed inside the cooker hood.

Environmental Regulations

Should you wish to discard the appliance for any reason, please comply with the following: Take the machine to the local authorized company that collects discarded household appliances. Correct processing enable valuable materials to be recycled in an intelligent manner. Before discarding your machine it is important that you cut off the power supply cord and remove it together with the plug. This machine has been accorded the appropriate mark in accordance with European Directive 2002/96EG regarding discarded electric and electronic equipment. This directive determines the standards for the collection and recycling of discarded equipment that apply to the entire territory of the European Union.

Operation instructions

The cooker hood is provided with 5 keys.

AB123

A: ON/OFF lights
B:Motor OFF

1-2-3: Suction power: Minimum (1), medium (2), maximum (3)

Maintenance

Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.

Cleaning

The cooker hood should be cleaned regularly internally and externally. For cleaning use a cloth moistened with denatured alcohol or neutral liquid detergents. Avoid abrasive detergents.

Warning: Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

Anti-grease Filter

The anti-grease filter must be cleaned once a month, with non abrasive detergents by hand, or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Charcoal Filter - (only for filter version)

The active charcoal filters are not washable nor regenerative. It should be changed every 4 months in normal use.

Replacing light bulbs

Warning! Before touching the bulbs, make sure they are cool.

Carefully remove the glass lamp cover with a screwdriver (refer to the drawings on the last pages). Remove the defective bulb. Use only halogen bulbs with a maximum rating of 20W and make sure you do not touch them with your bare hand. Then fit the glass lamp cover in its original position.

Caution

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Do not use the cooker hood where the grill is not correctly fixed! The suctioned air must not be conveyed in the same channel used for fumes discharged by appliances powered by other than electricity. The environment must always be adequately aerated when the cooker hood and other appliances powered by other than electricity are used at the same time. Flambé cooking with a cooker hood is prohibited. The use of a free flame is damaging to the filters and may cause fire accidents, therefore free flame cooking must be avoided. Frying of foods must be kept under close control in order to avoid overheated oil catching fire. Carry out fumes discharging in accordance with the regulations in force by local laws for safety and technical restrictions.
