JL010118NPF - Above-ground pool JILONG - Free user manual and instructions

Product type	Inflatable above-ground pool
Brand	JILONG
Model	JL010118NPF
External dimensions	175 x 109 x 51 cm (69" x 43" x 20")
Water capacity (75%)	312 L (82 gal)
Recommended water level	37 cm
Main material	Durable PVC
Package contents	Pool, instruction manual, repair patch
Inflation type	Manual (hand pump or foot pump recommended)
Usage	Outdoor only, on flat ground without sharp objects
Storage temperature	Above 5 °C
Water maintenance	Regular renewal and use of pH-appropriate chemicals
Cleaning	Clean water, no alkaline or acidic detergent
Repair	Included patch for punctures up to 2.5 cm; silicone glue for larger damage
Safety	Constant supervision of children, no diving, barrier recommended
Number of compartments	Several (multiple inflation valves)
Approximate weight	5 kg (estimate)
Recommended age	Children (mandatory supervision)
Assembly instructions	Inflate slowly, do not overinflate, fill to the warning line
Disassembly	Drain water, deflate, dry and fold in original packaging

Frequently Asked Questions - JL010118NPF JILONG

How to install the JILONG JL010118NPF pool?

Choose a flat area free of stones and sharp objects. Unroll the pool, locate the inflation valves and inflate slowly using a hand pump or foot pump. Do not use high-pressure air. Fill with water up to the warning line (37 cm).

What is the water capacity of this pool?

The water capacity at 75% is 312 liters, for a water level of 37 cm.

Is the pool supplied with a pump?

No, the pump is not included. It is recommended to use a manual pump (hand or foot).

How to maintain the pool water?

Renew the water regularly after each use. Use chemicals suitable for the water pH, following the manufacturer's instructions. Consult your local retailer.

What to do in case of a leak or hole?

Locate the leak, drain and deflate the pool. Clean the area, apply the supplied repair patch pressing firmly. For holes larger than 2.5 cm, use a silicone or rubber-based glue.

Can I install the pool on concrete or asphalt?

No, it is forbidden to install the pool on a hard surface like concrete or asphalt. Choose a flat and soft ground.

What are the essential safety instructions?

Constantly supervise children, designate a safety supervisor. Prohibit running, diving and jumping. Keep treatment products out of reach. Display emergency numbers (fire department, ambulance).

How to store the pool in winter?

Drain the water, deflate the pool, let it dry in the shade. Fold it carefully and store it in its original packaging indoors, at a temperature above 5 °C.

Can the pool be left empty outdoors?

No, never leave the pool empty outdoors. It could be damaged by wind or sun. Drain and store it after each use if not in use.

How to clean the pool?

Clean the pool with clean water only. Do not use alkaline or acidic detergent. Allow to air dry before storing.

USER MANUAL JL010118NPF JILONG

Thank you for choosing the products manufactured by Jilong Company. Before using, please read the manual carefully and keep it with original package for future reference. Please carefully read them and keep them for future reference

Item No.	Size	Water capacity (75%)	Water level
JL017026N/NPF	Φ152 x 50 cm (60” x 20”)	343L(90gal)	37cm
JL017027N/NPF	Φ185 x 50cm (73” x 20”)	725L(191gal)	37cm
JL017025N/NPF	Φ229 x 50cm (90” x 20”)	943L(249gal)	37cm
JL016015N/NPF	230 x 230 x 45cm (91” x 91” x 18”)	766L(202gal)	33cm
JL010628N/NPF	Φ 190 x 50cm (75” x 20”)	577L(152gal)	37cm
JL010118N/NPF	175 x 109 x 51cm (69” x 43” x 20”)	312L(82gal)	37cm
JL010190-1N/NPF	250 x 147 x 56cm (98” x 58” x 22”)	873L(230gal)	42cm
JL010123N/NPF	230 x 230 x 56cm (90” x90” x 20”)	844L(222gal)	42cm
JL017028N/NPF	305 x 183 x 56cm (120” x 72” x 22”)	1240L(327gal)	42cm
JL010184N/NPF	305 x 183 x 56cm (120” x 72” x 22”)	1240L(327gal)	42cm
JL016014-1N/NPF	366 x 193 x 56cm (144” x 76” x 22”)	1730L(457gal)	42cm
JL010291-1N/NPF	200 x 150 x 50cm (79” x 59” x 20”)	459L(121gal)	37cm
JL010291N/NPF	262 x 175 x 50cm (103” x 69” x 20”)	836L(220gal)	37cm
JL017031NPF	Φ152 x 50 cm (60” x 20”)	300L(80gal)	37cm
JL010291-2N/NPF	305 x 183 x 56cm (120” x 72” x 22”)	1240L(327gal)	37cm

Contents: Pool, Instruction Manual, Repair patch.

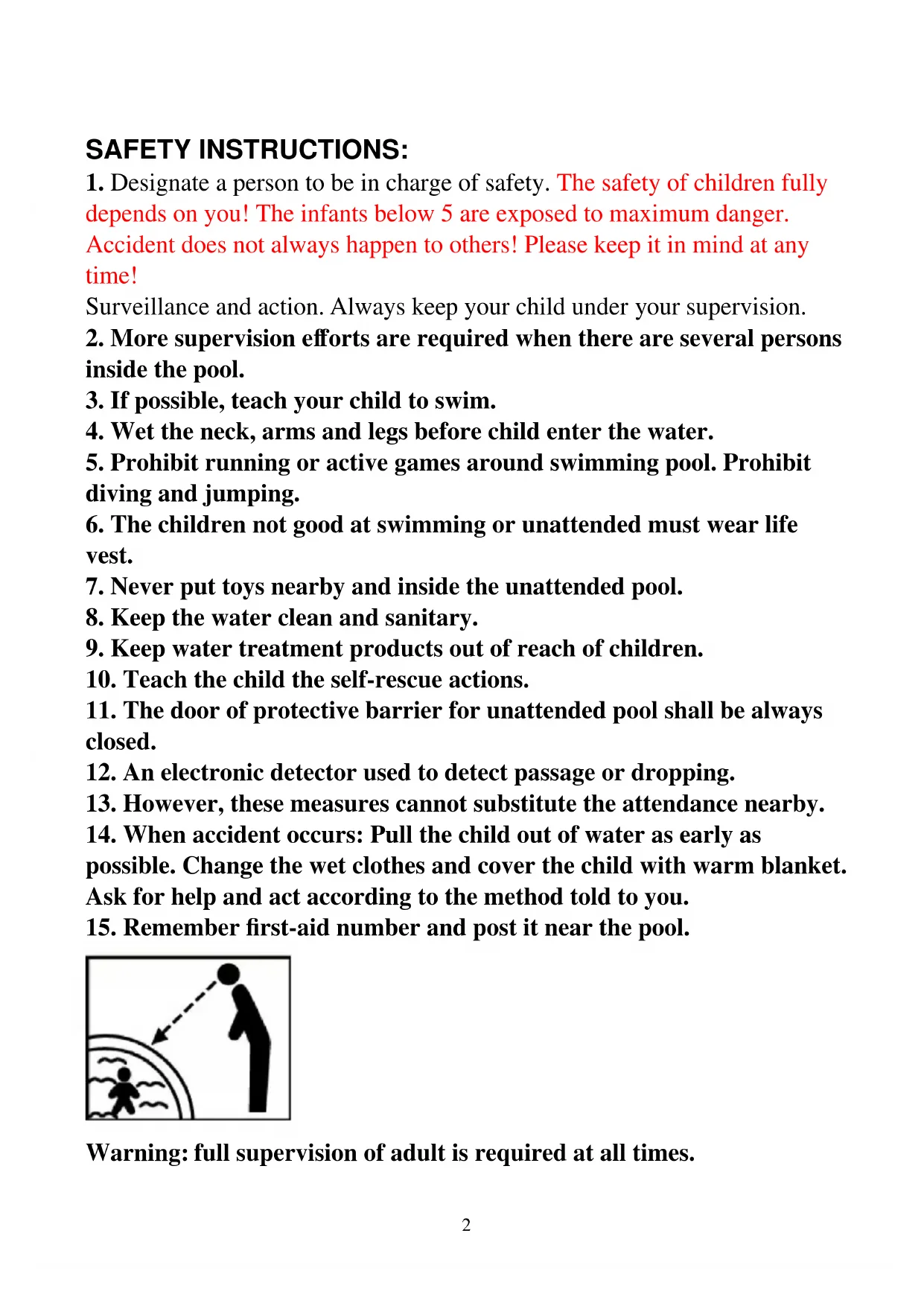

SAFETY INSTRUCTIONS:

1. Designate a person to be in charge of safety. The safety of children fully depends on you! The infants below 5 are exposed to maximum danger. Accident does not always happen to others! Please keep it in mind at any time!

Surveillance and action. Always keep your child under your supervision.

1. More supervision efforts are required when there are several persons inside the pool.
2. If possible, teach your child to swim.
3. Wet the neck, arms and legs before child enter the water.
4. Prohibit running or active games around swimming pool. Prohibit diving and jumping.
5. The children not good at swimming or unattended must wear life vest.
6. Never put toys nearby and inside the unattended pool.
7. Keep the water clean and sanitary.
8. Keep water treatment products out of reach of children.
9. Teach the child the self-rescue actions.
10. The door of protective barrier for unattended pool shall be always closed.
11. An electronic detector used to detect passage or dropping.
12. However, these measures cannot substitute the attendance nearby.
13. When accident occurs: Pull the child out of water as early as possible. Change the wet clothes and cover the child with warm blanket. Ask for help and act according to the method told to you.
14. Remember first-aid number and post it near the pool.

Simple line drawing of a person walking near a circular object with waves, no text or symbols present

Warning: full supervision of adult is required at all times.

Assembly:

1. One person choose a flat ground make sure there are no stone, gravel, glass, and any other sharp and edgy objects. Never install the pool on a hard surface such as concrete or asphalt. Never install the pool close to trees (falling leaves) and any source of electric power.
2. Locate the pool as close as possible to a drain area, because it will be impossible to move the pool once it is full with water.
3. Take out the product from package and check if any parts missing, unfold it on the ground, lay flat, locate and open inflation valve(s).
4. It is recommended that you use only a hand or foot pump for inflation.

Caution: Do not use the high-pressure air to inflate! Do not over-inflate!

1. Slowly inflate all compartments, close and press all valves tightly after inflation.
2. Fill the water to the warning line marked on the inside wall of the pool. Do not over fill.

This process takes a half-hour.

Regular Maintenance:

1. Renew the water regularly.

WARNING: Non-compliance of the maintenance rules may result in serious hazards for health and especially for the children.

Note: In order to keep your pool water cleaning, please change the water after each use.

1. In order to increase the life of the water in the pool, it is necessary to put suitable chemicals as per the water's PH level. Inquiry local retailer for suitable chemicals to correctly maintain the water in your pool. Read the instructions provided by the chemical product manufacturers carefully and follow them.

Never put an empty swimming pool in the open air.

Disassemble:

Emptying it by opening the water drain, once the water is drained from the pool, deflate the pool wall, let the pool dry and fold it up carefully.

Storage and Maintain:

Clean the product with clear water, then leave it in shady and cool place for airing, fold it into original package and place it indoor for next use.

In winter, the pool is not allowed to be placed at a temperature that is below 5\ ^ircC , otherwise the plastic film would be damaged. Suitable to be used in the open air.

Caution: Do not use the alkali or acid detergent to clean product! Do not leave product exposed under sunlight directly because it will shorten the using-life of product.

Repair Patch Instructions:

(Small pinhole and small puncture leaks can be repaired with the included repair patch)

a) Locate the leak place.
b) Deflate and drain the water.
c) Clean the area surrounding the leakage and wipe up all water from the surface.
d) Take out the repair patch, cut it into required shape and size, which should be litter larger than the leaking area, put the patch on leaking area and press firmly.
e) You can use it again after 24 hours drying of the repaired position. If the damage is bigger than 1" (2.5cm), we recommend using a Silicone or rubber based glue for repair. Please read warning statement on glue prior to use.

Manufacturer:

Shanghai Jilong Plastic Products Co. Ltd.

No. 460 Lanxue Road, Huanglou, Pudong Area, Shanghai, 201205, P.R.

China

Tel: [phone] E-mail: [e-mail] Web: www.jilong.com

Simple line drawing showing a person standing near a circular object with a child walking, connected by a dashed arrow (no text or symbols)

Shanghai Jilong Plastic Products Co. Ltd.

No. 460 Lanxue Road, Huanglou, Pudong Area, Shanghai, 201205, P.R. China

Tel: [phone] E-mail: [e-mail] Web: www.jilong.com
