Product type	Portable battery (Power Bank)
Brand	Sunstech
Model	PW2600
Battery capacity	2600 mAh
Dimensions	96 mm (L) x 23 mm (l) x 23 mm (H)
Weight	73 g
Input voltage	DC 5V / 1A
Output voltage	DC 5V / 1A
Full charge time	Approximately 2 hours
Operating temperature	0 °C to 40 °C
Storage temperature	0 °C to 40 °C
LED indicator	Yes, red and blue for charging status
Materials	Plastic and electronic components
Included accessories	USB cable, user manual
Care and cleaning	Soft cloth slightly damp, no abrasive products
Safety precautions	Do not expose to water, fire, excessive heat, do not disassemble
Warranty	2 years from date of purchase
Manufacturing	Made in China

Frequently Asked Questions - PW2600 Sunstech

What is the battery capacity of the Sunstech PW2600?

The battery has a capacity of 2600 mAh, ideal for charging a smartphone once fully.

How to charge the PW2600?

Plug the provided USB cable into the battery's input and into a 5V/1A power adapter. The red LED blinks during charging and stays solid when complete (about 2 hours).

Can I charge my phone with this power bank?

Yes, plug your phone cable into the PW2600's output. The LED turns blue during charging. The output current is 5V/1A, compatible with most smartphones.

What to do if the PW2600 does not charge?

Check that the cable is properly connected and the battery is not discharged. If the LED does not light up, try another cable or charger. Ensure the temperature is between 0°C and 40°C.

Is the PW2600 waterproof?

No, it is not waterproof. Do not expose to rain or humidity, do not immerse in water to avoid short circuit.

Can I use the PW2600 while charging?

It is not recommended to charge and discharge simultaneously. It is better to fully charge the battery before using it.

How to maintain my Sunstech PW2600 power bank?

Clean with a soft cloth slightly damp. Do not use abrasive products. Store in a cool, dry place away from direct sunlight.

What is the battery lifespan?

To prolong its life, recharge the battery at least once every 3 to 6 months if not in use.

What to do if the battery overheats abnormally?

Stop using immediately and unplug it. Do not cover ventilation openings. If heat persists, contact after-sales service.

What to do in case of malfunction?

Do not disassemble the device. Contact a qualified technician or after-sales service. The 2-year warranty covers manufacturing defects but not damage due to misuse.

USER MANUAL PW2600 Sunstech

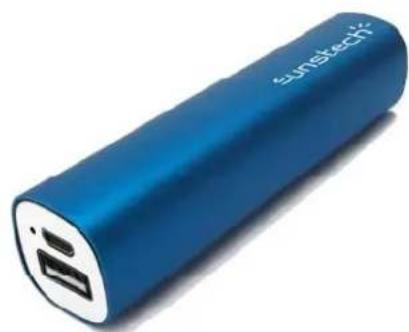

Blue cylindrical electronic device with 'sunstech' branding and internal circuit symbol (no readable text beyond branding)

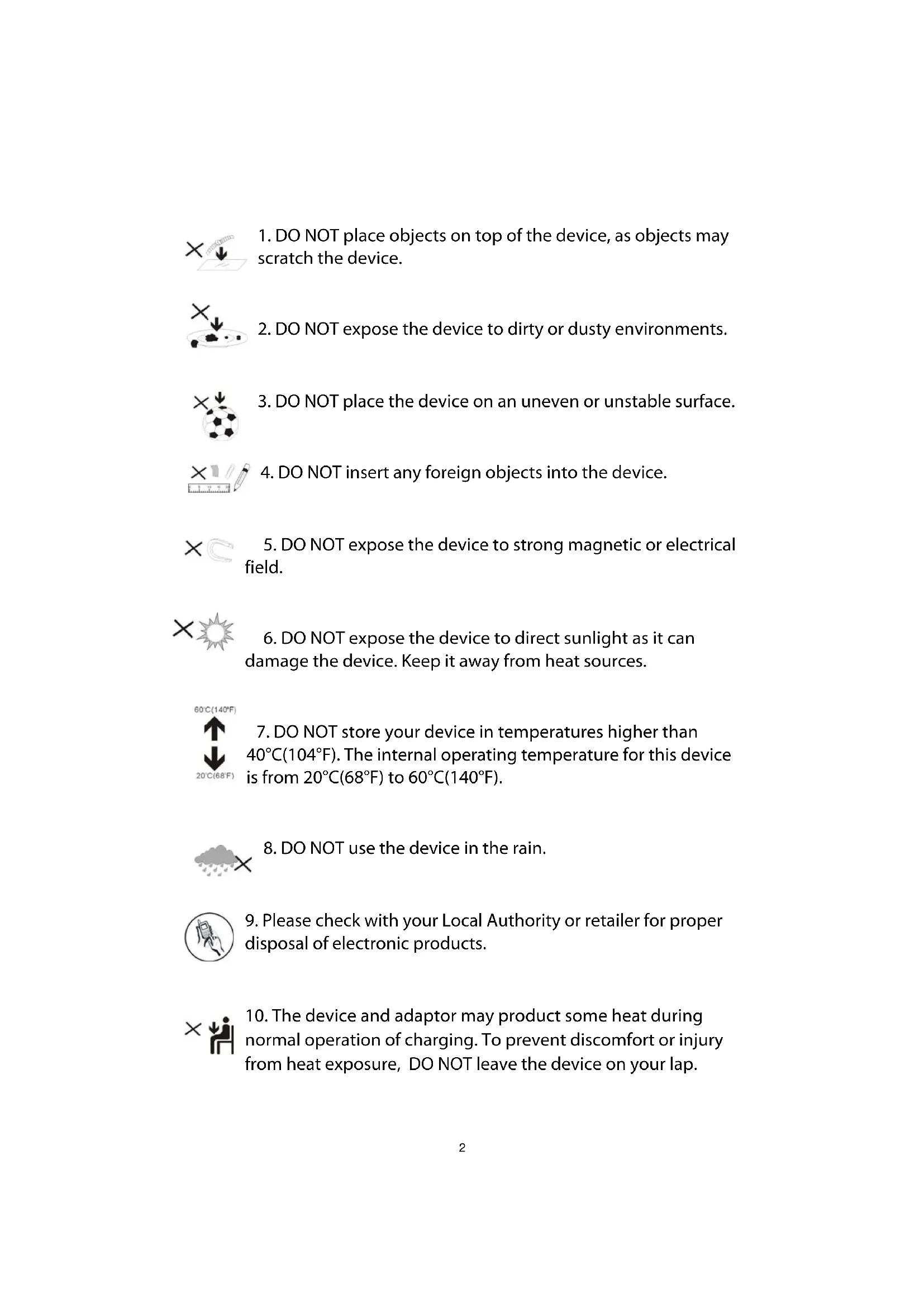

1. DO NOT place objects on top of the device, as objects may scratch the device.

1. DO NOT expose the device to dirty or dusty environments.

1. DO NOT place the device on an uneven or unstable surface.

1. DO NOT insert any foreign objects into the device.

1. DO NOT expose the device to strong magnetic or electrical field.

1. DO NOT expose the device to direct sunlight as it can damage the device. Keep it away from heat sources.

1. DO NOT store your device in temperatures higher than 40^(104^) . The internal operating temperature for this device is from 20^(68^) to 60^(140^) .

1. DO NOT use the device in the rain.

1. Please check with your Local Authority or retailer for proper disposal of electronic products.

1. The device and adaptor may product some heat during normal operation of charging. To prevent discomfort or injury from heat exposure, DO NOT leave the device on your lap.

1. POWER INPUT RATING: Refer to the rating label on the device and be sure that the power adaptor complies with Only use accessories specified by the manufacturer.

1. Clean the device with a soft cloth. If needed, dampen the cloth slightly before cleaning. Never use abrasives or solutions.

cleaning solutions.

1. Always power off the device to install or remove external devices that do not support hot-plug.

1. Disconnect the device from an electrical outlet and power off before cleaning the device.

1. DO NOT disassemble the device. Only a certified service technician should perform repair.

1. The device has apertures to disperse heat. DO NOT block the device ventilation, the device may become hot and malfunction as a result.

1. Risk of explosion if battery replaced by an incorrect type. Dispose of used batteries according to the instruction.

1. PLUGGABLE EQUIPMENT: the socket-outlet shall be installed near the equipment and shall be easily accessible.

Content

Product appearance

How to use this product

Technical Parameter

Accessories

Product matters needing attention

Warranty conditions

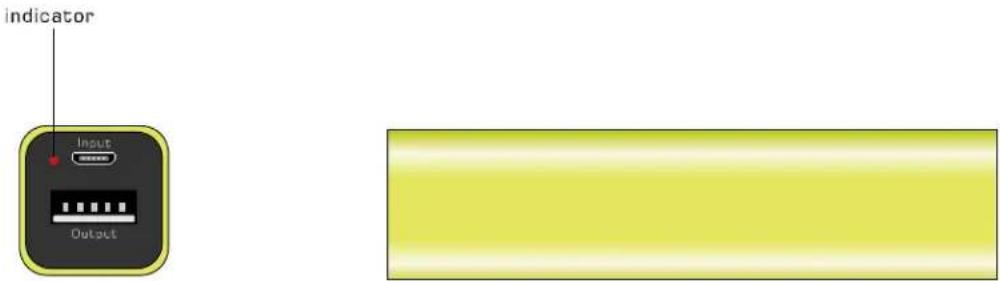

1. Product appearance

indicator Input Output

2. How to use this product

The capacity of battery is 2600mAh.

2.1 Output

Connect the charge cable to output jack, the light will be turned blue.

2.2 Input

Connect the USB cable to input jack for charging, the red LED will be flashing quickly. When the unit full charged, the LED light will be keep in red.

3. Technical parameter

Product size 96mm(W)x23mm(H)x2	3mm(D)
Product weight 73g
Input voltage and current	DC 5V-1A
Output voltage and current DC 5V-1A
Full charge time 2h
Product working temperature	0°C-40°C
Product storage temperature	0°C-40°C

Made in China

4. Accessories

USB cable

User manual

5. Product matters needing attention

5.1 Please do not disassemble this product, after being disassembled without warranty.

5.2 Please do not place the product in a strong magnetic field range, some parts that this might damage the product, the product is non working properly.

5.3 This product is not waterproof, it is strictly prohibited to rain or moisture, even can not be soaked in water or in contact with the liquid, so as not to cause internal short circuit, causing overheat, smoke, deformation damage and even explosion.

5.4 This product has the characteristic of large current discharge, please do not use this product for children to play.

5.5 Remember not to throw it into the fire, and disposition of rejected products in accordance with the regulations, not as life garbage treatment, so as not to cause pollution and explosion.

5.6 To prolong the used life of the best, please charge once in three months, charge at least once in six months.

5.8 This product can only work in 0^ C - 40^ C.

5.9 Please do not reverse connection of input and output, when in use, positive pole and negative pole cannot contact, otherwise it will easily lead to short-circuit, and even lead to the risk of explosion.

5.9 Please put this product in a cool dry place, no direct sunlight.

5.10 In charging mode, do not place the product in inflammable and explosive materials.

Warranty conditions

• The warranty of this product is for 2 years since the purchase date.
• The warranty will exclude breakdowns caused by bad use of the product, wrong installation or installation in not desirable places for a proper maintenance of the product, rips, updates of the products that are not the supplied by the brand, pieces wore away for its use or for not domestic or inappropriate use. Also are excluded breakdowns caused for manipulations of the products by people or companies alien to our company.
• For any request regarding the warranty terms, the purchase receipt must be attached.

Correct disposal of this Product

(Waste Electrical & Electronic Equipment(WEEE)

Your product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end of life should be disposed of separately from your household waste. Please dispose of this equipment at your local community waste collection/recycling centre.

In the European Union there are separate collection systems for used electrical and electronic products. Please help us to conserve the environment we live in!

DECLARATION OF CONFORMITY

Council Directive(s) to which conformity is declared:

Directive (2004/108/EC) - EMC

Directive (2011/65/EU recasting 2002/95/EC) - RoHS

Application of the Standards:

EN55022: 2010

EN55024: 2010

IEC62321: 2008

Manufacturer's name : AFEX SUNS, S. A.

Manufacturer's address: C/Pallars 189, 08005 Barcelona

Type of equipment: POWER BANK

Trade: SUNSTECH

Model no.: PW2600

We, the undersigned, hereby declare under our sole responsibility that the specified equipment is inconformity with the above Directive(s) and Standard(s)

Place: Barcelona

(Signature)

Víctor Planas Bas

(Full name)

Date: 16 - March - 2015

General Manager

(Position)
