EGSC002 - Power bank Gembird - Free user manual and instructions

Product type	Portable battery (Power bank)
Brand	Gembird
Model	EGSC002
Battery capacity	20000 mAh
Charging input	Micro USB 5V/2A
Output(s)	2 USB-A ports 5V/2.1A
LED indicator(s)	4 battery level indicators
Safety protection(s)	Overvoltage, overcurrent, short circuit, overheating
Material	Flame-retardant ABS plastic
Weight	350 g
Dimensions	160 x 80 x 20 mm
Included accessories	Micro USB cable
Warranty	36 months
Care instructions	Clean with a soft dry cloth
Storage	Dry, temperate place, away from humidity
Intended use	Charging smartphones, tablets and other USB devices
Recycling	Do not dispose of with household waste. Take to a collection point.

Frequently Asked Questions - EGSC002 Gembird

How to charge the Gembird EGSC002 portable battery?

Use the included micro USB cable and a mains adapter (not included) to connect to the charging input. The LED indicator shows the charging progress. A full charge takes about 6 to 8 hours.

How to check the remaining battery level?

Press the power button (if any) or connect a device. The LED indicators show the charge level: 4 LEDs = 100%, 3 LEDs = 75%, etc.

What devices can I charge with this power bank?

You can charge any USB-compatible device such as smartphones, tablets, Bluetooth earphones, etc. Make sure the required power does not exceed 2.1A per port.

Can I charge the power bank and a device at the same time?

Yes, most models allow simultaneous charging. However, the charging speed may be reduced.

Is it safe to leave the power bank charging overnight?

Yes, built-in protections against overcharging and overheating ensure safe charging. However, it is still recommended to monitor the charging and unplug once full.

What to do if the power bank does not charge?

Check the cable and mains adapter. Try another cable or port. If the problem persists, contact Gembird support.

How long does it take to fully charge the battery?

With a 2A charger, the charging time is about 6 to 8 hours for a 20000 mAh capacity.

Can I use the power bank while it is charging?

Yes, it is possible, but it may slow down charging and generate more heat. Use with caution.

How to maintain my power bank?

Clean it with a dry cloth. Avoid humidity, extreme temperatures, and shocks. Recharge it at least every 3 months to preserve the battery.

What is the warranty for the Gembird EGSC002 portable battery?

The warranty is 36 months from the date of purchase. Keep the proof of purchase. The warranty covers manufacturing defects, but not normal wear or accidental damage.

USER MANUAL EGSC002 Gembird

Black rectangular electronic device with a grid-patterned panel, mounted on a black base (no visible text or symbols)

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

Features

• Clean solar energy for charging your iPhone or any other portable electronic devices
  • Built-in rechargeable battery with over-charging, over-discharging, over-load and short-circuit protection

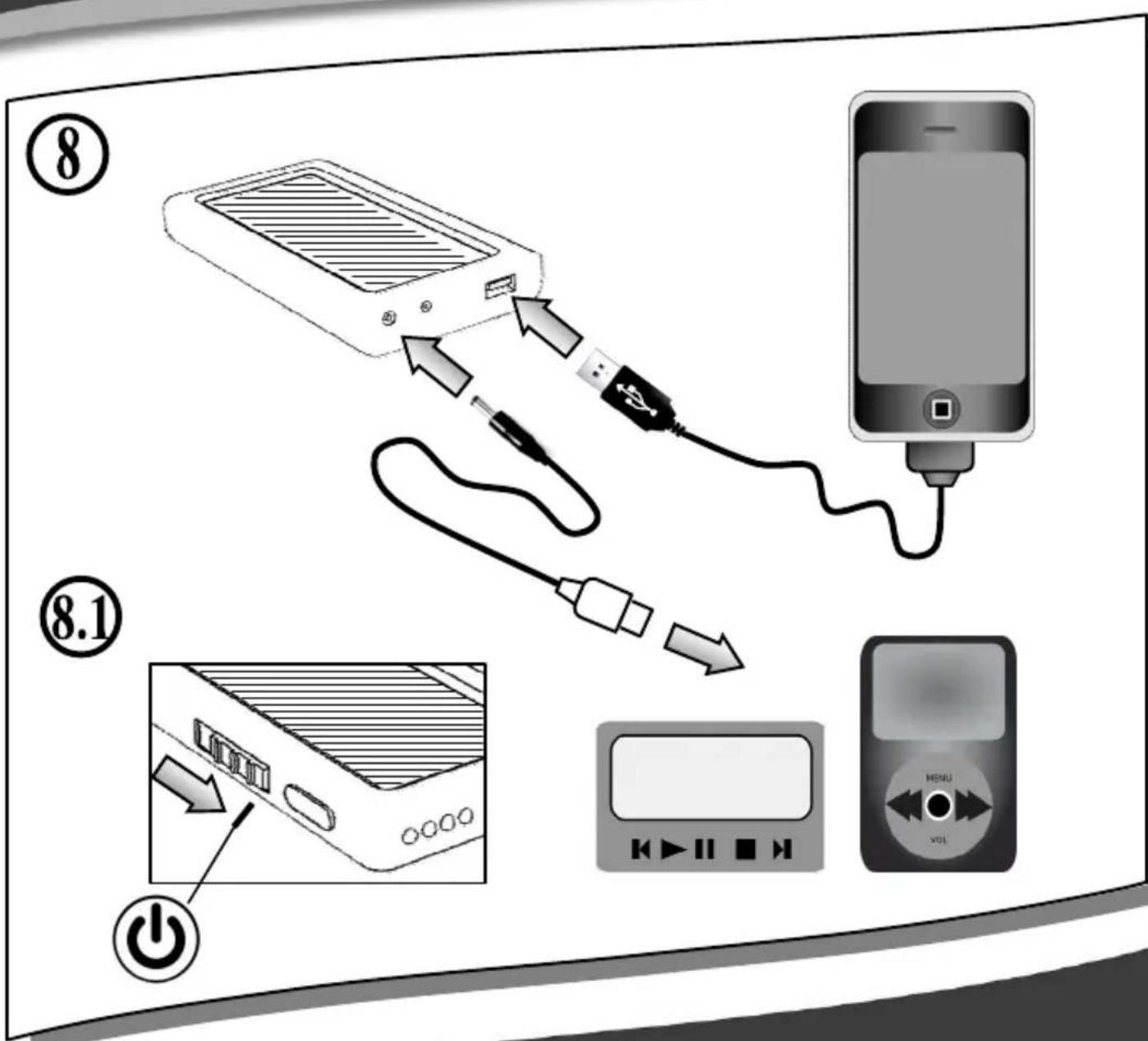

  • Two outputs: universal and USB port

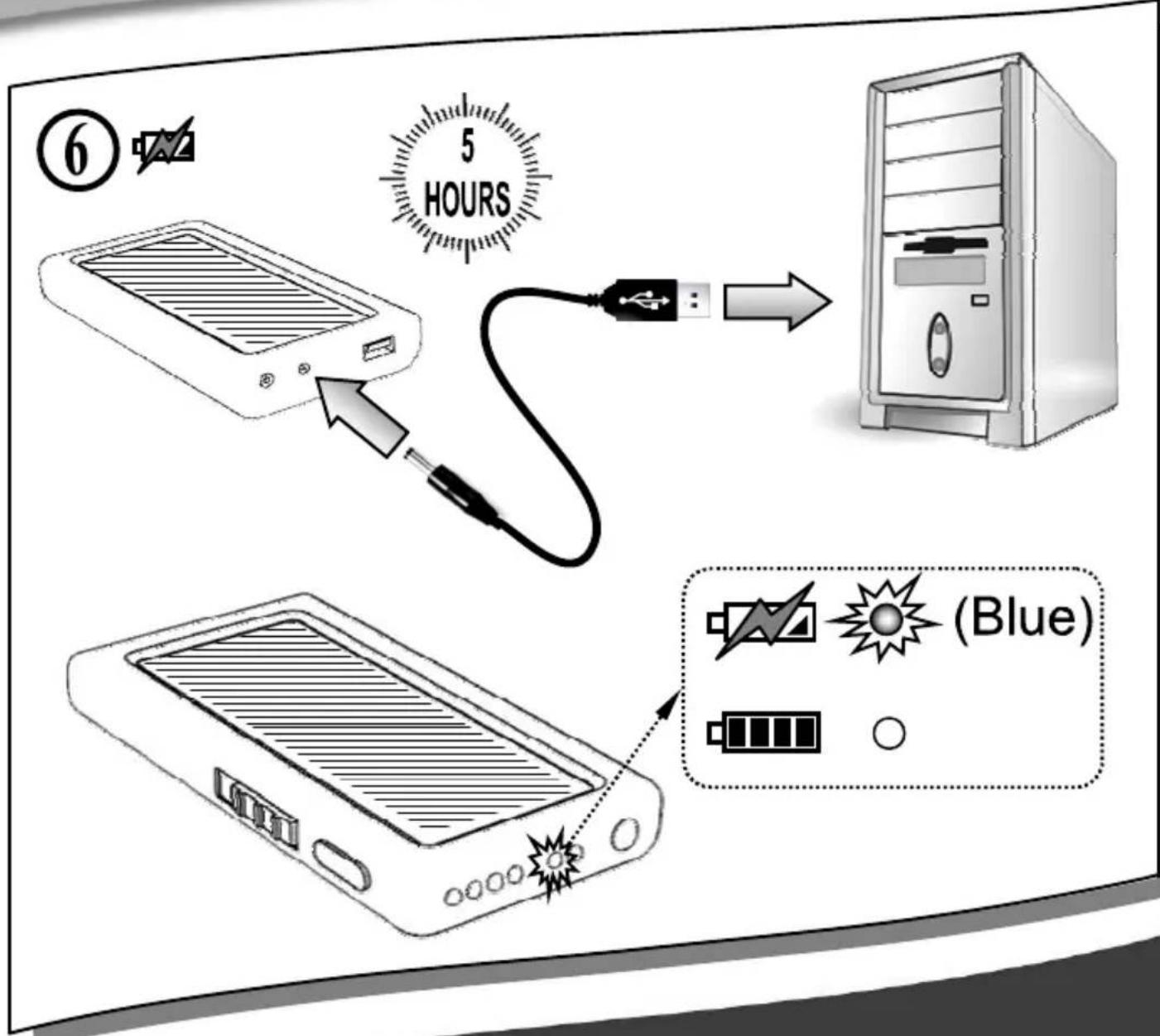

  • Rechargeable via a USB port or an extra AC adapter
  • Battery charge and capacity LED indicators

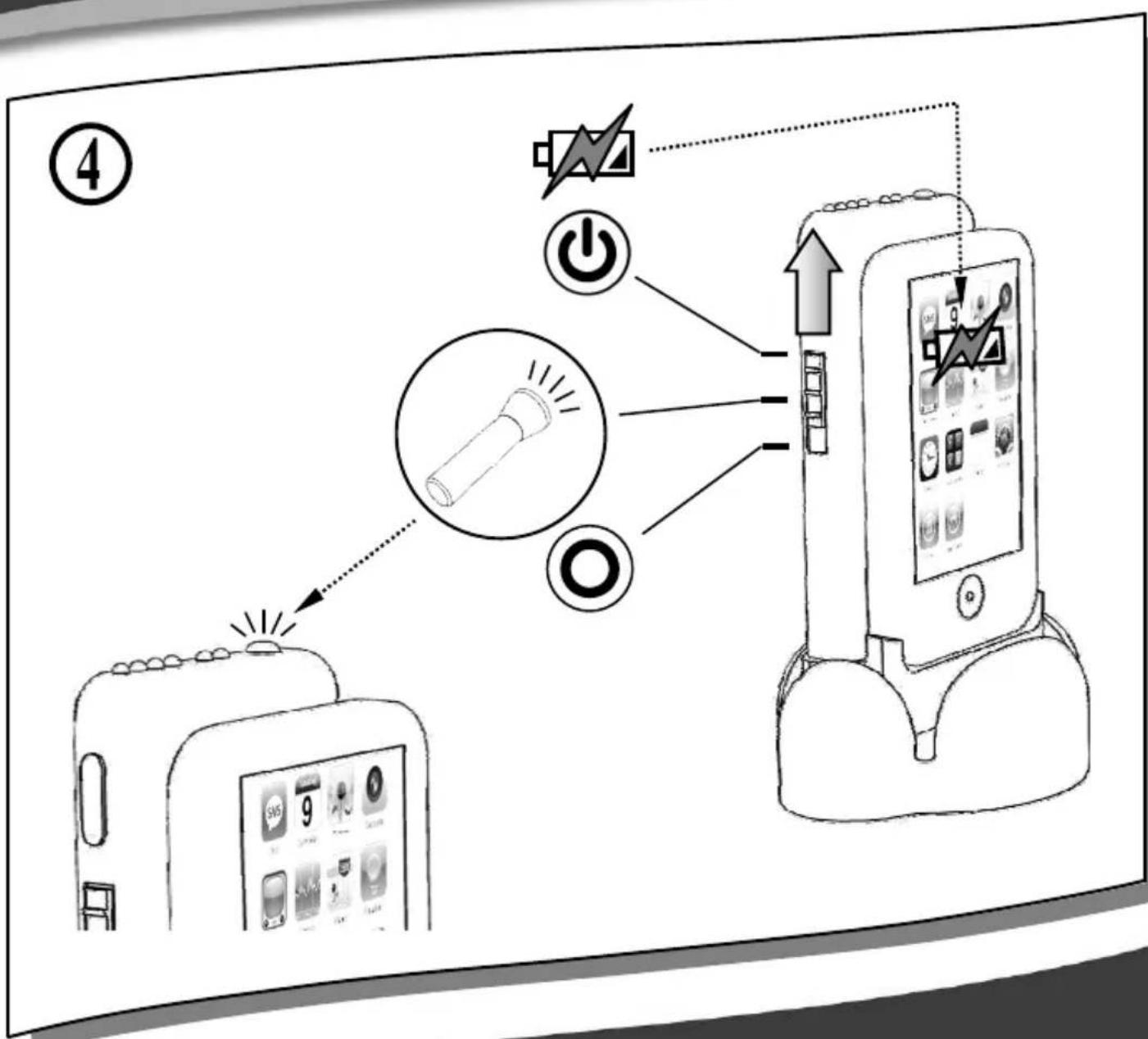

  • Built-in LED flashlight

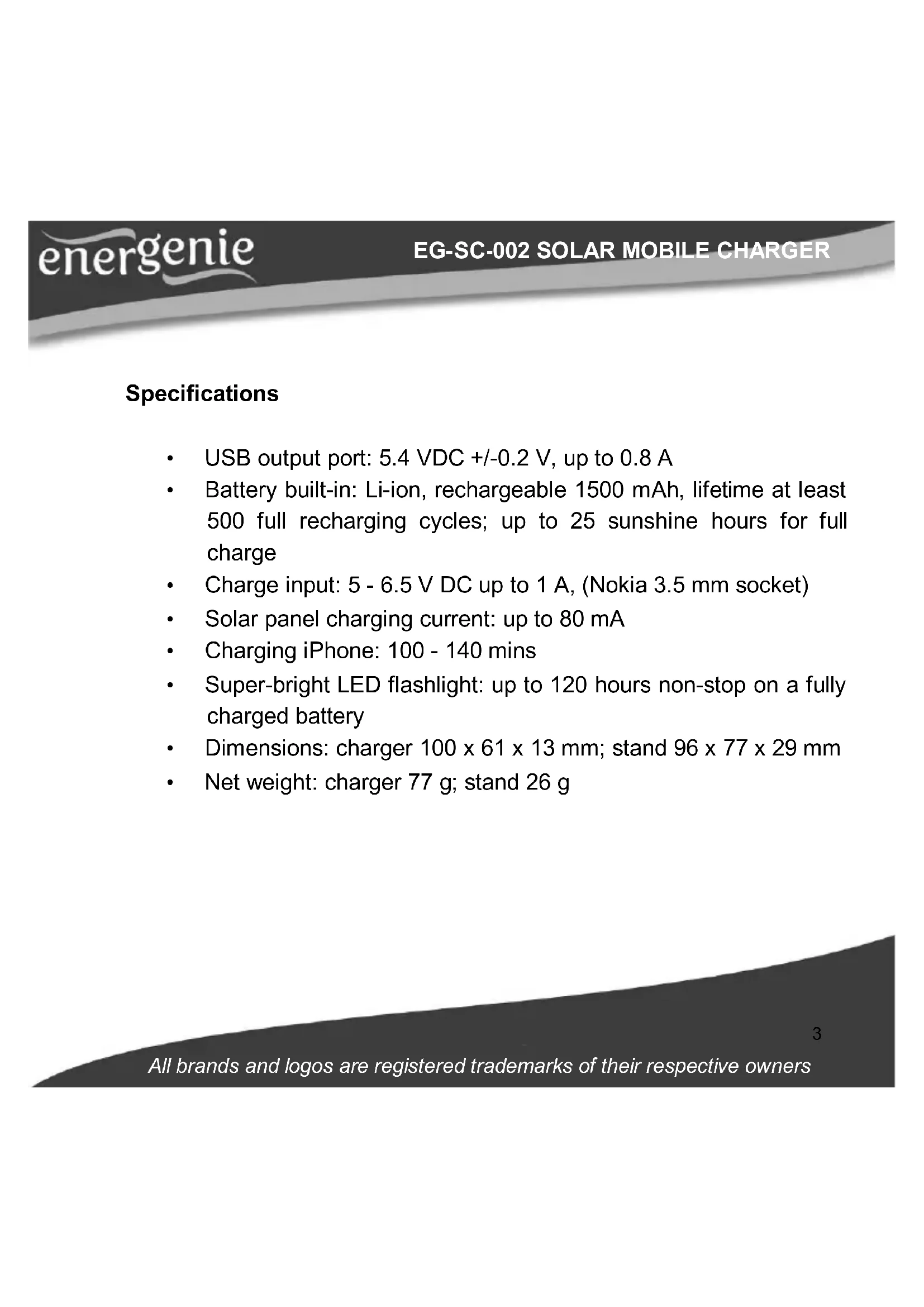

Specifications

• USB output port: 5.4 VDC +/-0.2 V, up to 0.8 A
- Battery built-in: Li-ion, rechargeable 1500 mAh, lifetime at least 500 full recharging cycles; up to 25 sunshine hours for full charge
- Charge input: 5 - 6.5 V DC up to 1 A, (Nokia 3.5 mm socket)

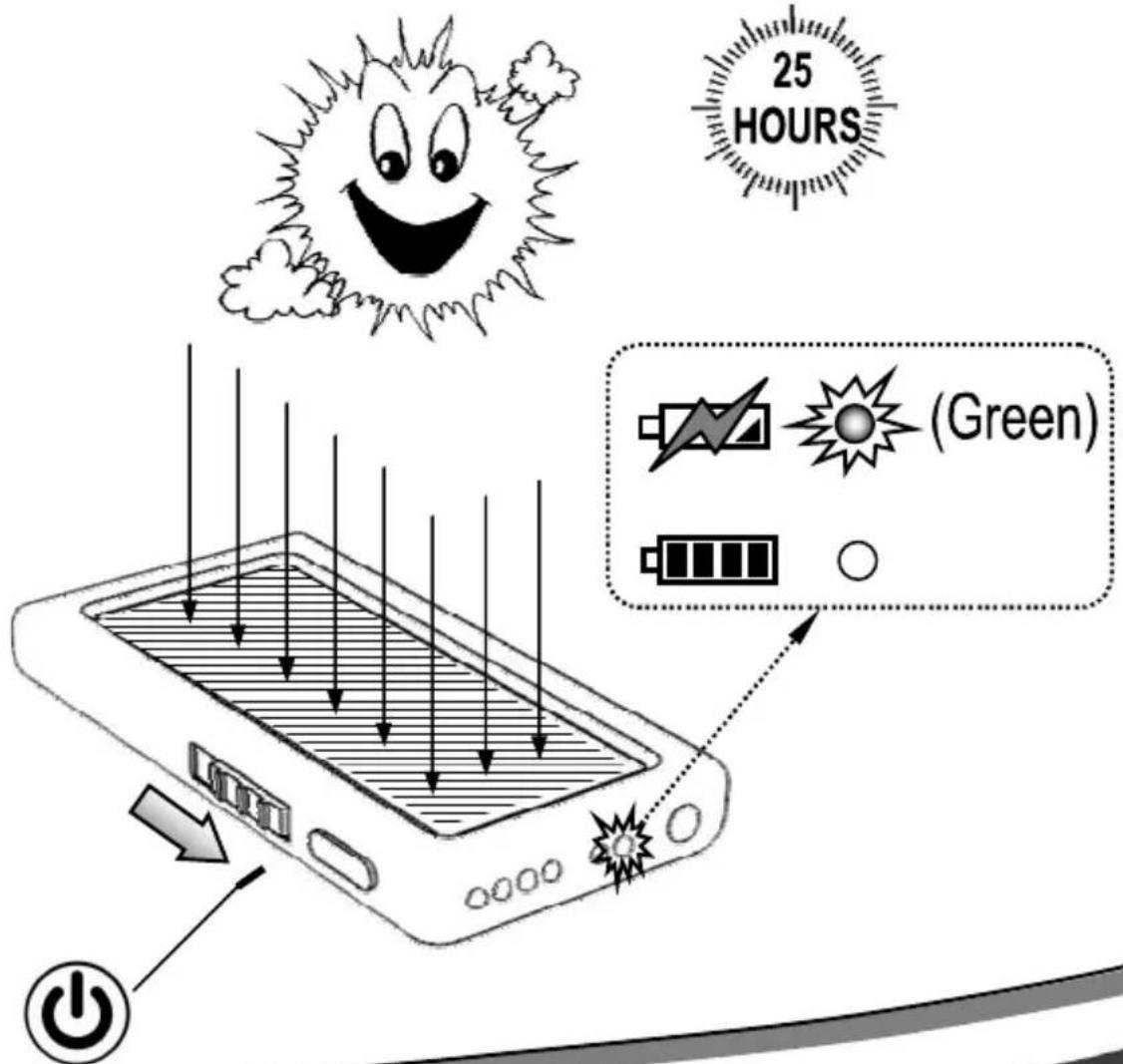

• Solar panel charging current: up to 80 mA
• Charging iPhone: 100 - 140 mins
• Super-bright LED flashlight: up to 120 hours non-stop on a fully charged battery
• Dimensions: charger 100 x 61 x 13 mm; stand 96 x 77 x 29 mm
• Net weight: charger 77 g; stand 26 g

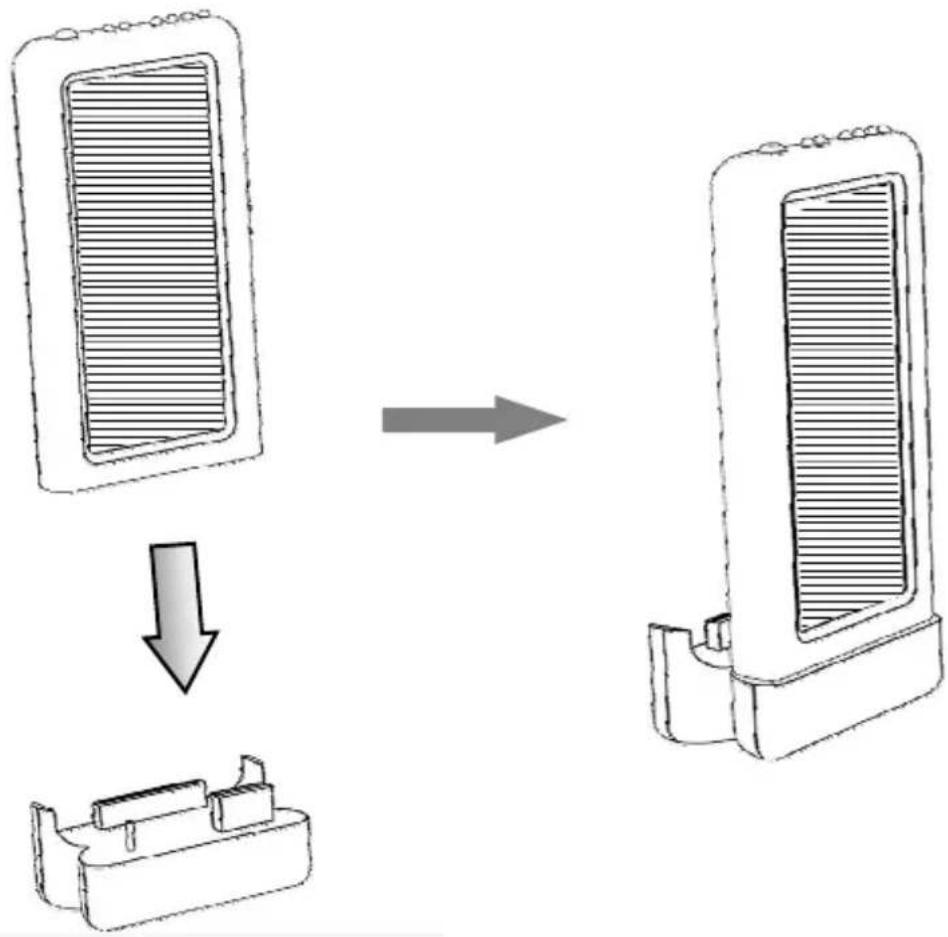

①

②

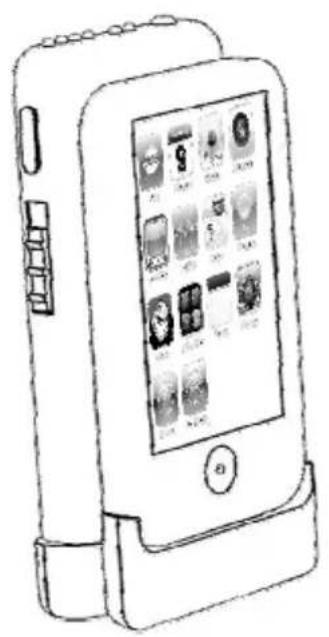

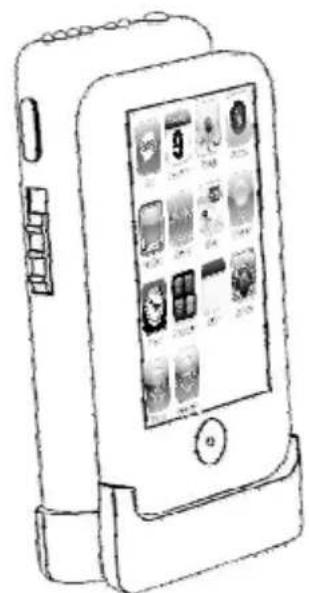

Line drawing of a smartphone with a grid display showing app icons (no text or symbols)

③

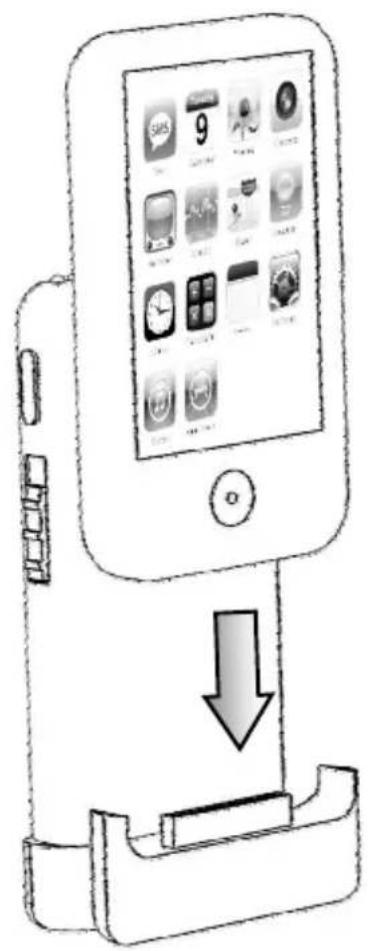

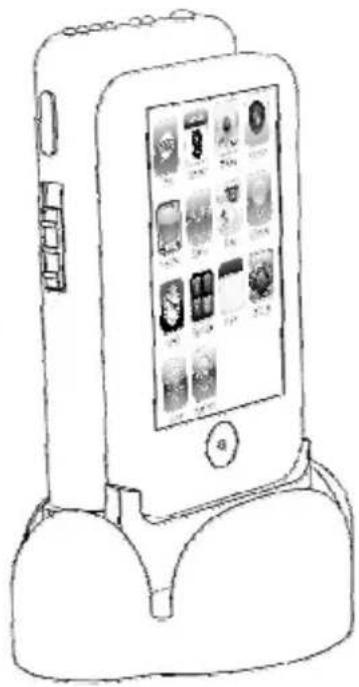

Line drawing of a smartphone with a grid display and accessories (no text or symbols)

Line drawing of a mobile phone with app icons on the screen (no text or symbols)

↓

Simple line drawing of a symmetrical abstract shape with curved edges (no text or symbols)

⑤

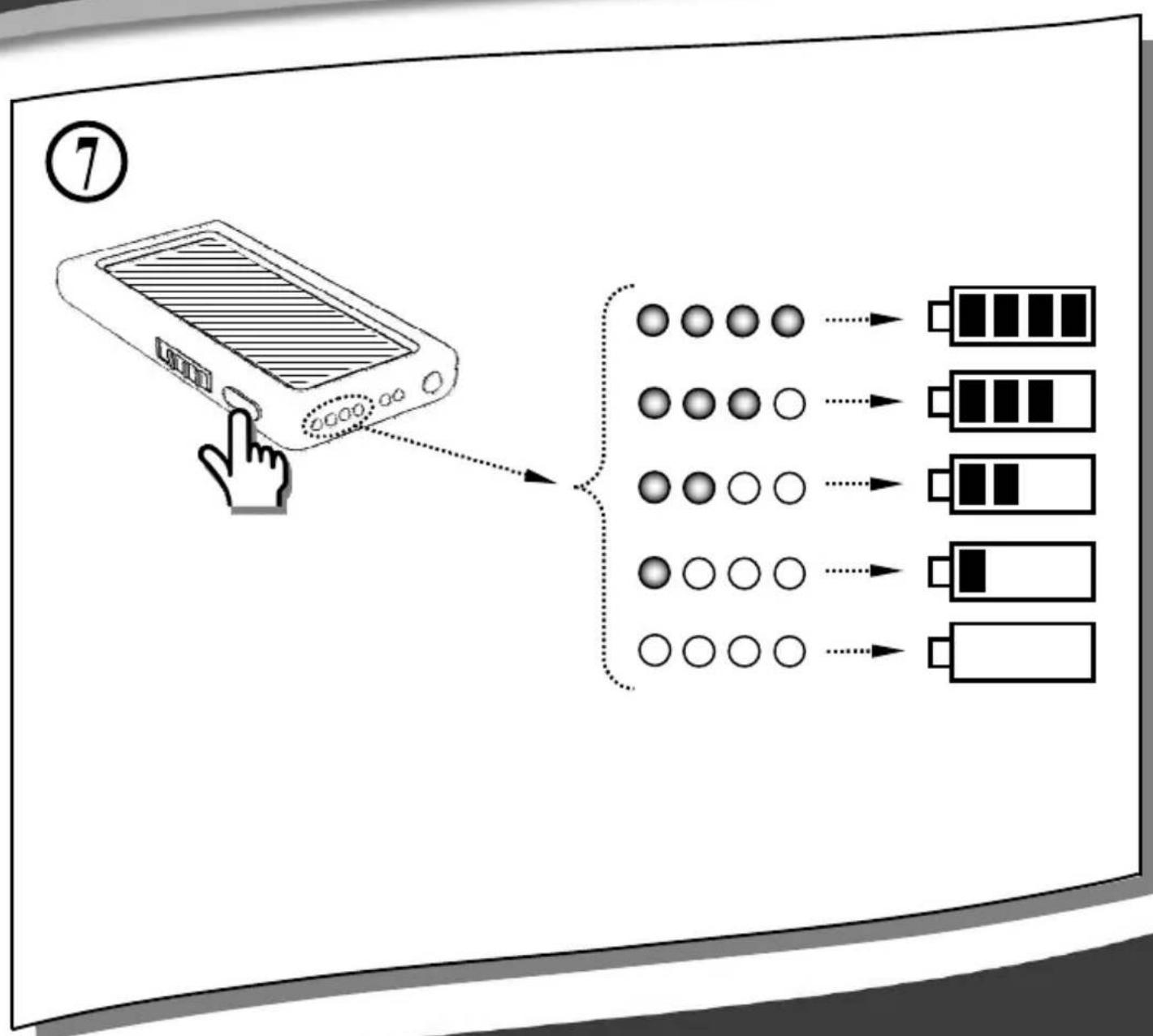

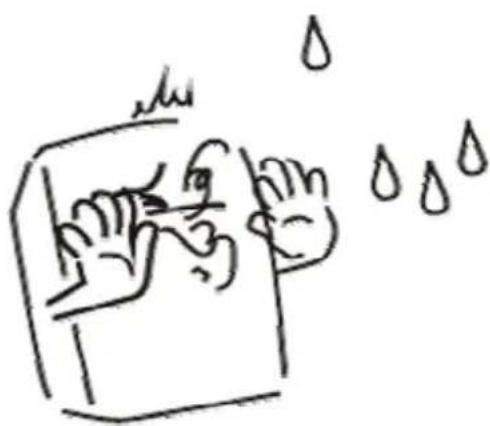

Simple line drawing of a hand washing a cup with water droplets falling (no text or symbols)

Simple line drawing of a hand holding a device with a magnifying glass (no text or symbols)

Illustration of a screwdriver with three additional screws (no text or symbols)

Simple line drawing of a container with a crosshair and abstract shapes, no text or symbols present.

EC Declaration of Conformity

We hereby certify that the following product complies with all the relevant

Safety Requirements of § 4 EMVG and of the Directyes 2006/98/EC, 93/68/EC and 2004/108/EC.

Applicant :

Gembird Europe BV

Wittevrouwen 56,

1056CD, Almere, The Netherlands

Equipment :

Computer parts

Model Nos. :

EG-SC-002

Product description :

EG-SC-002 Solar mobile charger

European standards

EN60335-1:2002+A1:2004+A11:2004; EN60335-2-29:2004;

EN60366:2003; EN61000-3-2:2008+A2:2005; EN61000-3-3:1995+

A1:2001; EN55014-1:2000+A1:2001+A2:2002; EN55014-2:1997+

A1:2001

The following manufacturer/WITHIN Europe is responsible for this declaration:

Gembird Europe BV

Wittevrouwen 56, 1358CD. Almere, The Netherlands

Tel: [phone], Fax: [phone]

Director

The Netherlands / Oct. 28, 2010

Place and Date

Authorized signature

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
