FAT101 - Clock OREGON SCIENTIFIC - Free user manual and instructions
Find the device manual for free FAT101 OREGON SCIENTIFIC in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Radio-controlled travel alarm clock |
| Brand | Oregon Scientific |
| Model | FAT101 |
| Dimensions (H x W x D) | 60 x 90 x 11 mm |
| Weight (without batteries) | 54 g |
| Power supply | 2 CR2032 batteries (one for display, one for backlight) |
| Display | LCD with backlight |
| Radio reception | DCF-77 (Central Europe), MSF-60 (UK), WWVB-60 (USA), JP-60 / JP-40 (Japan) |
| Time zones | 2 (main time and 2nd time zone), 130 preset cities |
| Alarms | 2 independent alarms |
| Snooze | 8 minutes |
| Temperature | 0 °C to 50 °C (32 °F to 122 °F), selectable unit |
| Calendar | DD:MM or MM:DD |
| Hourly chime | Enable/disable |
| Keyboard lock | Yes |
| Display language | English, German, French, Italian, Spanish |
| Care and cleaning | Wipe with a soft cloth, do not immerse, avoid abrasive products |
| Safety | Do not open the case, use new batteries, do not mix types |
| Spare parts / repairability | No user-serviceable parts, reset possible via RESET button |
Frequently Asked Questions - FAT101 OREGON SCIENTIFIC
How to set the time manually?
Press MODE to display the time, then press and hold MODE for 2 seconds. Use the +/- button to change the flashing setting (city, 12/24h format, hours, minutes, year, date format, month, day, language, hourly chime). Press MODE to confirm.
How to change the temperature unit?
Use the °C / °F switch located on the back of the device to select the desired unit.
How to set an alarm?
For the main alarm, press ALARM, then press and hold ALARM. Use +/- to set hours and minutes, then confirm with ALARM. For the 2nd alarm, first press ZONE to display the 2nd time zone, then repeat the procedure.
How to activate snooze?
When the alarm sounds, press the SNOOZE button to suspend the alarm for 8 minutes. The alarm icon flashes during this period.
How to turn off the alarm?
To stop an active alarm and reactivate it for the next day, press any button except SNOOZE. To enable/disable the alarm, press ALARM to toggle between ON and OFF, then confirm with MODE.
How to set the 2nd time zone?
Press ZONE to display the 2nd time zone, then press and hold ZONE. Use +/- to select the desired city and press ZONE to confirm.
How to select the radio reception signal?
Press SIGNAL to enter setting mode. Press and hold SIGNAL, use +/- to choose between OFF, EU, UK, US, JP-60, JP-40, then press SIGNAL to confirm.
How to reset the device to factory settings?
Insert a rounded tip (like a paperclip) into the RESET hole on the back of the device. All settings will be cleared.
How to change the display language?
Enter setting mode by holding MODE. When 'LANG' flashes, use +/- to choose between E (English), D (German), F (French), I (Italian), S (Spanish). Confirm with MODE.
How to clean the clock?
Use a soft, dry cloth to wipe the device. Do not immerse in water and do not use abrasive or corrosive products that could scratch the plastic or damage the circuits.
User questions about FAT101 OREGON SCIENTIFIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Clock in PDF format for free! Find your manual FAT101 - OREGON SCIENTIFIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FAT101 by OREGON SCIENTIFIC.
USER MANUAL FAT101 OREGON SCIENTIFIC
OFFICIAL LICENSED PRODUCT
World City Abbreviation List 11
Á Propos D'Oregon Scientific 24
DEclamation de conformité - ec 25
PRESENTATION

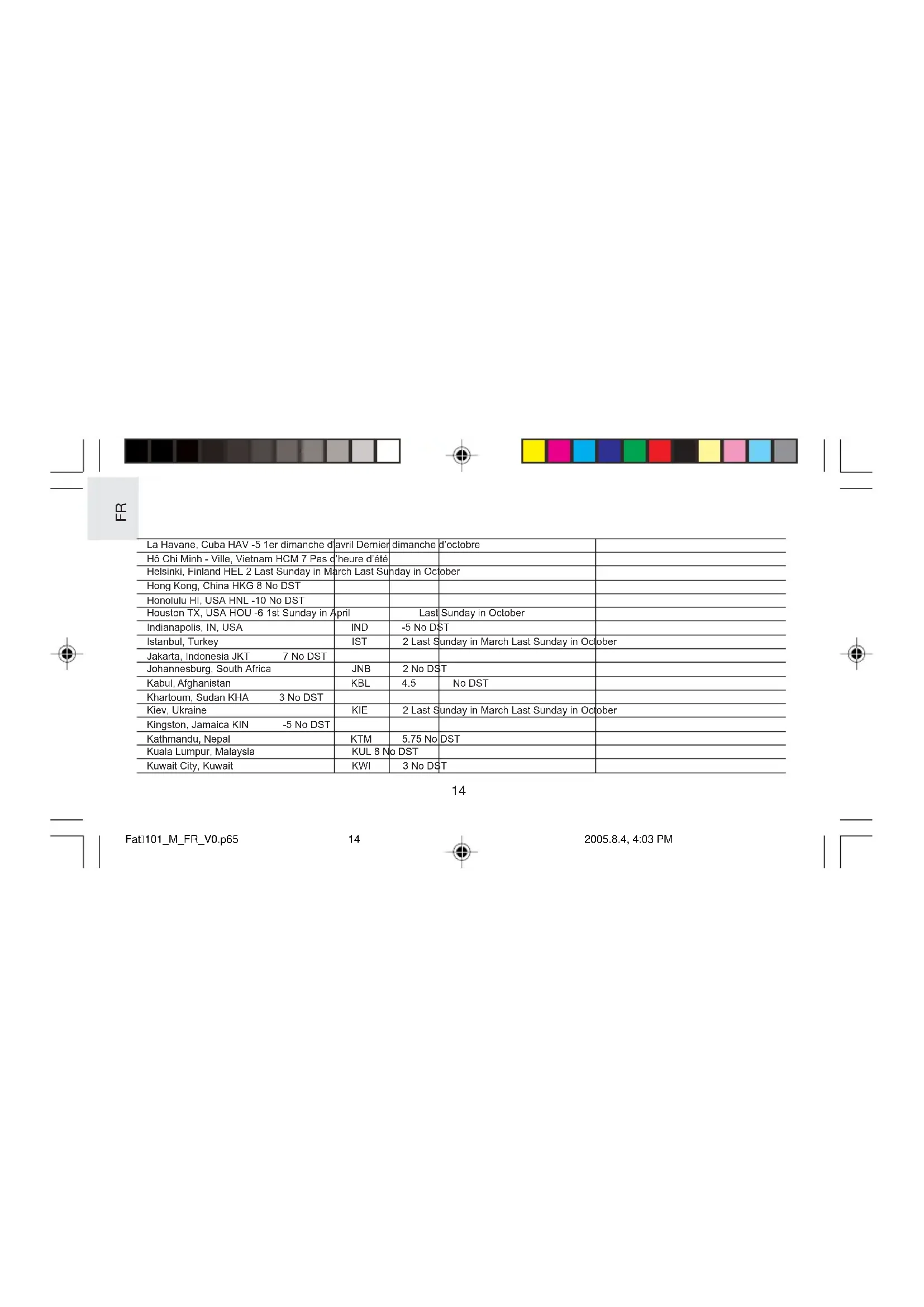

| La Havane, Cuba HAV -5 1er dimanche d'avril Dernier dimanche d'octobre | ||||
| Hô Chi Minh - Ville, Vietnam HCM 7 Pas d'heure d'été | ||||
| Helsinki, Finland HEL 2 Last Sunday in March Last Suèd day in October | ||||
| Hong Kong, China HKG 8 No DST | ||||
| Honolulu HI, USA HNL -10 No DST | ||||
| Houston TX, USA HOU -6 1st Sunday in April | Last Sunday in October | |||
| Indianapolis, IN, USA | IND | -5 No DST | ||
| Istanbul, Turkey | IST | 2 Last Sunday in March Last Sunday in October | ||
| Jakarta, Indonesia JKT 7 No DST | ||||
| Johannesburg, South Africa | JNB | 2 No DST | ||
| Kabul, Afghanistan | KBL | 4.5 | No DST | |
| Khartoum, Sudan KHA 3 No DST | ||||
| Kiev, Ukraine | KIE | 2 Last Sunday in March Last Sunday in October | ||
| Kingston, Jamaica KIN -5 No DST | ||||
| Kathmandu, Nepal | KTM | 5.75 No DST | ||
| Kuala Lumpur, Malaysia | KUL 8 No DST | |||
| Kuwait City, Kuwait | KWI | 3 No DST | ||
14
Fatt101_M_FR_V0.p65
14
2005.8.4, 4:03 PM
| Las Vegas NV, USA LAS -8 1st Sunday in April Last Sunday in October | ||||
| Los Angeles CA, USA LAX -8 1st Sunday in April Last Sunday in October | ||||
| Lima, Peru LIM -5 No DST | ||||
| Lisbon, Portugal LIS 0 Last Sunday in March Last Sunday in October | ||||
| London, UK LON 0 Last Sunday in March Last Sunday in October | ||||
| Lagos, Nigeria LOS 1 No DST | ||||
| La Paz, Bolivia | LPB -4 No DST | |||
| Luxembourg, Luxembourg | LUX | 1 | Last Sunday in March | Last Sunday in October |
| Madrid, Spain | MAD | 1 Last Sunday in March Last Sunday in October | ||
| Melbourne, Australia | MEL | 10 | Last Sunday in October | Last Sunday in March |
| Mexico City, Mexico | MEX | -6 | 1st Sunday in April | Last Sunday in October |
| Managua, Nicaragua | MGA | -6 No DST | ||
| Miami FL, USA | MIA | -5 1st Sunday in April Last Sunday in October | ||
| Milan, Italy | MIL 1 Last Sunday in March Last Sunday in October | |||
| Manama, Bahrain | MNA | 3 No DST | ||
| Manila, Philippines | MNL | 8 No DST | ||
| Montreal, Canada | MON | -5 1st Sunday in April Last Sunday in October | ||
15
| Moscow, Russia MOW 3 Last Sunday in March Last Sunday in October | ||||
| Montevideo, Uruguay MVD -3 No DST | ||||
| Nassau, Bahamas NAS -5 1st Sunday in April Last Sunday in October | ||||
| Nairobi, Kenya NRB 3 No DST | ||||
| New York NY, USA NYC -5 1st Sunday in April | Last Sunday in October | |||
| Oslo, Norway | OSL | 1 Last Sunday in March Last Sunday in October | ||
| Ottawa, Canada OTW -5 1st Sunday | in April | Last Sunday in October | ||
| Port-au-Prince, Haiti | PAP | -5 No DST | ||
| Paris, France | PAR | 1 Last Sunday in March Last Sunday in October | ||
| Perth, Australia | PER 8 No DST | |||
| Pheonix, AZ, USA | PHE -7 No DST | |||
| Phnom Penh, Cambodia | PNH 7 No DST | |||
| Port-Of-Spain, Trinidad & Tobago POS -4 | No DST | |||
| Papeete, French Polynesia | PPT | -10 | No DST | |
| Prague, Czech Republic | PRG | 1 | Last Sunday in March | Last Sunday in October |
| Portland OR, USA | PTL | -8 | 1st Sunday in April | Last Sunday in October |
| Pretoria, South Africa | PTR | 2 No DST | ||
16
Fatt101_M_FR_V0.p65
16
2005.8.4, 4:03 PM
| Panama City, Panama PTY -5 No DST | ||||
| Yangon, Myanmar RGN 6.5 No DST | ||||
| Rio de Janeiro, Brazil RIO -3 2nd Sunday in October 3rd Sunday in February | ||||
| Reykjavik, Iceland RKV 0 No DST | ||||
| Rome, Italy ROM 1 Last Sunday in March Last Sunday in October | ||||
| Riyadh, Saudi Arabia RUH 3 No DST | ||||
| San Salvador, El Salvador | SAL | -6 No DST | ||
| Santiago, Chile | SCL | -4 | 1st Sunday after 8th October | 1st Sunday after 8th March |
| Seattle WA, USA | SEA -8 1st Sunday in April Last Sunday in October | |||
| Seoul, South Korea | SEL | 9 No DST | ||
| San Francisco CA, USA | SFO | -8 | 1st Sunday in April | Last Sunday in October |
| Shanghai, China | SHA 8 No DST | |||
| Singapore, Singapore | SIN | 8 No DST | ||
| San Jose, Costa Rica | SJO -6 No DST | |||
| San Juan, Puerto Rico | SJJU | -4 No DST | ||
| Salt Lake City UT, USA | SLC | -7 | 1st Sunday in April | Last Sunday in October |
| Sofia, Bulgaria | SOF 2 Last Sunday in March Last Sunday in October | |||
17
Fatt101_M_FR_V0.p65
17
2005.8.4, 4:03 PM
| Sao Paulo, Brazil SPL -3 2nd Sunday in October 3rd Sunday in February | ||||
| Stockholm, Sweden STH 1 Last Sunday in March Last | Sunday in October | |||
| Sydney, Australia SYD 10 Last Sunday in October Last | March | |||
| Tashkent, Uzbekistan TAS 5 No DST | ||||
| Tokyo, Japan TKY 9 No DST | ||||
| Taipei, Taiwan | TPE 8 No DST | |||
| Tripoli, Libya | TRP 2 No DST | |||
| Toronto, Canada | TRT | -5 | 1st Sunday in April | Last Sunday in October |
| Quito, Ecuador | UIO | -5 No DST | ||
| Vancouver, Canada | VAC | -8 | 1st Sunday in April | Last Sunday in October |
| Vienna, Austria | VIE | 1 | Last Sunday in March | Last Sunday in October |
| Warsaw, Poland | WAW | 1 | Last Sunday in March | Last Sunday in October |
| Washington DC, USA | WDC | -5 | 1st Sunday in April | Last Sunday in October |
| Wellington, New Zealand | WLG | 12 | 1st Sunday in October | 3rd Sunday in March |
| Zurich, Switzerland | ZRH 1 Last Sunday | in March Last Sunday in October | ||
18
Fatt101_M_FR_V0.p65
18
2005.8.4, 4:03 PM
REGLAGES DE L'HEURE
