Brand	Privileg
Model	PFV 271W A
Product type	Refrigerator with freezer compartment
Climate class	SN, N, ST, T (10 °C to 43 °C)
Refrigerant	R134a or R600a (isobutane)
Freezing capacity in 24 h	Indicated on the rating plate (not specified)
Power supply	See rating plate
Mandatory grounding	Yes
Main functions	Fast freezing, temperature alarm, ice cube production
Defrosting	Manual (1 to 2 times per year or as needed)
Cleaning	With sponge soaked in warm water and neutral detergent

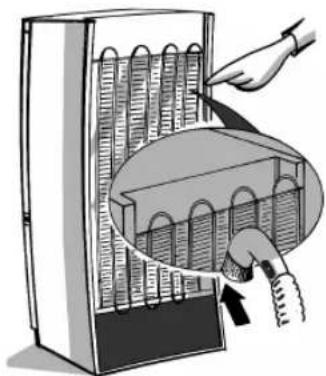

Condenser maintenance	Vacuum cleaner or brush regularly
Door reversibility	Possible (except models with front handle)
After-sales service	Service number on rating plate
Warranty	Door reversal not covered
Safety precautions	Do not use extension cords, do not damage the refrigerant circuit
Installation	Min. distance of 30 cm from cookers, 5 cm above and 4 cm behind
Compliance	Low Voltage and EMC Directives
Materials	Recyclable

Frequently Asked Questions - PFV 271W A PRIVILEG

How to set the freezer temperature?

The temperature is preset at the factory. To change it, refer to the product sheet supplied with the appliance. The thermostat is adjusted according to the ambient temperature and use.

What to do if the alarm sounds?

The alarm triggers if the temperature is not cold enough. Wait for the alarm to stop before placing food. If it persists, check the door closure.

How to defrost the freezer?

Unplug the appliance, remove the food and leave the door open. Then clean with a sponge and warm water. Dry thoroughly before restarting.

What is the freezing capacity in 24 hours?

The maximum amount of fresh food that can be frozen in 24 hours is indicated on the rating plate inside the appliance.

How to use the fast freeze function?

Press the fast freeze button 24 hours before adding fresh food. The yellow light turns on. Deactivate the function after 24 hours to save energy.

Can I change the door opening direction?

Yes, except on models with front handle. Contact after-sales service to make this change.

How to clean the interior?

Unplug the appliance, then clean the surfaces with a sponge soaked in warm water and neutral detergent. Rinse and wipe with a soft cloth.

What to do if the appliance does not cool?

Check the power supply, the plug, and the switch. Make sure the door closes properly. If the problem persists, contact after-sales service.

What are the normal operating sounds?

Gurgling or expansion sounds are normal. If the front edge is warm, it prevents condensation. Consult the manual if unusual noises occur.

What distance to respect during installation?

Leave at least 5 cm above, 4 cm behind, and 30 cm from coal cookers or 3 cm from electric/gas cookers.

USER MANUAL PFV 271W A PRIVILEG

Instructions for use

Mode d'emploi

Gebruiksaanwijzing

Close-up of wooden clothespins and clips, no text or symbols visible

Brugsanvisning

Bruksanvisning

Käyttöohje

Black and white photo of multiple glass bottles with black caps, arranged in a row (no visible text or symbols)

Black and white close-up of multiple glasses with no visible text or symbols

Οδηγίες χρήσης

Close-up of a white industrial fan or filter unit with perforated grille and mounting bracket (no visible text or symbols)

Návod k použití

Návod na použitie

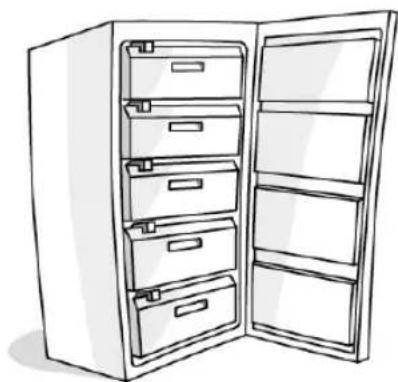

Line drawing of an open refrigerator with five compartments (no text or symbols)

Line drawing of an open refrigerator with a close-up of its drawer containing food items, no text or symbols present.

MONATE LEBENSMITTEL

1-3
4-7
8-12

Line drawing of an open refrigerator with multiple drawers (no text or symbols)

Diagram illustrating a door with internal structure and two views of a grid, showing structural changes.

Abb. I

Interior view of a laboratory or industrial chamber with a metal rack and control panel (no visible text or symbols)

Abb. 2

3D technical diagram of a mechanical assembly with internal components (no visible text or symbols)

Abb. 3

ABTAUEN UND REINIGEN DES GEFRIERSCHRANKS

Illustration of a hand inserting a plug into a refrigerant unit with a magnified inset showing internal components (no text or symbols)

STÖRUNG - WAS TUN?

Illustration of three electrical components: a switch, a box, and a key (no text or symbols)

Buzzz Buzzz

Hisss

Gardé 1000

Illustration of a globe, tree, and server unit (no text or symbols)

Crack Cook

HOW TO DEFROST AND CLEAN THE FREEZER

CARE AND MAINTENANCE

TROUBLESHOOTING GUIDE

AFTER-SALES SERVICE

INSTALLATION

ELECTRICAL CONNECTION

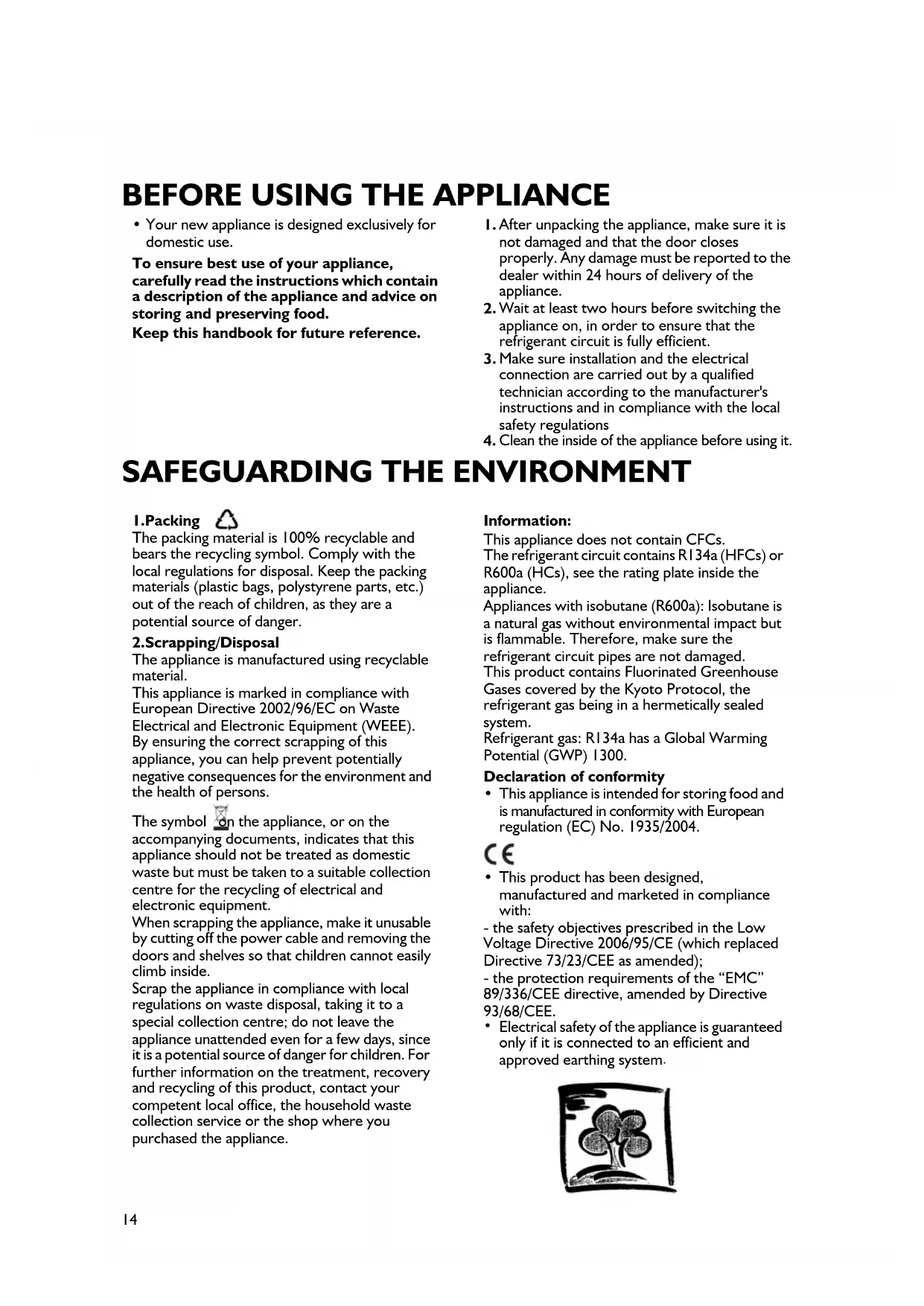

BEFORE USING THE APPLIANCE

- Your new appliance is designed exclusively for domestic use.

To ensure best use of your appliance, carefully read the instructions which contain a description of the appliance and advice on storing and preserving food.

Keep this handbook for future reference.

I. After unpacking the appliance, make sure it is not damaged and that the door closes properly. Any damage must be reported to the dealer within 24 hours of delivery of the appliance.
2. Wait at least two hours before switching the appliance on, in order to ensure that the refrigerant circuit is fully efficient.
3. Make sure installation and the electrical connection are carried out by a qualified technician according to the manufacturer's instructions and in compliance with the local safety regulations
4. Clean the inside of the appliance before using it.

SAFEGUARDING THE ENVIRONMENT

I.Packing

The packing material is 100% recyclable and bears the recycling symbol. Comply with the local regulations for disposal. Keep the packing materials (plastic bags, polystyrene parts, etc.) out of the reach of children, as they are a potential source of danger.

2. Scrapping/Disposal

The appliance is manufactured using recyclable material.

This appliance is marked in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring the correct scrapping of this appliance, you can help prevent potentially negative consequences for the environment and the health of persons.

The symbol on the appliance, or on the accompanying documents, indicates that this appliance should not be treated as domestic waste but must be taken to a suitable collection centre for the recycling of electrical and electronic equipment.

When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves so that children cannot easily climb inside.

Scrap the appliance in compliance with local regulations on waste disposal, taking it to a special collection centre; do not leave the appliance unattended even for a few days, since it is a potential source of danger for children. For further information on the treatment, recovery and recycling of this product, contact your competent local office, the household waste collection service or the shop where you purchased the appliance.

Information:

This appliance does not contain CFCs.

The refrigerant circuit contains RI 34a (HFCs) or R600a (HCs), see the rating plate inside the appliance.

Appliances with isobutane (R600a): Isobutane is a natural gas without environmental impact but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged.

This product contains Fluorinated Greenhouse Gases covered by the Kyoto Protocol, the refrigerant gas being in a hermetically sealed system.

Refrigerant gas: R134a has a Global Warming Potential (GWP) 1300.

Declaration of conformity

- This appliance is intended for storing food and is manufactured in conformity with European regulation (EC) No. 1935/2004.

CE

• This product has been designed, manufactured and marketed in compliance with:
• the safety objectives prescribed in the Low Voltage Directive 2006/95/CE (which replaced Directive 73/23/CEE as amended);
• the protection requirements of the "EMC" 89/336/CEE directive, amended by Directive 93/68/CEE.
• Electrical safety of the appliance is guaranteed only if it is connected to an efficient and approved earthing system.

Simple line drawing of a four-leaf clover tree on a hill (no text or symbols)

PRECAUTIONS AND GENERAL RECOMMENDATIONS

• Use the refrigerator compartment only for storing fresh food and beverages and use the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.
• During installation, make sure the appliance does not damage the power cable.
• Do not store glass containers with liquids in the freezer since they may burst.
• Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.
• Before servicing or cleaning the appliance, unplug it from the mains or disconnect the electrical power supply.
• Make sure that the appliance is not near a heat source.
• Do not store or use petrol, gas or flammable liquids in the vicinity of the appliance or other electrical appliances. The fumes can create a fire hazard or explosion.
• To ensure adequate ventilation, leave a space on both sides and above the appliance and follow the installation instructions.
• Keep the appliance ventilation openings free.
• All appliances equipped with an ice maker or water dispenser must be connected to a mains water supply that delivers potable water only (with water pressure between 1.7 and 8.1 bar (25 and 117 PSI)). Ice makers and/or water dispensers not directly connected to a mains water supply must be filled with potable water only.
  • Install and level the appliance on a floor strong enough to take its weight and in an area suitable for its size and use.
• For the water connection, use the pipe supplied with the new appliance and do not use that of the previous appliance.
• The appliance must be handled and installed by two or more persons.

- Place the appliance in a dry and well-ventilated place. The appliance is set for operation at specific ambient temperature ranges, according to the climatic class indicated on the data plate: The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.

Climatic Class Amb. T. (°C) Amb. T. (°F)
SN From 10 to 32 From 50 to 90
N From 16 to 32 From 61 to 90
ST From 18 to 38 From 64 to 100
T From 18 to 43 From 64 to 110

• Be careful not to damage the floors when you move the appliance (e.g. parquet flooring).
• Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.
• Do not damage the refrigerator's refrigerant circuit pipes.
• Do not use or place electrical appliances inside the compartments if they are not of the type expressly authorised by the Manufacturer.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.
• Power cable modification or replacement must only be carried out by qualified personnel.
• Do not use single/multiple adapters or extension cables.
• It must be possible to disconnect the appliance from the mains by unplugging it or by means of a two-pole switch fitted upline of the socket.
• Ensure that the voltage indicated on the appliance data plate corresponds to the domestic supply voltage
• Do not swallow the contents (non-toxic) of the ice packs (if provided).
• The Manufacturer declines any liability if the above recommendations and precautions are not respected.

HOW TO USE THE FREEZER

The freezer can be used for storing already frozen food and for freezing fresh food.

Switching on the freezer for the first time

• There is no need to set the freezer temperature on the thermostat because the appliance is already factory set.
- Plug in the appliance.
- The alarm signal activates, indicating that the freezer has not yet reached a sufficiently cold temperature for storage of foodstuffs.
- Only place food in the freezer once the alarm signal has deactivated (for further details, see the enclosed product sheet).

Adjusting the temperature

For temperature adjustment, see the enclosed product sheet.

Note:

Ambient air temperature, the frequency of door opening and the position of the appliance can affect the freezer internal temperature.

These factors must be taken into account when setting the thermostat.

Freezing

The amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance data plate.

For optimum appliance performance, press the fast freeze button (until the yellow led lights up) 24 hours before placing fresh food in the freezer.

After placing fresh food in the freezer, 24 hours on fast freeze function is generally sufficient; After 24 hours, deactivate the fast freeze function

Important:

In order to save energy, when freezing small amounts of food, the fast freeze function can be deactivated after a few hours.

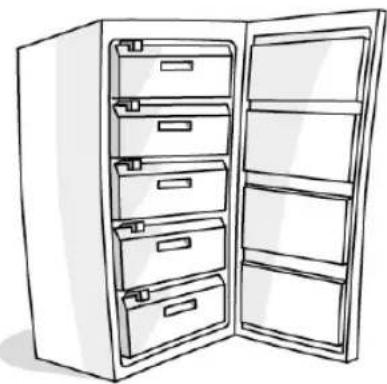

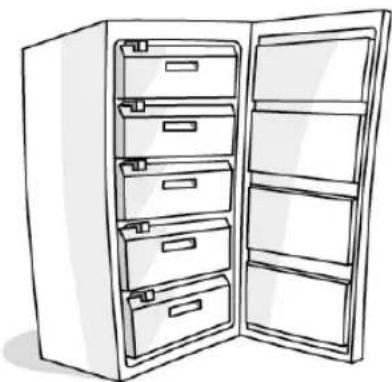

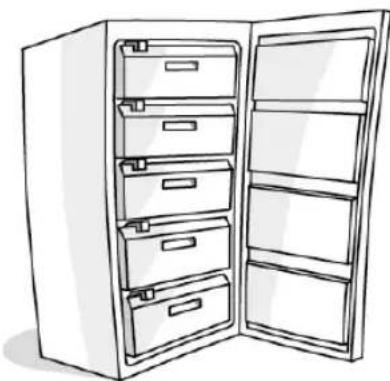

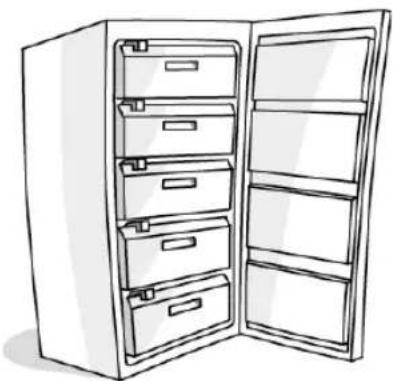

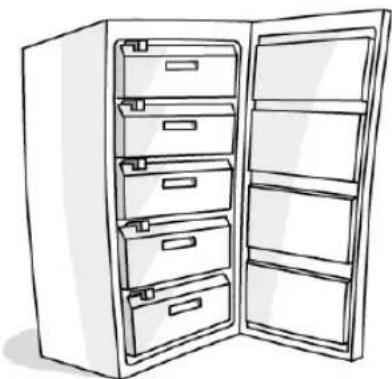

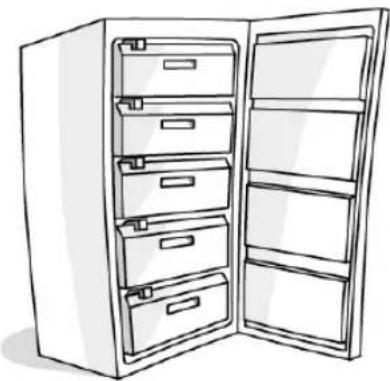

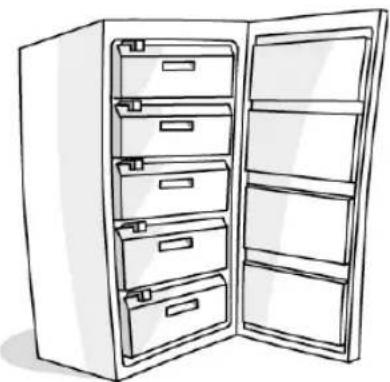

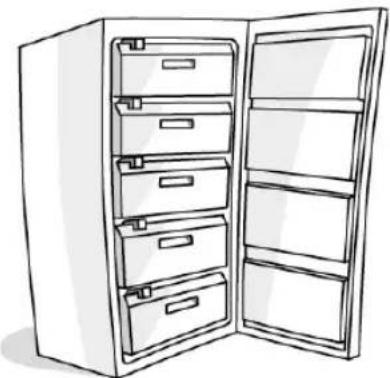

Line drawing of an open refrigerator with five compartments (no text or symbols)

Tips for freezing and storing fresh food.

• Before freezing, wrap and seal fresh food in: aluminium foil, cling film, air and water-tight plastic bags, polythene containers with lids or freezer containers suitable for freezing fresh food.
• Food must be fresh, mature and of prime quality in order to obtain high quality frozen food.
• Fresh vegetables and fruit should preferably be frozen as soon as they are picked to maintain the full original nutritional value, consistency, colour and flavour.

Some meat, especially game, should be hung before it is frozen.

Note:

• Always leave hot food to cool before placing in the freezer.
- Eat fully or partially defrosted foods immediately. Do not refreeze unless the food is cooked after it has thawed. Once cooked, the thawed food can be refrozen.

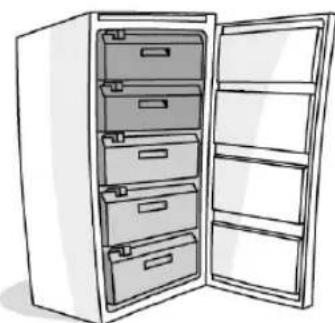

Freezing and storing fresh food

• Place foods to be frozen in the baskets.
• Place the ice packs (if supplied) in the space provided (on the last grid) or above the food stored in the top compartment.

Important:

The table alongside shows the recommended maximum storage time for frozen fresh foods.

Declared performance refers to appliance operation without ice packs, with the exception of the rising time.

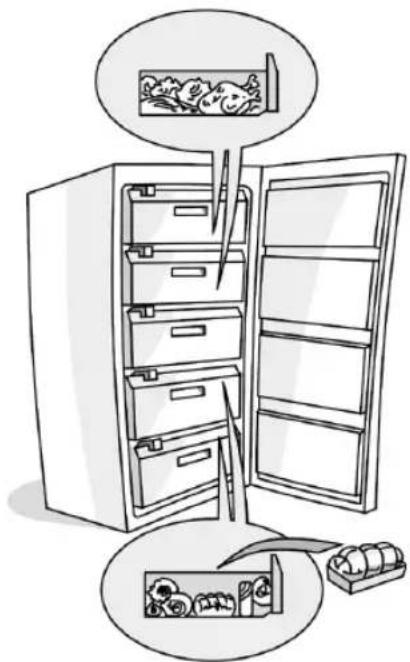

Classification of frozen foods

Put the frozen products into the freezer and classify them. The storage date should be indicated on the packs, to allow use within expiry dates.

Advice for storing frozen food

When purchasing frozen food products:

• Ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun.
• When shopping, leave frozen food purchases until last and transport the products in a thermally insulated cool bag.
• Once at home, place the frozen foods immediately in the freezer.
• If food has defrosted even partially, do not re-freeze it. Consume within 24 hours.
• Avoid, or reduce temperature variations to the minimum. Respect the best-before date on the package.
  • Always observe the storage information on the package.

Line drawing of an open refrigerator with a close-up of its doors showing food inside (no text or symbols)

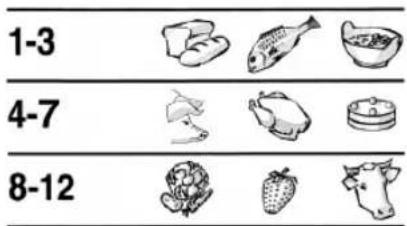

MONTHS FOOD

1-3
4-7
8-12

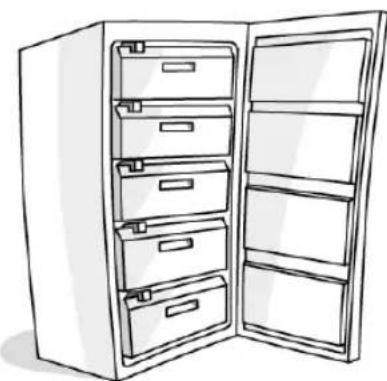

Line drawing of an open refrigerator with multiple compartments (no text or symbols)

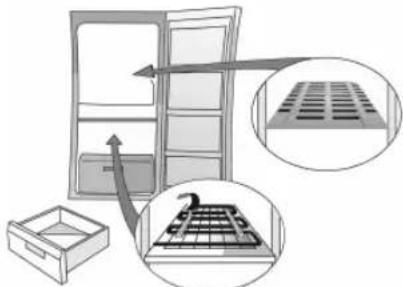

Removing the baskets

- Pull the baskets out fully, then lift them up slightly in order to remove.

Drawers (except the bottom drawer), runners and the white grid (if provided) may be removed in order to obtain increased storage space (Fig.1)

Ensure that the load does not exceed the limit (if present) indicated on the side walls of the appliance.

Compartment

Use this compartment only for making ice cubes and storing ice packs, as shown in Fig. 2 and 3 (if supplied).

Always observe the storage times given on frozen food packaging.

Making ice cubes

• Fill the ice cube tray 2/3 full and place it in the special freezer compartment.
• Do not use sharp or pointed instruments to detach the tray if it is stuck to the bottom of the freezer.
• Bend the ice tray slightly to remove the cubes.

Note:

The freezer door will not re-open easily immediately after closing (except for models featuring a special valve).

Wait a few minutes before opening again in order to allow for compensation of the vacuum created.

Diagram illustrating the process of a refrigerator with labeled parts and internal grid arrangements

Fig. I

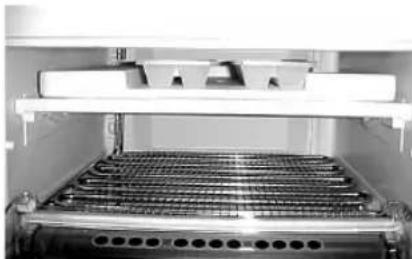

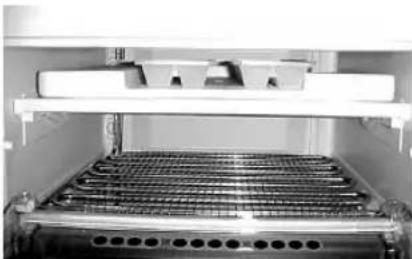

Interior view of a laboratory or industrial storage unit with metal grating and control panel (no visible text or symbols)

Fig. 2

3D technical illustration of a mechanical assembly with internal components (no visible text or symbols)

Fig. 3

HOW TO DEFROST AND CLEAN THE FREEZER

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

For electronic models, first press the on/off button and then unplug the the appliance.

Defrost the freezer once or twice a year, or when the formation of ice on the refrigeration grilles is excessive.

It is perfectly normal for ice to form on the grilles.

The amount of ice which forms and the rate at which it accumulates will depends on room temperature and humidity, and on the frequency with which the door is opened.

If possible, defrost the freezer when it is nearly empty.

• Remove the food from the freezer, wrap in newspaper and group together in a cool place or in a portable cooler.
• Leave the freezer door open to allow the frost to melt.
• Clean the interior of the freezer with a sponge and warm water and/or neutral detergent. Do not use abrasive substances.
• Rinse the interior and dry thoroughly.
• Put the food back into the freezer.
• Close the freezer door.
• Plug in the appliance once again.
• Switch on the freezer.

Note: for electronic models, first insert the power plug into the mains socket and then press the on/off button to switch on the appliance.

For the correct defrosting procedure, refer to the PRODUCT DESCRIPTION SHEET.

CARE AND MAINTENANCE

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

For electronic models, first press the on/off button and then unplug the appliance.

Periodically clean the condenser at the rear of the appliance with a vacuum cleaner or brush.

Periodically clean the inside of the compartment with a sponge dampened in warm water and/or neutral detergent. Rinse and dry with a soft cloth. Do not use abrasive products

Prolonged disuse

• Empty the freezer.
- Disconnect the freezer from the mains power supply.
• Defrost and clean.

Leave the door open to prevent formation of unpleasant odours and to eliminate any dampness Note: for electronic models, first insert the power plug into the mains socket and then press the on/off button to switch on the appliance.

Illustration of a hand inserting a device into a rack with a handle, showing internal components (no text or symbols)

TROUBLESHOOTING GUIDE

When you hear these noises

Diagram showing three electrical components: a switch, a box, and a hanging device with a label 'Cus'.

Hissss 1000

Illustration of a globe, a storage cabinet, and a cartoon character (no text or symbols)

Buzzz Buzzz

Diagram illustrating a wine funnel, glass, and storage unit with labeled components

Crack Check

..your appliance is alive!!!

I. The appliance is no working.

• Is there a power failure?
• Is the plug properly inserted in the socket?
• Is the double-pole switch on?
- Do the household electrical system protection devices work correctly?
• Is the power cord damaged?

1. Excessive frost build-up.

2. Has the defrost water drain been positioned correctly?
   • Is the door shut properly?

3. The yellow, red and green LEDs do not light up. Perform the checks for point I, and then:

- Contact After Sales Service.

Notes:

• The front edge of the appliance may be hot. This prevents the formation of condensation and is not a defect.
  • Gurgling and hissing noises due to expansion in the refrigerant circuit are normal.

AFTER-SALES SERVICE

Before contacting After-Sales Service:

I. See if you can solve the problem yourself with the help of the Trouble-shooting guide.
2. Switch the appliance on again to see if the problem has been solved. If it has not, disconnect the appliance from the power supply and wait for about an hour before switching on again.
3. If the problem persists after this course of action, contact After-sales Service.

Specify:

• the nature of the problem,
• the model,
• the Service number (the number after the word SERVICE on the rating plate on the inside of the appliance),
- your full address,
- your telephone number and area code.

SERVICE

0000 000 00000

Note:

The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty.

The door cannot be reversed on models with front handle.

INSTALLATION

• Install the appliance away from heat sources. Installation in a hot place, near heat sources (radiators, cookers) or direct exposure to the sun will increase energy consumption and should be avoided.
• If this is not possible, respect these minimum distances:

- 30 cm from coal or oil stoves;

- 3 cm from electric and/or gas cookers.

• For optimum operation, ensure:

• a space of at least 5 cm above the appliance;
• a distance of at least 4 cm from the rear wall;
• place other cabinets at a suitable distance from the appliance to allow at least some air circulation

• Install the appliance level (adjust the front feet if necessary) in a dry and well-aired place.

- Clean the inside.

• Insert the accessories supplied.

Electrical connection

• The electrical connections must comply with the local regulations.
• Voltage and power input are specified on the rating plate inside the appliance.
- Regulations require the appliance to be earthed. The manufacturer declines any liability for injury or damage resulting from failure to observe the above rules.
- If the plug and socket are not of the same type, have the socket replaced by a qualified technician.
• Do not use extension leads or multi-adapters.

Electrical disconnection

It must be possible to electrically disconnect the appliance by unplugging it or by means of a double-pole switch installed ahead of the socket.

ELECTRICAL CONNECTION

I) For Great Britain only

Warning - this appliance must be earthed

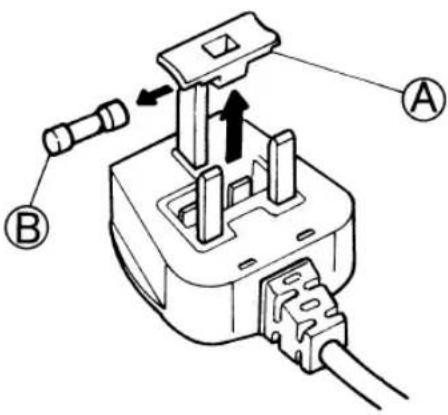

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

I. Remove the fuse cover (A) and fuse (B).
2. Fit replacement 13A fuse into fuse cover.
3. Refit both into plug.

Important:

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted.

Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical store.

2) For the Republic of Ireland only

The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type.

3) Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please contact Whirlpool Service for further instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified Whirlpool technician in compliance with the manufactures instructions and current standard safety regulations.

Technical diagram of a plug-in socket assembly with labeled parts A and B

MODE D'EMPLOI

AVANT D'UTILISER L'APPAREIL

CONSEILS POUR LA PROTECTION DE L'ENVIRONNEMENT

PRÉCAUTIONS ET RECOMMANDATIONS GÉNÉRALES

COMMENT FAIRE FONCTIONNER LE CONGÉLATEUR

COMMENT DÉGIVRER ET NETTOYER LE CONGÉLATEUR

NETTOYAGE ET ENTRETIEN

DIAGNOSTIC RAPIDE

SERVICE APRÈS-VENTE

INSTALLATION

AVANT D'UTILISER L'APPAREIL

Line drawing of an open refrigerator with multiple drawers (no text or symbols)

Line drawing of an open refrigerator with a close-up of its doors and a drawer, showing internal compartments (no text or symbols)

MOIS ALIMENTS

1-3
4-7
8-12

Line drawing of an open refrigerator with multiple compartments (no text or symbols)

Extraction des bacs

Diagram illustrating the installation of a refrigerator with labeled components and directional arrows

Fig. I

Interior view of a laboratory or industrial storage unit with metal grating and a rack (no visible text or symbols)

Fig. 2

3D technical diagram of a mechanical assembly with internal components (no visible text or symbols)

Fig. 3

COMMENT DÉGIVRER ET NETTOYER LE CONGÉLATEUR

Illustration of a hand inserting a device into a rack with a magnified inset showing internal components (no text or symbols)

DIAGNOSTIC RAPIDE

Illustration of three mechanical components: a wall-mounted switch, a cabinet, and a hanging lock (no text or symbols)

Hissss

Illustration of a globe, server rack, and handbag with no visible text or symbols

Buzzz Buzzz

Gurde 1000

Crack Chat

Line drawing of an open refrigerator with five compartments (no text or symbols)

Line drawing of an open refrigerator with a close-up of its drawer containing food items, no text or symbols present.

MAANDEN VOEDSEL

1-3
4-7
8-12

Line drawing of an open refrigerator with multiple drawers (no text or symbols)

Diagram illustrating a door with internal structure and two views of a grid, including an open drawer and a grid-patterned inset.

Afb. I

Interior view of a laboratory or industrial chamber with a metal grating and a top shelf (no visible text or symbols)

Afb. 2

3D technical diagram of a mechanical assembly with internal components (no visible text or symbols)

Afb. 3

DE VRIEZER ONTDOOIEN EN REINIGEN

Illustration of a hand inserting a plug into a device with a magnified inset showing internal components (no text or symbols)

OPSPOREN VAN STORINGEN

Illustration of three electrical components: a switch, a box, and a hanging switch (no text or symbols)

Buzzz Buzzz

Hisss

Guide 1000

Illustration of three objects: a tree, a globe, and a box with a handle (no text or symbols)

Crack Check

Line drawing of an open refrigerator with multiple compartments (no text or symbols)

Illustration of a refrigerator with close-ups of food and waste, showing internal compartments and disposal steps.

MESES ALIMENTOS

1-3
4-7
8-12

Line drawing of an open refrigerator with multiple compartments (no text or symbols)

Diagram illustrating the process of a refrigerator with labeled parts and internal grid layouts

Fig. I

Interior view of a laboratory or industrial storage unit with metal grating and a rack (no visible text or symbols)

Fig. 2

3D technical diagram of a mechanical assembly with internal components (no visible text or symbols)

Fig. 3

CÓMO DESCONGELAR Y LIMPIAR EL CONGELADOR

Illustration of a hand inserting a device into a rack with a magnified inset showing internal components (no text or symbols)

Illustration of three electrical components: a switch, a cabinet, and a hanging key (no text or symbols)

Buzzz Buzzz

Hisss 1000

Gurde 1000mm

Illustration of a globe, storage unit, and air conditioner unit (no text or symbols)

Crack Check

Line drawing of an open refrigerator with five compartments (no text or symbols)

Illustration of an open refrigerator with a close-up of its doors and a close-up of its drawer (no text or symbols present)

MESES ALIMENTOS

1-3
4-7
8-12

Line drawing of an open refrigerator with multiple drawers (no text or symbols)

Diagram illustrating a door with internal structure and two views of a grid, including an open drawer and a grid-patterned inset.

Fig. I

Interior view of a laboratory or industrial chamber with a metal grating and a top shelf (no visible text or symbols)

Fig. 2

3D technical diagram of a mechanical assembly with internal components (no visible text or symbols)

Fig. 3

COMO DESCONGELAR E LIMPAR O CONGELADOR

Illustration of a hand inserting a plug into a device with a magnified inset showing internal components (no text or symbols)

Illustration of three electrical components: a switch, a cabinet, and a key (no text or symbols)

Buzzz Buzzz

Hisss

Gurdé 1000 Gurdé

Illustration of a globe, tree, and server with no visible text or symbols

Crack Cook

GUIDA RICERCA GUASTI

SERVIZIO ASSISTENZA TECNICA

INSTALLAZIONE

PRIMA DI USARE L'APPARECCHIO

Line drawing of an open refrigerator with multiple compartments (no text or symbols)

Line drawing of an open refrigerator with a close-up of its doors and a drawer containing food items (no text or symbols)

MESI CIBI

1-3
4-7
8-12

Line drawing of an open refrigerator with multiple compartments (no text or symbols)

Diagram illustrating the installation of a refrigerator with labeled components and directional arrows indicating flow or movement.

Fig. I

Interior view of a laboratory or industrial storage unit with metal grating and a rack (no visible text or symbols)

Fig. 2

3D technical diagram of a mechanical assembly with internal components (no visible text or symbols)

Fig. 3

COME SBRINARE E PULIRE IL CONGELATORE

Illustration of a hand inserting a device into a rack with a magnified inset showing internal components (no text or symbols)

GUIDA RICERCA GUASTI

Illustration of three electrical components: a switch, a cabinet, and a hanging key (no text or symbols)

Hisss

Illustration of a globe, storage unit, and air conditioner unit (no text or symbols)

Buzzz Buzzz

Grunble 1000

Crack Check

Illustration of a refrigerator with multiple drawers open and one cabinet closed (no text or symbols)

Diagram showing a refrigerator with open doors and a close-up of its interior, illustrating the use of a cleaning or cleaning tool.

MHNEΣ	TPOΦIMA
1-3
4-7
8-12

Line drawing of an open refrigerator with multiple compartments (no text or symbols)

Diagram illustrating door opening and grid installation steps with labeled components

Eik. 1

Interior view of a laboratory or industrial chamber with a metal rack and control panel (no visible text or symbols)

Eik. 2

3D technical diagram of a mechanical assembly with internal components (no visible text or symbols)

Eik. 3

Illustration of a hand inserting a device into a rack with a magnified inset showing internal components (no text or symbols)

Line drawing of an open refrigerator with multiple compartments (no text or symbols)

Line drawing of an open refrigerator with a close-up of its doors and a drawer containing food items (no text or symbols)

MÅNADER LIVSMEDEL

1-3 4-7 8-12

Line drawing of an open refrigerator with multiple compartments (no text or symbols)

Ta ur lådorna

Diagram illustrating the process of a refrigerator with labeled parts and a magnified view showing internal grid structure.

Fig. I

Interior view of a laboratory or industrial storage unit with metal grating and control panel (no visible text or symbols)

Fig. 2

3D technical illustration of a mechanical assembly with internal components (no visible text or symbols)

Fig. 3

AVFROSTNING OCH RENGÖRING AV FRYSEN

Illustration of a hand inserting into a device into a rack, showing internal components and wiring (no text or symbols)

FELSÖKNING

När dessa ljud hörs

Illustration of three electrical components: a switch, a box, and a hanging key (no text or symbols)

Hissss

Illustration of a globe, storage unit, and air conditioner unit (no text or symbols)

Buzzz Buzzz

Gurde 1000mm

Crack Check

F∅R APPARATET TAS I BRUK

MILJ∅VENNLIG BRUK

GENERELLE RÅD

BRUK AV FRYSEREN

AVRIMING OG RENGJ∅RING AV FRYSEREN

RENGJ∅RING OG VEDLIKEHOLD

FEILS∅KINGSLISTE

SERVICE

INSTALLASJON

F∅R APPARATET TAS I BRUK

Simple black-and-white sketch of a four-leaf clover with a tree and curved trunk (no text or symbols)

GENERELLE RÅD

Line drawing of an open refrigerator with five compartments (no text or symbols)

Line drawing of an open refrigerator with a close-up of its drawer containing food items, no text or symbols present.

MÅNEDER MATVARER

1-3
4-7
8-12

Line drawing of an open refrigerator with multiple compartments (no text or symbols)

Diagram illustrating a door with internal structure and two views of a grid, including an open drawer and a grid-patterned inset.

Fig. I

Interior view of a laboratory or industrial chamber with a metal grating and a top shelf (no visible text or symbols)

Fig. 2

3D technical diagram of a mechanical assembly with internal components (no visible text or symbols)

Fig. 3

AVRIMING OG RENGJ∅RING AV FRYSEREN

Illustration of a hand inserting a plug into a device with a magnified view of internal components (no text or symbols)

FEILS∅KINGSLISTE

Illustration of three electrical components: a switch, a box, and a key (no text or symbols)

Buzzz Buzzz

Hisss

Gurdle 1000

Illustration of three objects: a tree, a globe, and a box with a handle (no text or symbols)

Crack Cook

..dette er et levende produkt!!!

OPLYSNINGER OM MILJ∅HENSYN

ADVARSLER OG GENERELLE RÅD

BRUG AF FRYSEREN

AFRIMNING OG RENG∅RING AF FRYSEREN

RENG∅RING OG VEDLIGEHOLDELSE

FEJLFINDINGSOVERSIGT

SERVICE

OPSTILLING

F∅R APPARATET

OPLYSNINGER OM MILJ∅HENSYN

I.Emballage

Line drawing of an open refrigerator with multiple compartments (no text or symbols)

Line drawing of an open refrigerator with a close-up of its doors showing food items (no text or symbols present)

MÅNEDER MADVARER

1-3
4-7
8-12

Line drawing of an open refrigerator with multiple drawers (no text or symbols)

Diagram illustrating the installation of a refrigerator with labeled components and directional arrows

Fig. I

Interior view of a laboratory or industrial storage unit with metal grating and a rack (no visible text or symbols)

Fig. 2

3D technical diagram of a mechanical assembly with internal components (no visible text or symbols)

Fig. 3

AFRIMNING OG RENG∅RING AF FRYSEREN

Illustration of a hand inserting a component into a device with a magnified inset showing internal structure (no text or symbols)

FEJLFINDINGSOVERSIGT

Illustration of three electrical components: a switch, a box, and a hanging key (no text or symbols)

Hisss 1000

Illustration of a globe, storage unit, and air conditioner unit (no text or symbols)

Buzzz Buzzz

Gliquid 1000 Glass

Crack Check

Line drawing of an open refrigerator with five compartments (no text or symbols)

Line drawing of an open refrigerator with a close-up of its drawer showing food items, no text or symbols present.

KK ELINTARVIKKEET

1-3
4-7
8-12

Line drawing of an open refrigerator with multiple compartments (no text or symbols)

Korien poistaminen

Diagram illustrating the process of door opening with labeled components and a magnified view showing internal structure.

Kuva I

Interior view of a laboratory or industrial equipment enclosure with a rack-mounted grid and metal frame (no visible text or symbols)

Kuva 2

3D technical diagram of a mechanical assembly with internal components (no visible text or symbols)

Kuva 3

PAKASTIMEN SULATUS JA PUHDISTUS

Illustration of a hand inserting a plug into a rack-mounted device (no text or symbols visible)

VIANMÄÄRITYS

Illustration of a door lock mechanism with a hand inserting a key (no text or symbols)

Buzzz Buzzz

Hisss

Guide 1000

Illustration of a globe, tree, and server unit (no text or symbols)

Cock Cock
