USER MANUAL Pesopiuma Foppapedretti

Black and white photo of a baby stroller with open lid and wheels (no text or symbols visible)

GB PUSHCHAIR - Assembly instructions

This stroller is suitable for children with a maximum weight of 15 kg - Complies with EN 1888:2012

D BUGGY - Montageanweisungen

Diagram illustrating a stroller with labeled parts and directional arrows, showing body positioning and movement steps.

clicks button 2 a

3 a

canopy peg a b click! c 4 a a 5

Diagram of a vehicle chassis with four wheels and a downward arrow indicating motion (no text or symbols)

7 button "A"

A B 8

Illustration of a person using a seatbelt device with a black arrow indicating rotation (no text or symbols)

Illustration of a chair with a seatbelt and armrest, showing a folding mechanism (no text or symbols)

A a a b 11

Lock Ring Top Strap Strap End 1 2 3 5 12

13A B

A 1 2 14

b a ① ② 15

Product photo of a baby stroller with a matching back cover and wheels (no text or symbols visible)

IT. IMPORTANTE! LEGGERE ATTENTAMENTE E CONSERVARE PER FUTURE REFERENZE

GB. IMPORTANT! READ THE INSTRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE

F. IMPORTANT! LIRE ATTENTIVEMENT ET CONSERVER SOIGNEUSEMENT A PORTEE DE MAIN POUR UNE UTILISATION ULTERIEURE

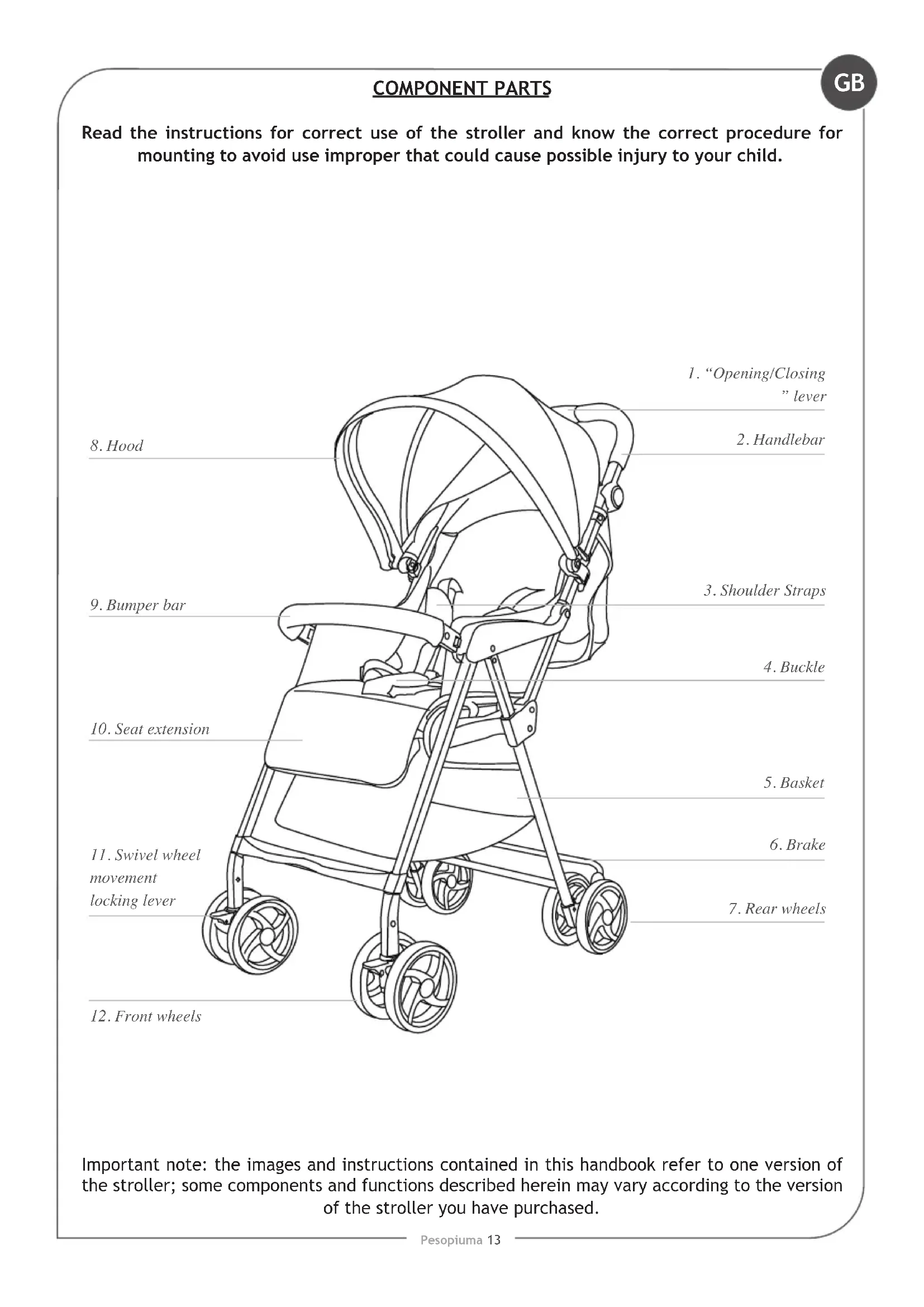

Read the instructions for correct use of the stroller and know the correct procedure for mounting to avoid use improper that could cause possible injury to your child.

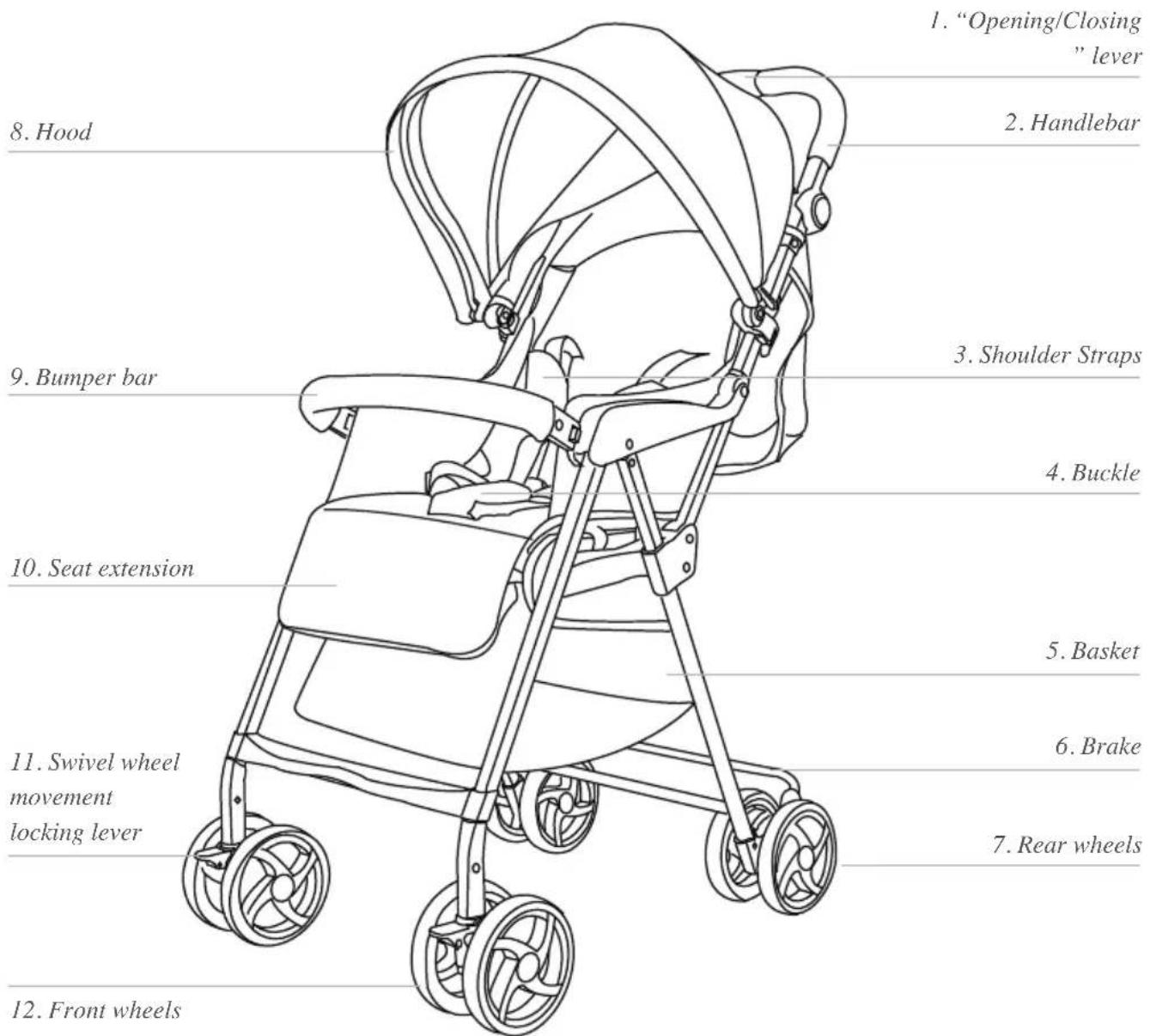

1. "Opening/Closing " lever 2. Handlebar 8. Hood 9. Bumper bar 3. Shoulder Straps 4. Buckle 10. Seat extension 5. Basket 11. Swivel wheel movement locking lever 6. Brake 7. Rear wheels 12. Front wheels

Important note: the images and instructions contained in this handbook refer to one version of the stroller; some components and functions described herein may vary according to the version of the stroller you have purchased.

ASSEMBLY

UNFOLD THE STROLLER (fig.1)

Press both the buttons at the side of handlebar “a” and turn the handlebar into positions “b”, a click will indicate that it has been fastened.

Move button "1", as shown in the figure, while pressing button "2" at the same time.

Lift the handlebar until the chassis opens completely. A click will indicate that is has been fastened.

Before using the stroller, make sure it is opened properly and the mechanisms are properly locked.

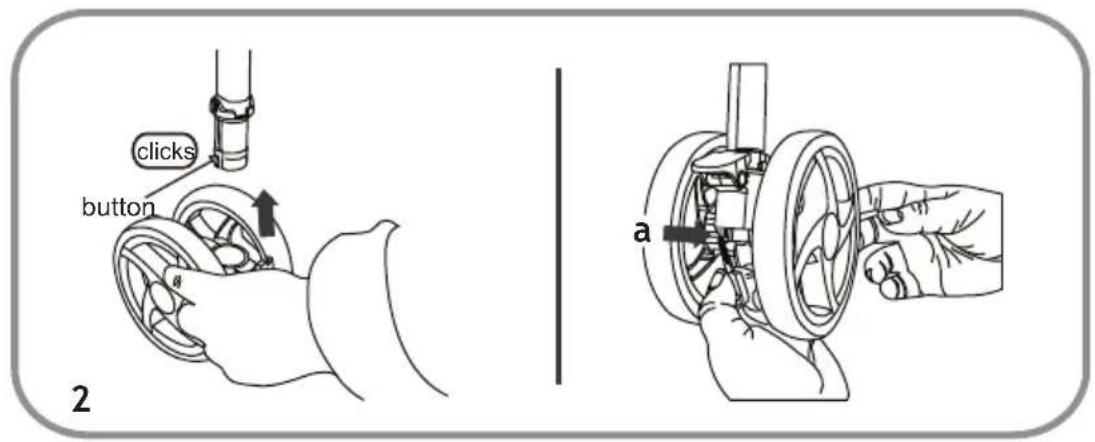

FRONT WHEELS (fig.2)

Fitting the front wheels: Lift the chassis with one hand and insert the front wheels, with the locking lever turned upwards on the wheel hub. A click will indicate that it has been fitted correctly. Check that both the wheels have been fastened correctly, if they are pulled downwards they should not be released.

Removing the front wheels: press the locking device "a", in the lower part of the wheel and keeping it pressed, remove the wheel from the hub

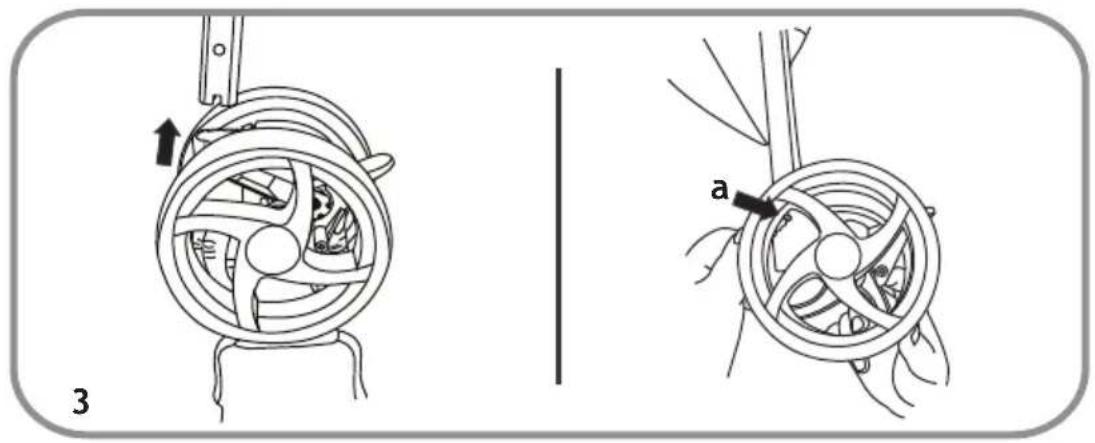

REAR WHEELS (fig.3)

Fitting the rear wheels: Insert the rear wheel group into the end of the tubes of the rear legs. The wheel supports are correctly assembled when the metal pins “a” are locked in the corresponding holes on the tubes of the chassis

Removing the rear wheels: Press the locking device "a", in the lower part of the leg and keeping it pressed, remove the rear wheel group

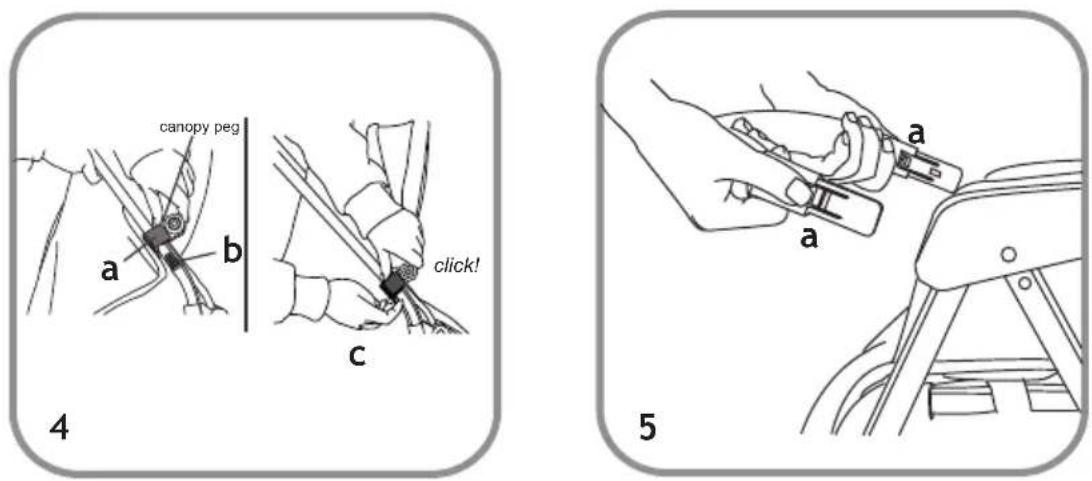

FITTING THE CANOPY (fig.4)

Assembly: Insert the plastic clips "a" inside the respective guides located on both sides of the stroller "b". You will hear a click when they are locked correctly in place.

Disassembly: pulling the lever "c" and lift to remove the canopy.

FITTING THE BUMPER BAR (fig.5)

Fitting the bumper bar: line the bumper bar up with the slots and press on both sides. A click indicates that it has been fastened correctly.

Removing the bumper bar: press button "a" on both sides of the bumper bar and at the same time pull to remove it.

Opening the bumper bar on just one side: press button "a" on one side of the bumper bar and pull to open it like a gate.

SHOPPING BASKET

The basket is fitted on the lower part of the chassis by means of press fasteners. To remove it, open the press fasteners.

The basket should be emptied before folding the pushchair.

USE

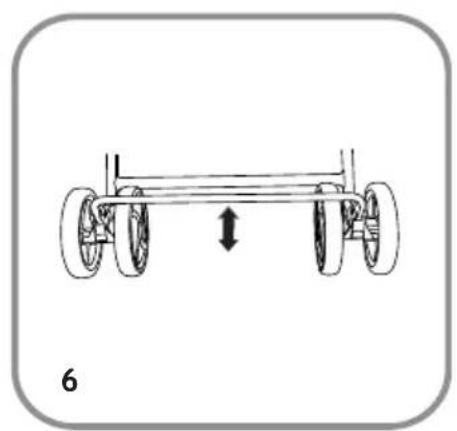

PARKING BRAKE (fig.6)

To apply the brake: Press the brake lever, push the pushchair forward gently to ensure the brake has been applied correctly.

To release the brake: Lift the brake lever as shown.

USE

GB

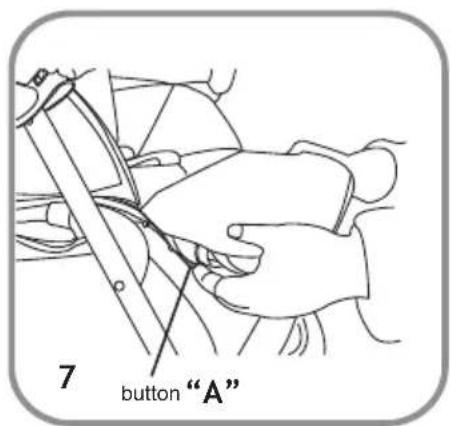

ADJUSTING THE FOOTREST (fig.7)

Press buttons "A" and adjust the footrest in the required position.

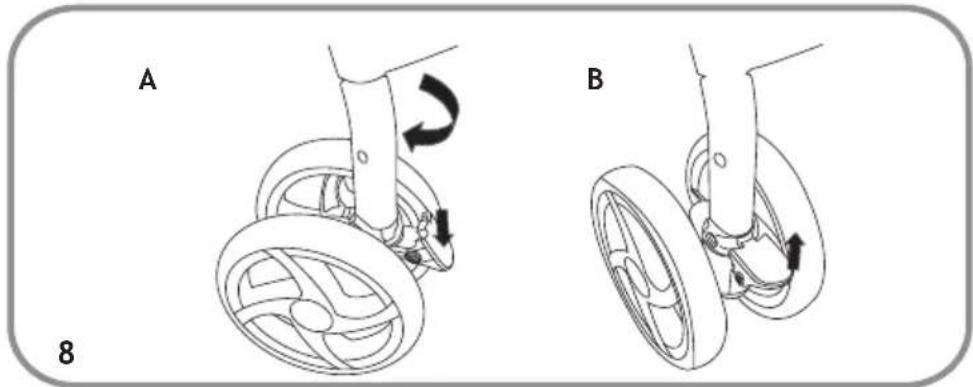

TURN THE DIRECTION OF THE FRONT WHEELS (fig.8A)

As picture, press the directional part down, then you could turn the direction of the front wheels freely.

FIX THE DIRECTION OF THE FRONT WHEELS (fig.8B)

As picture, put up the directional part upward.

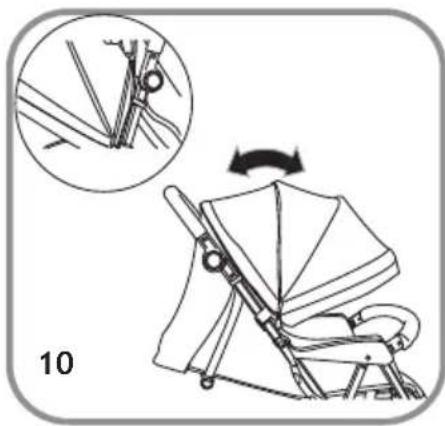

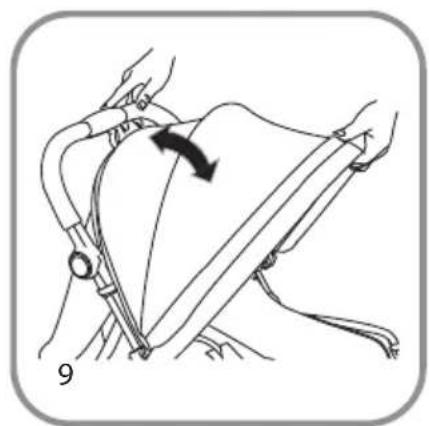

ADJUSTING THE HOOD (fig.9-10)

Extend the hood according to requirements to protect baby from the sun.

Note: babies' skin is very delicate. NEVER leave baby under direct sunlight. Always make sure that the hood has been adjusted correctly.

Open the zip and extend the hood according to requirements to protect baby from the sun.

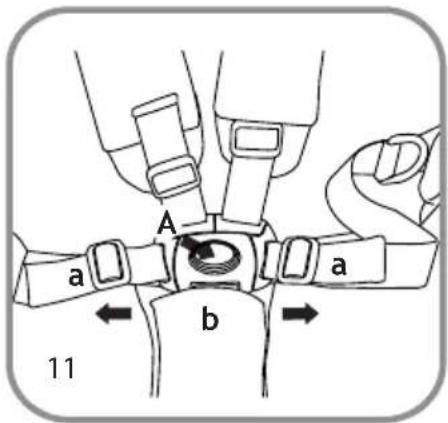

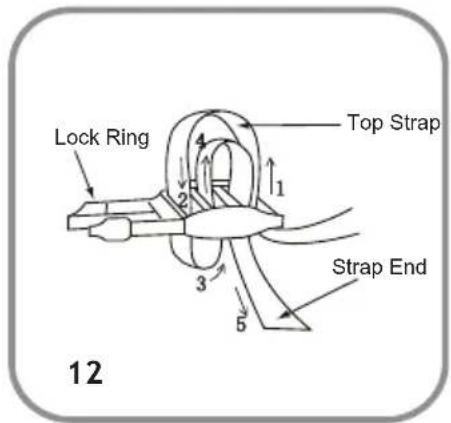

SAFETY HARNESS (fig.11-12)

Put the brakes on before sitting your child in the stroller.

Releasing the buckle: Press button "A" and pull out the parts.

Place your child in the stroller and adjust the harness to fit him/her (fig.12).

Fastening the buckle: Insert part "a" in part "b", a click will indicate proper fastening.

Always fasten the restraint system properly.

IMPORTANT: If baby is less than 6 months old, the harness belts must be inserted through the lower slots.

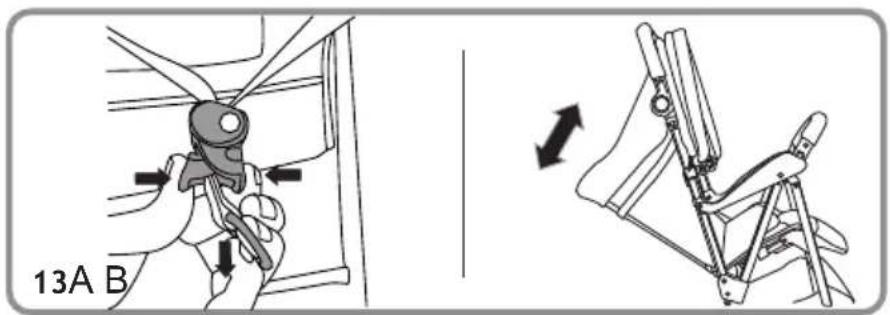

THE BACKREST CAN BE ADJUSTED FREELY (fig.13)

As picture 13A, pull the belt with one hand, hold the backrest adjustment part with the other hand, then push it airwards, the backrest can be adjusted higher.

Pull the backrest adjustment part outward, then the backrest can be adjusted lower.

Please don't adjuste the backrest when the child is in the stroller.

IMPORTANT: For babies under 6 months of age, the backrest must only be regulated in the fully reclined, horizontal position at all times.

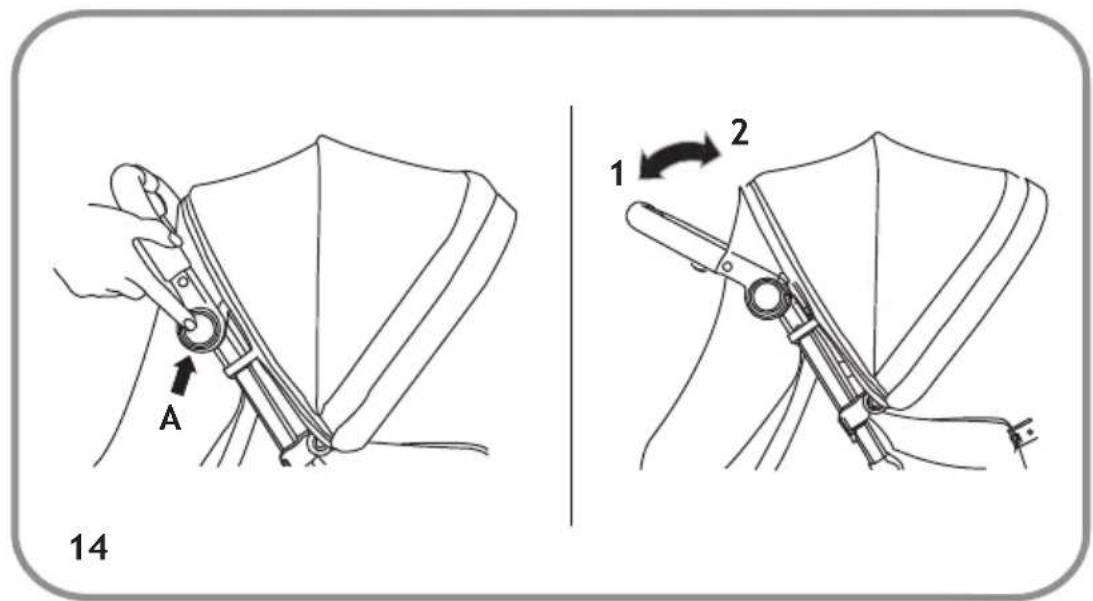

TO ADJUST THE HANDLEBAR (fig.14)

Press both the buttons at the side of handlebar "A" and turn the handlebar into positions 1, 2.

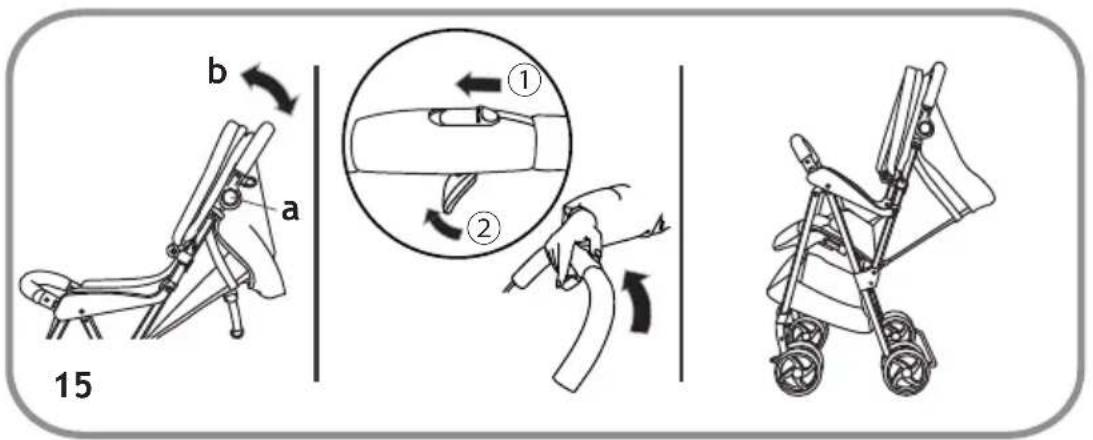

FOLDING THE STROLLER (fig.15)

Before folding the stroller, ensure that:

• The backrest is adjusted to the vertical position.
  • The canopy is closed back up.

Press both the buttons at the side of handlebar "a" and turn the handlebar into positions "b", a click will indicate that it has been fastened.

Move button "1" to the right, as shown in the figure, while pressing button "2" at the same time. Fold the handlebar downwards.

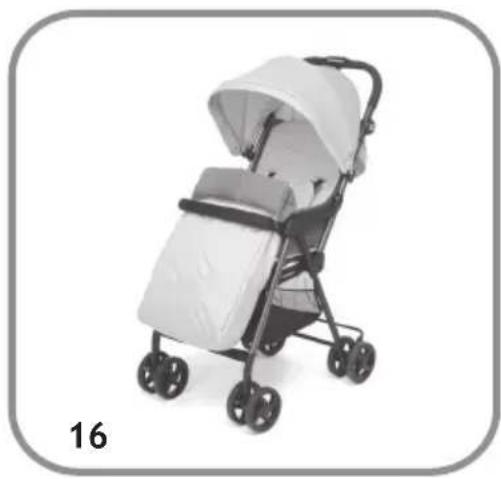

FITTING THE FOOTMUFF (fig.16)

Insert the lower part of the footmuff on the seat of the chassis.

Secure the footmuff to the chassis of the pushchair.

WARNING

IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE.

WARNING: A CHILDS SAFETY IS YOUR RESPONSIBILITY.

WARNING: Never leave child unattended. Always keep child in view when in stroller

WARNING: To avoid injury ensure that your child is kept away when unfolding and folding this product.

WARNING: Do not let your child play with this product.

WARNING: Always use the restraint system.

WARNING: The parking device shall be engaged when placing and removing the children.

WARNING: Accessories which are not approved by the manufacturer shall not be used.

WARNING: This stroller is suitable for children with a maximum weight 15kg.

For babies under 6 months of age, only use the pushchair with the backrest fully reclined.

For new born baby, do not recline seat back to sitting position (should be in full reclining position) as the baby doesn't have ability to control its head.

WARNING: Use seat belt, avoid serious injury from falling or sliding out always.

WARNING: Ensure that all the locking devices are engaged before use.

WARNING: Any load attached to the handle affects the stability of the pram/pushchair.

WARNING: Always use the crotch strap in combination with the waist belt.

WARNING: Check that the pram body or seat unit attachment devices are correctly engaged before use.

WARNING: Ensure your child wears a correctly fitted and adjusted harness at all times.

Verify regularly that the safety belts are correctly fastened, not damaged or frayed.

WARNING: Only one child for one stroller.

WARNING: This product is not suitable for running or skating.

WARNING: Check that the seat unit attachment devices are correctly engaged before use.

WARNING: Do not add a mattress thicker than 25 mm.

WARNING: When folding, unfolding or adjusting before using stroller, keep child away from moving parts.

WARNING: Do not place or hang parcels, bags or accessories on any part of the stroller including the handle. Failure to comply with this warning may cause, hazardous, unstable conditions to exist.

WARNING: Always use the brakes when stroller is stopped.

WARNING: Never fold the stroller, not even partly, when your child is in it.

A basket is provided for the carriage of 2 kg of goods, evenly distributed.

The product must be assembled by an adult.

Only the minder can operate the recline adjuster.

Never use the stroller if any part of it is damaged or any component is missing.

Do not allow children to play with or hang onto the stroller.

This vehicle requires regular maintenance by the user.

Do not use replacement parts or accessories other than those approved by the supplier as they may render the pushchair unsafe.

WARNING

Overloading, incorrect folding, and the use of non-approved accessories or spare parts may damage or break this pushchair and could render the product unsafe. Read the instructions.

Do not overload this pushchair with additional children, goods or accessories. Bags and other items must not be hung from the handle.

Never leave rain covers on indoors, in a hot atmosphere or near a heat source as the baby could overheat.

Ensure all users are familiar with the products operation. It should always open and fold easy. If it does not, do not force the mechanism - stop and read the instructions.

Do not use your pushchair in a manner for which it is not designed.

Do not allow your child to climb unassisted into, play with or hang onto your pushchair.

Hold on to your pushchair when close to moving road vehicles or trains. Even with the brake on the draught from the vehicle may move the pushchair.

Exercise caution when mounting or dismounting a kerb.

Remove your children and fold the pushchair when ascending or descending stairs or escalators. Ensure the folded pushchair is stored away from children so that it does not fall and cause injury. Do not use replacement parts or accessories, e.g. child seats, bags, hooks, trays, rain covers etc other than those approved by the supplier, they may render the pushchair unsafe.

Never carry a third child on your pushchair.

Do not use any platforms or attachments that allow transportation of third child.

CARE

Your pushchair has been designed to meet safety standards and with correct use and maintenance will give many years of trouble free performance.

The chassis is strong but will weaken should the back wheels be bumped down stairs or kerbs. continual impact will cause damage. If your child wears hard shoes these might damage the soft fabric.

Storing a damp pushchair will encourage mildew to form.

After exposure to damp conditions, dry off with a soft cloth, open fully and allow to dry thoroughly before storing.

Store your pushchair in a dry, safe place.

Do not leave the pushchair in sunlight for prolonged periods - some fabrics may fade.

GB

MAINTENANCE

This pushchair requires regular maintenance by the user.

This product is designed to operate with minimum maintenance, however regular

lubrication of moving parts will extend the life of your pushchair and make opening and folding easier.

Should parts of your pushchair become stiff or difficult to operate, apply a light

application of a spray lubricant e.g. WD 40. Do not use oil or grease. WD 40 should not be used to lubricate the running of removable wheels.

If necessary, these should be removed and cleaned with a soft dry cloth.

Regularly inspect the locking devices, brakes, wheels, harness assembly, catches, seat adjusters, joints and fixings to ensure they are secure and in full working order.

Brakes, wheels and tyres are subject to wear and should be replaced if necessary.

Your pushchair should be serviced and reconditioned before using it for a second baby, or within 18 months, whichever is the sooner.

CLEANING

The fabric may be cleaned by sponging lightly using warm water and a mild detergent.

Plastic and metal parts may be sponged clean with warm water and a mild detergent.

Never clean with abrasive, ammonia based, bleach based or spirit type cleaners.

The contents of this document as stated below will come into effect as from 01.01.2005 and replace, on every account and in full, any previous message referring to the guarantee provided by Foppa Pedretti S.p.A.

FORMAL GUARANTEE

Foppa Pedretti S.p.A. the head office of which is located at n. 11 Via Volta, Grumello del Monte (Italy), guarantees directly to the Consumer that this brand new product is free of faults with regard to the materials, design and manufacture and that it complies with the characteristics as declared by the manufacturer.

This formal guarantee is valid in all Member Countries of the European Union and it neither excludes nor limits the Consumer's rights in accordance with mandatory measures provided for by the law with regard to the Retailer of the Product.

To take advantage of this formal guarantee, the Consumer must return the faulty product to the Retailer, presenting to the same the proof of purchase of the Product which must clearly show the Retailer's address, the date of purchase of the Product with the Retailer's stamp and signature and an indication of the Product itself or, alternatively, the receipt which must not have been altered and which must clearly show the same information as that referred to above.

The formal guarantee is valid for twelve (12) months from the date of purchase of the Product. During this period, Foppa Pedretti S.p.A. will repair or replace the faulty product, at its own discretion. The formal guarantee is granted to the end buyer of the Product (Consumer) and it neither excludes nor limits the mandatory rights of the Consumer as provided for by the law and/or the rights that the Consumer may have with regard to the Dealer/Retailer of the Product.

EXCLUSIONS TO THE FORMAL GUARANTEE.

The formal guarantee is excluded in the case of damage caused to the Product for the following reasons: if the product is used in a way that does not comply with the information contained in the use and assembly instruction sheet, if the product is knocked or dropped, if the Product is exposed to humidity or extreme heat or environmental conditions, or to sudden changes in the same, corrosion, oxidization, unauthorized alterations or repairs to the Product, repairs using unauthorised spare parts, improper use, improper maintenance or failure to carry out the same, improper maintenance compared to the information given on the use and assembly instruction sheet, incorrect assembly, accidents, damage caused by food or drink, damage caused by chemical products, cases of force majeure.

In any case, Foppa Pedretti S.p.A. declines all responsibility for damage caused to persons or to property, other than the Product, when such damage is caused by a failure to comply with the instructions/advice/warnings cont a ined in the manual or, alternatively, in the use and assembly instruction sheet provided with each Product for the owner/user. (Purely as an example, in the case of a cot: “Check your baby constantly. Make sure that the sheets and blankets do not cover the baby’s head...”).

Furthermore, Foppa Pedretti S.p.A. declines all responsibility for damage to persons and to property when the breakage of its products is due to a deterioration in the components of the Product that are subject to wear. All the components of the Product made of plastic are considered to be components subject to wear.
