USER MANUAL GPS Carkit MIO

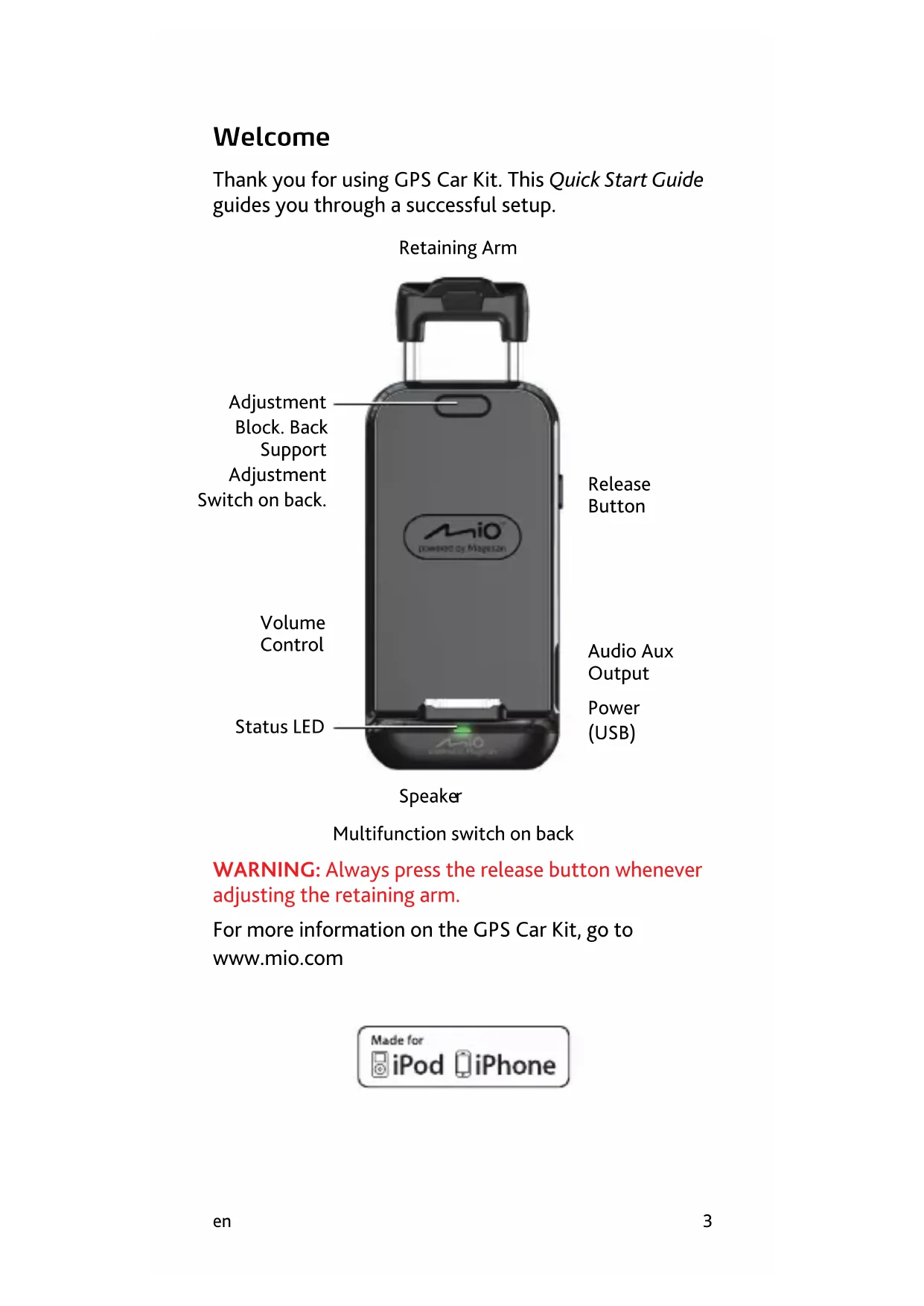

Revision: R00 (4/2010)en 3 Welcome Thank you for using GPS Car Kit. This Quick Start Guide guides you through a successful setup.

adjusting the retaining arm. For more information on the GPS Car Kit, go to www.mio.com

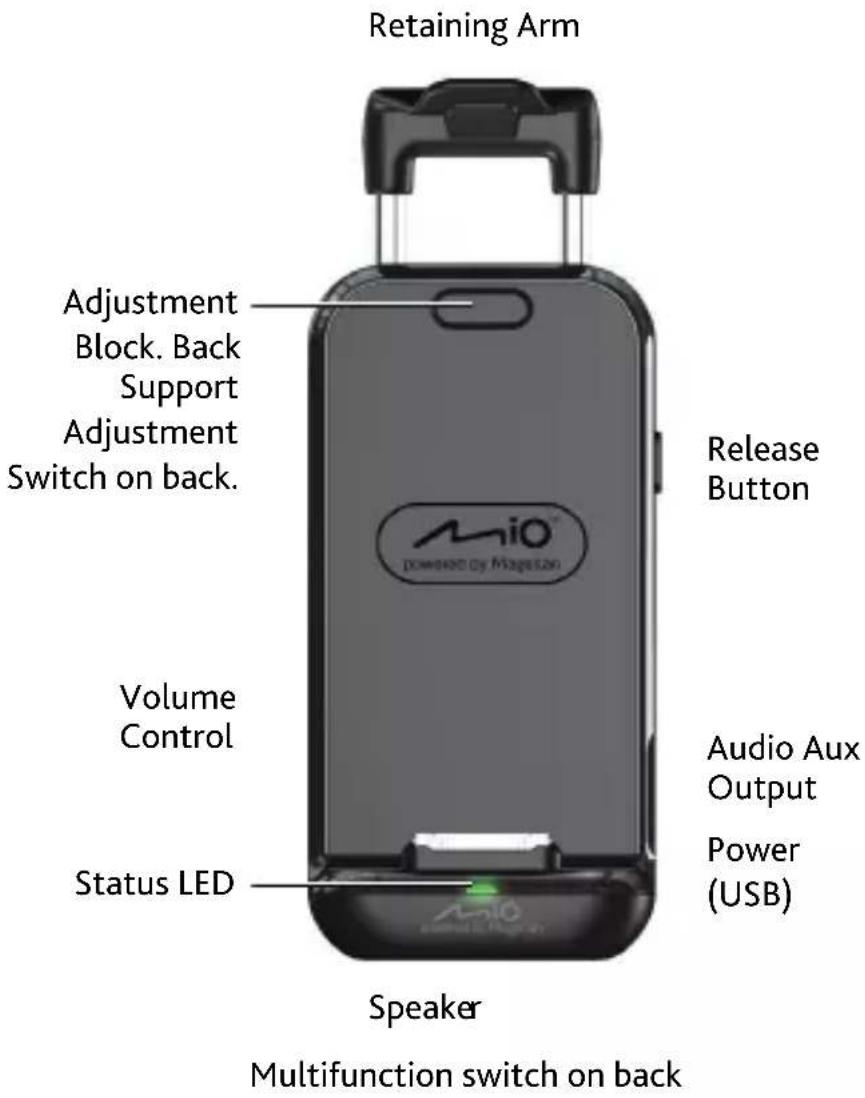

Status LED Volume Control Adjustment Block. Back Support Adjustment Switch on back. Retaining Arm Release Button Audio Aux Output Power (USB) Speake

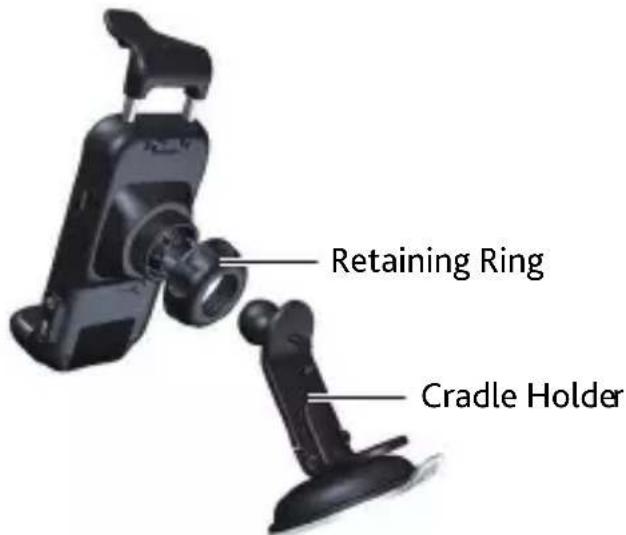

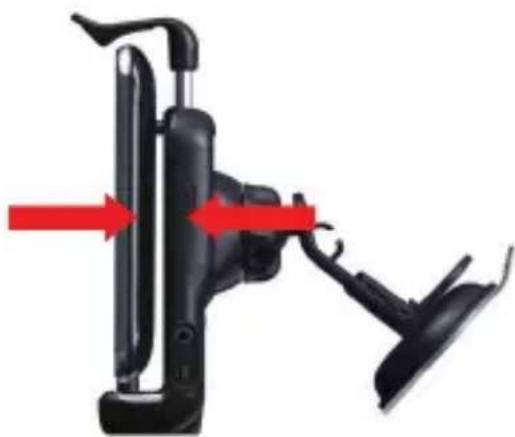

Multifunction switch on back4 en Installation Please do not place your iPhone® or iPod touch® into the GPS Car Kit until instructed to do so. Assembling Assemble the GPS Car Kit as shown. Do not tighten the retaining ring. Press the release button and raise the retaining arm all the way to the top. Inserting your iPhone into the GPS Car Kit Slide your iPhone or iPod touch into the connector on the bottom of the GPS Car Kit and then gently push your iPhone or iPod touch towards the GPS Car Kit. Press the release button and push down on the retaining arm to lock your iPhone or iPod touch in place. Checking for an uneven gap The gap between the iPhone or iPod touch and the GPS Car Kit should be even. If it is uneven, you can slide the adjustment switch on the back to push out the adjustment block until the gap at the top is the same as the gap at the bottom. Retaining Ring Cradle Holde ren 5 (Please note that if it is still uneven, you will need to remove your device. Then pull out the adjustment block, rotate it 180º and place it back in the GPS Car Kit. This will increase the thickness of the adjustment block.) Mounting the GPS Car Kit in your vehicle Before mounting the GPS Car Kit you should remove your iPhone or iPod touch by lifting the front tab on the retaining arm and rotating your iPhone slightly forward. When mounting the GPS Car Kit in your vehicle please keep these important guidelines in mind... Check local vehicle laws regarding mounting devices on windshields. Make sure not to mount the GPS Car Kit where it could be dislodged should your airbags deploy. Likewise, make sure that the power cable would not be dislodged should the airbags deploy. Clean the area where the GPS Car Kit will be placed. Dry the area thoroughly before continuing. Press the GPS Car Kit base firmly against the windshield or dash surface. Push the suction cup arm down, locking the GPS Car Kit to the surface.6 en Applying power Connect the USB end of the power cable to the GPS Car Kit. Connect the other end of the cable to a vehicle power receptacle. Reinstall your iPhone into the GPS Car Kit and adjust for proper viewing. When making viewing adjustments, always hold the assembly by the GPS Car Kit and not your iPhone. Make any final adjustments for proper viewing and tighten the retaining ring. Bluetooth

pairing When the GPS Car Kit is first powered on, Bluetooth is automatically set to discovery mode and ready to pair with a new device.

1. Connect the GPS Car Kit to power.

2. In the iPhone Settings Menu, turn on BlueTooth.

3. Under Devices, select “Mio GPS Car Kit”.

4. When prompted to pair with the GPS Car Kit, press

Yes. If you are prompted for a pass code or device PIN, enter 1234.

5. GPS Car Kit will connect with your iPhone.

6. Pairing is now complete.

Once paired, the GPS Car Kit will automatically connect with the iPhone when it is in range. Declaration of Conformity For regulatory identification purposes, GPS Car Kit is assigned a model number of N269. Hereby, Mio Technology declares that this N269 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Visit Mio website (www.mio.com) for the full text of the declaration for your device. All brand and product names are trademarks or registered trademarks of their respective companies.da 7 Velkommen Tak, fordi du bruger GPS Car Kit. Denne Quick
