| Brand | Miele |
| Model | Swing H1 Excellence EcoLine SACJ1 |
| Product type | Bagless vacuum cleaner (stick) |
| Category | All surfaces vacuum cleaner |
| Suction power | Adjustable (min/max) via dual slider switch |
| Filtration | Triple system: dust bag, motor filter, exhaust filter (AirClean / Active AirClean / AirClean+) |
| Replacement indicator | Yes, for the dust bag (turns red when full) |
| Main brush | Two-position brush (carpet/hard floor), pedal-operated |
| Suction tube | Telescopic with adjustment button |
| Power cord | With rewind and locking clip |
| Included accessories | Crevice tool, upholstery nozzle, accessory clip |
| Available filter types | AirClean, Active AirClean (SF-AAC 10), AirClean+ (SF H 10) |
| Use | Domestic, for dry dust only |
| Maintenance | Regular replacement of dust bag, motor filter and exhaust filter |
| Wheel cleaning | Yes, removable to remove threads and hair |
| Safety | Automatic shut-off in case of overheating (temperature limiter), child protection (supervision required) |
| After-sales service | Miele France: 09 74 50 1000 (non-surcharged call) |
| Warranty | 24 months |
| Optional accessories | Power brushes (Electro Comfort, Electro Premium), Turbo brush, hard floor/parquet brushes, mini-turbo brush, etc. |
Frequently Asked Questions - Swing H1 Excellence EcoLine SACJ1 MIELE
User questions about Swing H1 Excellence EcoLine SACJ1 MIELE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum without a bag in PDF format for free! Find your manual Swing H1 Excellence EcoLine SACJ1 - MIELE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Swing H1 Excellence EcoLine SACJ1 by MIELE.
USER MANUAL Swing H1 Excellence EcoLine SACJ1 MIELE
en Stick vacuum cleaner operating instructions
Abluftfilter AirClean+ (SF H 10)
Abluftfilter fur reinste Ausblasluft. Besonderss fur Allergiker geeignet.
Filtergitter
Warning and Safety instructions 26
Guide to the appliance. 32
Caring for the environment 34
Notes on Delegated Regulation (EU) No. 665/2013 and 666/2013 35
Illustrations 35
Preparing for use 35
Use 36
Setting down and storing the vacuum cleaner 37
Maintenance 37
Purchasing new dustbags and filters 38
Ordering the correct dustbags and filters 38
When to change the dustbag 38
How the dustbag change indicator works. 39
How to replace the dustbag 39
When to change the dust compartment filter (for motor protection) 39
How to change the dust compartment filter 39
When to replace the exhaust filter 39
How to replace the AirClean filter 40
How to replace an Active AirClean filter or an AirClean+ filter 40
Replacing one type of exhaust filter with another. 40
When to change the thread lifters 41
How to replace the thread lifters 41
Cleaning the roller on the AllTeQ floorhead 41
Cleaning and care 41
Problem solving guide 42
After sales service 43
Guarantee 43
Optional accessories 43
Electrical connection for the UK 45
Electrical connection AU, NZ 45
This vacuum cleaner complies with current safety requirements. Inappropriate use can, however, lead to personal injury and damage to property.
To avoid the risk of accidents and damage to the vacuum cleaner, please read these instructions carefully before using it for the first time. They contain important information on its safety, operation and maintenance.
Keep these instructions in a safe place and ensure that new users are familiar with the content. Pass them on to any future owner.
Always disconnect the vacuum cleaner from the mains supply when you have finished using it, before changing over accessories, as well as for maintenance work and cleaning. Switch the vacuum cleaner off at the wall socket and unplug it.
Correct application
This vacuum cleaner is intended for cleaning flooring in domestic households and similar residential environments.
This vacuum cleaner can be used for all normal cleaning of carpets, rugs and robust hard flooring.
This vacuum cleaner is not intended for outdoor use.
The vacuum cleaner must only be used to vacuum dry floor surfaces. Do not use on people and animals. Any other usage, modification or alteration is not supported by the manufacturer and could be dangerous.
This vacuum cleaner can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it or have been shown how to use it in a safe way and understand and recognise the consequences of incorrect operation.
Safety with children
Children under 8 years of age must be kept away from the vacuum cleaner unless they are constantly supervised.
Children 8 years and older may only use the vacuum cleaner unsupervised if they have been shown how to use it safely and recognise and understand the consequences of incorrect operation.
Children must not be allowed to clean or maintain the vacuum cleaner unsupervised.
Please supervise children in the vicinity of the vacuum cleaner and do not let them play with it.
Technical safety
Before using the vacuum cleaner and its accessories, check for any visible signs of damage. Do not use a damaged appliance.
Ensure that the connection data on the data plate of the vacuum cleaner (voltage and frequency) match the mains electricity supply exactly. The vacuum cleaner is suitable for use with 50Hz or 60Hz without modification.
The mains electrical plug must be fitted with an appropriate fuse.
Reliable and safe operation of this vacuum cleaner can only be assured if it has been connected to the mains electricity supply.
In areas with fluctuating power supplies the vacuum cleaner may suffer a temporary drop in power. If the supply impedance at the point of connection to the electrical supply exceeds 0.457 Ohm, further measures may be required before the vacuum cleaner can be connected to this supply and operated as normal. If necessary check the impedance with your local energy supply provider.
While the vacuum cleaner is under guarantee, repairs should only be undertaken by a Miele authorised service technician. Otherwise the guarantee will be invalidated.
- Do not pull or carry the vacuum cleaner by the cable, and be careful not to damage the cable when withdrawing the plug from the socket. Keep the cable away from sharp edges and do not let it get squashed, for example, under a door. Avoid running the vacuum cleaner over the cable. This could damage the cable, plug or socket. The appliance must not be used if any of these have suffered damage.
Do not use the vacuum cleaner if the cable is damaged. If the cable is damaged it must be replaced with an original Miele cable. For safety reasons this work must be done by the Miele Service Department or a Miele authorised service technician.
The socket on the vacuum cleaner (depending on model) must only be used for the Miele Electrobrushes listed in these operating instructions.
Do not let the vacuum cleaner get wet. Clean only with a dry cloth or slightly damp cloth when disconnected from the mains supply.
Repairs should only be carried out by a Miele authorised service technician. Repairs and other work by unqualified persons can cause considerable danger to users.
Correct use
To avoid the risk of damage, do not use the vacuum cleaner without the dustbag, dust compartment filter and exhaust filter in place.
The dust compartment cover will not close without a dustbag fitted. Do not force it.
Floor attachments, accessories and tubes must not be used at head level.
Do not vacuum up anything which has been burning or is still glowing e.g. cigarettes, ashes or coal, whether glowing or apparently extinguished.
Do not use the vacuum cleaner to vacuum up any water, liquid or damp dirt. Wait until any freshly cleaned or shampooed rugs or carpets are completely dry before attempting to vacuum.
- Do not use the vacuum cleaner to vacuum toner dust. Toner, such as that used in printers and photocopiers, can conduct electricity.
- Do not vacuum up any inflammable or combustible liquids or gases and do not vacuum in areas where such substances are stored.
Accessories
To avoid the risk of injury when vacuuming with a Miele Electrobrush or Turbobrush, do not touch the rotating roller brush.
The Miele Electrobrush is a motor driven accessory for use only with Miele vacuum cleaners. For safety reasons, the vacuum cleaner must not be used with an Electrobrush produced by another manufacturer.
Only use genuine dustbags, filters and accessories with the "Original Miele" logo on them. Otherwise the manufacturer cannot guarantee the safety of the product.
Miele cannot be held liable for damage caused by incorrect use or operation or by non-compliance with these Warning and Safety instructions.

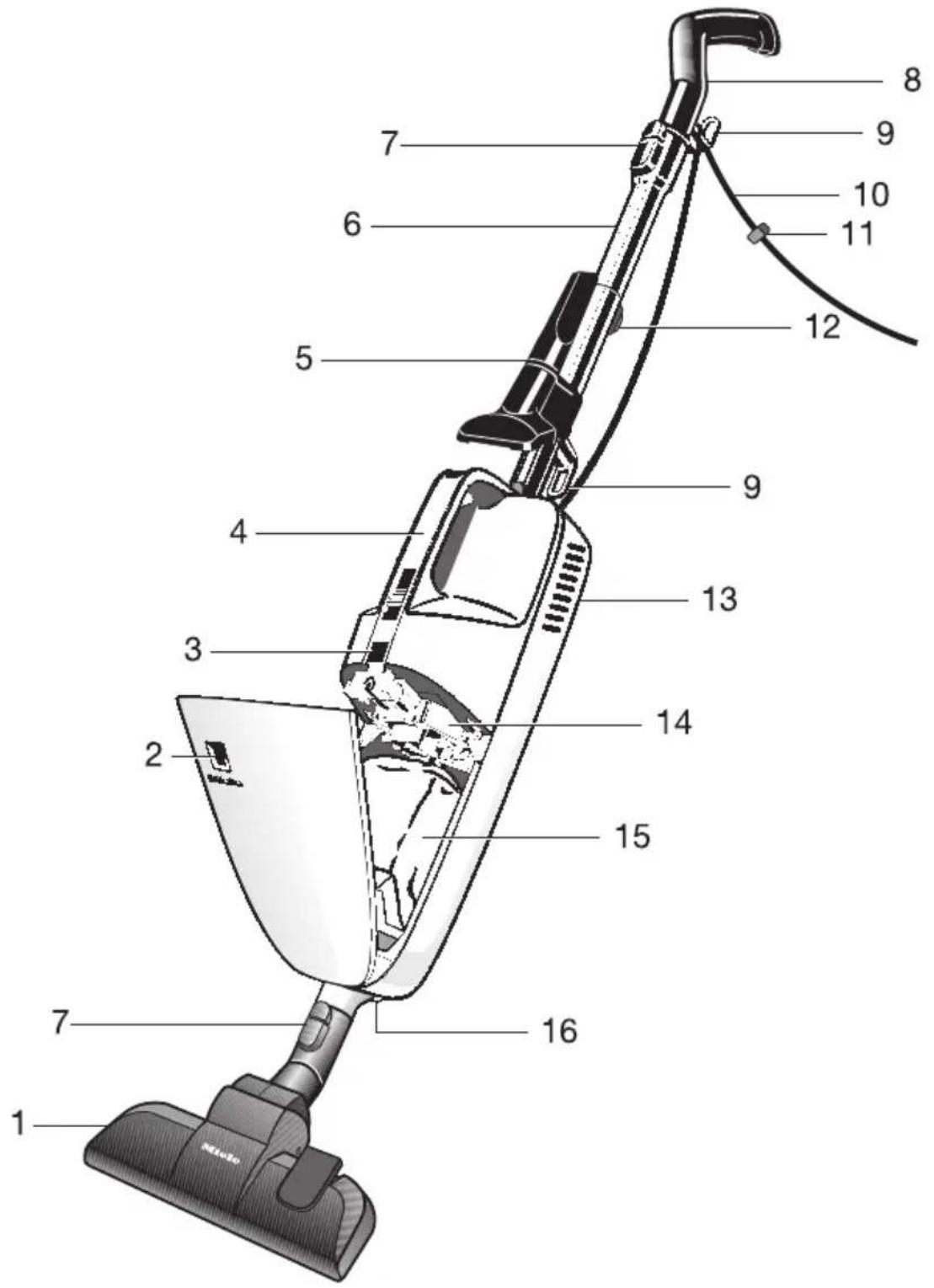

① Floorhead
② Dustbag change indicator
③ Dust compartment release catch
④ Carry handle with controls
⑤ Accessory clip with two accessories*
⑥ Suction tube *
⑦ Release buttons
⑧ Handle with non-slip end cap and hook
⑨ Cable hooks for mains cable
10 Mains cable
① Cable clip
^12 Release button for the telescopic tube
13 Exhaust filter cover (on back)
Dust compartment filter (for motor protection)
Dustbag
⑥ Socket for Electrobrush *
Features marked * depend on model and may vary or not be available on your vacuum cleaner.
Disposal of packing material
The packaging is designed to protect against transportation damage. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.
Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites. Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.
Disposing of the dustbag and filters
Dustbags and filters are made from environmentally friendly materials, and can be disposed of with the normal household waste, as long as they have been used exclusively for general household dust.
Disposing of your old appliance
Before disposing of your old appliance remove the dustbag and filters and dispose of them with your household waste.
Electrical and electronic equipment often contains valuable materials. These include substances which, if handled or disposed of incorrectly, could be potentially hazardous to human health and to the environment. They are, however, essential for the correct functioning of your appliance. Please do not therefore dispose of it with your domestic waste.
Please dispose of it at your local community waste collection / recycling centre, or contact your dealer for advice.
Ensure that it presents no danger to children while being stored for disposal.
Notes on Delegated Regulation (EU) No. 665/2013 and 666/2013
This vacuum cleaner is a general purpose vacuum cleaner.
The adjustable floorhead supplied is designed, when set to the carpet setting, for intensive vacuuming of carpets as described in Delegated Regulation (EU) No. 665/2013 and 666/2013.
The hard floorbrush, if supplied, is designed for intensive vacuuming of hard floors with gaps and crevices as described in the above regulations. If this is not supplied with your vacuum cleaner, use the adjustable floorhead supplied in the hard floor setting for intensive cleaning of hard floors with gaps and crevices as described in the above regulations.
Illustrations
The illustrations referred to in the text are shown on the fold-out pages at the end of these operating instructions.
Preparing for use
Attach the suction tube (dia. 01)
Fit the suction tube with the square hole facing upwards into the body of the vacuum cleaner and twist gently until it clicks into place.
To detach the suction tube
Press the release button (see detail) and pull off the tube with a gentle twist.
Connect the handle to the suction tube (dia. 02)
Fit the handle with the square hole facing upwards into the tube and twist gently until it clicks into position.
To detach the handle from the suction tube, press the release button and pull the handle out of the suction tube, twisting it slightly as you do so.
The handle can also be fitted directly to the body of the vacuum cleaner (dia. 03).
The vacuum cleaner is then easier to use, e.g. when vacuuming mattresses, upholstery etc.
Attach the standard floorhead / hard floorbrush (dia. 04)
- Attach the floorhead / floorbrush to the vacuum cleaner connection stub and twist gently until it clicks into position.
To detach the floorhead or floorbrush, press the release button and pull the vacuum cleaner away from the floorhead twisting it slightly as you do so.
The suction tube can also be attached to the vacuum cleaner connection stub (dia. 05). This is useful for vacuuming underneath low furniture, for example.
Winding up the mains cable (dia. 06)
When the vacuum cleaner is not in use the cable can be wound around the two cable hooks.
Secure the cable by clamping the plug to the cable (see detail).
Using the accessories supplied (dia. 07)
① Accessory clip
② Crevice nozzle
③ Upholstery nozzle
Accessory clip (dia. 08)
depending on model)
If required, attach the accessory clip to the suction tube.
Push the accessory clip down over the cable hook ring until it clicks into position.
The accessory clip holds the accessories (dia. 09).
Some models are supplied as standard with one of the following accessories which are not illustrated.
- Electrobrush
-Turbobrush
These are supplied with their own operating instructions.
Use
Unwind the mains cable (dia. 10)
The lower cable hook swivels round.
Turn it upwards so that the cable can be removed easily.
To adjust the telescopic tube (dia. 11)
depending on model)
One part of the telescopic tube is packed inside the other and can be adjusted to suit your height for comfortable vacuum cleaning.
Press the release button to release the tubes and adjust to the required height.
Switch the vacuum cleaner on (dia. 12)
Plug the vacuum cleaner into a suitable switched socket.
- When vacuuming hang the cable over the cable hook on the handle (see detail).
This way the mains cable will not get in the way during vacuuming. This also takes the strain off the cable-entry on the vacuum cleaner.
Switching on and off (dia. 13 + 14)
There are two separate switches on the carrying handle to enable the vacuum cleaner to be conveniently operated in any vacuum-cleaning situation.
Double slide switch
0 = Vacuum cleaner is switched off
min. = Reduced suction
max. = Maximum suction
Select min. for vacuuming lightweight items such as curtains or rugs.
Select max. if using a turbobrush.
To switch the vacuum cleaner on, slide either switch to max.
To switch the vacuum cleaner off, push the slide switch to 0 until it clicks.
Using the hard floorbrush
depending on model)
Please observe the flooring manufacturer's cleaning and care instructions.
This hard floorbrush is especially suitable for vacuuming floors with deep gaps and crevices, e.g. old wooden flooring.
To adjust the floorhead (dia. 15 + 16)
This vacuum cleaner can be used for daily cleaning of carpets, rugs and robust hard flooring.
Miele offer a range of other floorheads, brushes and accessories for other types of flooring and special requirements (see "Optional accessories").
Please observe the flooring manufacturer's cleaning and care instructions.
Vacuum carpets and rugs with the brush retracted:
Press the foot control.
Clean hard flooring which is not susceptible to scratching, as well as flooring with gaps or deep crevices in it with the brush protruding:
Press the foot control.
Setting down and storing the vacuum cleaner
There is a non-slip end cap on the handle. The vacuum cleaner can be leaned upright against a wall or furniture during pauses in vacuuming or when storing it (dia. 17).
Before leaving the vacuum cleaner make sure it is switched off and if you lean it against a wall make sure it is at a safe angle so that it cannot fall over.
When using a floorbrush we recommend that you hang the vacuum cleaner up when storing it to protect the bristles.
For longer term storage, the vacuum cleaner can also be hung on a wall hook using the hook on the handle (dia. 18).
Maintenance
Always disconnect the vacuum cleaner from the electrical supply for maintenance work and for cleaning. Switch off at the wall socket and unplug it.
The Miele filtration system consists of three components (dia. 19):
① Dustbag
② Dust compartment filter (for motor protection)
③ Exhaust filter
These will need to be replaced from time to time to ensure that your vacuum cleaner performs efficiently.
We recommend only using genuine dustbags, filters and accessories with the "Original Miele" logo on them. This will ensure that the suction power of the vacuum cleaner is maintained, giving the best possible cleaning results.
Dustbags with the "Original Miele" logo on them are not made from paper or paper-based materials and nor do they have a cardboard collar. This is why our dustbags are particularly long-lasting and reliable.
Please note that appliance faults and damage originating from the use of accessories which do not carry the "Original Miele" logo will not be covered by the appliance guarantee.
Purchasing new dustbags and filters
Original Miele dustbags and filters can be ordered from Miele, your Miele dealer or online at:
www.miele-shop.com
Ordering the correct dustbags and filters
Only use original Miele K/K dustbags with a yellow collar and original Miele filters. These are identified by the "Original Miele" logo on the packaging or directly on the dustbag.
ORIGINAL Miele
An Air Clean filter and a dust compartment filter are supplied with every packet of Miele dustbags.
These can also be purchased separately from your Miele Dealer, from Miele or from the online shop. Please quote the model number of your vacuum cleaner when ordering to make sure you get the correct filter.
When to change the dustbag (dia. 20)
Change the dustbag when the colour marker in the dustbag change indicator turns red, or sooner if it is no longer effective (see possible reasons for this below).
Miele dustbags are disposable and designed for single use only. Dis- pose of the dustbag when full. Do not attempt to reuse. blocked pores in used dustbags will reduce the suction power of the vacuum cleaner.
To check the dustbag change indicator
- Attach the standard adjustable floorhead to the vacuum cleaner.
- Switch the vacuum cleaner on and select the highest power setting.
Lift the floorhead off the floor a little.
How the dustbag change indicator works
The dustbag change indicator is set for normal household dust. This generally contains a mixture of dust, hair, threads, carpet fluff, grit etc.
However, if the cleaner has been used to vacuum up fine dust, such as plaster, brick dust, cement or flour, the pores of the dustbag will become blocked very quickly.
This affects the air permeability of the bag, and the marker will indicate that the bag is "full" even when it is not. If this happens you must still change the dustbag because suction power will be greatly reduced by blocked pores in the dustbag.
If, on the other hand, a large amount of hair and carpet fluff which typically contains a lot of air is vacuumed up, the indicator may fail to react even though the bag is full. You should still change it. Both these extremes can occur.
How to replace the dustbag (dia. 21, 22 + 23)
Press the dust compartment release catch and raise the lid.
Holding the bag by the collar, lift it away from the suction socket and then pull it out of its holder.
The dustbag has a closing flap which closes automatically when the dustbag is removed from the vacuum cleaner to prevent any dust escaping.
Fit the new dustbag into the yellow holder as far as it will go. Leave it folded up when you take it out of the box.
It should be unfolded as far as possible in the dust compartment.
- Close the dust compartment lid securely, making sure it clicks into position. Take care not to trap the dust-bag when doing so.
The lid will not close without a dustbag in place. Do not force it!
When to change the dust compartment filter (for motor protection)
Replace this filter every time you start a new packet of dustbags. A dust compartment filter is supplied with every packet of Miele dustbags.
How to change the dust compartment filter (dia. 24)
Open the dust compartment lid.
Unclip the yellow filter frame, remove the old filter and replace with a new one.
- Close the filter frame making sure the catch engages.
- Close the dust compartment lid making sure it clicks into position.
When to replace the exhaust filter
Depending on model, your vacuum cleaner will be fitted as standard with one of the following exhaust filters (dia. 25):
a AirClean
Replace this filter every time you start a new packet of Miele dustbags. An AirClean exhaust filter is supplied with every packet of Miele dustbags.
b Active AirClean
c AirClean+
These types of filter need to be changed approx. once a year. Make a note of the date on the filter.
How to replace the AirClean filter (dia. 26, 27 + 28)
Do not use more than one exhaust filter at a time.
Press the button on the rear of the vacuum cleaner and remove the lid.
- Grasp the used AirClean filter by the clean, unsoiled section and take it out.
Replace it with a new AirClean filter.
If you wish to fit an Active AirClean or AirClean + filter please see "Replacing one type of exhaust filter with another".
Put the lid back on and close it.
How to replace an Active AirClean filter or an AirClean+ filter (dia. 29 + 30)
Do not use more than one exhaust filter at a time.
Press the button on the rear of the vacuum cleaner and remove the lid (dia. 26).
Take out the used Active AirClean or AirClean+ filter.
Insert a new Active AirClean or AirClean+ filter.
If you wish to fit an AirClean filter, see "Replacing one type of exhaust filter with another".
Put the lid back on and close it.
Replacing one type of exhaust filter with another
Depending on model, your vacuum cleaner will be fitted as standard with one of the following exhaust filters (dia. 25).
a AirClean
b Active AirClean (SF-AAC 10)
c AirClean+ (SF H 10)
You can replace the filter supplied with the vacuum cleaner with one of the other filters listed above.
Do not use more than one exhaust filter at a time.
When changing the filter please note: (dia. 31)
- If you wish to replace exhaust filter a with filter b or c, it is essential that you remove the filter grille from the lid before you fit the new exhaust filter.
- If you wish to replace exhaust filter b or c with filter a, it is essential that you also fit the filter grille * in the lid.
- Filter grille - see "Optional accessories".
To remove or insert the filter grille (dia. 31)
- Grasp inside the hexagons in the filter grille in the positions shown by the arrows and squeeze slightly. The grille can then be removed or inserted.
When to change the thread lifters
The thread lifters on the suction inlet to the floorhead can be replaced. Check them from time to time and replace them if the pile has worn down.
How to replace the thread lifters (dia. 32)
Use a suitable screwdriver to remove the thread lifters from the slots.
Fit new thread lifters.
Cleaning the roller on the AllTeQ floorhead (dia. 33)
① Release the bearing (with bayonet fitting) using a coin.
② Press the bearing out, and remove.
③ Remove the roller.
- Remove any threads and hair, replace the roller and refit the bearing, locking it back into position.
Replacement parts are available from your Miele Dealer or from Miele (see end of booklet for contact details).
Cleaning and care
Always disconnect the vacuum cleaner from the electrical supply before cleaning it. Switch off at the wall socket and unplug it.
Vacuum cleaner and accessories
The vacuum cleaner and all plastic accessories can be cleaned with a proprietary cleaner suitable for plastic.
Do not use abrasive cleaning agents, glass cleaning agents, all-purpose cleaners or oil-based conditioning agents.
Dust compartment
The dust compartment can, if necessary, be cleaned using a dry duster, brush or, if available, a second vacuum cleaner to vacuum the dust out.
Do not let the vacuum cleaner get wet. If moisture gets into the appliance, there is a risk of electric shock.
Problem solving guide
| Problem Cause and remedy | |
| The vacuum cleaner switches off automatically. | A temperature limiter switches the vacuum cleaner off automatically if it gets too hot. This can occur if, for instance, large articles block the suction tube or when the dustbag is full or contains particles of fine dust. A heavily soiled exhaust or dust compartment filter can also be the cause of overheating. ■ Always disconnect the vacuum cleaner from the electrical supply for maintenance work and for cleaning. Switch off at the wall socket and unplug it. After removing the cause, wait for approximately 20 - 30 minutes to allow the vacuum cleaner to cool down. It can then be switched on again. |
After sales service
In the event of a fault that you cannot easily remedy, please contact your Miele Dealer or Miele (see end of booklet for contact details).
Please note that telephone calls may be monitored or recorded for training purposes (UK only).
Guarantee
The appliance is guaranteed for a period of 2 years from the date of purchase. In the UK you must activate your cover by calling 0330 160 6640 or registering online at www.miele.co.uk.
For information on the appliance guarantee specific to your country please contact Miele. See end of booklet for contact details.
Optional accessories
Certain models are supplied as standard with one or more of the following accessories.
Please observe the flooring manufacturer's cleaning and care instructions.
You can order these and many other products on the internet at:
They can also be purchased from your Miele Dealer or from Miele.
Electrobrushes
Electrobrushes can only be connected to a vacuum cleaner which has an Electrobrush socket.
Electrobrush Electro Comfort (SEB 217)
This Electrobrush is particularly suitable for intensive vacuuming of carpets which are subject to hard wear. It is very effective at removing deep seated dirt and preventing areas of frequent use being trodden into a path.
Electrobrush Electro Premium (SEB 236)
In comparison to the SEB 217 this Electrobrush is 60~mm wider and is also more powerful, making it particularly suitable for cleaning large areas.
It has the following additional features compared to the SEB 217:
- the height can be adjusted to suit different depths of carpet pile,
- LED lighting to illuminate the floor in front of it,
- a multi-function indicator light.
Floorheads / brushes
Classic Allergotec floorhead (SBDH 285)
This floorhead is suitable for daily hygienic cleaning of all floor surfaces. The level of cleanliness of the floor shows in a colour "traffic light" display when vacuuming.
Turbo Comfort turbobrush (STB 205)
This brush is ideal for cleaning cut pile carpet.
Hard floor floorbrush (SBB 235)
This brush is designed for use on hard flooring such as tiled or stone floors.
Parquet floorbrush (SBB Parquet)
(only available in selected countries)
This brush has natural bristles and is designed for use on smooth floors that are susceptible to scratching
Other accessories
Turbo Mini Compact turbobrush (STB 20)
For vacuuming upholstery, mattresses or car seats etc.
Universal brush (SUB 20)
(only available in selected countries)
For dusting books, shelves, etc.
Radiator brush (SHB 30)
For dusting radiators, narrow shelves and crevices.
Mattress nozzle (SMD 10)
For vacuuming upholstery, mattresses, cushions, curtains, covers etc.
Crevice nozzle, 300mm (SFD 10)
Extra long crevice nozzle for cleaning in folds, crevices and corners.
Crevicenozzle, 560~mm (SFD 20)
Flexible crevice nozzle for vacuuming hard to reach places.
Upholstery nozzle, 190 mm (SPD 10)
Extra wide upholstery nozzle for cleaning upholstered furniture, mattresses and pillows.
Dusting brush
For vacuuming skirting boards, carved furniture or ornaments.
Dusting brush with natural bristles (SSP 10)
(only available in selected countries)
For dusting particularly delicate items.
Accessory clip
For storing the accessories supplied (crevice nozzle and upholstery brush)
Cylinder vacuum cleaner accessories
Cylinder vacuum cleaner accessories can be attached to the suction tube on your vacuum cleaner to give greater versatility.
This can enable you to reach high up areas, e.g. the tops of door frames, bookshelves, curtains, etc. and also reach underneath low items of furniture such as wardrobes and beds.
Please quote the model number of your vacuum cleaner when purchasing cylinder vacuum cleaner accessories.
Filters
Active AirClean exhaust filter (SF-AAC-10)
Absorbs odours caused by the dirt in the dustbag.
AirClean+ exhaust filter (SF H 10)
Excellent filtration level for very clean exhaust air. This filter is particularly suitable for allergy sufferers.
Filter grille
The filter grille is required if you wish to use an AirClean filter instead of an Active AirClean or AirClean+ filter.
Electrical connection for the UK
All electrical work should be carried out by a suitably qualified and competent person in strict accordance with current national and local safety regulations (BS 7671 in the UK). The voltage and frequency are given on the data plate located underneath the vacuum cleaner. Please ensure that these match the household mains supply. The fuse rating is quoted on the plug. The appliance is supplied with a cable and moulded plug ready for connection to a 230-240 V/50 Hz a.c. single phase supply.
Non-rewireable plugs BS 1363
The fuse cover must be re-fitted when changing the fuse, and if the fuse cover is lost the plug must not be used until a suitable replacement is obtained. The colour of the correct replacement cover is that of the coloured insert in the base of the plug, or the colour that is em
bossed in words on the base of the plug, (as applicable to the design of plug fitted). Replacement fuses should be ASTA approved to BS1362 and have the correct rating. Replacement fuses and fuse covers may be purchased from your local electrical supplier.
Electrical connection AU, NZ
All work should be carried out by a suitably qualified and competent person in strict accordance with national and local safety regulations. The voltage and rated load are given on the data plate located underneath the vacuum cleaner. Please ensure that these match the household mains supply. The fuse rating is quoted on the plug. The appliance is supplied with a cable and moulded plug ready for connection to a 230V/50Hz AC single phase supply.
Test Marks Electrical safety
RCM Mark
Electrically sup
pressed
AS/NZSCISPR
according to
14.1
(croquis 26, 27 + 28)
Controle of de stofcassette vol is
Fairacres, Marcham Road
Abingdon, Oxon, OX14 1TW
Customer Contact Centre Tel: 0330 160 6600
E-mail: mielecare@miele.co.uk
Internet: www.miele.co.uk
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
1 Gilbert Park Drive, Knoxfield, VIC 3180
Tel: 1300 464 353
Internet: www.miele.com.au
China
Miele (Shanghai) Trading Ltd.
1-3 Floor, No. 82 Shi Men Yi Road
Jing'an District
200040 Shanghai, PRC
Tel: +86 21 6157 3500, Fax: +86 21 6157 3511
E-mail: info@miele.cn, Internet: www.miele.cn
Miele (Hong Kong) Limited
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1331, Fax: (852)2610 1013
Email: mielehk@miele.com.hk
India
Miele India Pvt. Ltd.
Ground Floor, Copia Corporate Suites
Plot No. 9, Jasola
New Delhi - 110025
Tel: 011-46 900 000, Fax: 011-46 900 001
E-mail: customercare@miele.in, Internet: www.miele.in
Ireland
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus, Dublin 24
Tel: (01) 461 07 10, Fax: (01) 461 07 97
E-Mail: info@miele.ie, Internet: www.miele.ie
Manufacturer: Miele & Cie. KG
Carl-Miele-StraBe 29, 33332 Gutersloh, Germany
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana Petroleum
Solaris Dutamas No. 1, Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
New Zealand
Miele New Zealand Limited
IRD 98 463 631
Level 2, 10 College Hill
Freemans Bay, Auckland 1011, NZ
Tel: 0800 464 353
Internet: www.miele.co.nz
Singapore
Miele Pte. Ltd.
163 Penang Road
04-03 Winsland House II
Singapore 238463
Tel: +65 6735 1191, Fax: +65 6735 1161
E-Mail: info@miele.com.sg
Internet: www.miele.sg
South Africa
Miele (Pty) Ltd
63 Peter Place, Bryanston 2194
P.O. Box 69434, Bryanston 2021
Tel: (011) 875 9000, Fax: (011) 875 9035
E-mail: info@miele.co.za
Internet: www.miele.co.za
United Arab Emirates
Miele Appliances Ltd.
P.O.Box 114782
Gold & Diamond Park, Sheikh Zayed Road
Building 6 / Offices Nos. 6-214 to 6-220
Dubai
Tel: +971-4-341 84 44
Fax: +971-4-341 88 52
