Product Type	In-Ear Headphones
Brand	MTX Audio
Model	iE5
Sensitivity	117 dB (1 mW)
Impedance	16 Ω
Frequency Response	10 Hz - 25,000 Hz
Speakers	2 x 10 mm
Cable Type	Flat Tangle-Free
Connector	3.5 mm Aluminum Jack Plug
Earpiece Material	Aluminum
Remote and Microphone	Yes, universal compatible with Apple and Android
Left/Right Identification	Marked 'L'/'R' and tactile dot on left cable
Included Accessories	Carrying case
Remote Control Functions	Play/pause, answer/hang up, next/previous track, Siri (Apple)
Compatibility	Apple and Android devices
Safety Recommendations	Limited sound exposure according to table (90 dB max 8 h/day, etc.)
Technical Support	USA/Asia/Australia: mtx.com ; Europe/Africa: mtxaudio.eu
Usage	Music, phone calls
Weight	Not specified
Dimensions	Not specified

Frequently Asked Questions - iE5 MTX Audio

How to differentiate the left earbud from the right earbud?

The letters 'L' (left) and 'R' (right) are printed on the cable exits. Additionally, a tactile dot is present on the inner side of the left cable, noticeable even in the dark. The earbuds are asymmetrical: the MTX logos should be facing outward.

How to use the integrated remote control?

The remote allows you to control playback and calls. In phone mode: one press answers, a second hangs up. In music player mode: one press pauses/plays, two presses skip to the next track, three presses go back. On Apple devices, a long press activates Siri.

Are my earphones compatible with an Android or Apple smartphone?

Yes, the remote microphone is universal and compatible with all Apple and Android devices.

Does the cable tangle easily?

No, the cable is flat and tangle-free, designed to stow without knotting. You can take it out of the case or your pocket without wasting time untangling.

What are the main technical specifications of the iE5?

Sensitivity: 117 dB (1 mW), impedance: 16 Ω, frequency response: 10 Hz - 25,000 Hz, speakers: 2x 10 mm.

What sound level is considered safe with these earphones?

To protect your hearing, follow the maximum exposure durations recommended by the US Department of Labor: 90 dB (8 hours/day), 92 dB (6 h), 95 dB (4 h), 97 dB (3 h), 100 dB (2 h), 102 dB (90 min), 105 dB (60 min), 110 dB (30 min), 115 dB (15 min). Above 120 dB, immediate danger.

How to contact customer service or technical support?

For any questions, warranty or support: in USA, Asia, Australia and RSA, visit mtx.com. For Europe, Middle East and Africa, visit mtxaudio.eu.

Is the microphone built-in?

Yes, the microphone is integrated into the lightweight remote, allowing you to take calls and use commands without taking out your phone.

Can I get a manual translated into another language?

Yes, on the site notice-facile.com, you can request a translation of the manual by choosing your language and providing your email address. You will receive a specifically translated version.

How to maintain and clean the iE5 earphones?

Use a soft dry cloth to clean the earphones and cable. Avoid liquids and harsh products. Store them in the provided carrying case to protect them.

USER MANUAL iE5 MTX Audio

mfx.com - mfxaudio.eu

High Performance, Enhanced Bass, Noise Isolation In-Ear Headphones

iE5

Thank you for purchasing the MTX Audio iE5 high performance, enhanced bass, noise isolation in-ear headphones. The iE5 is designed to add a deeper dimension and bring your music to life no matter where you are. Whether you are listening to your portable music device, smartphone, or tablet, the iE5 delivers crystal clear sound wherever you are. The iE5 is your newest can't forget headphone. Congratulations for making a smart choice and enjoy the ultimate audio experience with MTX.

Remote and Mic:

The mic+remote control are universal. They are compatible with Apple® and Android® OS. The remote allows user to play/pause music and answer/disconnect phone calls.

Phone mode: Click once to answer an incoming call, and click again to hang up.

Music mode: Click once once for play/pause, click twice to skip forward, click three times to skip back.

With Apple ^® devices, a long push will launch Siri ^® .

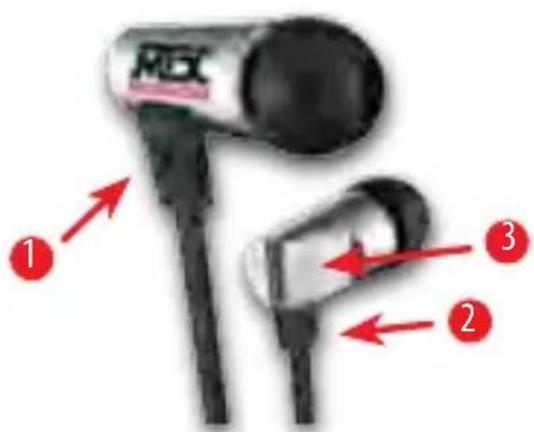

How to Tell Left From Right:

1. "L" and "R" are written on the SR (Strain Relief) under the aluminum body of each headphone.
2. The Left is also equipped with a bump you can feel even in the dark on the inside of the SR.
3. The two headphones are asymmetrical. It is almost impossible to put them the wrong way.

Two identical abstract geometric shapes with vertical and horizontal lines, no text or symbols present.

Speaker Design:

Each speaker utilizes a single 10mm driver to deliver exceptional sound quality and bass.

Flat Tangle Free Cable:

The iE5 audio cable features a flat tangle free design that allows you to remove your iE5 from the carrying case or your pocket without worrying about it being knotted.

Aluminum Headphones and Plugs:

The enclosures and 3.5mm connectors on the audio cables are constructed of durable aluminum providing increased reliability as well as excellent aesthetics.

Durable Protective Carrying Case Included.

Specifications:

Sensitivity : 117dB (1mW)

Impedance : 16Ω

Frequency Response : 10Hz-25000Hz

Speakers 2x 10mm

Play loud, not stupid!

MTX wants you to enjoy your iE5's and your hearing for a long time. Excessive exposure to loud volumes can damage your hearing. The United States Department of Labor recommends not exceeding the following recommendations:

90db : maximum 8 hours / day

92dB : maximum 6 hours / day

95db : maximum 4 hours / day

97db : maximum 3 hours / day

100db : maximum 2 hours / day

102db : maximum 90 minutes / day

105db : maximum 60 minutes / day

110db : maximum 30 minutes / day

115db : maximum less than 15 minutes / day

120db : immediate danger, 0 minutes / day

For support, questions, warranty issues or more informations:

• USA, Asia, Australia and RSA, please visit mtx.com
• Europe, Middle East and Africa, please visit mtxaudio.eu

Two identical abstract geometric shapes with vertical and horizontal lines, no text or symbols present.

Haut-parleurs :

Two identical abstract geometric shapes with vertical and horizontal lines, no text or symbols present.

Two identical abstract geometric shapes with vertical and horizontal lines, no text or symbols present.

Two identical abstract geometric shapes with no text or symbols

Two identical abstract geometric shapes with no text or symbols

Luidspreker Design :

Two identical abstract geometric shapes with vertical and horizontal lines, no text or symbols present.

спикер Дизайн :

Two black and red MEX headphones with earbuds, resting on a textured surface (no visible text or symbols)

High Performance, Enhanced Bass, On-Ear Headphones

iX1

MTX®

STREETAUDIO

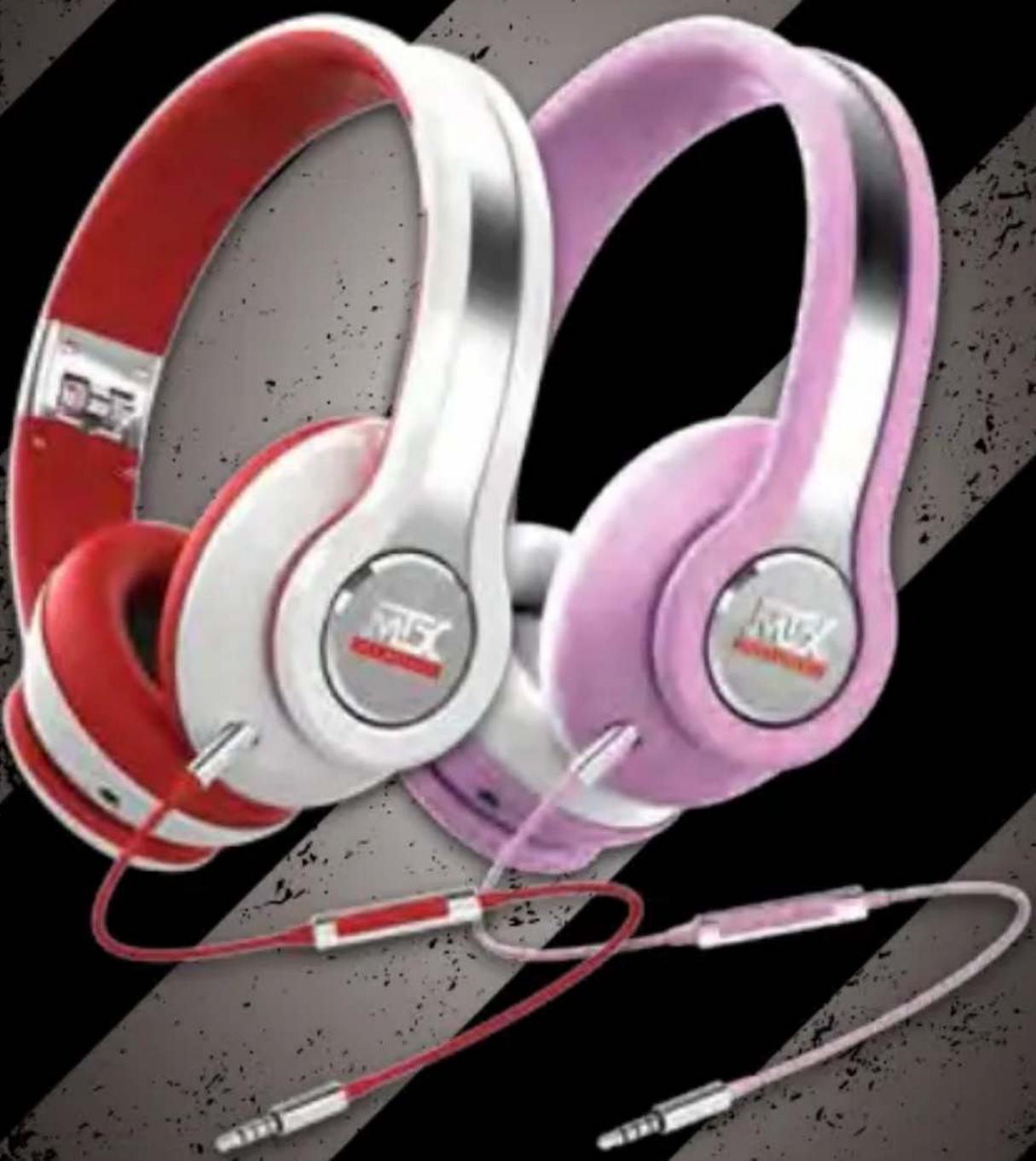

Two colorful headsets (Red and Pink) with black branding, displayed on a reflective surface against a dark background (no text or symbols on the products themselves)

High Performance, Enhanced Bass, On-Ear Headphones

iX1

MTX®

STREETAUDIO

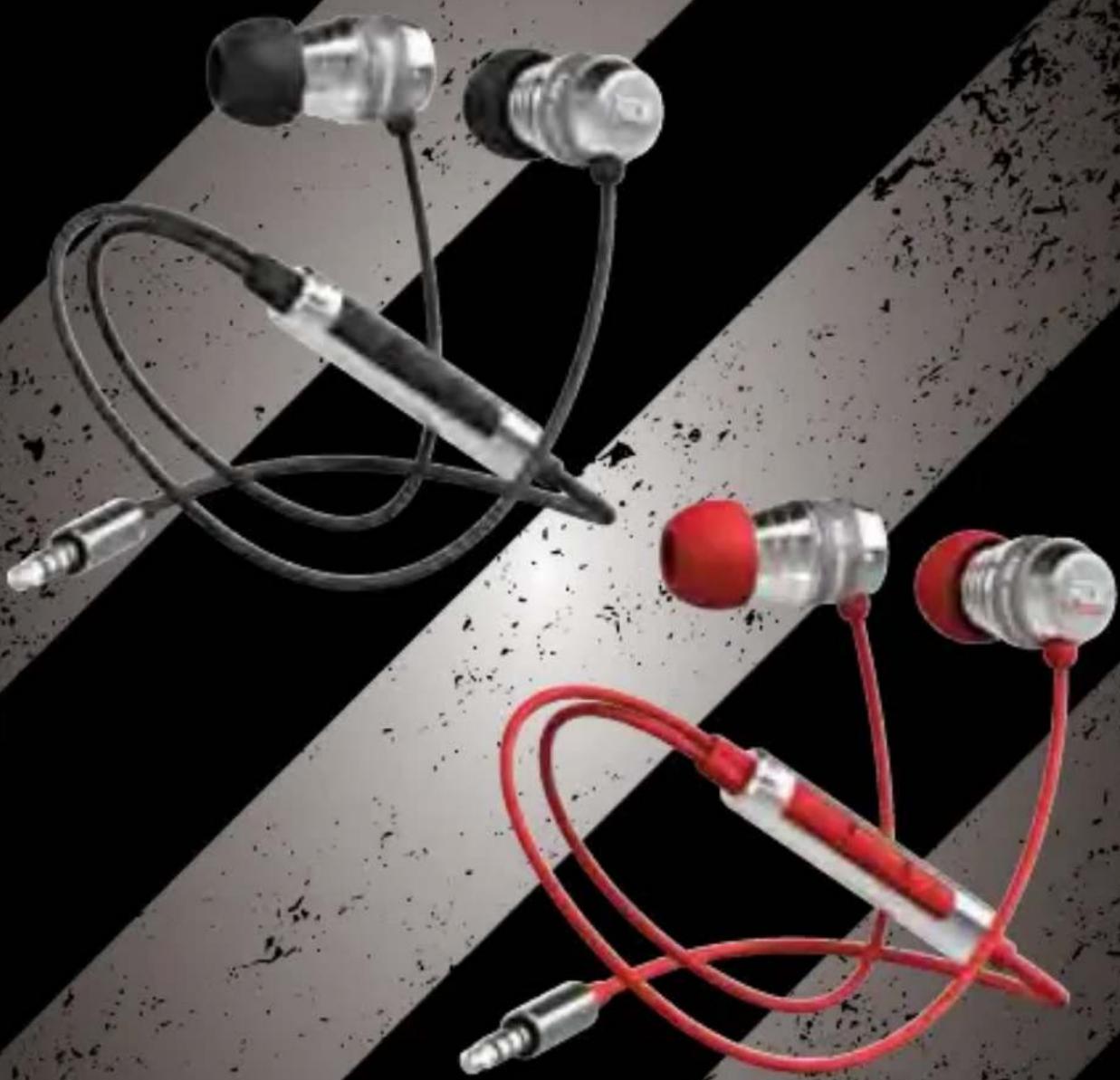

Three types of earbuds with black, red, and metallic connectors against a striped background (no text or symbols visible)

Dual Driver, Noise Isolation, In-Ear Headphones

iX2

MTX®

STREETAUDIO

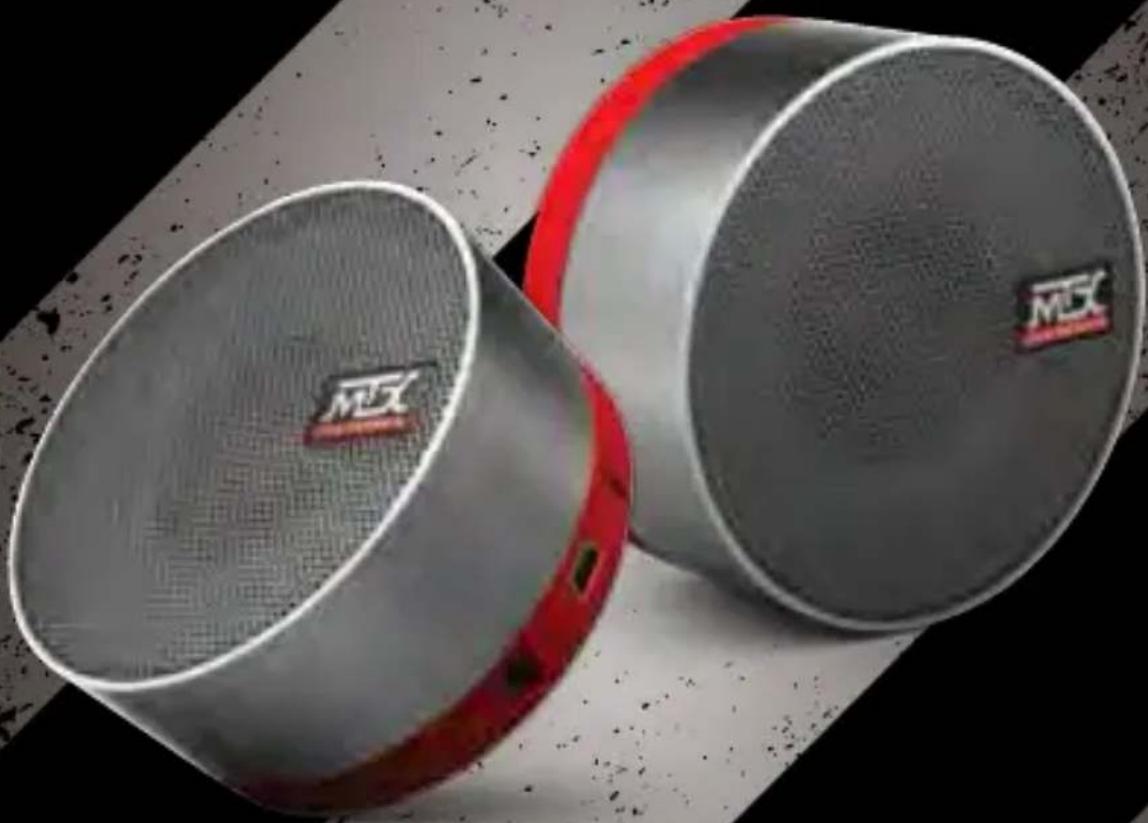

Two metallic cylindrical devices with red accents, one showing a mesh pattern and the other a grid-patterned cover (no visible text or symbols)

ThunderComm Portable Communication and Conferencing Speaker

iP1

MTX is proud to be an American Audio Company.

Circular object displaying the United States flag with stars (no text or symbols)

MTX is a proud member of Mitek Corp high quality consumer audio product lines.

MiTek

Corporation

Designed and Engineered by Mitek in Phoenix - AZ, USA.

Made in China.

© 2014 Mitek. All rights reserved.

MTX is a registered trademark of Mitek Corporation.

Due to continual product development, all

specifications are subject to change without notice.

Mitek - MTX

4545 East Baseline Rd. Phoenix, AZ 85042, USA
