USER MANUAL PR190 Ricatech

When using electrical products, basic precautions should always be followed including:

1- Read Instructions - All the safety and operating instructions should be read before the product is operated.
2- Heed instructions-All warming on the product and in the operating instructions should be adhered to.
3- Follow instructions-All operating and use instructions should be followed.
4- Cleaning-Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.Use a damp cloth for cleaning.
5- Attachments-Do not use attachments not recommended by the product manufacturer as they may cause hazards.
6- Water and Moisture -Do not use this product near water-for example, near a bath, tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
7- Accessories-Do not place this product on an unstable cart,stand,tripod,bracket,or table.The product may fall,causing serious injury to a child or adult and serious damage to the product.Use only with a cart,stand,tripod,bracket,or table recommended by the manufacturer,or sold with the product.Any mounting of the product should follow the manufacturer's instructions,and should use a mounting accessory recommended by the manufacturer.
8- A product and cart combination should be moved with care. Quick stops, excessive force.and uneven surfaces may cause the product and cart combination to overturn.
9- Ventilation-Slots and openings in the cabinet are provided for

ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa rug, or similar surface. This product should not be placed in a built-in installation such as a bookcase of rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10-Power Sources- This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
11-Power-cord Protection-Power -supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
12-Lightning -For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power -line surges.
13-Overloading-Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
14-Object and Liquid Entry-Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short - out parts that could result in a fire or electric shock.Never spill liquid of any kind on the product.
15-Servicing- Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other

hazards.

Refer all servicing to qualified service personnel.

16- Replacement Parts-When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
17- Safety Check-Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
18- Heat-The product should be situated away from heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat.

CAUTION:RISK OF ELECTRIC SHOCK.DO NOT OPEN!!

To reduce the risk of electric shock:do not remove cover(or back).

No user serviceable parts inside.Refer servicing to qualified service personnel.

Before Use

• Choose unit installation location carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avlod locations subject to vibrations and excessive dust, cold or moisture, Keep away from sources that hum, such as transformers or motors.
• Do not open the cabinet as this might result in damage to the circuitry or electrical shock. If a foreign object should get into the set, contact your dealer.
• When removing power plug from the wall outlet always pull directly on the plug, never yank the cord.
• Do not attempt to clean the unit with chemical solvents as this might

damage the finish.Use a clean, dry cloth.

• Keep this manual in a safe place for future reference.

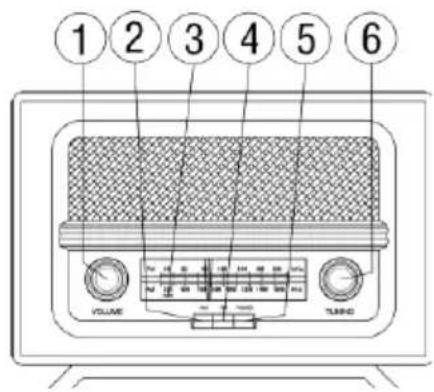

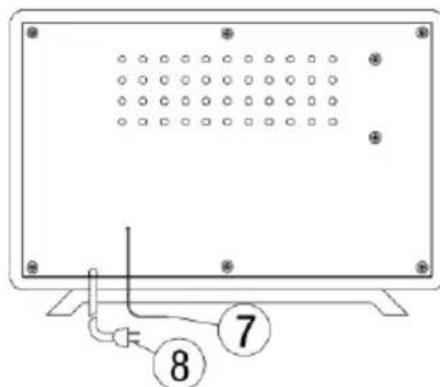

LOCATION OF PARTS

(1) Volume Konb
(2) AM button
(3) FM Stereo Indicator
(4) FM button
(5) Power button
(6) Tuning konb
(7) FM Antenna
(8) Power Cord

RADIO OPERATION

1) Plug the Power Cord(8) into a standard 230V~50HZ outlet.
2) Fully extend the FM Antenna(7) for best reception of FM broadcasting.
3) Rotate the Volume Knob(1) clockwise until it clicks turning the unit on.
4) Select either AM or FM on the AM/FM/Knob by turning it to the right for FM or to the left for AM.
5) Rotate the Frequency Tuning Knob(6) while watching the frequency display to tune to your favourite station.
6) When listening to the AM bandwidth rotate the unit horizontally for

best reception.

TO turn the radio off

Set the VOLUME(1) to Off.

TROUBLE SHOOTING GUIDE

The unit does not operate

The Power Cord (8) is not properly connected to a power outlet.

The unit is not turned on: Rotate the VOLUME Knob(1) from the OFF position past the click to turn on the unit.

Cannot listen to any station.

The FM station you selected will not come in clearly

Move the antenna until reception improves.

Make a minor adjustment to the Frequency Tuning Knob(6)

SPECIFICATIONS

Power Source. 230V~50HZ

Power Consumption. 12W

Output Power 1.5W*2

Speakers 3"Dynamic Type

Radio Frequency Coverage

AM. 530-1600KHZ

FM. 88-108MHZ

Unit

Dimension. 312(L)X148(W)X215(H)MM

Net Weight. 2.85KG

Marks: The manufacturer reserves the right to amend the specification without prior notice.

Customer support

You can contact the Ricatech customer service when you have a question or a problem with your Ricatech product. You can contact us by telephone and email.

Email

For customer support by email, please sent a email to [e-mail] Please make sure that you mention the model number and serial number of the product, mention your name & address and describe your question or problem clearly.

Telephone

For customer support by telephone, please dial [phone]. One of our service staff will be ready to serve you. For full procedure please visit the website of Ricatech at: www.ricatech.com

Ricatech B.V.

Cornusbaan 1

2908 KB Capelle a/d LJssel

The Netherlands
