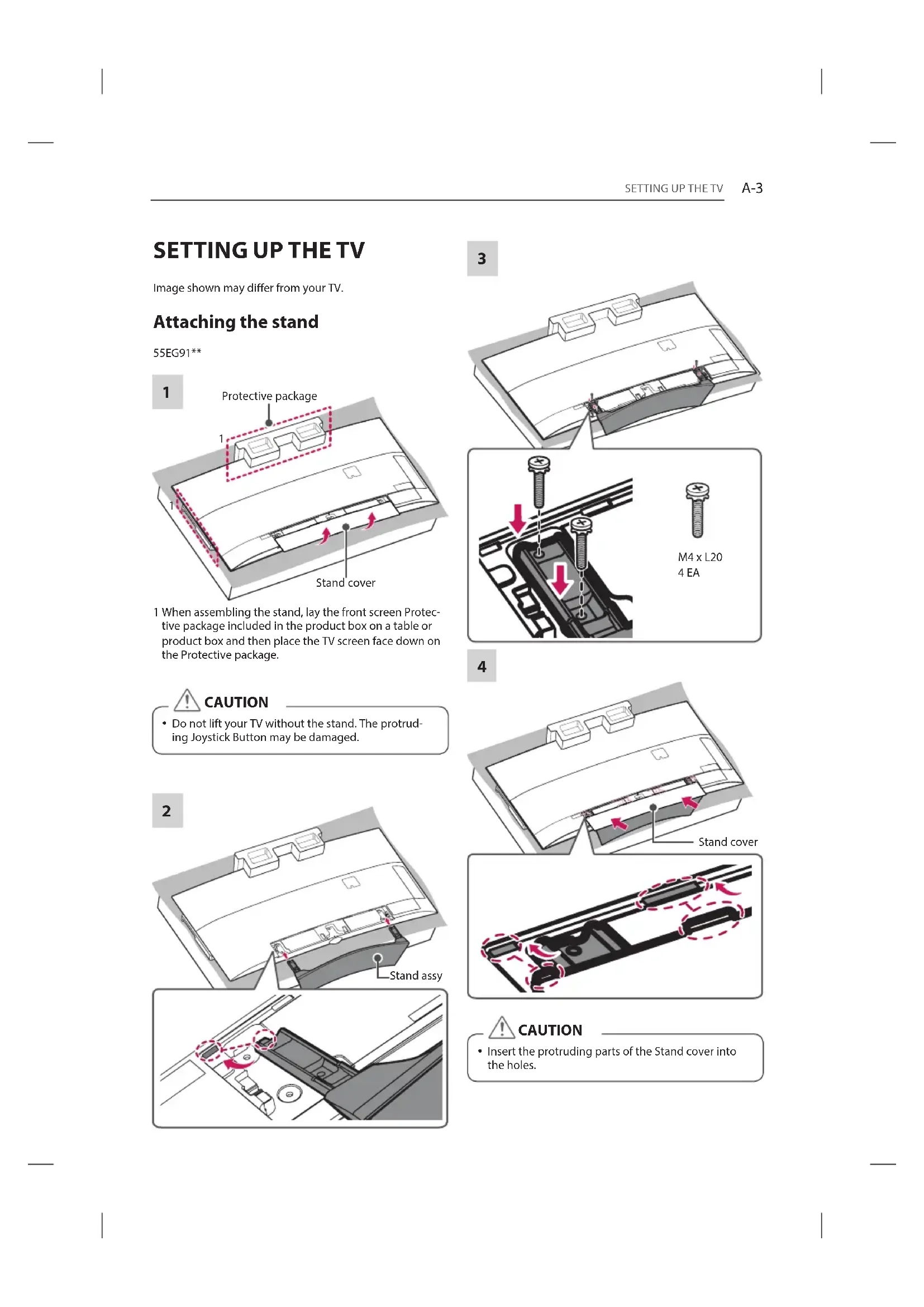

A-3 SETTING UP THE TV

Image shown may dier from your TV. Attaching the stand 55EG91**

Stand cover Protective package 1 When assembling the stand, lay the front screen Protec- tive package included in the product box on a table or product box and then place the TV screen face down on the Protective package.

Do not lift your TV without the stand. The protrud- ing Joystick Button may be damaged. CAUTION

Insert the protruding parts of the Stand cover into the holes. CAUTIONA-4

Stand cover Protective package 1 When assembling the stand, lay the front screen Protec- tive package included in the product box on a table or product box and then place the TV screen face down on the Protective package.

Do not lift your TV without the stand. The protrud- ing Joystick Button may be damaged. CAUTION

Cover holder Stand cover

Insert the Cover holder of the Stand cover into the holes until it clicks. Press the Stand cover gently so that the non-woven fabric inside is attached tightly. CAUTIONA-5

Insert the protruding parts of the Stand cover into the holes. CAUTION

Cover holder Stand cover

Insert the Cover holder of the Stand cover into the holes until it clicks. Press the Stand cover gently so that the non-woven fabric inside is attached tightly. CAUTION 65EG96**

Protective package 1 When assembling the stand, lay the front screen Protec- tive package included in the product box on a table or product box and then place the TV screen face down on the Protective package.

Do not lift your TV without the stand. The protrud- ing Joystick Button may be damaged. CAUTION

Cover holder Stand cover

Insert the Cover holder of the Stand cover into the holes until it clicks. Press the Stand cover gently so that the non-woven fabric inside is attached tightly. CAUTION

Insert the protruding parts of the Stand cover into the holes. CAUTIONA-7

Do not lift your TV without the stand. The protrud- ing Joystick Button may be damaged.

Insert the protruding parts of the Stand cover into the holes. CAUTIONA-8

Cover holder Stand cover

Insert the Cover holder of the Stand cover into the holes until it clicks. CAUTION 65EF95**

Do not lift your TV without the stand. The protrud- ing Joystick Button may be damaged.

Insert the protruding parts of the Stand cover into the holes. CAUTION

Cover holder Stand cover

Insert the Cover holder of the Stand cover into the holes until it clicks. CAUTION

Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse. NOTE

When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly. CAUTIONA-10

SETTING UP THE TV / MAKING CONNECTIONS

MAKING CONNECTIONS This section on MAKING CONNECTIONS mainly uses diagrams for the EG9609 models. Antenna connection Wall antenna socket (*Not provided) English Connect the TV to a wall antenna socket with an RF cable (75 Ω).

The external device connection may differ from the model.

Use a signal splitter to use more than 2 TVs.

If the image quality is poor, install a signal amplifier properly to improve the image quality.

If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.

An antenna cable and converter are Not provided.

For a location that is not supported with ULTRA HD broadcasting, this TV cannot receive ULTRA HD broadcasts directly. (Depending on model) NOTE Tidying cables Image shown may dier from your TV. Gather and bind the cables with the cable holder. Cable holder

O - Support 4K @ 50/60 Hz (4:2:0) If the device connected to Input Port also supports ULTRA HD Deep Colour, your picture may be clearer. However, if the device doesn’t support it, it may not work properly. In that case, connect the device to a dierent HDMI port or change the TV’s HDMI ULTRA HD Deep Colour setting to O. (This feature is available on certain models which are supported ULTRA HD Deep Colour only.) HDMI connection (Only EG91**) HDMI (*Not Provided) DVD / Blu-Ray / PC / HD Cable Box / HD STBA-15 MAKING CONNECTIONS

The external device connection may differ from the model.

It is recommended to use the TV with the HDMI connection for the best image quality.

Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function.

High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.

An external audio device that supports SIMPLINK and ARC must be connected using HDMI/DVI IN 3 (ARC) or HDMI(4K @ 60 Hz)/DVI IN 2 (ARC) port.

When connected with a high-speed HDMI cable, the external audio device that supports ARC outputs optical SPDIF without additional optical audio cable and supports the SIMPLINK function. Deutsch

AV2( Audio in) (*Not provided) DVD / Blu-Ray / PC / HD Cable Box / HD STB English Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown. To transmit an audio signal, con- nect an audio cable.

Depending on the graphics card, DOS mode may not work if a DVI-HDMI cable is in use.

Ko uporabljate kabel DVI-HDMI, je podprta le ena povezava. OPOMBAA-21 MAKING CONNECTIONS English Transmits analogue video and audio signals from an exter- nal device to the TV. Connect the external device and the TV with a component gender cable as shown.

VIDEO RED RED RED WHITE WHITE WHITE YELLOW YELLOW YELLOW YELLOW (Use the composite gender cable provided.) (*Not provided) DVD / Blu-Ray / HD Cable Box / VCR English Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown.A-23 MAKING CONNECTIONS Headphone connection (Only EG96**, EF95**) (*Not provided) English Transmits the headphone signal from the TV to an external device. Connect the external device and the TV with the headphone as shown.

AUDIO menu items are disabled when connecting a headphone.

Optical Digital Audio Out is not available when connecting a headphone.

Headphone impedance: 16 Ω

Max audio output of headphone: 0.627 mW to 1.334

Μέγεθος υποδοχής ακουστικών: 0,35 cm ΣΗΜΕΙΩΣΗA-25 MAKING CONNECTIONS Audio connection OPTICAL AUDIO IN (*Not provided) Digital Audio System English You may use an external audio system instead of the built- in speaker. Digital optical audio connection Transmits a digital audio signal from the TV to an external device. Connect the external device and the TV with the optical audio cable as shown.

Do not look into the optical output port. Looking at the laser beam may damage your vision.

Some USB Hubs may not work. If a USB device connected through a USB Hub is not detected, connect it to the USB IN port on the TV directly.

Connect the external power source if your USB is needed.

English View the encrypted (pay) services in digital TV mode.To watch pay services, you need to subscribe and get CI/CI+ card from pay TV operator. This feature depends on pay TV operator.

Check if the CI module is inserted into the PCMCIA CARD SLOT in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA CARD SLOT.

(Use the Scart gender cable provided - Depending on model.) (*Not provided) English Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the Scart gender cable as shown. Output Type Current input mode AV1 (TV Out

Any Euro scart cable used must have a signal shield.

When watching digital TV in 3D imaging mode, only 2D out signals can be output through the SCART cable.

Pri uporabi funkcije Time Machine pri digitalni televiziji izhodnih signalov monitorja ni mogoče oddajati po kablu SCART. OPOMBAA-35 MAKING CONNECTIONS English Connect various external devices to the TV and switch input modes to select an external device. For more infor- mation on external device’s connection, refer to the manual provided with each device. Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

The external device connection may differ from the model.

Connect external devices to the TV regardless of the order of the TV port.

If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.

Refer to the external equipment’s manual for operating instructions.

If you connect a gaming device to the TV, use the cable supplied with the gaming device.

In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.

In PC mode, some resolution settings may not work properly depending on the graphics card.

SETUP 4 SAFETY INSTRUCTIONS

20 Lifting and moving the TV 21 Mounting on a table 22 Mounting on a wall

23 MAGIC REMOTE FUNCTIONS

25 Registering magic remote 25 How to use magic remote 26 Precautions to Take when Using the Magic Remote

If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death. CAUTION

If you ignore the caution message, you may be slightly injured or the product may be damaged. NOTE

The note helps you understand and use the product safely. Please read the note carefully before using the product.3

ENGLISH ENGLISH ENGLISH ENGLISH LICENSES Supported licenses may dier by model. For more information about licenses, visit www.lg.com.

OPEN SOURCE SOFTWARE NOTICE INFORMATION

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. This oer is valid for three (3) years from the date on which you purchased the product.

EXTERNAL CONTROL DEVICE SETUP

To obtain the external control device setup information, please visit www.lg.com.4 ENGLISH ENGLISH SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS Please read these safety precautions carefully before using the product. WARNING

Do not place the TV and/or remote control in the following environments: - A location exposed to direct sunlight - An area with high humidity such as a bathroom - Near any heat source such as stoves and other devices that produce heat - Near kitchen counters or humidifiers where they can easily be exposed to steam or oil - An area exposed to rain or wind - Near containers of water such as vases Otherwise, this may result in re, electric shock, malfunction or product deformation.

Do not place the product where it might be exposed to dust. This may cause a fire hazard.

Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out.

Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.

Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.5 ENGLISH ENGLISH SAFETY INSTRUCTIONS

Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock.

When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock/fire hazard.

Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product. Desiccant

Keep the anti-moisture packing material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

Dispose of used batteries carefully to ensure that a small child does not consume them. Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

Do not put or store inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.6 ENGLISH ENGLISH SAFETY INSTRUCTIONS

Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.

Do not allow any impact, shock or any objects to fall into the unit, and do not drop anything onto the screen. You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.

Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service centre for check, calibration or repair.

If any of the following occur, unplug the product immediately and contact your local service centre. - The product has been impacted by shock - The product has been damaged - Foreign objects have entered the product - The product produced smoke or a strange smell This may result in fire or electric shock.

Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.

If water enters or comes into contact with TV, AC adapter or power cord please disconnect the power cord and contact service centre immediately. Otherwise, this may result in electrice shock or fire.

Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation.

Never Disassemble the AC adapter or power cord. This may result in fire or electric shock.7 ENGLISH ENGLISH SAFETY INSTRUCTIONS CAUTION

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.

Only use the attachments / accessories specified by the manufacturer.

When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery. This could cause damage to the remote control.

Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

Batteries should not be exposed to excessive heat. For example, keep away from direct sunlight, open fireplace and electric heaters .

Do not place non-rechargeable batteries in charging device.8 ENGLISH ENGLISH SAFETY INSTRUCTIONS

Make sure there are no objects between the remote control and its sensor.

Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

Please follow the installation instructions below to prevent the product from overheating. - The distance between the product and the wall should be more than 10cm. - Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard). - Do not install the product on a carpet or cushion. - Make sure the air vent is not blocked by a tablecloth or curtain. Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may causedamage to screen.9 ENGLISH ENGLISH SAFETY INSTRUCTIONS

Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.

When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don’t pull at the cord to unplug the power cord from the power board, as this could be hazardous.

When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.

Contact the service centre once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product.

The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (white, red, blue or green) at a size of 1ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.10 ENGLISH ENGLISH SAFETY INSTRUCTIONS

You may find different brightness and colour of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

Displaying a still image for a prolonged period of time may cause image sticking. Avoid displaying a fixed image on the TV screen for a long period of time.

Generated Sound “Cracking” noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to tempera-ture and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product. This generated sound does not affect the performance and reliability of the product.

Do not use high voltage electrical goods near the TV(e.g. electric mosquito-swatter). This may result in product malfunction.11 ENGLISH ENGLISH SAFETY INSTRUCTIONS Viewing 3D Imaging (Only 3D models) WARNING Viewing Environment

Viewing Time - When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause headache, dizziness, fatigue or eye strain. Those that have a photosensitive seizure or chronic illness

Some users may experience a seizure or other abnormal symptoms when they are exposed to a flashing light or particular pattern from 3D contents.

Do not watch 3D videos if you feel nausea, are pregnant and/ or have a chronic illness such as epilepsy, cardiac disorder, or blood pressure disease, etc.

3D Contents are not recommended to those who suffer from stereo blindness or stereo anomaly. Double images or discomfort in viewing may be experienced.

If you have strabismus (cross-eyed), amblyopia (weak eyesight) or astigmatism, you may have trouble sensing depth and easily feel fatigue due to double images. It is advised to take frequent breaks than the average adult.

If your eyesight varies between your right and left eye, revise your eyesight prior to watching 3D contents. Symptoms which require discontinuation or refraining from watching 3D contents

Do not watch 3D contents when you feel fatigue from lack of sleep, overwork or drinking.

When these symptoms are experienced, stop using/watching 3D contents and get enough rest until the symptom subsides. - Consult your doctor when the symptoms persist. Symptoms may include headache, eyeball pain, dizziness, nausea, palpitation, blurriness, discomfort, double image, visual inconvenience or fatigue.12 ENGLISH ENGLISH SAFETY INSTRUCTIONS CAUTION Viewing Environment

Viewing Distance - Maintain a distance of at least twice the screen diagonal length when watching 3D contents. If you feel discomfort in viewing 3D contents, move further away from the TV. Viewing Age

Infants/Children - Usage/ Viewing 3D contents for children under the age of 6 are prohibited. - Children under the age of 10 may overreact and become overly excited because their vision is in development (for example: trying to touch the screen or trying to jump into it.) Special monitoring and extra attention is required for children watching 3D contents. - Children have greater binocular disparity of 3D presentations than adults because the distance between the eyes is shorter than one of adults. Therefore they will perceive more stereoscopic depth compared to adults for the same 3D image.

Teenagers - Teenagers under the age of 19 may react with sensitivity due to stimulation from light in 3D contents. Advise them to refrain from watching 3D contens for a long time when they are tired.

Elderly - The elderly may perceive less 3D effect compared to the youth. Do not sit closer to the TV than the recommended distance. Cautions when using the 3D glasses

Make sure to use LG 3D glasses. Otherwise, you may not be able to view 3D videos properly.

Do not use 3D glasses instead of your normal glasses, sunglasses or protective goggles.

Using modified 3D glasses may cause eye strain or image distortion.

Do not keep your 3D glasses in extremely high or low temperatures. It will cause deformation.

The 3D glasses are fragile and are easily scratched. Always use a soft, clean piece of cloth when wiping the lenses. Do not scratch the lenses of the 3D glasses with sharp objects or clean/wipe them with chemicals.13 ENGLISH ENGLISH INSTALLATION PROCEDURE

Image shown may differ from your TV.

Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

The available menus and options may differ from the input source or product model that you are using.

New features may be added to this TV in the future.

The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.

The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost. NOTE INSTALLATION PROCEDURE 1 Open the package and make sure all the accessories are included. 2 Attach the stand to the TV set. 3 Connect an external device to the TV set. 4 Make sure the network connection is available. You can use the TV network functions only when the network connection is made.

• If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may take a few minutes.14

ASSEMBLING AND PREPARING

ASSEMBLING AND PREPARING

Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may dier from the actual product and item.

Do not use any unapproved items to ensure the safety and product life span.

Any damages or injuries by using unapproved items are not covered by the warranty.

Some models have a thin film attached on to the screen and this must not be removed. CAUTION

The items supplied with your product may vary depending on the model.

Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.

For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV’s USB port.

Use a certified cable with the HDMI logo attached.

If you do not use a certified HDMI cable, the screen may not display or a connection error may occur. (Recommended HDMI Cable Types) - High-Speed HDMI ® / ™Cable (3m or less) - High-Speed HDMI® / ™ Cable with Ethernet (3m or less) NOTE15

ASSEMBLING AND PREPARING

ENGLISH ENGLISH Magic remote, Batteries (AA) (See p. 23) Owner’s manual Cinema 3D glasses The number of 3D glasses may dier depending on the model or country. Cable Holder (See p. A-10) Component gender cable (See p. A-21) Composite gender cable (See p. A-21, A-22) Scart gender cable (Depending on model) (See p. A-32) Stand Screw 4 EA, M4 x L20 (Only 55EG91**) 5 EA, M4 x L20 (Only 55EG92**, 55EG96**) 8 EA, M4 x L20 (Only 65EG96**) (See p. A-3, A-4, A-6) Stand Screw 5 EA, M4 x L14 (Only 55EF95**) 8 EA, M4 x L14 (Only 65EF95**) (See p. A-7, A-9) Stand assy (Stand body / Stand base) (Only 55EG91**) (See p. A-3) Stand assy (Stand body / Stand base) (Only 55EG92**) (See p. A-4) Stand assy (Stand body / Stand base) (Only 55EG96**) (See p. A-4) Stand assy (Stand body / Stand base) (Only 65EG96**) (See p. A-5) Stand assy (Stand body / Stand base) (Only 55EF95**) (See p. A-7) Stand assy (Stand body / Stand base) (Only 65EF95**) (See p. A-8)16

ASSEMBLING AND PREPARING

ENGLISH ENGLISH Separate purchase Separate purchase items can be changed or modied for quality improvement without any notication. Contact your dealer to buy these items. These devices only work with certain models. AG-F*** Cinema 3D Glasses AN-MR600 Magic Remote AN-VC550 Smart Camera AG-F***DP Dual Play Glasses LG Audio Device Compatibility EG91**, EG92**, EG96**, EF95** AG-F*** Cinema 3D Glasses

LG Audio Device • The model name or design may be changed depending on the upgrade of product functions, manufacturer’s circum- stances or policies.17

ASSEMBLING AND PREPARING

ASSEMBLING AND PREPARING

ENGLISH ENGLISH 1 Intelligent Sensor - Adjusts the image quality and brightness based on the surrounding environment. (Depending on model) 2 Joystick Button - This button is located below the TV screen.

You can set the LG Logo Light or Standby Light to on or off by selecting GENERAL in the main menus. (Depending on model) NOTE19

ASSEMBLING AND PREPARING

ENGLISH ENGLISH Using the joystick button You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right. Basic Functions Power On When the TV is turned o, place your nger on the joystick button and press it once and release it. Power O When the TV is turned on, place your nger on the joystick button and press it once for a few seconds and release it. All running apps will close, and any recording in progress will stop. Volume Control If you place your nger over the joystick button and move it left or right, you can adjust the volume level you want. Programmes Control If you place your nger over the joystick button and move it up or down, you can scrolls through the saved programmes you want.

• When your nger over the joystick button and push it to the up, down, left or right, be careful not to press the joystick button. If you press the joystick button rst, you may not be able to adjust the volume level and saved programmes. NOTE Adjusting the Menu When the TV is turned on, press the joystick button one time. You can adjust the Menu items moving the joystick button up, down, left or right. Turns the power o. Clears on-screen displays and returns to TV viewing. Changes the input source. Accesses the Quick Settings.ENGLISH ENGLISH

ASSEMBLING AND PREPARING

ENGLISH ENGLISH Mounting on a table (Image shown may dier from your TV.) 1 Lift and tilt the TV into its upright position on a table. - Leave a 10 cm (minimum) space from the wall for proper ventilation. 10 cm 10 cm 10 cm 10 cm 5 cm 10 cm 2 Connect the power cord to a wall outlet.

Do not place the TV near or on sources of heat, as this may result in fire or other damage. CAUTION Lifting and moving the TV Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

Avoid touching the screen at all times, as this may result in damage to the screen. CAUTION

It is recommended to move the TV in the box or packing material that the TV originally came in.

Before moving or lifting the TV, disconnect the power cord and all cables.

When holding the TV, the screen should face away from you to avoid damage.

Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

When transporting a large TV, there should be at least 2 people.

When transporting the TV by hand, hold the TV as shown in the following illustration.

When transporting the TV, do not expose the TV to jolts or excessive vibration.

When transporting the TV, keep the TV upright, never turn the TV on its side or tilt towards the left or right.

Do not apply excessive pressure to cause flexing/ bending of frame chassis as it may damage screen.

Be sure to keep your TV upright instead of laying or tilting it while moving the TV.

When handling the TV, be careful not to damage the protruding joystick button.21 ENGLISH ENGLISH

ASSEMBLING AND PREPARING

ENGLISH ENGLISH Mounting on a table (Image shown may di er from your TV.) 1 Lift and tilt the TV into its upright position on a table. - Leave a 10 cm (minimum) space from the wall for proper ventilation. 10 cm 10 cm 10 cm 10 cm 5 cm 10 cm 2 Connect the power cord to a wall outlet.

Do not place the TV near or on sources of heat, as this may result in fire or other damage. CAUTION Securing the TV to a wall (This feature is not available for all models.) To use the desk-type stand safely, make sure to securely attach it to a wall. 1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV. - If there are bolts inserted at the eye-bolts position, remove the bolts first. 2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye- bolts on the rear of the TV. 3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the at surface.

Make sure that children do not climb on or hang on the TV. CAUTION

Use a platform or cabinet that is strong and large enough to support the TV securely.

Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer. NOTE22 ENGLISH ENGLISH

ASSEMBLING AND PREPARING

Mounting on a wall Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the oor. When you attach the TV to other building materials, please contact qualied personnel. LG recommends that wall mounting be performed by a qualied professional installer. 10 cm 10 cm 10 cm10 cm Make sure to use screws and wall mount bracket that meet the standard. Standard dimensions for the wall mount kits are described in the following table. Separate purchase(Wall Mounting Bracket) Model 55EG91** 55EG92** 55EG96** 65EG96** 55/65EF95** A x B x C (mm) 200 x 340 x 195

Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.

If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.

Do not over tighten the screws as this may cause damage to the TV and void your warranty.

Use the screws and wall mounts that meet the standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty. CAUTION

Use the screws that are listed on the standard screw specifications.

The wall mount kit includes an installation manual and necessary parts.

The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.

The length of screws may differ depending on the wall mount. Make sure to use the proper length.

For more information, refer to the manual supplied with the wall mount. NOTE23 ENGLISH ENGLISH

When the message “Magic Remote battery is low. Change the battery.” is displayed, replace the battery. To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching and ends to the label inside the compartment, and close the battery cover. Be sure to point the remote control toward the remote control sensor on the TV. To remove the batteries, perform the installation actions in reverse.

Do not mix old and new batteries, as this may damage the remote control. CAUTION

• Pressing and holding the button displays all the lists of external inputs. Number buttons Enters numbers. Accesses the saved programmes list. Views the information of the current programmes and screen. Adjusts the volume level. P Scrolls through the saved programmes. (MUTE) Mutes all sounds.

jkl GUIDE LIST INFO EXIT TEXT T.OPT SUBT. Wheel (OK) Press the center of the Wheel button to select a menu. You can change programmes by using the wheel button. Navigation buttons (up/down/left/right) Press the up, down, left or right button to scroll the menu. If you press buttons while the pointer is in use, the pointer will disappear from the screen and Magic Remote will operate like a general remote control. To display the pointer on the screen again, shake Magic Remote to the left and right. Shows programme guide. (Screen Remote) Displays the Screen Remote. *Accesses the Universal Control Menu. (Depending on model) Used for viewing 3D video. (Depending on model) (Voice recognition) (Depending on model) Network connection is required to use the voice recognition function.

1. Press the voice recognition button.

2. Speak when the voice display window appears on the TV screen.

Use the Magic Remote no further than 10 cm from your face.

The voice recognition may fail when you speak too fast or too slowly.

The recognition rate may vary depending on the user’s characteristics (voice, pronunciation, intonation, and speed) and the environment (noise and TV volume). (Q. Settings) Accesses the Quick Settings.

• Pressing and holding the button displays the Advanced menu. Coloured buttons These access special functions in some menus. ( : Red, : Green, : Yellow, : Blue) Teletext buttons( , ) These buttons are used for teletext. Recalls your preferred subtitle in digital mode.25 ENGLISH ENGLISH

MY APPS (Wheel) To use the Magic Remote, rst pair it with your TV. 1 Put batteries into the Magic Remote and turn the TV on. 2 Point the Magic Remote at your TV and press the Wheel (OK) on the remote control.

• If the TV fails to register the Magic Remote, try again after turning the TV o and back on. How to deregister the magic remote (BACK) (Home) Press the (BACK) and (HOME) buttons at the same time, for ve seconds, to unpair the Magic Remote with your TV.

• Pressing and holding the button will let you cancel and re-register Magic Remote at once. How to use magic remote

Shake the Magic Remote slightly to the right and left or press (HOME), (INPUT), buttons to make the pointer appear on the screen. (In some TV models, the pointer will appear when you turn the Wheel (OK) button.)

If the pointer has not been used for a certain period of time or Magic Remote is placed on a flat surface, then the pointer will disappear.

If the pointer is not responding smoothly, you can reset the pointer by moving it to the edge of the screen.

The Magic Remote depletes batteries faster than a normal remote due to the additional features.ENGLISH ENGLISH

Use the remote control within the specified range (within 10 m). You may experience communication failures when using the device outside the coverage area or if there are obstacles within the coverage area.

You may experience communication failures depending on the accessories. Devices such as a microwave oven and wireless LAN operate in the same frequency band (2.4 GHz) as the Magic Remote. This may cause communication failures.

The Magic Remote may not work properly if a wireless router (AP) is within 1 meter of the TV. Your wireless router should be more than 1 m away from the TV.

Do not disassemble or heat the battery.

Do not drop the battery. Avoid extreme shocks to the battery.

Inserting the battery in the wrong way may result in explosion.

ENGLISH ENGLISH MAINTENANCE ENGLISH ENGLISH MAINTENANCE Cleaning your TV Clean your TV regularly to keep the best performance and to extend the product lifespan.

Make sure to turn the power off and disconnect the power cord and all other cables first.

When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges. CAUTION Screen, frame, cabinet and stand

To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

Avoid touching the screen at all times, as this may result in damage to the screen.

Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.

Do not use any chemicals as this may damage the product.

Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction. CAUTION Power cord Remove the accumulated dust or dirt on the power cord regularly.28 TROUBLESHOOTING / SPECIFICATIONS ENGLISH ENGLISH TROUBLESHOOTING Problem Solution Cannot control the TV with the remote control.

Check the remote control sensor on the product and try again.

Check if there is any obstacle between the product and the remote control.

Check if the batteries are still working and properly installed ( to , to ). No image display and no sound is produced.

Check if the product is turned on.

Check if the power cord is connected to a wall outlet.

Check if there is a problem in the wall outlet by connecting other products. The TV turns o sud- denly.

Check the power control settings. The power supply may be interrupted.

Check if the Automatic Standby (Depending on model) / Sleep Timer / Timer Power off feature is activated in the TIMERS settings.

If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity. When connecting to the PC (HDMI/DVI), ‘No signal’ or ‘Invalid Format’ is displayed.

Turn the TV off/on using the remote control.

Because band channel used by the country could be different, the user can not change or adjust the operating frequency and this product is set for the regional frequency table.

This device should be installed and operated with minimum distance 20 cm between the device and your body. And this phrase is for the general statement for consideration of user environment.

BEZÜGLICH OPEN-SOURCE-

AG-F***DP Occhiali Dual play

Programme coverage VHF, UHF C-Band*, Ku-Band* VHF: E2 to E12, UHF : E21 to E69, CATV: S1 to S20, HYPER: S21 to S47 Maximum number of storable programmes DVB-S/S2 : 6,000 DVB-T/T2/C & Analogue TV : 1,500 External antenna impedance 75 Ω *Only DVB-T2/C/S/S2 Support models.B-3 REGULATORY Regulatory LG Recycling Policy (Only EU) LG Electronics oers a customized e-waste take-back & recycling service that meets local needs and requirements in the countries where e-waste regulations are in place, and also provides product and packaging take-back & recycling service voluntarily in some countries. LG Electronics evaluates products’ recyclability at the design step using LG’s recyclability evaluation tool, with the goal of improving recyclability where practicable. Through these activities, LG seeks to contribute to conserving natural resources and protecting the environment. For more information about the LG Recycling Policy, please visit our global site at http://www.lg.com/global/sustainability/ environment/take-back-recycling Energy Saving Energy eciency cuts energy consumption and thus saves money by reducing electricity bills. The following indications allow to reduce power consumption when the television is not being watched:

Turning the television off at its mains supply, or un-plugging it, will cut energy use to zero for all televisions, and is recommended when the television is not being used for a long time, e.g. when on holiday,

Putting the television into standby mode, will reduce energy consumption, but will still draw some power,

Reducing the brightness of the screen will reduce energy use. Isolator (Only Sweden, Norway)

“Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)”

High Energy Efficiency

Reduced CO2 emissions

Designed to facilitate repair and recycling ... better for you. EU Ecolabel : PL/22/004 LGE announced the ‘LG Declaration for a Cleaner Environment ‘in 1994, and this ideal has served as a Guiding managerial principle ever since. The Declaration is a foundation that has allowed us to undertaike Environmentally friendly activities in careful consideration of economic, environmental, and social aspects. We promote activities for environmental preserva- tion, and we specically develop our products to embrace the Concept of environment- friendly through whole process from getting raw materials, production, transportation, usage and end-of-life. These environmental characteristics are endorsed by the award of the European Commission as approval of the product environmental status for energy saving. Facilities for recycling and a host of other features. The full list of criteria and more information on the eco label can be found at the web-site address : http://www.ecolabel.eu Restriction of Hazardous Substances (Only Ukraine) Обмеження України на наявність небезпечних речовин

The equipment complies with requirements of the Technical Regulation, in terms of restrictions for the use of certain dangerous substances in electrical and electronic equipment.
