USER MANUAL PVX1570 PROGRESS

WAARSCHUWING! Gevaar

BESCHRIJVING VAN HET PRODUCT

Safety instructions 23

Product description 25

Control panel 25

Programmes 26

Settings 27

Options 29

Before first use 30

Daily use 31

Hints and tips 32

Care and cleaning 34

Troubleshooting 36

Technical information 39

Subject to change without notice.

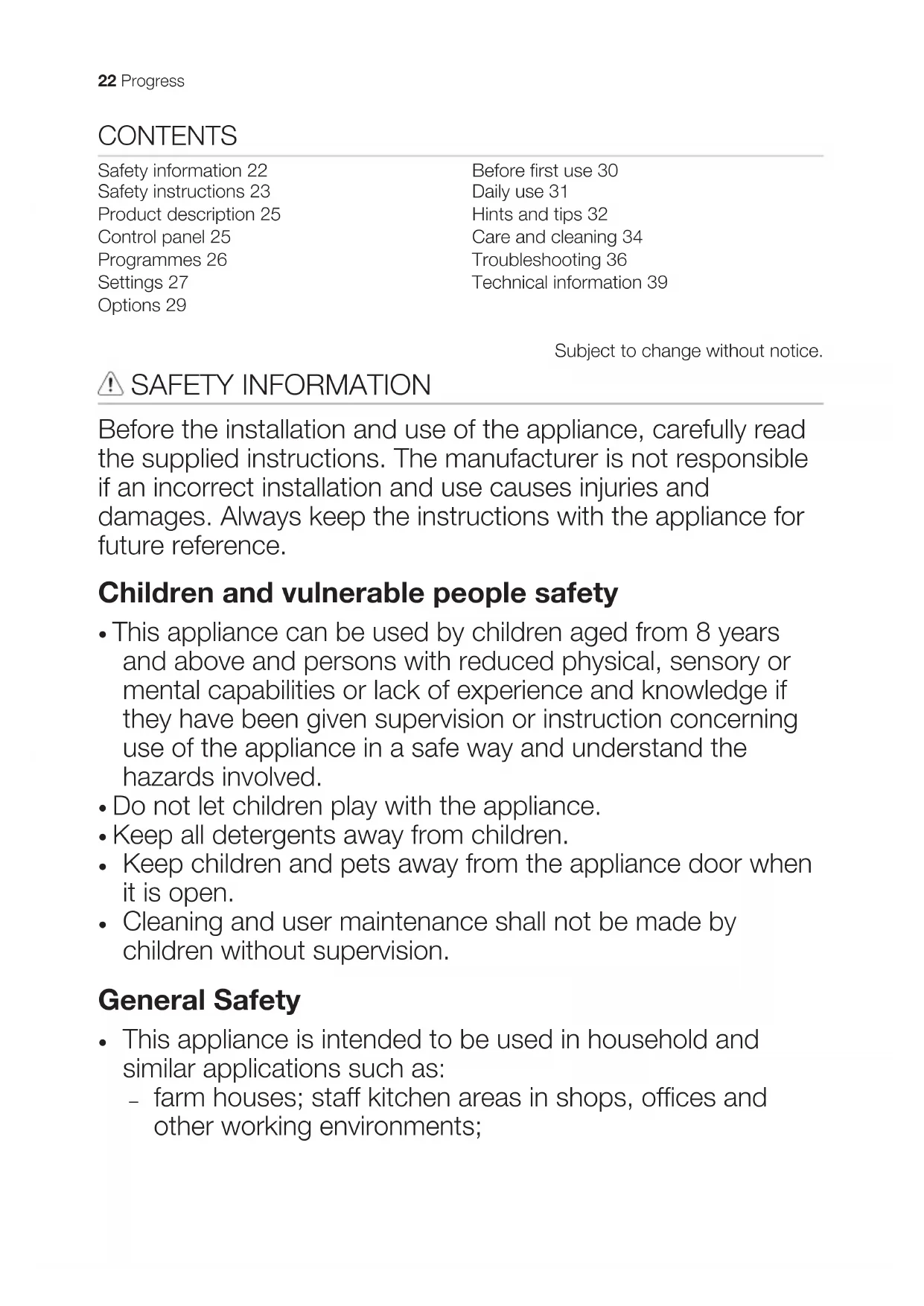

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.
• Cleaning and user maintenance shall not be made by children without supervision.

General Safety

• This appliance is intended to be used in household and similar applications such as:

• farm houses; staff kitchen areas in shops, offices and other working environments;

• by clients in hotels, motels, bed & breakfast and other residential type environments.

• Do not change the specification of this appliance.

• The operating water pressure (minimum and maximum) must be between 0.5 (0.05) / 8 (0.8) bar (Mpa)
• Obey the maximum number of 15 place settings.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.
• Put knives and cutlery with sharp points in the cutlery basket with the points down or in a horizontal position.
• Do not keep the appliance door open without supervision to prevent to fall on it.
• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Do not use water spray and steam to clean the appliance.
• The ventilation openings in the base (if applicable) must not be obstructed by a carpet.
• The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.

SAFETY INSTRUCTIONS

Installation

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temperature is less than 0^ .
• Obey the installation instruction supplied with the appliance.
• Make sure that the appliance is installed below and adjacent to safe structures.

Electrical connection

WARNING! Risk of fire and electrical shock.

• The appliance must be earthed.
  Make sure that the electrical information on the rating plate agrees with the

power supply. If not, contact an electrician.

Always use a correctly installed shockproof socket.
- Do not use multi-plug adapters and extension cables.
- Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• This appliance complies with the E.E.C. Directives.
• Only for UK and Ireland. The appliance has a 13 amp mains plug. If it is necessary to change the fuse in the mains plug, use fuse: 13 amp ASTA (BS 1362).

Water connection

• Make sure not to cause damage to the water hoses.
• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.
• The first time you use the appliance, make sure that there is no leakage.

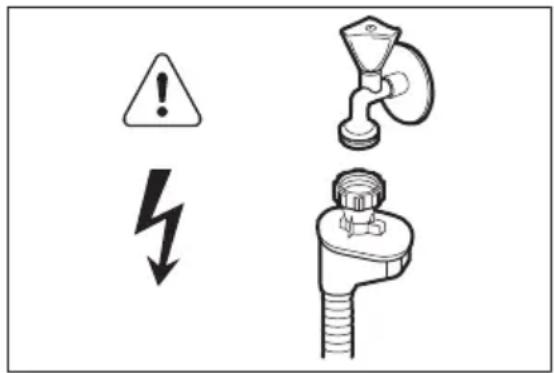

• The water inlet hose has a safety valve and a sheath with an inner mains cable.

WARNING! Dangerous voltage.

• If the water inlet hose is damaged, immediately disconnect the mains plug

from the mains socket. Contact the Authorised Service Centre to replace the water inlet hose.

Use

• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous. Obey the safety instructions on the detergent packaging.
• Do not drink and play with the water in the appliance.
• Do not remove the dishes from the appliance until the programme is completed. There can be detergent on the dishes.
• The appliance can release hot steam if you open the door while a programme operates.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

Disposal

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.

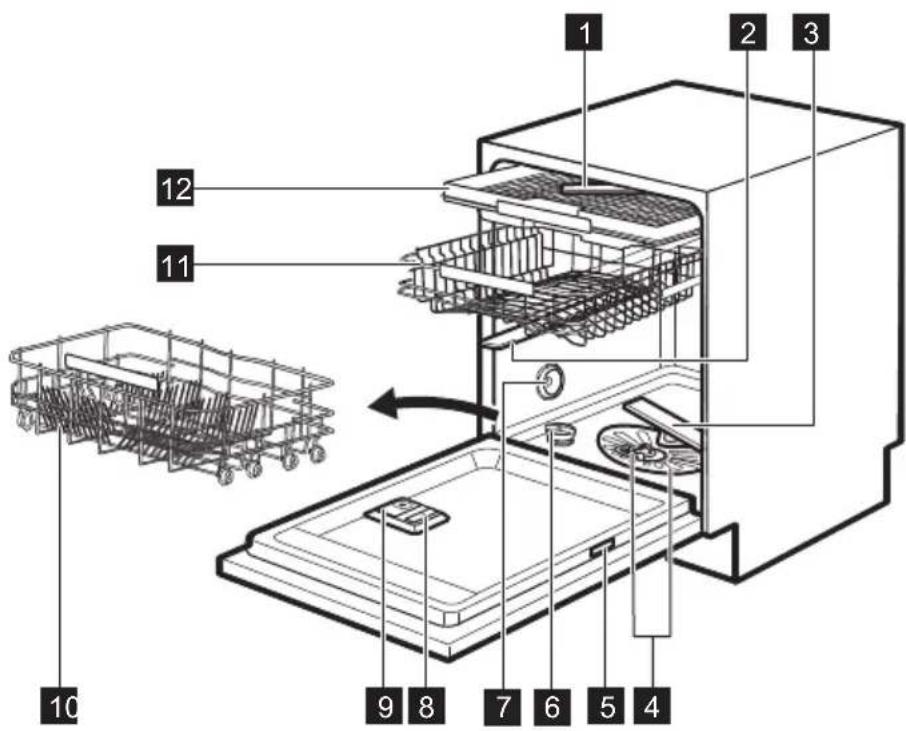

Top spray arm
2 Upper spray arm
3 Lower spray arm
4 Filters
5 Rating plate
Salt container
Air vent

8 Rinse aid dispenser
9 Detergent dispenser
10 Lower basket
Upper basket
12 Cutlery drawer

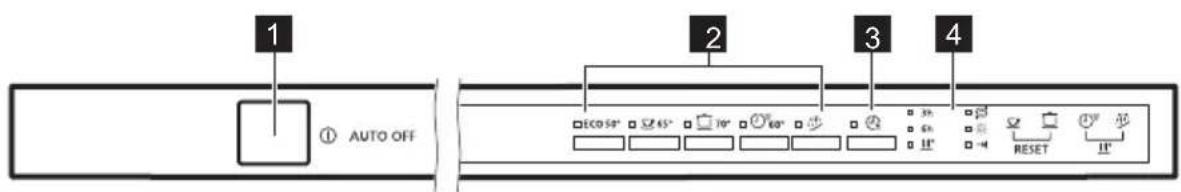

CONTROL PANEL

1 On/off button
2 Programme buttons
3 Delay button

4 Indicators

Indicators

Indicator Description
→|	End indicator.
←+	XtraDry indicator.
←S	Salt indicator. It is always off while the programme operates.
←	Rinse aid indicator. It is always off while the programme operates.

PROGRAMMES

Programme Degree of soil Type of load	Programme phases	Consumption values
		1) Dura- tion (min)	Energy (kWh)	Water (I)
ECO2)	Normal soil Crockery and cutlery	·Prewash ·Wash 50 °C ·Rinses ·Dry	225 0.961 11
○P	Normal soil Crockery and cutlery	·Prewash ·Wash 65 °C ·Rinses ·Dry	40 - 160 0.6 - 1.6 7 - 14
○3)	Heavy soil Crockery, cut- lery, pots and pans	·Prewash ·Wash 70 °C ·Rinses ·Dry	169 - 179	1.4 - 1.8 12.5 - 14.5
○4)	Fresh soil Crockery and cutlery	·Wash 60 °C ·Rinse	30 0.9 10
○5)	All · Prewash 14 0.1 4

1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes can change the values.
2) With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil. (This is the standard programme for test institutes).
3) This programme has a high temperature rinsing phase for better hygiene results. During the rinsing phase, the temperature stays at 70^ for at least 10 minutes.
4) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
5) Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on the dishes and bad odours to come out from the appliance. Do not use detergent with this programme.

Information for test institutes

For all the necessary information for test performance, send an email to:

[e-mail]

SETTINGS

Programme selection mode and user mode

When the appliance is in programme selection mode it is possible to set a programme and to enter the user mode.

In user mode, the following settings can be changed:

• The level of the water softener according to the water hardness.
• The activation or the deactivation of the acoustic signal for end of programme.
• The activation or deactivation of the rinse aid dispenser.
• The level of rinse aid according to the required dosage.

These settings will be saved until you change them again.

How to set the programme selection mode

The appliance is in programme selection mode when only the indicator of the programme is on.

Write down the product number (PNC) that is on the rating plate.

When you activate the appliance, usually it is in programme selection mode. However, if this does not happen, you can set the programme selection mode in the following way:

Press and hold simultaneously and until the appliance is in programme selection mode.

The water softener

The water softener removes minerals from the water supply, which would have a detrimental effect on the washing results and on the appliance.

The higher the content of these minerals, the harder your water is. Water hardness is measured in equivalent scales.

The water softener should be adjusted according to the hardness of the water in your area. Your local water authority can advise you on the hardness of the water in your area. It is important to set the right level of the water softener to assure good washing results.

Water hardness

German de-grees (°dH)	French de-grees (°fH)	mmol/l Clarke de-grees	Water softener level
47 - 50 84 -	90 8.4 - 9.0 58 - 63	10
43 - 46 76 -	83 7.6 - 8.3 53 - 57	9
37 - 42 65 -	75 6.5 - 7.5 46 - 52	8
29 - 36 51 -	64 5.1 - 6.4 36 - 45	7
23 - 28 40 -	50 4.0 - 5.0 28 - 35	6
19 - 22 33 -	39 3.3 - 3.9 23 - 27		5 1)
15 - 18 26 -	32 2.6 - 3.2 18 - 22	4
11 - 14 19 -	25 1.9 - 2.5 13 - 17	3
4 - 10 7 - 18	0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5			1 2)

1) Factory setting.
2) Do not use salt at this level.

If you use multi-tablets containing salt and the hardness of your water is lower than 21^ , you can set the lowest water softener level. It deactivates the salt refill indicator.

If you use standard detergent or multitablets without salt, set the proper water hardness level to keep the salt refill indicator active.

How to set the water softener level

The appliance must be in programme selection mode.

1. To enter the user mode, press and hold simultaneously and until the indicators ECO and start to flash.
2. Press ECO

The indicators, and go off.
The indicator continues to flash.
- The end indicator starts to flash. The number of flashes indicates the level. - E.g. 5 flashes + pause + 5 flashes = level 5.

1. Press ECO again and again to change the setting. Each time you press ECO the level number increases. After level 10 you will start again from level 1.
2. Press the on/off button to confirm the setting.

The rinse aid dispenser

The rinse aid helps to dry the dishes without streaks and stains.

The rinse aid is automatically released during the hot rinse phase.

You can set the released quantity of rinse aid between level 1 (minimum quantity) and level 6 (maximum quantity). Level 0 will deactivate the rinse aid dispenser and no rinse aid will be released.

Factory setting: level 4.

How to set the rinse aid level

The appliance must be in programme selection mode.

1. To enter the user mode, press and hold simultaneously and until the indicators ECO and start to flash.
2. Press

The indicators go off.

The indicator continues to flash.
- The end indicator starts to flash. The number of flashes indicates the current setting: e.g. 4 flashes + pause + 4 flashes = level 4.

• The levels of rinse aid are from 0 to 6.

• Level 0 = no rinse aid is released. In this case the end indicator remains off.

• Press again and again to change the setting. Each time you press the

level increases. After level 6 you go to level 0 and then start again from level

1. Press the on/off button to confirm the setting.

The rinse aid empty notification

When rinse aid chamber is empty, the rinse aid indicator is turned on notifying to refill rinse aid. If you are using multi-tabs containing rinse aid and you are satisfied with the drying result, you can deactivate the notification for refilling rinse aid. However, we recommend that you always use rinse aid for best drying performance.

If you use standard detergent or multi-tablets without rinse aid, activate the notification to keep the rinse aid refill indicator active.

How to deactivate the rinse aid dispenser

The appliance must be in programme selection mode.

1. To enter the user mode, press and hold simultaneously and until the indicators ECO and start to flash.

2. Press

The indicators go off.

The indicator

continues to flash.

• The end indicator indicates the current setting: End indicator on = the rinse aid dispenser is activated (factory setting).

OPTIONS

Desired options must be activated every time before you start a programme. It is not possible to activate or deactivate options while a programme is running.

1. Press to change the setting.
   End indicator off = the rinse aid dispenser is deactivated.
2. Press the on/off button to confirm the setting.

Acoustic signals

Acoustic signals sound when a malfunction of the appliance occurs. It is not possible to deactivate these acoustic signals.

There is also an acoustic signal that sounds when the programme is completed. By default this acoustic signal is deactivated but it is possible to activate it.

How to activate the acoustic signal for the end of programme

The appliance must be in programme selection mode.

1. To enter the user mode, press and hold simultaneously and until the indicators ECO and start to flash.
2. Press

The indicators go off.

The indicator ^一 continues to flash.
- The end indicator indicates the current setting: End indicator off = Acoustic signal off.

1. Press to change the setting.
   End indicator on = Acoustic signal on.
2. Press the on/off button to confirm the setting.

XtraDry

Activate this option when you want to boost the drying performance. With the use of this option, the duration of some programmes, water consumption and the last rinse temperature can be affected.

The option XtraDry is not a permanent option and must be selected at every cycle.

How to activate XtraDry

Press and hold simultaneously and until the indicator comes on.

BEFORE FIRST USE

1. Make sure that the current level of the water softener agrees with the hardness of the water supply. If not, adjust the level of the water softener.
2. Fill the salt container.
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any processing residuals that can still be inside the appliance. Do not use detergent and do not load the baskets.

When you start a programme, the appliance can take up to 5 minutes to recharge the resin in the water softener. It seems that the appliance is not working. The washing phase starts only after this procedure is completed. The procedure will be repeated periodically.

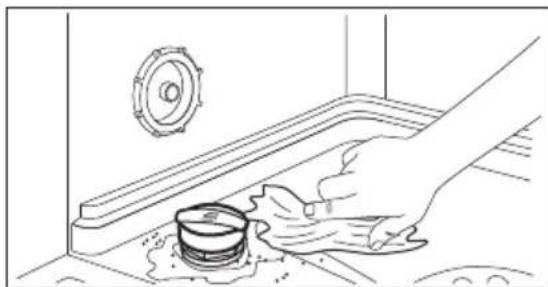

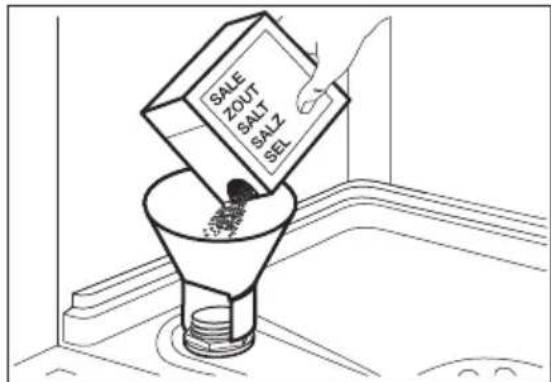

How to fill the salt container

1. Turn the cap of the salt container counterclockwise and remove it.
2. Put 1 litre of water in the salt container (Only for the first time).
3. Fill the salt container with dishwasher salt.

1. Remove the salt around the opening of the salt container.

1. Turn the cap of the salt container clockwise to close the salt container.

Water and salt can come out from the salt container when you fill it. Risk of corrosion. To prevent it, after you fill the salt container, start a programme.

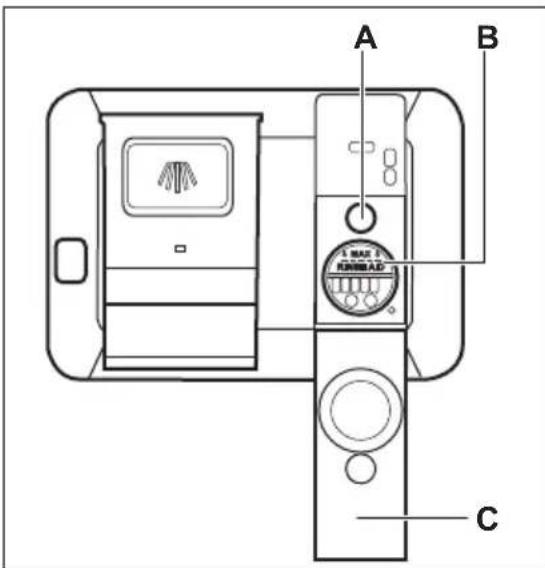

How to fill the rinse aid dispenser

CAUTION! Only use rinse aid specifically designed for dishwashers.

1. Open the lid (C).
2. Fill the dispenser (B) until the rinse aid reaches the marking "MAX".
3. Remove the spilled rinse aid with an absorbent cloth to prevent too much foam.
4. Close the lid. Make sure that the lid locks into position.

Fill the rinse aid dispenser when the indicator (A) becomes clear.

If you use multi-tablets and the drying performance is satisfactory, the rinse aid refill indication can be disabled. We recommend to always use rinse aid for better drying performance, also in combination with multi-tablets containing rinsing agent.

DAILY USE

1. Open the water tap.
2. Press the on/off button to activate the appliance.

Make sure that the appliance is in programme selection mode.

• If the salt indicator is on, fill the salt container.

• If the rinse aid indicator is on, fill the rinse aid dispenser.

• Load the baskets.

• Add the detergent.
• Set and start the correct programme for the type of load and the degree of soil.

Using the detergent

CAUTION! Only use detergent specifically designed for dishwashers.

1. Press the release button (A) to open the lid (C).

2. Put the detergent, in powder or tablets, in the compartment (B).

3. If the programme has a prewash phase, put a small quantity of detergent on the inner part of the appliance door.
4. Close the lid. Make sure that the lid locks into position.

Setting and starting a programme

The AUTO OFF function

This function decreases energy consumption by deactivating automatically the appliance when it is not operating.

The function comes into operation:

• 5 minutes after the completion of the programme.
• After 5 minutes if the programme has not started.

Starting a programme

1. Keep the appliance door ajar.
2. Press the on/off button to activate the appliance. Make sure that the appliance is in programme selection mode.
3. Press the button related to the programme you want to start.

The related programme indicator comes on.

1. Close the appliance door to start the programme.

Starting a programme with delay start

1. Set a programme.
2. Press again and again until the indicator related to the number of hours want to set comes on (3 or 6).

The delay indicator comes on.

1. Close the appliance door to start the countdown. While a countdown is running it is possible to increase the delay time but not to change the selection of the programme.
   When the countdown is completed, the programme starts.

Opening the door while the appliance operates

If you open the door while a programme is running, the appliance stops. It may affect the energy consumption and the programme duration. When you close the door, the appliance continues from the point of interruption.

If the door is opened for more than 30 seconds during the drying phase, the running programme will end.

HINTS AND TIPS

General

The following hints will ensure optimal cleaning and drying results in daily use and also help to protect the environment.

• Remove larger residues of food from the dishes into the waste bin.
• Do not pre-rinse dishes by hand. When needed, use the prewash programme (if available) or select a programme with a prewash phase.
  Always use the whole space of the baskets.
• When loading the appliance, make sure that the dishes can be completely reached and washed by the water released from the spray arm nozzles.

Cancelling the delay start while the countdown operates

When you cancel the delay start you have to set the programme and options again.

Press and hold simultaneously until the appliance is in programme selection mode.

Cancelling the programme

Press and hold simultaneously and until the appliance is in programme selection mode.

Make sure that there is detergent in the detergent dispenser before you start a new programme.

End of programme

When the programme is completed and you open the door, the appliance is automatically deactivated.

Close the water tap.

Make sure that items do not touch or cover each other.

• You can use dishwasher detergent, rinse aid and salt separately or you can use the multi-tablets (e.g. "3in1", "4in1", "All in 1"). Follow the instructions written on the packaging.
• Select the programme according to the type of load and degree of soil. With the ECO programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil.

Using salt, rinse aid and detergent

• Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.
• Multi-tablets are usually suitable in areas with a water hardness up to 21^ . In areas exceeding this limit, rinse aid and salt must be used in addition to the multi-tablets. However, in areas with hard and very hard water we recommend to use solo-detergent (powder, gel, tablets without additional functions), rinse aid and salt separately for optimal cleaning and drying results.
• Detergent tablets do not fully dissolve with short programmes. To prevent detergent residues on the tableware, we recommend that you use the tablets with long programmes.
• Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent packaging.

What to do if you want to stop using multi-tables

Before you start to use separately detergent, salt and rinse aid do the following procedure.

1. Set the highest level of the water softener.
2. Make sure that the salt and rinse aid containers are full.
3. Start the shortest programme with a rinsing phase. Do not add detergent and do not load the baskets.
4. When the programme is completed, adjust the water softener according to the water hardness in your area.
5. Adjust the released quantity of rinse aid.
6. Activate the rinse aid dispenser.

Loading the baskets

• Only use the appliance to wash items that are dishwasher-safe.

• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.

• Do not put in the appliance items that can absorb water (sponges, household cloths).

• Remove larger residues of food from the dishes into the waste bin.
• Make soft the remaining burned food on the items.
• Put hollow items (cups, glasses and pans) with the opening down.
• Make sure that glasses do not touch other glasses.
• Put cutlery and small items in the cutlery drawer.
• Put light items in the upper basket.
  Make sure that the items do not move.
• Make sure that the spray arms can move freely before you start a programme.

Before starting a programme

Make sure that:

• The filters are clean and correctly installed.
• The cap of the salt container is tight.
• The spray arms are not clogged.
• There is dishwasher salt and rinse aid (unless you use multi-tables).
• The position of the items in the baskets is correct.
• The programme is applicable for the type of load and for the degree of soil.
• The correct quantity of detergent is used.

Unloading the baskets

1. Let the tableware cool down before you remove it from the appliance. Hot items can be easily damaged.
2. First remove items from the lower basket, then from the upper basket.

At the end of the programme water can still remain on the sides and on the door of the appliance.

CARE AND CLEANING

WARNING! Before maintenance, deactivate the appliance and disconnect the mains plug from the main socket.

Dirty filters and clogged spray arms decrease the washing results. Make a check regularly and, if necessary, clean them.

Cleaning the filters

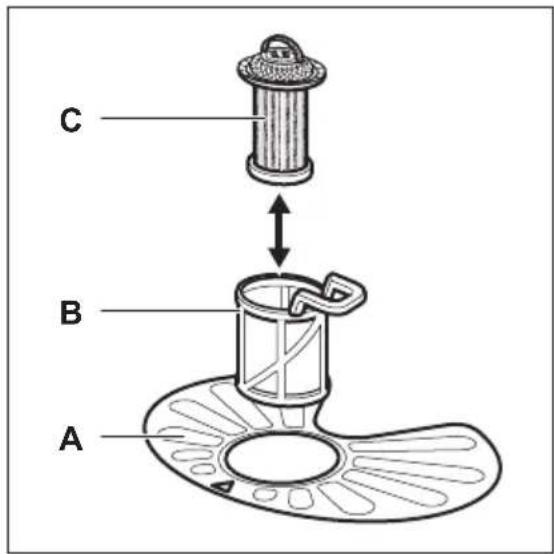

The filter system is made of 3 parts.

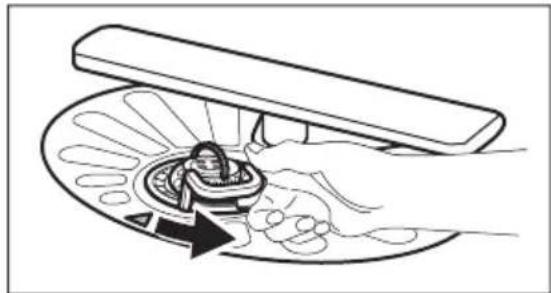

1. Turn the filter (B) counterclockwise and remove it.

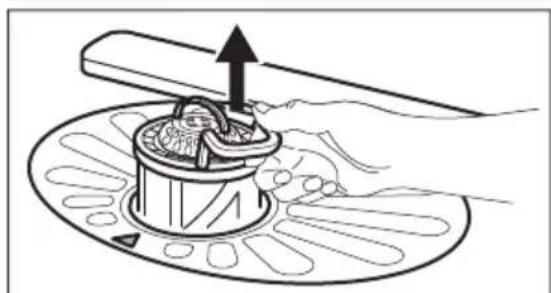

1. Remove the filter (C) out of filter (B).

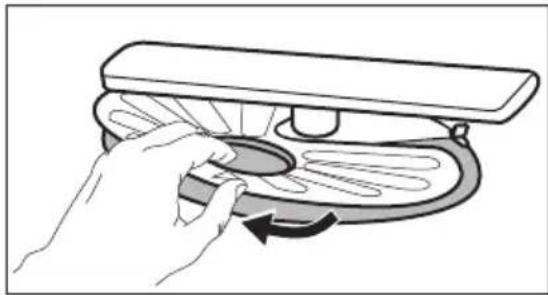

2. Remove the flat filter (A).

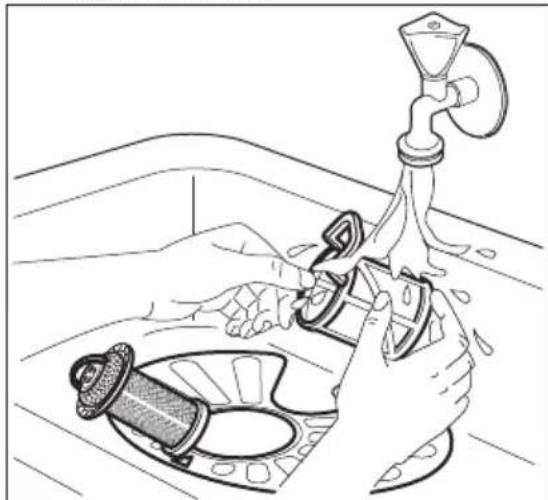

1. Wash the filters.

1. Make sure that there are no residues of food or soil in or around the edge of the sump.

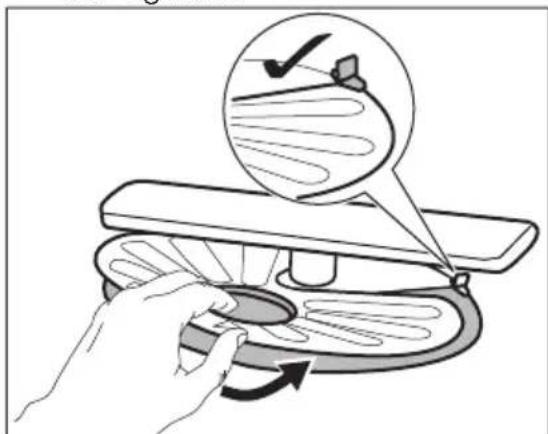

2. Put back in place the flat filter (A). Make sure that it is correctly positioned under the 2 guides.

1. Reassemble the filters (B) and (C).

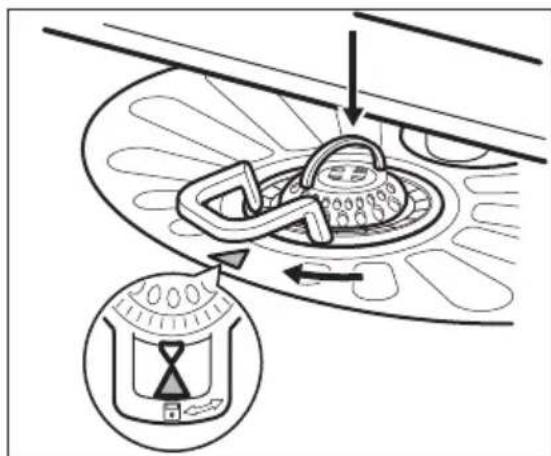

2. Put back the filter (B) in the flat filter (A). Turn it clockwise until it locks.

CAUTION! An incorrect position of the filters can cause bad washing results and damage to the appliance.

Cleaning the upper spray arm

We recommend to clean regularly the upper spray arm to avoid soil to clog the holes.

Clogged holes can cause unsatisfactory washing results.

1. Pull out the upper basket.

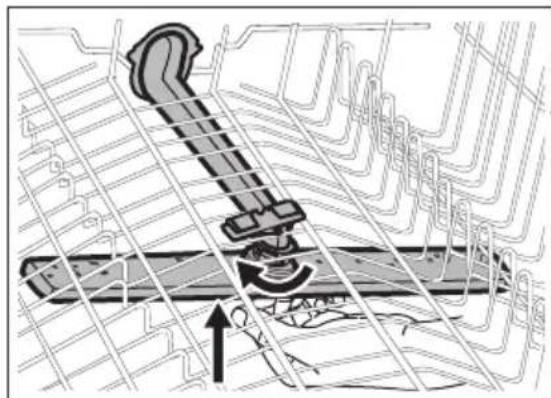

2. To disengage the spray arm from the basket, press the spray arm upwards in the direction indicated by the lower arrow and simultaneously turn it clockwise.

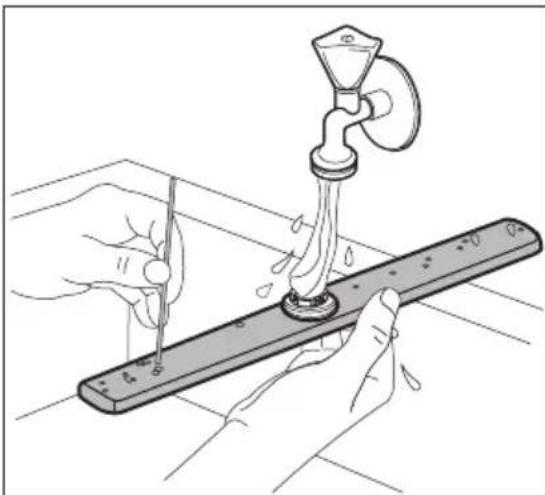

1. Wash the spray arm under running water. Use a thin pointed tool, e.g. toothpick, to remove particles of soil from the holes.

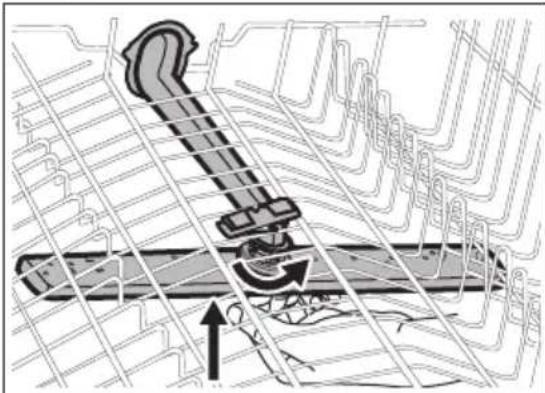

1. To engage again the spray arm to the basket, press the spray arm upwards in the direction indicated by the lower arrow and simultaneously turn it counterclockwise until it locks into place.

External cleaning

• Clean the appliance with a moist soft cloth.
• Only use neutral detergents.
• Do not use abrasive products, abrasive cleaning pads or solvents.

Internal cleaning

• Carefully clean the appliance, including the rubber gasket of the door, with a soft damp cloth.
• If you regularly use short duration programmes, these can leave deposits of grease and limescale inside the appliance. To prevent this, we recommend to run long duration programmes at least 2 times per month.
• To maintain the performance of your appliance at its best, we recommend to

use monthly a specific cleaning product for dishwashers. Follow carefully the

instructions on the packaging of the product.

TROUBLESHOOTING

If the appliance does not start or it stops during operation, before you contact an Authorised Service Centre, check if you can solve the problem by yourself with the help of the information in the table.

WARNING! Repairs not properly done may result in serious risk to the safety of the user. Any repairs must be performed by qualified personnel.

With some problems the end indicator flashes intermittently indicating a malfunction.

The majority of problems that can occur can be solved without the need to contact an Authorised Service Centre.

Problem and alarm code Possible cause and solution
You cannot activate the appliance. • Make sure that the mains plug is connected to the mains socket. • Make sure that there is no damaged fuse in the fuse box.
The programme does not start. • Make sure that the appliance door is closed. • If the delay start is set, cancel the setting or wait for the end of the countdown. • The appliance has started the procedure to re-charge the resin inside the water softener. The duration of the procedure is approximately 5 minutes.
The appliance does not fill with water. • The end indicator flashes 1 time intermittently. • Acoustic signal sounds 1 time intermittently.	• Make sure that the water tap is open. • Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority. • Make sure that the water tap is not clogged. • Make sure that the filter in the inlet hose is not clogged. • Make sure that the inlet hose has no kinks or bends.
The appliance does not drain the water. • The end indicator flashes 2 times intermittently. • Acoustic signal sounds 2 times intermittently.	• Make sure that the sink spigot is not clogged. • Make sure that the drain hose has no kinks or bends.
The anti-flood device is on. ·The end indicator flashes 3 times intermittently. ·Acoustic signal sounds 3 times intermittently.	·Close the water tap and contact an Authorised Service Centre.
The appliance stops and starts more times during operation.	·It is normal. It provides optimal cleaning results and energy savings.
The program lasts too long. ·If the delayed start option is set, cancel the delay setting or wait for the end of the countdown.
Small leak from the appliance door. ·The appliance is not level. Loosen or tighten the adjustable feet (if applicable). ·The appliance door is not centred on the tub. Ad-just the rear foot (if applicable).
The appliance door is difficult to close. ·The appliance is not level. Loosen or tighten the adjustable feet (if applicable). ·Parts of the tableware are protruding from the baskets.
Rattling/knocking sounds from inside the appliance.	·The tableware is not properly arranged in the baskets. Refer to basket loading leaflet. ·Make sure that the spray arms can rotate freely.
The appliance trips the circuit-beaker. ·The amperage is insufficient to supply simultaneously all the appliances in use. Check the socket amperage and the capacity of the meter or turn off one of the appliances in use. ·Internal electrical fault of the appliance. Contact an Authorised Service Centre.

Refer to "Before first use", "Daily use", or "Hints and tips" for other possible causes.

Once you have checked the appliance, deactivate and activate the appliance. If the

problem occurs again, contact an Authorised Service Centre.

For alarm codes not described in the table, contact an Authorised Service Centre.

The washing and drying results are not satisfactory

Problem Possible cause and solution
Poor washing results.	Refer to "Daily use", "Hints and tips" and basket loading leaflet. Use more intensive washing programmes.
Poor drying results. • Tableware	has been left for too long inside a closed appli- ance. • There is no rinse aid or the dosage of rinse aid is not enough. Set the rinse aid dispenser to a higher level. • Plastic items may need to be towel dried. • For the best drying performance activate the option Xtra- Dry. • We recommend to always use rinse aid, even in combina- tion with multi-tablets.
There are whitish streaks or bluish layers on glasses and dishes.	• The release quantity of rinse aid is too much. Adjust the rinse aid level to a lower level. • The quantity of detergent is too much.
There are stains and dry water drops on glasses and dishes.	• The released quantity of rinse aid is not sufficient. Adjust the rinse aid level to a higher level. • The quality of the rinse aid can be the cause.
The dishes are wet. • For the best drying performance activate the option Xtra- Dry. • The programme does not have a drying phase or has a drying phase with low temperature. • The rinse aid dispenser is empty. • The quality of the rinse aid can be the cause. • The quality of the multi-tablets can be the cause. Try a dif- ferent brand or activate the rinse aid dispenser and use rinse aid and multi-tablets together.
The interior of the appliance is wet.	• This is not a defect of the appliance. it is caused by the humidity in the air that condenses on the walls.
Unusual foam during washing. •	Use the detergent for dishwashers only. • There is a leak in the rinse aid dispenser. Contact an Au- thorised Service Centre.
Traces of rust on cutlery. • There	is too much salt in the water used for washing. Re- fer to "The water softener". • Silver and stainless steel cutlery were placed together. Avoid to put silver and stainless steel items close together.
There are residues of detergent in the dispenser at the end of the programme.	• The detergent tablet got stuck in the dispenser and there- fore was not completely washed away by water. • Water cannot wash away the detergent from the dispens- er. Make sure that the spray arm is not blocked or clog- ged. • Make sure that items in the baskets do not impede the lid of the detergent dispenser from opening.
Odours inside the appliance. • Refer to "Internal cleaning".
Limescale deposits on the tableware, on the tub and on the inside of the door.	Refer to "The water softener".
Dull, discoloured or chipped tableware.	Make sure that only dishwasher-safe items are washed in the appliance. Load and unload the basket carefully. Refer to basket loading leaflet. Place delicate items in the upper basket.

Refer to "Before first use",

"Daily use" or "Hints and

tips" for other possible causes.

TECHNICAL INFORMATION

Dimensions Width / height / depth (mm) 596 / 818-898 / 550
Electrical connection 1)	Voltage (V) 200 - 240
	Frequency (Hz) 50 / 60
Water supply pressure bar (minimum and maximum) 0.5 - 8
Water supply	MPa (minimum and maximum) 0.05 - 0.8
	Cold water or hot water2)	max 60 °C
Capacity Place settings 15
Power consumption Left-on mode (W) 0.99
Power consumption Off-mode (W) 0.10

1) Refer to the rating plate for other values.
2) If the hot water comes from alternative source of energy, (e.g. solar panels, aeolian energy), use the hot water supply to decrease energy consumption.

ENVIRONMENT CONCERNS

Recycle the materials with the symbol Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not

dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES

Levoyant continue a clignoter.

Levoyant continueaclignoter.
