USER MANUAL 688.010 CaterChef

CaterChef® Professional Supplies

MAGNETRON

Model: *688.010

MICROWAVE OVEN

Model: *688.010

FOUR À MICRO-ONDES

Modèle: *688.010

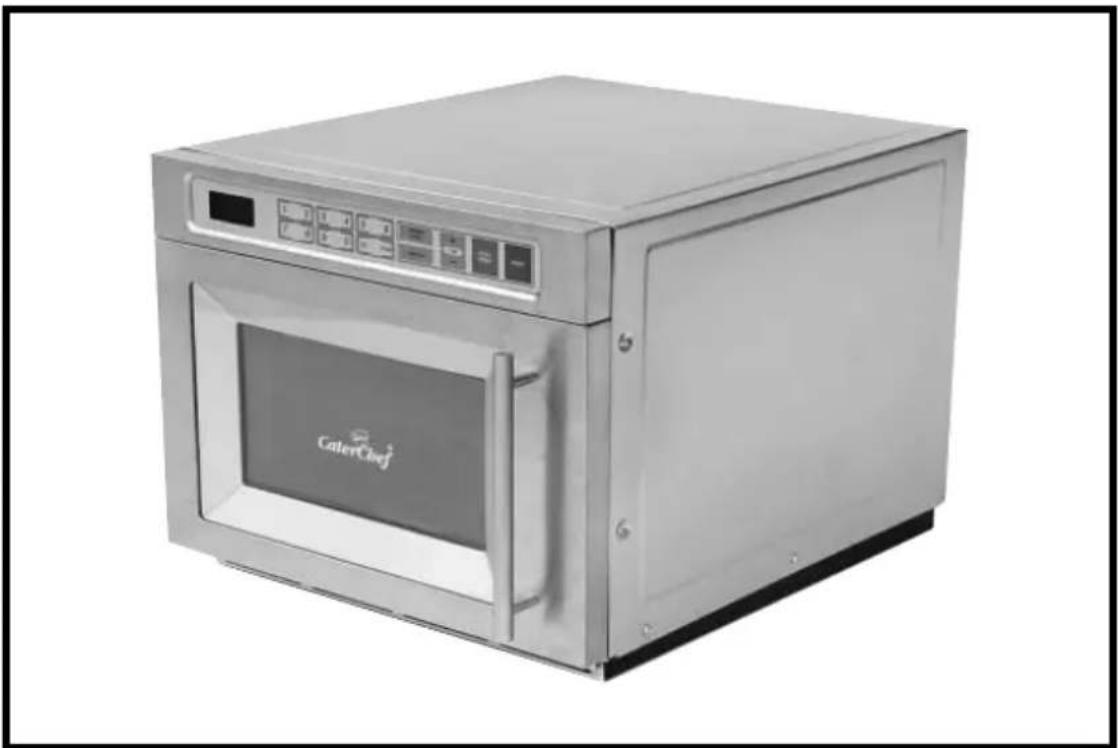

Exterior view of a CaterChef microwave oven (no signage or text visible on the device itself)

User instructions (p. 13-23)

KOKEN MET MEERDERE FASEN 8

EEN KOOKPROGRAMMA MET MEERDERE FASEN ONDER EEN NUMMERTOETS OPSLAAN .....9

GEBRUIK VAN DE X2-TOETS 10

TELLING VAN HET AANTAL KEREN MAGNETRONGEBRUIK 10

OMSCHAKELEN....10

KOOKTIJD AANPASSEN 10

KINDERBEVEILIGING....10

FABRIEKSINSTELLING TERUGZETTEN 11

1. REINIGING EN ONDERHOUD....11

2. VOORZORGSMAATREGELEN OM MOGELIJKE BLOOTSTELLING AAN OVERMATIGE MAGNETRONENERGIE TE VOORKOMEN

Diagram of a microwave oven with numbered parts and control panel labels

1. Veiligheidssluiting van deur
2. Magnetronraam
3. Bodem magnetronruimte
4. Bedieningspaneel

5. Keramisch plateau

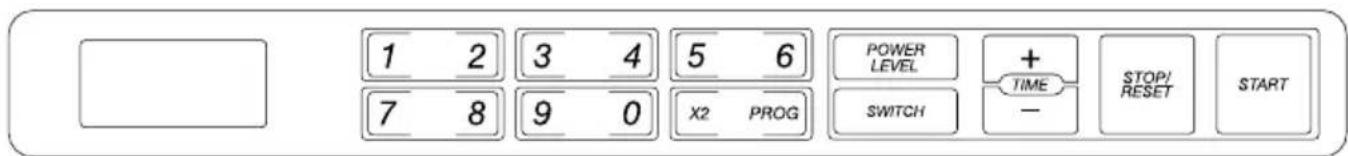

6. BEDIENINGSPANEEEL


1 2 3 4 5 6 POWER LEVEL + TIME STOP/ RESET START 7 8 9 0 X2 PROG SWITCH

Display

KOKEN MET MEERDERE FASEN

CaterChef® Professional Supplies

MICROWAVE OVEN

Model: *688.010

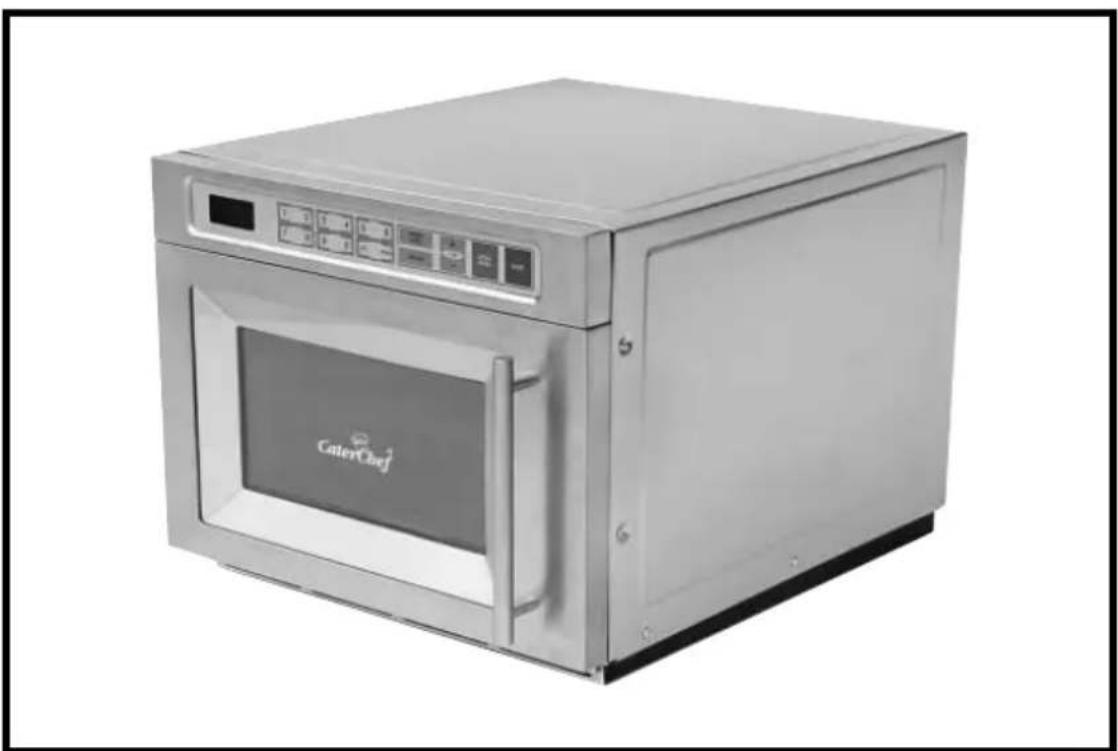

Exterior view of a modern kitchen oven with control panel and display (no visible text or symbols)

Operation Manual (p. 13-23)

1. CONTENTS

1. CONTENTS .... 14
2. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ......15
3. SPECIFICATIONS ....15
4. IMPORTANT SAFETY INSTRUCTIONS ....16
5. INSTALLATION ....17
6. RADIO INTERFERENCE ....17
7. GROUNDING INSTRUCTIONS ..... 17
8. MICROWAVE COOKING PRINCIPLES ....18
9. BEFORE YOU CALL FOR SERVICE ....18
10. UTENSILS GUIDE ...... 18
11. PART NAMES .... 19
12. CONTROL PANEL .... 19
13. HOW TO SET THE OVEN CONTROLS....20

1. CLEANING AND CARE 23

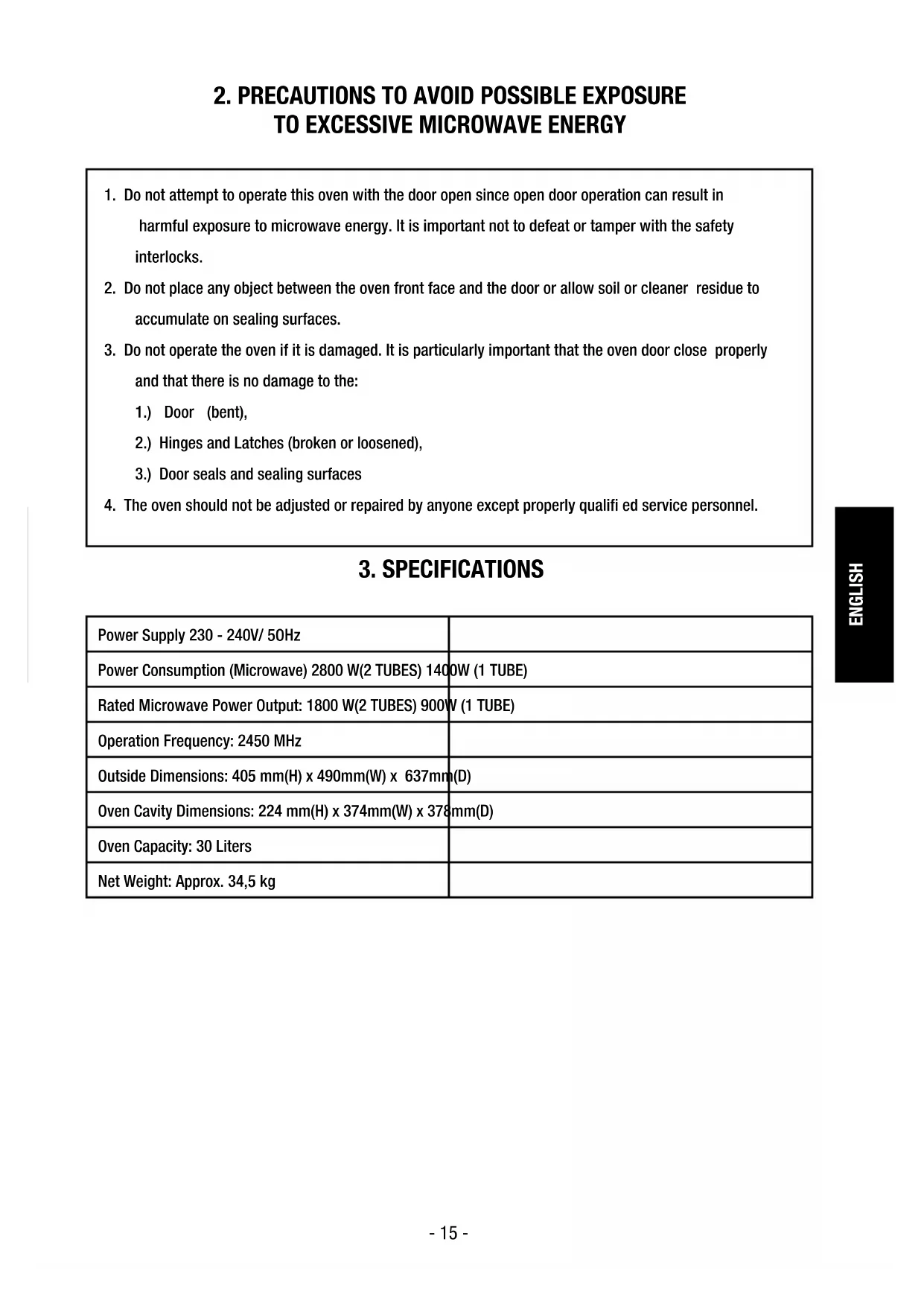

2. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:
   1.) Door (bent),
   2.) Hinges and Latches (broken or loosened),
   3.) Door seals and sealing surfaces
4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

3. SPECIFICATIONS

Power Supply 230 - 240V/ 50Hz
Power Consumption (Microwave) 2800 W(2 TUBES) 1400W (1 TUBE)
Rated Microwave Power Output: 1800 W(2 TUBES) 900W (1 TUBE)
Operation Frequency: 2450 MHz
Outside Dimensions: 405 mm(H) x 490mm(W) x 637mm(D)
Oven Cavity Dimensions: 224 mm(H) x 374mm(W) x 378mm(D)
Oven Capacity: 30 Liters
Net Weight: Approx. 34,5 kg

4. IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliance basic safety precautions should be followed, including the following:

WARNING: To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
3. Do not operate the oven when empty.
4. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
5. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

6. To reduce the risk of fire in the oven cavity:
   a. When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition;
   b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
   c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifl e any fl ames.
   d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

7. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.

8. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handling the container.

9. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.

10. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.

11. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.

12. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.

13. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.

14. Utensils should be checked to ensure that they are suitable for use in microwave oven.

15. WARNING: It is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.

16. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purpose.

17. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

18. Children should be supervised to ensure that they do not play with the appliance.

5. INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. It there is any damage, do not operate the oven and contact qualified service personnel.
3. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
4. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
5. For correct operation, the oven must have sufficient airflow. Allow 20 cm of space above the oven, 10 cm at back and 5 cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
6. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
7. The socket must be readily accessible so that it can be easily unplugged in an emergency.
8. Do not use the oven outdoors.

6. RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment. When there is interference, it may be reduced or eliminated by taking the following measures:

1. Clean door and sealing surface of the oven.
2. Reorient the receiving antenna of radio or television.
3. Relocate the microwave oven with respect to the receiver.
4. Move the microwave oven away from the receiver.
5. Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits.

7. GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded.

In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING: Improper use of the grounding plug can result in a risk of electric shock.

Note:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue	=	NEUTRAL
Brown	=	LIVE

8. MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully. Place thickest areas towards outside of dish.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the centre of the dish to the outside.

9. BEFORE YOU CALL FOR SERVICE

It the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety look system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.

10. UTENSILS GUIDE

1. The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.
2. Microwave cannot penetrate metal, so metal utensils or dishes with metallic trim should not be used.
3. Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks and/or fi res.
4. Round /oval dishes rather than square/oblong ones are recommend, as food in corners tends to overcook.
5. Narrow strips of aluminium foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils.

Cookware Microwave
Heat - Resistant Glass Yes
Non Heat - Resistant Glass No
Heat - Resistant Ceramics Yes
Microwave - Safe Plastic Dish Yes
Kitchen Paper Yes
Metal Tray No
Metal Rack No
Aluminium Foil & Foil Container No

1. PART NAMES


Diagram of a microwave oven with numbered components and control panel labels

1. Door Safety Lock System
2. Oven Window
3. Cavity Floor
4. Control Panel

5. Ceramic Board

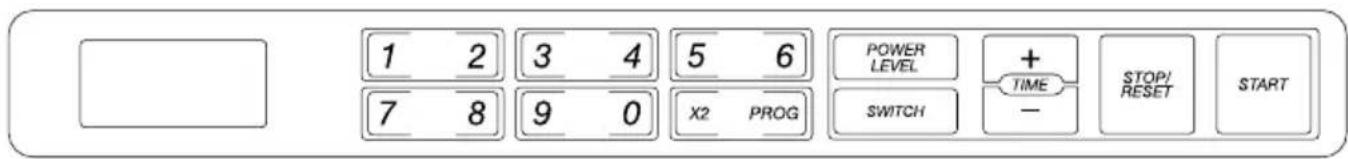

6. CONTROL PANEL


1 2 3 4 5 6 POWER LEVEL + TIME STOP/ RESET START 7 8 9 0 X2 PROG SWITCH

Display Screen

Cooking time, power, indicators and present time are displayed.

Number Pads

Press these button to set the cooking time, to set a cooking program etc.

X2

Press to store a cooking program.

Prog

Press to store a multi-stage cooking program. It is also used to set child lock.

Power Level

Press to select a microwave cooking power.

Switch

Press to switch the oven to cook under single tube or double tubes cooking mode.

Time +/-

Press to adjust the cooking time.

Stop/Reset

Press this button stop or cancel a cooking program.

Start

Press to start cooking program.

13. HOW TO SET THE OVEN CONTROLS

MICROWAVE COOKING

Microwave cooking allows you to customize cooking power and time.

First, select a power level by pressing the Power Level button a number of times (see the table below).

Maximum cooking time is 99 minutes and 99 seconds.

Suppose you want to cook for 5 minute at 80% power level.

1. Open the door and place food in the oven, close it.
2. Press Power Level button a number of times till the screen show the intended power.

Press Power Level button Power Level
Once 100% (HI)
Twice 80% (MED)
Thrice 30% (DEF)

1. Use the number pedal to enter cooking time until the correct cooking time (5:00) is displayed.
2. Press Start button to start.

NOTE:

After the cooking time ends, the system will beep once and 0 is displayed.

Before starting another cooking session, press Stop/Reset pad to dear the display and reset the system.

MULTI-STAGE COOKING

Food may require different periods or stages cooking with different power levels and cooking times.

You can set up to 3 stages cooking manually.

Suppose you want to set the following program:

First stage: 5 minutes of DEF microwave power cooking;

Second stage: 3 minutes of HI microwave power cooking;

Third stage: 1 minutes of MED microwave power cooking.

Step:

1. Open the door and place food in the oven, close it.
2. Press Power Level three times and press number pad to enter the cooking time.
3. Press Power Level once and press number pad to enter the cooking time.
4. Press Power Level twice and press number pad to enter the cooking time.
5. Press Start to start cooking.

SAVE A MULTI-STAGE COOKING TO A NUMBER KEY

For frequently used cooking program, you can save it to a number key and conveniently activate it by touching the number key and then START pad.

Each of the number keys is pre-set with a cooking program. In waiting mode, touch any of the ten number pads, you are selecting a cooking program, then press START pad to start the preset program.

The following are default settings for each of the number keys

Number/Memory Pads 1 234567890
Preset Cooking Time :10 :20 :30 :45 1:00 1:30 2:00 2:30 3:00 3:30

The user is free to reset the cooking program stored under each of the ten number keys anytime.

In order to set a cooking program, which may contain up to 3 stages consecutive cooking periods with different power levels, and to designate a number key to this program, see the example bellow:

To set medium power cooking for 8 min, and save it to number pad 5:

1. Open the door and place food in the oven, close it.
2. Touch PROG once.
3. Press number pad 5.
4. Press Power Level twice to select MED.
5. Touch number pads 8, 0, 0.
6. Press PROG to save.

NOTE: When the program has been saved, you can press START to start cooking or you can also press STOP/RESET pad to cancel.

You can set a two or three stages cooking program by repeating the steps 4 and 5 once or twice.

Suppose you want to set a multi-stage cooking program to number pad 3.

First stage: 5 minutes of DEF microwave power cooking;

Second stage: 3 minutes of HI microwave power cooking;

Third stage: 1 minutes of MED microwave power cooking.

Step:

1. Open the door and place food in the oven, close it.
2. Touch PROG once.
3. Press number pad 3.
4. Press Power Level three times and press number pad to enter the cooking time.
5. Press Power Level once and press number pad to enter the cooking time.
6. Press Power Level twice and press number pad to enter the cooking time.
7. Press PROG to save.

NOTE:

If you want the oven to start immediately after you touching any of the number keys instead of after you touching the Start pad, press and hold down Stop/Reset for 5 sec until "P L" appears on display; now you don't need to press Start pad after selecting a cooking program by touching any of the number keys. If you want to cancel the auto-number start setting, you can press and hold down Stop/Reset for 5 sec until "P PROG appears on display.

HOW TO USE THE X2 PAD

More cooking programs can be stored under the number keys by using the X2 function.

In waiting mode, press X2, any of the number keys, and the Start pad, you can recall a preset cooking program as follows:

Number/Memory Pads 1234567890
Preset Cooking Time :20 :40 1:00 1:30 2:00	3:00 4	00 5:00	6:00 7:00

X2 function can only program one stage cooking. After setting is finished, press Stop/Reset to return to waiting mode. The oven will start after you touching X2, any of the number keys and then the Start pad. For example, to use the X2 function, and save a program of full power and 3 minutes cooking to number pad 8.

1. Touch PROG once.
2. Touch X2 pad once.
3. Press number pad 8.
4. Press Power Level once.
5. Touch number pads 3, 0, 0.

6. Press PROG to save.

7. Open the door and place food in the oven, close it.

NOTE: When the program has been saved, you can press START to start cooking or you can also press Stop/Reset pad to cancel.

If you want the oven to start immediately after you touching any of the number keys instead of after you touching the Start pad, press and hold down Stop/Reset for 5 sec until "P L" appears on display; now you don't need to press Start pad after selecting a cooking program by touching any of the number keys.

If you want to cancel the auto-number start setting, you can press and hold down Stop/Reset for 5 sec until "P PROG" appears on display.

COUNT OF OPERATIONS

You can read the count of how many times the oven has been used. To do this,

1. In waiting mode, press and hold down Stop/Reset.
2. Touch Power Level pad. The number on display shows how many times the oven has been used.
   This function is for the user to analyze the usage of the oven and the traffic flow at a particular location where the oven is being used commercially.

SWITCH

The oven can use single tube or double tubes to cook. For single tube mode, you can save power, while for double tubes, you can use less time to cook. The default setting for the oven is double tubes, however, you can press Switch to change. Select it before setting a cooking program.

During cooking, you can press +/- to adjust the cooking time. Each press to adjust 20 seconds. The maximum time you can set is 1H:99 seconds. For the preset program, you cannot adjust the cooking time by pressing +/-

CHILD PROOFLOCK

In waiting mode, press and hold PROG for 5 seconds. The oven is locked.

To release child lock, press and hold PROG for 5 seconds, the oven goes to normal.

RETURN TO FACTORY SETTING

If you want the oven return to the default factory setting, you can press Start pad and plug in the oven until "00:00" shows on the screen, then press the following pads one by one:

"1", "2", "3", "4", "5", "6", "7", "8", "9", "0", "Power Level", "X2", "PROG", "Switch", "+", "-", "stop/Reset", "Start".
And the screen will show "00:18", open and close the door, then open it again.
Beep will be heart to signal to oven is back to factory setting.

14. CLEANING AND CARE

1. Turn Off the oven and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergent may be used if the oven gets very dirty.
   Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.
3. The outside surfaces should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet. Clean with a soft, damp cloth.
   When cleaning the control panel, leave oven door open to prevent oven from accidentally turning on.
6. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth.
   This may occur when the microwave oven is operated under high humidity condition. And it is normal.
7. It is occasionally necessary to remove the glass tray for cleaning.
   Wash the tray in warm sudsy water or in a dishwasher.
8. The oven floor should be cleaned regularly. Simply wipe the bottom surface of the oven with mild detergent.
9. Remove odours from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl, microwave for 5 minutes. Wipe thoroughly and dry with a soft cloth.
10. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.
11. The oven should be cleaned regularly and any food deposits removed. Failure to maintain the oven in a clean condition could lead to deterioration of the surf ace that could adversely affect the life of the appliance and possibly result in a hazardous situation.
12. Please do not dispose this appliance into the domestic rubbish bin; it should be disposed to the particular disposal centre provided by the municipalities.

CaterChef® Professional Supplies

FOUR À MICRO-ONDES

Model: *688.010

Exterior view of a modern kitchen oven with control panel and display (no visible text or symbols)

Diagram of a microwave oven with numbered parts and control panel labels

You can set a two or three stages cooking program by repeating the steps 4 and 5 once or twice.

Suppose you want to set a multi-stage cooking program to number pad 3.

“1”, “2”, “3”, “4”, “5”, “6”, “7”, “8”, “9”, “0”, “Power Level”, “X2”, “PROG”, “Switch”, “+”, “−”, “stop/Reset”, “Start”.

CaterChef® Professional Supplies
