ANSCHLIESSEN AN DAS STROMNETZ

ACHTUNG

If this machine is fitted with a 3 pin non-rewireable BS plug then please read the following.

IMPORTANT (in the United Kingdom)

Main supply (AC 230/240V\~, 50Hz)

DO NOT cut off the main plug from equipment. If the plug fitted is not suitable for the power point in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or consult your dealer.

BE SURE to replace the fuse only with an identical approved type, as originally fitted and to replace the fuse cover.

If none the less the main plug is cut off be sure to remove the fuse and dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the main supply.

IMPORTANT (in the other countries)

If the available socket outlet is not suitable for the plug supplied with this equipment, it should be cut off and an appropriate three pin plug fitted. With alternative plugs an approved fuse must be fitted in the plug.

NOTE: The plug severed from the main leads must be destroyed as a plug with bared flexible cords is hazardous if engaged in a live socket outlet. In the event of replacing the plug fuse, use a fuse approved by ASTA to BS 1362, i.e. carrying the mark, rating as marked on plug.

Always replace the fuse cover. Never use plugs with the fuse cover omitted.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER 'E', BY THE EARTH SYMBOL 12 OR COLOURED GREEN OR YELLOW.

The wires in this main lead are coloured in accordance with the following code:

Blue Neutral

Brown Live

As the colours of the wiring in the main lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter 'N' or coloured black or blue.

The wire which is coloured brown must be connected to the terminal which is marked with the letter 'L' or coloured red or brown.

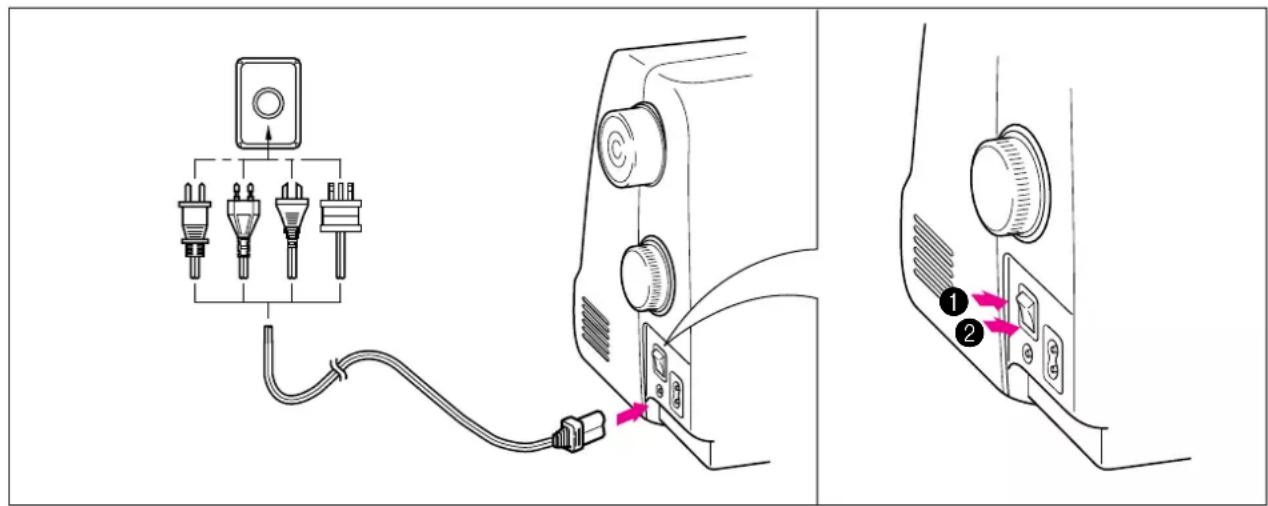

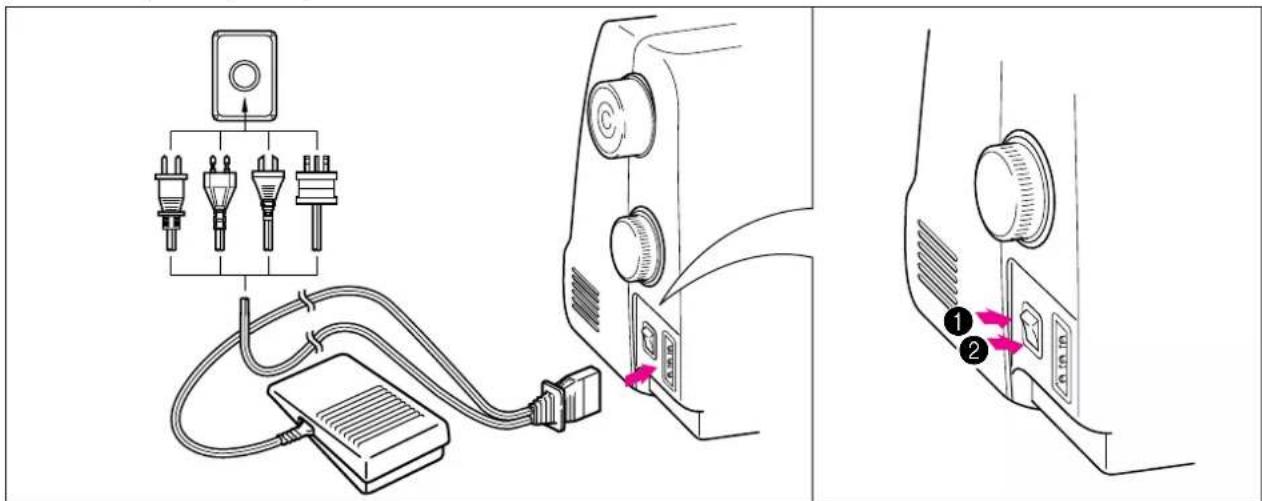

Connecting Plugs and Main Power / Sewing Light Switch

(Model STAR 240E, STAR 230E)

Diagram showing cable connection to a device with labeled components and directional arrows indicating connection points.

(Model PS-57, PS-55, PS-53)

Diagram showing cable connection to a device with labeled components and directional arrows indicating connection points.

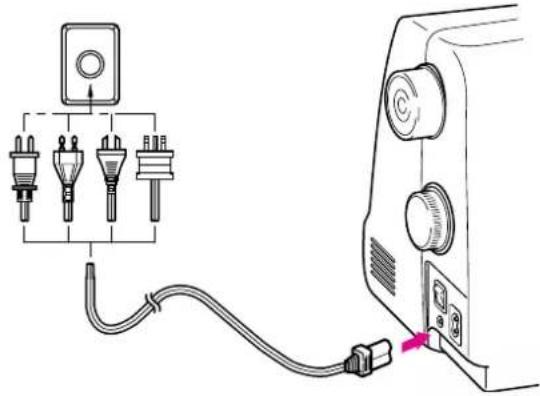

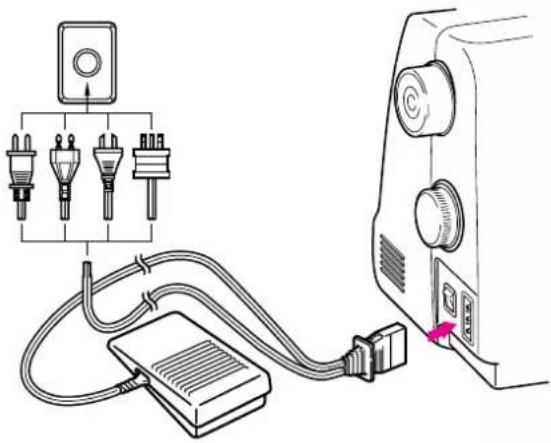

1. Connect the power cord or three-prong plug into the machine.

2. Connect the electrical supply plug into a wall outlet.

- When leaving the machine unattended, the main switch of the machine should be switched off or the plug must be removed from the socket outlet.

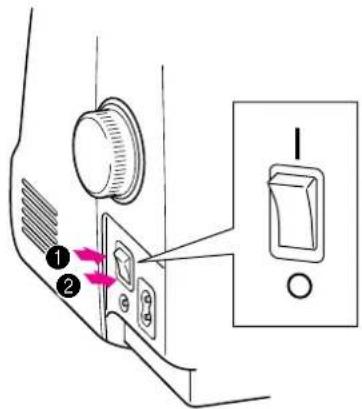

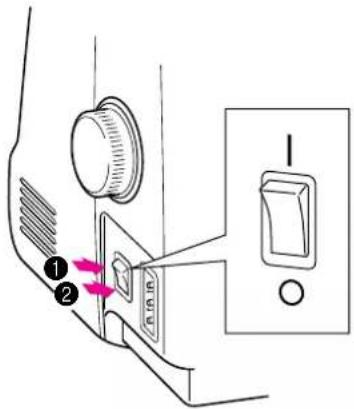

Turn on or off the switch for the main power and sew-light.

①Turn on ②Turn off

- When servicing the machine, or when removing covers or changing bulbs, the machine or the electrical set must unplugged.

HEFTEN UND APPLIZIEREN

Patchwork (Assemblage) 60

KNOOPSGATEN EN KNOPEN

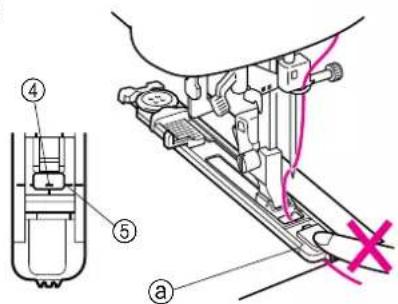

Een knoopsgat maken

TOEBEHOREN EN APPLICATIONS

Technical diagram of a sewing machine with numbered parts for identification

Technical diagram of a sewing machine with numbered parts for identification

Simple line drawing of a handheld electronic device with a cable and labeled component (no text or symbols)

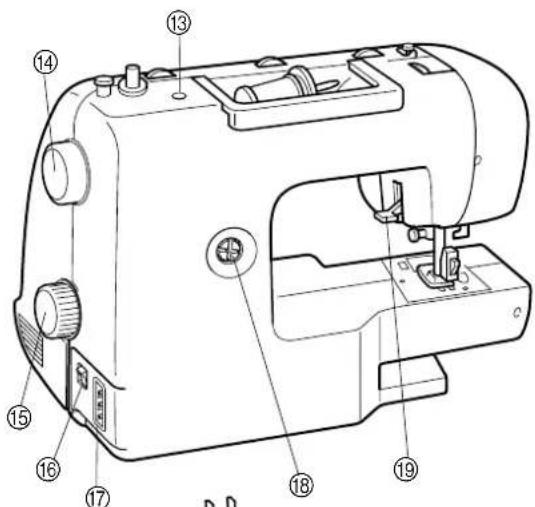

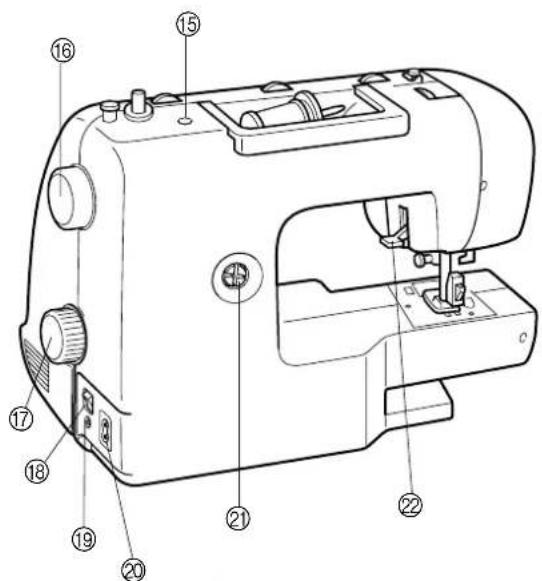

HAUPTBESTANDTEILE

(Modell STAR 240E, STAR 230E)

①SPULER (Seite 33)

(Model STAR 240E, STAR 230E)

①SPOELWINDER (Pagina 34)

Technical diagram of a sewing machine with numbered parts for identification

Technical diagram of a sewing machine with numbered parts for identification

Line drawing of a cable with two connectors and a power plug, no text or symbols present

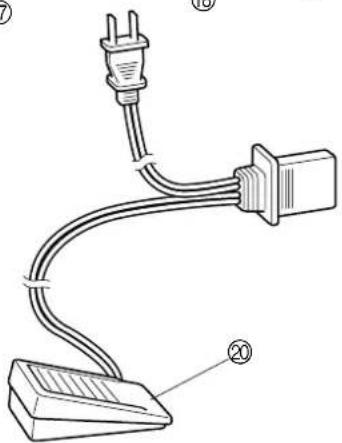

HAUPTBESTANDTEILE

(Modell PS-57, PS-55, PS-53)

①SPULER (Seite 33)

⑰CONTACT VOOR VOETPEDAAL (Pagina 8)

Pink plastic mechanical component with internal slots and mounting brackets (no text or symbols)

⑥130012-054 ⑦130013-054

⑧X59476-051 ⑨130920-051

Illustration of a pink pen-like object with black bands (no text or symbols)

⑩X55467-051 ⑪X54243-001

⑫X52769-656 ⑬X53984-054

①SA140 X81065-002

②SA129 X81021-002

③SA125 X80980-002

ZUBEHÖR

⑫ Tragekoffer (1 St.) (Modell STAR 240E, STAR 230E)

⑬Staubabdeckung (1 St.) (Modell PS-57, PS-55, PS-53)

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

Voetpedaal: Model N5V

Onderdelencode: XA3931-051

(Model STAR 240E, STAR 230E)

Diagram showing connections between a power plug, three socket plugs, and a device with a switch (no text or symbols present)

(Model PS-57, PS-55, PS-53)

Diagram showing connections between a device with three plug-in switches and a power strip, alongside an external device with a switch labeled 'A-1.0'.

(Model STAR 240E, STAR 230E)

Diagram showing a car door panel with labeled buttons and a switch, highlighting two directional arrows (1 and 2) to a button.

(Model PS-57, PS-55, PS-53)

Diagram showing a door switch mechanism with labeled parts and directional arrows indicating movement or force.

Illustration of a foot pressing down on a pink foam roller with a red arrow indicating force direction (no text or symbols)

(Model STAR 240E, STAR 230E)

Diagram showing a device connection with labeled parts, including a power outlet and a pink device labeled ①.

Pédale

(Modell STAR 240E, STAR 230E)

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

Voetpedaal: Model N5V

Diagram showing four types of boat hull designs with cross and circle symbols indicating different orientations or orientations.

Diagram showing a hand holding a pen or tool with labeled parts ① and ②, indicating a measurement or alignment.

Diagram illustrating a mechanical or surgical procedure with labeled steps and directional arrows indicating movement or force.

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a magnified inset showing a component with a pink liquid level.

5 X

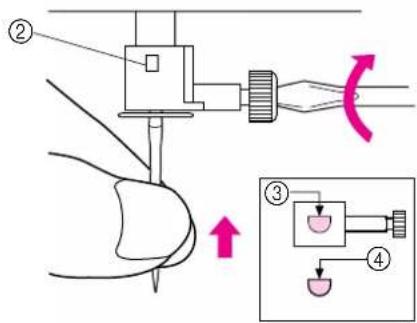

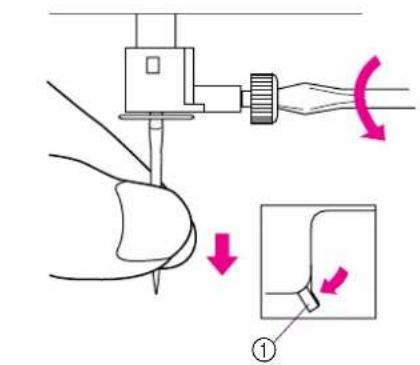

Nadel prüfen

Two-step illustration of a sewing machine needle stitching, showing hand positioning and tool path (no text or symbols)

Nähfuß wechseln

VORSICHT

Diagram of a sewing machine with a pink fabric cover and needle insertion, showing no text or symbols

Technical diagram of a sewing machine with numbered parts and a highlighted rotation arrow indicating clockwise motion.

③ 4 3 2 1 ③ SS

VERSCHIEDENE REGLER

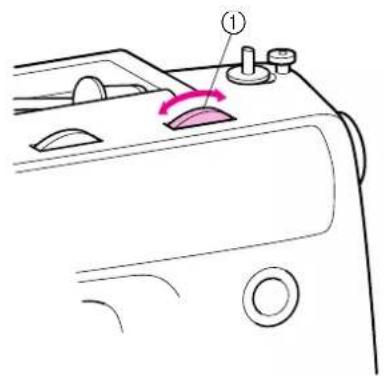

Stichmuster-Einstellrad

VORSICHT

(Modell STAR 230E, PS-55)

STICHMUSTER	STICHNAME	VOREINGESTELLTE BREITE [mm (Zoll)]	EMPFOHLENE SEITE IN DER LÄNGE [mm (Zoll)] ANLEITUNG
	1-STUFEN- 3-5 (Drehschalter 4-7) F-1,5 KNOPFLOCHAUTOMATIK (1/8-3/16) (1/64-1/16)		63
	GERADSTICH	6,5 1-4,5(1/4) (1/16-3/16)
	ZICKZACKSTICH	0-6,5 F-4,5(0-1/4) (1/64-3/16)
	BLINDSAUMSTICH	3-6,5 F-2(1/8-1/4) (1/64-1/16)
	BIESENSTICH	3-6,5 F-3(1/8-1/4) (1/64-1/8)
	ELASTIKSTICH	3-6,5 F-2,5(1/8-1/4) (1/64-3/32)
	ELASTISCHER BLINDSTICH	3-6,5 F-1,5(1/8-1/4) (1/64-1/16)
	BOGENNAHT	3-6,5 F-1,5(1/8-1/4) (1/64-1/16)
	ELASTISCHE SCHRITTNAHT BRÜCKENSTICH 57 PALISADENSTICH	3-6,5 F-3(1/8-1/4) (1/64-1/8)
	ELASTIK-MUSCHELSTICH	3-6,5 F-3(1/8-1/4) (1/64-1/8)
	PERLZIERSTICH PFEILSPITZENSTICH	3-6,5 F-1(1/8-1/4) (1/64-1/16)
	STRETCH-GERADSTICH	6,5(1/4)	SS Fixiert2,5 (3/32)
	DREIFACH-ZICKZACKSTICH	3-6,5(1/8-1/4) 2,5 (3/32)	SS Fixiert
	ÜBERWENDLINGNAHT	3-6,5(1/8-1/4) 2,5 (3/32)	SS Fixiert
	ÜBERWENDLINGNAHT	3-6,5(1/8-1/4) 2,5 (3/32)	SS Fixiert
	GRÄTENSTICH	3-6,5(1/8-1/4) 2,5 (3/32)	SS Fixiert
	KAMMSTICH	3-6,5(1/8-1/4) 2,5 (3/32)	SS Fixiert
	DEKORATIVER STICH	6,5(1/4)	SS Fixiert2,5 (3/32)
	HEXENSTICH	3-6,5(1/8-1/4) 2,5 (3/32)	SS Fixiert
	DEKORATIVER STICH	3-6,5(1/8-1/4) 2,5 (3/32)	SS Fixiert
	FLACHNAHT	3-6,5(1/8-1/4) 2,5 (3/32)	SS Fixiert
	DEKORATIVER STICH	6,5(1/4)	SS Fixiert2.5 (3/32)

(Model STAR 230E, PS-55)

PATROON STEEK		INGESTELDEBREEDTEIN HANDLEIDING [mm (inch)]	AANBEVOLEN PAGIN LENGTHE [mm (inch)] HANDLEIDING
	AUTOMATISCH KNOOPSGAT 3-5 (Knop 4-7) F-1,5IN 1 STAPPEN (1/8-3/16) (1/64-1/16)		64
	RECHTE STEEK	6,5 1-4,5(1/4) (1/16-3/16)
	ZIGZAGSTEEK	0-6,5 F-4,5(0-1/4) (1/64-3/16)
	BLINDE ZOOMSTEEK	3-6,5 F-2(1/8-1/4) (1/64-1/16)
	SCHELP-RIJGSTEEK	3-6,5 F-3(1/8-1/4) (1/64-1/8)
	ELASTISCHE STEEK	3-6,5 F-2,5(1/8-1/4) (1/64-3/32)
	BLINDZOOM STRETHSTEEK	3-6,5 F-1,5(1/8-1/4) (1/64-1/16)
	SCHELPSTEEK	3-6,5 F-1,5(1/8-1/4) (1/64-1/16)
	DOBBELE ACTIESTEEKRIMPELSTEEK 57VERBINDINGSSTEEK	3-6,5 F-3(1/8-1/4) (1/64-1/8)
	ELASTISCHE 3-6,5 F-3SCHELP-RIJGSTEEK (1/8-1/4) (1/64-1/8)		61
	SCHELPSTEEK 3-6,5 F-1PIJLKOPSTEEK	(1/8-1/4) (1/64-1/16)
	DRIEVOUDIGE STRETCHSTEEK	6,5(1/4)	SS Vast2,5 (3/32)
	DRIEVOUDIGE ZIGZAGSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	ELASTISCHE OVERLOCK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	ELASTISCHE OVERLOCK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	TAKSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	KAMSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	DECORATIEVE STEEK	6,5(1/4)	SS Vast2,5 (3/32)
	FAGOTSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	DECORATIEVE STEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	DECORATIEVE ZOOMSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	DECORATIEVE STEEK	6,5(1/4)	SS Vast2,5 (3/32)

AANBEVOLEN STEEKLENGTES EN -BREEDTEN

(Model PS-53)

PATROON STEEK		INGESTELDEBREEDTEIN HANDLEIDING [mm (inch)]	AANBEVOLEN PAGINA INLENGTE [mm (inch)] HANDLEIDING
	AUTOMATISCH KNOOPSGAT 3-5 (Knopl 4-7) F-1,5IN 4 STAPPEN (1/8-3/16) (1/64-1/16)		66
	RECHTE STEEK	6,5 1-4,5(1/4) (3/64-3/16)
	ZIGZAGSTEEK	0-6,5 F-4,5(0-1/4) (1/64-3/16)
	DOBBELE ACTIESTEEK	3-6,5 F-3(1/8-1/4) (1/64-1/8)
	BLINDZOOM STRETHSTEEK	3-6,5 F-1,5(1/8-1/4) (1/64-1/16)
	BLINDE ZOOMSTEEK	3-6,5 F-2(1/8-1/4) (1/64-1/16)
	SCHELP-RIJGSTEEK	3-6,5 F-3(1/8-1/4) (1/64-1/8)
	ELASTISCHE STEEK	3-6,5 F-2,5(1/8-1/4) (1/64-3/32)
	DRIEVOUDIGE STRETCHSTEEK	6,5(1/4) 2,5 (3/32)	SS Vast
	DRIEVOUDIGE ZIGZAGSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	FAGOTSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	KAMSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	ELASTISCHE OVERLOCK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	ELASTISCHE OVERLOCK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast
	TAKSTEEK	3-6,5(1/8-1/4) 2,5 (3/32)	SS Vast

Diagram of a car interior showing dashboard and steering wheel with labeled component (①)

Diagram of a car dashboard with labeled parts and a pink curved arrow indicating rotation or adjustment.

Diagram illustrating wave propagation with numbered regions and spring-like waveforms below

Line drawing of a sewing machine needle with a hand operating the hook (no text or symbols)

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

Technical diagram of a sewing machine with labeled parts and directional arrows indicating movement or positioning.

Technical diagram showing sewing machine needle and foot assembly with labeled component ①

(Modell STAR 240E, STAR 230E)

Start-/Stopp-Taste

(Model STAR 240E, STAR 230E)

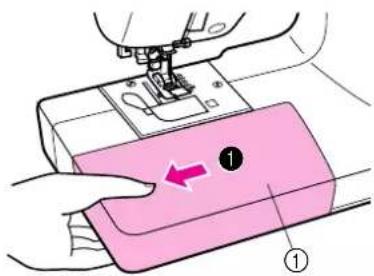

Start/Stop-toets

Druk op de knop Start/Stop om de machine te laten starten of stoppen.

Technical diagram of a door handle assembly with numbered component label

Diagram showing sewing process with labeled parts and directional arrow indicating movement

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

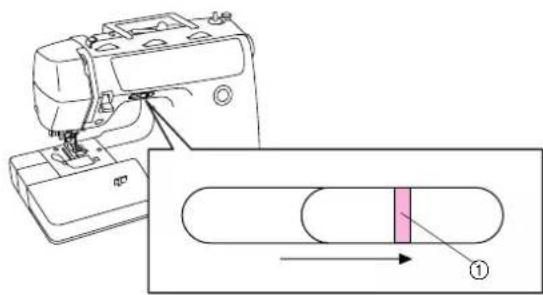

Snelheidsregeling

Line drawing of a hand holding a screwdriver inside a device (no text or symbols)

(Model STAR 240E, STAR 230E)

Technical diagram illustrating mechanical assembly steps with numbered components and directional arrows indicating motion

(Model PS-57, PS-55, PS-53)

Technical diagram illustrating three-step assembly steps of a mechanical component with labeled parts and directional arrows.

FADENFÜHRUNG

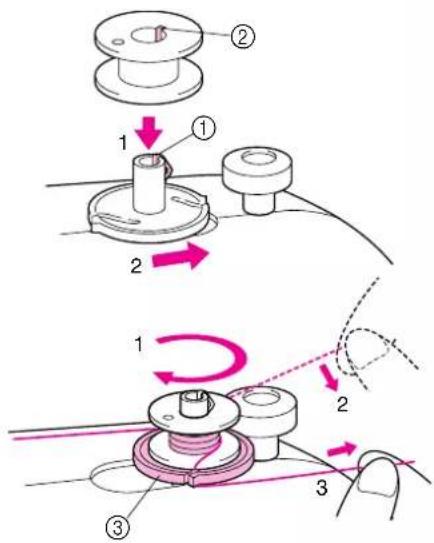

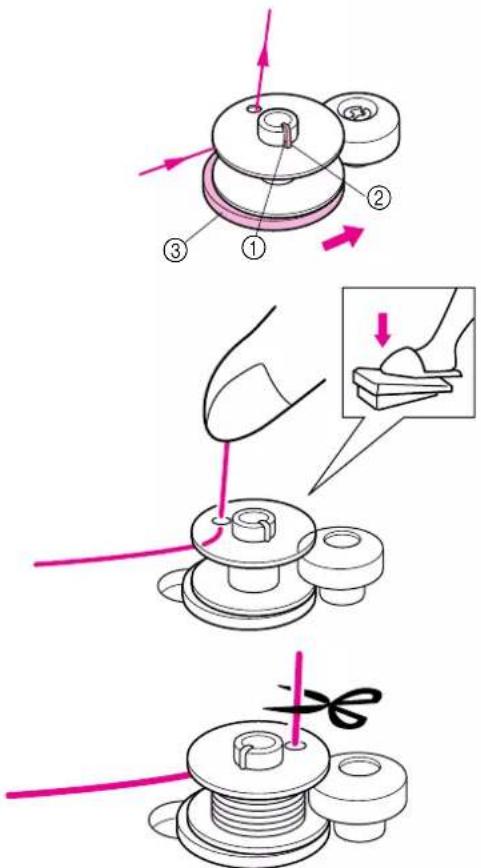

Aufspulen

VORSICHT

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

(Modell STAR 240E, STAR 230E)

Diagram showing sewing machine operation with labeled component and directional arrow

(Modell PS-57, PS-55, PS-53)

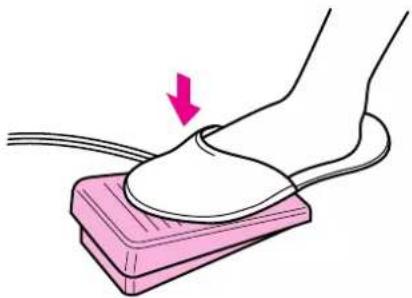

Illustration of a foot pressing down on a pink foam roller with a downward arrow indicating compression (no text or symbols)

①

②

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

Diagram showing a hand using a pink device to adjust or install a component, with labeled parts ① and ②.

Illustration of hands performing a sewing or sewing process with a pink arrow indicating direction (no text or symbols)

Pure mechanical diagram showing a pulley and belt system without any text, numbers, or symbols

Diagram showing a hand holding a pink tool with numbered annotations (1 and 2) indicating parts of the process.

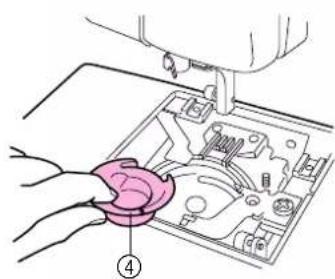

Unterfadenführung

VORSICHT

Technical diagram of a sewing machine with numbered parts and motion indicator arrows

Technical diagram showing sewing machine stitching with directional arrows and labeled component (①)

Pure mechanical diagram showing a shaft and housing with a red arrow indicating direction (no text or symbols)

Pure mechanical diagram showing a shaft and nut assembly with a pink arrow indicating direction (no text or symbols)

Diagram showing a mechanical or fluid system with arrows indicating direction and labeled point (②)

Technical line drawing of a mechanical assembly with no visible text or symbols

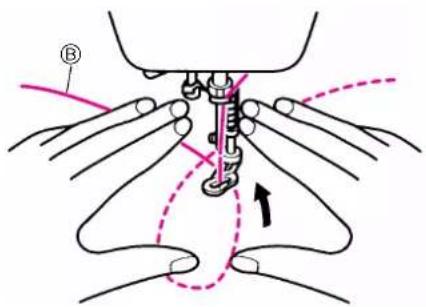

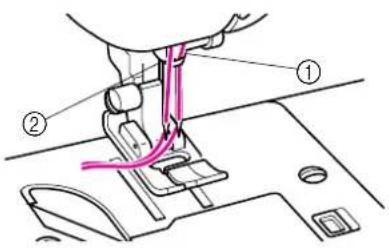

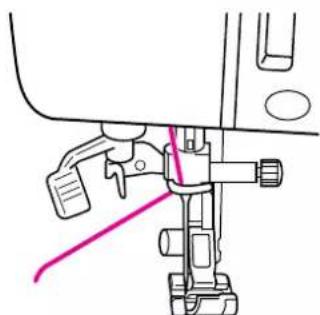

Oberfadenführung

Technical diagram of a sewing machine with numbered parts and motion indicator arrows

Technical diagram illustrating sewing process steps with labeled instructions and component diagrams

Pure mechanical diagram of a cylindrical component with internal grooves and arrows indicating direction (no text or symbols)

B

Diagram showing sewing process with labeled parts including a hand holding a pink cable and numbered parts ① and ②.

POUR PLACER UN PORTE-BOBINE SUPPLEMENTAIRE

Diagram illustrating a mechanical assembly with numbered components and a scale reading from 5 to 3 units.

B

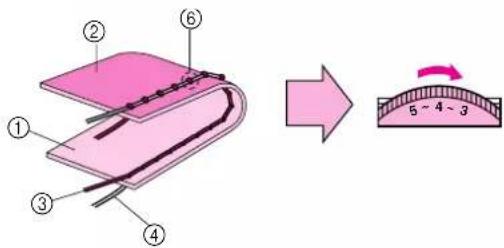

Diagram illustrating a mechanical or electrical component with numbered parts and a corresponding schematic showing a curved arc labeled 5~4~3.

C

Diagram of a layered electronic component with numbered parts labeled ① to ④

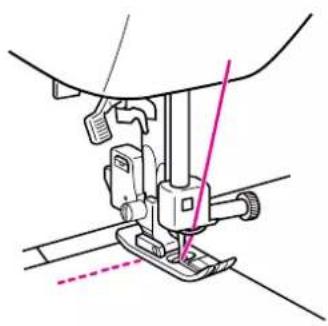

Tension des fils

Technical line drawing of a sewing machine needle stitching a fabric (no text or symbols)

Technical line drawing of a sewing machine needle and foot (no text or symbols)

Technical line drawing of a sewing machine needle and foot (no text or symbols)

Geradstich

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

Technical diagram showing a mechanical assembly with labeled parts and a dashed line indicating a reference or adjustment.

POUR RETIRER LE TISSU DE LA MACHINE

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

Line drawing of a sewing machine needle being sewnled, with hands operating the base (no text or symbols)

Two spring symbols: a vertical bar and a horizontal zigzag line, both without any text or labels.

Zickzackstich

Line drawing of a sewing machine needle stitching on a hand, showing measurement lines (no text or symbols)

Blindsaumstich

Line drawing of a sewing machine needle stitching a patterned fabric (no text or symbols)

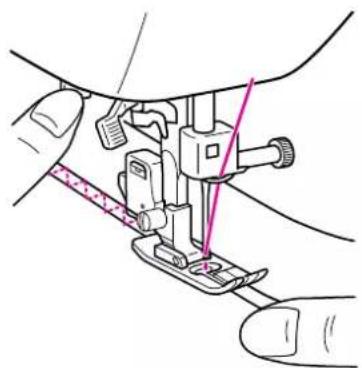

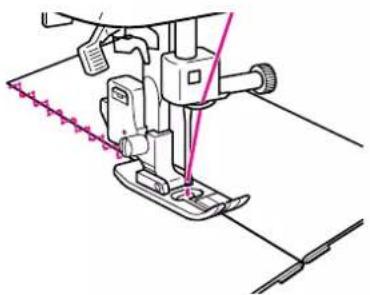

Point picot

Pure geometric L-shaped line pattern without any text, numbers, or symbols

B

Illustration of a sewing machine needle stitching a garment, with no text or symbols present.

C

Line drawing of a sewing machine needle stitching a thread (no text or symbols)

Point élastique

STOF AAN ELKAAR NAAIEN

Point renforcé

Line drawing of a sewing machine needle stitching fabric, with a pink wavy line indicating fabric stroke (no text or symbols)

Bogennaht

Two-step illustration of a sewing machine with a pink waveform and dotted line indicating fabric pattern (no text or symbols)

Points décoratifs

Patchwork (Assemblage)

Line drawing of a sewing machine needle and foot (no text or symbols)

B

Illustration of a hand pressing down on a pink fabric with two arrows indicating direction (no text or symbols)

C

Technical line drawing of a sewing machine needle and foot (no text or symbols)

Overlock élastique

Simple line drawing of scissors cutting a curved fabric with pink zigzag stitching (no text or symbols)

Illustration of hands holding a pink fabric with dotted lines indicating seam allowance (no text or symbols)

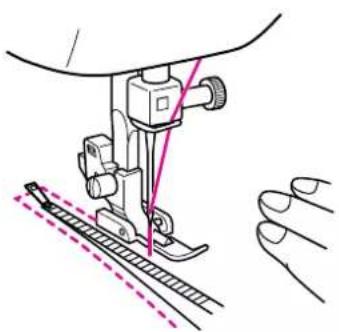

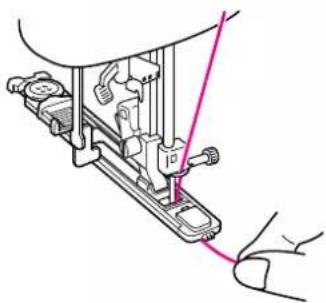

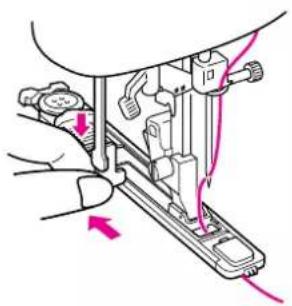

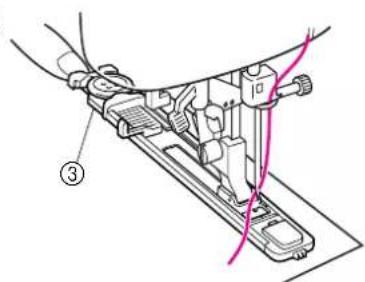

Point plume

Technical diagram of a mechanical device with labeled components and directional arrows

B

Technical diagram of a sewing machine with labeled component (③) and cable routing path

C

Technical diagram showing a sewing machine with labeled parts and a magnified view of the component.

D

Diagram of a sewing machine needle insertion operation, showing hand positioning and pink arrows indicating movement (no text or symbols)

Technical line drawing of a sewing machine with a hand operating the base (no text or symbols)

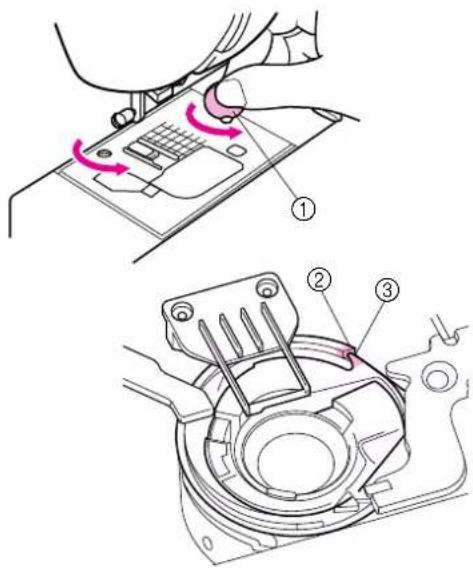

(Modell STAR 240E, STAR 230E, PS-57, PS-55)

Technical diagram showing labeled components of a mechanical device with numbered parts and dimensional annotations

Diagram illustrating the sewing process of a hand, showing step ① and step ② with labeled parts and a magnified inset.

(Modèle PS-53)

Hand holding a pen with a pink clip, no text or symbols visible

Illustration of a sewing machine with a pink thread and a circular target, showing no text or symbols.

Technical diagram of a mechanical device with numbered parts labeled ①, ②, and ③

B

Line drawing of a sewing machine needle and foot, showing measurement setup (no text or symbols)

Illustration of two hands holding a pink background with a dashed magenta line crossing through the center (no text or symbols)

Illustration of a sewing machine needle stitching a patterned fabric (no text or symbols)

Stopfen

Line drawing of a sewing machine needle stitching a pink fabric (no text or symbols)

Pink stylized flower shape with dotted outline (no text or symbols)

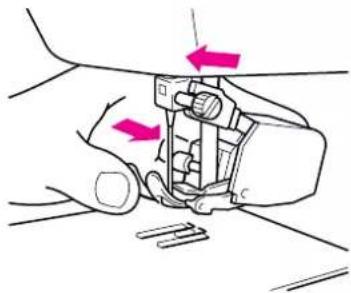

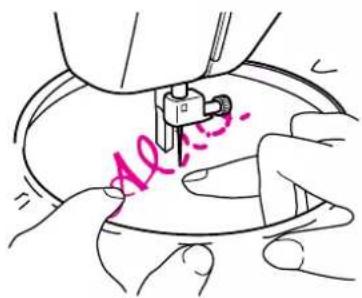

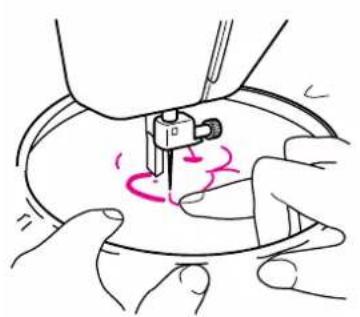

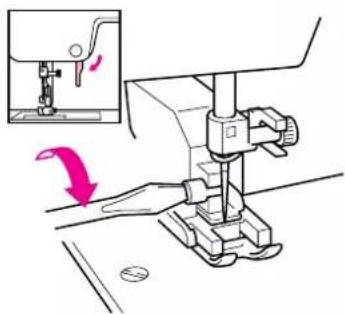

Applizieren

Illustration of a sewing machine needle stitching a curved fabric (no text or symbols)

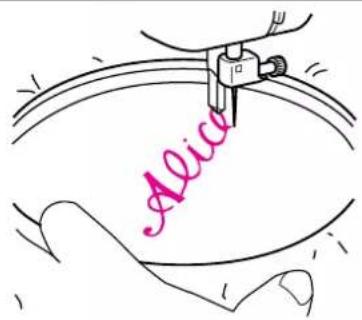

Ae...

Aeica

Alice

Illustration of hands operating a sewing machine with a circular motion indicator (no text or symbols)

Illustration of a sewing machine needle stitching a pink flower shape (no text or symbols)

Technical diagram of a mechanical device with labeled parts ① and ②

Illustration of a sewing machine needle stitching a garment, with a hand operating the seam and a pink curved arrow indicating rotation (no text or symbols)

B

Diagram of a hand operating a mechanical device with directional arrows indicating motion (no text or symbols present)

C

Diagram of a sewing machine needle insertion into a sewing machine, showing the needle being inserted (no text or symbols present)

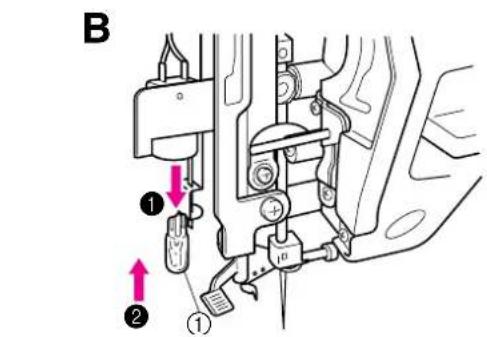

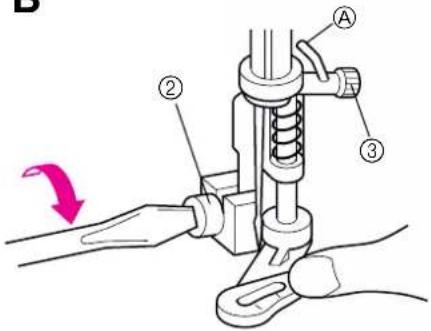

OPTIONALES ZUBEHÖR

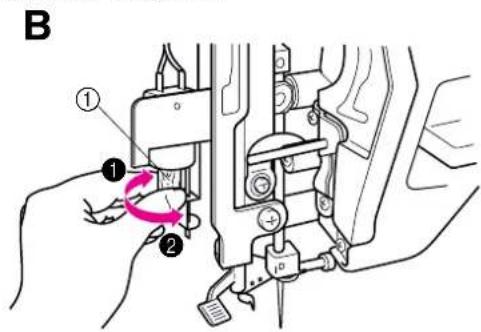

Diagram showing a sewing machine needle insertion mechanism with labeled parts and rotation arrow

B

Technical diagram of a mechanical device with labeled parts and directional arrow indicating motion

C

Diagram illustrating sewing technique with labeled point B and directional arrow indicating movement

(Model STAR 240E, STAR 230E)

D

Line drawing of a sewing machine with a hand inserting a button (no text or symbols)

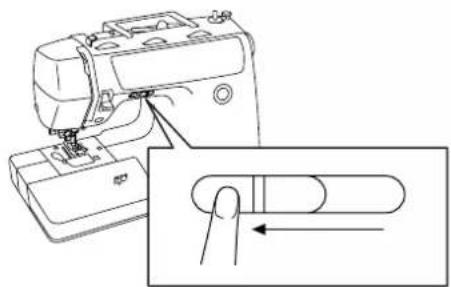

OPTIONALES ZUBEHÖR

(Model STAR 240E, STAR 230E)

A

B

Diagram showing a mechanical or electrical component with numbered parts and directional arrows indicating assembly or flow.

C

Technical diagram showing a structural assembly with labeled components 6 and 7, likely for engineering or mechanical design.

OPTIONALES ZUBEHÖR

A (Model STAR 240E, STAR 230E)

B ① ② ①

(Model PS-57, PS-55, PS-53)

B ① ① ②

Technical line drawing of a mechanical component with screw and pin (no text or symbols)

(Modell STAR 240E, STAR 230E)

(Model STAR 240E, STAR 230E)

Line drawing of a sewing machine needle stitching a garment, with a pink arrow indicating rotation (no text or symbols)

B

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion

C

Illustration of a sewing machine needle stitching a mechanical component (no text or symbols visible)

D

Technical diagram showing mechanical assembly steps with numbered components

Reinigung

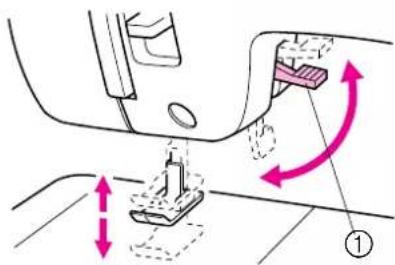

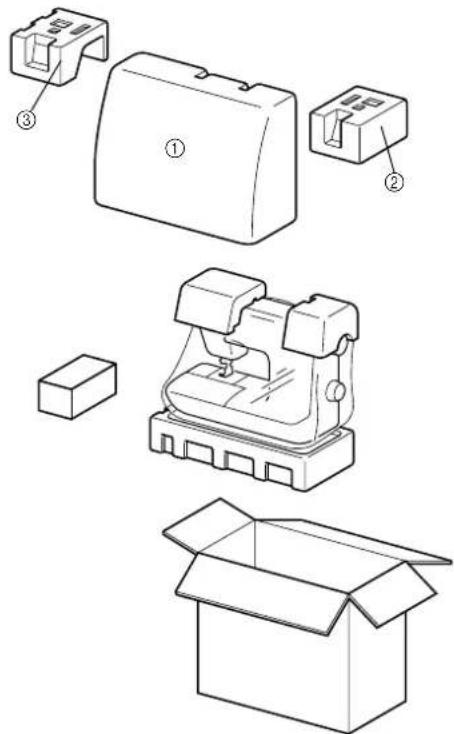

VORSICHT

Line drawing of a mechanical device with a separate 3D block nearby (no text or symbols)

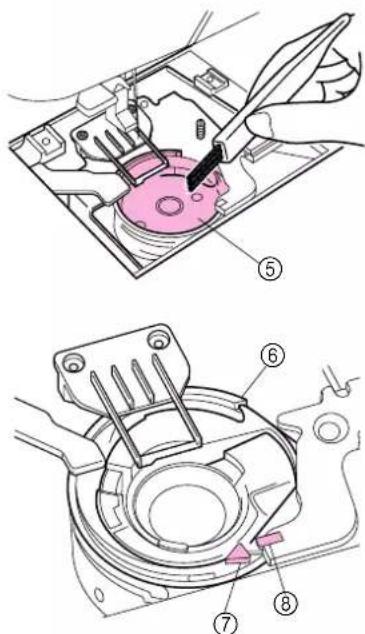

(Model STAR 240E, STAR 230E)

Technical diagram showing exploded view of a mechanical assembly with labeled parts including a box, part ①, and parts ②, ③.

Emballage de la machine

Patchwork (Assemblage) 60

Pied quilting 1/4" 4,84
