LR6 - Air purifier STEBA - Free user manual and instructions

Product type	Electrostatic air purifier
Brand	Steba
Model	LR6
Filtration technology	Permanent metal plate filter with electrostatic field
Filtered particles	Pollen, fine dust, dust mites, odors, toner dust
Fan speeds	3 levels (Min, Med, Max) + electrostatic silent mode
Silent mode	Yes, fan stopped, only electrostatic works
Cleaning indicator	Yes, indicator light when filter needs cleaning
Power supply	220-240 V ~ 50-60 Hz, mains plug
Power consumption	Approx. 15 W (estimated)
Dimensions (approx.)	30 x 20 x 40 cm (estimated)
Weight (approx.)	2.5 kg (estimated)
Recommended room area	Up to 25 m² (estimated)
Filter cleaning	Brush the fins with the provided brush, then rinse with hot water and dry
Exterior cleaning	Damp cloth, always unplug before
Grille cleaning	Vacuum cleaner with brush attachment
Safety	Automatic shutoff if overheating (estimated), no child lock
Use	Indoors only, stable surface, do not cover openings
Cable length	Approx. 1.5 m (estimated)
Warranty	2 years (estimated, according to legislation)

Frequently Asked Questions - LR6 STEBA

How to clean the filter of my Steba LR6?

To clean the filter, tilt the air outlet downward, remove the filter using the recessed handles. Brush the fins with the provided brush (located next to contacts). You can rinse the fins with hot water, then dry them completely before reinstalling. Do not use detergents.

What does the indicator light mean when it turns on?

The indicator means the filter needs cleaning. If the light stays on after cleaning, the filter is still damp; let it dry for about 2 hours.

How to activate silent mode?

Press the speed button repeatedly until the speed symbols turn off, only the On/Off button stays lit. The fan stops, but the electrostatic field continues to purify the air silently.

Does this purifier eliminate cigarette odors?

Yes, it is designed to eliminate odors, including cigarette smoke. However, never blow the device directly onto a flame.

Can I use the device in a child's room?

Yes, but children under 8 years should not use the device without supervision. Keep the cord out of reach and place the device on a stable surface.

How to adjust the fan speed?

Use the dedicated button. The tree lines indicate the level: one line for minimum speed, three for maximum. You can also switch to silent mode.

Does the filter need to be replaced?

No, the filter is permanent and does not need replacement. Simply clean it regularly as indicated in the manual.

What to do if the device does not turn on?

Check that the plug is correctly inserted and the cable is not damaged. If the problem persists, contact after-sales service.

Can I leave the device on all day?

Yes, it is designed for continuous use. However, do not leave it unattended and turn it off when cleaning the filter or if you leave the house.

How to dispose of the device at the end of its life?

Do not dispose of it with household waste. Take it to a collection point for electrical devices or to the point of sale. The packaging (paper, cardboard, plastic) should be recycled according to local regulations.

USER MANUAL LR6 STEBA

Instructions for use 7

Mode d'emploi 11

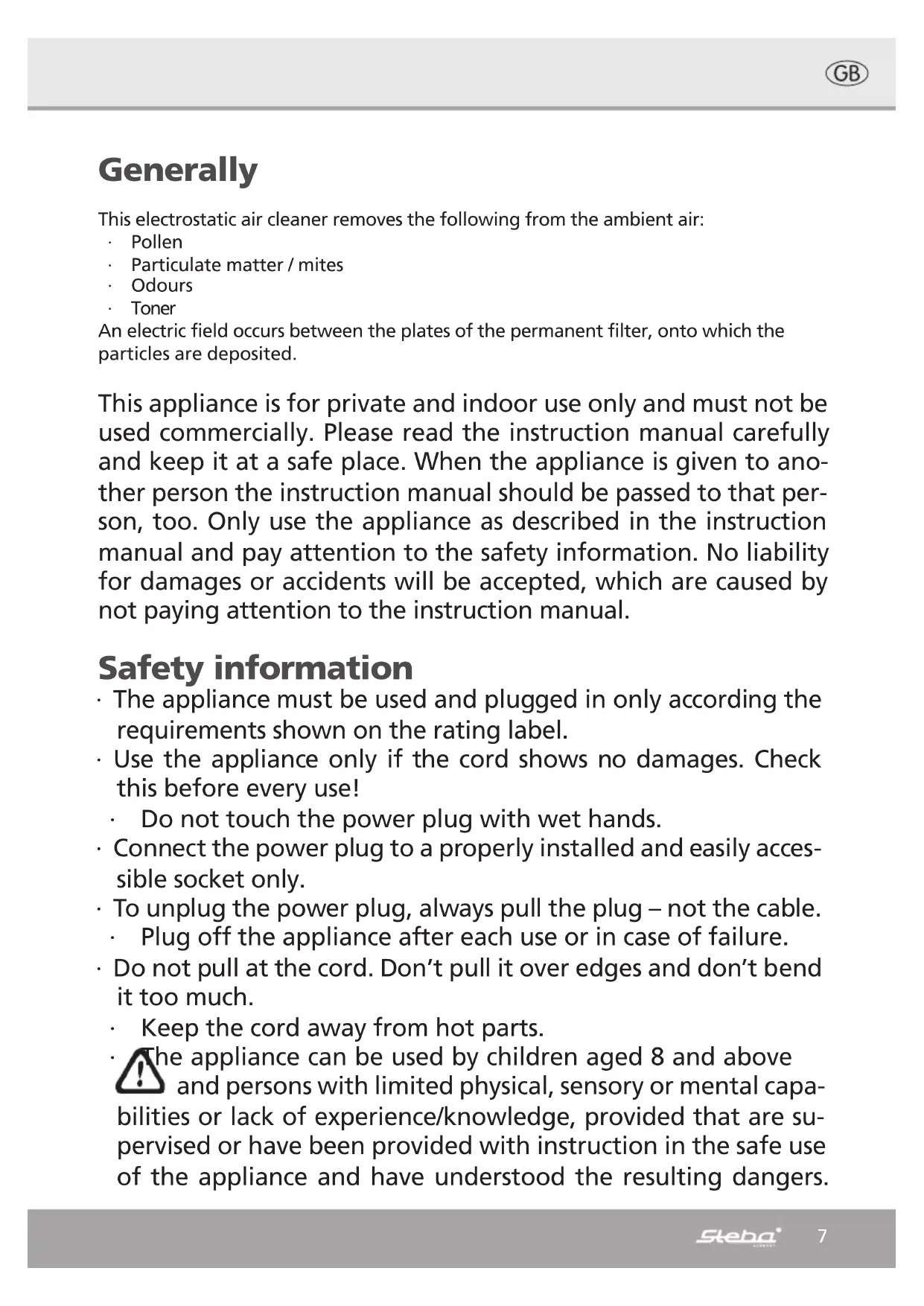

This electrostatic air cleaner removes the following from the ambient air:

• Pollen
  Particulate matter / mites
  Odours
  Toner

An electric field occurs between the plates of the permanent filter, onto which the particles are deposited.

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

• The appliance must be used and plugged in only according the requirements shown on the rating label.
• Use the appliance only if the cord shows no damages. Check this before every use!
• Do not touch the power plug with wet hands.
• Connect the power plug to a properly installed and easily accessible socket only.
• To unplug the power plug, always pull the plug – not the cable.
  Plug off the appliance after each use or in case of failure.
• Do not pull at the cord. Don't pull it over edges and don't bend it too much.
• Keep the cord away from hot parts.
  The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers

Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.
  Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).
• The appliance must not be operated using a timer or a separate remote system!
• After using the appliance or if the appliance malfunctions, always pull out the plug.
• Never pull at the cord set. Do not chafe it over edges or squeeze it.
• Do not leave the appliance outdoors or in a damp area.
  · Never immerse the appliance in water.
• Do not operate the appliance if it is damaged (for example if it felt down).
• The manufacturer is not liable for damage occurred by using the appliance in another way than described or if a mistake in operating has been made
  Do not direct the air flow from the device at naked flames (e.g. fireplaces, candles etc.). Do not cover the intake or the outlet.
• Never put any metal object into the air inlet.

Working place:

Place this device on a even and stable surface. Do not place the device near objects that may be sucked in (such as curtains)

• Do not place the device directly in front of people or animals.
  For your health's sake, please select the correct air speed.
• Keep a minimum distance of 30cm from any metal object (e.g. radiators).

Safety instructions when using the device:

Always connect the device to a safety socket
Do not use the device unless it is fully assembled.
- Route connecting cable in such a way as to avoid unintentional contact or pulling during operation.
Unplug device from socket before moving its location.
- Disconnect mains plug after use and before cleaning.

Operation

• Only use the provided power cable
  The connecting socket is in the swivelling stand
• Start the device using the on/off button 0 .
  The electrostatics may generate a little noise when the equipment is first used.
  The air speed is adjusted using the button.
  The wavy lines show which setting has been selected (Min = l, Max = lll).
• Silent mode: By pressing the for the fourth time the ON/OFF button is still illuminated, but the 山山 symbols not.

The electrostatic propulsion creates a little airflow, although the fan is not working.

Another pressing of the button is restarting the fan with the lowest speed.

appears when the filter requires cleaning.

• appears if the filter is still damp after cleaning and dries within 2 hours.
  The blow-out angle can be adjusted by 360 degree rotation.
• Switch the device off using the on/off button after use

Cleaning and maintainance:

Unplug the device.

ever immerse

the device in water!

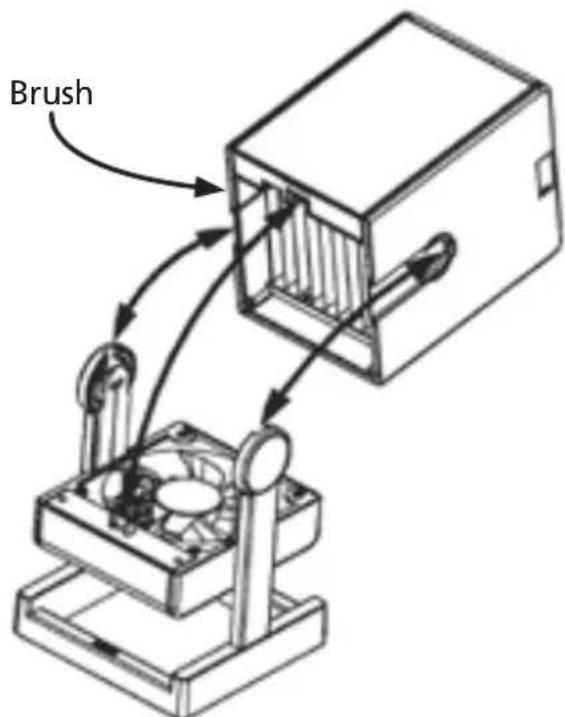

• To remove the filter, swivel the outlet opening vertically downwards. The filter can be lifted out from above using the recessed grips. Carefully brush off the slats using the provided brush next to the connecting contacts.

The slat part can be rinsed with warm water.
- Then dry thoroughly and re-insert.
The intake and outlet grilles can be vacuumed with a vacuum cleaner.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
