Product type	Analog fixed phone
Brand	Profoon
Model	TX106
Network compatibility	Public analog telephone networks (single line), Europe
Installation	Tabletop or wall-mountable (drilling and screws included, handset retaining tab)
Power supply	Via the telephone line (no battery required)
Last number redial	Up to 32 digits, redial via dedicated key
R/Flash key	100 ms break time for network services or call transfer
Special keys	* (star) and # (pound) keys for teleservices
Mute function	Temporarily disables the handset microphone
Volume amplifier	VOLUME + switch to increase reception volume
Ringer	ON/OFF switch to enable/disable the ringer
Ringer indicator	Lights up on incoming call
Wall use	Rotating tab under the handset for wall mounting
Cable management	Cable rings to tidy the telephone cord
Dimensions (approx.)	22 x 18 x 8 cm
Weight (approx.)	350 g
Care and cleaning	Clean with a damp cloth, do not use chemical products
Usage precautions	Avoid direct sunlight, humidity, and strong electromagnetic fields
Warranty	24 months from the date of purchase, covers material and manufacturing defects
Recycling (WEEE)	Do not dispose of with household waste, take to a collection point for electrical and electronic equipment

Frequently Asked Questions - TX106 PROFOON

How to install the Profoon TX106 telephone on the wall?

Drill two holes in the wall 5.7 cm apart vertically, insert wall plugs and screws. Hang the telephone by pushing the notches on the back over the screws, then slide it down. Turn the tab under the handset 180° to lock the handset in the wall position.

How to use the last number redial function?

Lift the handset and wait for dial tone. Press the redial key (marked with an arrow or 'R') once. The telephone automatically dials the last number (up to 32 digits).

What to do if the ringer does not work?

Check that the ON/OFF ringer switch (located under the telephone) is in the ON position. Ensure the telephone cable is properly connected to the wall socket. If the problem persists, test the telephone on another socket.

How to clean the Profoon TX106 telephone?

Use a slightly damp cloth (not wet) to wipe the housing. Never use chemical products, solvents, or abrasive cleaners. Avoid letting moisture enter the slots.

Can the telephone work without a battery?

Yes, the Profoon TX106 is powered directly by the telephone line. No battery is required for basic operation.

What is the R/Flash key used for?

The R/Flash key (100 ms break duration) allows you to use additional services on some telephone exchanges, such as call transfer, call waiting, or accessing network functions. Consult your exchange manual for details.

How to activate mute mode?

During a call, press the mute key (often marked with a crossed-out microphone). The handset microphone is then disabled. Press again to reactivate the microphone.

Can I use the telephone with a volume amplifier?

Yes, the handset has a VOLUME + switch. Slide it to the + position to increase reception volume.

What to do if the sound is disturbed by interference?

Move the telephone away from powerful electrical appliances (motors, screens) and radio/TV transmitters. If necessary, relocate the telephone or the interfering device.

How to benefit from the warranty?

Keep the duly completed warranty card and dated proof of purchase. In case of a defect, contact your supplier who will handle repair or exchange. The 24-month warranty covers material and manufacturing defects.

USER MANUAL TX106 PROFOON

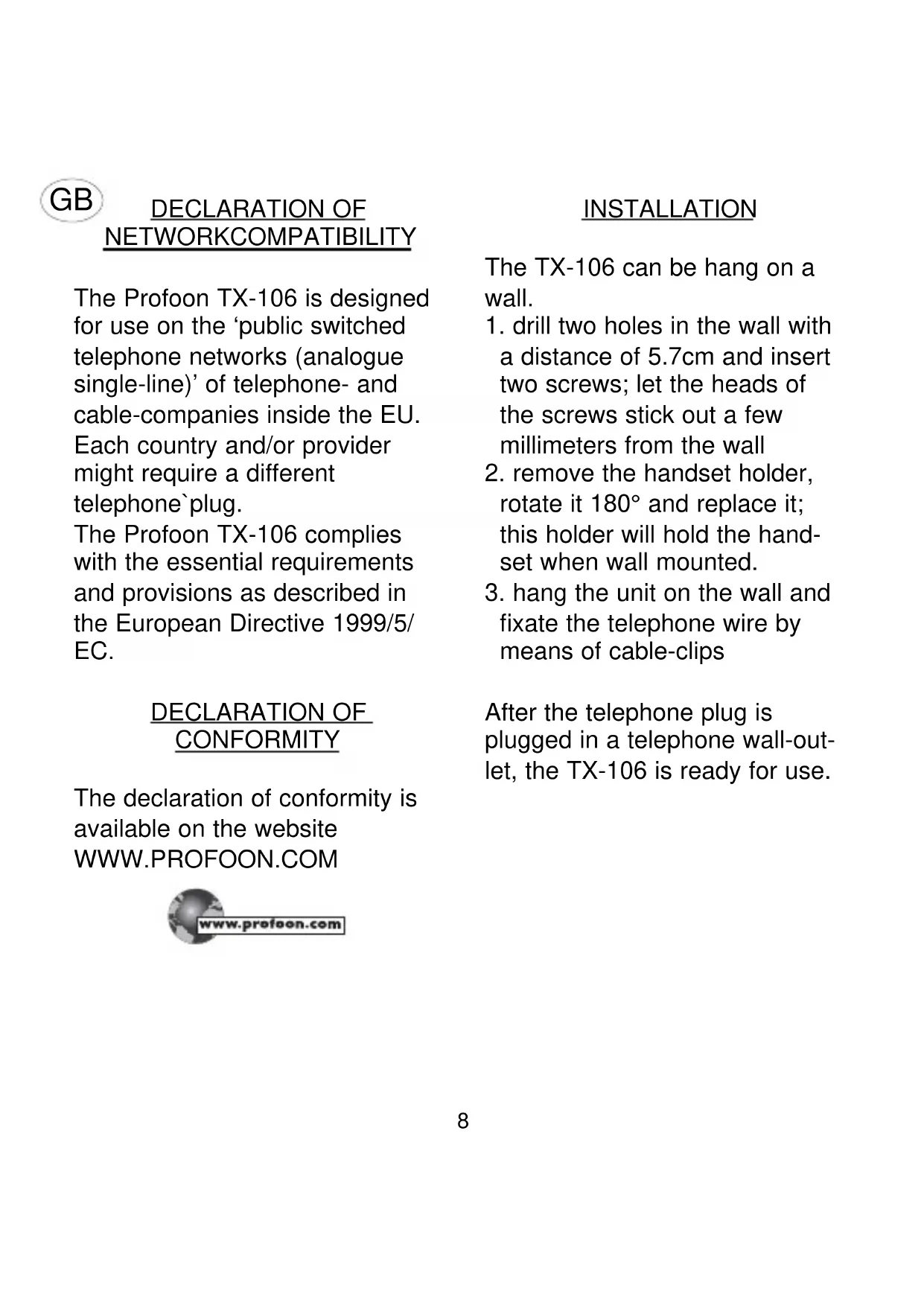

The Profoon TX-106 is designed for use on the 'public switched telephone networks (analogue single-line)' of telephone- and cable-companies inside the EU. Each country and/or provider might require a different telephone plug.

The Profoon TX-106 complies with the essential requirements and provisions as described in the European Directive 1999/5/ EC.

DECLARATION OF CONFORMITY

The declaration of conformity is available on the website www.PROFOON.COM

INSTALLATION

The TX-106 can be hang on a wall.

1. drill two holes in the wall with a distance of 5.7cm and insert two screws; let the heads of the screws stick out a few millimeters from the wall
2. remove the handset holder, rotate it 180^ and replace it; this holder will hold the handset when wall mounted.
3. hang the unit on the wall and fixate the telephone wire by means of cable-clips

After the telephone plug is plugged in a telephone wall-outlet, the TX-106 is ready for use.

HOW TO USE

INCOMINGCALL:

At whish you may switch-off the acoustic ringer by using the ON/OFF switch on the bottom side of the telephone. Lift the handset and start the conversation. The ringer-lamp also indicates an incoming call.

OUTGOING CALL:

Lift the handset. Wait for the dial tone and key-in the desired telephone number. Replace the handset when the conversation is over.

REDIAL:

In case the person you were calling was busy or you want to dial the last dialed number again, this number is stored in memory:

1. pick up the handset and wait for the dial tone
2. press the button; the last dialed number will be redialed This number can be as long as 32 digits.

R-BUTION:

Use the R-key to activate special services from your telephonecompany or to transfer a call incase you are connected througha PABX. The FLASH time of this feature is 100mS.

TELESERVICES:

The buttons * and # are function buttons, needed for divers telecom services (tele shopping, tele banking, etc) or to control divers telecom devices (PABX, answering machines, etc). Refer to the concerning manual.

MUTE:

Press to temporary switch-OFF the handsets microphone; release this button to resume with the conversation.

RECEIVER VOLUME CONTROL: The receiver volume control (-VOLUME +) enables you to adjust the receiver volume.

ENVIRONMENT

At the end of the product lifecycle, you should not throw this product into the normal.
hold garbage but bring the product to a collection point for the recycling of electrical and electronic equipments.

MAINTENANCE

Do not locate the telephone in direct sunlight or in a moist environment.

Never use chemical cleansers to clean the cabinet, the cabinet may only be cleaned with a moist cloth.

Don't place the TX-106 on furniture with cellulose based coating; the rubber feet will leave stains on the cellulose.

Under certain circumstances the sound of the TX-106 might be influenced by electromagnetic fields of electronic devices like TV, computer or radio transmitters close to the telephone. Relocate the telephone to gain better results in such cases.
