USER MANUAL DO7242S DOMO

ht in der Garantie eingeschlossen.

WARRANTY This appliance has a two year warranty period. During this period the manufacturer is

responsible for any failures which are the direct result of construction failure. When these

failures occur the appliance will be repaired or replaced if necessary. The warranty will

not be valid when the damage to the appliance is caused by wrong use, not following the

instructions or repairs executed by a third party. The warranty will only be valid if the

warranty application has been completed by the dealer at the time of purchase. All

such as brushes and batteries, w

e subject to wear, are ex

cluded from the warranty

RECY CLING INFOR MATION T

he symbol on the product or on

its packaging indicates that this pro

be treated as househ

. Instead it shall be handedover to the applicable collec-

for recycling of electrical and electronic

equipment. by ensuring this prod-

sed of correctly, you will help

prevent potential neg

ative consequences for

the envirnment and human health, which could otherwise be caused by inappropriate

waste handling of this product. For more detailed information about recycling of this

product, please contact your local city offi ce, your household waste disposal service or

the shop where you purchased the product.DO-

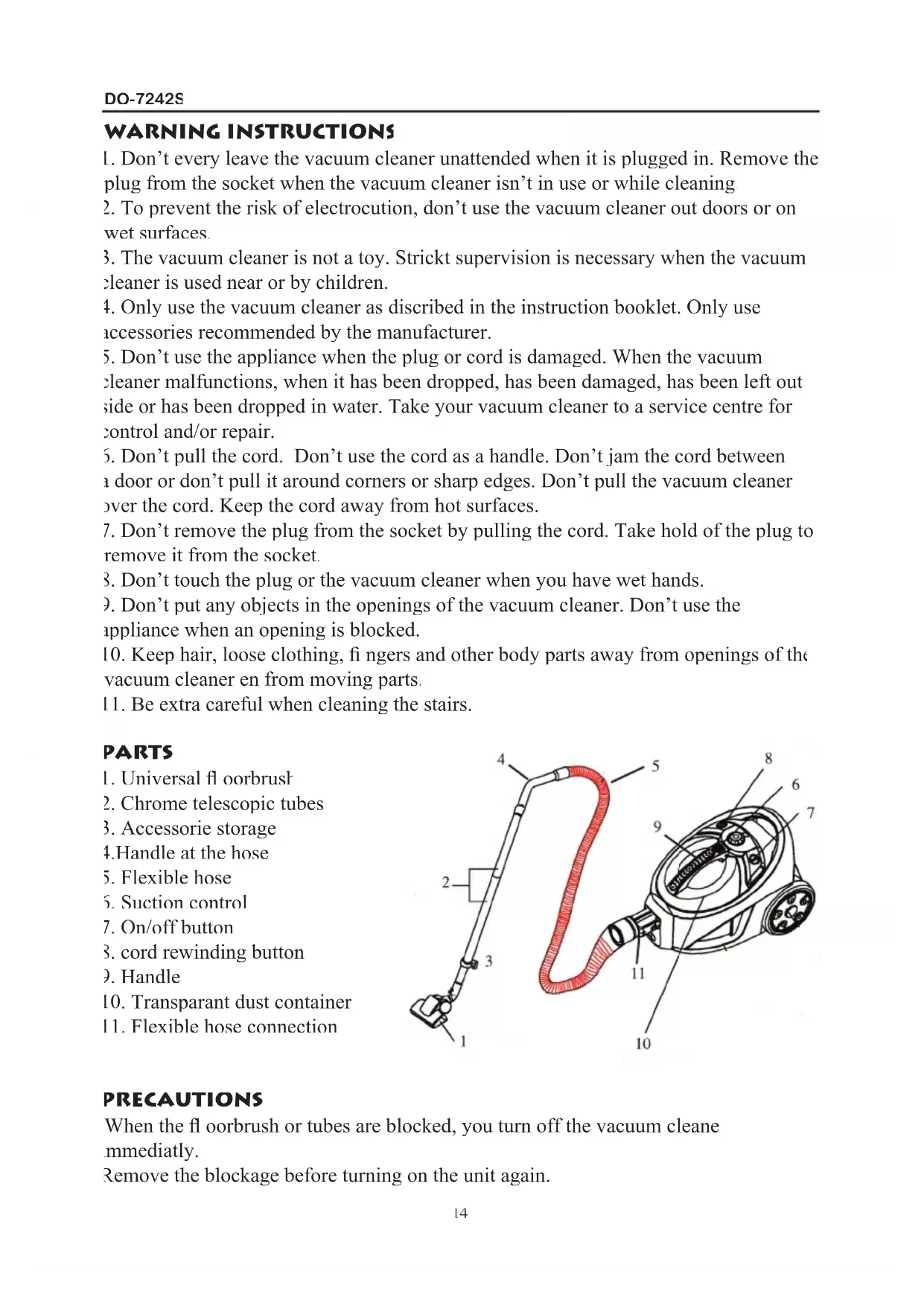

13DO-7242S WARNING INSTRUCTIONS

1. Don’t every leave the vacuum cleaner unattended when it is plugged in. Remove the

plug from the socket when the vacuum cleaner isn’t in use or while cleaning.

2. To prevent the risk of electrocution, don’t use the vacuum cleaner out doors or on

3. The vacuum cleaner is not a toy. Strickt supervision is necessary when the vacuum

cleaner is used near or by children.

4. Only use the vacuum cleaner as discribed in the instruction booklet. Only use

accessories recommended by the manufacturer.

5. Don’t use the appliance when the plug or cord is damaged. When the vacuum

cleaner malfunctions, when it has been dropped, has been damaged, has been left out

side or has been dropped in water. Take your vacuum cleaner to a service centre for

control and/or repair.

6. Don’t pull the cord. Don’t use the cord as a handle. Don’t jam the cord between

a door or don’t pull it around corners or sharp edges. Don’t pull the vacuum cleaner

over the cord. Keep the cord away from hot surfaces.

7. Don’t remove the plug from the socket by pulling the cord. Take hold of the plug to

remove it from the socket.

8. Don’t touch the plug or the vacuum cleaner when you have wet hands.

9. Don’t put any objects in the openings of the vacuum cleaner. Don’t use the

appliance when an opening is blocked.

10. Keep hair, loose clothing, fi ngers and other body parts away from openings of the

vacuum cleaner en from moving parts.

11. Be extra careful when cleaning the stairs.

4.Handle at the hose

10. Transparant dust container

11. Flexible hose connection

PRECAUTIONS When the fl oorbrush or tubes are blocked, you turn off the vacuum cleaner

Remove the blockage before turning on the unit again.

7242S Don’t use the vacuum cleaner close to heating appliances or radiators.

When putting the plug in the socket, make sure your hands are dry.

Before vacuum you need to remove all large and sharp objects from the fl oor, to

prevent damage on the fi lter.

When removing the plug from the socket, take hold of the plug don’t pull the cord.

ASSEMBLY Always remove the plug from the socket before adding or removing accessories.

Flexible hose : Attache the fl exible hose to the air intake opening at the front of the

vacuum cleaner. Press the hose until it clicks into position.

Metal tubes : attache the metal tubes to the handle. Attache the fl oor brush to the metal

Accessories : cervical/dust brush and small fl oor brush.

INSTRUCTIONS FOR USE Before using the appliance unwind the power cord. Put the plug into the socket. A

yellow marking on the cord indicates the ideal lenght for unwinding the cord. On the

power cord is also a red marking, never unwind the power cord futher than this mar-

Press the on/off button to turn on the unit.

To wind the cord, remove the plug from the socket en hold it while pressing the

rewind button with the other hand. You need to hold the plug while rewinding to

prevent damage during rewinding.

On the handle that is attached to the tubes, is a small slide button for extra suction

CLEANING DUST CONTAINER AND FILTERS Before cleaning your vacuum cleaner or accessories, always turn off the appliance and

remove the plug from the socket.

Take hold of the handle of the dust container and pull it gently towards you. The dust

container slides out of the appliance.

On the side of the dust container is located a knob.

Keep the container above the dust bin. Press the button on the side of the dust

container. The bottom will open and the dust will fall out.

You can now clean the HEPA fi lter inside the the dust container. Round the HEPA

fi lter is a protection screen, to prevent the dust concentrating inside the HEPA fi lter. If

you want to clean the HEPA fi lter. Remove the top lid of the dust container, take out

the HEPA fi lter and clean it under running water. Let the fi lter dry in open air before

replacing it in the vacuum cleaner.

15DO-7242S Air outlet fi lter

This fi lter will clean the air before leaving your vacuum cleaner. The air outlet fi lter is

situated at the back of the vacuum cleaner. Remove the grill and take out the fi lter.

Clean under running water, let it dry thoroughly before replacing into the vacuum

During a normal cleaning it will do to just beat out the fi lters. 3 to 4 times a year you

can rinse out the fi lters. Dry them completely or if necessary you can also replace

them. After cleaning and drying the fi lters, place them back in the vacuum cleaner.

Always use the vacuum cleaner with the fi lters in place.

If not, this can lead to loss of power or damage to the motor.

Remove the plug from the socket before cleaning the fi lters.

Don’t place the fi lters in the dishwasher.

Don’t use a hair dryer to dry the fi lters.
