USER MANUAL DO216SV DOMO

Instruction booklet Stick vacuum cleaner

Read all instructions carefully - save this instruction manual for future reference.

FR GARANTIE Cher client,

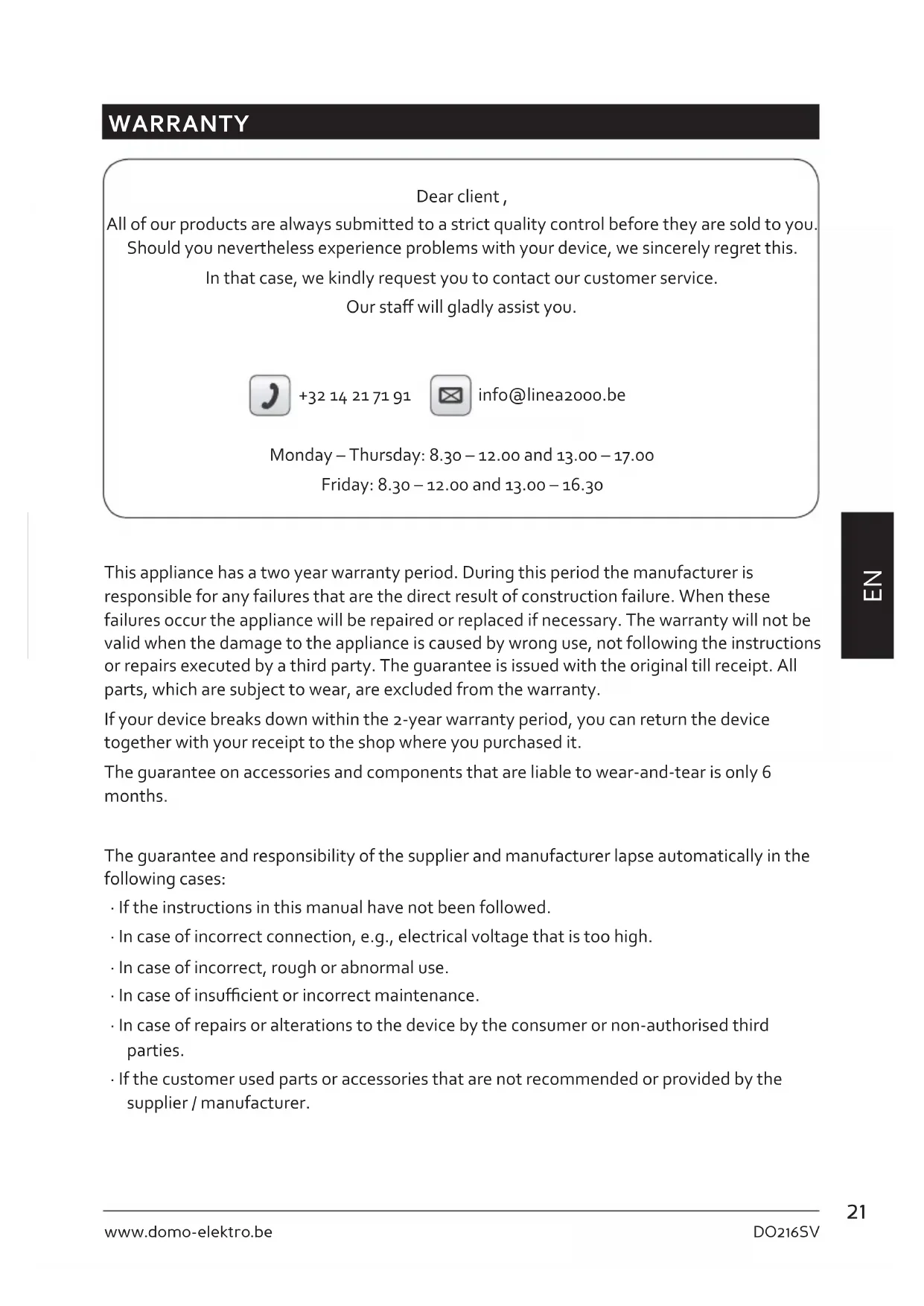

EN WARRANTY Dear client ,

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our sta will gladly assist you.

+32 14 21 71 91 info@linea2000.be

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 – 12.00 and 13.00 – 16.30

This appliance has a two year warranty period. During this period the manufacturer is

responsible for any failures that are the direct result of construction failure. When these

failures occur the appliance will be repaired or replaced if necessary. The warranty will not be

valid when the damage to the appliance is caused by wrong use, not following the instructions

or repairs executed by a third party. The guarantee is issued with the original till receipt. All

parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device

together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the

· If the instructions in this manual have not been followed.

· In case of incorrect connection, e.g., electrical voltage that is too high.

· In case of incorrect, rough or abnormal use.

· In case of insucient or incorrect maintenance.

· In case of repairs or alterations to the device by the consumer or non-authorised third

· If the customer used parts or accessories that are not recommended or provided by the

supplier / manufacturer.22

DO216SV EN SAFETY INSTRUCTIONS This appliance may be used by children from the age of 16 and up, and also by persons with

a physical or sensorly limitation, as well as mentally limited persons or persons with a lack of

experience and knowledge. But only on the condition that these persons have received the

necessary instructions on how to use this appliance in a safe way and know the dangers that

can occur by using this appliance.

Children cannot be allowed to play with the appliance.

Maintenance and cleaning of the appliance may not be done by children, unless they are

older than 16 years old and are under supervision. Keep the appliance out of reach of children

younger than 16 years old.

This appliance is suitable to be used in a household environment and in similar surroundings

· Kitchen for personnel of shops, oces or other similar professional surroundings

· Hotel or motel rooms and other surroundings with a residential character

· Guest rooms or similar

· Attention: This appliance cannot be used with an external timer or a separate remote

· Read all instructions before use.

· Before use, check if the voltage stated on the appliance corresponds with the voltage of

the power net at your home.

· Do not let the cord hang on a hot surface or on the edge of a table or counter top.

· Never use the appliance when the cord or plug is damaged, after malfunction or when the

appliance itself is damaged. In that case, take the appliance to the nearest qualied service

center for check-up and repair.

· Close supervision is necessary when the appliance is used near or by children.

· The use of accessories that are not recommended or sold by the manufacturer can cause

re, electrical shock or injuries.

· Unplug the appliance when it is not in use, before assembling or disassembling any parts

and before cleaning the appliance. Put all buttons and knobs into the ‘o’ position and

unplug the appliance by grasping the plug. Never unplug by pulling the cord.

· Do not leave a working appliance unattended.

· Never place this appliance near a gas stove or electrical stove or in a place where it may

come into contact with a warm appliance.

· Do not use the appliance outdoors.

· Only use the appliance for its intended use.23

· Always use the appliance on a steady, dry and level surface.

· Only use the appliance for domestic use. The manufacturer can not be held responsible for

accidents that result from improper use of the appliance or not following the instructions

described in this manual.

· All repairs should be carried out by the manufacturer or its aftersales service.

· Never immerse the appliance, the cord or the plug in water or any other liquid.

· Make sure that children do not touch the cord or appliance.

· Keep the cord away from sharp edges and hot parts or other heat sources.

· Before use, remove all packaging materials and any promotional stickers.

· Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and

other similar liquids, sharp objects or ammable objects.

· Do not use the vacuum cleaner to vacuum up cement, powder and other small particles.

Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor

could overheat or other damage may occur.

· Make sure that the air intake or the oor suction opening do not become blocked.

· Make sure that the machine does not come into contact with liquids.

· First charge a new battery up completely.

· Pull the plug from the outlet when the vacuum cleaner is fully charged.

3. Button to bend the handle

4. Battery charge indicator

5. Unlock button for dust reservoir

6. Release button oor nozzle

7. Floor nozzle with rotating oor brush

8. Charging station cord

BEFORE THE FIRST USE To set up the machine properly, please follow the steps below:

· Straighten the handle of the stick vacuum until it clicks into position.

· Make sure that the oor nozzle is clicked on tightly to the stick vacuum cleaner.24

1. Click the two parts of the charging station together before use. The charging station may

be attached to the wall for extra stability.

2. Attach the charger to the charging station via the in-

built connector on the back.

3. Put the stick vacuum cleaner into the charging station,

so that the contact points on the vacuum cleaner

are aligned with the contact points on the charging

station. Push the vacuum cleaner and the charging station together so that the stick

vacuum cleaner remains standing vertically on the station. Make sure it all is stable.

4. The battery level indicator will now light up red, and turn green when the machine is fully

charged. This light will go o after a while.

5. The machine cannot be started during charging.

· Press the on-o switch on the handle to turn the machine on. The battery indicator light is

green and indicates the battery level. If the battery is almost empty, the light will ash on

· When you switch on the machine, the rotating oor brush at the bottom of the oor

nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby

· Press the speed control to increase or lower the suction power.

· The machine is equipped with a safety which will ensure that the machine shuts itself o if,

for example, objects which are too large are sucked up, or if ngers become tangled in the

oor brush. This is for personal safety and to protect the motor. To reverse the oor brush,

press 2 times the on/o button or the speed control.

CLEANING AND MAINTENANCE CLEANING THE MACHINE Clean the machine with a slightly moist soft cloth. Dry the machine o well. Never submerge

the machine in water!

CLEANING THE DUST RESERVOIR

1. Press the dust reservoir unlock button to remove it from the vacuum cleaner.

2. Then take the lters out of the dust reservoir. Empty the dust reservoir.

3. Take part A from part B and remove the sponge from part B.

4. The dust reservoir, part A and the sponge from part B can be cleaned under running

water. Do take care to dry them completely before using them again in the machine.25

EN We advise replacing the lters regularly to

ensure an optimal operation of the machine.

Dirty lters will reduce the suction power

drastically. After every cleaning, clean the

dust reservoir and the lters to extend the

life span of your machine.

CLEANING THE FLOOR BRUSH

1. Remove the oor nozzle from the upright vacuum cleaner. Press the release button at

the back of the oor nozzle and remove it from the machine.

2. Open the release button on the left of the oor brush and click

to release the cover.

3. Remove the rotating oor brush from the oor nozzle.

4. Remove hairs and other dirt that have wrapped around the

oor brush. If you do not clean the oor brush regularly, it will

become damaged and your machine will become unusable.

5. The rotating oor brush may be rinsed o under running water. Make sure that it is

completely dry before using it.

6. Place the oor brush back into the oor nozzle when it is clean.

7. Click the closure valve back into place to close it. Close the release button.

8. Push the nozzle back onto the stick. The machine is now again ready for use.

Stuck hairs can damage the machine or your oor. Always remove the hairs stuck on the

PROBLEM AND SOLUTION Problem Solution

The machine does not start up. · The battery is empty. Charge the machine.

The machine does not vacuum. · The lters are dirty/the dust reservoir is full.

· The oor nozzle is clogged/the oor brush is blocked.

· Clean the machine as described in this manual.

The running time of the machine

is shorter and shorter.

· The machine is not suciently charged. Charge the

machine fully and try again.

· The battery is broken or old. Replace the battery.

· Stuck hairs.Remove the hairs stuck on the brushes.

DO216SV EN ENVIRONMENTAL GUIDELINES This symbol on the product or on its packaging indicates

that this product may not be treated as household waste.

Instead it must be brought to the applicable collection point

for recycling of electrical and electronic equipment. By

ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment

and human health, which could otherwise be caused by

inappropriate waste handling of this product. For more

detailed information about recycling of this product, please

contact your local city oce, your household waste disposal

service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging
