USER MANUAL KND 9950 XA BLOMBERG

Operating instructions

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
  Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

i Important information or useful usage tips.
⚠ Warning against dangerous conditions for life and property.
⚠ Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

1 Your Refrigerator 3

2 Important Safety Warnings 4

Intended use ....4
For products with a water dispenser; .6
Child safety 6
HCA Warning 6
Things to be done for energy saving ..7
Recommendations for freshfood compartment ....7

3 Installation 8

Points to be considered when re-transporting your refrigerator .....8
Before operating your refrigerator .....8
Electric connection ....8
Disposing of the packaging .....9
Disposing of your old refrigerator .....9
Changing the illumination lamp .....10
Adjusting the feet 10
Placing and Installation ....10

4 Preparation 11

5 Using your refrigerator 12

Indicator Panel 12
Open door warning ....13

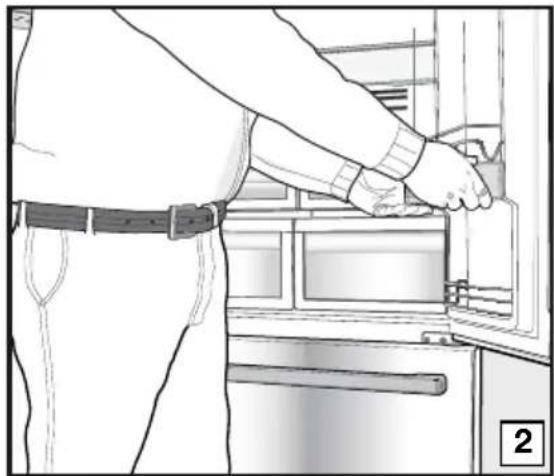

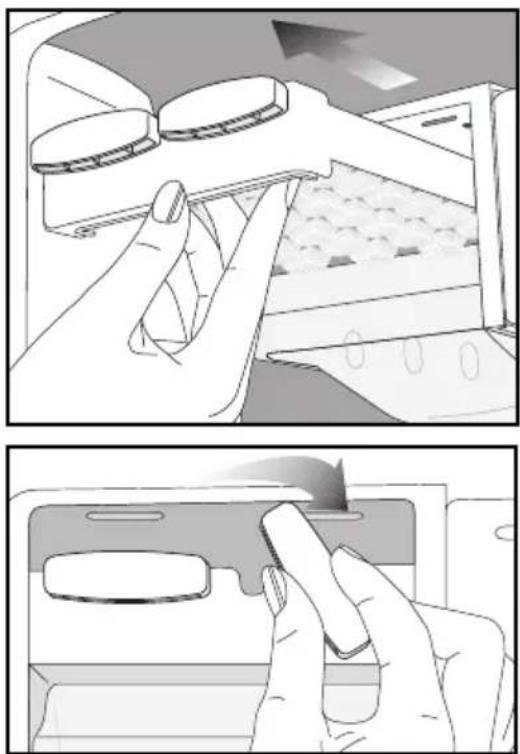

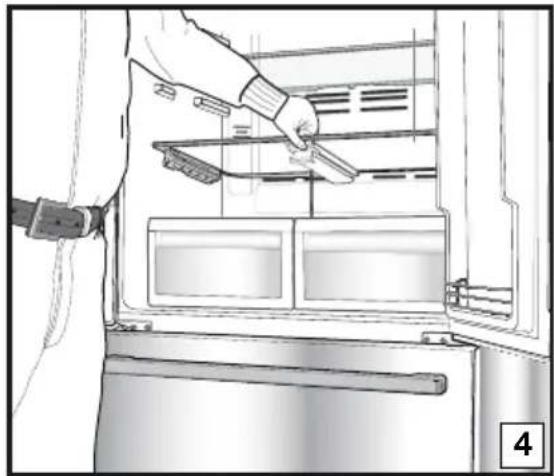

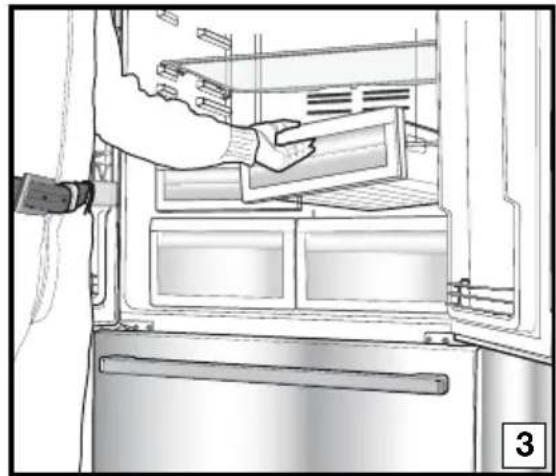

Icematic and ice storage container ..15
Blue light 15
Egg tray 16

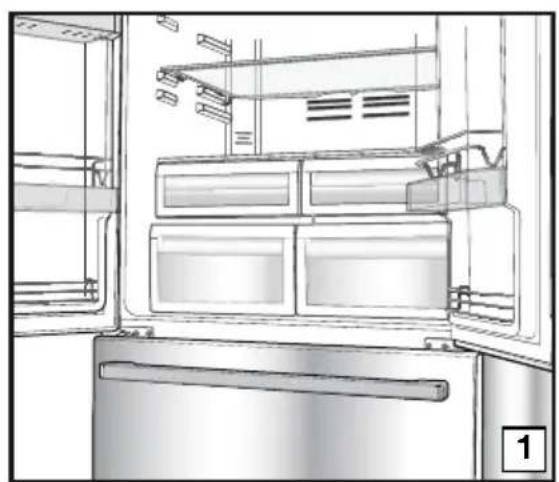

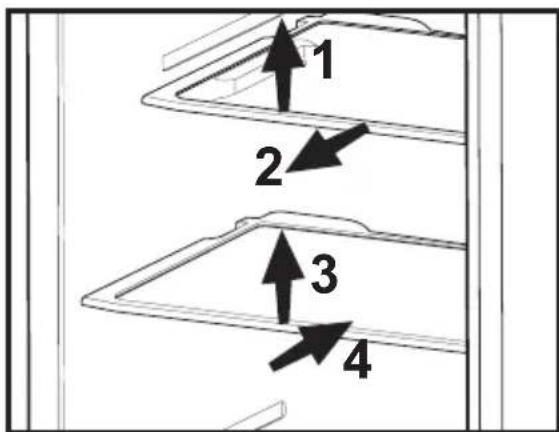

Sliding Body Shelves ......16
Chiller compartment 16
Crisper 17
Freezing fresh food 18
Recommendations for preservation of frozen food ....19
Placing the food .....19
Deep-freeze information .....19

6 Maintenance and cleaning 20

Protection of plastic surfaces ..... 20

7 Recommended solutions for the problems 21

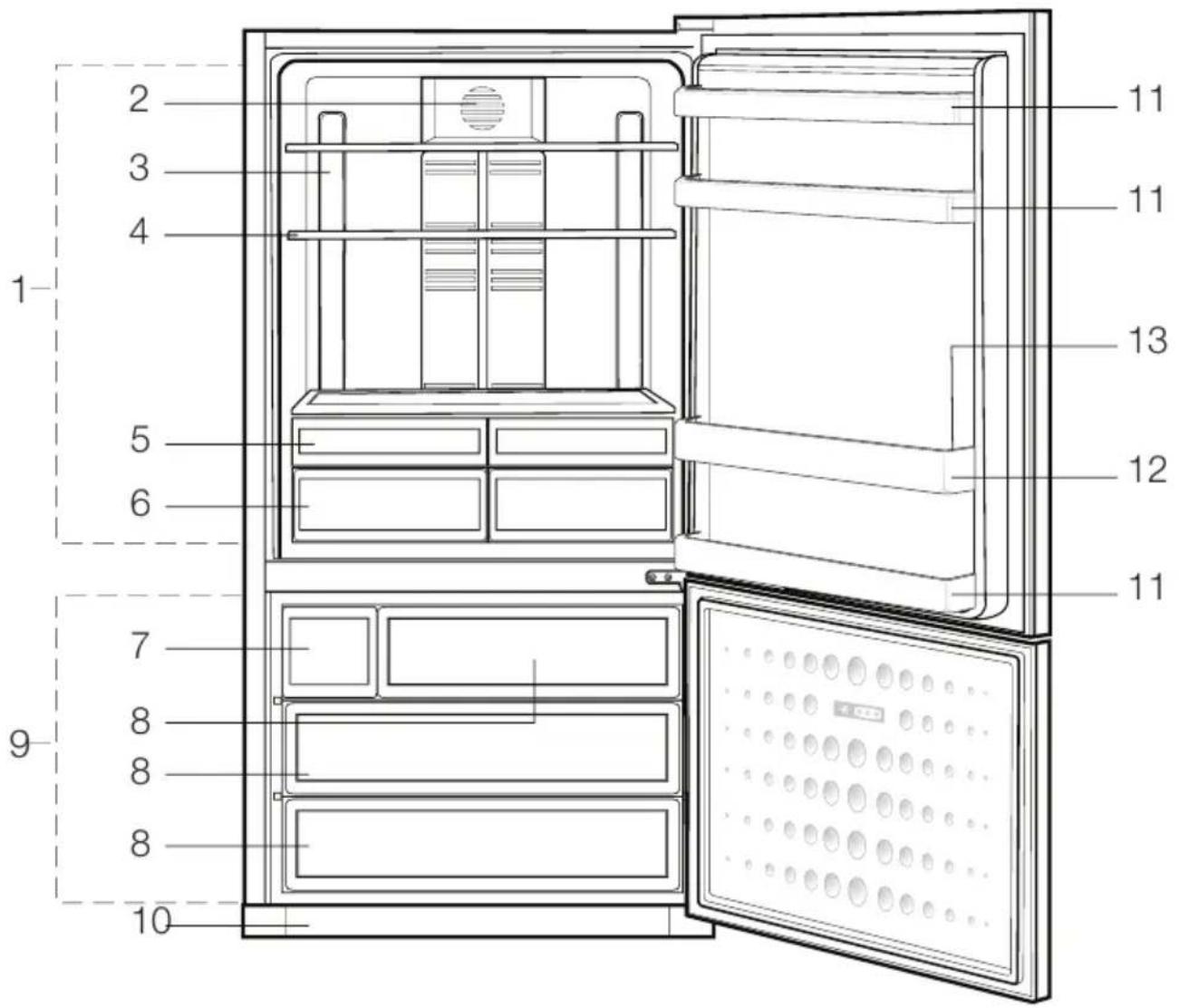

1 Your Refrigerator

1 2 3 4 5 6 7 8 9 10 11 11 13 12 11

1- Fridge compartment
2- Diffuser cover
3- Illumination lens
4- Fridge compartment glass shelves
5- Chiller compartment
6- Crisper

7- Icematic
8- Freezing compartments
9- Freezer compartment
10- Ventilation lid
11- Fridge compartment door shelves
12- Bottle shelf

i Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.

Intended use

This product is intended to be used

- indoors and in closed areas such as homes;

– in closed working environments such as stores and offices;

– in closed accommodation areas such as farm houses, hotels, pensions.

- This product should not be used outdoors.

General safety

- When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.

- Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

- For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

- For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

- Do not touch frozen food by hand; they may stick to your hand.

- Unplug your refrigerator before cleaning or defrosting.

- Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

- Never use the parts on your refrigerator such as the door as a means of support or step.

- Do not use electrical devices inside the refrigerator.

- Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

- Do not cover or block the ventilation holes on your refrigerator with any material.

- Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.

- In case of any failure or during a maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.

- Do not pull by the cable when pulling off the plug.

- Place the beverage with higher proofs tightly closed and vertically.

- Never store spray cans containing flammable and explosive substances in the refrigerator.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product

- Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.

- Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.

- Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.

- Contact authorized service when there is a power cable damage to avoid danger.

- Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.

- This refrigerator is intended for only storing food items. It must not be used for any other purpose.

- Label of technical specifications is located on the left wall inside the refrigerator.

- Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.

- If there is a blue light on the refrigerator, do not look at the blue light with optical tools.

- For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.

- This operation manual should be handed in to the new owner of the product when it is given to others.

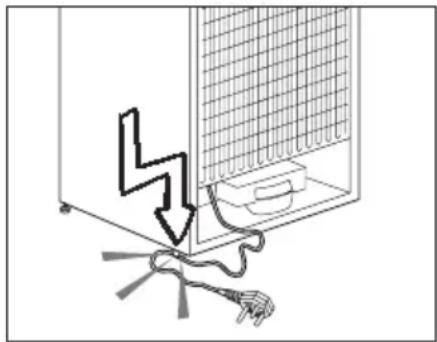

- Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product.

Diagram showing a wall-mounted electrical outlet connected to a plug, with a lightning bolt indicating the warning (no text or symbols present)

- Do not plug the refrigerator if the wall outlet is loose.

- Water should not be sprayed directly on inner or outer parts of the product for safety purposes.

- Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.

- Never place containers filled with water on top of the refrigerator, otherwise this may cause electric shock or fire.

- Do not overload your refrigerator with excessive amounts of food. If overloaded, the food items may fall

down and hurt you and damage refrigerator when you open the door. Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.

• As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.
• If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.
• The plug's tip should be regularly cleaned; otherwise, it may cause fire.
• The plug's tip should be cleaned regularly with a dry cloth; otherwise, it may cause fire.
• Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.
• When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.
• When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.

For products with a water dispenser;

Pressure of water mains should be minimum 1 bar. Pressure of water mains should be maximum 8 bars.

- Use only potable water.

Child safety

• If the door has a lock, the key should be kept away from reach of children.
• Children must be supervised to prevent them from tampering with the product.

HCA Warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

Things to be done for energy saving

- Do not leave the doors of your refrigerator open for a long time.

- Do not put hot food or drinks in your refrigerator.

- Do not overload your refrigerator so that the air circulation inside of it is not prevented.

- Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.

- Pay attention to keep your food in closed containers.

- For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.

- Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

Recommendations for freshfood compartment

\* OPTIONAL

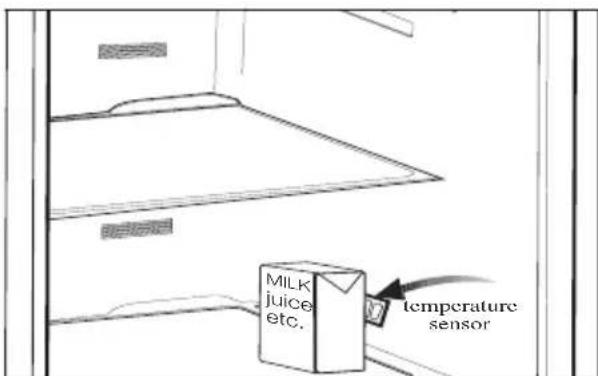

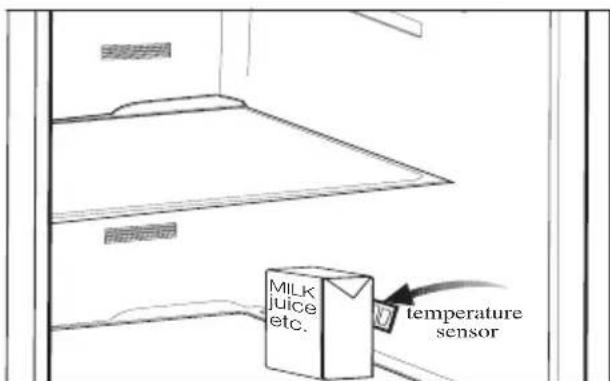

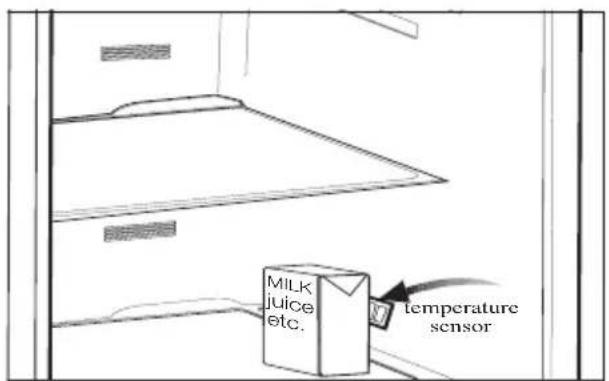

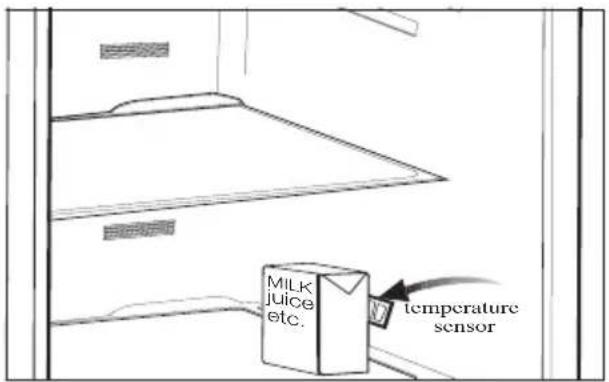

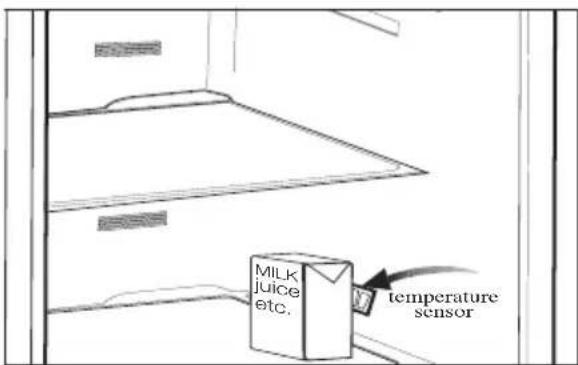

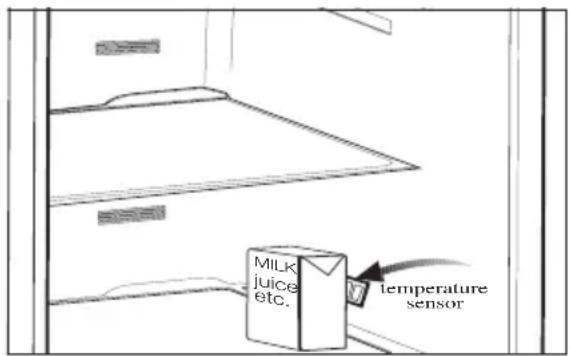

- Please do not let any foodstuff to come to contact with the temperature sensor in freshfood compartment. In order to maintain freshfood compartment at ideal storage temperature, the sensor must not be blocked by fodstuffs.

- Do not place hot foodstuff in your appliance.

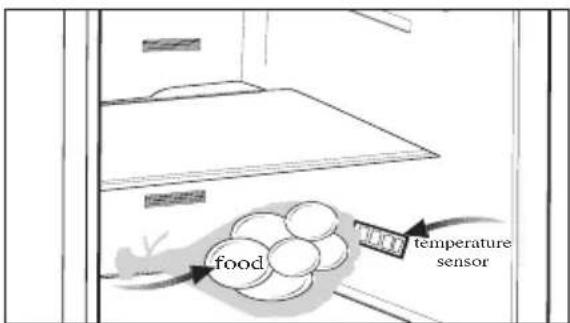

food temperature sensor

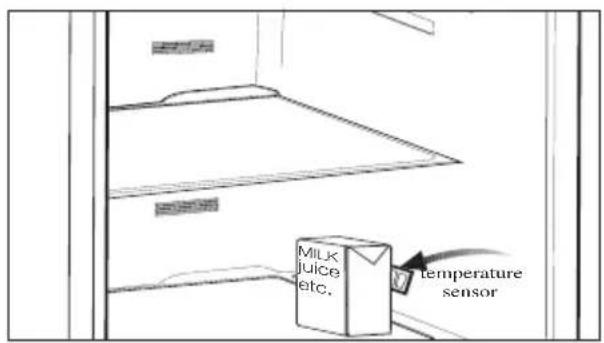

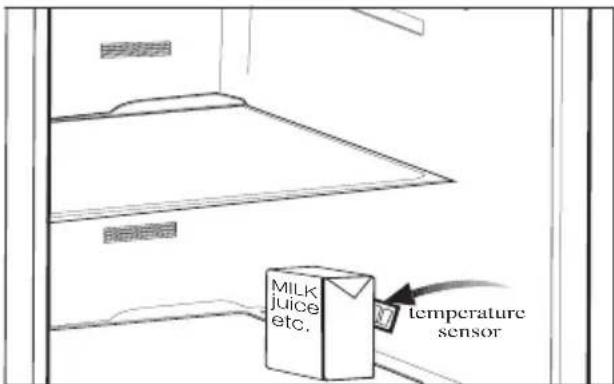

MILK juice etc. temperature sensor

3 Installation

⚠️ Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation.
2. Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.
3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please do not forget...

Every recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1. Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

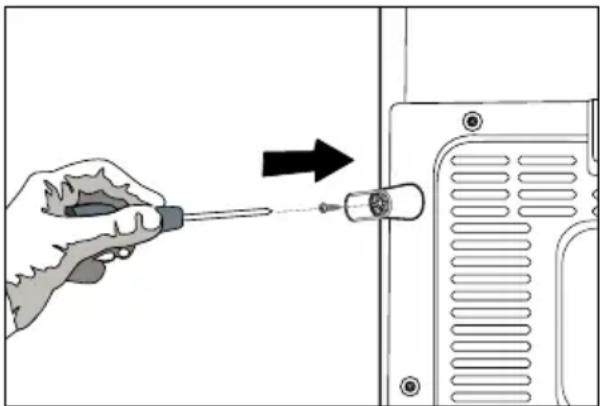

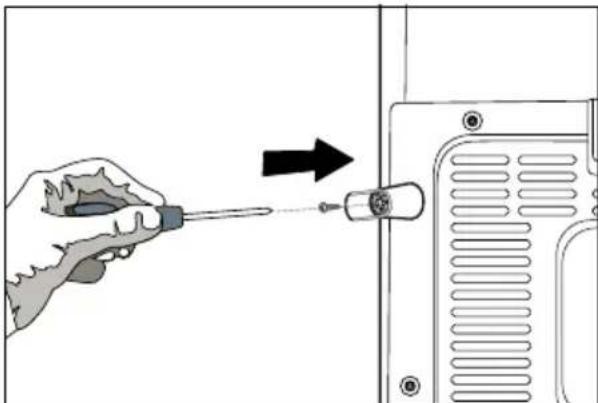

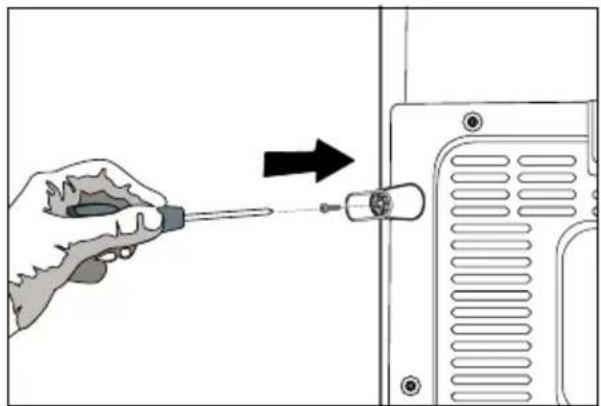

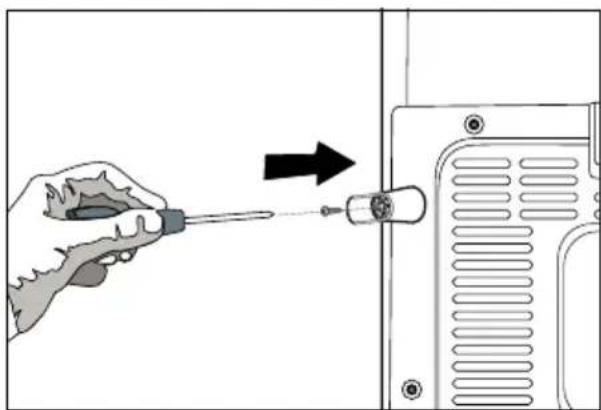

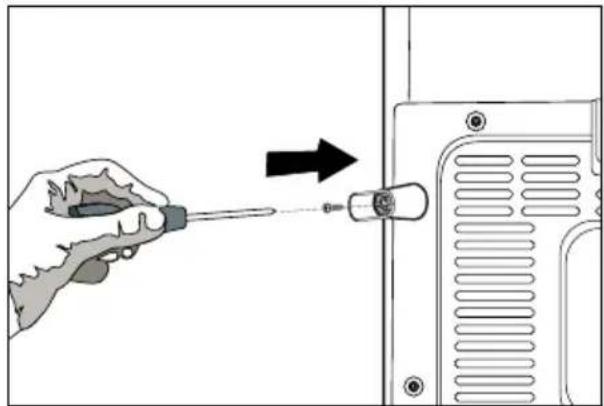

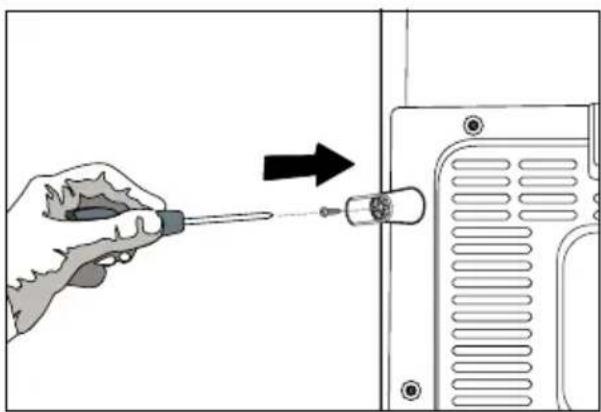

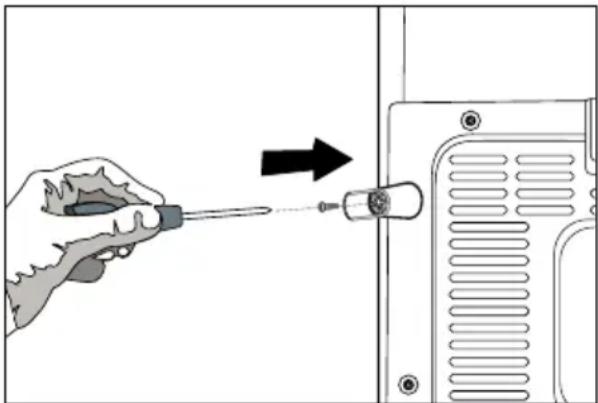

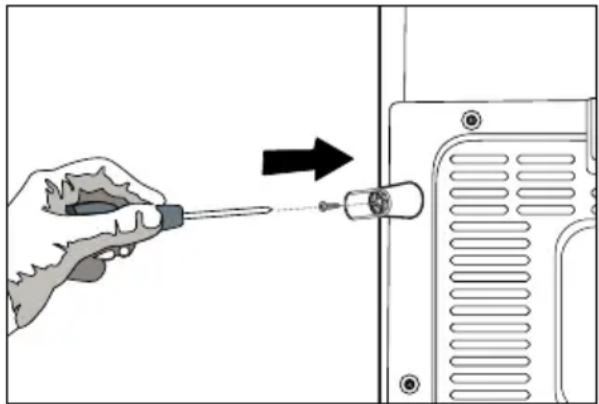

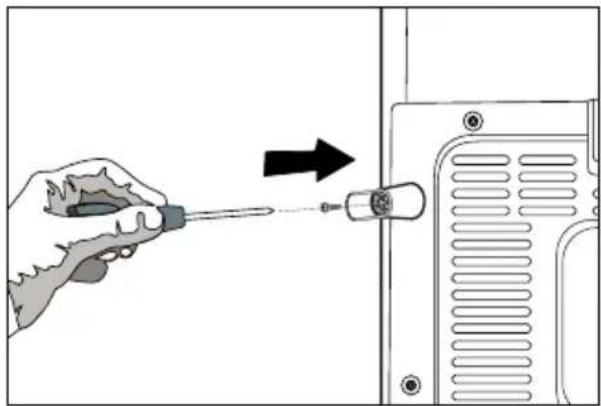

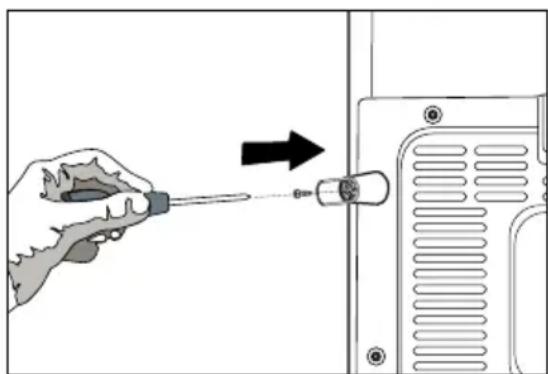

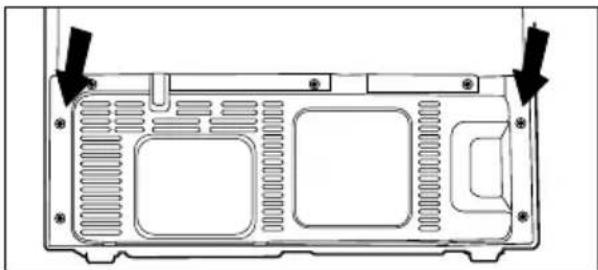

2. You can install the 2 plastic wedges as illustrated in the figure. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation. (The illustrated figure is only an example and does not match exactly with your product.)

Technical line drawing of a computer monitor rear panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating direction (no text or symbols present)

1. Clean the interior of the refrigerator as recommended in the "Maintenance and cleaning" section.
2. Plug the refrigerator into the wall outlet. When the fridge door is open the fridge compartment interior light will come on.
3. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
4. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

• The connection must be in compliance with national regulations.

• The power cable plug must be easily accessible after installation.

• Voltage and permitted fuse protection are indicated in the “Specifications” section.

• The specified voltage must be equal to your mains voltage.
• Extension cables and multiway plugs must not be used for connection.

A damaged power cable must be replaced by a qualified electrician.

⚠️ Product must not be operated before it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose them of by classifying them in accordance with the waste instructions. Do not dispose them of along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old machine without giving any harm to the environment.

- You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

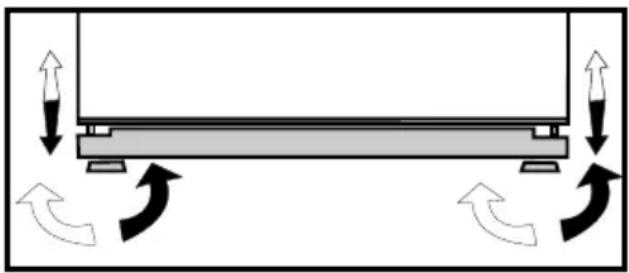

Adjusting the feet

If your refrigerator is unbalanced; You can balance your refrigerator by turning the front legs as shown in the illustration below. The corner where the leg exists is lowered when you turn it in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Diagram showing a mechanical or structural component with directional arrows indicating motion, no text or symbols present.

Changing the illumination lamp

To change the lamp used for illumination of your refrigerator, please call your Authorized Service.

Placing and Installation

⚠️ If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, than call the authorized service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows ease of use.
2. Keep your refrigerator away from heat sources, humid places and direct sunlight.
3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall.
   If the floor is covered with a carpet, your product must be elevated 2.5 cm from the floor.
4. Place your refrigerator on an even floor surface to prevent jolts.
5. Do not keep your refrigerator in ambient temperatures under 10^ C.

4 Preparation

Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
The ambient temperature of the room where you install your refrigerator should at least be 10^ C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.
i Please make sure that the interior of your refrigerator is cleaned thoroughly.
If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

- The door should not be opened frequently.

- It must be operated empty without any food in it.

- Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

i Original packaging and foam materials should be kept for future transportations or moving.

5 Using your refrigerator

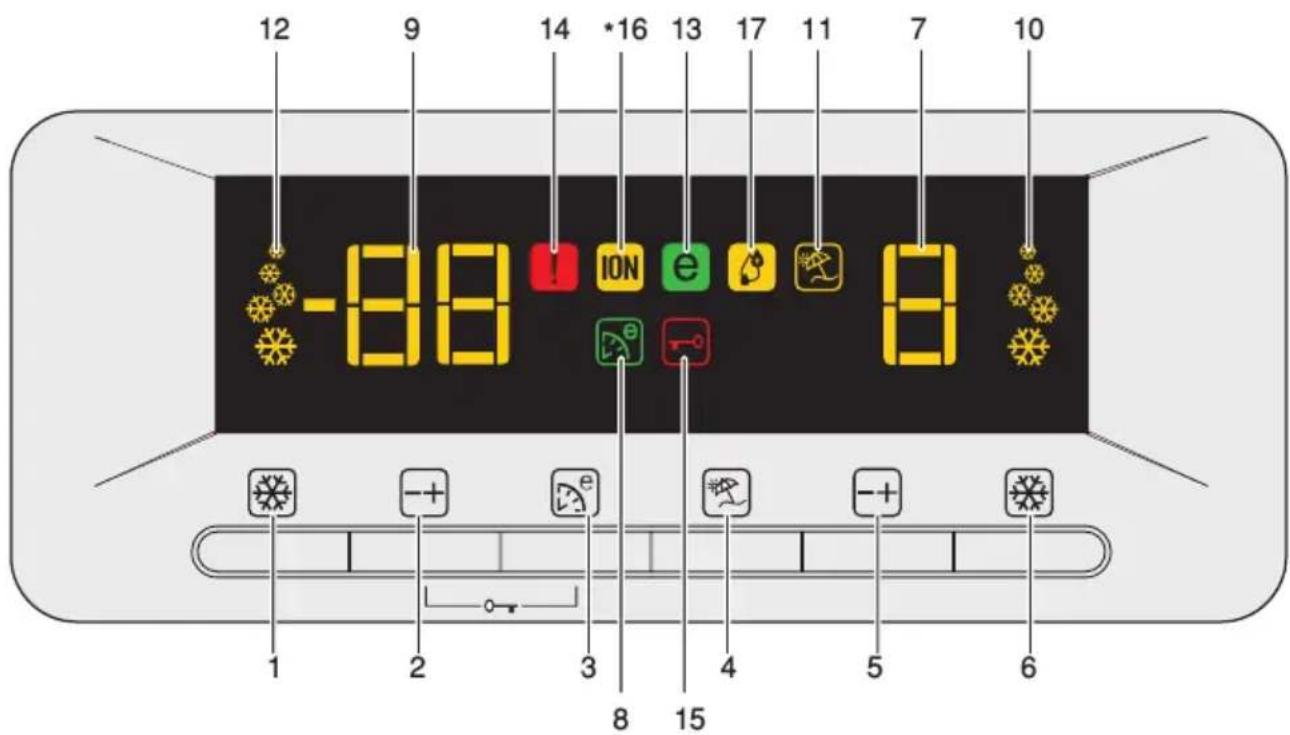

Indicator Panel

This touch-control indicator panel allows you to set the temperature without opening the door of your refrigerator. Just touch the relevant button with your finger to set the temperature.

-88 ION e 8 12 9 14 *16 13 17 11 7 10 1 2 3 4 5 6 8 15

1. Fast Freeze Button
2. Freezer Compartment Temperature Setting Button
3. Eko-Ekstra Button
4. Vacation Button
5. Fridge Compartment Temperature Setting Button
6. Quick Cool Button

7. Fridge Compartment Temperature Indicator

8. Eco Extra Function Indicator

9. Freezer Compartment Temperature Indicator
10. Quick Cool Function Indicator
11. Vacation Function Indicator
12. Quick Freeze Function Indicator
13. Economy Mode Indicator
14. Error Status Indicator
15. Key Lock Indicator
16. Ionizer Indicator Light
17. Humidity Indicator

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

1- Fast Freeze Button

Press this button briefly to activate the Fast Freeze function. Press this button again to deactivate the selected function.

2- Freezer Compartment Temperature Setting Button

Press this button to set the temperature of the freezer compartment to -18, -20, -22, -24, -18... respectively. Press this button to set the desired temperature for the Freezer Compartment.

3- Eko-Ekstra Button

Press this button briefly to activate the Eco Extra function.

4- Vacation Button

Press this button briefly to activate the Vacation function. To stop ice formation, press the same button for 3 seconds.

5- Fridge Compartment Temperature Setting Button

Press this button to set the temperature of the fridge compartment to 8, 6, 4, 2, 8... respectively. Press this button to set the desired temperature for the Fridge Compartment.

6. Quick CoolButton

Press this button briefly to activate the Quick Cool function. Press this button again to deactivate the selected function.

7- Fridge Compartment Temperature Indicator

Indicates the temperature set for Fridge Compartment.

8- Eco Extra Function Indicator

Indicates that the Eco Extra function is active. If this function is active, your refrigerator will automatically detect the least usage periods and energy-efficient cooling will be performed during those times. Economy indicator will be active while energy-efficient cooling is performed.

9- Freezer Compartment Temperature Indicator

It indicates the temperature set for Freezer Compartment.

10- Quick Cool Function Indicator

Indicates that the Quick Cool function is active. Use this function when you place fresh food into the fridge compartment or when you need to cool your food quickly. When this function is active, your refrigerator will run for 2 hours without stopping.

Press the relevant button again to deactivate this function.

11- Vacation Function Indicator

Indicates that the vacation function is active. If this function is active, “- -” appears on the indicator of the fridge compartment and no cooling is performed in the fridge compartment. Other compartments will be cooled in accordance with the temperature set for them.

Press the relevant button again to deactivate this function.

Open door warning

An audio warning will be given when the fridge or freezer compartment door of your product is left open for a certain period of time. This audio warning signal will mute when any button on the indicator is pressed or when the door is closed.

12- Quick Freeze Function Indicator

Indicates that the Quick Freezer function is active. Use this function when you place fresh food into the freezer compartment or when you need ice. When this function is active, your refrigerator will run for 6 hours without stopping.

Press the relevant button again to deactivate this function.

13- Economy Mode Indicator

Indicates that the refrigerator is running in energy-efficient mode. This indicator will be active if the Freezer Compartment temperature is set to -18 or the energy efficient cooling is being performed due to Eco-Extra function.

14- Error Status Indicator

If your refrigerator does not cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, Freezer Compartment Temperature indicator will display “E” and Fridge Compartment Temperature Indicator will display numbers such as “1,2,3...”. These numbers on the indicator provides information about the error to the service personnel.

15- Key Lock Indicator

Use this function if you do not want your refrigerator temperature setting changed. Press Eco Extra Button and Freezer Compartment Temperature Setting Button simultaneously for a long time (3 sec) to activate this feature.

Press the relevant buttons again to deactivate this function.

16- Ionizer Indicator Light

Indicator light lights up continuously. This light indicates that your refrigerator is protected against the bacteria.

17- Humidity Indicator

Indicator light lights up continuously. This light indicates that the food kept in the refrigerator is preserved for a long time under ideal humidity.

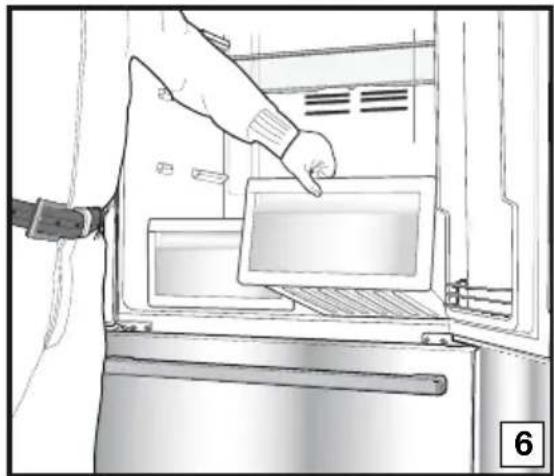

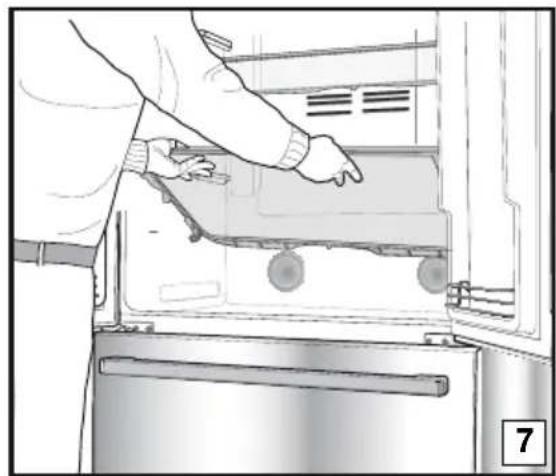

Icematic and ice storage container

Using the Icematic

Fill the Icematic with water and place it into its seat. Your ice will be ready approximately in two hours. Do not remove the Icematic from its seating to take ice.

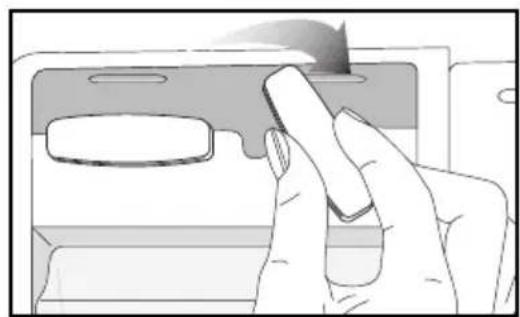

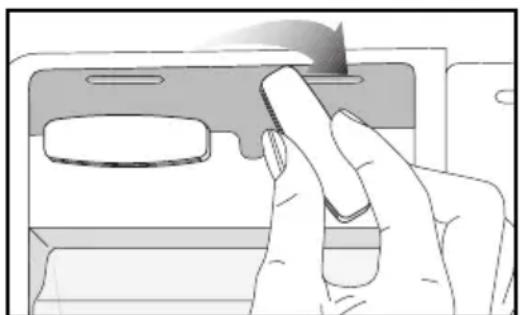

Turn the knobs on it clockwise by 90 degrees.

Ice cubes in the cells will fall down into the ice storage container below.

You may take out the ice storage container and serve the ice cubes.

If you wish, you may keep the ice cubes in the ice storage container.

Ice storage container

Ice storage container is only intended for accumulating the ice cubes. Do not put water in it. Otherwise, it will break.

Two-panel illustration showing hands using a device to interact with a laptop screen (no text or symbols present)

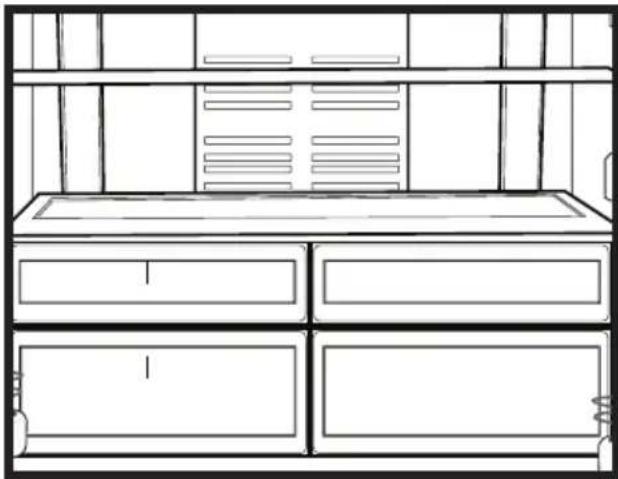

Blue light

Foodstuff stored in the crispers that are enlightened with a blue light continue their photosynthesis by means of the wavelength effect of blue light and thus, preserve their freshness and increase their vitamin content.

Line drawing of a double counter cabinet with drawers and storage compartments (no text or symbols)

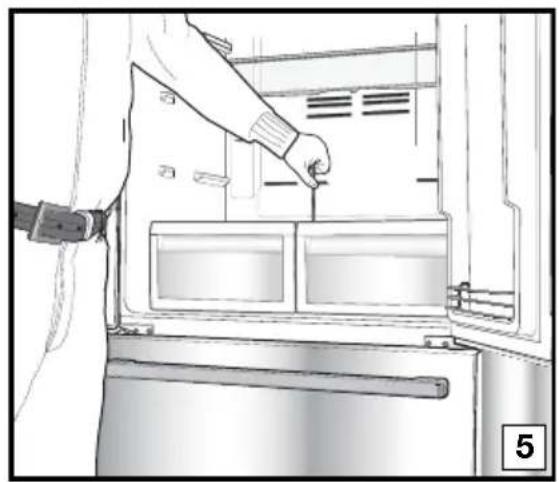

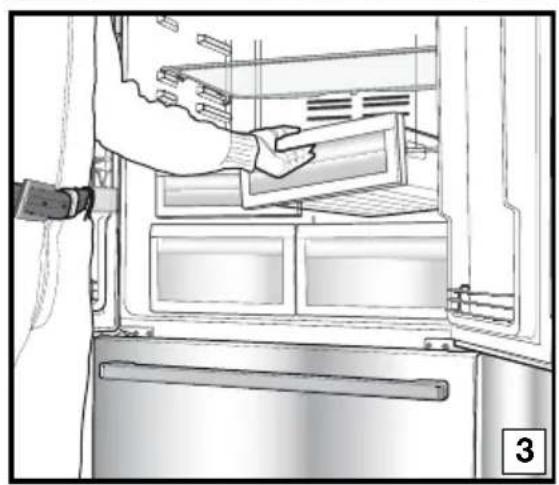

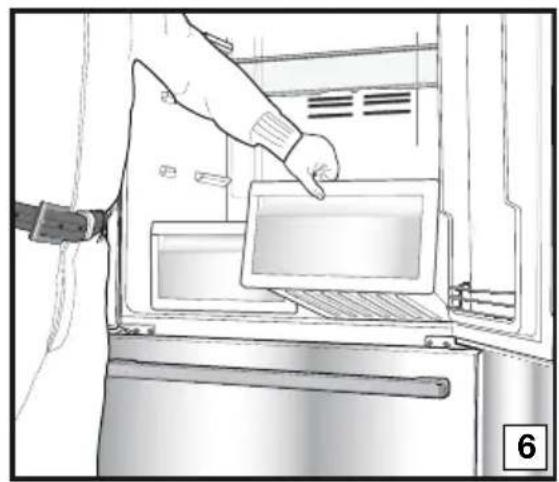

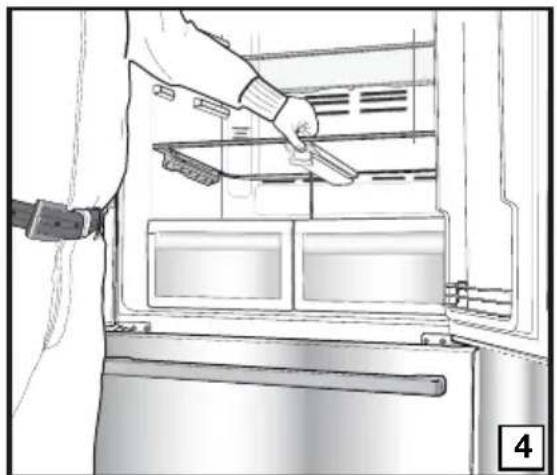

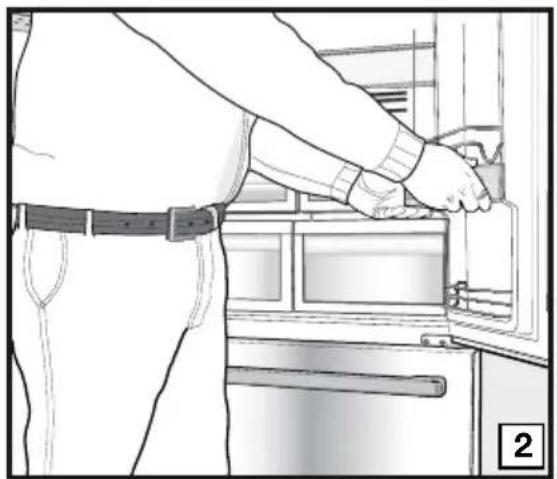

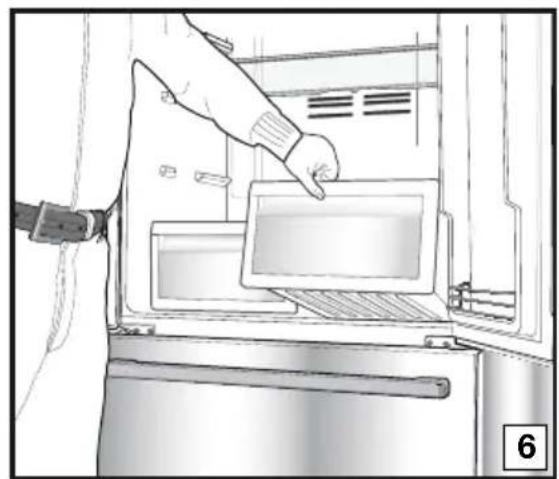

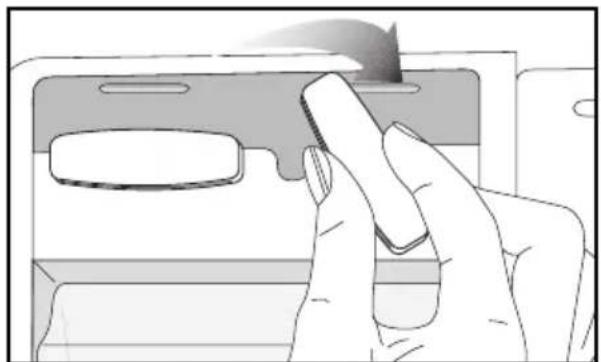

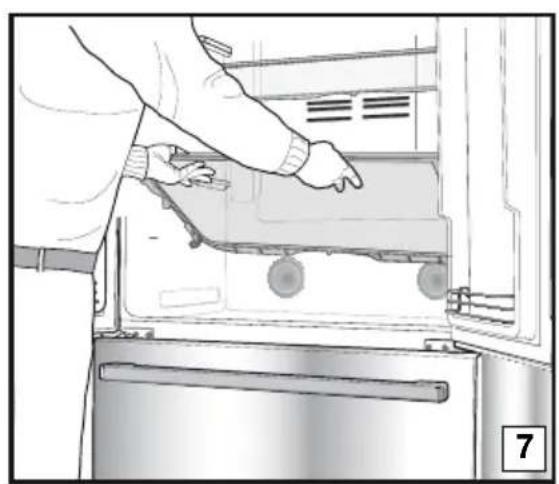

Sliding Body Shelves

Sliding body shelves can be pulled by slightly lifting up from the front and moved back and forth. They come to a stop point when pulled towards front to allow you reach the foods placed at the back of the shelf; when it is pulled after slightly lifted upwards at the second stop point, the body shelf will be released.

The shelf should be hold tightly from the bottom as well in order to prevent it from tipping over. The body shelf is placed on the rails at the sides of the refrigerator body by bringing it to one lower or one upper level.

The body shelf should be pushed backwards to seat it completely.

1 2 3 4

Egg tray

You can install the egg holder to the desired door or body shelf.

Never store the egg holder in the freezer compartment

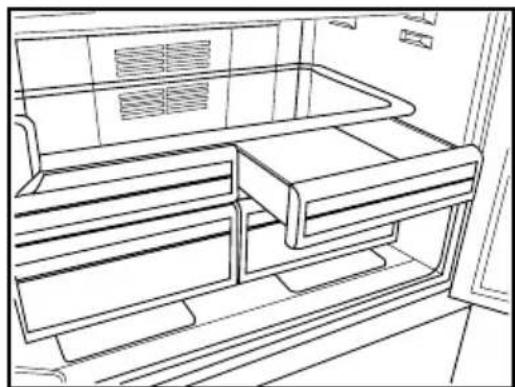

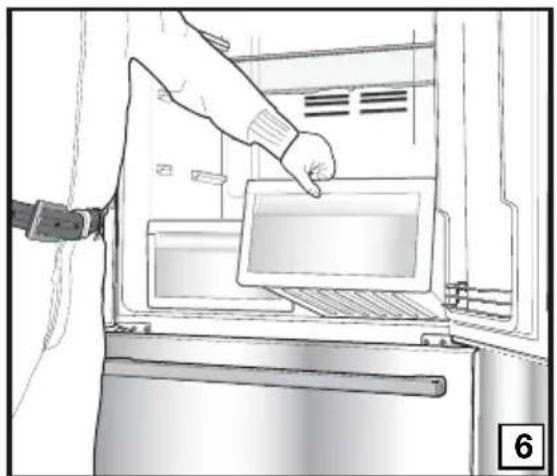

Chiller compartment

Chiller compartments enable the foods to be frozen become ready for freezing. You can also use these compartments to store your food at a temperature a few degrees below the fridge compartment.

You can increase the inner volume of your refrigerator by removing any of the chiller compartments. To do this, pull the compartment towards yourself; the compartment will lean against the stopper and stop. This compartment will be released when you lift it about 1 cm and pull it towards yourself.

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Person installing or adjusting a refrigerator panel with buttons and a handle (no visible text or symbols)

Crisper

Crisper of your refrigerator is designed specially to keep your vegetables freshly without loosing their humidity. For this purpose, cool air circulation occurs around the crisper in general. Remove the door shelves that align with the crisper before removing the crispers. You can remove the crispers as illustrated in the figure.

Freezer Compartment Adjustment	Fridge Compartment Adjustment	Explanations
-18°C 4°C This is the normal recommended setting.
-20,-22 or -24°C 4°C		These settings are recommended when the ambient temperature exceeds 30°C.
Quick Freeze	4°C	Use when you wish to freeze your food in a short time. Your refrigerator will return to its previous mode when the process is over.
-18°C or colder 2°C		If you think that your fridge compartment is not cold enough because of the hot conditions or frequent opening and closing of the door.
-18°C or colder Quick Fridge		You can use it when your fridge compartment is overloaded or if you wish to cool down your food rapidly. It is recommended that you activate quick fridge function 4-8 hours before placing the food.

Freezing fresh food

• It must be preferred to wrap or cover the food before placing them in the refrigerator.
• Hot food must cool down to the room temperature before putting them in the refrigerator.
• The foodstuff that you want to freeze must be fresh and in good quality.
• Foodstuff must be divided into portions according to the family's daily or meal based consumption needs.
• The foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.
• Materials to be used for packaging must be tear-proof and resistant to cold, humidity, odor, oils and acids and they must also be airtight.

Moreover, they must be well closed and they must be made from easy-to-use materials that are suitable for deep freeze usage.

• Frozen food must be used immediately after they are thawed and they should never be re-frozen.

• Please observe the following instructions to obtain the best results.

• Do not freeze too large quantities of food at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.

• Placing warm food into the freezer compartment causes the cooling system to operate continuously until the food is frozen solid.
• Take special care not to mix already frozen food and fresh food.

Recommendations for preservation of frozen food

• Prepacked commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a * (4-star) frozen food storage compartment.

• To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:

• Put packages in the freezer as quickly as possible after purchase.

• Ensure that contents are labeled and dated.
• Do not exceed "Use By", "Best Before" dates on the packaging.

Defrosting

The freezer compartment defrosts automatically.

Placing the food

Freezer compartment shelves	Various frozen food such as meat, fish, ice cream, vegetables and etc.
Egg tray Egg
Fridge compartment shelves	Food in pans, covered plates and closed containers
Fridge compartment door shelves	Small and packaged food or drinks (such as milk, fruit juice and beer)
Crisper	Vegetables and fruits
Freshzone compartment	Delicatessen products (cheese, butter, salami and etc.)

Deep-freeze information

Food must be frozen as rapidly as possible when they are put in a refrigerator in order to keep them in good quality.

The TSE norm requires (according to certain measurement conditions) the refrigerator to freeze at least 4.5 kg of foodstuff at 32^ C ambient temperature to -18^ C or lower within 24 hours for every 100-liters of freezer volume. It is possible to keep the food for a long time only at -18^ C or lower temperatures.

You can keep the freshness of food for many months (at -18°C or lower temperatures in the deep freeze).

WARNING!

• Foodstuff must be divided into portions according to the family’s daily or meal based consumption needs.
• Foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.

Materials necessary for packaging:

• Cold resistant adhesive tape
• Self adhesive label
• Rubber rings
• Pen

Materials to be used for packaging the foodstuff must be tear-proof and resistant to cold, humidity, odor, oils and acids.

Foodstuff to be frozen should not be allowed to come in contact with the previously frozen items to prevent their partial thawing.

Frozen food must be used immediately after they are thawed and they should never be re-frozen.

6 Maintenance and cleaning

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes.
⚠️ We recommend that you unplug the appliance before cleaning.
⚠️ Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.
Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
⚠️ Make sure that no water enters the lamp housing and other electrical items.
⚠️ If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
Check door seals regularly to ensure they are clean and free from food particles.
⚠️ To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

Is the refrigerator properly plugged in? Insert the plug to the wall socket.Is the fuse of the socket which your refrigerator is connected to or the main fuse blown out? Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Storage of food containing liquid in open containers.Leaving the door ajar. Switching the thermostat to a colder degree.Decreasing the time the door left open or using it less frequently.Covering the food stored in open containers with a suitable material.Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. Your refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.The fridge is in defrost cycle. This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.Your refrigerator is not plugged into the socket. Make sure that the plug is properly fit into the socket.Are the temperature adjustments correctly made?Power might be cut off.

The fridge is running frequently or for a long time.

• Your new product may be wider than the previous one. This is quite normal. Large refrigerators operate for a longer period of time.
• The ambient room temperature may be high. This is quite normal.
• The refrigerator might have been plugged in recently or might have been loaded with food. Cooling down of the refrigerator completely may last for a couple of hours longer.
• Large amounts of hot food might have been put in the refrigerator recently. Hot food causes longer running of the refrigerator until they reach the safe storage temperature.
• Doors might have been opened frequently or left ajar for a long time. The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently.
• Freezer or fridge compartment door might have been left ajar. Check if the doors are tightly closed.
• The refrigerator is adjusted to a very low temperature. Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.
  Freezer temperature is very low while the fridge temperature is sufficient.
• The freezer temperature is adjusted to a very low temperature. Adjust the freezer temperature to a warmer degree and check.
  Fridge temperature is very low while the freezer temperature is sufficient.
• The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.
  Food kept in the fridge compartment drawers are freezing.
• The fridge temperature might have been adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.
  Temperature in the fridge or freezer is very high.
• The fridge temperature might have been adjusted to a very high degree. Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches to a sufficient level.
• Doors might have been opened frequently or left ajar for a long time; open them less frequently.
• Door might have been left ajar; close the door completely.
• Large amount of hot food might have been put in the refrigerator recently. Wait until the fridge or freezer reaches the desired temperature.
• The refrigerator might have been plugged in recently. Cooling down of the refrigerator completely takes time.

The operation noise increases when the refrigerator is running.

·The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

Vibrations or noise.

·The floor is not even or it is weak. The refrigerator rocks when moved slowly.Make sure that the floor is strong enough to carry the refrigerator, and level.·The noise may be caused by the items put onto the refrigerator. Items on top of the refrigerator should be removed.

There are noises coming from the refrigerator like liquid spilling or spraying.

·Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

·Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

·Hot and humid weather increases icing and condensation. It is normal and not a fault.·Doors might have been left ajar; make sure that the doors are closed fully.·Doors might have been opened frequently or left ajar for a long time; open them less frequently.

Humidity occurs on the outside of the refrigerator or between the doors.

·There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

Bad odour inside the refrigerator.

·Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a sponge, lukewarm water or carbonated water.·Some containers or package materials might cause the smell. Use a different container or different brand packaging material.

The door is not closing.

·Food packages may prevent the door's closing. Replace the packages that are obstructing the door.·The refrigerator is not completely upright on the floor and rocking when slightly moved. Adjust the elevation screws.·The floor is not level or strong. Make sure that the floor is level and capable to carry the refrigerator.

Crispers are stuck.

·The food might be touching the ceiling of the drawer. Rearrange food in the drawer.

Pure electrical circuit lines without any symbols

Technical diagram of a refrigerator with numbered compartments and labeled doors, showing interior layout and storage areas.

Diagram showing a mechanical or electrical component with a lightning bolt and wiring, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Installation

Diagram of a computer monitor rear panel with ventilation grilles and mounting holes (no text or labels)

Illustration of a hand using a screwdriver to adjust a component, with an arrow indicating direction (no text or symbols present)

Diagram showing bidirectional arrows around a rectangular object with base, no text or symbols present

Line drawing of a double-door office cabinet with drawers and storage compartments (no text or symbols)

Illustration of a hand holding a small object with a magnified view of a textured surface (no text or symbols)

Illustration of a hand pressing down on a device component (no text or symbols visible)

Line drawing of an open refrigerator interior showing internal compartments and ventilation slots (no text or symbols)

Person installing or adjusting a refrigerator panel with buttons and a handle (no visible text or symbols)

Gemüsefach

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Installation

Technical line drawing of a computer monitor rear panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating the process (no text or symbols present)

Diagram showing a rectangular object with upward and downward arrows indicating rotational or directional movement (no text or symbols)

Line drawing of a vintage office cabinet with drawers and storage compartments (no text or symbols)

Etagères coulissantes

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Illustration of a hand using a computer to interact with a device, showing screen and keyboard (no text or symbols)

Illustration of a hand inserting a card into a device (no text or symbols visible)

Line drawing of an open refrigerator with doors, shelves, and ventilation (no text or symbols)

Line drawing of a person installing or adjusting an open refrigerator (no text or symbols present)

Interior view of a refrigerator showing the door, front panel, and side panels (no text or symbols visible)

Line drawing of a refrigerator interior showing a hand holding a kitchen knife, with no visible text or symbols.

Line drawing of a person inserting a component into a refrigerator (no text or symbols)

Illustration of a hand inserting a device into an oven (no text or symbols visible)

Person opening a refrigerator with a hand adjusting the door panel (no visible text or symbols)

Bac à légumes

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor MILK juice etc. temperature sensor

3 Installatie

Technical line drawing of a computer monitor rear panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating direction (no text or symbols present)

Diagram showing a mechanical or structural component with directional arrows indicating motion, no text or symbols present.

4 Voorbereiding

Line drawing of a cabinet interior with drawers and storage compartments (no text or symbols)

Icematic en ijsbakje

Illustration of a hand holding a pair of eyeglasses, partially enclosed in a computer monitor (no text or symbols visible)

Illustration of a hand inserting a card into a device (no text or symbols visible)

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Interior view of a refrigerator showing open doors, shelves, and refrigerators (no text or symbols visible)

Line drawing of a person opening a refrigerator with a belt (no text or symbols)

Line drawing of a refrigerator interior showing a hand inserting a tray into the oven (no text or symbols)

Illustration of a kitchen appliance with a hand holding a knife, showing interior panels and door (no text or symbols)

Line drawing of a person inserting a component into a refrigerator (no text or symbols)

Illustration of a hand inserting a tray into an oven with a tool, no text or symbols present

Person opening a refrigerator with a door handle, showing the lid and door panel (no text or symbols visible)

Groentelade

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Installazione

Technical diagram of a computer chassis back panel with mounting holes and ventilation slots (no text or labels)

Illustration of a hand using a screwdriver to adjust or install a device component (no text or symbols visible)

Diagram showing a mechanical or structural component with directional arrows indicating motion, no text or symbols present.

Line drawing of a vintage kitchen cabinet with drawers and storage compartments (no text or symbols)

Ripiani estraibili

Line drawing of an open refrigerator interior showing front and side views (no text or symbols)

Line drawing of an open refrigerator with doors, shelves, and ventilation (no text or symbols)

Line drawing of a person installing or adjusting an open refrigerator (no text or symbols present)

Interior view of a refrigerator showing the door, front panel, and side panels (no text or symbols visible)

Line drawing of a refrigerator interior showing a hand holding a kitchen knife (no text or symbols)

Line drawing of a person inserting a component into a refrigerator (no text or symbols)

Illustration of a hand inserting a device into an oven (no text or symbols visible)

Person opening a refrigerator with a hand adjusting the door panel (no visible text or symbols)

Illustration of a hand using a computer to interact with a device, showing screen and keyboard (no text or symbols)

Illustration of a hand holding a smartphone with a scroll wheel (no text or symbols visible)

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Εγκατάσταση

Technical line drawing of a computer monitor rear panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a component, with an arrow indicating direction (no text or symbols present)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

Line drawing of a vintage office cabinet with drawers and drawers (no text or symbols)

Illustration of hands using a computer to interact with a device (no text or symbols visible)

Illustration of a hand holding a smartphone with a scroll wheel (no text or symbols visible)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Interior view of a refrigerator showing open doors, shelves, and storage compartments (no text or symbols visible)

Line drawing of a person installing or adjusting an open refrigerator (no text or symbols present)

Interior view of a refrigerator showing the door, front panel, and side panels (no text or symbols visible)

Line drawing of a refrigerator interior showing a hand holding a kitchen knife (no text or symbols)

Line drawing of a person inserting a component into a refrigerator (no text or symbols)

Illustration of a hand inserting a device into an oven (no text or symbols visible)

Person opening a refrigerator with a hand adjusting the door panel (no visible text or symbols)

Συρτάρι λαχανικώ ν

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK juice etc. temperature sensor

3 Установка

Technical line drawing of a computer monitor rear panel with ventilation slots and mounting points (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a device component (no text or symbols visible)

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

Замена лампочки

Line drawing of a double-door kitchen cabinet with drawers and storage compartments (no text or symbols)

Выдвижные полки

Line drawing of an open refrigerator interior showing internal compartments and ventilation slots (no text or symbols)

Illustration of a hand using a tool to clean or inspect a material sample (no text or symbols visible)

Illustration of a hand holding a rectangular object with a curved arrow, interacting with a device (no text or symbols visible)

Interior view of a refrigerator showing open doors, shelves, and storage compartments (no text or symbols visible)

Line drawing of a person installing or adjusting an open refrigerator (no text or symbols present)

Interior view of a refrigerator showing the door, front panel, and side panels (no text or symbols visible)

Line drawing of a refrigerator interior showing a hand holding a kitchen knife, with no visible text or symbols.

Line drawing of a person inserting a component into a refrigerator (no text or symbols)

Illustration of a hand inserting a device into an oven (no text or symbols visible)

Person opening a refrigerator with a hand adjusting the door panel (no visible text or symbols)

Technical diagram of a refrigerator with numbered compartments and labeled doors, showing interior layout and door panel.

Diagram showing a lightning bolt striking down on a wall-mounted device with wiring and plug (no text or symbols)

- Ne uključujte hladnjak ako je električna utičnica labava.

food temperature sensor

MILK juice etc. temperature sensor

3 Instalacija

⚠ Molimo imajte na umu da se proizvođač neće smatrati odgovornim ukoliko se ne budete pridržavali informacija navedenih u korisničkom priručniku.

Stvari kojih se treba pridržavati kod ponovnog transporta vašeg hladnjaka

Technical diagram of a computer monitor rear panel with mounting holes and ventilation slots (no text or labels)

Illustration of a hand using a screwdriver to adjust or install a device component (no text or symbols visible)

Električno spajanje

Spojite svoj proizvod u uzemljenu utičnicu koja je zaštićena osiguračem odgovarajućeg kapaciteta.

Važno:

• Spoj mora biti u skladu s nacionalnim zakonskim odredbama.
• Kabel napajanja mora biti lako dostupan nakon postavljanja.
• Navedeni napon mora biti jednak naponu el. energije.
• Produžni kabeli i razvodnici se ne smiju koristiti za spajanje.

Diagram showing a mechanical or structural component with directional arrows indicating motion or force, no text or symbols present.

Line drawing of a cabinet interior with drawers and storage compartments (no text or symbols)

Ledomat i posuda za led Uporaba ledomata

Illustration of a hand using a computer to interact with a device, showing screen and screen layout (no text or symbols)

Illustration of a hand pressing a button on a device (no text or symbols visible)

Klizne police kućišta

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Interior view of a refrigerator showing open doors, shelves, and storage compartments (no text or symbols visible)

Line drawing of a person installing or adjusting an open refrigerator (no text or symbols present)

Interior view of a refrigerator showing the door, front panel, and side panels (no text or symbols visible)

Line drawing of a refrigerator interior showing a hand holding a kitchen knife, with no visible text or symbols.

Line drawing of a person inserting a component into a refrigerator (no text or symbols)

Illustration of a hand inserting a device into an oven (no text or symbols visible)

Person opening a refrigerator with a hand adjusting the door panel (no visible text or symbols)

Odjeljak za povrće

Diagram showing a lightning bolt striking down on a wall-mounted device with wiring and plug (no text or symbols)

food temperature sensor

MILK juice etc. temperature sensor

:R134a

Technical line drawing of a computer chassis back panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust a component into a device (no text or symbols visible)

Diagram showing bidirectional arrows around a rectangular object with base, indicating rotational or mechanical motion (no text or symbols)

Line drawing of a double-decker cabinet with drawers and storage compartments (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of an open refrigerator with doors, shelves, and a door handle (no text or symbols)

Line drawing of a person installing or adjusting an open refrigerator (no text or symbols present)

Line drawing of a refrigerator interior showing the door, front panel, and side panels (no text or symbols)

Line drawing of a refrigerator interior showing a hand holding a kitchen knife (no text or symbols)

Line drawing of a person inserting a component into a refrigerator (no text or symbols)

Line drawing of a hand inserting a tablet into an oven (no text or symbols)

Person opening a refrigerator with a hand adjusting the door panel (no visible text or symbols)

الدرج

Illustration of a hand holding a device with a screen, showing internal components (no text or symbols visible)

Illustration of a hand pressing down on a device panel with a scroll arrow (no text or symbols)

Recycling

Diagram showing a device with a lightning bolt and cable, no text or symbols present

food temperature sensor

MILK JUICE etc. temperature sensor

HCA هشدار

Technical line drawing of a computer monitor rear panel with mounting holes and ventilation slots (no text or symbols)

Illustration of a hand using a screwdriver to adjust a component on a device (no text or symbols visible)

Diagram showing a mechanical or structural component with directional arrows indicating motion, no text or symbols present.

tangyir dandn mizan roshniye laam

Libya تعويض لامپ روشنايی يخچال، لطفا

Line drawing of a vintage office cabinet with drawers and storage compartments (no text or symbols)

Illustration of a hand using a computer to interact with a device (no text or symbols visible)

Illustration of a hand holding a small object over a device panel (no text or symbols visible)

Line drawing of an open refrigerator interior showing internal compartments and ventilation grilles (no text or symbols)

Interior view of a refrigerator showing open doors, shelves, and storage compartments (no text or symbols visible)

Line drawing of a person installing or adjusting an open refrigerator (no text or symbols present)

Person installing or adjusting a refrigerator panel inside an open refrigerator (no text or symbols visible)

Line drawing of a refrigerator interior showing hand holding a kitchen appliance (no text or symbols)

Line drawing of a person inserting a plug into a refrigerator (no text or symbols)

Illustration of a hand inserting a tablet into an oven (no text or symbols visible)

Person opening a refrigerator with visible door and door panel (no text or symbols)

محل نگهداری سبزیجات
