Brand	Blomberg
Model	KSM9520 A+
Product type	Refrigerator with freezer compartment
Energy class	A+
Dimensions (H x W x D)	Approximately 180 x 60 x 65 cm
Weight	Approximately 70 kg
Power supply	220-240 V, 50 Hz
Climate class	SN-T (10°C to 43°C)
Refrigerant gas	R600a (flammable) or R134a depending on model
Refrigerator capacity	Not specified, approximately 200 L (estimate)
Freezer capacity	Not specified, approximately 50 L (estimate)
Interior lighting	Screw-type SES bulb 15 W max
Main features	Adjustable thermostat, automatic defrosting of the refrigerator, manual defrosting of the freezer, interior light, reversible door, adjustable shelves, door bins, vegetable drawer, dairy compartment, egg tray, bottle rack
Maintenance and cleaning	Clean with warm water and baking soda; do not use abrasive products; dry thoroughly
Safety	Child lock (key out of reach); avoid using mechanical tools to defrost; do not use electrical appliances inside
Spare parts and repairability	Replacement bulb 15 W SES, door seals; repair by authorized service only
General information	User manual provided; lifespan of 10 years; recycling at end of life

Frequently Asked Questions - KSM9520 A+ BLOMBERG

What to do if the refrigerator does not work?

Check that the plug is properly connected. Make sure the fuse has not blown. If the problem persists, contact the authorized after-sales service.

How to adjust the temperature?

Use the thermostat knob. Turn to a higher number for more cold, to a lower number for less cold. If the ambient temperature is above 32°C, set to maximum; if below 25°C, set to minimum.

How to defrost the freezer compartment?

Unplug the appliance. Remove wrapped food. Place containers of hot water to speed up defrosting. Do not use sharp objects. Dry the inside after defrosting.

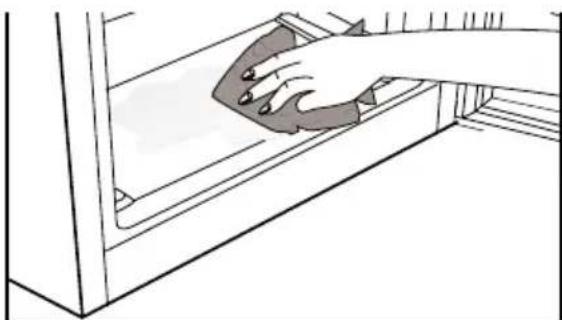

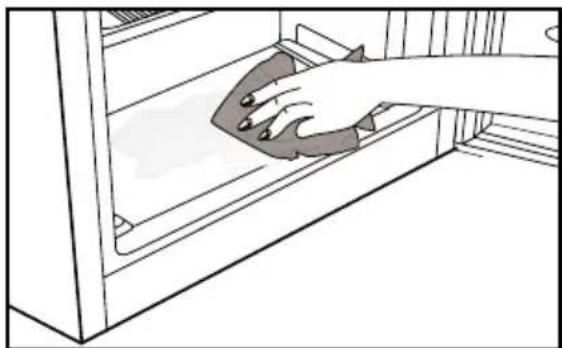

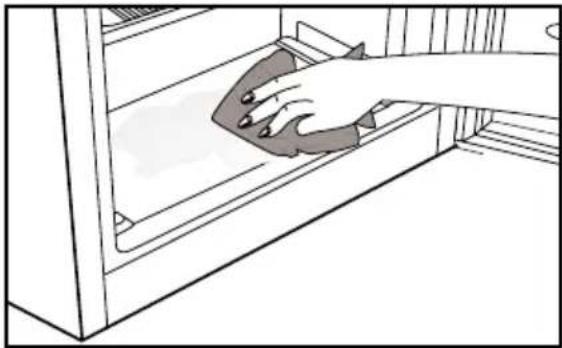

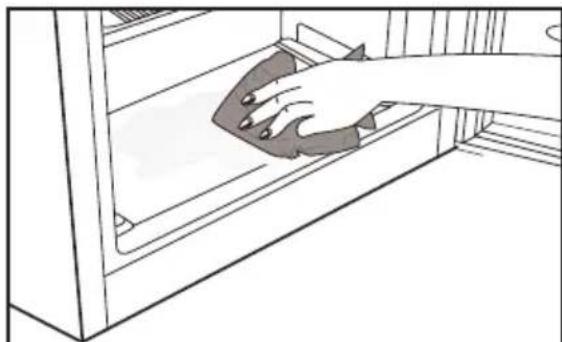

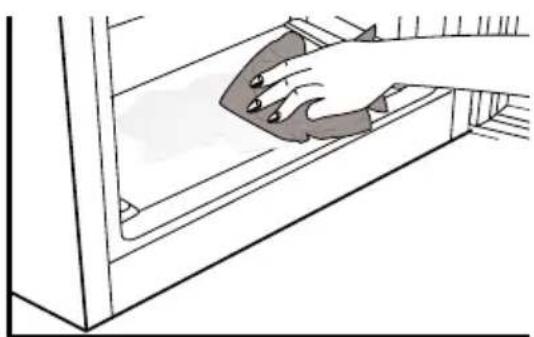

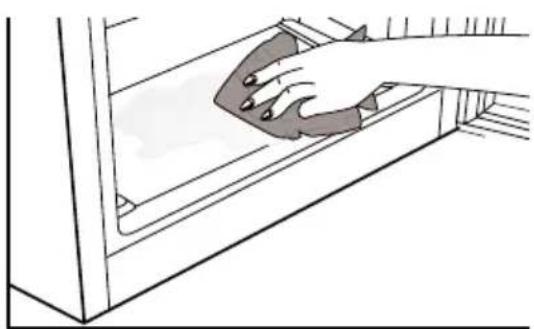

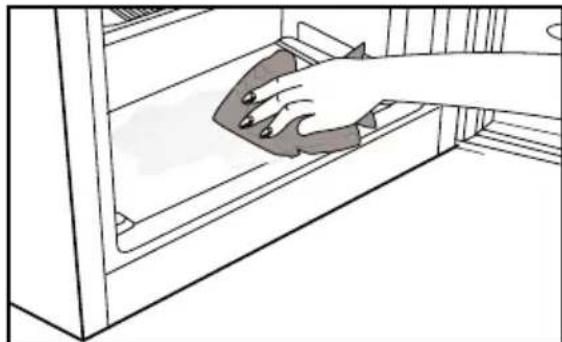

How to clean the inside of the refrigerator?

Use a damp cloth with a solution of warm water and baking soda (1 teaspoon per 0.5 liter of water). Do not let water run on the light. Dry thoroughly.

How to change the interior bulb?

Unplug the appliance. Remove the diffuser with a flat screwdriver. Replace with a new 15 W max screw-type bulb (SES). Replace the diffuser.

Why is there condensation on the interior walls?

This may be due to low ambient temperature, high humidity, frequently opened or ajar door. Set the thermostat to a colder level and reduce door openings.

What to do if the door does not close properly?

Check that containers do not obstruct closing. Make sure the refrigerator is level by adjusting the front feet. If the seal is dirty or damaged, clean or replace it.

How to save energy with this refrigerator?

Do not leave the door open for long. Do not put hot food inside. Do not overload. Install the refrigerator away from sunlight and heat sources. Thaw food in the refrigerator.

Can I reverse the door opening direction?

Yes, the manual provides instructions for door reversibility. Follow the procedure in the order given.

What to do if the compressor does not start?

If the refrigerator has just been plugged in or after a power cut, wait about 6 minutes. The compressor may also be in a defrost cycle. If the problem persists, check the thermostat or contact the after-sales service.

USER MANUAL KSM9520 A+ BLOMBERG

Operating instructions

Køleskab

Kylskåp

Kjøleskap

Jääkaappi

Frigorifero

Холодильник

KSM 9520 A+

KSM 9520 XA+

Bedienungsanleitung

Operating instructions

Hladnjak

KSM 9520 A+ KSM 9520 XA+

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
  Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

i Important information or useful usage tips.

⚠ Warning against dangerous conditions for life and property.

⚠ Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimise its impact on the environment. For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

1 Your refrigerator 3

2 Important Safety Warnings 4

Intended use 4
For products with a water dispenser; .6
Child safety 6
HCA Warning 6
Things to be done for energy saving ..7

3 Installation 8

Preparation 8
Points to be considered when re-transporting your refrigerator .....8
Before operating your refrigerator .....8
Electric connection 9
Disposing of the packaging .....9
Disposing of your old refrigerator .....9

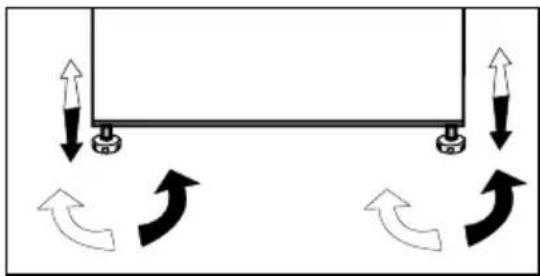

Adjusting the legs 10
Replacing the interior light bulb .....10

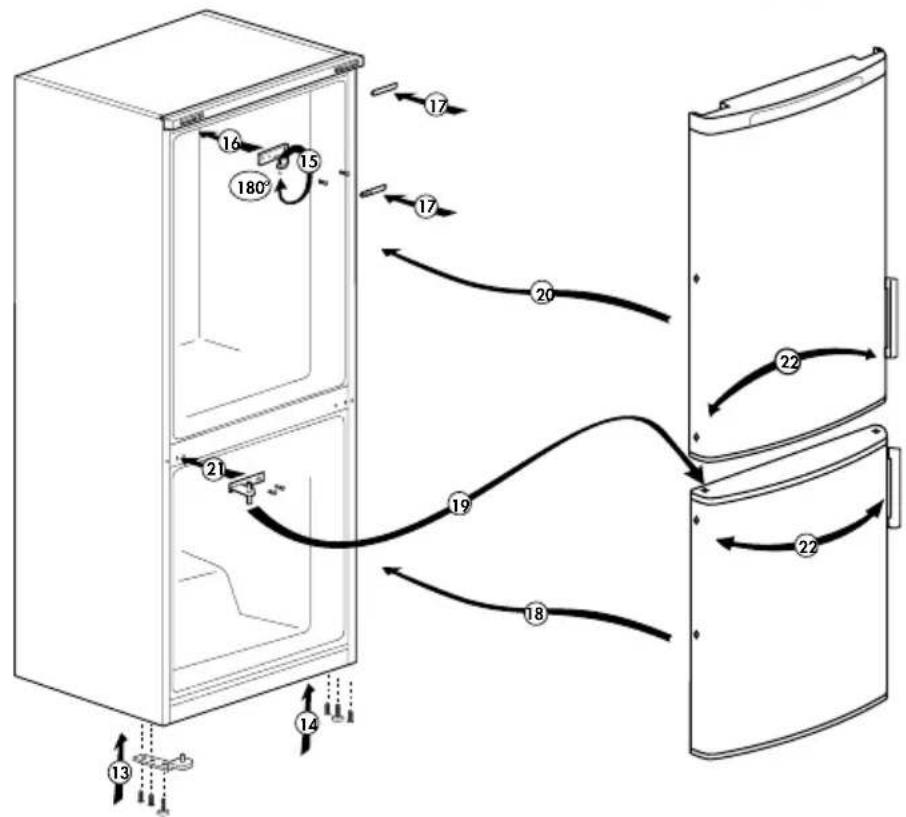

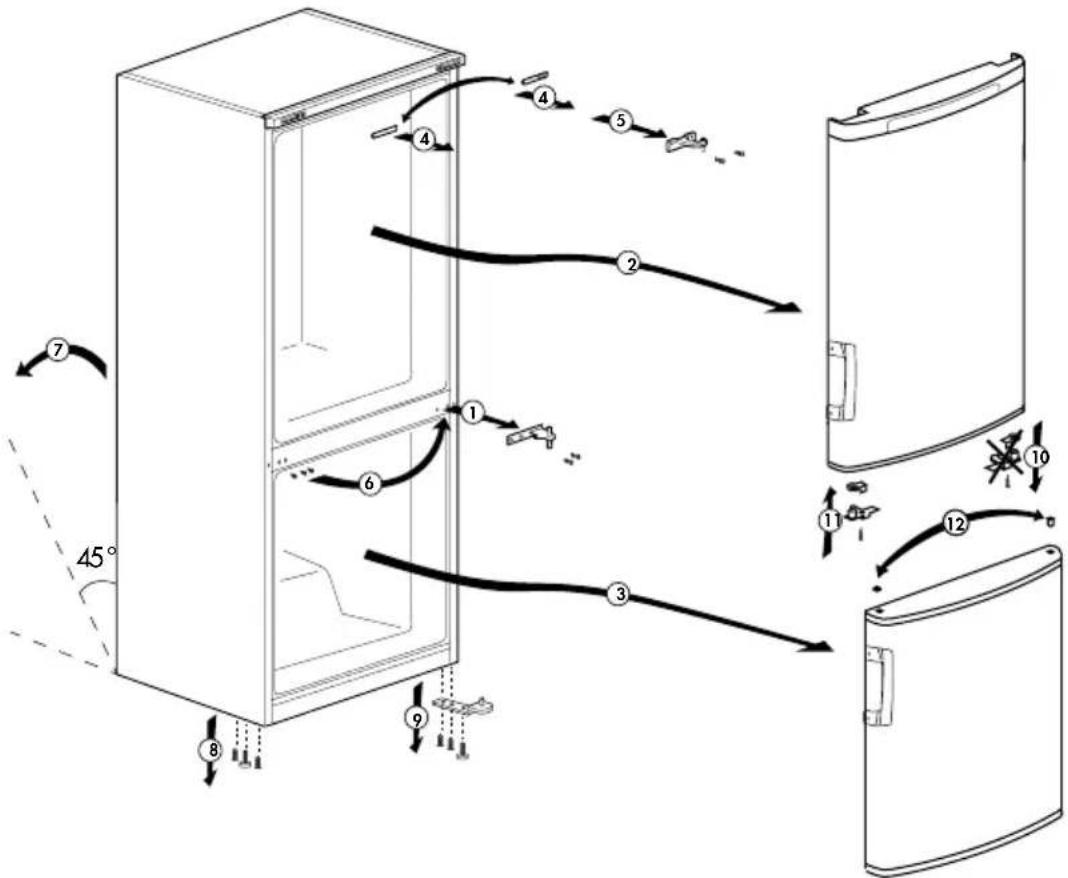

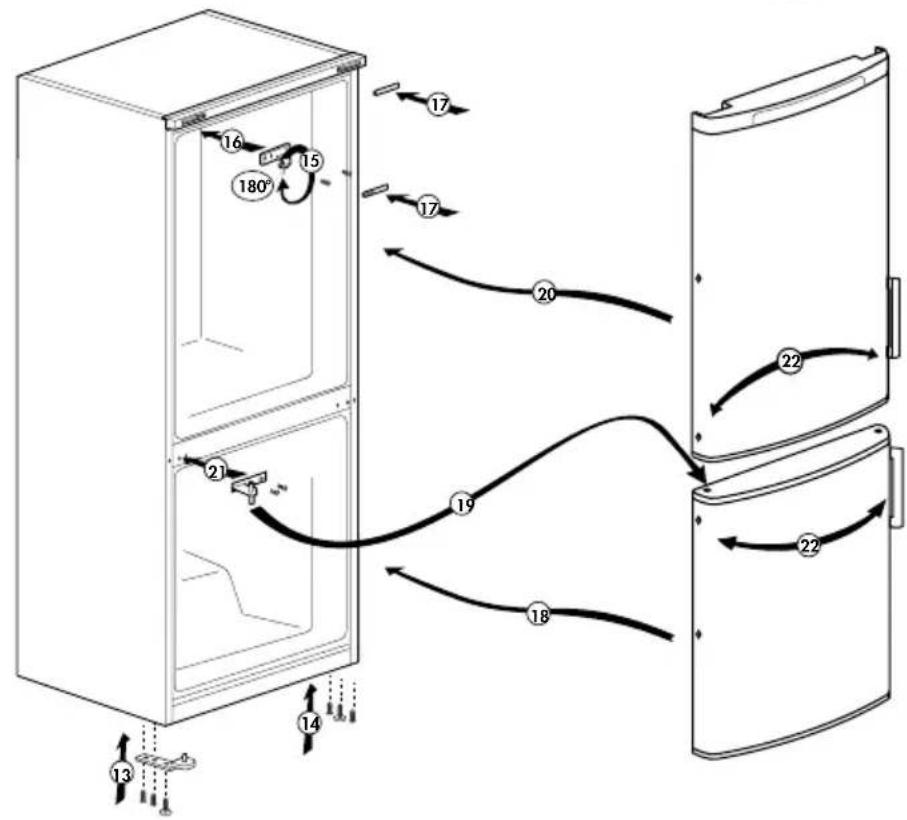

Reversing the doors .....11

4 Using your refrigerator 12

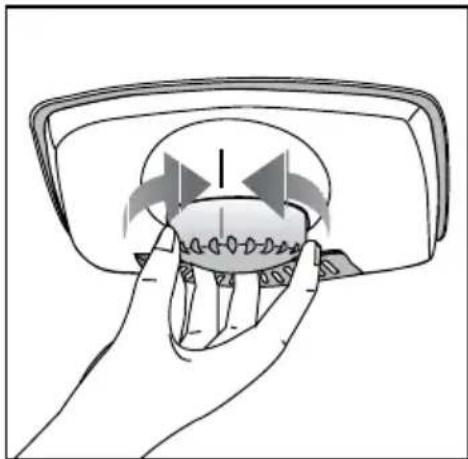

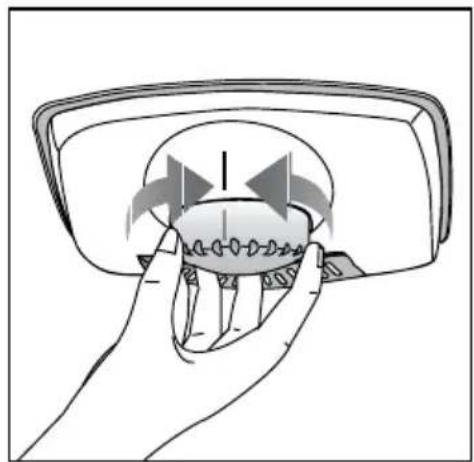

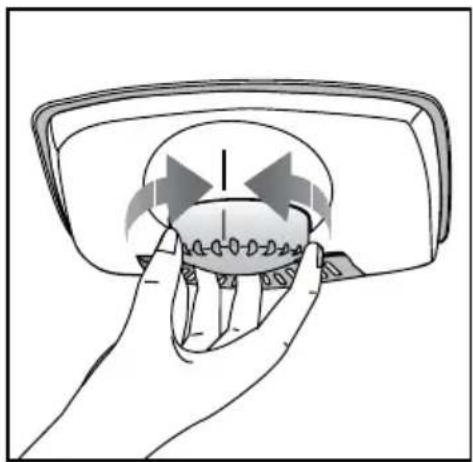

Thermostat setting button....12

Defrost 12

5 Maintenance and cleaning 14

Protection of plastic surfaces .....14

6 Recommended solutions for the problems 15

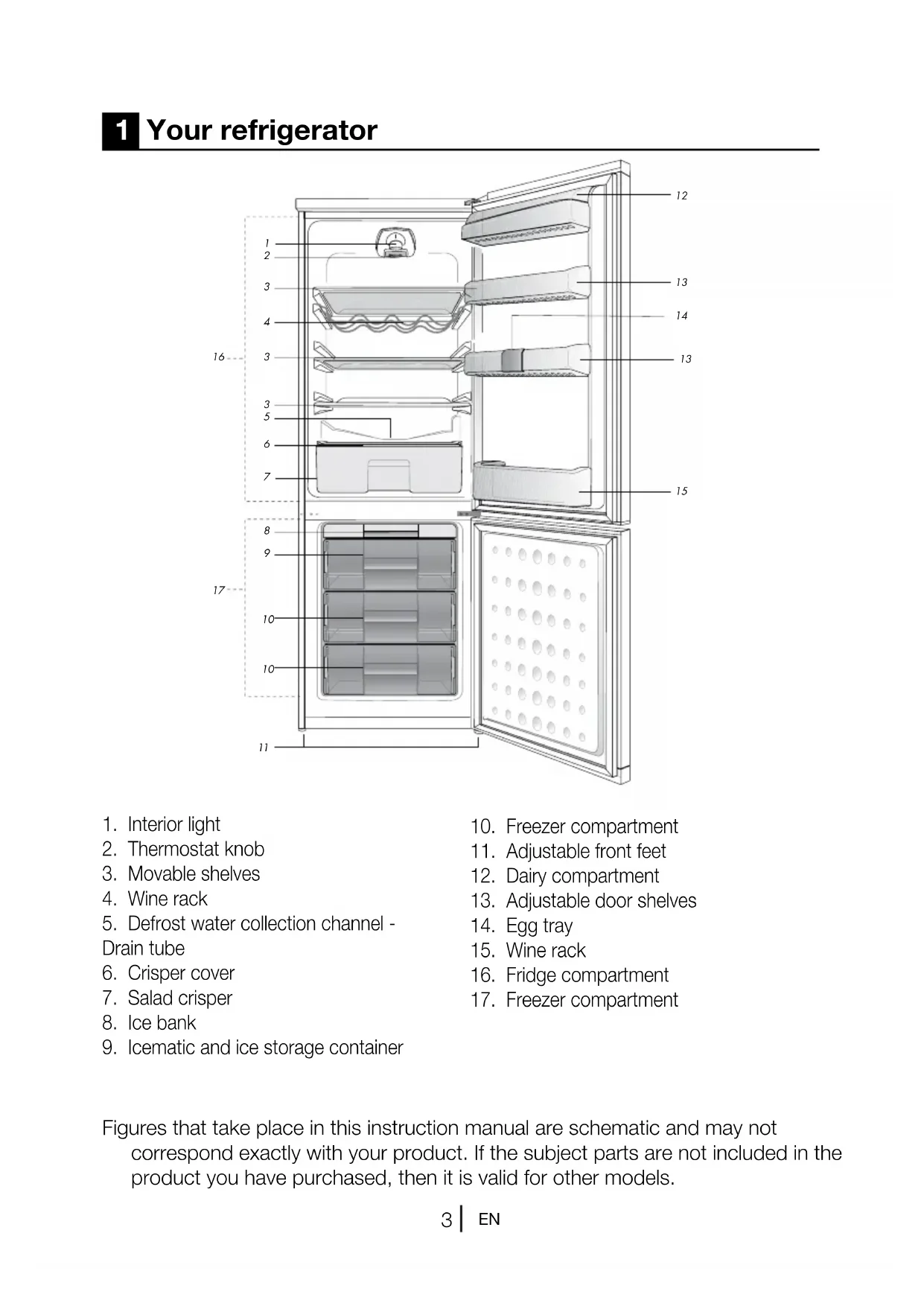

1 Your refrigerator

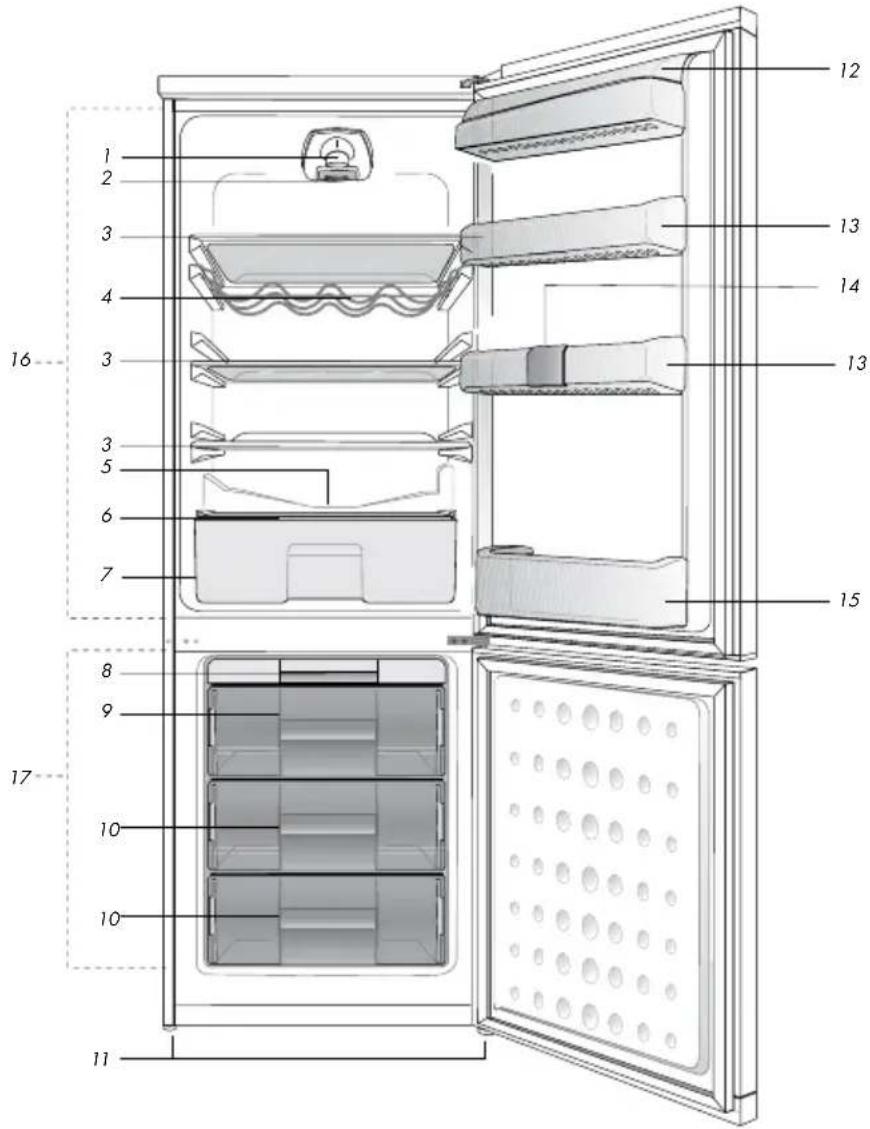

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

1. Interior light
2. Thermostat knob
3. Movable shelves
4. Wine rack

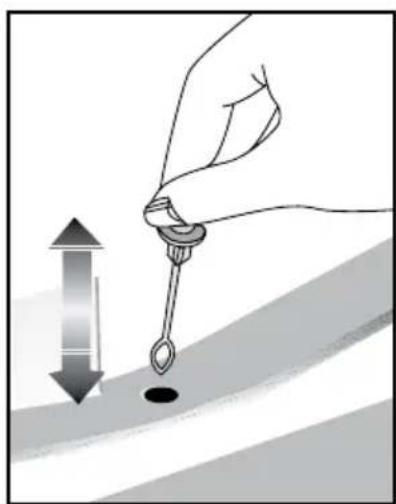

5. Defrost water collection channel - Drain tube
6. Crisper cover
7. Salad crisper
8. Ice bank

9. Icematic and ice storage container

10. Freezer compartment

11. Adjustable front feet
12. Dairy compartment
13. Adjustable door shelves
14. Egg tray
15. Wine rack
16. Fridge compartment
17. Freezer compartment

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

The usage life of the unit you purchased is 10 years. This is the period for keeping the spare parts required for the unit to operate as described.

Intended use

This product is intended to be used

- indoors and in closed areas such as homes;

– in closed working environments such as stores and offices;

– in closed accommodation areas such as farm houses, hotels, pensions.

- This product should not be used outdoors.

General safety

- When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.

- Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.

- For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)

- For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.

- Do not touch frozen food by hand; they may stick to your hand.

- Unplug your refrigerator before cleaning or defrosting.

- Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

- Never use the parts on your refrigerator such as the door as a means of support or step.

- Do not use electrical devices inside the refrigerator.

- Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

- Do not cover or block the ventilation holes on your refrigerator with any material.

- Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.

- In case of any failure or during a maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.

• Do not pull by the cable when pulling off the plug.
• Place the beverage with higher proofs tightly closed and vertically.
• Never store spray cans containing flammable and explosive substances in the refrigerator.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product
• Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.
• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.
• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.
• Contact authorized service when there is a power cable damage to avoid danger.
• Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.
• This refrigerator is intended for only storing food items. It must not be used for any other purpose.

• Label of technical specifications is located on the left wall inside the refrigerator.

• Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.

• If there is a blue light on the refrigerator, do not look at the blue light with optical tools.
• For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.
• This operation manual should be handed in to the new owner of the product when it is given to others.
• Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product.

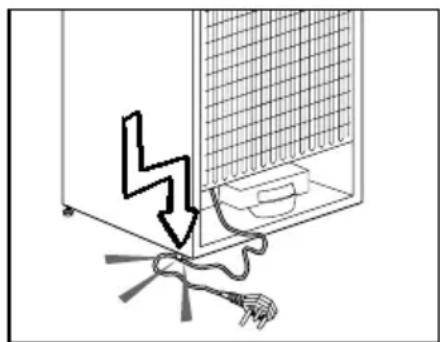

Diagram showing a lightning bolt striking a wall-mounted device with wires and a plug, no text or symbols present

• Do not plug the refrigerator if the wall outlet is loose.
• Water should not be sprayed directly on inner or outer parts of the product for safety purposes.
• Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.
• Never place containers filled with water on top of the refrigerator, otherwise this may cause electric shock or fire.
• Do not overload your refrigerator with excessive amounts of food. If overloaded, the food items may fall down and hurt you and damage

refrigerator when you open the door. Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.

• As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.
• If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.
• The plug's tip should be regularly cleaned; otherwise, it may cause fire.
• The plug's tip should be cleaned regularly with a dry cloth; otherwise, it may cause fire.
• Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.
• When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.
• When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.

For products with a water dispenser;

Pressure of water mains should be minimum 1 bar. Pressure of water mains should be maximum 8 bars.

- Use only potable water.

Child safety

• If the door has a lock, the key should be kept away from reach of children.
• Children must be supervised to prevent them from tampering with the product.

HCA Warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type plate which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

Things to be done for energy saving

• Do not leave the doors of your refrigerator open for a long time.
• Do not put hot food or drinks in your refrigerator.
• Do not overload your refrigerator so that the air circulation inside of it is not prevented.
• Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators.
• Pay attention to keep your food in closed containers.
• For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.
• Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

3 Installation

Please remember that the manufacturer shall not be held liable if the information given in the instruction manual is not observed.

Preparation

i Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
The ambient temperature of the room where you install your refrigerator should at least be 10^ C. Operating your refrigerator under cooler conditions than this is not recommended with regard to its efficiency.
i Please make sure that the interior of your refrigerator is cleaned thoroughly.
i If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.

- The door should not be opened frequently.

- It must be operated empty without any food in it.

- Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.

i Original packaging and foam materials should be kept for future transportations or moving.

Points to be considered when re-transporting your refrigerator

1. Your refrigerator must be emptied and cleaned prior to any transportation.
2. Shelves, accessories, crisper and etc. in your refrigerator must be fastened securely by adhesive tape against any jolt before repackaging.
3. Packaging must be tied with thick tapes and strong ropes and the rules of transportation printed on the package must be followed.

Please remember...

Every recycled material is an indispensable source for the nature and for our national resources.

If you wish to contribute to recycling the packaging materials, you can get further information from the environmental bodies or local authorities.

Before operating your refrigerator

Before starting to use your refrigerator check the following:

1. Is the interior of the refrigerator dry and can the air circulate freely in the rear of it?

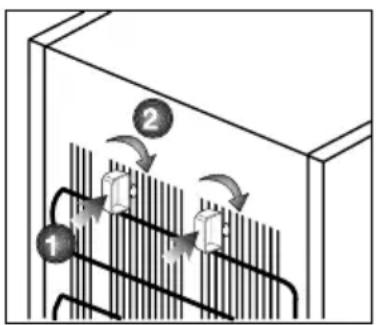

2. Insert the 2 plastic wedges onto the rear ventilation as illustrated in the following figure. Plastic wedges will provide the required distance between your refrigerator and the wall in order to allow the air circulation.

3. Clean the interior of the refrigerator as recommended in the “Maintenance and cleaning” section.

4. Plug the refrigerator into the wall outlet. When the fridge door is open the fridge compartment interior light will come on.

5. You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
6. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electric connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

The connection must be in compliance with national regulations.

The power cable plug must be easily accessible after installation.

Voltage and permitted fuse protection are indicated in the “Specifications” section.

The specified voltage must be equal to your mains voltage.

Extension cables and multiway plugs must not be used for connection.

A damaged power cable must be replaced by a qualified electrician.

Product must not be operated before it is repaired! There is danger of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose them of by classifying them in accordance with the waste instructions. Do not dispose them of along with the normal household waste.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old machine without giving any harm to the environment.

You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

The climate class rate of your appliance is given on the rating label located inside the appliance. It specifies the appropriate operating ambient temperatures as explained below.

Climatic class Ambient temperatures

SN ....+10 °C to 32 °C

N .....+16 °C to 32 °C

ST.....+18 °C to 38 °C

T....+18 °C to 43 °C

SN-ST .....+10 °C to 38 °C

SN-T.....+10 °C to 43 °C

Diagram showing airflow or heat transfer between two labeled components, with arrows indicating direction of movement.

Adjusting the legs

If your refrigerator is unbalanced; You can balance your refrigerator by turning the front legs of it as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Pure diagram of a rectangular structure with directional arrows and curved arrows, no text or symbols present.

Replacing the interior light bulb

Should the light fail to work, proceed as follows.

1- Switch off at the socket outlet and pull out the mains plug.

You may find it useful to remove shelves for easy access.

2- Use a flat tipped screwdriver to remove the light diffuser cover.

3- First check that the bulb hasn't worked loose by ensuring it is screwed securely in the holder. Replace the plug and switch on.

If the bulb works, replace the light cover by inserting the rear lug and pushing up to locate the front two lugs.

4- If the light still fails to work, switch off at the socket outlet and pull out the mains plug. Replace the bulb with a new 15 watt (max) screw cap (SES) bulb.

5- Carefully dispose of the burnt-out light bulb immediately.

Replacement light bulb can easily be obtained from a good local electrical or DIY store.

Diagram of a mechanical component with a central cylindrical part and a circular housing (no text or symbols)

Hand holding a tool interacting with a circular object, possibly a lamp or detector (no text or symbols visible)

Illustration of a hand holding a small object with a circular component above it, no text or symbols present.

Illustration of a hand holding a small object with a circular top and ring, no text or symbols present

Reversing the doors

Proceed in numerical order

Diagram of refrigerator interior with numbered components and directional arrows indicating movement paths

Diagram of refrigerator interior showing numbered components and airflow paths, likely for electronics or appliance control.

4 Using your refrigerator

Illustration of a hand holding a device with a circular button and directional arrows indicating motion (no text or symbols)

Thermostat setting button

The interior temperature of your refrigerator changes for the following reasons;

• Seasonal temperatures,
- Frequent opening of the door and leaving the door open for long periods,
- Food put into the refrigerator without cooling down to the room temperature,
- The location of the refrigerator in the room (e.g. exposing to sunlight).
- You may adjust the varying interior temperature due to such reasons by using the thermostat. Numbers around the thermostat button indicates the cooling degrees.

- If the ambient temperature is higher than 32^ C, turn the thermostat button to maximum position.

- If the ambient temperature is lower than 25^ C, turn the thermostat button to minimum position.

Defrost

A) Fridge compartment

Fridge compartment performs full-automatic defrosting. Water drops and a frosting up to 7-8 mm can occur on the inner rear wall of the fridge compartment while your refrigerator cools down. Such formation is normal as a result of the cooling system.

The frost formation is defrosted by performing automatic defrosting with certain intervals thanks to the automatic defrosting system of the rear wall. User is not required to scrape the frost or remove the water drops.

Water resulting from the defrosting passes from the water collection groove and flows into the evaporator through the drain pipe and evaporates here by itself.

Check regularly to see if the drain pipe is clogged or not and clear it with the stick in the hole when necessary.

Deep freezer compartment does not perform automatic defrosting in order to prevent decaying of the frozen food.

Illustration of a hand holding a tool over a droplet on a surface, with an upward arrow indicating direction (no text or symbols)

B) Freezer compartment

Defrosting is very straightforward and without mess, thanks to a special defrost collection basin.

Defrost twice a year or when a frost layer of around 7 (1/4") mm has formed. To start the defrosting procedure, switch off the appliance at the socket outlet and pull out the mains plug.

All food should be wrapped in several layers of newspaper and stored in a cool place (e.g. fridge or larder).

Containers of warm water may be placed carefully in the freezer to speed up the defrosting.

Do not use pointed or sharp-edged objects, such as knives or forks to remove the frost.

Never use hair dryers, electrical heaters or other such electrical appliances for defrosting.

Sponge out the defrost water collected in the bottom of the freezer compartment. After defrosting, dry the interior thoroughly.

Insert the plug into the wall socket and switch on the electricity supply.

Illustration of a hand inserting a card into a drawer (no text or symbols visible)

Line drawing of a hand cleaning a shelf with a cloth (no text or symbols)

5 Maintenance and cleaning

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes.
⚠️ We recommend that you unplug the appliance before cleaning.
i Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.
Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
⚠️ Make sure that no water enters the lamp housing and other electrical items.
⚠️ If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
Check door seals regularly to ensure they are clean and free from food particles.
To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

6 Recommended solutions for the problems

Please review this list before calling the service. It might save you time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate

Is the refrigerator properly plugged in? Insert the plug to the wall socket.Is the fuse of the socket which your refrigerator is connected to or the main fuse blown out? Check the fuse.

Condensation on the side wall of the fridge compartment. (MULTI ZONE, COOL CONTROL ve FLEXI ZONE)

Very cold ambient conditions. Frequent opening and closing of the door. Highly humid ambient conditions. Storage of food containing liquid in open containers.Leaving the door ajar.Switching the thermostat to a colder degree.Decreasing the time the door left open or using it less frequently.Covering the food stored in open containers with a suitable material.Wipe the condensation using a dry cloth and check if it persists.

Compressor is not running

Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet.Your refrigerator will start running approximately after 6 minutes. Please call the service if your refrigerator does not startup at the end of this period.The fridge is in defrost cycle. This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.Your refrigerator is not plugged into the socket. Make sure that he plug is inserted tightly to the wall socket.Are the temperature adjustments correctly made? There is a power failure. Call your electricity supplier.

The fridge is running frequently or for a long time.

·Your new refrigerator may be wider than the previous one. This is quite normal. Large refrigerators operate for a longer period of time. ·The ambient room temperature may be high. This is quite normal. ·The refrigerator might have been plugged in recently or might have been loaded with food. Cooling down of the refrigerator completely may last for a couple of hours longer. ·Large amounts of hot food might have been put in the refrigerator recently. Hot food causes longer running of the refrigerator until they reach the safe storage temperature. ·Doors might have been opened frequently or left ajar for a long time. The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Open the doors less frequently. ·Freezer or fridge compartment door might have been left ajar. Check if the doors are tightly closed. ·The refrigerator is adjusted to a very low temperature. Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved. ·Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

·The freezer temperature is adjusted to a very low temperature. Adjust the freezer temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

·The fridge temperature is adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are freezing.

·The fridge temperature is adjusted to a very low temperature. Adjust the fridge temperature to a warmer degree and check.

Temperature in the fridge or freezer is very high.

The fridge temperature is adjusted to a very high degree. Fridge adjustment has an effect on the temperature of the freezer. Change the temperature of the fridge or freezer until the fridge or freezer temperature reaches to a sufficient level.The door might be left ajar. Close the door completely.Large amounts of hot food might have been put in the refrigerator recently. Wait until the fridge or freezer reaches the desired temperature.Refrigerator might have been plugged in recently. Cooling down of the refrigerator completely takes time because of the size.

Noise similar to the sound of seconds heard from an analog clock is coming from the refrigerator.

This noise is coming from the solenoid valve of the refrigerator. Solenoid valve functions for the purpose of ensuring coolant passage through the compartment which can be adjusted to cooling or freezing temperatures, and performing cooling functions. This is normal and is not fault cause.

The operation noise increases when the refrigerator is running.

The operating performance characteristics of the refrigerator may change according to the changes in the ambient temperature. It is normal and not a fault.

Vibrations or noise.

The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make sure that the floor is level, strong and capable to carry the refrigerator.The noise may be caused by the items put onto the refrigerator. Such items should be removed from the top of the refrigerator.

There are noises like liquid spilling or spraying.

Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault.

There is a noise like wind blowing.

Air activators (fans) are used in order to allow the refrigerator to cool efficiently. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

Hot and humid weather increases icing and condensation. It is normal and not a fault.The doors are ajar. Make sure that the doors are closed completely.Doors might have been opened very frequently or they might have been left open for along time. Open the door less frequently.

Humidity occurs on the outside of the refrigerator or between the doors.

The weather may be humid. This is quite normal in humid weather. When the humidity is less, condensation will disappear.

Bad odor inside the refrigerator.

·Inside of the refrigerator must be cleaned. Clean the inside of the refrigerator with a sponge, warm water or carbonated water.·Some containers or packaging materials might be causing the smell. Use a different container or different brand packaging material.

The door(s) is (are) not closing.

·Food packages may prevent the door's closing. Replace the packages that are obstructing the door.·The refrigerator is probably not completely vertical on the floor and it might be rocking when slightly moved. Adjust the elevation screws.·The floor is not level or strong. Make sure that the floor is level and capable to carry the refrigerator.

Crispers are stuck.

·The food might be touching the ceiling of the drawer. Rearrange food in the drawer.

Technical diagram of a refrigerator with numbered compartments and labeled interior areas

Diagram showing a device with wires and a plug inserted into a chamber (no text or symbols)

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

Diagram showing two vertical supports with upward and downward arrows indicating motion or force directions (no text or symbols)

Simple line drawing of a mechanical component with a central circular feature and base (no text or symbols)

Hand holding a tool interacting with a circular object on a tray (no text or symbols visible)

Illustration of a hand holding a small object with a circular component above it, no text or symbols present.

Illustration of a hand holding a small electronic device with a circular component and pointer (no text or symbols)

Illustration of a hand holding a computer monitor with a globe and directional arrows (no text or symbols)

Illustration of a hand holding a tool over a droplet on a surface, with an upward arrow indicating direction (no text or symbols)

Illustration of a hand pressing down a door panel with a magnified view of the handle (no text or symbols)

Line drawing of a hand cleaning a window with a cloth (no text or symbols)

Technical diagram of a refrigerator with numbered compartments and labeled parts

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Diagram illustrating heat transfer in a refrigerant system with labeled components and directional arrows

Diagram of a mechanical component with a central cylindrical part and a circular housing, labeled '1' at the bottom (no text or symbols on the diagram itself)

Hand holding a tool interacting with a circular object, no text or symbols visible

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Illustration of a hand holding a small object with a circular component above it, no text or symbols present.

Illustration of a hand holding a small object with a circular top, no text or symbols present

Diagram of refrigerator interior with numbered components and directional arrows indicating movement paths, including a 45° angle indicator.

Diagram of refrigerator interior showing numbered components and airflow direction, likely for electronics or appliance repair instructions.

Illustration of a hand holding a device with a circular button and directional arrows indicating motion (no text or symbols)

Illustration of a hand holding a pipette over a droplet on a surface, with an upward arrow indicating direction (no text or symbols)

Illustration showing a hand cleaning a window with a handle, no text or symbols present

Technical diagram of a refrigerator with numbered compartments and labeled parts

Diagram showing a lightning bolt striking down on a wall-mounted device with wiring and plug (no text or symbols)

Diagram illustrating fluid flow through a container with labeled components and directional arrows

Diagram showing two vertical supports with upward and downward arrows indicating motion or force directions (no text or symbols)

Simple line drawing of a mechanical component with a central circular feature and base (no text or symbols)

Hand holding a spoon above a bowl, no text or symbols visible

Illustration of a hand holding a small object with a circular component, possibly a device or tool (no text or symbols visible)

Illustration of a hand holding a small object with a circular top, no text or symbols present

De deuren omkeren

Illustration of a hand holding a device with arrows indicating motion or force (no text or symbols)

Knop om thermostaat in te stellen

Illustration of a hand holding a tool over a surface with a vertical double-headed arrow indicating direction (no text or symbols)

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Diagram showing a device with wires and a plug inserted into a container, no text or symbols present

Diagram illustrating fluid flow through a container with labeled components and directional arrows

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Technical diagram showing the internal components and airflow paths of a refrigerator, with numbered parts and angular annotations.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand holding a pipette over a droplet on a surface, with an upward arrow indicating direction (no text or symbols)

Illustration of a hand pressing down a door panel into a window (no text or symbols visible)

Line drawing of a hand cleaning or cleaning a shelf with a cloth (no text or symbols)

Technical diagram of a refrigerator with numbered compartments and labeled parts

Diagram showing a lightning bolt striking a wall-mounted device with wiring and plug, no text or symbols present

Diagram showing airflow or heat transfer between two containers with labeled components and directional arrows

Diagram showing a beam supported at both ends with curved arrows indicating direction, no text or symbols present.

Diagram of a mechanical component with a central cylindrical part and a circular housing, labeled '1' at the bottom (no text or symbols on the diagram itself)

Hand holding a tool interacting with a circular object on a surface, no text or symbols visible

Illustration of a hand holding a small object with a circular component, no text or symbols present

Illustration of a hand holding a small object with a circular top and ring, no text or symbols present

Vende dørene

Technical diagram showing the internal components and airflow paths of a refrigerator, with numbered parts and directional arrows indicating movement.

Illustration of a hand holding a computer monitor with a stylized face and arrow indicator (no text or symbols)

Indstilling af termostatknap

Illustration of a hand holding a pipette over a droplet on a surface, with an upward arrow indicating motion (no text or symbols)

B) Fryseskabet

Illustration of a hand pressing down a printer's side panel with a magnified view of the printer's cover (no text or symbols present)

Line drawing of a hand cleaning or cleaning a window with a cloth (no text or symbols)

Technical diagram of a refrigerator with numbered compartments and internal storage areas

Diagram showing a lightning bolt striking a wall-mounted device with wiring and plug (no text or symbols)

Diagram illustrating heat transfer in a refrigerant unit with labeled components and directional arrows

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Diagram of a mechanical component with a central circular feature and base, labeled '1' (no text or symbols on the diagram itself)

Illustration of a hand holding a tool interacting with a circular object, labeled '2' (no text or symbols on the object itself)

Illustration of a hand holding a small object with a circular component inside, no text or symbols present

Illustration of a hand holding a small object with a circular top, no text or symbols present

Byte av dörrar

Diagram of a refrigerator interior with numbered components and directional arrows indicating movement paths, including angle 45° and numbered parts.

Diagram of refrigerator interior showing numbered components and directional arrows indicating flow or movement.

4 Använda kylskåpet

Illustration of a hand holding a device with a circular component and directional arrows indicating motion (no text or symbols)

Illustration of a hand holding a pipette over a surface with a downward arrow and a black dot (no text or symbols)

B) Frysfack

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Line drawing of a hand cleaning or cleaning a window with a handle (no text or symbols)

Technical diagram of a refrigerator with numbered compartments and labeled parts

Diagram showing a lightning bolt striking a wall-mounted device with wiring and plug (no text or symbols)

Diagram illustrating fluid flow through a container with labeled components and directional arrows

Elektrisk tilkobling

Tilkople produktet til et jordet uttak som er beskyttet av en sikring med riktig kapasitet.

Viktig:

Pure diagram of a rectangular structure with directional arrows and curved arrows, no text or symbols present.

Simple line drawing of a mechanical component with a central shaft and circular housing (no text or symbols)

Hand holding a tool interacting with a bowl-shaped object (no text or symbols visible)

Illustration of a hand holding a small object with a circular component, no text or symbols present

Illustration of a hand holding a small object with a circular top and central hole, no text or symbols present.

Illustration of a hand holding a device with directional arrows indicating motion or movement (no text or symbols)

Termostatinnstillingsknapp

Illustration of a hand holding a pipette over a droplet on a surface, with an upward arrow indicating direction (no text or symbols)

B) Frysedel

Illustration showing a hand removing a refrigerator panel into a drawer, with no text or symbols present.

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

Diagram showing a lightning bolt striking a wall-mounted device with wires and a plug, no text or symbols present

Diagram showing airflow or heat transfer between two labeled components (1 and 2) within a container, with arrows indicating direction of movement.

Pure diagram of a beam with supports and curved arrows indicating direction (no text or symbols)

Simple line drawing of a mechanical component with a central circular feature and base (no text or symbols)

Hand holding a tool interacting with a bowl-shaped object (no text or symbols visible)

Illustration of a hand holding a small object with a circular component, possibly a device or tool, against a plain background (no text or symbols)

Illustration of a hand holding a small object with a circular top and ring, no text or symbols present

Diagram of refrigerator interior with numbered parts and directional arrows indicating movement, including a 45° angle indicator.

Diagram of refrigerator interior showing numbered components and directional arrows indicating flow or movement.

4 Jääkaapin käyttö

Illustration of a hand inserting a device into a device with arrows indicating rotation (no text or symbols)

Illustration of a hand using a pipette to measure a droplet on a surface, with an upward arrow indicating motion (no text or symbols)

Illustration of a hand inserting a card into a washing machine (no text or symbols visible)

Line drawing of a hand cleaning a shelf with a cloth (no text or symbols)

Technical diagram of a refrigerator with numbered compartments and labeled parts

Diagram showing a lightning bolt striking a wall-mounted device with wires and a plug, no text or symbols present

Diagram showing airflow or heat transfer between two labeled components (1 and 2) within a container, with arrows indicating direction of movement.

Pure diagram of a beam with supports and curved arrows indicating direction (no text or symbols)

Simple line drawing of a mechanical component with a central circular feature and base (no text or symbols)

Diagram of refrigerator interior with numbered steps and directional arrows indicating movement, including a 45° angle indicator.

Diagram of refrigerator interior showing door, refrigerator, and door with numbered components and directional arrows indicating flow or movement.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand holding a spoon above a surface with a vertical arrow indicating upward motion (no text or symbols)

Illustration of a hand pressing down on a document or paper (no text or symbols visible)

Line drawing of a hand cleaning or cleaning a window with a handle (no text or symbols)

Technical diagram of a refrigerator with numbered compartments and labeled parts

Diagram of a refrigerator interior with a lightning bolt indicating the down-left pan, and wiring and plug inserted (no text or symbols)

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

Pure diagram of a beam with supports and curved arrows indicating motion, no text or symbols present

Simple line drawing of a mechanical component with a central cylindrical feature and a circular housing (no text or symbols)

Hand holding a tool over a circular object with a pointer, no text or symbols visible

Illustration of a hand holding a small object with a circular component, no text or symbols present

Illustration of a hand holding a small object with a circular top, no text or symbols present

Illustration of a hand pressing a button on a device (no text or symbols visible)

Illustration of a hand holding a pipette over a droplet on a surface, with a magnified inset showing the droplet (no text or symbols)

Illustration of a hand pressing down a printer into a slot (no text or symbols visible)

Line drawing of a hand cleaning a window frame (no text or symbols)

Technical diagram of a refrigerator with numbered compartments and labeled parts

Diagram of a refrigerator interior with a lightning bolt and cable, no text or symbols present

Diagram showing fluid flow through a container with labeled components and directional arrows indicating flow direction.

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Simple line drawing of a mechanical component with a central shaft and circular housing (no text or symbols)

Hand holding a tool interacting with a circular object on a surface, no text or symbols visible

Illustration of a hand holding a small object with a circular component, possibly a device or tool, against a plain background (no text or symbols)

Illustration of a hand holding a small object with a circular top and ring, no text or symbols present

4 Priprema

i Vaš hladnjak se treba postaviti najmanje 30 cm od izvora topline kao što su plamenici, pećnice, grijalice i štednjaci i najmanje 5 cm dalje od električnih pećnica te se ne smiju stavljati na direktnu sunčevu svjetlost.
i sobna temperatura u prostoriji u koju postavite hladnjak treba biti najmanje 10°C. Rad vašeg hladnjaka u hladnijim uvjetima od navedenih se ne preporuča vezano za učinkovitost.
i Pazite da se unutrašnjost vašeg hladnjaka temeljito čisti.
i Ako se dva hladnjaka trebaju instalirati jedan do drugog, između njih treba postojati razmak od najmanje 2 cm.
i Kada prvi put uključite hladnjak, molimo pridržavajte se sljedećih uputa tijekom prvih šest sati.

Illustration of a hand pressing a button on a device (no text or symbols visible)

Tipka za postavljanje termostata

Unutarnja temperatura vašeg hladnjaka se mijenja zbog sljedećih razloga:

• Temperatura godišnjih doba,

Illustration of a hand holding a pipette over a surface with a downward arrow indicating direction (no text or symbols)

Illustration of a hand cleaning a refrigerator with a magnified inset showing the interior (no text or symbols)

Line drawing of a hand cleaning a shelf with a cloth (no text or symbols)

* DO NOT LOAD ANY FOOD WITHOUT PACKAGE!

WARNUNG!

* BENUTZEN SIE KEINERLEI KUPFERGESCHIRR IM GERÄT!
* GEBEN SIE KEINE UNVERPACKTEN LEBENSMITTEL IN DAS GERÄT!

AVERTISSEMENT !

* N'UTILISEZ PAS DE RECIPIENTS OU DE PLATS EN CUIVRE A L'INTERIEUR DES COMPARTIMENTS !
* N'INTRODUISEZ PAS DE DENREES NON EMBALLEES

WARNING!

* DO NOT USE ANY COPPER POT, DISH INSIDE THE CABINET!

* DO NOT LOAD ANY FOOD WITHOUT PACKAGE!

WARNUNG!

* BENUTZEN SIE KEINERLEI KUPFERGESCHIRR IM GERÄT!
* GEBEN SIE KEINE UNVERPACKTEN LEBENSMITTEL IN DAS GERÄT!

AVERTISSEMENT !

* N'UTILISEZ PAS DE RECIPIENTS OU DE PLATS EN CUIVRE A L'INTERIEUR DES COMPARTIMENTS !
* N'INTRODUISEZ PAS DE DENREES NON EMBALLEES

WARNING !

* DO NOT USE ANY COPPER POT, DISH INSIDE THE CABINET!
* DO NOT LOAD ANY FOOD WITHOUT PACKAGE!

WARNUNG!

* BENUTZEN SIE KEINERLEI KUPFERGESCHIRR IM GERÄT!
* GEBEN SIE KEINE UNVERPACKTEN LEBENSMITTEL IN DAS GERÄT!

AVERTISSEMENT !

* N'UTILISEZ PAS DE RECIPIENTS OU DE PLATS EN CUIVRE A L'INTERIEUR DES COMPARTIMENTS !
* N'INTRODUISEZ PAS DE DENREES NON EMBALLEES
