USER MANUAL Azur HI571 PHILIPS

HI575, HI571, HI57023

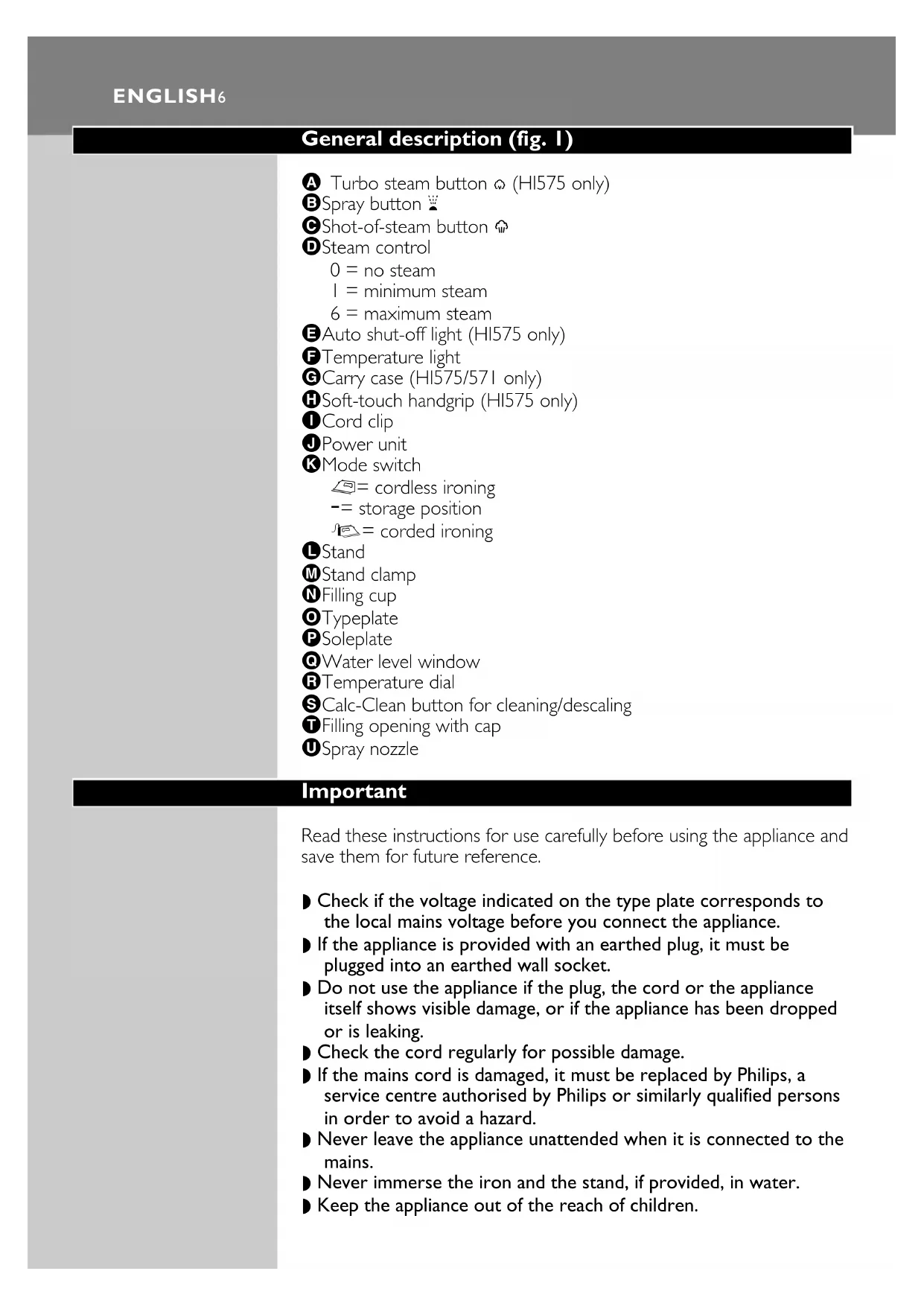

HI575, HI571, HI570General description (fig. 1)

A Turbo steam button 0 (HI575 only)

B Spray button T C Shot-of-steam button 9

E Auto shut-off light (HI575 only)

G Carry case (HI575/571 only)

H Soft-touch handgrip (HI575 only)

∫ = cordless ironing

π = storage position

Q Water level window

S Calc-Clean button for cleaning/descaling

T Filling opening with cap

Read these instructions for use carefully before using the appliance and

save them for future reference.

◗ Check if the voltage indicated on the type plate corresponds to

the local mains voltage before you connect the appliance.

◗ If the appliance is provided with an earthed plug, it must be

plugged into an earthed wall socket.

◗ Do not use the appliance if the plug, the cord or the appliance

itself shows visible damage, or if the appliance has been dropped

◗ Check the cord regularly for possible damage.

◗ If the mains cord is damaged, it must be replaced by Philips, a

service centre authorised by Philips or similarly qualified persons

in order to avoid a hazard.

◗ Never leave the appliance unattended when it is connected to the

◗ Never immerse the iron and the stand, if provided, in water.

◗ Keep the appliance out of the reach of children.

ENGLISH6◗ Young children should be supervised to ensure that they do not

play with the appliance.

◗ This appliance is not intended for use by young children or infirm

persons without supervision.

◗ The soleplate of the iron can become extremely hot and may

cause burns if touched.

◗ Do not allow the cord to come into contact with the soleplate

◗ When you have finished ironing, when you clean the appliance,

when you fill or empty the water tank and also when you leave

the iron even for a short while: set the steam control to position

O, put the iron on its heel and remove the mains plug from the

◗ Only use this iron with the stand supplied.

◗ Always place and use the iron and the stand, if provided, on a

stable, level and horizontal surface.

◗ Do not put perfume, vinegar, starch, descaling agents, ironing aids

or other chemicals in the water tank.

◗ This appliance is intended for household use only.

1 Release the carry case (HI575/571 only).

2 Remove the carry case (HI575/571 only).

3 Remove any sticker or protective foil from the soleplate and

clean the soleplate with a soft cloth.

4 Fully unwind the mains cord.

L I N E N H I L O S I L K S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A L G O D O N M A X M IN L I N E N H I L O S I L K S E D A N Y L O N N I LO N W O O L L A N A C O T T O N A L G O D O N M A X MIN L I N E N H IL O S I LK S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A LG O D O N M A X M I NPreparing for use

Fastening the stand clamp

1 Fold out the clamp on the bottom of the stand and fix the

stand clamp to the ironing board or to another stable surface,

The rubber feet on the bottom prevent the stand from slipping.

◗ You can also place the stand on the ironing board without using

the clamp. The clamp can then remain folded in.

Do not place the stand close to the table edge, as the stand could

accidentally be knocked over.

Filling the water tank

1 Remove the mains plug from the wall socket.

2 Set the steam control to 0 (no steam).

3 Set the mode switch to ∫ (cordless ironing).

4 Take the iron from the stand.

5 Place the iron on its heel and open the cap of the filling

6 Use the filling cup to pour water into the water tank and close

the cap of the filling opening afterwards.

If the tap water in your area is very hard, we advise you to mix it with

an equal amount of distilled water or to use distilled water only.

Do not fill the water tank beyond the MAX indication.

Do not put perfume, vinegar, starch, descaling agents, ironing aids or

other chemicals in the water tank.

L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X M I NSetting the temperature

1 Put the iron on the iron stand.

2 Set the required ironing temperature by turning the

temperature dial to the appropriate position (see section 'Tips'

for extra information).

Check the laundry care label for the required ironing temperature

3 Put the mains plug in an earthed wall socket. The temperature

light goes on to indicate that the iron is heating up.

◗ The iron is hot enough when the temperature light goes out.

◗ During ironing the temperature light goes on from time to time.

This indicates that the iron is heating up to the right temperature.

◗ If you have been ironing at a high temperature and subsequently

set the temperature dial to a lower setting, wait until the

temperature light goes on again before you continue ironing. This

will prevent damage to your fabrics.

◗ Some parts of the iron have been lightly greased. This may cause

the iron to give off some smoke when you switch it on for the

first time. After a short while, however, this will cease.

L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X M I N Steam setting

3 to MAX Type of fabric

Synthetic fabrics (e.g.

- If the fabric consists of various kinds of fibres, always select the

temperature required by the most delicate fibre, i.e. the lowest

temperature. For example: if an article consists of 60% polyester and

40% cotton, it should be ironed at the temperature indicated for

polyester (2) and without steam.

- If you do not know what kind or kinds of fabric an article is made of,

determine the right ironing temperature by ironing a part that will

not be visible when you wear or use the article.

- Silk, woollen and synthetic materials: iron the reverse side of the

fabric to prevent shiny patches.

- Velvet and other fabrics that tend to acquire shiny patches should be

ironed in one direction only (along with the nap) while applying very

- Start ironing the articles that require the lowest ironing temperature,

such as those made of synthetic fibres.

2 Take the iron from the stand.

◗ When you stop ironing for a while, you can put the iron on the

stand or on its heel.

2 Take the iron from the stand.

3 HI575 only: put the iron back on the stand when the

temperature light starts blinking. This indicates that the iron

has cooled down below the set temperature.

◗ When you stop ironing for a while, always put the iron on the

stand to allow it to heat up again.

◗ When you use the shot-of-steam or turbo-steam function, the

iron may cool down rather quickly. We advise you to iron in

corded mode when using these functions.

1 Make sure that there is enough water in the water tank.

2 Select the recommended ironing temperature (see section

'Setting the temperature').

3 Put the iron on the stand.

4 Put the mains plug in the wall socket.

The iron starts heating up.

◗ As soon as the water in the water tank is hot enough for steam

ironing, the temperature light goes out.

5 Set the steam control to the required position to start steam

◗ Steam ironing is only possible at higher ironing temperatures

(temperature settings 2 to MAX).

◗ Select the recommended steam setting:

1 - 2 for moderate steam (temperature settings 2)

3 - 6 for maximum steam (temperature settings 3 to MAX)

◗ During steam ironing the temperature light goes on from time to

time. This indicates that the iron is heating up to the set

Ironing without steam

◗ To iron without steam, proceed as described for steam ironing

but set the steam control to position 0 (no steam).

1 Select the recommended ironing temperature (see section

'Setting the temperature').

ENGLISH L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X M I N12

You can use the spray function to remove stubborn creases at any

◗ Make sure that there is enough water in the water tank.

1 Press the spray button several times to moisten the article to

A powerful shot of steam helps remove stubborn creases.

1 Press and hold the shot-of-steam button for a few seconds.

Then release the button.

◗ The shot-of-steam function can only be used at temperature

settings between 2 and MAX.

Vertical shot of steam

◗ The shot-of-steam function can also be used when you hold the

iron in vertical position.

This is useful for removing creases from hanging clothes, curtains etc.

Never direct the steam at people.

Turbo steam (HI575 only)

The turbo-steam function helps remove difficult creases.

◗ The turbo-steam function can only be used at temperature

settings between 3 and MAX.

1 Press and hold the turbo-steam button for a few seconds.

Then release the button.

Do not keep the button pressed for more than 10 seconds. Wait at

least one minute before using the turbo-steam function again to let the

iron heat up again. The iron is hot enough when the temperature light

Electronic safety shut-off function (HI575 only)

The electronic safety shut-off function automatically switches the iron

off if it has not been moved for a while.

◗ To indicate that the heating element has been switched off, the

auto-off light will start blinking and you will hear an audible signal.

- In horizontal position, this will happen after 30 seconds.

- In vertical position, this will happen after 8 minutes.

◗ To let the iron heat up again:

- Pick up the iron or move it slightly.

- The auto-off light goes out and the audible signal stops.

- Put the iron back on its stand. The iron will heat up again.

- When the temperature light has gone on and goes out again, the

iron is ready for use.

This iron is equipped with a drip-stop function to prevent water

dripping out of the soleplate: the iron automatically stops producing

steam when the temperature is too low. When this happens you may

Cleaning and maintenance

1 Remove the mains plug from the wall socket and let the iron

2 Wipe scale and any other deposits off the soleplate with a

damp cloth and a non-abrasive (liquid) cleaning agent.

To keep the soleplate smooth, you should avoid hard contact with

metal objects. Never use a scouring pad, vinegar or other chemicals to

clean the soleplate.

3 Clean the upper part of the iron with a damp cloth.

4 Regularly rinse the water tank with water. Empty the water

tank after cleaning.

Use the Calc-Clean function once every two weeks to remove scale

and impurities from the soleplate. If the water in your area is very hard

(i.e. when flakes come out of the soleplate during ironing), you should

use the Calc-Clean function more frequently.

1 Set the steam control to position 0.

2 Open the cap of the filling opening and fill the water tank up to

the maximum level. Then close the cap again.

Do not pour vinegar or other descaling agents into the water tank.

3 Put the iron on its stand.

4 Set the temperature dial to MAX.

5 Put the mains plug in the wall socket.

6 Set the mode switch to position ∫ (cordless).

7 Wait until the temperature light goes out and then remove the

iron from the stand.

8 Hold the iron over the sink, press and hold the Calc-Clean

button and gently shake the iron to and fro.

Steam and boiling water will come out of the soleplate. Scale (if any)

will be flushed out.

9 Release the Calc-Clean button after one minute or when the

water tank is empty.

10 Repeat the Calc-Clean process if the water coming out of the

iron still contains a lot of scale particles.

After the Calc-Clean process

1 Put the iron back on the stand to let the soleplate dry.

2 Unplug the iron when the light has gone out.

3 Move the iron gently over a piece of used cloth to remove any

water stains that may have formed on the soleplate.

4 Let the iron cool down before you store it.

Make sure the iron has cooled down sufficiently before you put it

1 Remove the mains plug from the wall socket and let the iron

2 Set the steam control to position 0 (no steam).

3 Set the mode switch to position ∫ (cordless).

4 Empty the water tank.

5 Put the iron on the stand and set the mode switch to the

storage position (-).

The iron, the power unit and the stand are then locked together.

◗ You can wind the cord round the stand and fix the end of the

cord with the cord clip.

6 Place the carry case over the stand (HI575/571 only).

7 Press on the case to lock it onto the stand ('click') (HI575/571

ENGLISH L I N E N H I L O S I L K S E D A NY L O N N I LO N W O O L L A N A C O T T O N A L G O D O N MAX M IN L I N E N H I L O S I L K S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A L G O D O N M A X MINStoring the stand clamp

1 Unlock the stand clamp.

2 Screw in the fixing screw completely.

3 Fold the stand clamp into the stand.

◗ Do not throw the appliance away with the normal household

waste at the end of its life, but hand it in at an official collection

point for recycling. By doing this you will help to preserve the

If you need information or if you have a problem, please visit the

Philips website at www.philips.com or contact the Philips Customer

Care Centre in your country (you will find its phone number in the

worldwide guarantee leaflet). If there is no Customer Care Centre in

your country, turn to your local Philips dealer or contact the Service

Department of Philips Domestic Appliances and Personal Care BV.

ENGLISH16Description générale (fig. 1)

I Bride attache-cordon

FRANÇAIS L I N E N H I L O S I L K S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A L G O D O N M A X M IN L I N E N H I L O S I L K S E D A N Y L O N N I LO N W O O L L A N A C O T T O N A L G O D O N M A X MIN L I N E N H IL O S I LK S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A LG O D O N M A X M I NAvant utilisation

19FRANÇAIS L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X M I N20

FRANÇAIS L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X M I N Réglage de

FRANÇAIS L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X MI NCaractéristiques

FRANÇAIS L I N E N H I L O S I L K S E D A NY L O N N I LO N W O O L L A N A C O T T O N A L G O D O N MAX M IN27

FRANÇAIS L I N E N H I L O S I L K S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A L G O D O N M A X M INGarantie et service

L I N E N H I L O S I L K S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A L G O D O N M A X M IN L I N E N H I L O S I L K S E D A N Y L O N N I LO N W O O L L A N A C O T T O N A L G O D O N M A X MIN L I N E N H IL O S I LK S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A LG O D O N M AX M I NPreparación para su uso

L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X M I NAjuste de la temperatura

L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X M I N Posición de vapor

L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X MI NCaracterísticas

L I N E N H I L O S I L K S E D A NY L O N N I LO N W O O L L A N A C O T T O N A L G O D O N MAX M INC

L I N E N H I L O S I L K S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A L G O D O N M A X M INGarantía y servicio

Appliances and Personal Care BV.

PORTUGUÊS L I N E N H I L O S I L K S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A L G O D O N M A X M IN L I N E N H I L O S I L K S E D A N Y L O N N I LO N W O O L L A N A C O T T O N A L G O D O N M A X MIN L I N E N H IL O S I LK S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A LG O D O N M AX M I NPreparação

43PORTUGUÊS L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X M I N44

PORTUGUÊS L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X M I N Regulação do

PORTUGUÊS L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X MI NCaracterísticas

50 PORTUGUÊS L I N E N H I L O S I L K S E D A NY L O N N I LO N W O O L L A N A C O T T O N A L G O D O N MAX M IN L I N E N H I L O S I L K S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A L G O D O N M A X MIN51

Appliances and Personal Care BV.

L I N E N H I L O S I L K S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A L G O D O N M AX M I N L I N E N H I L O S I L K S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A L G O D O N M A X MINB

L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X M I NB

L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X M I N L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X M I Næ∑ôJ óæY hCG ¬¨jôØJ hCG AÉŸG ¿GõN áÄÑ©J óæY hCG RÉ¡÷G ∞«¶æJ óæY hCG »µdG øe AÉ¡àf’G óæY

L I N E N H I L O S I L K S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A L G O D O N M A X M IN L I N E N H I L O S I L K S E D A N Y L O N N I LO N W O O L L A N A C O T T O N A L G O D O N M A X M I N L I N E N H IL O S I L K S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A LG O D O N M A X M I N(1 πµ°T) ΩÉ©dG ∞°UƒdG A »æ«HÎdG QÉîÑdG QR0)HI575§≤a(

L I N E N H I L O S I L K S E D A NY L O N N I LO N W O O L L A N A C O T T O N A L G O D O N MA X M IN L I N E N H I L O S I L K S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A L G O D O N M A X M I N65

L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X M I N70

L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X M I N VfiÇd! ÈËñ Xîöà

L I N E N HI L O S I L K S E D A NY L O N N I L O N W O OL L A N A C O T T O N A L G O D O N M A X M I N72

L I N E N H I L O S I L K S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A L G O D O N M A X M I N L I N E N H I L O S I L K S E D A N Y L O N N I LO N W O O L L A N A C O T T O N A L G O D O N M A X MI N L I N E N H IL O S I L K S E D A N Y L O N N I L O N W O O L L A N A C O T T O N A L G O D O N M A X M I N©± qJÅ® vKë ÕdÅ
