NEC EXPRESS5800/R120b-1 Configuration Guide

Introduction

This document contains product and configuration information that will enable you to configure your system. The guide will ensure fast and proper configuration of your NEC EXPRESS5800 server.

February 2012

Revision 6.3

NEC Corporation

Contents

TECHNICAL SPECIFICATION 3

Key Features 3
Specification 3

EXTERNAL VIEWS 9

Front and Rear Views 9
Dimensions (mm) 10

CONFIGURATION DIAGRAM 11

SERVER CONFIGURATION 12

1 Base Models 12
2 2nd Processor 13
3 Memory 13

3.1 Memory Configuration 13

4 Internal Hard Disk Drives 17

4.1 RAID Configuration 17
4.2 Internal Drive Configuration 18

5 Optical Drive 24
6 Floppy Drive / Flash FDD 24

7 PCI Riser Card / PCI Card 24

7.1 PCI Riser Card 24
7.2 LAN Controller 25
7.3 External RAID Controller 26
7.4 Fibre Channel / SAS / SCSI Controller 26
7.5 Serial Port Adapter 26

8 Other Add-in Components 26

8.1 Redundant Power Supply 26
8.2 VMware ESXi Pre-install Kit 27

9 Add-on Components 27

9.1 17-inch LCD Console Printer 27
9.2 KVM Switch 28
9.3 Server Management License 28
9.4 Front Bezel 28
9.1 Cable Management Arm 28

10 Support Service 29

10.1 Software 29

REFERENCES 30

Server Management 30
OS Support Matrix for PCI Cards 31
Supporting PCI Cards and Installable Slots 32
Copyright Notice and Liability Disclaimer 34

REVISION HISTORY 35

Technical Specification

Key Features

High performance with the latest Intel® Xeon® processor 5600 series
Up to 192 GB of high speed DDR3-1333 memory
High energy efficiency with power capping feature and 80 PLUS® Gold power supply
Full manageability by integrated EXPRESSSCOPE Engine 2

Specification

2.5-inch Drive Model (1/2)

Model		R120b-1
Part Number		N8100-1717F	N8100-1718F	N8100-1719F	N8100-1720F
Processor	Type	Intel® Xeon®processorE5606	Intel® Xeon®processorE5620	Intel® Xeon®processorE5645	Intel® Xeon®processorL5640
	Clock Speed	2.13 GHz	2.40 GHz	2.40 GHz	2.26 GHz
	Number of Processors	1 or 2
	Cache	8 MB	12 MB	12 MB	12 MB
	Cores and Threads	4C-4T	4C-8T	6C-12T	6C-12T
Chipset		Intel® 5520 Chipset
Memory	Type	DDR3-1333 and DDR3-1066 ECC Registered Low Power DIMM
	Standard Capacity	0 GB
	Maximum Capacity	192 GB (12 x 16 GB)
	Memory protection	ECC, x4 SDDC, Memory Mirroring, Memory Lockstep, Memory Sparing
Internal Storage	Standard Capacity	0 GB
	Maximum Capacity	SAS: 5.4 TB (6 x 900 GB)SATA: 6 TB (6 x 1 TB)SSD: 600 GB (6 x 100 GB)
	Disk Controller	SATA: 3Gb/s (Integrated)SAS: 6Gb/s (Optional)
	RAID	SATA: RAID 0/1/5/6/10/50 (Optional)SAS: RAID 0/1/5/6/10/50 (Optional)
	Hot Plug	Supported
	Optical Disk Drive	Optional
	Floppy Disk Drive	Optional
	Optical Drive Bays [free]	1 [1]
	Floppy Drive Bays [free]	0 [0]
	Disk Drive Bays [free]	6 [6]
Expansion Slots [free]	Standard	Total: 3 slots available1[1] x PCIe 2.0 x16 (x16 connector)1[1] x PCIe 2.0 x8 (x8 connector)1[1] x PCIe 2.0 x4 (x8 connector) dedicated RAID slot
	Optional Riser Card (N8116-23)	Total: 3 slots available1[1] x PCIe 2.0 x8 (x8 connector)1[1] x 64-bit/ 133 MHz PCI-X1[1] x PCIe 2.0 x4 (x8 connector) dedicated RAID slot

Model		R120b-1
Video Controller (VRAM)		Integrated in Server Management Controller (32MB)
Interfaces		1 x Keyboard (6-pin mini DIN, 1 x rear)1 x Mouse (6-pin mini DIN, 1 x rear)2 x VGA (15-pin mini D-sub, 1 x front, 1 x rear)1 x Serial (9-pin mini D-sub, RS232-C, Serial B, 1 x rear)8 x USB2.0 (2 x front, 2 x rear, 4 x internal)2 x 1000BASE-T LAN connector (1000BASE-T / 100BASE-TX / 10BASE-T, RJ-45, 2 x rear)1 x Management LAN connector (100BASE-TX / 10BASE-T, RJ-45, 1 x rear)
Server Management		EXPRESSSCOPE Engine 2
Redundant Fan		Standard, non-hot plug
Redundant Power Supply		Optional, hot plug
Power Supply		1-2 x 650 Watt 80 PLUS® Gold certified hot plug PSU100-240 VAC ± 10% 50 / 60 Hz ± 3 Hz
Power Consumption	(Max. Config, Idling)	245 VA / 244 VA / 244 VA / 244 VA / 244 VA / 244 VA / 244 VA / 244 VA / 244 VA / 244 VA / 244 VA / 244 VA / 244 VA / 244 VA / 244 VA / 244 VA / 244 VA / 244 VA / 100 - 240 VAC ± 10% 50 / 60 Hz ± 3 Hz
	(Max. Config,Operating)	470 VA / 500 VA / 510 VA / 480 VA / 480 VA / 470 Watt
Acoustical Noise(Sound Pressure Level)1	Max. Config, Idling	49.0 dB
	Max. Config, Operating	54.6 dB
Dimensions (W x D x H)		427.5 x 722.0 x 43.5 mm / 16.8 x 28.4 x 1.7 in (1U)
Weight (Minimum / Maximum)		16 kg / 21 kg, 35.27 lbs. / 46.30 lbs.
Temperature, Relative Humidity(non-condensing)		Operating: 10° to 35°C / 50° to 95°F, 20 to 80%Non-Operating: -10° to 55°C / 14° to 131°F, 20 to 80%
Regulatory and Safety		FCC, CE, BSMI, CCC, UL, CB, RoHS, WEEE
Operating Systems		Microsoft® Windows Server® 2003, Standard Edition (SP1 or later)Microsoft® Windows Server® 2003, Enterprise Edition (SP1 or later)Microsoft® Windows Server® 2003 R2, Standard EditionMicrosoft® Windows Server® 2003 R2, Enterprise EditionMicrosoft® Windows Server® 2003 R2, Standard x64 EditionMicrosoft® Windows Server® 2003 R2, Enterprise x64 EditionMicrosoft® Windows Server® 2008 StandardMicrosoft® Windows Server® 2008 EnterpriseMicrosoft® Windows Server® 2008 Standard (x64)Microsoft® Windows Server® 2008 Enterprise (x64)Microsoft® Windows Server® 2008 R2 StandardMicrosoft® Windows Server® 2008 R2 EnterpriseRed Hat Enterprise Linux ES4.8 or later (x86)2Red Hat Enterprise Linux ES4.8 or later (EM64T)2Red Hat Enterprise Linux AS4.8 or later (x86)2Red Hat Enterprise Linux AS4.8 or later (EM64T)2Red Hat Enterprise Linux 5.4 or later (x86)2Red Hat Enterprise Linux 5.4 or later (EM64T)2Red Hat Enterprise Linux Advanced Platform5.4 or later (x86)2Red Hat Enterprise Linux Advanced Platform5.4 or later (EM64T)2Red Hat Enterprise Linux 6.0 or later (x86)2Red Hat Enterprise Linux 6.0 or later (x86_64)2SUSE Linux Enterprise Server 102SUSE Linux Enterprise Server 10 (EM64T)2SUSE Linux Enterprise Server 11 SP1 or later (EM64T)2VMware ESXi 4.1

1 Noise emission was measured in accordance with ISO 7779. The actual value may vary by the operating environment.
2 For Linux support, contact our sales representative or go to the NEC website at: http://www.nec.com/global/prod/express/linux/index.html

2.5-inch Drive Model (2/2)

Model		R120b-1
Part Number		N8100-1721F	N8100-1722F	N8100-1723F
Processor	Type	Intel® Xeon® processor x5650	Intel® Xeon® processor X5675	Intel® Xeon® processor X5690
	Clock speed	2.66 GHz	3.06 GHz	3.46 GHz
	Number of Processors	1 or 2
	Cache	12 MB
	Cores and Threads	6C-12T
Chipset		Intel® 5520 Chipset
Memory	Type	DDR3-1333 and DDR3-1066 ECC Registered Low Power DIMM
	Standard Capacity	0 GB
	Maximum Capacity	192 GB (12 x 16 GB)
	Memory protection	ECC, x4 SDDC, Memory Mirroring, Memory Lockstep, Memory Sparing
Internal Storage	Standard Capacity	0 GB
	Maximum Capacity	SAS: 5.4 TB (6 x 900 GB)
		SATA: 6 TB (6 x 1 TB)
		SSD: 600 GB (6 x 100 GB)
	Disk Controller	SATA: 3Gb/s (Integrated) SAS: 6Gb/s (Optional)
	RAID	SATA: RAID 0/1/5/6/10/50 (Optional) SAS: RAID 0/1/5/6/10/50 (Optional)
	Hot Plug	Supported
	Optical Disk Drive	Optional
	Floppy Disk Drive	Optional
	Optical Drive Bays [free]	1 [1]
	Floppy Drive Bays [free]	0 [0]
	Disk Drive Bays [free]	6 [6]
Expansion Slots [free]	Standard	Total: 3 slots available
		1 [1] x PCIe 2.0 x16 (x16 connector)
		1 [1] x PCIe 2.0 x8 (x8 connector)
		1 [1] x PCIe 2.0 x4 (x8 connector) dedicated RAID slot
	Optional Riser Card (N8116-23)	Total: 3 slots available
		1 [1] x PCIe 2.0 x8 (x8 connector)
		1 [1] x 64-bit/ 133 MHz PCI-X
		1 [1] x PCIe 2.0 x4 (x8 connector) dedicated RAID slot
Video Controller (VRAM)		Integrated in Server Management Controller (32MB)
Interfaces		1 x Keyboard (6-pin mini DIN, 1 x rear)
		1 x Mouse (6-pin mini DIN, 1 x rear)
		2 x VGA (15-pin mini D-sub, 1 x front, 1 x rear)
		1 x Serial (9-pin mini D-sub, RS232-C, Serial B, 1 x rear)
		8 x USB2.0 (2 x front, 2 x rear, 4 x internal)
		2 x 1000BASE-T LAN connector (1000BASE-T / 100BASE-TX / 10BASE-T, RJ-45, 2 x rear)
		1 x Management LAN connector (100BASE-TX / 10BASE-T, RJ-45, 1 x rear)

Model		R120b-1
Server Management		EXPRESSSCOPE Engine 2
Redundant Fan		Standard, non-hot plug
Redundant Power Supply		Optional, hot plug
Power Supply		1-2 x 750 Watt 80 PLUS® Gold certified hot plug PSU 100-240 VAC ± 10% 50 / 60 Hz ± 3 Hz
Power Consumption	(Max. Config, Idling)	252 VA /	252 VA /	257 VA /
		250 Watt	250 Watt	255 Watt
	(Max. Config, Operating)	580 VA /	580 VA /	710 VA /
		570 Watt	570 Watt	700 Watt
Acoustical Noise (Sound Pressure Level)1	Max. Config, Idling	49.7 dB
	Max. Config, Operating	54.7 dB
Dimensions (W x D x H)		427.5 x 722.0 x 43.5 mm / 16.8 x 28.4 x 1.7 in (1U)
Weight (Minimum / Maximum)		16 kg / 21 kg, 35.27 lbs. / 46.30 lbs.
Temperature, Relative Humidity (non-condensing)		Operating: 10° to 35°C / 50° to 95°F, 20 to 80% Non-Operating: -10° to 55°C / 14° to 131°F, 20 to 80%
Regulatory and Safety		FCC, CE, BSMI, CCC, UL, CB, RoHS, WEEE
Operating Systems		Microsoft® Windows Server® 2003, Standard Edition (SP1 or later) Microsoft® Windows Server® 2003, Enterprise Edition (SP1 or later) Microsoft® Windows Server® 2003 R2, Standard Edition Microsoft® Windows Server® 2003 R2, Enterprise Edition Microsoft® Windows Server® 2003 R2, Standard x64 Edition Microsoft® Windows Server® 2003 R2, Enterprise x64 Edition Microsoft® Windows Server® 2008 Standard Microsoft® Windows Server® 2008 Enterprise Microsoft® Windows Server® 2008 Standard (x64) Microsoft® Windows Server® 2008 Enterprise (x64) Microsoft® Windows Server® 2008 R2 Standard Microsoft® Windows Server® 2008 R2 Enterprise Red Hat Enterprise Linux ES4.8 or later (x86)2 Red Hat Enterprise Linux ES4.8 or later (EM64T)2 Red Hat Enterprise Linux AS4.8 or later (x86)2 Red Hat Enterprise Linux AS4.8 or later (EM64T)2 Red Hat Enterprise Linux 5.4 or later (x86)2 Red Hat Enterprise Linux 5.4 or later (EM64T)2 Red Hat Enterprise Linux Advanced Platform5.4 or later (x86)2 Red Hat Enterprise Linux Advanced Platform5.4 or later (EM64T)2 Red Hat Enterprise Linux 6.0 or later (x86)2 Red Hat Enterprise Linux 6.0 or later (x86_64)2 SUSE Linux Enterprise Server 102 SUSE Linux Enterprise Server 10 (EM64T)2 SUSE Linux Enterprise Server 11 SP1 or later (EM64T)2 VMware ESXi 4.1

1 Noise emission was measured in accordance with ISO 7779. The actual value may vary by the operating environment.
2 For Linux support, contact our sales representative or go to the NEC website at: http://www.nec.com/global/prod/express/linux/index.html

3.5-inch Drive Model

Model		R120b-1
Part Number		N8100-1724F	N8100-1725F	N8100-1726F
Processor	Type	Intel® Xeon® processor E5606	Intel® Xeon® processor E5620	Intel® Xeon® processor X5650
	Clock speed	2.13 GHz	2.40 GHz	2.66 GHz
	Number of Processors	1 or 2
	Cache	8 MB	12 MB	12 MB
	Cores and Threads	4C-4T	4C-8T	6C-12T
Chipset		Intel® 5520 Chipset
Memory	Type	DDR3-1333 and DDR3-1066 ECC Registered Low Power DIMM
	Standard Capacity	0 MB
	Maximum Capacity	192 MB (12 x 16 GB)
	Memory protection	ECC, x4 SDDC, Memory Mirroring, Memory Lockstep, Memory Sparing
Internal Storage	Standard Capacity	0 GB
	Maximum Capacity	SATA: 6 TB (3 x 2 TB)
	Disk Controller	SATA: 3 Gb/s (Integrated)
	RAID	SATA: RAID 0/1/10 12 (Standard), RAID 5/6/50 (Optional)
	Hot Plug	Supported
	Optical Disk Drive	Optional
	Floppy Drive	Optional
	Optical Drive Bays [free]	1 [1]
	Floppy Drive Bays [free]	1 [1]
	Disk Drive Bays [free]	3 [3]
Expansion Slots [free]	Standard	Total: 3 slots available
		1 [1] x PCIe 2.0 x16 (x16 connector)
		1 [1] x PCIe 2.0 x8 (x8 connector)
		1 [1] x PCIe 2.0 x4 (x8 connector) dedicated RAID slot
	Optional Riser Card (N8116-23)	Total: 3 slots available
		1 [1] x PCIe 2.0 x8 (x8 connector)
		1 [1] x 64-bit/ 133 MHz PCI-X
		1 [1] x PCIe 2.0 x4 (x8 connector) dedicated RAID slot
Video Controller (VRAM)		Integrated in Server Management Controller (32MB)
Interfaces		1 x Keyboard (6-pin mini DIN, 1 x rear)
		1 x Mouse (6-pin mini DIN, 1 x rear)
		2 x VGA (15-pin mini D-sub, 1 x front, 1 x rear)
		1 x Serial (9-pin mini D-sub, RS232-C, Serial B, 1 x rear)
		8 x USB2.0 (2 x front, 2 x rear, 4 x internal)
		2 x 1000BASE-T LAN connector (1000BASE-T / 100BASE-TX / 10BASE-T, RJ-45, 2 x rear)
		1 x Management LAN connector (100BASE-TX / 10BASE-T, RJ-45, 1 x rear)
Server Management		EXPRESSSCOPE Engine 2
Redundant Fan		Standard, non-hot plug
Redundant Power Supply		Optional, hot plug
Power Supply		1-2 x 750 Watt 80 PLUS® Gold certified hot plug PSU
		100-240 VAC ± 10% 50 / 60 Hz ± 3 Hz
Power Consumption	(Max. Config, Idling)	240 VA / 238 Watt	229 VA / 227 Watt	239 VA / 237 Watt
	(Max. Config, Operating)	490 VA / 480 Watt	520 VA / 510 Watt	620 VA / 610 Watt
Acoustical Noise (Sound Pressure Level)2	Max. Config, Idling	49.0 dB	49.0 dB	49.7 dB
	Max. Config, Operating	54.6 dB	54.6 dB	54.7 dB
Dimensions (W x D x H)		427.5 x 722.0 x 43.5 mm / 16.8 x 28.4 x 1.7 in (1U)
Weight (Minimum / Maximum)		16 kg / 21 kg, 35.27 lbs. / 46.30 lbs.
Temperature, Relative Humidity (non-condensing)		Operating: 10° to 35°C / 50° to 95°F, 20 to 80% Non-Operating: -10° to 55°C / 14° to 131°F, 20 to 80%
Regulatory and Safety		FCC, CE, BSMI, CCC, UL, CB, RoHS, WEEE
Operating Systems		Microsoft® Windows Server® 2003, Standard Edition (SP1 or later) Microsoft® Windows Server® 2003, Enterprise Edition (SP1 or later) Microsoft® Windows Server® 2003 R2, Standard Edition Microsoft® Windows Server® 2003 R2, Enterprise Edition Microsoft® Windows Server® 2003 R2, Standard x64 Edition Microsoft® Windows Server® 2003 R2, Enterprise x64 Edition Microsoft® Windows Server® 2008 Standard Microsoft® Windows Server® 2008 Enterprise Microsoft® Windows Server® 2008 Standard (x64) Microsoft® Windows Server® 2008 Enterprise (x64) Microsoft® Windows Server® 2008 R2 Standard Microsoft® Windows Server® 2008 R2 Enterprise Red Hat Enterprise Linux ES4.8 or later (x86)4 Red Hat Enterprise Linux ES4.8 or later (EM64T)4 Red Hat Enterprise Linux AS4.8 or later (x86)4 Red Hat Enterprise Linux AS4.8 or later (EM64T)4 Red Hat Enterprise Linux 5.4 or later (x86)4 Red Hat Enterprise Linux 5.4 or later (EM64T)4 Red Hat Enterprise Linux Advanced Platform5.4 or later (x86)4 Red Hat Enterprise Linux Advanced Platform5.4 or later (EM64T)4 Red Hat Enterprise Linux 6.0 or later (x86)4 Red Hat Enterprise Linux 6.0 or later (x86_64)4 SUSE Linux Enterprise Server 104 SUSE Linux Enterprise Server 10 (EM64T)4 SUSE Linux Enterprise Server 11 SP1 or later (EM64T)4 VMware ESXi 4.1

1 On-board SATA RAID controller is supported only on Windows operating systems.
2 On-board SATA RAID controller does not support RAID 10 configured with 2TB and 3TB HDDs.
3 Noise emission was measured in accordance with ISO 7779. The actual value may vary by the operating environment.
4 For Linux support, contact our sales representative or go to the NEC website at: http://www.nec.com/global/prod/express/linux/index.html

External Views

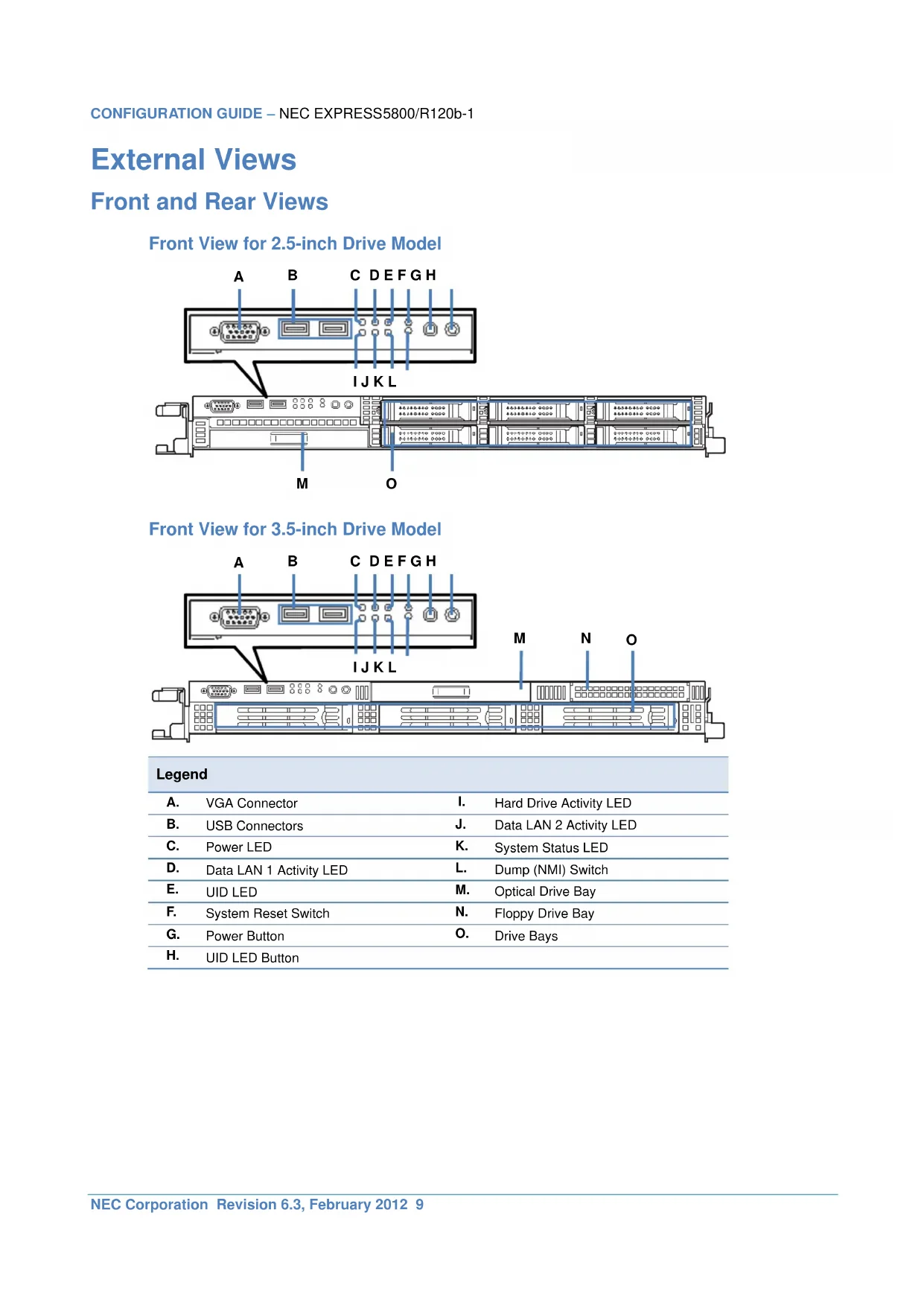

Front and Rear Views

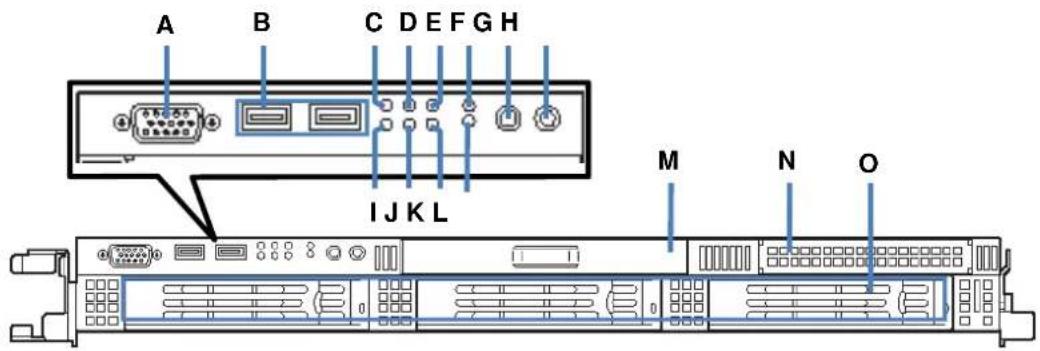

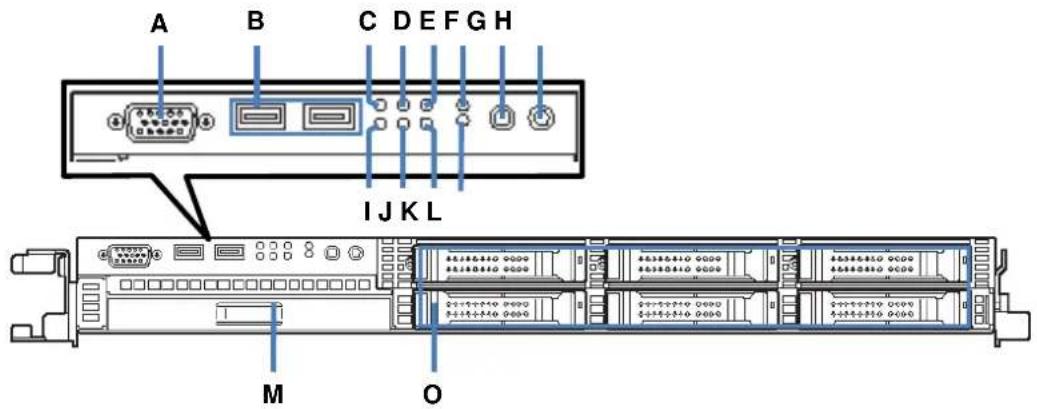

Front View for 2.5-inch Drive Model

Front View for 3.5-inch Drive Model

Legend

A.	VGA Connector	I.	Hard Drive Activity LED
B.	USB Connectors	J.	Data LAN 2 Activity LED
C.	Power LED	K.	System Status LED
D.	Data LAN 1 Activity LED	L.	Dump (NMI) Switch
E.	UID LED	M.	Optical Drive Bay
F.	System Reset Switch	N.	Floppy Drive Bay
G.	Power Button	O.	Drive Bays
H.	UID LED Button

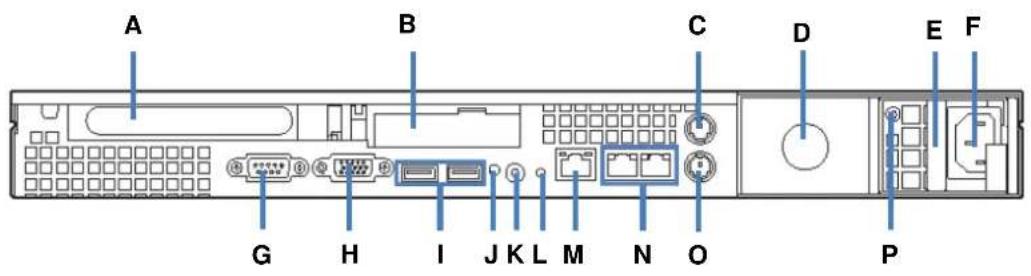

Rear View

Legend

A.	PCI Slots (Full-Height)	I.	USB Connectors
B.	PCI Slots (Low-Profile)	J.	UID Button
C.	Mouse Connector	K.	UID LED
D.	Additional PS Slot	L.	Dump (NMI) Switch
E.	Power Supply	M.	Management LAN Connector
F.	AC Inlet	N.	Data LAN Connectors
G.	Serial Port Connector	O.	Keyboard Connector
H.	VGA Connector	P.	AC Power LED

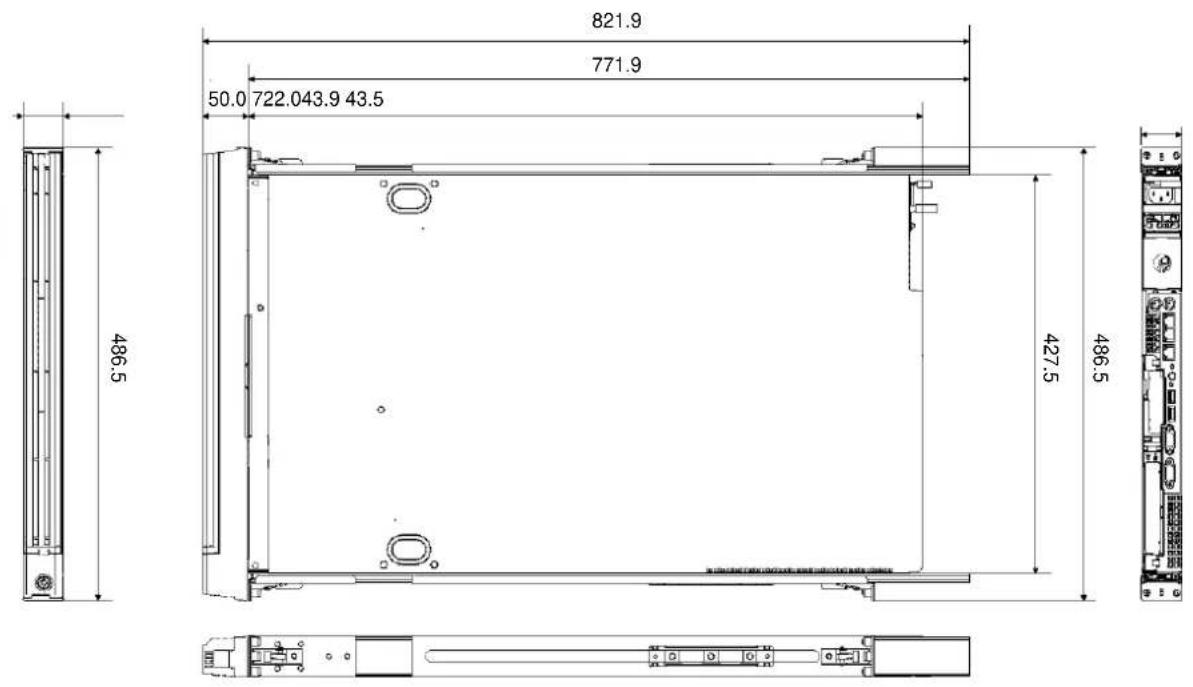

Dimensions (mm)

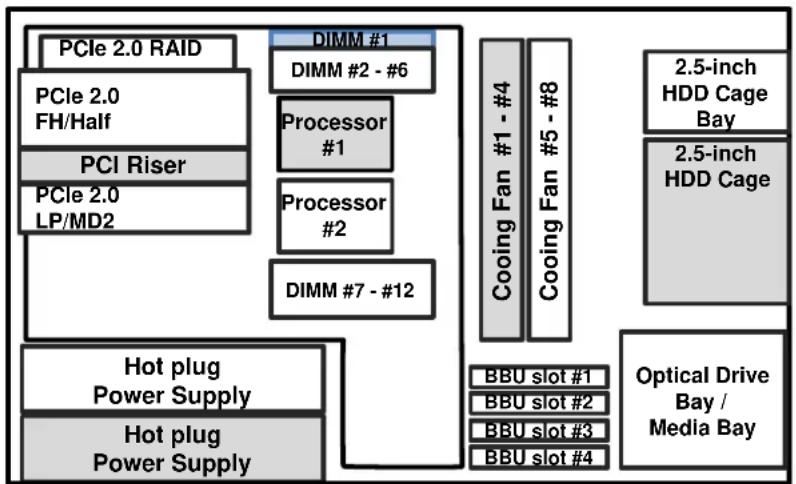

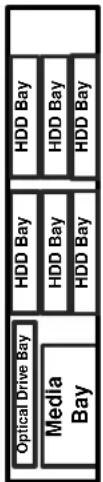

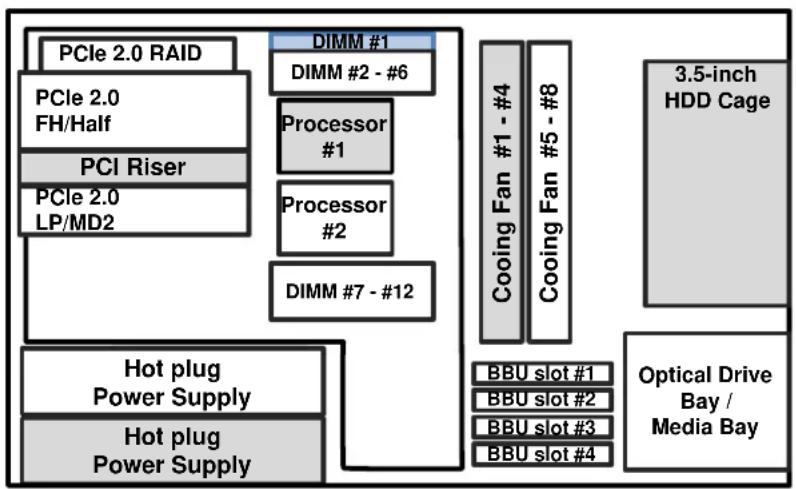

Configuration Diagram

CHASSIS REAR

2.5-inch Drive Model

CHASSIS FRONT

Optical Drive Bay

Media Bay
12x - 1 = 32x + 5

Legend: Minimum required components Standard components

CHASSIS REAR

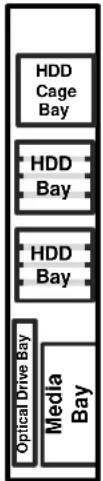

3.5-inch Drive Model

CHASSIS FRONT

HDD Bay

H

ay

HDD B

1. 实验原理

E

Media

B.

Legend: Minimum required components Standard components

Server Configuration

1 Base Models

2.5-inch Drive Model

Product Name / Description	Part Number
NEC EXPRESS5800/R120b-1 Server (4C/E5606)no RAM, no 2.5-inch HDD, no ODD, no FDDIncluding:1 x Intel Xeon processor E5606, 2.5-inch HDD Cage, EXPRESSBUILDER DVD	N8100-1717F
NEC EXPRESS5800/R120b-1 Server (4C/E5620)no RAM, no 2.5-inch HDD, no ODD, no FDDIncluding:1 x Intel Xeon processor E5620, 2.5-inch HDD Cage, EXPRESSBUILDER DVD	N8100-1718F
NEC EXPRESS5800/R120b-1 Server (6C/E5645)no RAM, no 2.5-inch HDD, no ODD, no FDDIncluding:1 x Intel Xeon processor E5645, 2.5-inch HDD Cage, EXPRESSBUILDER DVD	N8100-1719F
NEC EXPRESS5800/R120b-1 Server (6C/L5640)no RAM, no 2.5-inch HDD, no ODD, no FDDIncluding:1 x Intel Xeon processor X5687, 2.5-inch HDD Cage, EXPRESSBUILDER DVD	N8100-1720F
NEC EXPRESS5800/R120b-1 Server (6C/X5650)no RAM, no 2.5-inch HDD, no ODD, no FDDIncluding:1 x Intel Xeon processor X5650, 2.5-inch HDD Cage, EXPRESSBUILDER DVD	N8100-1721F
NEC EXPRESS5800/R120b-1 Server (6C/X5675)no RAM, no 2.5-inch HDD, no ODD, no FDDIncluding:1 x Intel Xeon processor X5675, 2.5-inch HDD Cage, EXPRESSBUILDER DVD	N8100-1722F
NEC EXPRESS5800/R120b-1 Server (6C/X5690)no RAM, no 2.5-inch HDD, no ODD, no FDDIncluding:1 x Intel Xeon processor X5690, 2.5-inch HDD Cage, EXPRESSBUILDER DVD	N8100-1723F

3.5-inch Drive Model

Product Name / Description	Part Number
NEC EXPRESS5800/R120b-1 Server (4C/E5606)no RAM, no 3.5-inch HDD, no ODD, no FDDIncluding:1 x Intel Xeon processor E5606, 3.5-inch HDD Cage, EXPRESSBUILDER DVD	N8100-1724F
NEC EXPRESS5800/R120b-1 Server (4C/E5620)no RAM, no 3.5-inch HDD, no ODD, no FDDIncluding:1 x Intel Xeon processor E5620, 3.5-inch HDD Cage, EXPRESSBUILDER DVD	N8100-1725F
NEC EXPRESS5800/R120b-1 Server (6C/X5650)no RAM, no 3.5-inch HDD, no ODD, no FDDIncluding:1 x Intel Xeon processor X5650, 3.5-inch HDD Cage, EXPRESSBUILDER DVD	N8100-1726F

2 2nd Processor

Available sockets: 1

Product Name / Description	Part Number
CPU Kit (4C/E5606)	N8101-489F
Intel® Xeon® Processor E5606 (2.13 GHz / 4C-4T / 8 MB)
CPU Kit (4C/E5620)	N8101-465F
Intel® Xeon® Processor E5620 (2.40 GHz / 4C-8T / 12 MB)
CPU Kit (6C/E5645)	N8101-490F
Intel® Xeon® Processor E5645 (2.40 GHz / 6C-12T / 12 MB)
CPU Kit (6C/L5640)	N8101-467F
Intel® Xeon® Processor L5640 (2.26 GHz / 6C-12T / 12 MB)
CPU Kit (6C/X5650)	N8101-491F
Intel® Xeon® Processor X5650 (2.66 GHz / 6C-12T / 12 MB)
CPU Kit (6C/X5675)	N8101-492F
Intel® Xeon® Processor X5675 (3.06 GHz / 6C-12T / 12 MB)
CPU Kit (6C/X5690)	N8101-493F
Intel® Xeon® Processor X5690 (3.46 GHz / 6C-12T / 12 MB)

NOTE:

The 2nd processor must be the same with what is used in the base model

3 Memory

3.1 Memory Configuration

Refer to the section in accordance with your memory configuration:

Independent Channel / Memory Sparing Configuration: Refer to 3.1.1
Memory Mirroring / Memory Lockstep Configuration: Refer to 3.1.2

3.1.1 Independent Channel / Memory Sparing Configuration

Available slots: 6 per processor

Product Name / Description	Part Number
Additional 2GB Memory Module (1x 2GB)	N8102-428F
2 GB (1 x 2 GB) DDR3-1333 ECC Registered Low Power DIMM
Additional 4GB Memory Module (1x 4GB)	N8102-429F
4 GB (1 x 4 GB) DDR3-1333 ECC Registered Low Power DIMM
Additional 8GB Memory Module (1x 8GB)	N8102-374F
8 GB (1 x 8 GB) DDR3-1333 ECC Registered Low Power DIMM
Additional 8GB Memory Module (1x 16GB)	N8102-375F
16 GB (1 x 16 GB) DDR3-1066 ECC Registered Low Power DIMM

NOTE:

Minimum one memory kit per processor must be installed.
It is recommended to install two or three identical memory kits for dual-channel or triple-channel symmetric memory configurations to increase memory transfer speed.

3.1.2 Memory Mirroring / Memory Lockstep Configuration

Available slots: 4 per processor

Product Name / Description	Part Number
Additional 4GB Memory Module (2x 2GB)	N8102-388
4 GB (2 x 2 GB) DDR3-1333 ECC Registered Low Power DIMM
Additional 8GB Memory Module (2x 4GB)	N8102-389
8 GB (2 x 4 GB) DDR3-1333 ECC Registered Low Power DIMM
Additional 16GB Memory Module (2x 8GB)	N8102-390
16 GB (2 x 8 GB) DDR3-1333 ECC Registered Low Power DIMM
Additional 32GB Memory Module (2x 16GB)	N8102-391
32 GB (2 x 16 GB) DDR3-1066 ECC Registered Low Power DIMM

NOTE:

Minimum one memory kit per processor must be installed.

Memory Configuration Feature Comparison

See the table below for feature comparisons of memory configurations supported.

	Independent Channel	Memory Sparing	Memory Lockstep	Memory Mirroring
Performance	Best	Better	Better	Good
Data Protection	No	Multiple single bit error protection	No	Multiple single bit and multi bit error protection
Data Correction	ECC, x4 SDDC	ECC, x4 SDDC	ECC, x8 SDDC	ECC, x4 SDDC
Redundancy	No	Partly	No	Fully
Available Memory	Full physical memory	Physical memory excluding spare memory	Full physical memory	Half physical memory
Available Memory Channels	3	3	2	2
Notes	-	All DIMMs in the system must be identical.	Paired DIMMs must be identical.	Paired DIMMs must be identical.

Maximum Memory Speed

See the table below for the actual maximum memory speed on your system.

DDR3 memory speed depends on the type of DIMMs and the native memory bus speed of the memory controller. All memory buses operate at the clock frequency of the DIMM with the lowest frequency.

Processor Type	Populated DIMMs	Memory Power Setting	DIMMs per Channel	DIMM Speed
E5606	1 GB, 2 GB, 4 GB, 8 GB	-	-	1066 MHz
E5620	16GB	Normal (1.5V)	1	1066 MHz
			2	800 MHz
		Low (1.35V)	-	800 MHz
E5645	1 GB, 2 GB, 4 GB, 8 GB	Normal (1.5V)	-	1333 MHz
L5640		Low (1.35V)	1	1333 MHz
X5650			2	1066 MHz
X5675
X5690	16GB	Normal (1.5V)	1	1066 MHz
			2	800 MHz
		Low (1.35V)	-	800 MHz

Maximum Available Memory

See the table below for the maximum memory size that you can actually use on your system.

The maximum available memory is less than the maximum physical memory supported by your system because some chipsets require PCI resource space of about 750MB. PCI resource requirements vary depending on the type and the number of PCI cards you are using.

Maximum Memory Size Supported by OS		Maximum Available Memory
4 GB	Microsoft Windows Server 2003, Standard Edition(SP1)	4 GB (HW-DEP enabled)
	Microsoft Windows Server 2003 R2, Standard Edition	App. 3.6 GB (HW-DEP disabled)
	Microsoft Windows Server 2008 Standard
32 GB	Microsoft Windows Server 2003 R2, Standard x64 Edition	32 GB
	Microsoft Windows Server 2008 Standard (x64)
	Microsoft Windows Server 2008 R2 Standard (x64)
64 GB	Microsoft Windows Server 2003, Enterprise Edition(SP1)	64 GB
	Microsoft Windows Server 2003 R2, Enterprise Edition
	Microsoft Windows Server 2008 Enterprise
1 TB	Microsoft Windows Server 2003 R2, Enterprise x64 Edition	192 GB
2 TB	Microsoft Windows Server 2008 Enterprise (x64)	192 GB
	Microsoft Windows Server 2008 R2 Enterprise (x64)
16 GB	Red Hat Enterprise Linux ES4	16 GB
	Red Hat Enterprise Linux ES4 (EM64T)
	Red Hat Enterprise Linux 5
	Red Hat Enterprise Linux 5 Advanced Platform
	Red Hat Enterprise Linux 6
	SUSE Linux Enterprise Server 10
	SUSE Linux Enterprise Server 11
64 GB	Red Hat Enterprise Linux AS4	64 GB
256 GB	Red Hat Enterprise Linux AS4 (EM64T)	192 GB
	Red Hat Enterprise Linux 5 (EM64T)
	Red Hat Enterprise Linux 5 Advanced Platform (EM64T)
2 TB	Red Hat Enterprise Linux 6.0 (x86_64)	192 GB
512 GB	SUSE Linux Enterprise Server 10 (EM64T)	192 GB
	SUSE Linux Enterprise Server 11 (EM64T)
256 GB or 1TB1	VMware ESXi 4.1	192 GB

1 Up to 255 GB of main memory is available to each virtual machine.

4 Internal Hard Disk Drives

4.1 RAID Configuration

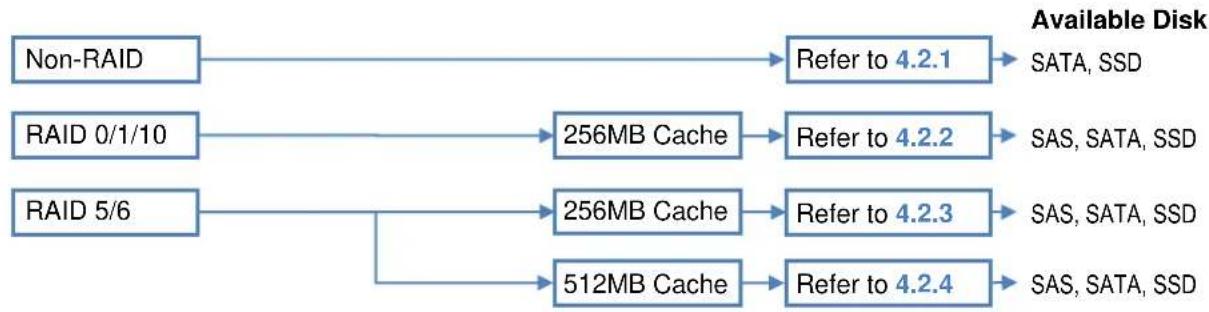

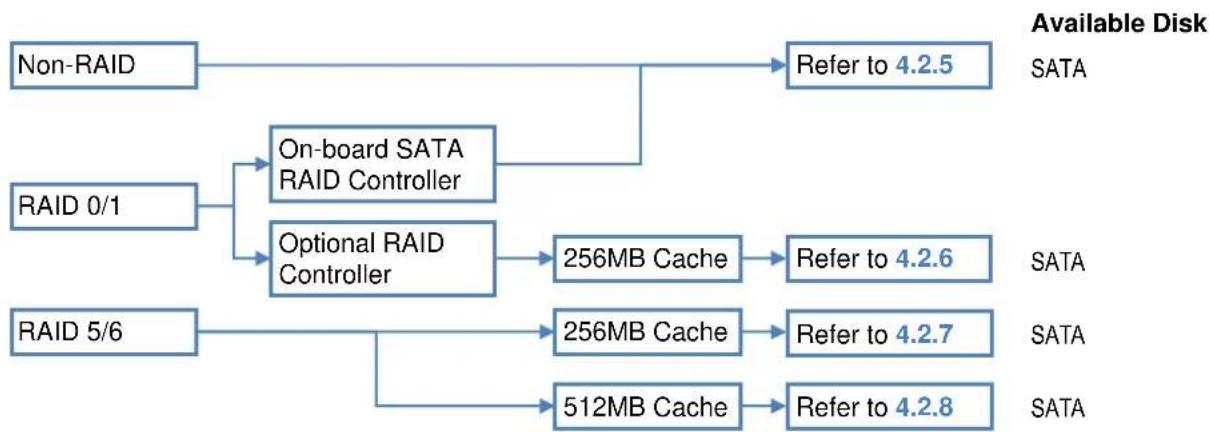

Refer to the section in accordance with your disk form factor and RAID configuration.

4.1.1 2.5-inch Drives

NOTE:

Up to four hard drives can be installed in the on-board SATA configuration.
Hot plug insertion/removal is not supported with the on-board SATA non-RAID controller.
- An optional RAID controller occupies one PCI slot.
All hard drives within a RAID array should be of the same capacity and rotation speed.

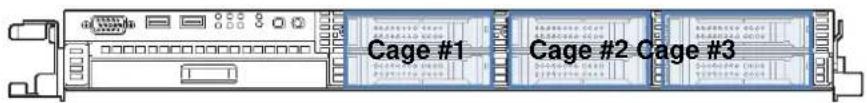

SAS and SATA hard drives must be installed in separate HDD Cages.

4.1.2 3.5-inch Drives

NOTE:

• On-board SATA RAID controller is supported only on Windows operating systems. An optional RAID controller is required to configure RAID array for other operating systems.
  On-board SATA RAID Controller does not support RAID 10 configured with 2TB and 3TB HDDs.
  Hot plug insertion/removal is not supported with the on-board SATA non-RAID controller.
  All hard drives within a RAID array should be of the same capacity.
  An optional RAID controller occupies one PCI slot.

4.2 Internal Drive Configuration

4.2.1 2.5-inch Drives with On-board SATA Controller

Category		Product Name / Description	Part Number
Storage Controller		On-board SATA Controller1 x mini-SAS port	(Standard)
Cable		Internal SATA Cable1 x mini-SAS to 1 x mini-SAS	(Standard)
HDD Cage		2.5-inch HDD Cage6 x 2.5-inch Hot-plug hard drive bays	(Standard)
HDD4 slotsavailable	SATA	160GB HDD1 x 160 GB, 2.5-inch, SATA2, 7,200 rpm500GB HDD1 x 500 GB, 2.5-inch, SATA2, 7,200 rpm1TB HDD1 x 1 TB, 2.5-inch, SATA2, 7,200 rpm	N8150-276N8150-277
	SSD	1 x 50 GB, 2.5-inch, SATA2100GB SSD1 x 100 GB, 2.5-inch, SATA2	N8150-334

NOTE:

• Up to four hard drives can be installed in the configuration.
  Hot plug insertion/removal is not supported with the on-board SATA non-RAID controller.

4.2.2 2.5-inch Drives with RAID 0/1 Controller with 256 MB Cache

Category		Product Name / Description	Part Number
Storage Controller Required		RAID Controller (256MB, RAID 0/1)	N8103-129
		LSI MegaRAID SAS 9264-8i RAID 0/1, 256MB, Int. 8, PCIe 2.0 x8, SAS 6Gb/s, SATA 3Gb/s, LP / FH
RAID BBU Recommended		RAID Battery Backup Unit for LSI MegaRAID SAS 9264	N8103-124
Cable		Internal SAS/SATA Cable	(Standard)
		1 x mini-SAS to 1 x mini-SAS, 2 sets
HDD Cage		2.5-inch HDD Cage	(Standard)
		6 x 2.5-inch hot plug hard drive bays
HDD 6 slots available	SAS	146.5GB HDD	N8150-374
		1 x 146.5 GB, 2.5-inch, SAS 6Gb/s, 10,000 rpm
		300GB HDD	N8150-375
		1 x 300 GB, 2.5-inch, SAS 6Gb/s, 10,000 rpm
		450GB HDD	N8150-376
		1 x 450 GB, 2.5-inch, SAS 6Gb/s, 10,000 rpm
		600GB HDD	N8150-377
		1 x 600 GB, 2.5-inch, SAS 6Gb/s, 10,000 rpm
		900GB HDD	N8150-332
		1 x 900 GB, 2.5-inch, SAS 6Gb/s, 10,000 rpm
		73.2GB HDD	N8150-378
		1 x 73.2 GB, 2.5-inch, SAS 6Gb/s, 15,000 rpm
		146.5GB HDD	N8150-379
		1 x 146.5 GB, 2.5-inch, SAS 6Gb/s, 15,000 rpm
		300GB HDD	N8150-331
		1 x 300GB, 2.5-inch, SAS 6Gb/s, 15,000 rpm
	SATA	160GB HDD	N8150-276
		1 x 160 GB, 2.5-inch, SATA2, 7,200 rpm
		500GB HDD	N8150-277
		1 x 500 GB, 2.5-inch, SATA2, 7,200 rpm
		1TB HDD	N8150-334
		1 x 1 TB, 2.5-inch, SATA2, 7,200 rpm
	SSD	50GB SSD	N8150-702
		1 x 50 GB, 2.5-inch, SATA2
		100GB SSD	N8150-707
		1 x 100 GB, 2.5-inch, SATA2

NOTE:

All hard drives within a RAID array should be of the same capacity and rotation speed.
SAS and SATA hard drives must be installed in separate HDD Cages.

4.2.3 2.5-inch Drives with RAID 5/6 Controller with 256 MB Cache

Category		Product Name / Description	Part Number
Storage Controller Required		RAID Controller (256MB, RAID 0/1/5/6)	N8103-130
		LSI MegaRAID SAS 9264-8i RAID 0/1/5/6, 256MB, Int. 8, PCIe 2.0 x8, SAS 6Gb/s, SATA 3Gb/s, LP / FH
RAID BBU Recommended		RAID Battery Backup Unit for LSI MegaRAID SAS 9264	N8103-124
Cable		Internal SAS/SATA Cable	(Standard)
		1 x mini-SAS to 1 x mini-SAS, 2 sets
HDD Cage		2.5-inch HDD Cage	(Standard)
		6 x 2.5-inch hot plug hard drive bays
HDD 6 slots available	SAS	146.5GB HDD	N8150-374
		1 x 146.5 GB, 2.5-inch, SAS 6Gb/s, 10,000 rpm
		300GB HDD	N8150-375
		1 x 300 GB, 2.5-inch, SAS 6Gb/s, 10,000 rpm
		450GB HDD	N8150-376
		1 x 450 GB, 2.5-inch, SAS 6Gb/s, 10,000 rpm
		600GB HDD	N8150-377
		1 x 600 GB, 2.5-inch, SAS 6Gb/s, 10,000 rpm
		900GB HDD	N8150-332
		1 x 900 GB, 2.5-inch, SAS 6Gb/s, 10,000 rpm
		73.2GB HDD	N8150-378
		1 x 73.2 GB, 2.5-inch, SAS 6Gb/s, 15,000 rpm
		146.5GB HDD	N8150-379
		1 x 146.5 GB, 2.5-inch, SAS 6Gb/s, 15,000 rpm
		300GB HDD	N8150-331
		1 x 300GB, 2.5-inch, SAS 6Gb/s, 15,000 rpm
	SATA	160GB HDD	N8150-276
		1 x 160 GB, 2.5-inch, SATA2, 7,200 rpm
		500GB HDD	N8150-277
		1 x 500 GB, 2.5-inch, SATA2, 7,200 rpm
		1TB HDD	N8150-334
		1 x 1 TB, 2.5-inch, SATA2, 7,200 rpm
	SSD	50GB SSD	N8150-702
		1 x 50 GB, 2.5-inch, SATA2
		100GB SSD	N8150-707
		1 x 100 GB, 2.5-inch, SATA2

NOTE:

All hard drives within a RAID array should be of the same capacity and rotation speed.
SAS and SATA hard drives must be installed in separate HDD Cages.

4.2.4 2.5-inch Drives with RAID 5/6 Controller with 512 MB Cache

Category		Product Name / Description	Part Number
Storage Controller Required		RAID Controller (512MB, RAID0/1/5/6)	N8103-134
		Promise SuperTrak EX8760T-512
		RAID 0/1/5/6, 512MB, Int. 8, PCIe 2.0 x8, SAS 6Gb/s, SATA 3Gb/s, LP / FH
RAID BBU Recommended		RAID Battery Backup Unit for Promise SuperTrak EX8760T and EX8768	N8103-136
Cable		Internal SAS/SATA Cable	(Standard)
		1 x mini-SAS to 1 x mini-SAS, 2 sets
HDD Cage		2.5-inch HDD Cage	(Standard)
		6 x 2.5-inch hot plug hard drive bays
HDD 6 slots available	SAS	146.5GB HDD	N8150-374
		1 x 146.5 GB, 2.5-inch, SAS 6Gb/s, 10,000 rpm
		300GB HDD	N8150-375
		1 x 300 GB, 2.5-inch, SAS 6Gb/s, 10,000 rpm
		450GB HDD	N8150-376
		1 x 450 GB, 2.5-inch, SAS 6Gb/s, 10,000 rpm
		600GB HDD	N8150-377
		1 x 600 GB, 2.5-inch, SAS 6Gb/s, 10,000 rpm
		900GB HDD	N8150-332
		1 x 900 GB, 2.5-inch, SAS 6Gb/s, 10,000 rpm
		73.2GB HDD	N8150-378
		1 x 73.2 GB, 2.5-inch, SAS 6Gb/s, 15,000 rpm
		146.5GB HDD	N8150-379
		1 x 146.5 GB, 2.5-inch, SAS 6Gb/s, 15,000 rpm
		300GB HDD	N8150-331
		1 x 300GB, 2.5-inch, SAS 6Gb/s, 15,000 rpm
	SATA	160GB HDD	N8150-276
		1 x 160 GB, 2.5-inch, SATA2, 7,200 rpm
		500GB HDD	N8150-277
		1 x 500 GB, 2.5-inch, SATA2, 7,200 rpm
		1TB HDD	N8150-334
		1 x 1 TB, 2.5-inch, SATA2, 7,200 rpm
	SSD	50GB SSD	N8150-702
		1 x 50 GB, 2.5-inch, SATA2
		100GB SSD	N8150-707
		1 x 100 GB, 2.5-inch, SATA2

NOTE:

All hard drives within a RAID array should be of the same capacity and rotation speed.
SAS and SATA hard drives must be installed in separate HDD Cages.

4.2.5 3.5-inch Drives with On-board SATA Controller

Category	Product Name / Description	Part Number
Storage Controller	On-board SATA Controller4 x SATA ports	(Standard)
Cable	Internal SAS/SATA Cable1 x mini-SAS to 3 x single-SATA	(Standard)
HDD Cage	3.5-inch HDD Cage3 x 3.5-inch hot plug hard drive bays	(Standard)
HDD3 slots available	500GB HDD1 x 500 GB, 3.5-inch, SATA2, 7,200 rpm1TB HDD1 x 1 TB, 3.5-inch, SATA2, 7,200 rpm2TB HDD1 x 2 TB, 3.5-inch, SATA2, 7,200 rpm	N8150-274N8150-263N8150-278

NOTE:

• On-board SATA RAID controller is supported only on Windows operating systems. An optional RAID controller is required to configure RAID array for other operating systems.
  On-board SATA RAID Controller does not support RAID 10 configured with 2TB HDDs.
  Hot plug insertion/removal is not supported with the on-board SATA non-RAID controller.
  All hard drives within a RAID array should be of the same capacity.

4.2.6 3.5-inch Drives with RAID Controller RAID 0/1/10, 256 MB Cache

Category	Product Name / Description	Part Number
Storage Controller Required	RAID Controller (256MB, RAID 0/1)	N8103-129
	LSI MegaRAID SAS 9264-8i RAID 0/1, 256MB, Int. 8, PCIe 2.0 x8, SAS 6Gb/s, SATA 3Gb/s, LP / FH
RAID BBU Recommended	RAID Battery Backup Unit for LSI MegaRAID SAS 9264	N8103-124
Cable	Internal SAS/SATA Cable	(Standard)
	1 x mini-SAS to 3 x single-SATA
HDD Cage	3.5-inch HDD Cage	(Standard)
	3 x 3.5-inch hot plug hard drive bays
HDD 3 slots available	500GB HDD	N8150-274
	1 x 500 GB, 3.5-inch, SATA2, 7,200 rpm
	1TB HDD	N8150-263
	1 x 1 TB, 3.5-inch, SATA2, 7,200 rpm
	2TB HDD	N8150-278
	1 x 2 TB, 3.5-inch, SATA2, 7,200 rpm

NOTE:

All hard drives within a RAID array should be of the same capacity.

4.2.7 3.5-inch Drives with RAID 5/6 Controller with 256 MB Cache

Category	Product Name / Description	Part Number
Storage Controller Required	RAID Controller (256MB, RAID 0/1/5/6)	N8103-130
	LSI MegaRAID SAS 9264-8i RAID 0/1, 256MB, Int. 8, PCIe 2.0 x8, SAS 6Gb/s, SATA 3Gb/s, LP / FH
RAID BBU Recommended	RAID Battery Backup Unit for LSI MegaRAID SAS 9264	N8103-124
Cable	Internal SAS/SATA Cable 1 x mini-SAS to 3 x single-SATA	(Standard)
HDD Cage	3.5-inch HDD Cage 3 x 3.5-inch hot plug hard drive bays	(Standard)
HDD 3 slots available	500GB HDD 1 x 500 GB, 3.5-inch, SATA2, 7,200 rpm 1TB HDD 1 x 1 TB, 3.5-inch, SATA2, 7,200 rpm 2TB HDD 1 x 2 TB, 3.5-inch, SATA2, 7,200 rpm	N8150-274 N8150-263 N8150-278

NOTE:

All hard drives within a RAID array should be of the same capacity.

4.2.8 3.5-inch Drives with RAID 5/6 Controller with 512 MB Cache

Category	Product Name / Description	Part Number
Storage Controller Required	RAID Controller (512MB, RAID0/1/5/6)	N8103-134
	Promise SuperTrak EX8760T-512
	RAID 0/1/5/6, 512MB, Int. 8, PCIe 2.0 x8, SAS 6Gb/s, SATA 3Gb/s, LP / FH
RAID BBU Recommended	RAID Battery Backup Unit	N8103-137
	for Promise SuperTrak EX8760T and EX8768
	NOTE: Either N8151-92 Internal USB FDD or N8103-137 RAID Battery Backup Unit can be installed in 3.5-inch drive models.
Cable	Internal SAS/SATA Cable	(Standard)
	1 x mini-SAS to 3 x single-SATA
HDD Cage	3.5-inch HDD Cage	(Standard)
	3 x 3.5-inch hot plug hard drive bays
HDD 3 slots available	500GB HDD	N8150-274
	1 x 500 GB, 3.5-inch, SATA2, 7,200 rpm
	1TB HDD	N8150-263
	1 x 1 TB, 3.5-inch, SATA2, 7,200 rpm
	2TB HDD	N8150-278
	1 x 2 TB, 3.5-inch, SATA2, 7,200 rpm
	3TB HDD	N8150-337
	1 x 2 TB, 3.5-inch, SATA2, 7,200 rpm

NOTE:

All hard drives within a RAID array should be of the same capacity.

5 Optical Drive

Category	Product Name / Description	Part Number
Internal 1 slot available	Internal Slim DVD-ROM drive	N8151-100
	Slim DVD-ROM drive
	Internal DVD Super Multi Drive	N8151-104F
	Slim DVD Super Multi drive, not including writing software
External	External DVD-ROM drive	N8160-85
	Slim DVD-ROM drive, Bus powered, 0.8 A required

NOTE:

Up to 1 optical drive can be connected.

6 Floppy Drive / Flash FDD

Category		Product Name / Description	Part Number
Internal 1 bay available in 3.5-inch HDD Model	Drive	Internal USB FDD 2 mode NOTE: Either N8151-92 Internal USB FDD or N8103-137 RAID Battery Backup Unit can be installed in 3.5-inch drive models.	N8151-92
	Cable	Internal USB Cable 1 x USB-FDD cable	K410-193(00)
External		Flash FDD USB flash emulating USB floppy disk, Native capacity 1.44 MB NOTE: Flash FDD cannot be shipped to Taiwan and Korea.	N8160-86

NOTE:

Up to 1 drive can be connected.

7 PCI Riser Card / PCI Card
7.1 PCI Riser Card

Product Name / Description	Part Number
Riser Card 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x8	(Standard)
Riser Card (PCI-X) 1 x PCIe 2.0 x8, 1 x 64-bit / 133 MHz PCI-X	N8116-23

7.2 LAN Controller

Category		Product Name / Description	Part Number
GbE	PCIe	1000BASE-T AdapterIntel® PRO/1000 PT Server AdapterPCIe x1, LP / FH	N8104-126
		1000BASE-T Adapter (2ch)Intel® PRO/1000 PT Dual Port Server AdapterPCIe x4, FH	N8104-121
		1000BASE-T Adapter (2ch)Intel® PRO/1000 PT Dual Port Server AdapterPCIe x4, LP	N8104-122
		1000BASE-T Adapter (4ch)Intel® PRO/1000 PT Quad Port Server AdapterPCIe x4, LP / FH	N8104-125A
		NOTE:Network cables with RJ-45 plug covers cannot be used.
	PCI-X	1000BASE-T AdapterIntel® PRO/1000 MT Server Adapter64bit / 133 MHz PCI-X, FH	N8104-119
		1000BASE-T Adapter (2ch)Intel® PRO/1000 MT Dual Port Server Adapter64bit / 133 MHz PCI-X, FH	N8104-120
10GbE	Ctrlr	10GBASE-SR AdapterChelsio S310E-SR 10GbE Storage AcceleratorPCIe x8, LP / FH	N8104-123A
		10GBASE Adapter (SFP+/2ch)Broadcom NetXtreme II BCM957711 10G SFP+ Dual Port Network Interface CardPCIe 2.0 x8, LP / FH	N8104-128
		NOTE:- N8104-129 SFP+ Module is required to connect with an optical cable.- Up to two SFP+ Modules can be installed.- One adapter can be installed in Red Hat Linux 6.x operating systems.- On Windows Server 2003R2 /2008 / 2008R2 and Red Hat Linux 5.x(EM64T) and 6.x(x86_64) operating systems, teaming and bonding features across one or two identical adapters are supported. A team can include up to two ports and up to two teams per system are allowed.- On Red Hat Linux 5.x(x86) and 6.x(x86) operating systems, bonding features within one adapter with up to two ports are supported. One team per system is allowed.
	Module	SFP+ Module (10G-SR)1 x SFP+ Module for N8104-128	N8104-129
Converged Network		Dual Port 10Gb Converged Network AdapterBROCADE 1020 Dual Port 10Gbps Converged Network AdapterPCIe 2.0 x8, LP / FH, 2 x SFP module	N8104-131

NOTE:

• Teaming and bonding features across the standard LAN and optional PCIe based GbE LAN controller (excluding N8104-126) are supported on Windows Server 2003R2 /2008 / 2008R2 and Red Hat Linux 5.x operating systems.
• When installing a 10GBASE-SR Adapter, no other additional 10GbE LAN controllers is allowed.
• When installing a 1000BASE-SX Adapter, no other additional GbE LAN controller is allowed.
  Teaming feature is not supported on iSCSI interfaces.

7.3 External RAID Controller

Category		Product Name / Description	Part Number
Controller		RAID Controller (512MB, RAID0/1/5/6)	N8103-135
		Promise SuperTrak EX8768
		RAID 0/1/5/6, 512MB, Ext. 8, PCIe 2.0 x8, SAS 6Gb/s, SATA 3Gb/s, LP / FH
RAID BBU	2.5-inch Drive	RAID Battery Backup Unit	N8103-136
		for Promise SuperTrak EX8760T and EX8768
	3.5-inch Drive	RAID Battery Backup Unit	N8103-137
		for Promise SuperTrak EX8760T and EX8768
		NOTE: Either N8151-92 Internal USB FDD or N8103-137 RAID Battery Backup Unit can be installed in 3.5-inch drive models.

7.4 Fibre Channel / SAS Controller

Category	Product Name / Description	Part Number
Fibre Channel	Fibre Channel Controller (1ch)Emulex LightPulse LPe1250-F8 Host Bus Adapter8Gb/s, Optical, PCIe 2.0 x8, LP / FH	N8190-153
	Fibre Channel Controller (2ch)Emulex LightPulse LPe12002-M8 Host Bus Adapter8Gb/s, Optical, PCIe 2.0 x8, LP / FH	N8190-154
	Fibre Channel Controller (1ch)Emulex LightPulse LPe1150-F4 Host Bus Adapter4Gb/s, Optical, PCIe x4, LP / FH	N8190-127
	Fibre Channel Controller (2ch)Emulex LightPulse LPe11002-M4 Host Bus Adapter4Gb/s, Optical, PCIe 2.0 x8, LP / FH	N8190-131
SAS	SAS ControllerLSI SAS3442E-R Host Bus Adapter3Gb/s SAS, Int. 4 / Ext. 4, SFF-8484 / SFF8470, PCIe x8, LP/FHSAS ControllerLSI SAS9212-4i4 Host Bus Adapter6Gb/s SAS, Int. 4 / Ext. 4, 7-pin SATA / SFF-8088, PCIe 2.0 x8, LP/FH	N8103-104A N8103-142

7.5 Serial Port Adapter

Product Name / Description	Part Number
Serial Port Adapter	N8117-01A
Serial port fixed to PCI bracket

8 Other Add-in Components

8.1 Redundant Power Supply

Product Name / Description	Part Number
Power Unit 1 x 650 Watt 80 PLUS® Gold certified Hot plug Power Supply	N8181-76F

8.2 VMware ESXi Pre-install Kit

Product Name / Description	Part Number
VMware ESXi 4.1 Base Kit	N8106-004F
Including USB flash memory, VMware ESXi 4.1 Recovery CD
NOTE:
The Base Kit may not be available in some regions. Please contact our sales representative to confirm if it is available in your country.
The Base Kit must be ordered with the base model.
Installation of VMware ESXi onto hard drives is not supported.

9 Add-on Components

9.1 17-inch LCD Console Printer

Category		Product Name / Description	Part Number
Drawerw/ KVM	Drawer	17inch LCD Console Unit (1U/8port)17-inch LCD, US 83 keys Keyboard, Optical mouse, 8 port KVM switch, 1U height	N8143-69F
	Cable	Switch Unit Connection Cable Set (USB, 1.8m)1.8 m, 1 x 15-pin mini D-sub to 1 x 15-pin mini D-sub / 1 x 4-pin USB ASwitch Unit Connection Cable Set (USB, 3m)3 m, 1 x 15-pin mini D-sub to 1 x 15-pin mini D-sub / 1 x 4-pin USB ASwitch Unit Connection Cable Set (USB, 5m)5 m, 1 x 15-pin mini D-sub to 1 x 15-pin mini D-sub / 1 x 4-pin USB ASwitch Unit Connection Cable Set (PS/2, 1.8m)1.8 m, 1 x 15-pin mini D-sub to 1 x 15-pin mini D-sub / 2 x 6-pin mini DINSwitch Unit Connection Cable Set (PS/2, 3m)3 m, 1 x 15-pin mini D-sub to 1 x 15-pin mini D-sub / 2 x 6-pin mini DINSwitch Unit Connection Cable Set (PS/2, 5m)5 m, 1 x 15-pin mini D-sub to 1 x 15-pin mini D-sub / 2 x 6-pin mini DIN	K410-118(1A)K410-118(03)K410-118(05)K410-119(1A)K410-119(03)K410-119(05)
Drawerw/o KVM	Drawer	17inch LCD Console Unit 1U17-inch LCD, US 83 keys Keyboard, Optical mouse, 1U height,4-pin USB B to 4-pin USB A cable 2m, PS/2 Y-splitter cable 2m,15-pin mini D-sub VGA cable 2m	N8143-76F

9.2 KVM Switch

Category	Product Name / Description	Part Number
KVM Switch	Server Switch Unit (8 server)1U USB 8 port KVM switch	N8191-10F
Cable	Switch Unit Connection Cable Set (USB,1.8m)1.8 m, 1 x 15-pin mini D-sub to 1 x 15-pin mini D-sub / 1 x 4-pin USB A	K410-118(1A)
	Switch Unit Connection Cable Set (USB,3m)3 m, 1 x 15-pin mini D-sub to 1 x 15-pin mini D-sub / 1 x 4-pin USB A	K410-118(03)
	Switch Unit Connection Cable Set (USB,3m)5 m, 1 x 15-pin mini D-sub to 1 x 15-pin mini D-sub / 1 x 4-pin USB A	K410-118(05)
	Switch Unit Connection Cable Set (PS/2, 1.8m)1.8 m, 1 x 15-pin mini D-sub to 1 x 15-pin mini D-sub / 2 x 6-pin mini DIN	K410-119(1A)
	Switch Unit Connection Cable Set (PS/2, 3m)3 m, 1 x 15-pin mini D-sub to 1 x 15-pin mini D-sub / 2 x 6-pin mini DIN	K410-119(03)
	Switch Unit Connection Cable Set (PS/2, 5m)5 m, 1 x 15-pin mini D-sub to 1 x 15-pin mini D-sub / 2 x 6-pin mini DIN	K410-119(05)

9.3 Server Management License

The server integrates the EXPRESSSCOPE Engine 2 as standard. Refer to Server Management for the standard management features. For more extensive remote KVM and remote media features, choose the following kit.

Product Name / Description

Part Number

Remote KVM and Media License KitLicense for one server.Remote KVM and remote media are enabled regardless of OS status.Remote KVM:- Displays a graphics console on the web browser of the remote terminal (PC/server).- Controls keyboard and mouse via the remote terminals' web browserRemote media:Enables the user to use the CD / DVD / FD / Flash memory of the remote terminals (PC/server) as if accessing the local drives.NOTE: Remote KVM and remote media features are not available for virtual machines.

N8115-03

9.4 Front Bezel

Product Name / Description	Part Number
Front Bezel	N8146-18F
Front bezel for R120b-1

9.1 Cable Management Arm

Product Name / Description	Part Number
Cable Management ArmFor R120b-1 / R120b-1	N8143-70

10 Support Service

10.1 Software

Product Name / Description	Part Number
PP Support Pack (VMware ESXi 4.1 for 1 processor)(1year)	ULH1S-SV40-008F
Technical Support Service regarding ESXi (for quick solutions to technical issues)
NOTE: It is necessary to purchase a PP support pack for each processor installed in the system.

References

Server Management

The EXPRESSSCOPE Engine 2, integrated into the server, provides superior remote control and system management features listed in the table below.

		Standard	With Remote KVM and Media License kit
Hardware monitoring	Temperature/voltage/power/fan /degeneration (memory/hard drive)	✓	✓
	Hardware event log collection	✓	✓
Boot monitoring	Booting, BIOS/POST stall, OS stall, shutdown	✓1	✓1
Alerting	HW error, Boot error and OS panic (by SNMP, E-Mail)	✓	✓
Remote console (via LAN)	POST/BIOS setup, DOS utility	✓2	✓
	Panic screen, Boot screen	✓2	✓
	Text-based screen (OS console)	✓2	✓
	GUI-based screen (OS console)	-	✓
Remote control (via LAN)	Remote reset/power on-off/ dump	✓	✓
	OS shutdown	✓1	✓1
	Remote media (CD/DVD/FD)	-	✓
	Server Management Command Line Protocol (DMTF compliant)	✓	✓
	Remote control via Web browser (without dedicated app)	✓	✓
	Remote batch	✓1	✓1
	Scheduling (without UPS)	✓1	✓1
Others	Set automatic IP address via DNS/DHCP	✓	✓
Remote wakeup	Wake On LAN, Wake On Ring	✓	✓
Centralized management	Monitoring and control of multiple servers	✓1	✓1
Industry standard	IPMI	2.0	2.0

1 The feature is not supported on VMware ESXi systems.
2 The standard serial port is not available for the feature.

OS Support Matrix for PCI Cards

ESX14.1

Part number

Product Name

WS 2008R2

WS 2008

WS 2008x64

WS 2003R2

WS 2003R2x64

WS 2003

RHEL 6

RHEL 5

RHEL 4

RHEL 4x64

RHEL 5x64

RHEL 4x64

RHEL 11x64

N8103-129

RAID Controller

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

N8103-130

RAID Controller

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

N8103-134

RAID Controller

✓

✓

✓

✓

✓

✓

✓

✓

✓

-

-

-

✓

N8103-135

RAID Controller

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

-

-

✓

N8103-104A

SAS Controller, 3 Gb/s

✓

✓

✓

✓

✓

✓

-

-

✓

✓

✓

✓

-

N8103-142

SAS Controller, 6 Gb/s

✓

✓

✓

✓

✓

✓

-

-

✓

✓

-

-

-

N8190-127

Fibre Channel Controller

✓

✓

✓

✓

✓

✓

-

-

✓

✓

✓

-

✓

✓

N8190-131

Fibre Channel Controller (2ch)

✓

✓

✓

✓

✓

✓

-

-

✓

✓

✓

-

✓

✓

N8190-153

Fibre Channel Controller

✓

✓

✓

✓

✓

✓

-

-

✓

✓

-

-

-

✓

N8190-154

Fibre Channel Controller (2ch)

✓

✓

✓

✓

✓

✓

-

-

✓

✓

-

-

-

✓

N8104-126

1000BASE-T Adapter

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

N8104-121

1000BASE-T Adapter (2ch)

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

N8104-122

1000BASE-T Adapter (2ch)

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

N8104-125A

1000BASE-T Adapter (4ch)

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

-

-

✓

N8104-123A

10GBASE-SR Adapter

-

-

-

✓

✓

✓

-

-

-

-

-

-

-

-

N8104-128

10GBASE Adapter (SFP+/2ch)

✓

✓

✓

-

-

-

✓

✓

✓

✓

-

-

-

✓

N8104-119

1000BASE-T Adapter

-

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

-

-

✓

N8104-120

1000BASE-T Adapter (2ch)

-

✓

✓

✓

✓

✓

✓

✓

✓

✓

✓

-

-

✓

N8104-131

Dual Port 10Gb Converged Network Adapter

✓

✓

✓

-

-

-

-

✓

✓

-

-

-

-

-

Supporting PCI Cards and Installable Slots

Standard Riser Card

Part Number	Product Name	Slots			Remarks
	Slot # :	#0A	#1B	#1C
	PCI Slot:	x4	x16	x8
	Card height:	-	FH	LP
	Slot type:	x8	x16	x8
	Installable card length (mm) :	-	175	167
N8103-129	RAID Controller (256MB, RAID 0/1) [PCIe 2.0 x8]	✓	-	-
N8103-130	RAID Controller (256MB, RAID 0/1/5/6) [PCIe 2.0 x8]	✓	-	-
N8103-134	RAID Controller (512MB,RAID 0/1/5/6) [PCIe 2.0 x8]	✓	-	-
N8103-135	RAID Controller (512MB,RAID 0/1/5/6) [PCIe 2.0 x8]	-	✓	✓
N8103-104A	SAS Controller [PCIe x8]	-	✓	✓
N8103-142	SAS Controller [PCIe 2.0 x8]	-	✓	✓
N8190-127	Fibre Channel Controller [PCIe x4]	-	✓	✓
N8190-131	Fibre Channel Controller (2ch) [PCIe x4]	-	✓	✓
N8190-153	Fibre Channel Controller [PCIe 2.0 x8]	-	✓	✓
N8190-154	Fibre Channel Controller (2ch) [PCIe 2.0 x8]	-	✓	✓
N8104-126	1000BASE-T adapter [PCIe x1]	-	✓	✓
N8104-121	1000BASE-T Adapter (2ch) [PCIe x4]	-	✓	-
N8104-122	1000BASE-T Adapter (2ch) [PCIe x4]	-	-	✓
N8104-125A	1000BASE-T Adapter (4ch) [PCIe x4]	-	✓	✓
N8104-123A	10GBASE-SR Adapter [PCIe x8]	-	✓	✓
N8104-128	10GBASE adapter (SFP+/2ch) [PCIe 2.0 x8]	-	✓	✓
N8104-131	Dual Port 10Gb Converged Network Adapter [PCIe 2.0 x8]	-	✓	✓
N8117-01A	Serial Port Adapter	-	-	✓

N8116-23 Riser Card (PCI-X)

Part Number	Product Name	Slots			Remarks
	Slot # :	#0A	#1B	#1C
	PCI Slot:	x4	64-bit	x8
	Card height:	-	FH	LP
	Slot type:	x8	3.3 V	x8
	Installable card length (mm) :	-	175	167
N8103-129	RAID Controller (256MB, RAID 0/1) [PCIe 2.0 x8]	✓	-	-
N8103-130	RAID Controller (256MB, RAID 0/1/5/6) [PCIe 2.0 x8]	✓	-	-
N8103-134	RAID Controller (512MB, RAID 0/1/5/6) [PCIe 2.0 x8]	✓	-	-
N8103-135	RAID Controller (512MB, RAID 0/1/5/6) [PCIe 2.0 x8]	-	-	✓
N8103-104A	SAS Controller [PCIe x8]	-	-	✓
N8103-142	SAS Controller [PCIe 2.0 x8]	-	-	✓
N8190-127	Fibre Channel Controller [PCIe x4]	-	-	✓
N8190-131	Fibre Channel Controller (2ch) [PCIe x4]	-	-	✓
N8190-153	Fibre Channel Controller [PCIe2.0 x8]	-	-	✓
N8190-154	Fibre Channel Controller(2ch) [PCIe2.0 x8]	-	-	✓
N8104-119	100BASE-T Adapter [64-bit / 133 MHz PCI-X]	-	✓	-
N8104-120	100BASE-T Adapter(2ch) [64-bit / 133 MHz PCI-X]	-	✓	-
N8104-126	1000BASE-T Adapter [PCIe x1]	-	-	✓
N8104-122	1000BASE-T Adapter(2ch) [PCIe x4]	-	-	✓
N8104-125A	1000BASE-T Adapter(4ch) [PCIe x4]	-	-	✓
N8104-123A	10GBASE-SR adapter [PCIe x8]	-	-	✓
N8104-128	10GBASE adapter (SFP+/2ch) [PCIe2.0 x8]	-	-	✓
N8104-131	Dual Port 10Gb Converged Network Adapter [PCIe 2.0 x8]	-	-	✓
N8117-01A	Serial Port Adapter	-	-	✓

Copyright Notice and Liability Disclaimer

The information contained herein is subject to change without notice.

Microsoft and Windows Server are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries

Intel and Xeon are registered trademarks or trademarks of Intel Corporation or its subsidiaries in the United States and other countries.

Linux is a trademark of Linus Torvalds.

Red Hat is a registered trademark of Red Hat, Inc. in the U.S.

All other products, brands, or trade names used in this document are trademarks or registered trademarks of their respective holders.

NEC shall not be liable for technical or editorial errors or omissions contained herein.

For hard drive capacity measurements, 1GB = 1 billion bytes. Actual formatted capacity is less.

Revision History

Revision	Date	Description
6.3	February 13, 2012	Discontinued products removed:250GB 3.5-inch SATA HDD / N8150-209APart number changed:146.5GB 2.5-inch SAS HDD / N8150-374300GB 2.5-inch SAS HDD / N8150-375450GB 2.5-inch SAS HDD / N8150-376600GB 2.5-inch SAS HDD / N8150-377
6.2	January 23, 2012	New products added:4GB Memory Kit / N8102-429FDiscontinued products removed:4GB Memory Kit / N8102-373FPart number changed:73.2GB 2.5-inch SAS HDD / N8150-378146.5GB 2.5-inch SAS HDD / N8150-379
6.1	January 11, 2012	Discontinued products removed:SCSI Controller / N8103-107100BASE-SX Adapter / N8104-112Others:Correct incorrect information in internal drive configuration using 3TB 3.5-inch SATA drive
6.0	December 14, 2011	New products added:3TB 3.5-inch SATA HDD / N8150-3372GB Memory Kit / N8102-428FDiscontinued products removed:1GB Memory Kit / N8102-371F2GB Memory Kit / N8102-372F2GB Memory Kit / N8102-387
5.2	September 15, 2011	Others:Correct incorrect part numbers for 50 GB SSD, PS/2 Switch Unit Connection Cable Set.Correct incorrect information in Specification and 9.1 17-inch LCD Console Printer.
5.1	August 26, 2011	Others:Add the note for the on-board SATA controller
5.0	July 29th, 2011	New products added:300GB 15K 2.5-inch SAS HDD / N8150-331900GB 10K 2.5-inch SAS HDD / N8150-332Discontinued products removed:SCSI Controller / N8103-75100BASE-TX Adapter / N8104-111
4.0	June 6th, 2011	New product added:Internal DVD Super Multi Drive / N8151-104F
3.0	April 8th, 2011	New products added:1TB 7.2K 2.5-inch SATA HDD / N8150-334
2.0	February 16th, 2011	Others:50GB SSD is re-added.
1.0	February 14th, 2011	Initial release
