USER MANUAL FQ 83.1 (ICE) HA HOTPOINT ARISTON

595 mm. 595 mm. 24 mm. 545 mm. 5 mm. 567 mm. 23 mm. 593 mm. 45 mm.558 mm.547 mm. min. Installation 560 mm. 45 mm. ! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance. ! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance. Positioning ! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard. see Precautions and tips

! The appliance must be installed by a qualified person in compliance with the instructions provided. Incorrect installation may cause harm to persons, animals or may damage property. Fitting the appliance Use the appropriate cabinet to ensure that the appliance functions properly.

• The panels adjacent to the oven must be made of heat-resistant material.

• Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C.

• To install the oven under the counter ( see diagram

and in a kitchen unit, the cabinet must have the following dimensions: ! The appliance must not come into contact with electrical parts once it has been installed. The consumption indications on the data plate have been calculated for this type of installation. Ventilation To ensure good ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm ( see diagrams

Centring and fastening Position the 4 tabs on the side of the oven according to the 4 holes of the outer frame. Adjust the tabs according to the thickness of the cabinet side panel, as shown below: thickness of 20 mm: take off the removable part of the tab

thickness of 18 mm: use the first groove, which has already been set in the factory ( see diagram

thickness of 16 mm: use the second groove ( see diagram

Secure the appliance to the cabinet by opening the oven door and putting 4 screws into the 4 holes of the outer frame. ! All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool.15

Centring and fixing*

1. Position brackets

“A”“A” “A”“A” “A” against oven support

“C”“C” “C”“C” “C” against brackets “A” “A” “A” “A” “A”. If the thickness of the cabinet side panel:

• is 16 mm thick: place the tab so that the number 16 written on it is facing you;

• is 18 mm thick: place the tab so that the part without any text is facing you;

• is 20 mm thick: do not fit the tab.

3. Fix the brackets and tabs onto the edge of the

cabinet side panel using screws “D”.“D”. “D”.“D”. “D”.

4. Fix the oven to the cabinet using the screws and

plastic washers “E” “E” “E” “E” “E”. Electrical connections ! Ovens equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate located on the appliance ( see below

Fitting the power supply cable

1. Open the terminal

board by inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover

clamp screw and remove it, using a screwdriver as a lever (see figure).

contact screws L-N- , then fasten the wires under the screw heads, respecting the colour code: Blue (N), Brown (L) and Yellow-Green Verde (

Connecting the supply cable to the mains Install a standardised plug corresponding to the load indicated on the data plate ( see side

The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains, suitable for the load indicated and complying with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50°C. ! The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations. Before connecting to the power supply, make sure that:

• The appliance is earthed and the plug is compliant with the law.

• The socket can withstand the maximum power of the appliance, which is indicated on the data plate

• The voltage must be in the range between the values indicated on the data plate ( see below

• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only ( see Assistance

! The manufacturer declines any liability should! The manufacturer declines any liability should ! The manufacturer declines any liability should! The manufacturer declines any liability should ! The manufacturer declines any liability should these safety measures not be observed.these safety measures not be observed. these safety measures not be observed.these safety measures not be observed. these safety measures not be observed.

• Only on certain models.

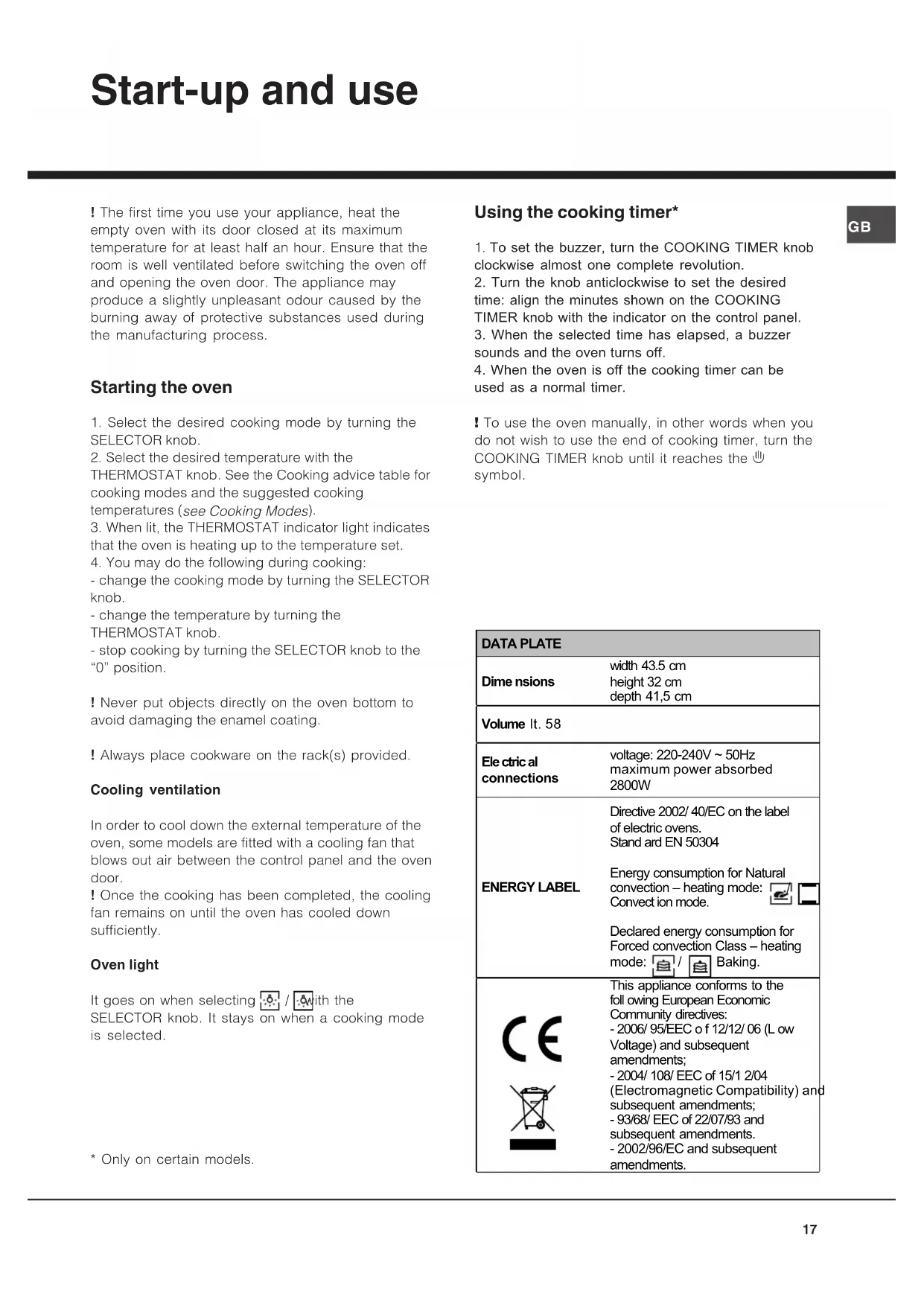

Start-up and use ! The first time you use your appliance, heat theempty oven with its door closed at its maximumtemperature for at least half an hour. Ensure that theroom is well ventilated before switching the oven offand opening the oven door. The appliance mayproduce a slightly unpleasant odour caused by theburning away of protective substances used duringthe manufacturing process. Starting the oven 1. Select the desired cooking mode by turning theSELECTOR knob.2. Select the desired temperature with theTHERMOSTAT knob. See the Cooking advice table forcooking modes and the suggested cookingtemperatures ( see Cooking Modes

3. When lit, the THERMOSTAT indicator light indicatesthat the oven is heating up to the temperature set.4. You may do the following during cooking:- change the cooking mode by turning the SELECTORknob.- change the temperature by turning theTHERMOSTAT knob.- stop cooking by turning the SELECTOR knob to the“0” position.! Never put objects directly on the oven bottom toavoid damaging the enamel coating.! Always place cookware on the rack(s) provided.Cooling ventilationIn order to cool down the external temperature of theoven, some models are fitted with a cooling fan thatblows out air between the control panel and the ovendoor.! Once the cooking has been completed, the coolingfan remains on until the oven has cooled downsufficiently.Oven lightIt goes on when selecting / with theSELECTOR knob. It stays on when a cooking modeis selected. Using the cooking timer* 1. To set the buzzer, turn the COOKING TIMER knobclockwise almost one complete revolution.2. Turn the knob anticlockwise to set the desiredtime: align the minutes shown on the COOKINGTIMER knob with the indicator on the control panel.3. When the selected time has elapsed, a buzzersounds and the oven turns off.4. When the oven is off the cooking timer can beused as a normal timer.! To use the oven manually, in other words when youdo not wish to use the end of cooking timer, turn theCOOKING TIMER knob until it reaches the 9symbol.DATA PLATE Dime nsions width 43.5 cm height 32 cm depth 41,5 cm Volume lt. 58 Ele ctric al connections voltage: 220-240V ~ 50Hz maximum power absorbed 2800W ENERGY LABEL Directive 2002/ 40/EC on the label of electric ovens. Stand ard EN 50304 Energy consumption for Natural convection – heating mode: / Convect ion mode. Declared energy consumption for Forced convection Class – heating mode: / Baking. This appliance conforms to the foll owing European Economic Community directives: - 2006/ 95/EEC o f 12/12/ 06 (L ow Voltage) and subsequent amendments; - 2004/ 108/ EEC of 15/1 2/04 (Electromagnetic Compatibility) and subsequent amendments; - 93/68/ EEC of 22/07/93 and subsequent amendments. - 2002/96/EC and subsequent amendments.

Setting the clock ! The clock may be set when the oven is switched off or when it is switched on, provided that a the end time of a cooking cycle has not been programmed previously. After the appliance has been connected to the mains, or after a blackout, the icon and the four numerical digits on the DISPLAY will begin to flash.

button several times until the icon and the four digits on the display begin to flash.

2. Use the “+” and “-” buttons to adjust the time; if

you press and hold either button, the display will scroll through the values more quickly, making it quicker and easier to set the desired value.

3. Wait for 10 seconds or press the

button again to finalise the setting. Setting the timer ! This function does not interrupt cooking and does not affect the oven; it is simply used to activate the buzzer when the set amount of time has elapsed.

button several times until the icon and the three digits on the display begin to flash.

2. Use the “+” and “-” buttons to set the desired

time; if you press and hold either button, the display will scroll through the values more quickly, making it quicker and easier to set the value.

3. Wait for 10 seconds or press the

button again to finalise the setting. The display will then show the time as it counts down. When this period of time has elapsed the buzzer will be activated. Programming cooking ! A cooking mode must be selected before programming can take place. Programming the cooking duration

button several times until the icon and the three digits on the DISPLAY begin to flash.

2. Use the “+” and “-” buttons to set the desired

duration; if you press and hold either button, the display will scroll through the values more quickly, making it quicker and easier to set the value.

3. Wait for 10 seconds or press the

button again to finalise the setting.

4. When the set time has elapsed, the text END

appears on the DISPLAY, the oven will stop cooking and a buzzer sounds.

• For example: it is 9:00 a.m. and a time of 1 hour and 15 minutes is programmed. The programme will stop automatically at 10:15 a.m. Setting the end time for a cooking mode ! A cooking duration must be set before the cooking end time can be scheduled.

1. Follow steps 1 to 3 to set the duration as detailed

button until the icon and the four digits on the DISPLAY begin to flash.

3. use the “+” and “-” buttons to adjust the cooking

end time; if you press and hold either button, the display will scroll through the values more quickly, making it quicker and easier to set the desired value.

4. Wait for 10 seconds or press the

button again to finalise the setting.

5. When the set time has elapsed, the text END

appears on the DISPLAY, the oven will stop cooking and a buzzer sounds. Programming has been set when the and buttons are illuminated. The DISPLAY shows the cooking end time and the cooking duration alternately. Cancelling a programme To cancel a programme:

• press the button until the icon corresponding to the setting you wish to cancel and the digits on the display are no longer flashing. Press the “-” button until the digits 00:00 appear on the display.

• Press and hold the “+” and “-” buttons; this will cancel all the settings selected previously, including timer settings.19

Cooking modes Cooking modes ! A temperature value can be set for all cooking modes between 60°C and Max, except for

• BARBECUE (recommended: set only to MAX power level);

• GRATIN (recommended: do not exceed 200°C).

LEAVENING LEAVENING LEAVENING LEAVENING LEAVENING mode The oven reaches and maintains a temperature of 40°C irrespective of the position of the THERMOSTAT knob. This mode is ideal for leavening dough made with yeast.

TRADITIONAL OVEN mode Both the top and bottom heating elements will come on. With this traditional cooking mode, it is best to use one cooking rack only: if more than one rack is used, the heat distribution will be uneven.

BAKING BAKING BAKING BAKING BAKING mode The rear heating element and the fan come on, guaranteeing the distribution of heat delicately and uniformly throughout the oven. This mode is ideal for baking and cooking temperature sensitive foods such as cakes that need to rise and to prepare certain tartlets on 3 shelves simultaneously.

FAST COOKING mode The heating elements and the fan come on, guaranteeing the distribution of heat consistently and uniformly throughout the oven. Pre-heating is not necessary for this cooking mode. This mode is especially recommended for cooking pre-packed food quickly (frozen or pre-cooked). The best results are obtained if you use one cooking rack only.

MULTI-COOKING MULTI-COOKING MULTI-COOKING MULTI-COOKING MULTI-COOKING mode All the heating elements (top, bottom and circular), as well as the fan, will come on. Since the heat remains constant throughout the oven, the air cooks and browns food uniformly. A maximum of two racks may be used at the same time.

PIZZA PIZZA PIZZA PIZZA PIZZA mode The heating elements (bottom and circular) and the fan come on. This combination heats the oven rapidly by producing a considerable amount of heat, particularly from the bottom element. If you use more than one rack simultaneously, switch the position of the dishes halfway through the cooking process.

BARBECUE BARBECUE BARBECUE BARBECUE BARBECUE mode The top heating element and the rotisserie (where present) come on. The high and direct temperature of the grill is recommended for food that requires high surface temperature. Always cook in this mode with the oven door closed.

GRATIN GRATIN GRATIN GRATIN GRATIN mode The top heating element as well as the fan and the rotisserie (where present) come on. This combination of features increases the effectiveness of the unidirectional thermal radiation of the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface, allowing the heat to penetrate right into the food. Always cook in this mode with the oven door closed. The Rotisserie (only available on certain models) To operate the rotisserie

see diagram ) proceed as follows:

1. Place the dripping pan in position 1.

2. Place the rotisserie support in position 3 and insert

the spit in the hole provided on the back panel of the oven.

3. Start the rotisserie using the knob to select MODE

/ or / . ! When / mode is on, the rotisserie will stop if the door is opened.20

Practical cooking advice ! Do not place racks in position 1 and 5 during fan- assisted cooking. Excessive direct heat can burn temperature sensitive foods. ! In the BARBECUE and GRATIN cooking modes, particularly when using the rotisserie, place the dripping pan in position 1 to collect cooking residues (fat and/or grease). MULTI-COOKING

• Use position 2 and 4, placing the food that requires more heat on 2.

• Place the dripping pan on the bottom and the rack on top. BARBECUE

• Insert the rack in position 3 or 4. Place the food in the centre of the rack.

• We recommend that you set the maximum power level. The top heating element is regulated by a thermostat and may not always be on. PIZZA MODE

• Use a light aluminium pizza pan. Place it on the rack provided. For a crispy crust, do not use the dripping pan (prevents crust from forming by extending cooking time).

• If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process.21

Cooking advice table Cooking modes Food

Weight (in kg) Ra ck Position Pre-heating time (minutes) Rec ommended temperature Cooking time (minutes) Leavening Leavening process of dough mad e with yeas t or baking powder (br ioc hes , b re ad,

Traditional Oven Duck Roast vea l or be ef Pork r oas t Biscuits (short pastry) Tarts

65 -7 5 70 -7 5 70 -8 0 15 -2 0 30 -3 5 Baking Mode Tarts Fruit cakes Plum cake Sponge cake Stuffe d pancakes ( on 2 rac ks) Small cakes (on 2 racks) Chees e puffs (on 2 racks) Cream puffs ( on 3 rac ks) Biscuits (on 3 racks) Merin

2 and 4 2 and 4 2 and 4 1 and 3 and 5 1 and 3 and 5 1 and 3 and 5

20 -2 5 Fres h Food Biscuits (short pastry) Plum cake Chees e

Multi- cooking Piz za (o n 2 rac ks) Lasagne Lamb Roast chicken + potatoes Mac ker el Plum cake Cream puffs ( on 2 rac ks) Biscuits (on 2 racks) Spong e cake (on 1 rac k) Sponge cake (on 2 racks) Savoury pies

Max Max Max 80 -9 0 70 -8 0 70 -8 0 Gratin Grilled chicken Cuttlefish

Precautions and tips ! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.

• When handling the appliance, always use the handles provided on the sides of the oven.

• Do not touch the appliance with bare feet or with wet or moist hands and feet.

• The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.

• When the appliance is in use, the heating elements and some parts of the oven door become extremely hot. Make sure you don't touch them and keep children well away.

• Ensure that the power supply cable of other electrical appliances does not come into contact with the hot parts of the oven.

• The openings used for ventilation and dispersion of heat must never be covered.

• Always grip the oven door handle in the centre: the ends may be hot.

• Always use oven gloves to place cookware in the oven or when removing it.

• Do not use aluminium foil to line the bottom of the oven.

• Do not place flammable materials in the oven: if the appliance is switched on by mistake, it could catch fire.

• Always make sure the knobs are in the “z”/“ position when the appliance is not in use.

• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.

• Never carry out any cleaning or maintenance work without having unplugged the plug from the mains.

• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre ( see Assistance

• Do not rest heavy objects on the open oven door.

• Do not let children play with the appliance.

• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance. Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes. Observe existing legislation when disposing of the old appliance.

• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Respecting and conserving the environment

• By using the appliance in the hours between late afternoon and early morning, you can help reduce the work load placed on electrical companies.

• Always keep the oven door closed when using the BARBECUE and GRATIN modes: to attain best results and to save energy (approximately 10%).

• Regularly check the door seals and wipe clean to ensure they are free of debris so that they stick properly to the door and do not allow heat to disperse. Assistance Communicating:

• appliance model (Mod.)

• serial number (S/N) This information is found on the data plate located on the appliance and/or on the packaging.23

Maintenance and care Switching the appliance off Disconnect your appliance from the electricity supplybefore carrying out any work on it. Cleaning the appliance

• The stainless-steel or enamel-coated external parts aswell as the rubber seals may be cleaned using asponge that has been soaked in lukewarm water andneutral soap. If these stains are difficult to remove,use only specialised products. After cleaning, rinseand dry thoroughly. Do not use abrasive powders orcorrosive substances.• Ideally, the inside of the oven should be cleaned aftereach use, when it is still lukewarm. Use hot water anddetergent, rinse and dry with a soft cloth. Do not useabrasive products.• All accessories - with the exception of the slidingracks - can be washed like everyday crockery, andare even dishwasher safe.! Never use steam cleaners or pressure cleaners onthe appliance. Cleaning the oven door Clean the glass part of the oven door using a spongeand a non-abrasive cleaning product, then drythoroughly with a soft cloth. Do not use rough abrasivematerial or sharp metal scrapers as these could scratchthe surface and cause the glass to crack.To clean more thoroughly, youcan remove the oven door.1. Open the oven door fully see diagram

2. Use a screwdriver to lift upand turn the small levers

located on the two hinges ( see diagram

3. Grip the door on the twoexternal sides and close itapproximately half way. Unlockthe door by pressing on theclamps

F, then pull the doortowards you lifting it out of itsseat (see diagram 3. Grip the door on the twoouter sides and close itapproximately half way. Pullthe door towards you lifting itout of its seat (see diagram To replace the door, reversethis sequence.Inspecting the sealsCheck the door seals around the oven periodically. Ifthe seals are damaged, please contact your nearestAfter-sales Service Centre (see Assistance). Werecommend not using the oven until the seals havebeen replaced. Replacing the light bulb To replace the oven light bulb:1. Remove the glass cover ofthe lamp-holder.2. Remove the light bulb andreplace it with a similar one:Wattage 25 W, cap E 14.3. Replace the glass cover ( see diagram

Sliding Rack Kit assembly To assemble the sliding racks:1. Loosen the two screws A see diagram). If the oven isfitted with self-cleaning panels,these will have to be temporarilydisassembled.2. Replace the screws A with thescrews and spacers (B + C) suppliedwith the kit.3. Tighten the new screws B and thecorresponding spacers C, fitting theself-cleaning panels on again.4. Secure the two joints D of theguide rail in the holes providedon the oven walls (see diagram The holes for the left guide railare situated at the top, while theholes for the right one are at thebottom.5. Finally, fit the guide rail on the spacer C.! Do not place the sliding racks in position 5.
