730S3 - Shaver BRAUN - Free user manual and instructions

USER MANUAL 730S3 BRAUN

off Series 7 Series 7 Series 7 Series 7

(Audio Supplies Company Ltd.)

trimmer onoffonoff Series 7 730s- 3 intensivesensitive trimmer

99466913_730s-3_S3.indd 199466913_730s-3_S3.indd 1 25.01.2010 14:17:39 Uhr25.01.2010 14:17:39 Uhr4

Our products are designed to meet the highest

standards of quality, functionality and design. We

hope you enjoy your new Braun Shaver.

Your shaver is provided with a special cord

set, which has an integrated Safety Extra Low

Voltage power supply. Do not exchange or

tamper with any part of it, otherwise there is risk

This appliance is not intended for use by children

or persons with reduced physical, sensory

or mental capabilities, unless they are given

supervision by a person responsible for their

safety. In general, we recommend that you keep

the appliance out of reach of children. Children

should be supervised to ensure that they do not

play with the appliance.

1 Foil & Cutter cassette

2 Cassette release button

3 Shaver head «lock» switch

The best environmental temperature for charging

is between 5 °C and 35 °C.

• Using the special cord set w, connect the

shaver to an electrical outlet with the motor

switched off and charge it for at least one hour.

• A full charge provides up to 50 minutes

of cordless shaving time. This may vary

according to your beard growth.

• If the rechargeable battery has run out of

power (discharged), you may also shave by

connecting the shaver to an electrical outlet via

the special cord set.

The green indicator fl ashes when the shaver is

being charged or when in use.

When the battery is fully charged, the charge

segment «high» (720) / «high» «mid» (730) will

light up continuously provided that the shaver is

switched on or connected to an electrical outlet.

The red «low» indicator fl ashes when the battery

capacity has dropped below 20%, provided the

shaver is switched on. The remaining capacity

will then be suffi cient for 2 to 3 shaves.

Personalizing your shaver

Personalizing your shaver

With the «sensitive» 6 and «intensive» 7

buttons you can choose the best setting for

shaving different areas of your face and as per

your specifi c needs. The different settings are

indicated by the pilot light incorporated in the

shave in sensitive areas of your

For a thorough and fast shave we recommend

the «intensive» setting.

Pressing the « + » or « – » button activates your

preferred setting. When switching on next time,

the last used setting will be activated. chargeh i

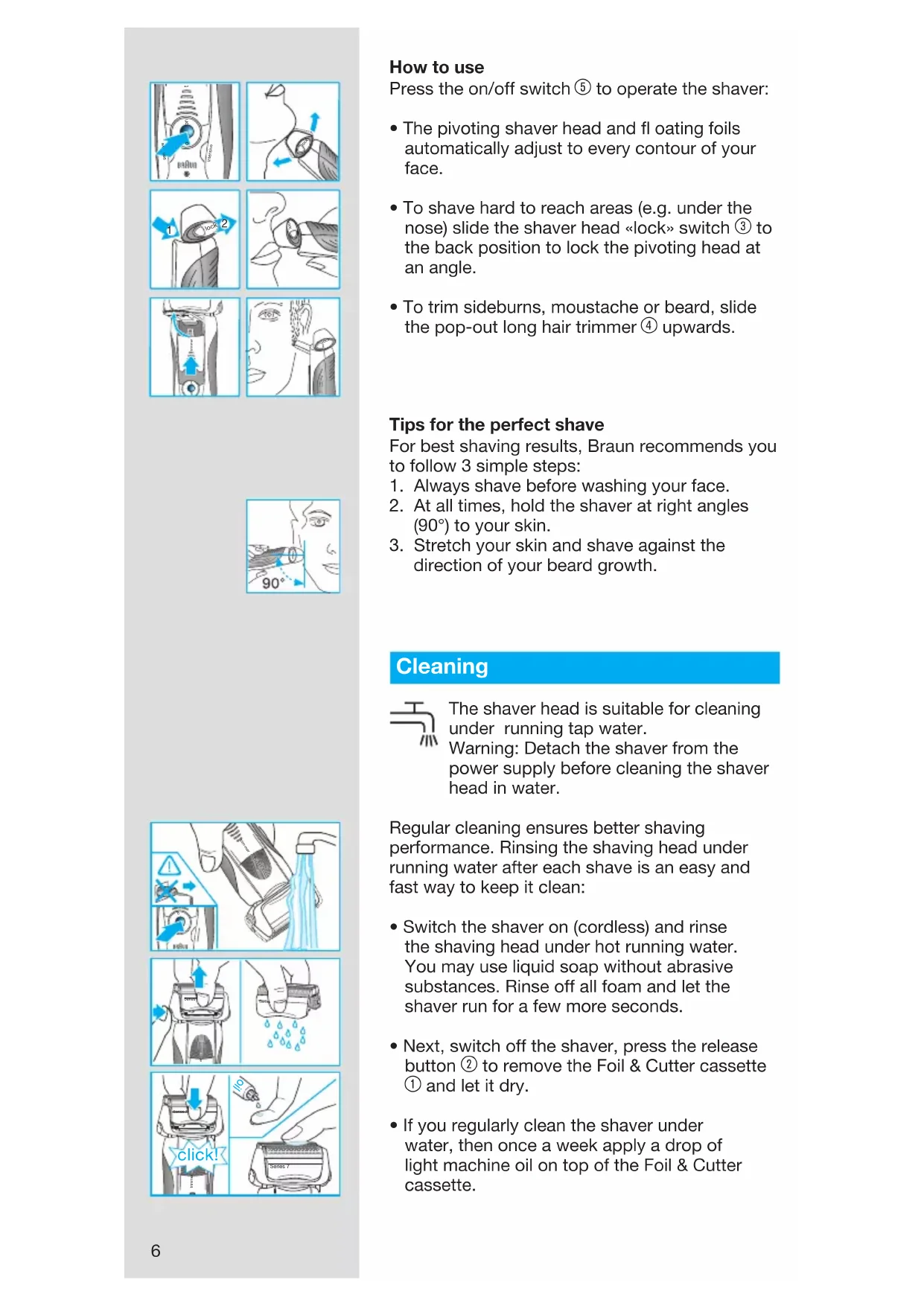

Press the on/off switch

5 to operate the shaver:

• The pivoting shaver head and fl oating foils

automatically adjust to every contour of your

• To shave hard to reach areas (e.g. under the

nose) slide the shaver head «lock» switch 3 to

the back position to lock the pivoting head at

Tips for the perfect shave

For best shaving results, Braun recommends you

to follow 3 simple steps:

1. Always shave before washing your face.

2. At all times, hold the shaver at right angles

3. Stretch your skin and shave against the

direction of your beard growth.

The shaver head is suitable for cleaning

under running tap water.

Warning: Detach the shaver from the

power supply before cleaning the shaver

Regular cleaning ensures better shaving

performance. Rinsing the shaving head under

running water after each shave is an easy and

fast way to keep it clean:

• Switch the shaver on (cordless) and rinse

the shaving head under hot running water.

You may use liquid soap without abrasive

substances. Rinse off all foam and let the

shaver run for a few more seconds.

• Next, switch off the shaver, press the release

button 2 to remove the Foil & Cutter cassette

• If you regularly clean the shaver under

water, then once a week apply a drop of

light machine oil on top of the Foil & Cutter

cassette. t rreset lock 1

Alternatively, you may clean the shaver using the

• Switch off the shaver. Remove the Foil & Cutter

1 and tap it out on a fl at surface.

Using the brush, clean the inner area of the

pivoting head. However, do not clean the foil

and cutter cassette with the brush as this may

Keeping your shaver in top shape

Replacing the Foil & Cutter cassette / reset

To maintain 100% shaving performance,

replace the Foil & Cutter cassette 1, when the

replacement symbol lights up on the shaver

display 9 (after about 18 months) or when

The replacement symbol will remind you during

the next 7 shaves to replace the Foil & Cutter

cassette. Then the shaver will automatically reset

After you have replaced the Foil & Cutter

cassette, use a ball-pen to push the reset button

8 for at least 3 seconds to reset the counter.

While doing so, the replacement light blinks and

goes off when the reset is complete. The manual

reset can be done at any time.

Available at your dealer or Braun Service

• Foil & Cutter cassette 70S Environmental notice

This product contains rechargeable

batteries. In the interest of protecting the

environment, please do not dispose of the

product in household waste at the end of

its useful life. Disposal can take place at a

Braun Service Centre or at appropriate

collection points provided in your country.

Subject to change without notice.

For electric specifi cations, see printing on the

special cord set. releasereleaserelease Series 7

We grant a 2 year guarantee on the product

commencing on the date of purchase. Within the

guarantee period we will eliminate any defects in

the appliance resulting from faults in materials or

workmanship, free of charge either by repairing

or replacing the complete appliance at our

This guarantee extends to every country where

this appliance is supplied by Braun or its

appointed distributor.

This guarantee does not cover: damage due to

improper use, normal wear and tear (e.g. shaver

foil or cutter block) as well as defects that have

a negligible effect on the value or operation of

the appliance. The guarantee becomes void if

repairs are undertaken by unauthorised persons

and if original Braun parts are not used.

To obtain service within the guarantee period,

hand in or send the complete appliance with

your sales receipt to an authorised Braun

Customer Service Centre (address information

available online at www.service.braun.com).

This guarantee in no way affects your rights

under statutory law.

99466913_730s-3.indd 899466913_730s-3.indd 8 25.01.2010 14:24:29 Uhr25.01.2010 14:24:29 Uhr9

Braun Service Center.

ononoffoff intensive

oil trimmer on erreleasetrimmerrelease

ononoffoff intensive

oil trimmer on erreleasetrimmerrelease

• releasereleaserelease Series 7
