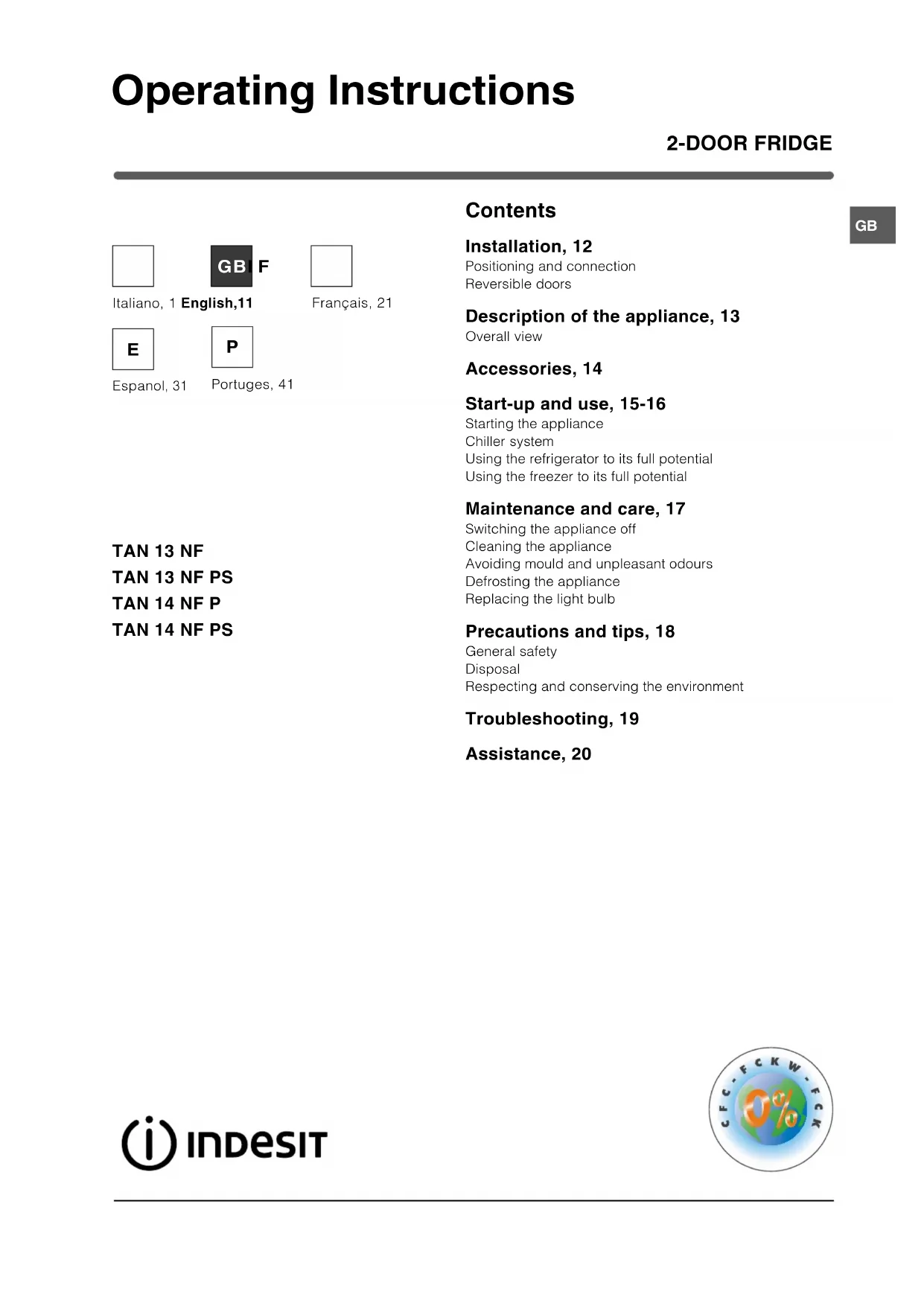

USER MANUAL TAN 14 NF PS INDESIT

Positioning and connection

Description of the appliance, 13

Start-up and use, 15-16

Starting the appliance

Using the refrigerator to its full potential

Using the freezer to its full potential

Maintenance and care, 17

Switching the appliance off

Cleaning the appliance

Avoiding mould and unpleasant odours

Defrosting the appliance

Replacing the light bulb

Precautions and tips, 18

Respecting and conserving the environment

Operating Instructions

GB Installation ! Before placing your new appliance into operation pleaseread these operating instructions carefully. They containimportant information for safe use, for installation and forcare of the appliance.! Please keep these operating instructions for futurereference. Pass them on to possible new owners of theappliance. Positioning and connection

Positioning 1. Place the appliance in a well-ventilated humidity-freeroom.2. Do not obstruct the rear fan grills. The compressor andcondenser give off heat and require good ventilation tooperate correctly and save energy.3. Leave a space of at least 10 cm between the top part ofthe appliance and any furniture above it, and at least 5cm between the sides and any furniture/side walls.4. Ensure the appliance is away from any sources of heat(direct sunlight, electric stove, etc.).5. In order to maintain the correct distance between theappliance and the wall behind it, fit the spacers suppliedin the installation kit, following the instructions provided. Levelling 1. Install the appliance on a level and rigid floor.2. If the floor is not perfectly horizontal, adjust therefrigerator by tightening or loosening the rear feet. Electrical connections After the appliance has been transported, carefully place itvertically and wait at least 3 hours before connecting it tothe electricity mains. Before inserting the plug into theelectrical socket ensure the following:• The appliance is earthed and the plug is compliant withthe law.• The socket can withstand the maximum power of theappliance, which is indicated on the data plate located onthe bottom left side of the fridge (e.g. 150 W).• The voltage must be in the range between the valuesindicated on the data plate located on the bottom leftside (e.g. 220-240V).• The socket is compatible with the plug of the appliance.If the socket is incompatible with the plug, ask anauthorised technician to replace it ( see Assistance ). Donot use extension cords or multiple sockets.! Once the appliance has been installed, the power supplycable and the electrical socket must be easily accessible.! The cable must not be bent or compressed.! The cable must be checked regularly and replaced byauthorised technicians only (see Assistance).! The manufacturer declines any liability should thesesafety measures not be observed. Reversible doors

Overall view The instructions contained in this manual are applicable to different model refrigerators. The diagrams may notdirectly represent the appliance purchased. For more complex features, consult the following pages.  Varies by number and/or position.

* Available only on certain models. Levelling FEETRemovable liddedshelf with EGG TRAYRemovablemultipurposeSHELVESBOTTLE shelfREFRIGERATOROPERATION Knob FREEZERcompartmentFREEZEROPERATION Knob

( see Maintenance ) MULTI-USE *

bin FRUIT andVEGETABLE

GB Accessories SHELVES: with or without grill.Due to the special guides theshelves are removable and theheight is adjustable ( see

diagram ), allowing easy storageof large containers and food.Height can be adjusted withoutcomplete removal of the shelf.MULTI-USE * bin: to store food (such as cold meats)for a long time and also prevent odours from lingeringin the refrigerator.TEMPERATURE * Indicator light: to identify the coldestarea in the refrigerator.1. Check that OK appears clearly on the indicator light (

noir consulter la notice2. If the word “OK” does not appear it means that thetemperature is too high: adjust the REFRIGERATOROPERATION knob to a higher (colder) position andwait approximately 10 hours until the temperature hasstabilised.3. Check the indicator light again: if necessary, readjustit following the initial process. If large quantities offood have been added or if the refrigerator door hasbeen opened frequently, it is normal for the indicatornot to show OK. Wait at least 10 hours beforeadjusting the REFRIGERATOR OPERATION knob to ahigher setting.PLAY ZONE * : Thanks to the new “Play Zone” bottlerack, you can cool several bottles, cans and energydrinks quickly to have them constantly at hand.If the “Play Zone” is placed on the glass shelf, you canstore large and medium sized bottles on it simply bylaying the bottle on the flat rack.

This is ideal for storingwine bottles.

When folded and secured in place on eitherside of the shelf, the rack can be used to store cans (atthe top), energy drinks (in the centre) and other cansand energy drinks can be rested horizontally on theremaining part of the shelf.

When placing cans (onto thePlay zone rack), make sure they do not touch the backof the refrigerator interior.The “Play Zone” can be used just like a normal shelf(when placed flat) and moved up or down along thefridge walls together with the rest of the shelf. It can bewashed easily, and is also dishwasher safe. The idealposition for the Play zone rack is the central shelf. * Available only on certain models. 1

Starting the appliance ! Before starting the appliance, follow the installationinstructions ( see Installation

). ! Before connecting the appliance, clean thecompartments and accessories well with lukewarmwater and bicarbonate.! The appliance comes with a motor protection controlsystem which makes the compressor start approximately8 minutes after being switched on. The compressor alsostarts each time the power supply is cut off whethervoluntarily or involuntarily (blackout).1. Insert the plug into the socket and ensure that theinternal light illuminates ( the FREEZER OPERATIONknob must not be on the  position) . 2. Turn the FREEZER OPERATION knob andREFRIGERATOR OPERATION knob to an averagevalue. After a few hours you will be able to put food inthe refrigerator. Setting the temperature The temperature inside therefrigerator compartmentautomatically adjusts itselfaccording to the positionof the thermostat knob.min= warmestmax = coldestWe recommend, however,a medium position. Chiller system No FrostIt is recognisable byaeration cells located onthe back walls of thecompartments.The No Frost systemcirculates cold aircontinuously to collecthumidity and prevent iceand frost formation. Thesystem maintains anoptimal humidity level inthe compartment,preserving the original quality of the food, preventing thefood from sticking together and making defrosting a thingof the past. Do not block the aeration cells by placingfood or containers in direct contact with the refrigeratingback panel. Close bottles and wrap food tightly. Using the refrigerator to its full potential • Place only cold or lukewarm foods in the compartment,not hot foods ( see Precautions and tips

). • Remember that cooked foods do not last longer thanraw foods.• Do not store liquids in open containers. They willincrease humidity in the refrigerator and causecondensation to form.Food hygiene1. Once you have bought your food, remove all externalpackaging made of paper/cardboard or otherwrappers, which could introduce bacteria or dirtinside your refrigerator.2. Protect the food, (especially easily perishable itemsand those that have a strong smell), in order to avoidcontact between them, thereby removing both thepossibility of germ/bacteria contamination as well asthe diffusion of strong odours inside the fridge.3. Store all food in such a way as to ensure air cancirculate freely between different items.4. Keep the inside of your fridge clean, taking care notto use oxidiser or abrasive products.5. Remove all food past its expiry date from therefrigerator.6. For the correct preservation of food, all easilyperishable items (soft cheeses, raw fish, meat, etc.)should be stored in the coldest zone of the fridgecompartment, i.e. just above the salad crisper wherethe temperature indicator is situated.16

GB Using the freezer to its full potential

The temperature inside the

automatically adjusts itself

according to the position of

We recommend, however, a

ECO is the optimal temperature for energy saving levels.

switches the appliance off, including the refrigerator.

• Do not re-freeze food that is defrosting or that has

already been defrosted. These foods must be cooked

and eaten (within 24 hours).

• Fresh food that needs to be frozen must not come into

contact with food that has already been defrosted.

Fresh food must be stored in the top FREEZER and

STORAGE compartment where the temperature drops

below -18°C and guarantees rapid freezing.

WARNING: to avoid blocking the air circulation inside

the freezer compartment, it is advisable not to obstruct

the ventilation holes with food or containers.

• Do not place glass bottles which contain liquids, and

which are corked or hermetically sealed in the freezer

because they could break.

• The maximum quantity of food that may be frozen daily

is indicated on the plate containing the technical

properties located on the bottom left side of the

refrigerator compartment (for example: Kg/24h: 4)

! Do not open the door during freezing.

! If there is a power cut or malfunction, do not open the

freezer door. This will help maintain the temperature

inside the freezer, ensuring that foods are conserved for

at least 9 -14 hours.GB

Maintenance and care

Switching the appliance off

During cleaning and maintenance it is necessary to

disconnect the appliance from the electricity supply:

1. set the FREEZER OPERATION knob on

2. pull the plug out of the socket

Cleaning the appliance

• The external and internal parts, as well as the rubber

seals may be cleaned using a sponge that has been

soaked in lukewarm water and bicarbonate of soda or

neutral soap. Do not use solvents, abrasive products,

• The removable accessories may be soaked in warm

water and soap or dishwashing liquid. Rinse and dry

• The back of the appliance may collect dust which can

be removed by delicately using the hose of a vacuum

cleaner set on medium power. The appliance must be

switched off and the plug must be pulled out before

cleaning the appliance.

Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic materials

which are odour free. In order to maintain an odour free

refrigerator and to prevent the formation of stains, food

must always be covered or sealed properly.

• If you want to switch the appliance off for an extended

period of time, clean the inside and leave the doors

Replacing the light bulb

To replace the light bulb in the refrigerator compartment,

pull out the plug from the electrical socket. Follow the

Access the light bulb by removing the cover as

indicated in the diagram.

Replace it with a similar light bulb within the power

range indicated on the cover (10W).18

GB Precautions and tips

! The appliance was designed and manufactured in

compliance with international safety standards. The

following warnings are provided for safety reasons and

must be read carefully.

This appliance complies with the following

Community Directives:

- 73/23/EEC of 19/02/73 (Low Voltage) and

subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic

Compatibility) and subsequent amendments;

• The appliance was designed for domestic use inside

the home and is not intended for commercial or

• The appliance must be used to store and freeze food

products by adults only and according to the

instructions in this manual.

• The appliance must not be installed outdoors, even in

covered areas. It is extremely dangerous to leave the

appliance exposed to rain and storms.

• Do not touch the appliance with bare feet or with wet or

moist hands and feet.

• Do not touch the internal cooling elements: this could

cause skin abrasions or frost/freezer burns.

• When unplugging the appliance always pull the plug

from the mains socket, do not pull on the cable.

• Before cleaning and maintenance, always switch off

the appliance and disconnect it from the electrical

supply. It is not sufficient to set the temperature

(appliance off) to eliminate all

• In the case of a malfunction, under no circumstances

should you attempt to repair the appliance yourself.

Repairs carried out by inexperienced persons may

cause injury or further malfunctioning of the appliance.

• Do not use devices or tools other than the special

scraper provided inside the compartments.

• Do not put ice cubes taken directly from the freezer

• Do not allow children to tamper with the controls or

play with the appliance. Under no circumstance should

they be allowed to sit on the bins or to hang from the

• Keep packaging material out of the reach of children! It

can become a choking or suffocation hazard.

• Observe local environmental standards when

disposing packaging material for recycling purposes.

• The European Directive 2002/96/EC on Waste

Electrical and Electronic Equipment (WEEE), requires

that old household electrical appliances must not be

disposed of in the normal unsorted municipal waste

stream. Old appliances must be collected separately

in order to optimise the recovery and recycling of the

materials they contain and reduce the impact on

human health and the environment. The crossed out

“wheeled bin” symbol on the product reminds you of

your obligation, that when you dispose of the

appliance it must be separately collected.

Consumers should contact their local authority or

retailer for information concerning the correct disposal

of their old appliance.

Respecting and conserving the

• Install the appliance in a fresh and well-ventilated

room. Ensure that it is protected from direct sunlight

and do not place it near heat sources.

• Try to avoid keeping the door open for long periods or

opening the door too frequently in order to conserve

• Do not fill the appliance with too much food:

cold air must circulate freely for food to be preserved

properly. If circulation is impeded, the compressor will

• Do not place hot food directly into the refrigerator. The

internal temperature will increase and force the

compressor to work harder and will consume more

• Defrost the appliance if ice forms (

A thick layer of ice makes cold transference to food

products more difficult and results in increased

• Regularly check the door seals and wipe clean to

ensure they are free of debris and to prevent cold air

If the appliance does not work, before calling for Assistance (

), check for a solution from the following list.

The internal light does not

The motor does not start.

The refrigerator and the freezer do

The food inside the refrigerator is

beginning to freeze.

The motor runs continuously.

The appliance makes a lot of noise.

Some of the external parts of the

refrigerator become hot

Possible causes / Solutions:

• The plug has not been inserted into the electrical socket, or not far

enough to make contact, or there is no power in the house.

• The appliance comes with a motor protection control (

see Start-up and use

• The doors do not close properly or the seals are damaged.

• The doors are opened too frequently.

• The TEMPERATURE ADJUSTMENT knob is not in the correct position

• The refrigerator or the freezer have been over-filled.

• The TEMPERATURE ADJUSTMENT knob is not in the correct position.

• The door is not closed properly or is continuously opened.

• The outside ambient temperature is very high.

• The appliance has not been installed on a level surface (

• The appliance has been installed between cabinets that vibrate and

• The internal refrigerant makes a slight noise even when the compressor is

off. This is not a defect, it is normal.

• These raised temperatures are necessary in order to avoid the formation

of condensation on certain parts of the product.20
