USER MANUAL Doble puerta TAN 13 FF INDESIT

Positioning and connection

Description of the appliance, 13

Start-up and use, 14-15

Starting the appliance

Using the refrigerator to its full potential

Using the freezer to its full potential

Maintenance and care, 16

Switching the appliance off

Cleaning the appliance

Avoiding mould and unpleasant odours

Defrosting the refrigerator compartment

Replacing the light bulb

Precautions and tips, 17

Respecting and conserving the environment

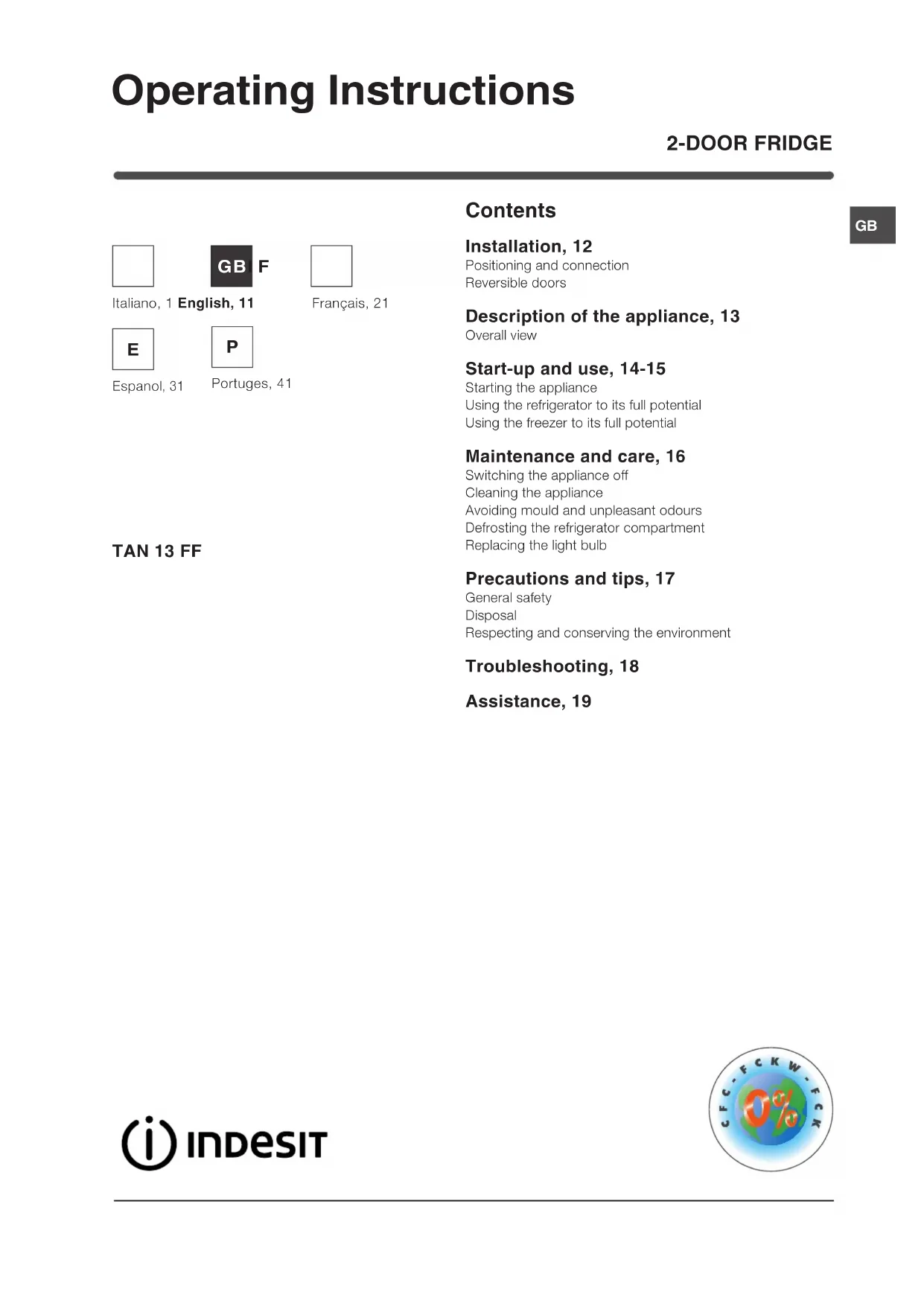

Operating Instructions

! Before placing your new appliance into operation please

read these operating instructions carefully. They contain

important information for safe use, for installation and for care

! Please keep these operating instructions for future

reference. Pass them on to possible new owners of the

Positioning and connection

1. Place the appliance in a well-ventilated humidity-free room.

2. Do not obstruct the rear fan grills. The compressor and

condenser give off heat and require good ventilation to

operate correctly and save energy.

3. Leave a space of at least 10 cm between the top part of

the appliance and any furniture above it, and at least 5 cm

between the sides and any furniture/side walls.

4. Ensure the appliance is away from any sources of heat

(direct sunlight, electric stove, etc.).

5. In order to maintain the correct distance between the

appliance and the wall behind it, fit the spacers supplied in

the installation kit, following the instructions provided.

1. Install the appliance on a level and rigid floor.

2. If the floor is not perfectly horizontal, adjust the refrigerator

by tightening or loosening the rear feet.

Electrical connections

After the appliance has been transported, carefully place it

vertically and wait at least 3 hours before connecting it to the

electricity mains. Before inserting the plug into the electrical

socket ensure the following:

 The appliance is earthed and the plug is compliant with the

 The socket can withstand the maximum power of the

appliance, which is indicated on the data plate located on

the bottom left side of the fridge (e.g. 150 W).

 The voltage must be in the range between the values

indicated on the data plate located on the bottom left side

 The socket is compatible with the plug of the appliance.

If the socket is incompatible with the plug, ask an

authorised technician to replace it (see Assistance). Do not

use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply

cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced by

authorised technicians only (see Assistance).

The manufacturer declines any liability should these

safety measures not be observed.

Overall view The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directlyrepresent the appliance purchased. For more complex features, consult the following pages.  Varies by number and/or position.

GB SHELVES: with or without grill.Due to the special guides theshelves are removable and theheight is adjustable (seediagram), allowing easy storageof large containers and food.Height can be adjusted withoutcomplete removal of the shelf. 1

Starting the appliance ! Before starting the appliance, follow the installationinstructions (see Installation).! Before connecting the appliance, clean thecompartments and accessories well with lukewarm waterand bicarbonate.! The appliance comes with a motor protection controlsystem which makes the compressor start approximately 8minutes after being switched on. The compressor alsostarts each time the power supply is cut off whethervoluntarily or involuntarily (blackout).1. Insert the plug into the socket and ensure that theinternal light illuminates.2. Turn the TEMPERATURE ADJUSTMENT knob to anaverage value. After a few hours you will be able to putfood in the refrigerator. Using the refrigerator to its full potential The temperature inside the refrigerator compartmentautomatically adjusts itself according to the position of thethermostat knob. 1 = warmest 5 = coldestWe recommend, however, a medium position.The cooling section of the refrigerator is located inside theback wall of the refrigerator compartment for increasedspace and improved aesthetics. During operation, the backwall will be covered in frost or water droplets depending onwhether the compressor is operating or paused. Do notworry, the refrigerator is functioning normally.If the TEMPERATURE ADJUSTMENT knob has been seton high values with large quantities of food and with a highambient temperature, the appliance can operatecontinuously, resulting in excessive frost formation andexcessive energy consumption: compensate for this byshifting the knob towards lower values (defrosting willoccur automatically). Place only cold or lukewarm foods in the compartment,not hot foods (see Precautions and tips). Remember that cooked foods do not last longer thanraw foods. Do not store liquids in open containers. They willincrease humidity in the refrigerator and causecondensation to form.In static appliances, the air circulates in a natural way: thecolder air tends to move downwards as it is heavier. Thefood should be stored as follows:)RRG$UUDQJHPHQWLQVLGHWKHUHIULJHUDWRUFresh fish and meat Above the fruit and vegetable bins Fresh cheese Above the fruit and vegetable bins Cooked food On any shelf Salami, bread loaf, chocolate On any shelf Fruit and vegetables In the fruit and vegetable bins Eggs On the shelf provided Butter and margarine On the shelf provided Bottles, drinks, milk On the shelf providedGB

Using the freezer to its full potential

 Do not re-freeze food that is defrosting or that has

already been defrosted. These foods must be cooked

and eaten (within 24 hours).

 Fresh food that needs to be frozen must not come into

contact with food that has already been defrosted. Fresh

food must be stored in the top FREEZER and STORAGE

compartment where the temperature drops below -18°C

and guarantees rapid freezing.

 Do not place glass bottles which contain liquids, and

which are corked or hermetically sealed in the freezer

because they could break.

 The maximum quantity of food that may be frozen daily is

indicated on the plate containing the technical properties

located on the bottom left side of the refrigerator

compartment (for example: Kg/24h: 4)

! Do not open the door during freezing.

To avoid blocking the air circulation inside the freezer, it is

advisable not to obstruct the ventilation holes with food or

! If there is a power cut or malfunction, do not open the

freezer door. This will help maintain the temperature inside

the freezer, ensuring that foods are conserved for at least 9

! To avoid blocking the air circulation inside the refrigerator,

it is advisable not to obstruct the ventilation holes with food

GB Maintenance and care

Switching the appliance off

During cleaning and maintenance it is necessary to

disconnect the appliance from the electricity supply:

1. set the FREEZER OPERATION knob on OFF

2. pull the plug out of the socket

Cleaning the appliance

 The external and internal parts, as well as the rubber

seals may be cleaned using a sponge that has been

soaked in lukewarm water and bicarbonate of soda or

neutral soap. Do not use solvents, abrasive products,

 The removable accessories may be soaked in warm

water and soap or dishwashing liquid. Rinse and dry

 The back of the appliance may collect dust which can

be removed by delicately using the hose of a vacuum

cleaner set on medium power. The appliance must be

switched off and the plug must be pulled out before

cleaning the appliance.

Avoiding mould and unpleasant odours

 The appliance is manufactured with hygienic materials

which are odour free. In order to maintain an odour free

refrigerator and to prevent the formation of stains, food

must always be covered or sealed properly.

 If you want to switch the appliance off for an extended

period of time, clean the inside and leave the doors

Defrosting the refrigerator compartment

The refrigerator has an

automatic defrosting

function: water is ducted to

the back of the appliance

by a special discharge

outlet (see diagram) where

the heat produced by the

compressor causes it to

evaporate. It is necessary

to clean the discharge hole

regularly so that the water

can flow out easily.

Replacing the light bulb

To replace the light bulb in the refrigerator compartment,

pull out the plug from the electrical socket. Follow the

Access the light bulb by

removing the cover as

indicated in the diagram.

Replace it with a similar

light bulb within the power

range indicated on the

Precautions and tips

! The appliance was designed and manufactured in

compliance with international safety standards. The

following warnings are provided for safety reasons and

must be read carefully.

This appliance complies with the following

Community Directives:

- 73/23/EEC of 19/02/73 (Low Voltage) and

subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic

Compatibility) and subsequent amendments;

 The appliance was designed for domestic use inside the

home and is not intended for commercial or industrial

 The appliance must be used to store and freeze food

products by adults only and according to the instructions

 The appliance must not be installed outdoors, even in

covered areas. It is extremely dangerous to leave the

appliance exposed to rain and storms.

 Do not touch the appliance with bare feet or with wet or

moist hands and feet.

 Do not touch the internal cooling elements: this could

cause skin abrasions or frost/freezer burns.

 When unplugging the appliance always pull the plug from

the mains socket, do not pull on the cable.

 Before cleaning and maintenance, always switch off the

appliance and disconnect it from the electrical supply. It

is not sufficient to set the temperature adjustment knobs

on OFF (appliance off) to eliminate all electrical contact.

 In the case of a malfunction, under no circumstances

should you attempt to repair the appliance yourself.

Repairs carried out by inexperienced persons may cause

injury or further malfunctioning of the appliance.

 Do not use any sharp or pointed utensils or electrical

equipment - other than the type recommended by the

manufacturer - inside the frozen food storage

 Do not put ice cubes taken directly from the freezer into

 Do not allow children to tamper with the controls or play

with the appliance. Under no circumstance should they

be allowed to sit on the bins or to hang from the door.

 Keep packaging material out of the reach of children! It

can become a choking or suffocation hazard.

 Observe local environmental standards when disposing

packaging material for recycling purposes.

 The European Directive 2002/96/EC on Waste Electrical

and Electronic Equipment (WEEE), requires that old

household electrical appliances must not be disposed of

in the normal unsorted municipal waste stream. Old

appliances must be collected separately in order to

optimise the recovery and recycling of the materials they

contain and reduce the impact on human health and the

environment. The crossed out wheeled bin symbol on

the product reminds you of your obligation, that when

you dispose of the appliance it must be separately

Consumers should contact their local authority or retailer

for information concerning the correct disposal of their

Respecting and conserving the

 Install the appliance in a fresh and well-ventilated room.

Ensure that it is protected from direct sunlight and do

not place it near heat sources.

 Try to avoid keeping the door open for long periods or

opening the door too frequently in order to conserve

 Do not fill the appliance with too much food: cold air

must circulate freely for food to be preserved properly. If

circulation is impeded, the compressor will work

 Do not place hot food directly into the refrigerator. The

internal temperature will increase and force the

compressor to work harder and will consume more

 Defrost the appliance if ice forms (see Maintenance). A

thick layer of ice makes cold transference to food

products more difficult and results in increased energy

 Regularly check the door seals and wipe clean to ensure

they are free of debris and to prevent cold air from

escaping (see Maintenance).18

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

The internal light does not

The motor does not start.

The refrigerator and the freezer do

The food inside the refrigerator is

beginning to freeze.

The motor runs continuously.

The appliance makes a lot of noise.

Some of the external parts of the

refrigerator become hot.

The back wall of the refrigerator unit

is covered in frost or droplets of

There is water at the bottom of the

Possible causes / Solutions:

 The plug has not been inserted into the electrical socket, or not far enough

to make contact, or there is no power in the house.

 The appliance comes with a motor protection control (see Start-up and use).

 The doors do not close properly or the seals are damaged.

 The doors are opened too frequently.

 The TEMPERATURE ADJUSTMENT knob is not in the correct position

 The refrigerator or the freezer have been over-filled.

 The atmospheric temperature of the area surrounding the appliance is

 The TEMPERATURE ADJUSTMENT knob is not in the correct position.

 The food is in contact with the back inside wall of the refrigerator.

 The door is not closed properly or is continuously opened.

 The outside ambient temperature is very high.

 The appliance has not been installed on a level surface (see Installation).

 The appliance has been installed between cabinets that vibrate and make

 The internal refrigerant makes a slight noise even when the compressor is

off. This is not a defect, it is normal.

 These raised temperatures are necessary in order to avoid the formation of

condensation on certain parts of the product.

 This shows the appliance is operating normally.

 The water discharge hole is blocked (see Maintenance).GB

Before calling for Assistance:

 Check if the malfunction can be solved on your own (see Troubleshooting).

 If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service

 type of malfunction

 appliance model (Mod.)

 serial number (S/N)

This information can be found on the data plate

located on the bottom left side of the

refrigerator compartment.

Never call on unauthorized technicians and always refuse spare parts which are not originals.

"MJNFOUT  3BOHFNFOUËMJOUÏSJF VSEV
