USER MANUAL LE46B553M3WXXN SAMSUNG

English - 1 English Symbol Press Note One-Touch Button BN68-01410A-00Eng-0220.indd 1 2008-02-20 11:30:58English - 2 List of Parts Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer. Remote Control & Batteries (AAA x 2) Power Cord Cover-Bottom Stand Screw X 4 Stand Cleaning Cloth Warranty card / Safety Guide / Registration Cards (Not available in all locations) The stand and stand screw may not be included depending on the model.

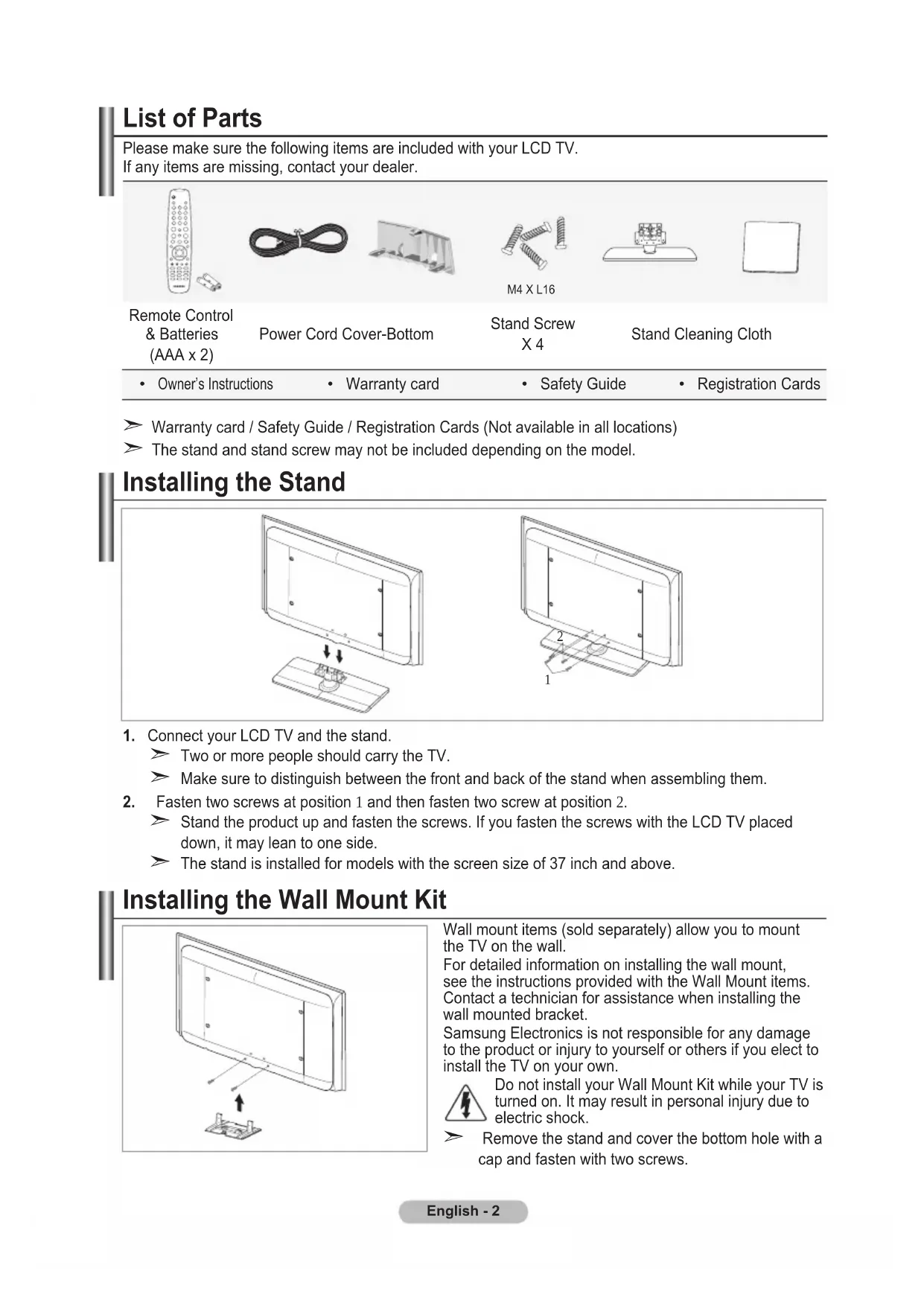

M4 X L16 Owner’s Instructions

Installing the Wall Mount Kit Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own. Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock. Remove the stand and cover the bottom hole with a cap and fasten with two screws.

1. Connect your LCD TV and the stand.

Two or more people should carry the TV. Make sure to distinguish between the front and back of the stand when assembling them.

2. Fasten two screws at position 1 and then fasten two screw at position 2.

Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one side. The stand is installed for models with the screen size of 37 inch and above.

BN68-01410A-00Eng-0220.indd 2 2008-02-20 11:31:00English - 3 Viewing the Control Panel The product colour and shape may vary depending on the model.

SOURCE Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2, HDMI3). In the on-screen menu, use this button as you use the ENTER button on the remote control.

Power Indicator Blinks and turns off when the power is on and lights up in stand-by mode.

(Power) Press to turn the TV on and off.

Remote Control Sensor Aim the remote control towards this spot on the TV.

MENU Press to see an on-screen menu of your TV’s features.

Press to decrease or increase the volume. In the on-screen menu, use the buttons as you use the ◄ and ► buttons on the remote control.

Press to change channels. In the on-screen menu, use the buttons as you use the

buttons on the remote control. (Without the Remote Control, you can turn on the TV by using the Channel buttons.)

Front Panel buttons Touch each button to operate. Side Panel buttons

BN68-01410A-00Eng-0220.indd 3 2008-02-20 11:31:01English - 4 Viewing the Connection Panel Whenever you connect an external device to your TV, make sure that power on the unit is turned off When connecting an external device, match the colour of the connection terminal to the cable.

1 PC IN [PC] / [AUDIO]

Connect to the video and audio output jack on your PC. 2 COMPONENT IN Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DVD. If you wish to connect both the Set-Top Box and DVD, you should connect the Set-Top Box to the DVD and connect the DVD to component connector ("PR", "PB", "Y") on your set. The PR, PB and Y connectors on your component devices (DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr. Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the DVD.

3 HDMI IN 1, HDMI IN 2, HDMI IN 3

Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players) No additional Audio connection is needed for an HDMI to HDMI connection. When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack. What is HDMI? “High Denition Multimedia interface” allows the transmission of high denition digital video data and multiple channels of digital audio. The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

The product colour and shape may vary depending on the model. Power Input[Side Panel Jacks]

BN68-01410A-00Eng-0220.indd 4 2008-02-20 11:31:01English - 5 The TV may not output sound and pictures may be displayed with abnormal colour when DVD players/Cable Boxes/Satellite receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVD player/Cable Box/Satellite receiver to conrm the HDMI version, then request a rmware update. HDMI cables that are not

DVI audio outputs for external devices. Supported modes for HDMI/DVI and Component 4 ANT IN To view television channels correctly, a signal must be received by the set from one of the following sources: An outdoor aerial / A cable television network / A satellite network 5 SERVICE Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control. 6 WISELINK Connect a USB mass storage device to view photo les (JPEG) and play audio les (MP3) 7 S-VIDEO or VIDEO / R-AUDIO-L Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder. Connect RCA audio cables to "R-AUDIO-L" on your set and the other ends to corresponding audio out connectors on the A/V device. 8 Headphones jack Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from the built-in speakers will be disabled.

9 AUDIO OUT [R-AUDIO-L]

Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio in connectors on the Amplier or DVD Home Theatre. 0 EXT 1, EXT 2 Connector Input Output Video Audio (L/R) RGB Video + Audio (L/R) EXT 1 O O O Only TV output is available. EXT 2 O O Output you can choose. Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players. ! Kensington Lock (depending on the model) The Kensington lock (optional) is a device used to physically x the system when used in a public place. If you want to use a locking device, contact the dealer where you purchased the TV. The location of the kensington lock may be different depending on its model.

480i 480p 576i 576p 720p 1080i 1080p HDMI/DVI 50Hz X X X O O O O HDMI/DVI 60Hz X O X X O O O Component O O O O O O O BN68-01410A-00Eng-0220.indd 5 2008-02-20 11:31:02English - 6 Viewing the Remote Control 1 Television Standby button 2 Selects the TV mode directly 3 Number buttons for directNumber buttons for direct channel access 4 One/Two-digit channel selection 5 +: Volume increase -: Volume decrease 6 Temporary sound switch-Temporary sound switch- off 7 It display "Channel List" on the screen. 8 Use to quickly selectUse to quickly select frequently used functions. 9 Use to see information onUse to see information on the current broadcast 0 Colour buttons :Colour buttons : Use these buttons in the Channel list and WISELINK, etc. @ Press to select the optionalPress to select the optional display and sound modes for sports, cinema and games. # Use these buttons in theUse these buttons in the DMA, WISELINK, and Anynet+. ( : This remote can be used to control recording on Samsung recorders with the Anynet

feature) $ Available source selectionAvailable source selection % Previous channel ^ P<: Next channel P>: Previous channel & Displays the main on-Displays the main on- screen menu

• This function enables youThis function enables you to view and play photo and music files from an external device. ( Returns to the previousReturns to the previous menu ) Control the cursor in theControl the cursor in the menu a Exit the on-screen menuExit the on-screen menu b Use this when connecting a SAMSUNG DMA (Digital Media Adapter) device through an HDMI interface and switching to DMA mode. (The DMA button is optional.) For more information on the operating procedures, refer to the user manual of the DMA. This button is available when “Anynet

(HDMI-CEC)" is “On” (see page 38) c Picture size selectionPicture size selection d Selects the HDMI mode directly. e Picture effect selection Teletext Functions 2 Exit from the teletext display 7 Teletext store 8 Teletext size selection 9 Teletext reveal 0 Fastext topic selection ! Alternately select Teletext, Double, or Mix. $ Teletext mode selection (LIST/FLOF) % Teletext sub page ^ P<: Teletext next page P>: Teletext previous page & Teletext index ( Teletext hold a Teletext cancel The performance of the remote control may be affected by bright light.

1. Lift the cover at the back of the remote control upward as shown in the

2. Install two AAA size batteries.

Make sure to match the "+" and "–" ends of the batteries with the diagram inside the compartment.

3. Replace the cover.

Remove the batteries and store them in a cool, dry place if you won’t be using the remote control for a long time. If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage, or is the power cord unplugged?

5. Is there a special uorescent light or neon sign nearby?

Switching On and Off The mains lead is attached to the rear of your set.

1. Plug the mains lead into an appropriate socket.

The standby indicator lights up on your set.

2. Press the P button

on your set. You also can press the POWER button or the TV button on the remote control to turn the TV on. The programme that you were watching last is reselected automatically.

3. Press the numeric button (0~9) or channel up/down (</>) button on the remote control or

button on your set. When you switch the set on for the very rst time, you will be asked to choose language in which the menus are to be displayed.

4. To switch your set off, press the POWER button again.

Placing Your Television in Standby Mode Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1. Press the POWER button on the remote control.

The screen is turned off and a red standby indicator appears on your set.

2. To switch your set back on, simply press the POWER , numeric buttons (0~9), TV button or channel

up/down (</>) button again. Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to unplug the set from the mains and aerial.

The main menu appears on the screen. The menu’ s left side has icons: Picture, Sound, Channel, Setup, Input.

2. Press the ▲ or ▼ button to select one of the icons.

The on-screen menus disappear from the screen after about one minute.

Using the TOOLS Button You can use the TOOLS button to select your frequently used functions quickly and easily. The “Tools” menu change depending on which external input mode you are viewing.

1. Press the TOOLS button.

The “Tools” menu will appear.

ENTER buttons to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page. Anynet+ (HDMI-CEC), see page 38 Picture Mode, see page 15 Sound Mode, see page 21 Sleep Timer, see page 23 SRS TS XT, see page 21 Energy Saving, see page 26 Dual l-ll, see page 22 PIP, see page 20 Auto Adjustment, see page 29

ToolsAnynet+ (HDMI-CEC)Picture Mode : StandardSound Mode : CustomSleep Timer : OffSRS TS XT : OffEnergy Saving : OffDual l-ll : MonoMove Enter ExitPicture Mode : Standard Backlight 7 Contrast 95 Brightness 45 Sharpness 50 Colour 50Tint G50 R50 Detailed Settings sMore Move Enter Return BN68-01410A-00Eng-0220.indd 8 2008-02-20 11:31:04English - 9 Plug & Play When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available. The Screen Saver is activated if there is no remote control key input for longer than 1 minute while "Plug & Play" is running. The Screen Saver is activated if there is no operating signal for longer than 15 minutes.

1. Press the POWER button on the remote control.

The message "Start Plug & Play" is displayed with "OK" selected.

2. Select the appropriate language by pressing the

button. Press the ENTER button to conrm your choice.

button to select “Store Demo” or “Home Use”, then the ENTER button. We recommend setting the TV to "Home Use" mode for the best picture in your home environment. "Store Demo" mode is only intended for use in retail environments. If the unit is accidentally set to “Store Demo” mode and you want to return to “Home Use” (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

4. The message "Check antenna input." is displayed with "OK" selected.

Press the ENTER button. Please check that the antenna cable is connected correctly.

5. Select the appropriate country by pressing the

button. Press the ENTER button to conrm your choice.

The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER button. The channel search will start and end automatically. Press the ENTER button at any time to interrupt the memorization process. After all the available channels are stored, the "Clock Set" menu appears.

button. You can also set the “Month”, “Day”, “Year”, “Hour” and "Minute" by pressing the number buttons on the remote control.

ENTER button to conrm your setting. The message “Enjoy your viewing” is displayed. When you have nished, press the ENTER button. Even if the ENTER button is not pressed, the message will automatically disappear after several seconds. Language: Select your language. Country: Select your country. Auto Store: Automatically scans for and stores channels available in the local area. Clock Set: Sets the current time for the TV clock.

BN68-01410A-00Eng-0220.indd 9 2008-02-20 11:31:04English - 10 If you want to reset this feature...

ENTER button again, to select "Plug & Play". For further details on setting up options, refer to the page 9. The “Plug & Play” feature is only available in the TV mode. Storing Channels Automatically Storing Channels Manually

Auto Store Manual Store Channel Manager Sort Name Fine Tune Move Enter Return Storing Channels Automatically You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

3. Select the appropriate country by pressing the ▲ or ▼ button.

Press the ENTER button to conrm your choice.

ENTER button. The TV will begin memorizing all of the available channels. Press the ENTER button at any time to interrupt the memorization process and return to the "Channel" menu.

6. After all the available channels are stored, the "Sort" menu appears. (refer to page 13)

BN68-01410A-00Eng-0220.indd 10 2008-02-20 11:31:05English - 11 Storing Channels Manually You can store television channels, including those received via cable networks. When storing channels manually, you can choose: ♦ Whether or not to store each of the channels found. ♦ The programme number of each stored channel which you wish to identify.

3. Select the required option by pressing the ▲ or ▼ button, then

press the ENTER button.

4. When you are satised with your setting, press the

Programme (Programme number to be assigned to a channel) Press the ▲ or ▼ button until you nd the correct number. You can also select the channel number directly by pressing the numeric buttons (0~9). Colour System: Auto/PAL/SECAM/NTSC4.43 Press the ▲ or ▼ button to select the required colour standard. Sound System: BG/DK/I/L Press the ▲ or ▼ button to select the required sound standard. Channel (When you know the number of the channel to be stored) Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel). Press the ► button, then press the ▲ or ▼ button to select the required number. You can also select the channel number directly by pressing the numeric buttons (0~9). If there is abnormal sound or no sound, re-select the sound standard required. Search (When you do not know the channel numbers) Press the ▲ or ▼ button to start the search. The tuner scans the frequency range until the rst channel or the channel that you selected is received on the screen. Store (When you store the channel and associated programme number) Set to "OK" by pressing the ENTER button. Channel mode P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode. C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode. S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

Move Enter Return BN68-01410A-00Eng-0220.indd 11 2008-02-20 11:31:06English - 12 Adding / Locking Channels Using the Channel Manager, you can conveniently lock or add channels.

2. Press the ▲ or ▼ button to select "Channel Manager", then

press the ENTER button. ♦ Adding channels Using the Channel List, you can add channels.

3. Select Channel List by pressing the

4. Move to the ( ) eld by pressing the ▲, ▼, ◄ or ►

button, select a channel to be added, and press the ENTER button to add the channel. If you press the ENTER button again, the ( ) symbol next to the channel disappears and the channel is not added. “ ” is active when "Child Lock" is selected to "On". ♦ Locking channels This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio.

6. Select "On" by pressing the ▲ or ▼ button, then press the

8. Move to the ( ) eld by pressing the ▲, ▼, ◄ or ► button,

select a channel to be locked, and press the ENTER button. If you press the ENTER button again, the ( ) symbol next to the channel disappears and the channel lock is cancelled. A blue screen is displayed when "Child Lock" is activated.

9. Press the EXIT button to exit.

Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on " " to be active or inactive. You can select these options by simply pressing the CH LIST button on the remote control

Channel Manager Channel List Child Lock : Off Move Enter Return BN68-01410A-00Eng-0220.indd 12 2008-02-20 11:31:08English - 13 Sorting the Stored Channels This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.

3. Select the channel number that you wish to change by

pressing the ▲ or ▼ button repeatedly. Press the ENTER button. The selected channel number and name are moved to right side.

4. Press the ▲ or ▼ button to move to the position in which you

would like to change and then press the ENTER button. The selected channel is exchanged with the one previously stored to the chosen number.

5. Repeat steps 3 to 4 for another channel to be sorted.

Assigning Channels Names Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

3. If necessary, select the channel to be assigned to a new

name by pressing the ▲ or ▼ button. Press the ENTER button The selection bar is displayed around the name box.

The following characters are available: Letters of the alphabet (A~Z) / Numbers (0~9) / Special characters (+, -, *, /, space)

5. Repeat steps 3 to 4 for each channel to be assigned to a new name.

BN68-01410A-00Eng-0220.indd 13 2008-02-20 11:31:09English - 14 Fine Tuning Channel Reception Use fine tuning to manually adjust a particular channel for optimal reception.

1. Use the number buttons to directly select the channel that

you want to ne tune.

Fine tuned channels that have been saved are marked with an asterisk "*" on the right-hand side of the channel number in the channel banner. And the channel number turns red. To reset the ne-tuning, select "Reset" by pressing the ▲ or ▼ button and then press the ENTER button.

Reset Adjust Save Return BN68-01410A-00Eng-0220.indd 14 2008-02-20 11:31:10English - 15 Changing the Picture Standard You can select the type of picture which best corresponds to your viewing requirements.

3. Press the ▲ or ▼ button to select the desired picture effect.

Dynamic: Selects the picture for high-definition in a bright room. Standard: Selects the picture for optimum display in a normal environment. Movie: Selects the picture for comfortable display in a dark room.

The Picture mode must be adjusted separately for each input source. You can also press the P.MODE button on the remote control to select one of the picture settings. Easy Setting

1. Press the TOOLS button on the remote control.

4. Press the EXIT or TOOLS button to exit.

PictureMode : Standard Backlight 7Contrast 95Brightness 45Sharpness 50 Colour 50Tint G50 R50 Detailed Settings sMore Move Enter ReturnDynamicStandardMoviePictureMode : Standard Backlight 7Contrast 95Brightness 45Sharpness 50 Colour 50Tint G50 R50 Detailed Settings sMore Move Enter ReturnToolsAnynet+ (HDMI-CEC)Picture Mode ◄ Standard ►Sound Mode : CustomSleep Timer : OffSRS TS XT : OffEnergy Saving : OffDual l-ll : MonoMove Adjust Exit BN68-01410A-00Eng-0220.indd 15 2008-02-20 11:31:11English - 16 Adjusting the Custom Picture Your set has several settings which allow you to control picture quality.

1. To select the desired picture effect, follow the

"Changing the Picture Standard" instructions number 1 to 3.

Backlight: Adjusts the screen brightness by adjusting the LCD backlight brightness. (0~10) Contrast: Adjusts the lightness and darkness between objects and the background. Brightness: Adjusts the brightness of the whole screen. Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull. Colour: Adjusts the colours, making them lighter or darker. Tint: Adjusts the colour of objects, making them more red or green for a more natural look.

The adjusted values are stored according to the selected Picture mode. In PC mode, you can only make changes to "Backlight”, “Contrast" and “Brightness”. TV, Ext., AV, S-Video modes of the PAL system, you cannot use the "Tint" Function. You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 17)

Conguring Detailed Settings on the Picture You can set detailed picture settings.

4. Select the required option by pressing the ▲ or ▼ button, then

press the ENTER button.

5. When you are satised with your setting, press the

"Detailed Settings" is available in "Standard" or "Movie" mode. In PC mode, you can only make changes to “Dynamic Contrast”, “Gamma” and “White Balance” from among the “Detailed Settings” items. Black Adjust: Off/Low/Medium/High You can directly select the black level on the screen to adjust the screen depth. Dynamic Contrast: Off/Low/Medium/High You can adjust the screen contrast so that the optimal contrast is provided.

Move Adjust ReturnPictureMode : Standard Backlight 7Contrast 95Brightness 45Sharpness 50 Colour 50Tint G50 R50 Detailed Settings sMore Move Enter ReturnDetailed SettingsBlack Adjust : Off Dynamic Contrast : Medium Gamma : 0 Colour Space : Custom White Balance Flesh Tone : 0 Edge Enhancement : On xvYCC : Off Move Enter Return PictureMode : Standard Backlight 7Contrast 95Brightness 45Sharpness 50 Colour 50Tint G50 R50 Detailed Settings sMore Move Enter Return BN68-01410A-00Eng-0220.indd 16 2008-02-20 11:31:12English - 17 Gamma: -3 ~ +3 You can adjust the Primary Colour (Red, Green, Blue) Intensity. Press the ◄ or ► button until you reach the optimal setting. Colour Space: Auto/Native/Custom Colour space is a Colour matrix composed of “Red”, “Green” and “Blue” Colours. Select your favourite Colour space to experience the most natural Colour. ♦ Auto: Auto Color Space automatically adjusts to the most natural color tone based on program sources. ♦ Native: Native Color Space offers deep and rich color tone. ♦ Custom: Adjusts the color range to suit your preference. Customizing the Colour Space Colour: Red/Green/Blue/Yellow/Cyan/Magenta Adjusts the Colour range to suit your preference. “Colour” is available when “Colour Space” is set to “Custom”. Press the ▲ or ▼ button to select “Red”, “Green”, “Blue”, “Yellow”, “Cyan” or “Magenta”. Press the ENTER button. Red/Green/Blue: In “Colour”, you can adjust the RGB values for the selected colour. Press the ▲ or ▼ button to select "Red", "Green" or "Blue" to change it. Press the ENTER button. Press the ◄ or ► button to decrease or increase the value of a particular item. Press the ENTER button. Reset: Resets the colour space to the default values. White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset You can adjust the colour temperature for more natural picture colours. R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. Press the ◄ or ► button until you reach the optimal setting. Reset: The previously adjusted white balance will be reset to the factory defaults. Flesh Tone: -15 ~ +15 You can emphasize the pink 'flesh tone' in the picture. Press the ◄ or ► button until you reach the optimal setting. Changing the adjustment value will refresh the adjusted screen. Edge Enhancement: Off/On You can emphasize object boundaries in the picture. xvYCC: Off/On Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this feature. Only available in "HDMI" and "Component" on "Movie" mode. If xvYCC function is active, PIP cannot be selected.

Resetting the Picture Settings to the Factory Defaults You can return to the factory defaults picture settings.

1. To select the desired picture effect, follow the "Changing the

3. Select the required option by pressing the ▲ or ▼ button, then

press the ENTER button.

4. When you are satised with your setting, press the

In PC mode, you can only make changes to the “Colour Tone” and “Size” from among the items in “Picture Options”. Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2 You can select the most comfortable colour tone to your eyes. The adjusted values are stored according to the selected "Picture" mode. “Warm1” or “Warm2” is only activated when the picture mode is "Movie". Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan You can select the picture size which best corresponds to your viewing requirements. Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio. 16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting. Wide Zoom: Magnify the size of the picture more than 4:3. Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size. 4:3: This is the default setting for a video movie or normal broadcasting. Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i/ 1080p) or Component (1080i/1080p) signals are input.

"Auto Wide" function is available only in "TV", "Ext.1", "Ext.2", "AV", and "S-Video" mode. In PC Mode, only "16:9" and "4:3" mode can be adjusted. Settings can be adjusted and stored for each external device you have connected to an input of the TV. Temporary image retention may occur when viewing a static image on the set for more than two hours. "Wide Zoom": Move the screen up/down using the ▲ or ▼ button after selecting the by pressing the ► or ENTER button. "Zoom": Select by pressing the ◄ or ►button. Use the ▲ or ▼ button to move the picture up and down. After selecting , use the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction. When Double ( , ) mode has been set in PIP, the Picture Size cannot be set. After selecting “Just Scan” in HDMI (1080i/1080p) or Component (1080i/1080p) mode: Select by pressing the ◄ or ►button. Use the ▲, ▼, ◄ or ► button to move the picture. Reset: Press the ◄ or ► button to select “Reset”, then press the ENTER button. You can initialize the setting. You can select these options by simply pressing the P.SIZE button on the remote control.

BN68-01410A-00Eng-0220.indd 18 2008-02-20 11:31:13English - 19 Screen Mode: 16:9/Wide Zoom/Zoom/4:3 When setting the picture size to "Auto Wide" in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it. 16:9: Sets the picture to 16:9 wide mode. Wide Zoom: Magnify the size of the picture more than 4:3. Zoom: Magnify the size of the picture vertically on screen. 4:3: Sets the picture to 4:3 normal mode.

This function is available in "Auto Wide" mode. This function is not available in "PC", "Component" or "HDMI" mode. Digital NR: Off/Low/Medium/High/Auto If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen. When the signal is weak, select one of the other options until the best picture is displayed. DNIe: Off/ Demo/On This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality. DNIe

(Digital Natural Image engine) This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIe

technology will t every signal into your eyes. This function is not available in "Movie" and "Standard" mode. HDMI Black Level: Normal/Low You can directly select the black level on the screen to adjust the screen depth. This function is active only when the external input connects to HDMI(RGB signals). Movie Plus: Off/Low/Medium/High/Demo You can view more natural skin and clear text even in fast moving scenes. Use this function when watching movies. This function is not available in “Wide Zoom” and “Zoom” modes. This function is not available when "PIP" is set to "On". It is not supported in HDMI 1080p/24Hz mode. Blue Only Mode: Off/On This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc. Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/ Cyan/Magenta/Yellow Colour Bar Patterns, without using an additional Blue Filter. “Blue Only Mode” is available when the picture mode is set to “Movie” or “Standard”.

BN68-01410A-00Eng-0220.indd 19 2008-02-20 11:31:14English - 20 Viewing the Picture In Picture (PIP) You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

3. Select the required option by pressing the ▲ or ▼ button, then

press the ENTER button.

4. When you are satisfied with your setting, press the

You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke. Easy Setting

1. Press the TOOLS button on the remote control.

5. Press the EXIT or TOOLS button to exit.

PIP: On/Off You can activate or deactivate the PIP function. Main picture Sub picture Component TV, Ext.1, Ext.2, AV HDMI 1, 2, 3 TV, Ext.1, Ext.2, AV PC TV, Ext.1, Ext.2, AV Source You can select a source of the sub-picture. Size: / / You can select a size of the sub-picture. If main picture is in "HDMI" mode, "Size" is available. Position: / / / You can select a position of the sub-picture. In Double ( , ) mode, "Position" cannot be selected. Programme You can select a channel of the sub-picture only when the "Source" is set to "TV".

2. Select the required option by pressing the ▲ or ▼ button, then

press the ENTER button.

3. When you are satised with your setting, press the

Mode: Standard/Music/Movie/Speech/Custom You can select the type of special sound effect to be used when watching a given broadcast. Easy Setting

1. Press the TOOLS button on the remote control.

4. Press the EXIT or TOOLS button to exit.

Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz The sound settings can be adjusted to suit your personal preferences. If you make any changes to these settings, the sound mode is automatically switched to "Custom".

SRS TS XT: Off/On TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats. Easy Setting

1. Press the TOOLS button on the remote control.

4. Press the EXIT or TOOLS button to exit.

TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc. Auto Volume: Off/On Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

ToolsAnynet+ (HDMI-CEC)Picture Mode : StandardSound Mode ◄ Custom ►Sleep Timer : OffSRS TS XT : OffEnergy Saving : OffDual l-ll : MonoMove Adjust ExitToolsAnynet+ (HDMI-CEC)Picture Mode : StandardSound Mode : CustomSleep Timer : Off SRS TS XT ◄ Off ► Energy Saving : OffDual l-ll : MonoMove Adjust Exit BN68-01410A-00Eng-0220.indd 21 2008-02-20 11:31:16English - 22 Connecting Headphones (Sold separately) You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room. When you insert the head set jack into the corresponding port, you can operate only "Auto Volume" and "Sound Select"(in PIP mode) in Sound menu. Prolonged use of headphones at a high volume may damage your hearing. You will not receive sound from the speakers when you connect headphones to the system. The headphone volume and TV volume are adjusted differently.

TV Speaker: Off/On If you want to hear the sound through separate speakers, cancel the internal amplifier. The +, - and MUTE buttons do not operate when the "TV Speaker" is set to Off. When “TV Speaker” is set to “Off”, you can operate only “Sound Select” (in PIP mode) in Sound menu. Sound Select: Main/Sub When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture. − Main: Used to listen to the sound of the main picture. − Sub: Used to listen to the sound of the sub picture.

Selecting the Sound Mode You can set the sound mode in the "Tools" menu. When you set to "Dual I-II", the current sound mode is displayed on the screen.

1. Press the TOOLS button on the remote control.

DUAL 1 If the stereo signal is weak and an automatic switching occurs, then switch to the Mono. This function is only activated in stereo sound signal. It is deactivated in mono sound signal. This function is only available in TV mode.

The current time will appear every time you press the INFO button. You can also set "Year", "Month", "Day", "Hour" and "Minute" by pressing the number buttons on the remote control.

To... Press the.... Move to "Month", "Day", "Year", "Hour" or "Minute" ◄ or ► button. Set the "Month", "Day", "Year", "Hour" or "Minute" ▲ or ▼ button. Conrm the setting ENTER button Setting the Sleep Timer You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

4. Press the ▲ or ▼ button repeatedly until the desired time

The TV automatically switches to standby mode when the timer reaches 0. Easy Setting

1. Press the TOOLS button on the remote control.

4. Press the EXIT or TOOLS button to exit.

3. Press the ▲ or ▼ button to select "Timer 1", "Timer 2",

"Timer 3", then press the ENTER button. Three different On/Off Timer Settings can be made. You must set the clock first.

4. Press the ◄ or ► button to select the required item below.

Press the ▲ or ▼ button to adjust to the setting satised. On Time : Select hour, minute and "Activate"/"Inactivate". (To activate timer with the setting satised, set to "Activate".) Off Time : Select hour, minute and "Activate"/"Inactivate". (To activate timer with the setting satised, set to "Activate".) Volume : Select the desired turn on volume level. Repeat : Select "Once", "Everyday", "Mon~Fri", "Mon~Sat" or "Sat~Sun". Programme : When the On Timer is active, you can turn on a specic channel. You can set the hour and minute directly by pressing the number buttons on the remote control. Auto Power Off When you set the timer On, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time.

Choosing Your Language When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

3. Select a particular language by pressing the ▲ or ▼ button

repeatedly. Press the ENTER button.

2. Select the required option by pressing the ▲ or ▼ button, then

press the ENTER button.

3. When you are satised with your setting, press the ENTER

Melody: Off/Low/Medium/High The TV power on/off melody sound can be adjusted. The Melody does not play − When no sound is output from the TV because the MUTE button has been pressed. − When no sound is output from the TV because the - (Volume) button has been pressed. − When the TV is turned off by Sleep Timer function.

Setting the Light Effect (depending on the model) You can turn on/off the LED on the front of TV according to the situation. Use it for saving power or when the LED dazzles your eyes.

3. Press the ▲ or ▼ button to select "Off", "In Standby", "In

Watching TV" or "Always". Press the ENTER button. Off: LED will not come on. In Standby: Turns the LED on in standby mode. In Watching TV: Turns the LED on while watching TV. Always: LED is always on.

Set the "Light Effect" to "Off" to reduce the power consumption.

Setup Plug & Play Language : English Time Light Effect : In Watching TV Auto Wall-Mount Melody : Off Entertainment : Off Energy Saving : Off PIP Move Enter Return LED BN68-01410A-00Eng-0220.indd 25 2008-02-20 11:31:20English - 26 Entertainment: Off/Sports/Cinema/Game The “Entertainment” mode enables you to select the optimal display and sound for sports, cinema and games. − Off: Switch the "Entertainment" function off. − Sports: Provides the optimal picture and sound quality for sports. You can enjoy more thrilling colour and sound. − Cinema: Provides the optimal picture and sound quality for cinema. You can experience a richer picture and enhanced sound. − Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV. If you set any of the three “Entertainment” modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the “Entertainment” mode must be turned off. The “Entertainment” settings are saved for each input source. If you set any of the three “Entertainment” modes to On, “SRS TS XT” function is not available. You can press the E.MODE button on the remote control repeatedly to change the “Entertainment” setting. Energy Saving: Off/Low/Medium/High/Auto This feature adjusts the screen brightness depending on the surrounding lighting conditions. − Off: Turns off the energy saving function. − Low: Sets the TV to low energy saving mode. − Medium: Sets the TV to medium energy saving mode. − High: Sets the TV to high energy saving mode. − Auto: Automatically adjusts the brightness of the TV screen in accordance with the scenes. Easy Setting

1. Press the TOOLS button on the remote control.

4. Press the EXIT or TOOLS button to exit.

3. Press the ▲ or ▼ button to select the device that you wish to

edit. Press the ENTER button.

4. Press the ▲ or ▼ button to select the required device.

When a PC with a resolution of 1920 x 1080@60Hz is connected to the HDMI IN 2 port, you should set the "HDMI2" mode to "PC" in the "Edit Name" of the "Input" mode.

Selecting the Source You can select among external sources connected to your TV’s input jacks.

2. Press the ENTER button again, to select "Source List".

When no external device is connected to your set, only "TV", "Ext.1", "Ext.2" are activated in the "Source List". "AV", "S-Video", "Component", "PC", "HDMI1", "HDMI2","HDMI3" are activated only when they are connected to your set.

3. Select the required device by pressing the ▲ or ▼ button.

Press the ENTER button. Press the SOURCE button on the remote control to toggle between all the available source. TV mode can be selected by pressing the TV button, number buttons(0~9), and the P</> button on the remote control. You can also watch HDMI mode simply by pressing the HDMI button on the remote control.

CEA 1920 x 1080p 67.500 60.000 148.500 + / + When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack. The interlace mode is not supported. The set might operate abnormally if a non-standard video format is selected. Separate and Composite modes are supported. SOG is not supported. Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080 or 1600x1200).

Setting up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

1. First, click on "Control Panel" on the Windows start menu.

2. When the control panel window appears, click on "Appearance and Themes"

and a display dialog-box will appear.

3. When the control panel window appears, click on "Display" and a display

dialog-box will appear.

4. Navigate to the "Settings" tab on the display dialog-box.

The correct size setting (resolution): Optimum- 1920 X 1080 If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box. BN68-01410A-00Eng-0220.indd 28 2008-02-20 11:31:22English - 29 Setting up the TV with your PC Press the SOURCE button to select PC mode.

2. Select the required option by pressing the ▲ or ▼ button,

then press the ENTER button.

3. When you are satised with your setting, press the ENTER

Auto Adjustment Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically. Easy Setting

1. Press the TOOLS button on the remote control.

2. Press the ▲ or ▼ button to select “Auto Adjustment”, then

press the ENTER button. Screen: Coarse/Fine The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Fine- tune again. After the noise has been reduced, readjust the picture so that it is aligned on the center of screen. Press the ▲ or ▼ button to select "Coarse" or "Fine", then press the ENTER button. Press the ◄ or ► button to adjust the screen quality. Press the ENTER button. Position Adjust the PC’s screen positioning if it does not fit the TV screen. Press the ▲ or ▼ button to adjusting the Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position. Press the ENTER button. Image Reset You can replace all image settings with the factory default values.

Connect a USB device containing JPEG and/or MP3 les to the WISELINK jack (USB jack) on the side of the TV. If you enter the WISELINK mode with no USB device connected the message “There is no device connected” will appear. In this case, insert the USB device, exit the screen by pressing the W.LINK button on the remote control and enter the WISELINK screen again. Only alphanumeric characters must be used as a folder name or filename (photo, music). The file system only supports FAT16/32 (The NTFS file system is not supported) Certain types of USB Digital camera and audio devices may not be compatible with this TV. Wiselink only supports the USB Mass Storage Class device (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.) Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.SAMSUNG is not responsible for any data file damage or data loss. Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem. Only MP3 and JPEG file formats are supported. The Wiselink mp3 format only supports music files with a high sampling frequency (32 kHz, 44.1 kHz, or 48 kHz). We recommend the sequential jpeg format. Progressive jpeg uses a lot of memory and decoding may fail. Do not disconnect the USB device while it is loading. MTP (Media Transfer Protocol) is not supported. The playing duration of an mp3 file may be displayed as ‘00:00:00’ if its playing time information is not found at the start of the file. The higher the resolution of the image, the longer it takes to display on the screen. The Photo or Music List displays up to 300 folders or files. Loading may take some time depending on the size of the file. TV Side Panel USB Drive BN68-01410A-00Eng-0220.indd 30 2008-02-20 11:31:24English - 31 Using the WISELINK Menu

Memory Device, then press the ENTER button. The "WISELINK" menu differs depending on the USB Memory Device connected to TV. Some devices may not be supported due to compatibility problems.

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”.

ENTER button. The saved le information is displayed as a folder or le.

3. Press the ▲, ▼, ◄ and ► buttons to select a le.

• Pressing the ENTER button over a photo icon shows the currently selected photo in full screen.

• Pressing the ENTER button over a folder icon shows the JPEG les included in the folder. To exit WISELINK mode, press the W.LINK button on the remote control. Moving to a photo may take a few seconds to load the le. At this point, the icon will appear at the top left of the screen. It takes time to show JPEG les as Thumbnail images. This menu only shows les whose le extension is jpg. Files of other formats such as bmp or tiff will not be displayed. The les are displayed on a page. 15 thumbnail photos are displayed per page. The thumbnails are numbered from left to right and from top to bottom, from 1 to 15. Certain types of USB Digital camera and audio devices may not be compatible with this TV. Folders are displayed rst and they are followed by all JPEG les in the current folder. The folders and JPEG les are sorted in alphabetical order. If the photo is displayed in full screen, you can zoom in and out or rotate the photo on the screen. While a full screen is displayed, ◄ or ► button will let you see another photo image in the same folder. Press the button when a Photo icon is selected to start a Slide Show. Photos without EXIF information may not be displayed as thumbnail images in the PHOTO LIST depending on the picture quality and resolution. Viewing a Slide Show

press the ENTER button. During the slide show, les are displayed in order from the currently shown le. MP3 les can be automatically played during the Slide Show if the Default Background Music is set to On. To enable this function, MP3 les and other photo les must be located in the same folder on the USB Memory Device.

6. Press the INFO button during the slide show to set the

Upper FolderForder1Photo 0001 Photo 0001 NoneFile 4 File 5 File 6 File 7 File 8File 9 File 10 File 11 File 12 File 13 Select Move Enter INFO Option Return Photo 1/10 Page580*440 47KB Jun 1,2008 3/23 895MB/993MB SUM Upper FolderForder1Photo 0001 Photo 0001 NoneFile 4 File 5 File 6 File 7 File 8File 9 File 10 File 11 File 12 File 13 Select Move Enter INFO Option Return Photo 1/10 Page580*440 47KB Jun 1,2008 3/23 895MB/993MBStart Slide Show Select All INFO Exit Slide Show Speed Nomal► Background Music On ► Background Music Setting List INFO Exit Move Enter Return SUM 861MB/994MBFree Photo Photo Music Setup BN68-01410A-00Eng-0220.indd 32 2008-02-20 11:31:46English - 33 Using the Menu during a Slide Show Slide Show Speed: Select to control the slide show speed. Press the ▲ or ▼ button to select the required option ("Fast", "Normal", "Slow"), then press the ENTER button. Background Music: Select to choose whether you want to play an MP3 le during a slide show. Press the ▲ or ▼ button to select the required option("On", "Off"), then press the ENTER button. Background Music Setting: While the slide show is in progress, MP3 les and folders under the same directory are displayed. Select a folder using the ▲ or ▼ button and press the ENTER button. The selected folder will be highlighted. Press the RETURN button again to return to the slide show screen. The selected background music is played. If you turn Off the Background Music, even if the Background Music Settings have been set up, the background music will not be played. List: The le information is displayed as a folder or JPEG le. To exit WISELINK mode, press the W.LINK button on the remote control. When selecting a photo le, the photo le information is displayed on the left side of the TV screen, such as the resolution, the date modied and the order of the le in the current directory (e.g. 10th out of 15).

Select Move Enter INFO Option Return Photo 1/10 Page580*440 47KB Jun 1,2008 3/23 895MB/993MB SUM Photo 580*440 47KB Jun 1,2008 3/23 Such as the resolution Order of the file in the current directory Date modified File Size Slide Show Speed Nomal Background Music On ► Background Music Setting List INFO Exit Fast Nomal Slow Slide Show Speed Nomal► Background Music On Background Music Setting List INFO Exit Off

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”.

ENTER button. The saved le information is displayed as a folder or le.

Zoom: Press the ▲ or ▼ button to select “Zoom”, then press the ENTER button. Select the required option by pressing the ▲ or ▼ button, then press the ENTER button. (X1, X2, X4) To pan up/down/left/right in the zoomed-in photo, press the INFO button to exit option menu, then press the ▲, ▼, ◄ and ► buttons. "Start Slide Show" or "Rotate" is disabled when the "Zoom" option is selected. " x1 " : Restore a photo to its original size.

" x2 " : Zoom-in to a photo x2. " x4" : Zoom-in to a photo x4. / / / : Move the zoomed-in photo up/down/right/left. Rotate:

The rotated le is not saved. "Start Slide Show" or "Zoom" is disabled when the “Rotate” option is selected.

" : This rotates a photo to its original position

90° " : This rotates a photo by 90 degrees

180° " : This rotates a photo by 180 degrees

270° " : This rotates a photo by 270 degrees

List INFO Exit X 1 x 1 x 2 x 4

Rotate 0 List INFO Exit

List INFO Exit BN68-01410A-00Eng-0220.indd 34 2008-02-20 11:31:49English - 35 Using the MP3 List This menu shows MP3 les from among the les saved on a USB memory device.

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”.

ENTER button. The saved le information is displayed as a folder or le.

3. Press the ▲ or ▼ button to move to an icon, then press the

ENTER button. Pressing the ENTER button over a musical note icon immediately plays the music le. Pressing the ENTER button over a folder icon shows the music les included in the folder. To select a le on the next page, press the or button to move to the next page.

4. To select all les or a le, press the INFO button to display the

Music menus. Press the ENTER button to select “Play”, “Repeat Music” or “Select All”. To exit WISELINK mode, press the W.LINK button on the remote control. Using the Option Menu Play: Select to play MP3 files. Press the button while playing an MP3 le to pause the le. Press the button to exit Play mode. This menu only shows les with the MP3 le extension. Files with other le extensions are not displayed,even if they are saved on the same USB device. The selected le is displayed on the top with its playing time. To adjust the music volume, press the VOL +, VOL - button on the remote control. To mute the sound, press the MUTE button on the remote control. Repeat Music: Select to repeatedly play MP3 les in the current folder. You can select On or Off. Music function information icon : When all music les are being played. : When a music le is being played.

button on the remote control while music is playing. : When pressing the button on the remote control when music is stopped.

1. Complete Steps 1 to 3 of “Using the WISELINK Menu”.

To exit WISELINK mode, press the W.LINK button on the remote control. Slide Show Speed: Select to control the slide show speed. You can select “Fast”, “Normal” or “Slow”. Background Music : Select to determine whether to play an MP3 file during a slide show. You can select Music “On” or Music “Off”. Background Music Setting: While a slide show is in progress, use the "Background Music Setup" to select a music file to listen to. Select an MP3 file as the background music. Repeat Music : Select to determine whether to repeat playing the music when all MP3 files in the current folder have been played. Screen Saver: Select to set the waiting time before the screen saver appears. The screensaver will appear when no button is pressed for 1, 5 or 10 minutes. Slide Show Speed Normal Background Music On ►Background Music Setting Repeat Music Off ►Screen Saver 1min. ► Move Enter Return Setup Fast Normal Slow Upper Folder01-00102-00203-00304-00405-005 Select Move Enter Return◄◄ 1/1 Page ►►Background Music SettingChoose file for background musicSlide Show Speed Normal ► Background Music On ►Background Music Setting Repeat Music OffScreen Saver 1min. ► Move Enter Return Setup Off

BN68-01410A-00Eng-0220.indd 36 2008-02-20 11:32:18English - 37 What is Anynet+? Anynet+ is an AV network system that enables an easy-to-use AV interface for users by controlling all connected AV devices through the Anynet+ menu when Samsung Electronics AV devices are connected. Connecting Anynet+ Devices The Anynet+ system supports AV devices supporting Anynet+ only. Check if there is an Anynet+ mark on the AV device to be connected to the TV. To directly connect to TV Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. To connect to Home Theater

1. Connect the [HDMI 1],

[HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

2. Connect the HDMI IN jack

of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable. Connect only one receiver. You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions. Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status. Anynet+ supports up to 8 AV devices in total.

ENTER button. The "Anynet+ (HDMI-CEC)" function is enabled. If you select "Off", "Anynet+ (HDMI-CEC)" is disabled. When the "Anynet+ (HDMI-CEC)" function is disabled, all the Anynet+ related operations are deactivated. Turning an Anynet+ Device Off Automatically when the TV is Turned Off

ENTER button. The Auto turn off function is enabled. If you select "No", the Auto turn off function is cancelled. Press the EXIT button to exit. The Select Device setting of the TV remote control is to be set to TV to use the Anynet+ function. If you set "Auto Turn Off" to "No", connected external devices are also turned off when the TV is turned off. However, if the device is recording, it may not be turned off.

3. Press the ▲ or ▼ button to select to a particular device and

press the ENTER button. It is switched to the selected device.

4. If you cannot nd a device you want, press the ▲ or ▼ button to

select "Setup", then press the ENTER button.

5. Press the ▲ or ▼ button to select "Searching Connections",

then press the ENTER button. The message "Conguring Anynet+ connection..." is displayed. When searching devices completes, the connected devices are listed in the Anynet+ menu. Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching operation. The time required to scan for devices is determined by the number of connected devices. When the device scan is complete, the number of found devices is not displayed. Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is on or under a specic circumstance are not displayed in the device list. Therefore select "Searching Connections" menu to search devices. If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the TOOLS button.

SetupAnynet+ (HDMI-CEC) : On Auto Turn Off : Yes Searching Connections Move Enter ReturnView TV Select Device Record Menu on Device Device Operation Receiver :Off Setup TV P9Move EnterReturn BN68-01410A-00Eng-0220.indd 39 2008-02-20 11:32:21English - 40 Anynet+ Menu The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV. Anynet+ Menu Description View TV Switches from Anynet+ to TV broadcast mode. Select Device Your TV connects to the corresponding device. Record Starts a recording. (This menu works only for a device supporting recording.) Menu on Device Shows the menu of the connected device. Example. When a DVD Recorder is connected, the DVD Recorder’s title menu appears. Device Operation Shows the play control menu of the connected device. Example. When a DVD Recorder is connected, the play control menu of the DVD Recorder appears. Receiver Sound is output through the receiver. Setup You can set the environment for using Anynet+. TV Remote Control Buttons Available in Anynet+ Mode Device Type Operating Status Available Buttons Anynet+ Device After switching to the device, when the menu of the corresponding device is displayed on the screen. Numeric buttons ▲/▼/◄/►/ENTER buttons Colour buttons EXIT button After switching to the device, while playing a file (Backward search)/ (Forward search)/ (Stop)/ (Play)/ (Pause) Device with built-in Tuner After switching to the device, when you are watching a TV programme

button Audio Device When Receiver is activated VOL

button MUTE button The Anynet+ function only works when the remote control is set to TV. The button works only while in the recordable state. You cannot control Anynet+ devices using the buttons on the TV. You can control Anynet+ devices only using the TV remote control. The TV remote control may not work under certain conditions. In this case, re-select the Anynet+ device. The Anynet+ functions don’t operate for the products from other manufacturers. In Anynet+ mode, the colour buttons may not work properly. The , operations may differ depending on the device.

BN68-01410A-00Eng-0220.indd 40 2008-02-20 11:32:21English - 41 Listening through a Receiver You can listen to sound through a receiver instead of the TV speaker.

2. Press the ◄ or ► button to select to "On", then press the

ENTER button. Now you can listen to sound through the receiver.

3. Press the EXIT button to exit.

When the receiver is set to On, you can listen to the TV sound through the 2-channel receiver. If the receiver is exclusively for a home theatre only (supporting audio only), it may not appear in the device list. In case of a content with copyright problem, listening through the receiver may not properly operate. If there is a power interruption to the TV when the “Receiver” is set to “On” (by disconnecting the power cord or a power failure), the “TV Speaker” may be set to “Off” when you turn the TV on again. (see page 22)

Recording You can make a recording of a TV programme using a recorder. Press the button. Recording begins. (Only when the Anynet+ enabled recording device is connected.) The current TV programme is recorded in the Watching TV status. If you are watching video from another device, the video from the device is recorded. You can also record the source streams by selecting Record after pressing the TOOLS button. Before recording, check whether the antenna jack is properly connected to the recording device. For the antenna connection to the recording device, refer to its user manual.

View TV Select Device Record Menu on Device Device Operation Receiver :Off Setup TV P9Move EnterReturn BN68-01410A-00Eng-0220.indd 41 2008-02-20 11:32:21English - 42 Check Points before Requesting Service Symptom Solution Anynet+ does not work. ■ Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. ■ Connect only one receiver. ■ Check if the Anynet+ device power cord is properly connected. ■ Check the Anynet+ device’s Video/Audio/HDMI 1.3 cable connections. ■ Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. ■ Check whether the TV remote control is in TV mode. ■ Check whether it is Anynet+ exclusive remote control. ■ Anynet+ doesn’t work at a certain condition. (Searching channels, Operating WISELINK, Plug & Play, etc.) ■ When connecting or removing the HDMI 1.3 cable, please make sure to search devices again or restart your TV. ■ Check if the Anynet+ Function of Anynet+ device is set on. I want to start Anynet+. ■ Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. ■ Press the TV button on the TV remote control to switch to TV. Then press the TOOLS button to show the Anynet+ menu and select a menu you want. I want to exit Anynet+. ■ Select View TV in Anynet+ menu. ■ Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices. ■ Press any of P / , CH LIST, PRE-CH, and such to change to the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.) The Connecting to Anynet+ device… message appears on the screen. ■ You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. ■ Use the remote control when the Anynet+ setting or switching to view mode is complete. The Anynet+ device does not play. You cannot use the play function when Plug & Play is in progress. The connected device is not displayed. ■ Check whether or not the device supports Anynet+ functions. ■ Check whether or not the HDMI 1.3 cable is properly connected. ■ Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. ■ Search Anynet+ devices again. ■ You can connect an Anynet+ device using the HDMI 1.3 cable only. Some HDMI cables may not support Anynet+ functions. ■ If it is terminated by an abnormal situation such as disconnecting the HDMI 1.3 cable or power cord or a power failure, please repeat the device scan. The TV programme cannot be recorded. Check whether the antenna jack on the recording device is properly connected. BN68-01410A-00Eng-0220.indd 42 2008-02-20 11:32:21English - 43 Teletext Feature Most television stations provide written information services via Teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons. For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

Exit from the teletext display 2 6 (index) Used to display the index (contents) page at any time while you are viewing teletext. 3 8 (store) Used to store the teletext pages. 4 4 (size) Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again. 5 5 (reveal) Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again. 6 / (teletext on/mix) Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen. 7 0 (mode) Press to select the teletext mode (LIST/FLOF). If you press it in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the 8(store) button. 8 1 (sub-page) Used to display the available sub-page. 9 2 (page up) Used to display the next teletext page. 0 3 (page down) Used to display the previous teletext page. ! 9 (hold) Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again. @ 7 (cancel) Used to display the broadcast when searching for a page. # Colour buttons (red/green/yellow/blue) If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button. You can change teletext pages by pressing the numeric buttons on the remote control.

BN68-01410A-00Eng-0220.indd 43 2008-02-20 11:32:22English - 44 The teletext pages are organized according to six categories: Part Contents

Selected page number. Broadcasting channel identity. Current page number or search indications. Date and time. Text. Status information. FASTEXT information. Teletext information is often divided between several pages displayed in sequence, which can be accessed by: Entering the page number Selecting a title in a list Selecting a coloured heading (FASTEXT system) Press the TV button to exit from the teletext display.

BN68-01410A-00Eng-0220.indd 44 2008-02-20 11:32:22English - 45 Auto Wall-Mount (Sold separately) Once the auto wall mount is installed, your TV’s position can be easily adjusted. Entering the menu

1. Press the ▲, ▼, ◄ or ► button on your remote control.

The Auto Wall-Mount screen is displayed. If the Auto Wall-Mount screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen.

2. Adjust to the desired position using the ▲,▼,◄,► buttons.

If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears. Press the INFO button to reset. Press the ◄ or ► button to select “Yes”, then press the ENTER button. The position is initialized to the default setting.

3. Press the blue button.

Press the ▲ and ▼ buttons to select a save mode from either Position 1, Position 2 or Position 3 in order to save the current position. To not save the current position, press the RETURN button. When selecting a save mode, you cannot use the Colour buttons.

4. Press the ENTER button to save.

When Position1 is selected, the message "Current position saved as Position1" is displayed.

5. Press the ENTER button.

The saved Position appears on the left side of the OSD.

2. Pressing a Colour (Red, Green, Yellow) button moves the auto

wall mount to the saved position. You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons. If you adjust the position after moving to a pre-set position, the position display will disappear. For installation, refer to the Installation Manual provided with the wall mount. For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company. This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer. The auto wall mount will not work when Anynet+ and WISELINK are operating. 37, 40 and 46 inch models are not compatible with the old electrically powered wall mount model (WMN5090A*).

Using the Anti-Theft Kensington Lock (depending on the model) The Kensington lock is a device used to physically x the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington lock for proper use. The locking device has to be purchased separately.

1. Insert the locking device into the Kensington slot

on the LCD TV (Figure 1), and turn it in the locking direction (Figure 2).

2. Connect the Kensington lock cable.

3. Fix the Kensington lock to a desk or a heavy

stationary object. The place of the Kensington Lock may be different depending on its model.

Cable Figure 2 Figure 1 <Optional> Auto Wall-MountPosition1Adjust Save Center INFO Position 1 2 3 BN68-01410A-00Eng-0220.indd 46 2008-02-20 11:32:24English - 47 Troubleshooting: Before Contacting Service Personnel No sound or picture Check that the mains lead has been connected to a wall socket. Check that you have pressed the button on your set. Check the picture contrast and brightness settings. Check the volume.

Normal picture but no sound Check the volume. Check whether the MUTE button has been pressed on the remote control. Check if "TV Speaker" is on

Screen is black and power indicator light blinks steadily On your computer check; Power, Signal Cable. The TV is using its power management system. Move the computer’s mouse or press any key on the keyboard.

No picture or black and white picture Adjust the colour settings. Check that the broadcast system selected is correct.

Sound and picture interference Try to identify the electrical appliance that is affecting the set and move it further away. Plug your set into a different mains socket.

Blurred or snowy picture, distorted sound Check the direction, location and connections of your aerial. This interference is often due to the use of an indoor aerial.

Remote control malfunctions Replace the remote control batteries. Clean the upper edge of the remote control (transmission window). Check the battery terminals.

"Check signal cable." message is displayed Check that the signal cable is rmly connected to the PC or video sources. Check that the PC or video sources are turned on.

On PC mode, "Not Supported Mode." message is displayed Check the maximum resolution and the frequency of the video adaptor. Compare these values with the data in the Display Modes.

The damaged picture appears in the corner of the screen If "Just Scan" is selected in some external devices, the damaged picture may appear in the corner of the screen. This symptom is caused by external devices, not TV. The "Resets all settings to the default values" message appears. This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults. The TFT LCD panel uses a panel consisting of sub pixels (6 220 800) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product. BN68-01410A-00Eng-0220.indd 47 2008-02-20 11:32:24English - 48 Technical and Environmental Specications Model Name LE32A550 LE37A550 LE40A550 Screen Size (Diagonal) 32 inch 37 inch 40 inch PC Resolution 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz Sound Output 10 W X 2 10 W X 2 10 W X 2 Dimensions (WxDxH) Body With stand 865 x 79 x 500 mm 865 x 220 x 561 mm 984 x 87 x 572 mm 984 x 240 x 637 mm 1058 x 91 x 608 mm 1058 X 240 X 672 mm Weight With stand 14 kg 18 kg 19 kg Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

10 °C to 40 °C (50 °F to 104 °F) 10 % to 80 %, non-condensing -20 °C to 45 °C (-4 °F to 113 °F) 5 % to 95 %, non-condensing Stand Swivel (Left / Right) -20˚ ~ 20˚ Design and specifications are subject to change without prior notice. This device is a Class B digital apparatus. For the power supply and Power Consumption, refer to the label attached to the product.

Melodia/Entertainment/Risp. energia

DVI IN (HDMI 2) [R-AUDIO-L]

DVI IN (HDMI) [R-AUDIO-L]

DVI IN (HDMI ) [R-AUDIO-L]

Rotate 0 List INFO Exit
