USER MANUAL Profile PDT760SIFII GE

49-55094 09-14 GE Safety Instructions 2-3

Operating Instructions Care and Cleaning 22, 23 Getting Started 4-7 Loading the Dishwasher 10-21 Using the Dishwasher 8-9 Troubleshooting Tips 24-26

Consumer Support Consumer Support Back Cover Warranty 27 GEAppliances.com Write the model and serial numbers here:Model # _________________Serial # __________________You can find them on the tub wall, just inside the door.

FRONT CONTROL MODELS TOP CONTROL MODELS Lave-vaisselle

5($'$//,16758&7,216%()25(86,1*³

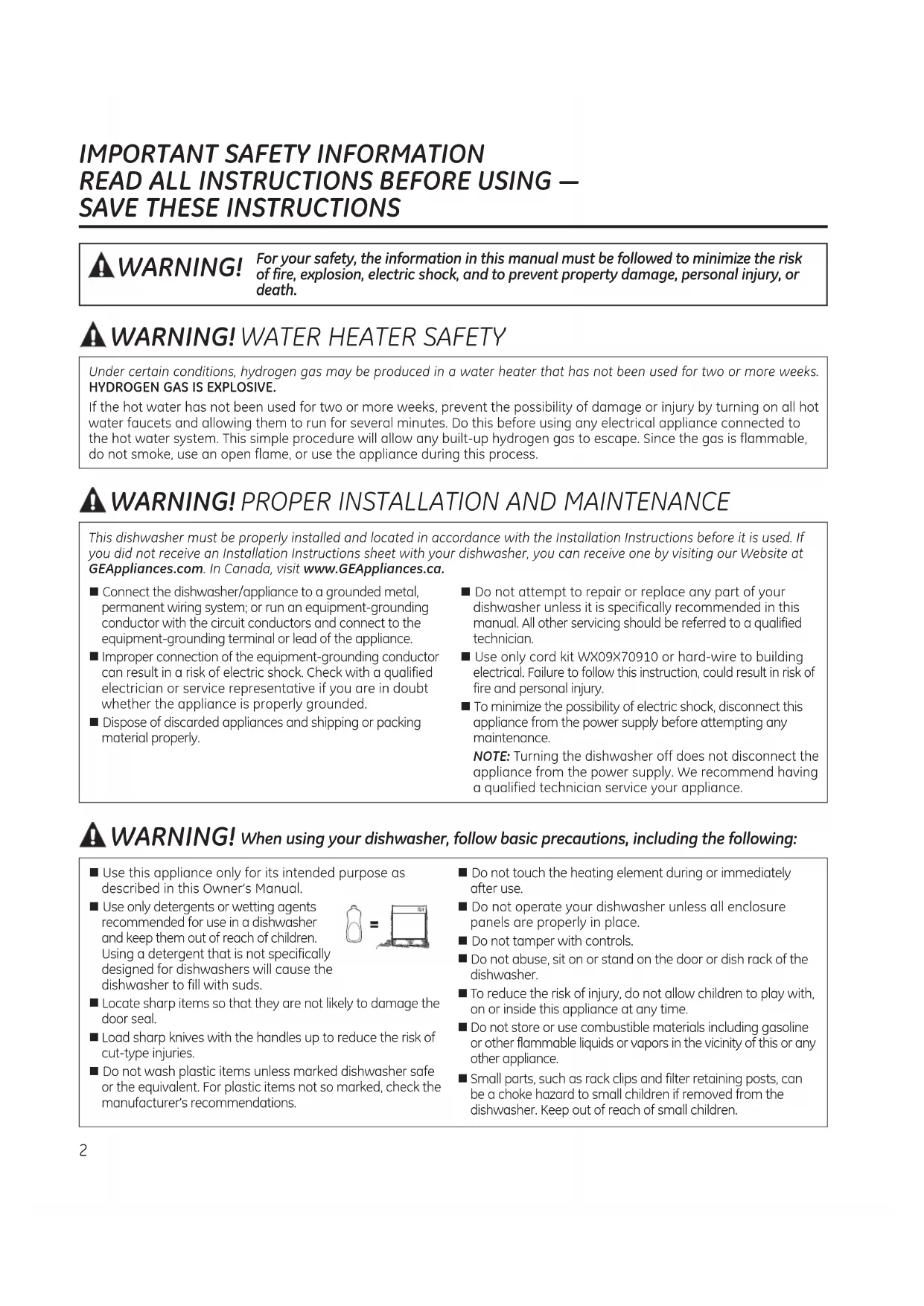

SAVE THESE INSTRUCTIONS For your safety, the information in this manual must be followed to minimize the risk

of fire, explosion, electric shock, and to prevent property damage, personal injury, or

WATER HEATER SAFETY WARNING!

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two or more weeks.

HYDROGEN GAS IS EXPLOSIVE.

If the hot water has not been used for two or more weeks, prevent the possibility of damage or injury by turning on all hot

water faucets and allowing them to run for several minutes. Do this before using any electrical appliance connected to

the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable,

do not smoke, use an open flame, or use the appliance during this process.

 Use this appliance only for its intended purpose as

described in this Owner’s Manual.

 Use only detergents or wetting agents

recommended for use in a dishwasher

and keep them out of reach of children.

Using a detergent that is not specifically

designed for dishwashers will cause the

dishwasher to fill with suds.

Locate sharp items so that they are not likely to damage the

 Load sharp knives with the handles up to reduce the risk of

 Do not wash plastic items unless marked dishwasher safe

or the equivalent. For plastic items not so marked, check the

manufacturer’s recommendations.

 Do not touch the heating element during or immediately

 Do not operate your dishwasher unless all enclosure

panels are properly in place.

 Do not tamper with controls.

Do not abuse, sit on or stand on the door or dish rack of the

 To reduce the risk of injury, do not allow children to play with,

on or inside this appliance at any time.

 Do not store or use combustible materials including gasoline

or other flammable liquids or vapors in the vicinity of this or any

 Small parts, such as rack clips and filter retaining posts, can

be a choke hazard to small children if removed from the

dishwasher. Keep out of reach of small children.

When using your dishwasher, follow basic precautions, including the following:

PROPER INSTALLATION AND MAINTENANCE This dishwasher must be properly installed and located in accordance with the Installation Instructions before it is used. If

you did not receive an Installation Instructions sheet with your dishwasher, you can receive one by visiting our Website at

GEAppliances.com. In Canada, visit www.GEAppliances.ca.

 Connect the dishwasher/appliance to a grounded metal,

permanent wiring system; or run an equipment-grounding

conductor with the circuit conductors and connect to the

equipment-grounding terminal or lead of the appliance.

Improper connection of the equipment-grounding conductor

can result in a risk of electric shock. Check with a qualified

electrician or service representative if you are in doubt

whether the appliance is properly grounded.

 Dispose of discarded appliances and shipping or packing

 Do not attempt to repair or replace any part of your

dishwasher unless it is specifically recommended in this

manual. All other servicing should be referred to a qualified

 Use only cord kit WX09X70910 or hard-wire to building

electrical. Failure to follow this instruction, could result in risk of

fire and personal injury.

 To minimize the possibility of electric shock, disconnect this

appliance from the power supply before attempting any

NOTE: Turning the dishwasher off does not disconnect the

appliance from the power supply. We recommend having

a qualified technician service your appliance.

SAVE THESE INSTRUCTIONS GEAppliances.com

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS RISK OF CHILD ENTRAPMENT PROPER DISPOSAL OF THE DISHWASHER Junked or abandoned dishwashers are dangerous…even if they will sit for “just a few days.” If you

are getting rid of your dishwasher, please follow the instructions below to help prevent accidents.

 Do not allow children to play with, on, or inside this or any discarded appliance.

 Take off the door of the washing compartment or remove the latch by removing the two screws

from the latch receiver inside the tub (as shown).

WARNING! Two screws CAUTION:

To prevent minor injury and property damage

 During or after wash cycle, contents may be hot to the

touch. Use care before handling.

 Close supervision is necessary if this appliance is used by

or near children. Do not allow children to play around the

dishwasher when closing the door, closing the upper rack,

or while vertically adjusting the upper rack due to the

possibility of small fingers being pinched.

 Non-Dishware Items: Do not wash items such as

electronic air cleaner filters, furnace filters and paint

brushes in your dishwasher. Damage to the dishwasher

and discoloration or staining of the dishwasher may

 Load light-weight, plastic items so they do not become

GLVORGJHGDQGGURSWRWKHERWWRPRIWKHGLVKZDVKHU³

they might come into contact with the heating element

 This appliance must be supplied with 120V, 60 Hz, and

connected to an individual, properly grounded branch

circuit, protected by a 15 or 20 amp circuit breaker or

 If the electric supply provided does not meet the above

specifications, it is recommended that a licensed

electrician install an approved outlet.

 Your dishwasher circuit should not be used for any other

appliance while the dishwasher is in operation as the

dishwasher requires the full capacity of the circuit.

ELECTRICAL REQUIREMENTS

 If your dishwasher is connected to a wall switch,

ensure that the switch is on prior to use.

 If you choose to turn the wall switch off between

wash cycles, allow 5-10 seconds after turning the

switch on before touching Start to allow the control

 Use only powder, Cascade

All-in-1 ActionPacs™, liquid

detergents or rinse agents recommended for use in a

dishwasher and keep them out of the reach of children.

Detergent, and Cascade

Rinse Aid™ rinse agents have

been approved for use in all GE dishwashers.

For best dishwashing results, follow the loading guidelines found in the Loading the dishwasher section. No pre-rinsing of normal

food soil is required. Scrape off hard soils, including bones, toothpicks, skins, and seeds. Remove leafy vegetables, meat trimmings, and excessive amounts of grease or oil. Add Detergent

Add needed amount of detergent to the detergent dispenser. Use a detergent such as Cascade

® Platinum Pacs. See Detergent Dispenser in the Using the dishwasher section.

3 Features and appearance will vary throughout this manual DDT575, GDT580,

GDT740, PDT750, PDT760

Press the Select Cycle button for the desired wash cycle. On some models, the light next to the Select Cycle button will be lit to

indicate which wash cycle has been selected. On other models, pressing the Select Cycle button will show various cycles in the

display window. Press the button until the desired cycle is shown.

NOTE: Actual cycle times vary based on soil level, water temperature, and options selected.

The cycle may be selected with the door in the open position. The cycle will not start until after the door is closed and Start selected

This cycle automatically senses the soil level and adjusts the wash cycle accordingly. *Time range: 1 hour 50

minutes - 2 hours 10 minutes.

Heavy This cycle is meant for heavily soiled dishes, cookware, pots, or pans with dried-on or baked-on soils.

Everyday dishes are safe to be used in this cycle. *Time: 2 hours 31 minutes.

This cycle is meant for daily, regular, or typical use to completely wash a full load of normally soiled dishes and is

designed to conserve both water and energy. *Time range: 1 hour 15 minutes - 1 hour 50 minutes. NOTE: Normal

was used to rate the energy efficiency of this dishwasher.

This cycle is for light to medium soiled dishes. It is safe for china and crystal. *Time: 50 minutes.

Rinse For rinsing partial loads that will be washed later. Do not use detergent. Detergent is not dispensed during the

(on some models) rinse cycle. *Time: 16 minutes.

Express This cycle will quickly wash lightly soiled dishes. *Time: 32 minutes. For faster drying, select Power Dry. The final rinse

(on some models) temperature will be increased. Power Dry will add 15 minutes to the cycle time. When the Clean light comes on,

open the door, pull the racks out, and the dishes will “flash” dry in approximately five minutes.

eWash This cycle will efficiently wash dishes using about 2 gallons of water and .8 KWhr. Selecting Power Dry with this cycle

(on some models) adds an energy efficient 1 1/2 hour dry period. Drying is accomplished with an efficient 2 watt fan. *Time: 1 hour 3 minutes.

*Washing time only. Does not include drying time, Auto Hot Start, or options. NOTE: If the incoming water temperature is too low,

the Auto Hot Start feature may add up to 11 minutes of additional time.

Select Options The light by the selected button will be lit to indicate which Option has been selected. Normal Temp

This option is for normally soiled dishes, optimizes wash performance while conserving energy. (on some models) Wash Temp

This option increases the temperature to help clean heavily soiled dishes and may increase the overall cycle time. Boost or Option may be turned On or Off during the wash cycle. This option will also improve dry performance on the

Boost Temp Normal cycle.

Wash Temp This option raises the water temperature in the final rinse to sanitize your dishware. The cycle length will

Sani or vary depending on the temperature of your inlet water.

Sanitize NOTE: This option is monitored for sanitization requirements. If the cycle is interrupted during or after the main

Temp wash portion or if the incoming water temperature is so low that adequate water heating cannot be achieved,

the sanitizing conditions may not be met. In these cases, the Sanitized or Cycle Sanitized light will not illuminate

at the end of the cycle. Utilizing this option will modify the cycle to meet the requirements of Section 6, NSF 184 for soil removal and sanitization efficacy. NOTE: NSF certified residential dishwashers are not intended for licensed food establishments.

Heated or Shuts off the drying option. Dishes air dry naturally and energy is saved. Open the dishwasher door to

Power Dry Off speed drying.

Heated or Turns on the option for faster drying. This option may add up to 65 minutes to the cycle time.

Power Dry On On models with the hidden heater feature, this option boosts the temperature of the dishwasher during the final rinse portion of the cycle then utilizes a fan to circulate air to dry the dishes. This option is not available with the Rinse cycle. Steam For use with heavily soiled and/or dried-on, baked-on soils. This option MUST be selected PRIOR to

(Prewash) starting the cycle. The Steam option adds up to 30 minutes to the cycle time. This option is (on some models) available with Heavy, AutoSense, and Normal cycles.

Pre Soak Use this option to improve wash performance with heavy or dried-on soils. This option is available

(on some models) on Heavy, AutoSense, and Normal cycles and may add up to 30 minutes to the cycle time.

Wash Zones Selecting either the Upper or Lower Wash Zones will target dishwashing of just one rack. This will shorten (on some models) the cycle time and conserve energy. This option should be used when dishes are placed in only one rack.

This option increases the time that the bottle jets are on and may add up to 23 minutes to the cycle (on some models) time. Use this to wash difficult to clean, dishwasher safe baby bottles, sport bottles, tall coffee cups, etc. See use

recommendations in the Loading the dishwasher section.

Delays the start of a wash cycle up to 8 to 12 hours depending on model. Press Delay Hours, to select the

number of hours, then press Start one time and close door to begin countdown. The cycle will start once allotted time has expired. Control You can lock the controls to prevent selections from being made. You can also lock the controls

Lock after you have started a cycle to prevent cycle changes. For example, children cannot accidentally start the dishwasher by pressing buttons with this option selected. To LOCK the dishwasher control, depending on the model, press and hold the 1 or 2 buttons indicated on the

controls for 3 seconds. On some models, it will be the Heated Dry, another the Steam and Wash Temp buttons,

and another model is the Pre-Soak and Bottle Wash buttons. The Control Lock light will turn on to indicate the control is locked. To UNLOCK the dishwasher control, depending on the model, press and hold the 1 or 2 buttons indicated on the controls for 3 seconds. The Control Lock light will turn off to indicate the control is unlocked. Energy When connected to a smart meter and your electric company, the dishwasher will automatically delay starting a

cycle during the more expensive peak demand times, and run when demand is low. However, you can override

the delay settings and use the dishwasher as needed. Learn more about Energy Smart under the Using the Dishwasher section. 5GEAppliances.com

Cycle Indicator Lights and Sounds

Displayed at end of the cycle when Wash Temp Sani or Sanitize Temp has been selected and dishwasher has

met requirements for sanitization. See Wash Temp Sani or Sanitize Temp, for complete description. Closing door

or pressing any button will turn off light.

Displayed when a wash cycle is complete. The light stays ON as a reminder that the dishes are clean.

(on some models) Pre-Soak or Steam button 7 times within 5 seconds. Repeat this process to turn the Low Rinse Aid indicator back

The indicator light on the door front will change color to indicate the wash status. During the wash cycle, the

(on some models) indicator light will be amber. When the wash cycle is complete, the light will change to green.

The dishwasher will emit a sound to indicate cycle completion, button presses, and door ajar. To mute all sounds,

press the Heated Dry or Power Dry button 7 times within 5 seconds. Repeat this process to turn sounds back on.

To turn this option ON/OFF, press and hold the START and WASH TEMP pads for 5 seconds, close the door and wait

Up Mode 3 minutes for the dishwasher to go into sleep mode. In the OFF mode, the control display, control sounds,

will not respond to the door opening/closing. This mode can be used when

observing certain religious holidays such as the Sabbath. To activate the control and interior lights

Start Open door to select the desired options. Press the Start button and close the door within 10 seconds to start the

cycle or begin the Delay Hours countdown. The wash cycle will begin shortly after closing the door. The display

will turn off if the door remains open for two minutes. To activate the display, close and open the door or press

Interrupt To interrupt or pause a dish cycle, slowly open the door. Opening the door will cause the wash cycle to

or Pause pause. The dishwasher will beep every minute to remind you to close the door. To restart or resume

the cycle, press Start, and close the door within 10 seconds.

Cancel To cancel a wash cycle, press and hold the Start button for 3 seconds and close door. The dishwasher will drain,

emit a beep sound, and the wash cycle light will turn OFF.

6Rinse agents, such as Cascade

Complete Rinse Aid are designed for great drying action and to protect

against spots and film build-up on your dishes, glasses, flatware, cookware, and plastic.

Filling the Dispenser

The rinse agent dispenser holds 3.5 oz. (104 ml) of rinse agent. Under normal

conditions, this will last approximately one month.

Make sure the dishwasher door is fully open.

Open the Rinse Agent dispenser door.

Slowly add rinse agent until the cup is full. You may need to pause several times to

allow rinse aid to settle.

Clean up any spilled rinse agent with a damp cloth to prevent foam from forming

inside the dishwasher.

Close the Rinse Agent dispenser door.

The amount of rinse agent released into the final wash can be adjusted.

If water drops or hard water spots

remain on dishes after the dry cycle,

increase the setting.

To adjust the setting

then turn the adjuster clockwise to

increase the amount of rinse agent,

counterclockwise to reduce the amount

Using the dishwasher.

Check the Water Temperature

The entering water should be at least 120°F (49°C) and not

more than 150°F (66°C) for effective cleaning and to prevent

dish damage. Check the water temperature with a candy or

Turn on the hot water faucet nearest the dishwasher,

place the thermometer in a glass and let the water run

continuously into the glass until the temperature stops rising. Rinse agent adjusterIndicator window Energy Smart

Energy Smart enables your dishwasher to reduce energy

consumption during periods of high energy costs. If you are

in an area where your electricity provider charges variable

rates at different times of the day, your dishwasher will

inform you of those times when you are paying the highest

rate. You can then either delay starting your dishwasher until

the rate goes down; or you can override the feature and run

your dishwasher at your convenience.

Smart Meter that will communicate with your dishwasher.

Consult your local electricity provider to determine if the

technology is available in your area.

An Energy Smart dishwasher model (CDT725-765, DDT575, GDF570, GDT580-740, PDT750-760). 3

An Appliance Communication Module (ACM). Please visit,

gebrillion.com to order the communication device that

will need to be installed in the dishwasher.

8 Clockwise to reduce water drops and hard water spotsCounterclockwise to reduce foaming Leak Protection (on some models)

If a leak is detected, the dishwasher will drain and the cycle

will stop. The display will show “LEAK DETECTED”. Call for

service.GEAppliances.com

The detergent dispenser is located in the center of the

dishwasher door. It has two compartments. The main wash

compartment is found inside the detergent dispenser.

To open, press the button on the side of the dispenser.

The pre-wash compartment is on the lid of the detergent

dispenser. Use the pre-wash compartment only when your

water is extremely hard or when you have a heavy soiled

load. The pre-wash compartment is not used when tablet

or packet detergents are used.

NOTE: Do not load large items in the lower rack where

they may block the wash jets from rinsing out the

detergent dispenser.

You may use tablet, packet, powder, liquid or gel automatic

dishwasher detergent. Make sure you use only detergents

specifically labeled for use in automatic dishwashers.

Never use liquid hand dish detergent in an automatic

dishwasher. Sudsing and poor wash performance will

result with the use of improper detergents.

Detergents should be stored in a dry location and in their

original container to prevent loss of effectiveness. Place

detergent in the cup just prior to starting the dishwasher

and then close the cover. The cover will open during the

Filling the Detergent Dispenser

GE recommends using detergent in tablet or packet form.

Independent testing has shown this form of detergent is

very effective in the dishwasher. Cascade

are an example of this type of detergent. Simply put

a tablet or packet into the main wash compartment and

slide to close the detergent cup cover. Please notice that

the tablet or packet must be placed in the main wash

compartment of the detergent cup. If the tablet or packet

is tossed in the bottom of the dishwasher, the detergent

will be flushed down the drain in a very short period of

time and will thus be wasted. Wash performance will be

very poor as a result.

If you choose to use detergent in powder, liquid or gel

form, the amount of detergent you use will be determined

by the hardness of your water, the temperature of your

water, and the food soil load inside the dishwasher.

Contact your water company to get information about

the hardness of the water in your area. Water hardness is

measured in grains per gallon. Use this information and

the table above to determine the amount of detergent

to use. You may purchase a hard water test strip

from GE. Call 1-877-959-8688 and ask for part number

WD01X10295. In Canada, call 1-800-661-1616.

Using too much detergent with very soft and/or very hot water

may cause a condition called etching on your glassware.

Etching is a permanent cloudiness in your glassware. This

condition is irreversible. However, using too little detergent will

cause poor wash performance.

Use the table as a starting point and then adjust the amount

of detergent you use. Use just enough to get good wash

performance. Using just the right amount of detergent will

provide great wash performance without wasting detergent or

DO NOT USE HAND DISH DETERGENT NOTE: Using a detergent that is not specifically designed

for dishwashers will cause the dishwasher to fill with suds.

During operation, these suds will spill out of the dishwasher

vents, covering the kitchen floor and making the floor wet.

Because so many detergent containers look alike, store the

dishwasher detergent in a separate space from all other

cleaners. Show anyone who may use the dishwasher the

correct detergent and where it is stored.

While there will be no lasting damage to the dishwasher, your

dishes will not get clean using a dishwashing detergent that is

not formulated for automatic dishwashers.

Detergent Cups to Fill

Less than 4 Fill cup to 1/3 full

4 to 8 Fill cup to 2/3 full

8 to 12 Fill cup completely full

Fill both main wash cup and pre

9Loading the dishwasher.

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware

baskets may vary from your model.

10 Sports bottle held in place over a Bottle Wash clip Baby bottle held in place under a Bottle Wash clip The Bottle Wash system (on some models) is

the ideal location to position baby bottles and

tall sports bottles. The Bottle Wash clips hold

bottles with small openings in place so water jets

are directed inside the bottles to clean hard to reach

areas. Clips can be installed or removed by simply

slipping the clip opening over the top of the nozzle.

Clip NozzleBottle Wash Upper Rack

The upper rack is primarily for glasses, cups, and

saucers. For best wash performance, tilt cup and

glass openings toward the center of the rack. Other

items such as pots, pans, and plates may be placed

in the upper rack. This is also a secure place for

dishwasher-safe plastic items. The upper rack can

be used for odd sized utensils. Sauce pans, mixing

bowls, and other similarly shaped items should

be placed face down for best wash performance.

Ensure small plastic items are secure so that they

cannot fall on the heater at the bottom of the

dishwasher, potentially damaging the item. Some

models are equipped with a hidden heater, so

dishwasher safe plastic items can be placed in the

IMPORTANT: Ensure items in the upper rack do not

interfere with the 3rd Rack (on some models) when

loading and unloading.

IMPORTANT: Ensure that items do not protrude

through the bottom of the rack or silverware basket

where they will block the rotation of the middle spray

arm. This could result in noise during operation and/

or poor wash performance.11

To add flexibility in loading, the utility shelf (on

some models) may be placed in the up or down

position or unfolded and placed in the lower

unfolded position. The shelf may also be used to

secure stemware such as wine glasses. Because

these stemware items come in various sizes, slowly

push the rack in to ensure the items do not bump

into the edges of the dishwasher, which may cause

damage to the items.

The upper rack allows 2” of adjustment up or down

to accommodate large items. The upper rack may

be lowered by pushing the long flaps on each side of

the rack. This will allow you to lower the rack (see fig.

Upper Rack). To raise the rack, lift up on the rack until

the rack locks in place.

CAUTION: A loaded upper

rack may be heavier than anticipated. To

prevent minor injury or damage to the

contents, do not raise or lower the upper

rack after the rack is loaded.

The fold down tines (on some models) provide

flexibility for extra-large and hard-to-fit items.

The tine rows can be adjusted to a vertical or

Place the slots in the

utility shelf clips over

second wire of rackLoading the dishwasher.

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware

baskets may vary from your model.

8 Place Settings - Upper Rack

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Models - GDF570 and DDT575

10 Place Settings - Upper Rack

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Models - GDF570 and DDT575

12 Place Settings - Upper Rack

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Models - PDT760 and CDT765

10 Place Settings - Upper Rack

Models - PDT760 and CDT765

12 Place Settings - Upper Rack

Models - PDT760 and CDT765Loading the dishwasher (cont.).

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware

baskets may vary from your model.

The lower rack fold down tines (on some

models) can be adjusted to different upright

angles or placed flat to provide flexibility for

hard-to-fit or extra-large items.

The lower rack is best used for plates, saucers

and cookware items. Large items, such as

broiler pans and baking racks should be

placed along the sides of the rack. If necessary,

oversized glasses and mugs can be placed in

the lower rack to maximize loading flexibility.

Plates, saucers and similar items should be

placed between the tines in the direction that

allows the item to remain secure in the rack.

Do not load large items in the lower

rack where they may block the wash jets from

rinsing out the detergent dispenser. 3 Angled Positions Available or Folded DownGEAppliances.com

The reversible tine blocks (on some models) are

designed to allow greater flexibility in loading dishes.

The direction of the tine blocks can be changed to

match your preferred loading direction as shown in

Figure A or Figure B:

To adjust the tine block direction, remove the clips

securing the tine blocks to the racks by pulling up

on the tab, then gently flex the retaining wire from

the center to unseat the tine block from the lower

rack. The tine block may be turned in the opposite

direction to reverse loading direction. Secure the tine

block to the rack using the same process and be

sure to snap the clips back in place.

WARNING! The clips can be a choke

hazard for small children if removed from the

dishwasher. Keep out of reach of children.

To change the direction of the fold down tines, lower

the tines, then pull away from the bar clips that

secure the tines to the rack and remove. Reverse

the direction of the tines, orienting the handle on the

opposite side of the rack. Reattach the tines to the

bar clips by pushing the tines back until they click in

place. The indexer will also need to be switched to

the opposite side of the dishwasher. To remove the

indexer, simply slide it the in the direction labeled

“unlock.” Then, align the indexer with the rack on the

other side and slide in the direction that says “lock”

in order to reattach the indexer to the rack.

It is important to ensure that items do

not protrude through the bottom of the rack or the

silverware basket where they will block the rotation

of the lower spray arm. Also, ensure that large

plates, pots, or tall items don’t hit the mid spray arm.

This could result in noise during operation and/or

poor wash performance.

Figure A Figure B Clip IndexerTo lock, slide right.To unlock, slide left.Bar Clip16

Loading the dishwasher (cont.).

8 Place Settings - Lower Rack

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Models - GDF570 and DDT575

10 Place Settings - Lower Rack

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Models - GDF570 and DDT575

12 Place Settings - Lower Rack

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Models - GDF570 and DDT57517

8 Place Settings - Lower Rack

Models - PDT760 and CDT765

10 Place Settings - Lower Rack

Models - PDT760 and CDT765

12 Place Settings - Lower Rack

Models - PDT760 and CDT765Loading the dishwasher (cont.).

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware

baskets may vary from your model.

3rd Rack (on some models)

The 3rd rack is the recommended location for

silverware and has 2 trays:

The utensil tray holds serving spoons, chop

sticks, spatulas, cutlery, whisks, etc. Be sure

not to overlap the utensil heads.

The silverware tray holds silverware

individually in slots and is positioned by

alternating the heads of the silverware.

These trays may be removed to allow for

easier loading and unloading, changing the

side that the trays are on, or to create extra

space for the upper rack.

To remove a tray, fully extended the 3rd rack,

grasp both the front and back handles on one

tray and gently lift the tray out of the rack.

To replace the tray, grasp both handles and

gently place it on the rack so that the deepest

part is towards the center of the rack.

CAUTION! Take care when

loading, unloading, or transporting the

silverware or utensil trays. The trays may

contain sharp or heavy items. If items are

dropped from the trays or the trays are

dropped, injury could occur.

 Do not place cutlery of different materials

next to each other in the 3rd rack. Doing

show may cause discoloration of the

 The trays are only meant to be used with a

GE 3rd rack dishwasher to hold silverware,

cooking utensils, and other small items.

Using the trays for any other purpose could

result in damage to the trays or damage to

anything interacting with the trays.

 Ensure that the 3rd rack is fully closed

before shutting the dishwasher door.

Shutting the door with the rack partially

extended could cause damage to the

The 3rd rack is also removable to allow extra large items to be placed in the upper rack:

To remove the 3rd rack:

Remove the silverware and utensil trays.

(See the IMPORTANT NOTES in this section.)

Push the rack all the way to one side so that

a gap between it and the side rail forms on

the other side. Align the side rail posts with

the center of the clips on the rack and lift

Continuing to hold the rack in the lifted

position, repeat on the other side.

Once the rack is removed, push the side

rails all the way back into the dishwasher. Pull rack all the way out to lock it in place To replace the 3rd rack:

Extend both side rails fully out of the dishwasher.

Orient the rack so that its side clips are aligned

and centered with the posts on the side rail and

lower the clips onto the posts

Move the rack to one side of the dishwasher until

the clips fall onto the posts

Continuing to hold the rack in the lifted

position, repeat on the other side.

Once the rack is replaced, pull it all the way

out to lock it in place in its side rails.

Replace the silverware and utensil trays. Rail posts on inside of rails Rail

Rack Align rail posts with rack clips - Pull rack upRack clipsPush rack to one sideRail post will slide in or out of this openingRail post Rack clip

Rail Rack clipsRail post Rack clip

Rail Rack clipsRail postsSilverware Basket

Place flatware in the removable silverware baskets.

Sharp objects, such as forks and knives, may be placed

with the handles facing up, in order to protect your

hands. For the best wash performance, place other

items such as spoons with the handles facing down.

Avoid allowing items to nest together, which may keep

them from being properly washed. When loading,

distribute items evenly in the basket.

The silverware baskets may also be used for small

items, such as measuring spoons, baby bottle nipples,

plastic lids, or corn cob holders. The silverware basket

covers can be closed to contain small items.

The Easy Access Silverware Baskets (on GDF570 and

DDT575 models) may be positioned on the front of

either the upper or lower racks. Secure the basket to

the rack using the wire loop on the front of the upper

and lower racks to engage the tabs on the rear of the

On other models, the silverware basket may be

positioned by placing the hooks on the back of the

basket over the top wire on the sides of the lower rack.

IMPORTANT NOTE: Do not load large or tall utensils

where they may block the detergent dispenser, mid

spray arm, or become trapped between the door and

the gasket when the door is closed.

Loading the dishwasher (cont.).

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware

baskets may vary from your model.

208 Place Settings - Silverware Basket

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Models - GDF570 and DDT575

10 Place Settings - Silverware Basket

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Models - GDF570 and DDT575

12 Place Settings - Silverware Basket

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Models - GDF570 and DDT575

Silverware/flatware is loaded using the silverware basket lids. This ensures great wash performance of the

silverware. Loading in this manner prevents nesting and makes sure all items are washed uniformly.

NOTE: For models PDT760 and CDT765, refer to the

3rd Rack in this Loading The Dishwasher section.

NOTE: For models PDT760 and CDT765, refer to the

3rd Rack in this Loading The Dishwasher section.

Models - PDT760 and CDT765Care and cleaning.

Cleaning the Control Panel

To clean the control panel, use a lightly

dampened cloth. Then dry thoroughly.

Stainless Steel Inner Door and Tub

The stainless steel used to make the dishwasher

tub and inner door provides the highest

reliability available in a GE dishwasher.

If the dishwasher tub or inner door should

be scratched or dented during normal use,

they will not rust or corrode. These surface

blemishes will not affect their function or

Cleaning the Dishwasher Interior

Cleaning the Exterior Door Panel

Before cleaning the front panel, make sure you

know what type of panel you have. Refer to the

last two letters of your model number. You can

locate your model number on the left-hand tub

wall just inside the door. If your model number

ends with BB, CC, WW, SA or ES then you have

a painted door panel. If your model number

ends with SS, then you have a Stainless Steel

door panel. If your model number ends with II,

then you have an Integrated door panel.

Follow the instructions below for cleaning the

door panel for your specific model.

Painted Door Panel (model numbers ending in

BB–black, CC–bisque, WW–white, SA-silver or

Use a clean, soft, lightly dampened cloth, then

Stainless Steel Door Panel (model numbers

For cleaning rust and tarnish, cleaners with

oxalic acid such as Bar Keepers Friend Soft

Cleanser™ will remove rust, tarnish and small

blemishes. Use only a liquid cleanser free

of grit and rub in the direction of the brush

lines with a damp soft sponge. Do not use

appliance wax or polish on the stainless steel.

For other blemishes and marks, use Stainless

Steel Magic or a similar product using a clean

soft cloth. Do not use appliance wax, polish,

bleach or products containing chlorine on

Stainless Steel. You can order Stainless Steel

Magic # WX10X29 through

877.959.8688. In Canada, call 1-800-661-1616.

Integrated Door Panel (model numbers ending

This is a custom installed door panel, and you

will need to refer to the cabinet manufacturers

recommendations for proper cleaning.

* Lemi Shine® is a registered trademark of Envirocon Technologies, Inc.

To clean and de-odorize your dishwasher,

use citric acid or Lemi Shine®*, a detergent

additive. Lemi Shine will break up mineral

deposits, and remove hard water film and

stains. You can order citric acid #WD35X151

through GE Parts by calling 877-959-8688 or

visiting GEApplianceparts.com. In Canada,

call 1-800-661-1616. You can purchase

Lemi Shine at your local grocery store or by

calling GE at the numbers above and ask for

WX10X10019.An air gap protects your dishwasher against water

backing up into it if a drain clogs. The air gap is not

a part of the dishwasher. It is not covered by your

warranty. Not all plumbing codes require air gaps,

so you may not have one.

The air gap is easy to clean.

Turn off the dishwasher and lift off the air gap

Remove the plastic cap under the cover and

clean with a toothpick.

Replace the cap and cover when the air gap is

Does Your Dishwasher Have an Air Gap?

If your dishwasher is left in an unheated place

during the winter, ask a service technician to:

Turn off electrical power to the dishwasher.

Remove fuses or trip circuit breaker.

Turn off the water supply and disconnect the

water inlet line from the water valve.

Drain water from the water inlet line and

water valve. (Use a pan to catch the water.)

Reconnect the water inlet line to the water

Protect Against Freezing Check the air gap any time your dishwasher isn’t draining well.Air gapRetainingPostsSpray Arm

Fine FilterUltra-FineFilter Inspect and clean the filters periodically. This should be done every other month or so depending on usage. If there is a

decrease in wash performance or dishes feel gritty, this is also an indication the filters need to be cleaned.

Cleaning the Filters

To clean the Ultra-Fine Filter, remove the bottom

rack. Twist counterclockwise and remove the

Ultra-Fine Filter. Rinse filter with warm soapy

water and use a sponge to carefully remove any

stubborn particles. Scrubbing with scouring pads

or brushes can damage the filter. Once cleaned,

replace the Ultra-Fine Filter, and twist clockwise to

bottom rack. Remove the Ultra-Fine Filter.

Twist counterclockwise each of the two retaining

posts located toward the back bottom of the

tub, and remove the Fine Filter. Rinse filter with

warm soapy water. Scouring pads or brushes

can scratch the filter surface but a soft brush or

sponge may be needed to remove stubborn soils

or calcium deposits caused by hard water. Once

cleaned, replace the Fine Filter, the Ultra-Fine

Filter, and twist clockwise the two retaining posts

WARNING! The retaining posts

can be a choke hazard for small children if

removed from the dishwasher. Keep out of

Troubleshooting Tips

Save time and money! Review the charts on the following pages, or visit GEAppliances.com.

In Canada visit www.GEAppliances.ca. You may not need to call for service.

Possible Causes What To Do

Start status The door was opened or the • Press the Start button once and close the door to start the dishwasher.

indicator light flashing cycle was interrupted. Press the Start button a second time when the dishwasher is running only

if you wish to cancel the cycle.

Dishwasher BEEPS This is a reminder that your • Press Start and close the door.

once every minute dishwasher door has been left

open during operation. It will

continue beeping until you press

Start and close the door.

Display shows Possible leak is detected • Some models are equipped with leak detection and the cycle will be cancelled if

“LEAK DETECTED” a leak is detected. The display will show “LEAK DETECTED”. Call for service.

Beeping at the end This is normal. The dishwasher • To turn off the double beep indicator (or re-activate it if it was previously

of the cycle will beep twice at the end of the turned off), press the Heated Dry button 5 times within 3 seconds.

(on some models) cycle. A triple beep will sound to indicate the end-of-cycle beep option

has been turned on or off.

Dishes and flatware Ultra Fine or Fine filter is clogged • See the Care and cleaning section.

not clean Low inlet water temperature • Make sure inlet water temperature is correct (see the Using the dishwasher

section). Turn on the hot water faucet nearest the dishwasher, let run until

the water temperature stops rising. Then start the dishwasher and turn

off the faucet. This ensures the entering water is hot. Select Wash Temp Boost

or Boost Temp if available.

Water pressure is temporarily low • Turn on a faucet. Is water coming out more slowly than usual? If so, wait

until pressure is normal before using your dishwasher.

Air gap or disposer is clogged • Clean the air gap or flush the disposer.

Improper rack loading • Make sure large dishware does not block the detergent dispenser or the

wash arms. See the Loading the dishwasher section.

Poor performing detergent • Use a highly rated detergent such as

Leak detected • Some models are equipped with leak detection and the cycle will be cancelled if

a leak is detected. The display will show “LEAK DETECTED”. Call for service.

Spots and filming Extremely hard water • Use rinse agents such as Cascade

Complete Rinse Aid to prevent spots and

on glasses and prevent new film buildup.

• If water is extremely hard, a softener may be required.

Low inlet water temperature • Make sure water temperature is at least 120°F (49°C).

Overloading or improper • Load dishwasher as shown in the Loading Place Settings section.

loading of the dishwasher

Old or damp powder detergent • Make sure detergent is fresh.

Rinse agent dispenser empty • Refill with rinse agent such as Cascade

Too little or low performing • Make sure you use the proper amount of highly rated detergent.

Problem Possible Causes What To Do

Cloudiness on Combination of soft water and • This is called etching and is permanent. To prevent this from happening,

glassware too much detergent use less detergent if you have soft water. Wash glassware in the shortest

cycle that will get it clean.

Low performing phosphate • See A white film on glassware, dishware and the interior in this

free detergent Troubleshooting section.

Water temperature entering the • This could be etching. Lower the water heater temperature.

dishwasher exceeds 150°F (66°C)

Suds in the tub Wrong detergent • Use only automatic dishwasher detergents to avoid sudsing. Cascade

Automatic Dishwashing Detergents have been approved for use in all

• To remove suds from the tub, open the dishwasher and let suds dissipate.

Open the door, press and hold Start for 3 seconds, and close the door.

Rinse agent was spilled • Always wipe up rinse agent spills immediately.

Detergent left in Dishes or utensils are blocking • Reposition the dishes, so the water from the lower spray arm can flush

dispenser cups the detergent cup the detergent cup. See the Loading the dishwasher section.

• Reposition the tall utensils or heavy silverware that may be keeping the

dispenser cup door from opening. See the Loading the dishwasher

• Don’t place large bowls or pots directly under the detergent dispenser.

Black or gray Aluminum utensils have • Remove marks with a mild, abrasive cleaner.

marks on dishes rubbed against dishes

Dishes don’t dry Low inlet water temperature • Make sure inlet water temperature is at least 120°F.

• Select Heated Dry.

• Use Wash Temp Boost or Boost Temp option.

• Select a higher cycle, such as Wash

Sanitize Temp or Heavy.

Rinse agent dispenser is empty • Check the rinse agent dispenser and fill as required.

Additional drying time is needed • Leave door closed after the Clean light appears to allow the fan to run an

additional 90 minutes.

Note: If you open the door, this fan extension will be cancelled.

Control panel responded Door may not be completely • Make sure the door is firmly closed.

to inputs but dishwasher closed

never filled with water

Water valve may be turned off • Make sure water valve (usually located under the sink) is turned on.

Flood float may be stuck • Remove Ultra-Fine filter and lightly tap the piece under the ultra fine filter that

looks like a salt shaker. Replace the filter.

Stained tub interior :KLWHILOPRQLQVLGHVXUIDFH³ • GE recommends Cascade

Complete Rinse Aid to help prevent hard water

hard water minerals mineral deposits from forming.

• Run dishwasher with citric acid to remove mineral deposits. Citric acid

(Part number: WD35X151) can be ordered through GE Parts. See back

cover for ordering information. Alternatively, purchase Lemi Shine and follow

the directions on the label.

Dishwasher won’t run Fuse is blown or circuit breaker • Replace fuse or reset circuit breaker. Remove any other appliances from

is tripped the circuit.

Power is turned off • In some installations, the power to the dishwasher is provided through a

wall switch, often located next to the disposer switch. Make sure it is on.

Control panel is locked • Unlock control panel. See the Getting started section.

Possible leak is detected • Some models are equipped with leak detection and the cycle will be cancelled if

a leak is detected. The display will show “LEAK DETECTED”. Call for service.

Proper Start sequence was • See the Using the dishwasher section.

25Problem Possible Causes What To Do

Control panel lights Time too long between • Each button must be touched within 30 seconds of the others.

go off when you’re touching of selected buttons To relight, touch any button again or open the door and

setting controls unlock (top control).

Water standing in Air gap is clogged • Clean the air gap. See the Care and cleaning section.

the bottom of the tub

High drain loop or air • Refer to the Installation Instructions for proper drain line installation.

Water won’t pump Drain is clogged • If you have an air gap, clean it. See the Care and cleaning section.

• If the dishwasher drains into a disposer, run disposer clear.

• Check to see if your kitchen sink is draining well. If not, you

Steam This is normal • Warm, moist air comes through the vent during drying and when

water is being pumped out. This is necessary for drying.

Sanitized or Cycle The door was opened and the • Do not interrupt the cycle by opening the door during the wash cycle.

Sanitized light does cycle was interrupted during

not illuminate at the final rinse

The incoming water • Raise the water heater temperature to between 120°F and 150°F.

temperature was too low

Noise Normal operating sounds: • These are all normal. No action is required.

Detergent cup opening

Water entering dishwasher

The motor stops and starts at

various times during the cycle

Spray arms start and stop at

Drain pump sounds during

Drain pump starts and stops

several times during each drain

Rattling dishes when the spray • Make sure dishes are properly loaded. See the Loading the

arm rotates dishwasher section.

Rattling silverware against door • Tall utensils may be placed in the upper rack to avoid bumping against

during wash inner door during wash cycle.

A white film on This problem is likely caused • To remove the white film, run your dishes through a dishwasher cycle with

glassware, dishware by a low quality phosphate-free citric acid. Use a WD35X151 citric acid kit found online. Otherwise, use Lemi

and the interior dishwasher detergent Shine (WX10X10019) found at your local grocery store.

Pour the citric acid in the detergent cup and close the cover. Place the filmed

but otherwise clean glassware and dishware in the dishwasher. Leave

silverware and other metal items out of the dishwasher. Turn the dishwasher

on and let it run through a complete cycle without detergent. The glassware,

dishware, and dishwasher should come out film free. Alternatively,

a vinegar rinse may be used. Pour 1 cup of vinegar into dishwasher just after

the detergent cup opens and let the dishwasher complete its cycle.

This may be repeated several times a year as needed

The use of a rinse agent such as Cascade

Complete Rinse Aid may help

minimize a repeat build up of film. Also, the use of a highly rated detergent

Platinum Pacs will help prevent film build-up.

Before you call for service…

What Is Not Covered (for customers in Canada):

 Service trips to your home to teach you how to use

 Improper installation.

If you have an installation problem, contact your dealer

are responsible for providing adequate

electrical, exhausting and other connecting facilities.

 Failure of the product if it is abused, misused, or used for

other than the intended purpose or used commercially.

 Replacement of house fuses or resetting of circuit breakers.

 Damage to the product caused by accident, fire, floods or

 Damage caused after delivery.

For The Period Of: GE Will Replace:

One Year Any part of the dishwasher which fails due to a defect in materials or workmanship. During

From the date of the this limited one-year warranty, GE will also provide, free of charge, all labor and in-home

original purchase service to replace the defective part.

What GE Will Not Cover (for customers in the United States):

 Service trips to your home to teach you how to use the

 Improper installation, delivery or maintenance.

 Failure of the product if it is abused, misused, or used for

other than the intended purpose or used commercially.

 Replacement of house fuses or resetting of circuit breakers.

 Product not accessible to provide required service.

 Damage to the product caused by accident, fire, floods or

 Incidental or consequential damage caused by possible

defects with this appliance.

 Cleaning or servicing of the air gap device in the drain line.

 Damage caused after delivery, including damage from

items dropped on the door.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA.

If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge

or you may be required to bring the product to an Authorized GE Service location for service. Proof of original purchase date is needed

to obtain service under the warranty. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal

rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or

state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within

Canada. In home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide.

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

GE Dishwasher Warranty. GEAppliances.com

All warranty service provided by our Factory Service Centers, or an

authorized Customer Care

technician. To schedule service, visit us on-line

at GEAppliances.com, or call 800.GE.CARES (800.432.2737) in the United

States. In Canada, call 1.800.561.3344. Please have serial number and

model number available when calling for service.

WARRANTOR IS NOT RESPONSIBLE FOR CONSE QUEN TIAL DAMAGES.

(;&/86,212),03/,(':$55$17,(6³<RXUVROHDQGH[FOXVLYHUHPHG\LVSURGXFWUHSDLUDVSURYLGHGLQWKLV/LPLWHG

Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose,

are limited to one year or the shortest period allowed by law.

(;&/86,212),03/,(':$55$17,(6³<RXUVROHDQGH[FOXVLYHUHPHG\LVSURGXFWUHSDLUDVSURYLGHGLQWKLV/LPLWHG

Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose,

are limited to one year or the shortest period allowed by law.

Warrantor: MC Commercial, Burlington, ON, L7R 5B6

Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a GE Factory Service technician the ability to quickly diagnose any issues with your appliance and helps GE

improve its products by providing GE with information on your appliance. If you do not want your appliance

data to be sent to GE, please advise your technician NOT to submit the data to GE at the time of service.Notes.

RISQUE DE SUFFOCATION POUR UN ENFANT COINCÉ

GDT740, PDT750, PDT760

Sanitize Temp or Heavy.

GDT740, PDT750, PDT760

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

GE Appliances Website

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,

any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,

order parts or even schedule service on-line.

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your

convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

In Canada, call 800.561.3344

Real Life Design Studio In the US: GEAppliances.com

*(VXSSRUWVWKH8QLYHUVDO'HVLJQFRQFHSW³SURGXFWVVHUYLFHVDQGHQYLURQPHQWVWKDWFDQEHXVHGE\SHRSOHRI

all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities

and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with

disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, please write to: Director, Consumer Relations, MC Commercial

1 Factory Lane, Suite 310

Moncton, N.B. E1C 9M3

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still

in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer

Home Services will still be there after your warranty expires. In Canada, please consult your local listings for your

extended warranty provider.

Parts and Accessories In the US: GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes

(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at

877.959.8688 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally

should be referred to qualified service personnel. Caution must be exercised, since improper servicing may

cause unsafe operation.

In Canada, call 800.661.1616

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including

your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

In Canada, please write to: Director, Consumer Relations, MC Commercial

1 Factory Lane, Suite 310

5HJLVWHU\RXUQHZDSSOLDQFHRQOLQH³DW\RXUFRQYHQLHQFHTimely product registration will allow for enhanced

communication and prompt service under the terms of your warranty, should the need arise. You may also

mail in the pre-printed registration card included in the packing material.

In the US: GEAppliances.com
