USER MANUAL DL01 Impulsion

10.000 LUX* * at a distance of about 17 cm

Impulsion

Front view of a white electronic device with labeled buttons (no readable text or symbols beyond labels)

FIG. 1

EVI GATE SLP Home 2019-2020 EVI GATE SLP Home 2019-2020

FIG.2

Hand holding a white electronic device with a button, against a plain background (no text or symbols visible)

FIG. 3

Close-up of a modern toaster with three shades of blue and white, showing a control knob and indicator lights (no text or symbols visible)

FIG. 4

We would like to thank you for purchasing the DAY LIGHT from Impulsion®. This appliance will help you combat fatigue, apathy and the lack of energy often felt during autumn and winter when skies are grey and the days are getting shorter. These symptoms are the manifestation of what is known as the winter blues.

The DAY LIGHT uses very bright light to simulate the sun's natural rays. The light produced by the DAY LIGHT naturally re-establishes the light signals essential for feeling happy and full of energy.

Thanks to its technology and considerable light distribution (around 10,000 Lux per 17cm); the DAY LIGHT will quickly help you recover your energy and vitality.

You can use the DAYLIGHT while doing other things, such as reading, writing, speaking on the telephone, or even working.

ABOUT THE LIGHT EXPOSURE

Light and its intensity have a huge influence on the body's essential processes. During autumn and winter, the sun's rays become weaker. Traditional artificial light in buildings is, in this respect, not sufficient to compensate for this deficit in natural light. The consequences of this decrease in light can lead to a lack of drive and energy, insomnia, melancholy, concentration problems and difficulties getting up in the morning. These symptoms can be grouped under the term "seasonal depression or winter blues".

Many health professionals accept the benefits of exposure to light in treating the winter blues. By light, they mean daylight of a certain intensity. In winter light intensity can sometimes not exceed 2,500 Lux*, whereas in summer it can reach 100,000 Lux* on a beautiful summer's day.

IMPULSION has therefore developed this specific lighting appliance which enables you to benefit from the amount of light you need to dispel the winter blues.

Light exposure consists of using intensive Lux* light to simulate natural sunlight. Through regular exposure to intensive Lux light over a given period, winter blues symptoms can fade or even disappear.

* Lux is the measurement unit for the luminance of light.

PLEASE READ ALL INSTRUCTIONS PRIOR TO USING YOUR DAY LIGHT; IN PARTICULAR THOSE RELATING TO BASIC SAFETY:

• Only use this appliance according to the directions for use set out in this manual.
• This appliance is not designed for use by people with reduced physical, sensory or mental capabilities (including children), or people without experience or knowledge of the appliance, unless it may be beneficial to them and the person responsible for their safety can supervise them and has received advice and instruction in using the appliance. Children should be supervised to ensure they do not play with the appliance.
• Before plugging in the appliance, check the voltage indicated on the appliance corresponds to the voltage supported by the mains.
• Only use accessories which are recommended by IMPULSION or which are supplied with this appliance.
• Any modification of this appliance is prohibited.
• If the flex is damaged, it must be replaced with a suitable flex which is available from the supplier or after-sales department.
• Do not use the appliance if the power socket is damaged, if the appliance is not working correctly, or if it has been dropped, damaged or has fallen into water. Have the appliance checked and repaired by the supplier or after-sales department.
• Do not carry the device by the flex or use the flex as a handle.
  • Always unplug the appliance after use and prior to cleaning.

• Electrical appliances should not be left plugged in while unsupervised. Unplug when not in use.

• Keep the flex away from hot surfaces.

• Do not use this appliance before going to sleep. Exposure to light has a stimulating effect and may delay the onset of sleep.
• Never allow anything to drop into or insert any object into any of the openings.
• Do not use this appliance in a damp environment (in a bathroom, near a shower...).
• Never use this appliance in a room where aerosol products (sprays) are used or in a room where oxygen is administered.
• Do not use the device under a cover or cushion. Excessive heat can cause a fire, electric shock or injury.
• This appliance is designed exclusively for home use. Use of the DAY LIGHT is therefore not a medical treatment.
• Never use the appliance in a room which is not lit by another light source as this can lead to eye fatigue. Use this appliance in additional to normal lighting (daylight or artificial light).
• If you feel any pain while using this appliance, stop using it immediately and consult your doctor.
• We recommend that you do not look at the lamp during your session. Eye pain can be observed during the first sessions; it should subsequently disappear.
• Consult your doctor prior to using the DAY LIGHT if:
• You suffer or have suffered from serious depression;
• You suffer from light hypersensitivity;
• You have eye problems;
• You are taking certain medicines (e.g. certain antidepressants, psychoactive drugs, malaria tablets) that may interfere with the use of the DAY LIGHT;
• You have high blood pressure.
• Exposure time depends on the distance between the DAY LIGHT and you. Please see "Instructions for use" chapter to find out the recommended distance and duration.

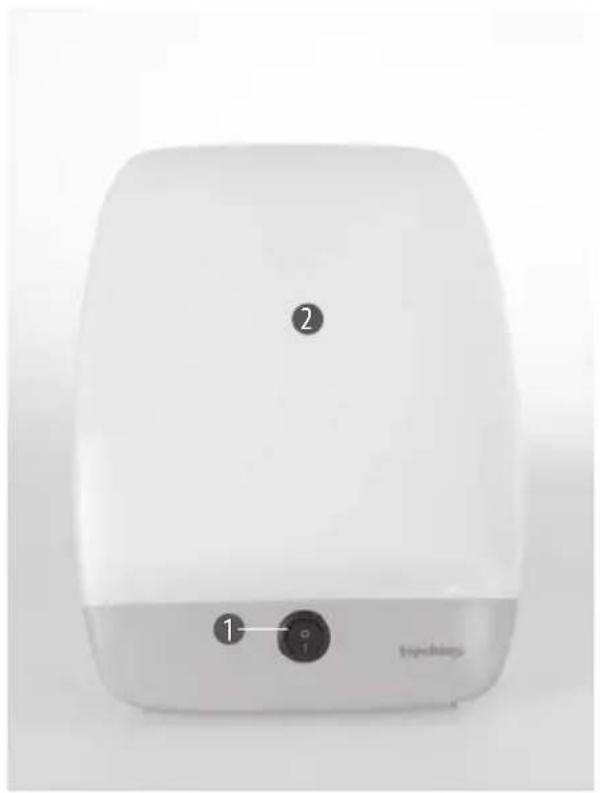

APPLIANCE COMPONENTS

(Fig.1&2.)

1) Start/stop button
0. Off
1. On

2) Reflective cover

INSTRUCTIONS FOR USE

- It is recommended to use the DAY LIGHT during the day and not in the evening.

Installation:

1. Using the base located at the back of the appliance, place your DAY LIGHT on a solid flat and stable surface.

2. Plug the flex into the mains socket.

Use:

• You can switch the DAY LIGHT on using the (On/Off) button.
• The recommended exposure to the DAY LIGHT depends on the distance between you and the lamp as well as the light intensity selected. It is generally advised to use the appliance for 1 hour at a light intensity of 5,000 Lux. According to the table below, you can easily calculate the recommended exposure time:

DISTANCE LUX	EXPOSURE TIME
17 cm 10,000 30 min
30 cm 4,300 1h10 min
40 cm 2,500 2h
50 cm 1,700 3h

• Position yourself in front of the appliance.
• The distance between your face and the screen should 15 to 50cm. Adjust it as you wish so that your eyes are comfortable.
• You do not have to sit directly in front of the appliance.
• You can space out the duration of your light therapy session.
• Do not look at the lamp directly. During the session you can read, write, speak on the telephone, etc.
• Exposure should be regular over a prolonged period. During the darkest days of the year, repeat the treatment for 7 consecutive days at least, or even more, according to your individual requirements.
• After use, switch the appliance off by putting the button located on the front of the appliance in the "0" position and unplug it.
• If during the light session you feel any eye or other pain, stop using the DAY LIGHT immediately and consult your doctor.

MAINTENANCE AND STORAGE

Cleaning:

• Unplug the appliance and leave it to cool.
• Use a damp cloth or sponge to clean the exterior surface of the lamp.
• Never use scouring pads, abrasive products or strong detergents to clean the appliance.

Storage:

- Store your unit in a safe dry place, out of reach of children.

REMLACING THE TUBE

Other than the tube, the appliance does not contain any parts that need replacing. The tube is expected to operate for approximately 8,000 hours (which is equivalent to several years of normal usage). The tube must be replaced with a similar tube.

To replace the tube, please follow the instructions below:

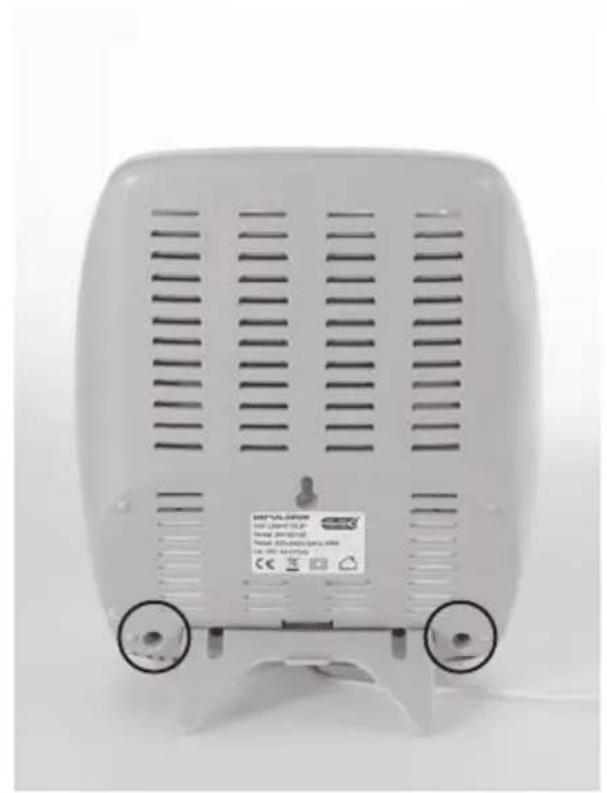

• Using a screwdriver (not provided), unscrew the 2 screws located at the back of the appliance (see Fig. 2.)

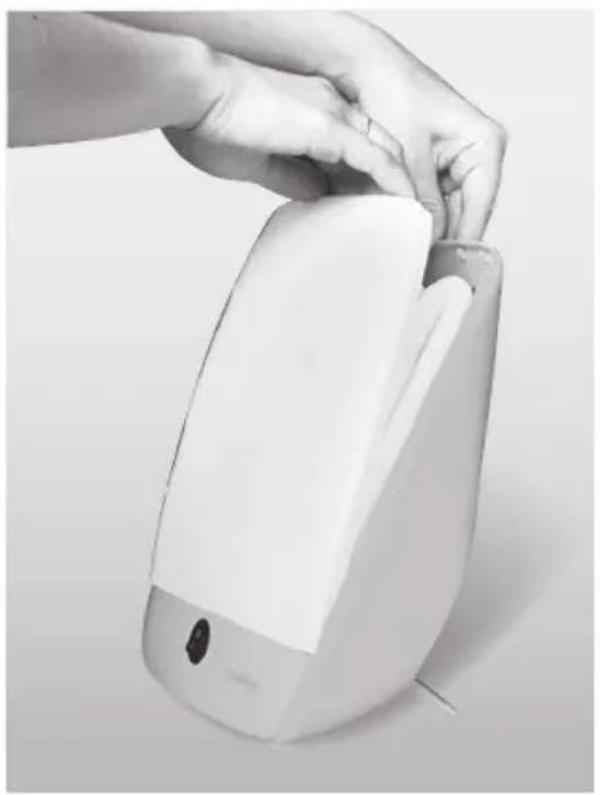

• Then remove the reflective cover as shown in the diagram (Fig.3.)

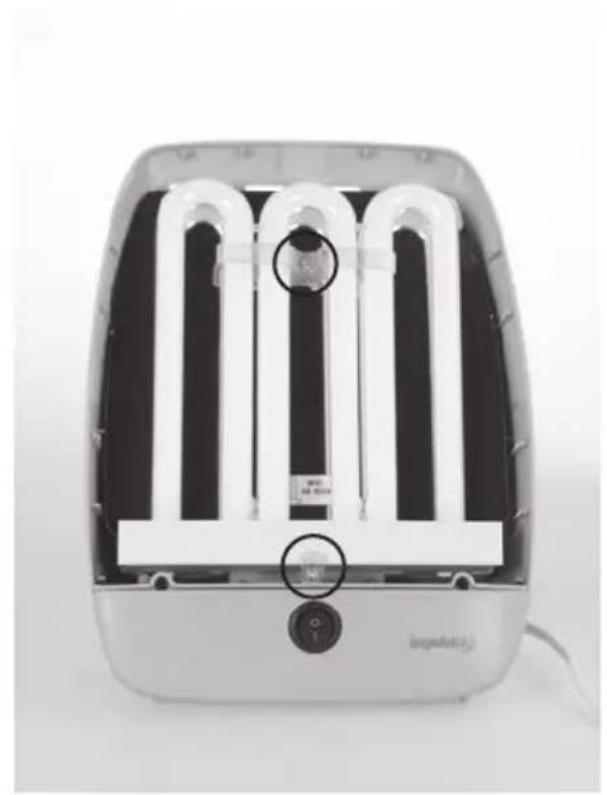

• Next, remove the fastening clip and remove the screw located at the base of the tube. You can now remove the tube as shown in the diagram (Fig.4).
• Once the tube has been replaced, replace the reflective cover and the screw before using the DAY LIGHT again.

FAQ

PROBLEMS POSSIBLE CAUSES SOLUTIONS
No light	No power The appliance may not be plugged in correctly or your power supply may be faulty
	Main switch is off Switch the main switch on
One side of the appliance is not working	Faulty tube Change the tube
	Tube is dying Change the tube
The light keeps flashing 20 seconds after switching it on	Tube not positioned correctly Reposition the tube

ADVICE REGARDING THE DISPOSAL OF WASTE

• All the packaging is composed of materials that pose no hazard for the environment and which can be disposed of at your local sorting centre to be used as secondary raw materials. The cardboard may be disposed of in a paper recycling bin. The packaging film must be taken to your local sorting and recycling centre.
• When you have finished using the device, please dispose of it in an environmentally friendly way and in accordance with the law.

LIMITED WARRANTY

IMPULSION® guarantees this product against any material or manufacturing defect for a period of two years from the date of purchase, except in the circumstances described below.

The IMPULSION ^® guarantee does not cover damage caused as a result of normal wear to this product. In addition, the guarantee covering this IMPULSION ^® product does not cover damage caused by abusive or inappropriate or incorrect use, accidents, the use of unauthorized accessories, changes made to the product or any other circumstance, of whatever sort, that is outside IMPULSION ^® 's control.

IMPULSION ^® may not be held liable for any type of circumstantial, indirect or specific damage.

All implicit guarantees relating to the suitability of the product are limited to a period of two years from the initial date of purchase as long as a copy of the proof of purchase can be supplied.

On receipt, IMPULSION ^® will repair or replace your appliance at its discretion and will return it to you. The guarantee is only valid through IMPULSION ^® 's Service Centre ^® . Any attempt to maintain this product by a person other than IMPULSION ^® 's Service Centre will render this guarantee void.
