USER MANUAL VSZ5XTR2CH SIEMENS

Please keep this instruction manual. When passing the

vacuum cleaner on to a third party, please also pass on

this instruction manual.

This vacuum cleaner is intended for domestic use and

not for commercial use. Only use this vacuum cleaner in

accordance with the instructions in this instruction

manual. The manufacturer will not accept any responsibi-

lity for damage caused by improper use or incorrect ope-

Therefore, please note the following points.

The vacuum cleaner must only be operated with:

Original replacement parts, accessories or special

In order to prevent injuries and damage, the vacuum cle-

aner must not be used for:

Vacuum-cleaning persons or animals

- insects or spiders.

- hazardous, sharp-edged, hot or glowing substances.

- damp or liquid substances.

- highly flammable or explosive substances and gases.

- ash, soot from tiled stoves and central heating

- toner dust from printers and copiers.

This vacuum cleaner complies with the recognised rules

of technology and the relevant safety regulations.

Only connect and use the vacuum cleaner in accordan-

ce with the specifications on the rating plate.

Never use the vacuum cleaner without a dust bag fit-

=> This can damage the vacuum cleaner.

The appliance may be used by

children over the age of 8 years and

by persons with reduced physical,

sensory or mental capacity or by

persons with a lack of experience or

knowledge if they are supervised or

have been instructed on the safe use

of the appliance and the have

understood the potential dangers of

using the appliance.

Children must never play with the

Cleaning and user maintenance must

never be carried out by children

without supervision.4

Do not vacuum close to the head when using a nozzle

=> This could cause injury!

When vacuuming stairs, the appliance must always be

positioned below the user.

Do not use the power cord or the hose to carry or

transport the vacuum cleaner.

Fully extend the power cord when using the vacuum

cleaner continuously for several hours.

When disconnecting the appliance from the mains,

pull on the plug itself to remove it; do not pull on the

Do not pull the power cord over sharp edges or allow

it to be-come trapped.

For safety reasons, if this appliance's mains power

cable becomes damaged, it must be replaced by the

manufacturer, their after-sales service department or a

similarly qualified person.

Pull out the mains plug before carrying out any work

on the vacuum cleaner.

Do not operate the vacuum cleaner if it is damaged.

Unplug the appliance from the mains if a fault is detec-

For safety reasons, only authorised after-sales service

personnel are permitted to carry out repairs and fit

replacement parts to the vacuum cleaner.

Protect the vacuum cleaner from the weather, moistu-

re and sources of heat.

Do not pour flammable substances or substances con-

taining alcohol onto the filters (dust bag, motor pro-

tection filter, exhaust filter, etc.).

The vacuum cleaner is not suitable for use on con-

=> Vacuuming up building rubble could damage the

Switch off the appliance when it is not in use.

At the end of its life, the appliance should immediately

be rendered unusable, then disposed of in an appro-

Plastic bags and films must be kept

out of the reach of children before

=> Risk of suffocation.

The mains socket must be protected by at least a 16

amp circuit breaker.

If a circuit breaker is tripped when you switch on the

vacuum cleaner, this may be because other electrical

appliances which have a high current draw are

connected to the same power circuit.

To prevent the circuit breaker from tripping, select the

lowest power setting before switching the appliance

on, and increase the power only once it is running.

Disposal information

The packaging is designed to protect the vacuum clea-

ner from being damaged during transportation. It is

made of environmentally friendly materials and can

therefore be recycled. Dispose of packaging that is no

longer required at an appropriate recycling point.

Old appliances still contain many valuable materials.

Therefore, please take appliances that have reached

the end of their service life to your retailer or recycling

centre so that they can be recycled. For current dispo-

sal methods, please enquire at a retailer or your local

Disposal of filters and dust bags

Filters and dust bags are manufactured from environ-

mentally friendly materials. Provided they do not con-

tain substances that are not permitted in household

waste, you can dispose of them with your normal hou-

=> Fare for kvelning!

" " " " " " " "ベヲプ"ゅヨプ"れやヲレシ"∫"リシ"リョ"

Please keep this instruction manual in a safe place.

When passing the vacuum cleaner on to another

person, please also hand over this instruction manual.

Fold out the picture pages.

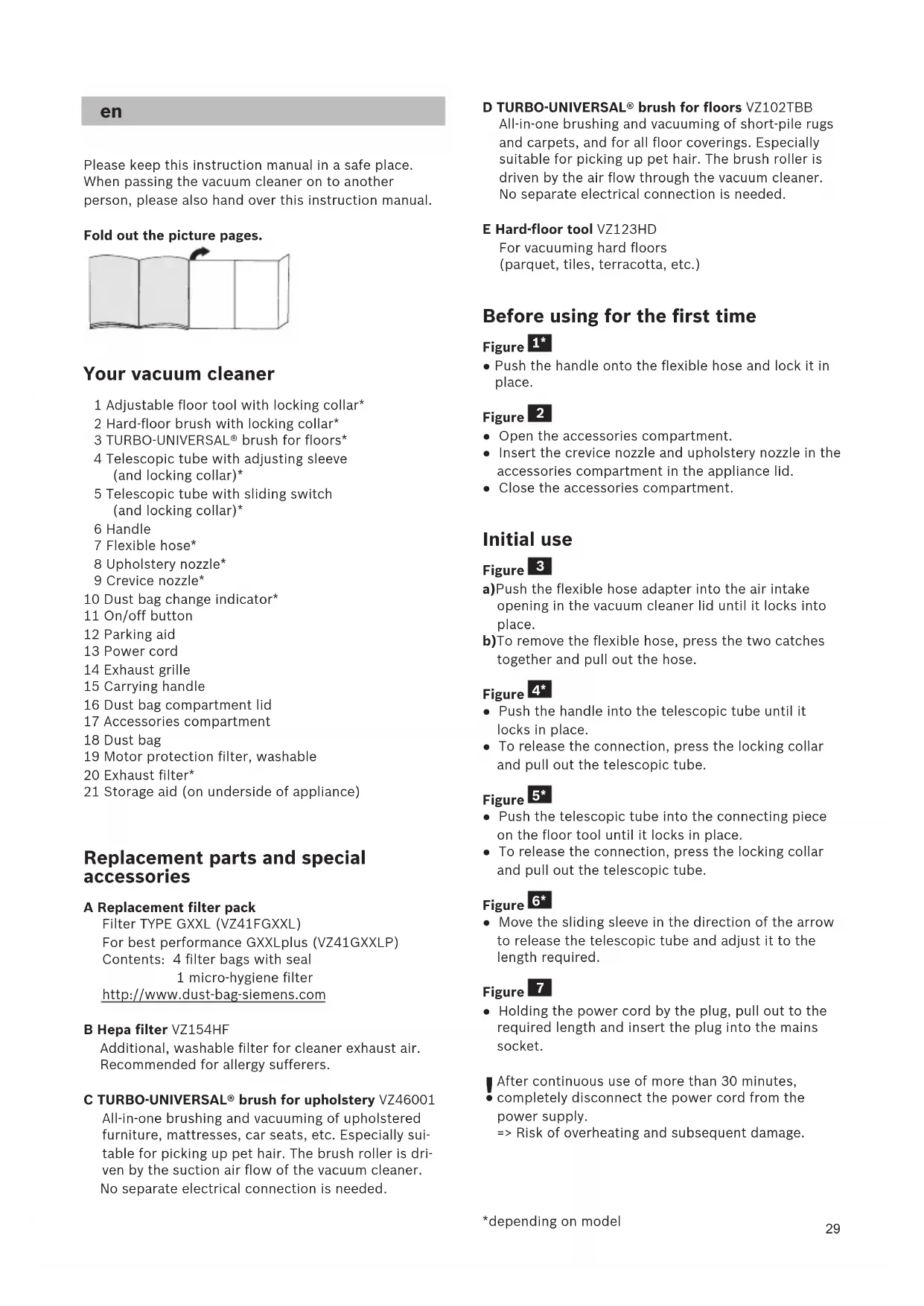

1 Adjustable floor tool with locking collar*

2 Hard-floor brush with locking collar*

3 TURBO-UNIVERSAL® brush for floors*

4 Telescopic tube with adjusting sleeve

(and locking collar)*

5 Telescopic tube with sliding switch

(and locking collar)*

16 Dust bag compartment lid

17 Accessories compartment

19 Motor protection filter, washable

21 Storage aid (on underside of appliance)

Replacement parts and special

A Replacement filter pack

Filter TYPE GXXL (VZ41FGXXL)

For best performance GXXLplus (VZ41GXXLP)

Contents: 4 filter bags with seal

1 micro-hygiene filter

http://www.dust-bag-siemens.com

B Hepa filter VZ154HF Additional, washable filter for cleaner exhaust air.

Recommended for allergy sufferers.

C TURBO-UNIVERSAL® brush for upholstery VZ46001

All-in-one brushing and vacuuming of upholstered

furniture, mattresses, car seats, etc. Especially sui-

table for picking up pet hair. The brush roller is dri-

ven by the suction air flow of the vacuum cleaner.

No separate electrical connection is needed.

D TURBO-UNIVERSAL® brush for floors VZ102TBB All-in-one brushing and vacuuming of short-pile rugs

and carpets, and for all floor coverings. Especially

suitable for picking up pet hair. The brush roller is

driven by the air flow through the vacuum cleaner.

No separate electrical connection is needed.

E Hard-floor tool VZ123HD For vacuuming hard floors

฀Push the handle onto the flexible hose and lock it in

฀ Open the accessories compartment.

฀ Insert the crevice nozzle and upholstery nozzle in the

accessories compartment in the appliance lid.

฀ Close the accessories compartment.

a)Push the flexible hose adapter into the air intake

opening in the vacuum cleaner lid until it locks into

b)To remove the flexible hose, press the two catches

together and pull out the hose.

฀ Push the handle into the telescopic tube until it

฀ To release the connection, press the locking collar

and pull out the telescopic tube.

฀ Push the telescopic tube into the connecting piece

on the floor tool until it locks in place.

฀ To release the connection, press the locking collar

and pull out the telescopic tube.

฀ Move the sliding sleeve in the direction of the arrow

to release the telescopic tube and adjust it to the

฀ Holding the power cord by the plug, pull out to the

required length and insert the plug into the mains

After continuous use of more than 30 minutes,

completely disconnect the power cord from the

=> Risk of overheating and subsequent damage.

depending on model30

Figure Switching on and off

฀ To switch the vacuum cleaner on or off, press the

Figure Controlling the suction level

The required suction level can be set to the level

required by turning the control knob in the direction

For vacuuming delicate materials,

such as upholstery, curtains, etc.

Medium power range =>

For the daily vacuuming of light dirt deposits.

For vacuuming durable floor coverings,

hard floors and heavily soiled surfaces.

Floor tools are subject to a certain amount of

wear,depending on the type of hard floor you have

(e.g. rough, rustic tiles). Therefore, you must check

the underside of the floor tool at regular intervals.

Worn undersides of floor tools may have sharp edges

that can damage sensitive hard floors, such as

parquet or linoleum. The manufacturer does not

accept any responsibility for damage caused by worn

Adjusting the floor tool:

฀ Remove the crevice nozzle or upholstery nozzle from

the accessories compartment in the appliance lid.

Figure Vacuuming with accessories

Attach the nozzles to the suction pipe or handle as

a)Crevice nozzle for vacuuming crevices and corners,

b)Upholstery nozzle for vacuuming upholstered

furniture, curtains, etc.

For vacuuming hard floor coverings

(tiles, parquet flooring, etc.)

฀ Push the telescopic tube into the connecting piece

of the hard floor tool until it locks in place.

฀ To release the connection, press the locking collar

and pull out the telescopic tube.

฀ After use, place the crevice or upholstery nozzle back

into the accessories compartment in the appliance

If your appliance is equipped with a turbo brush,

please consult the accompanying instruction manual

for instructions on its use and maintenance.

฀ You can use the nozzle parking aid on the back of the

appliance if you wish to stop vacuuming for a short

฀ Once you have switched off the appliance, slide the

hook on the floor tool into the recess on the rear of

To overcome obstacles, e.g. steps, the appliance can

also be carried by the handle on the appliance body.

When you have finished vacuuming

฀ Pull out the mains plug.

฀ Briefly pull the power cord and release

(The power cord rewinds automatically).

฀ To store or transport the appliance, you can use the

storage aid on the underside of the appliance.

฀ Stand the appliance upright. Slide the catch on the

floor tool into the groove on the underside of the

Please note: Always switch off the appliance before

a)If the dust bag change indicator lights up red

continuously when the floor tool is lifted from the

floor and the highest power setting has been

selected, the dust bag must be changed, even

though it may not yet be full. Even if the dust bag is

not full, it may still need changing, due to the type of

dust which has been vacuumed.

First check that the nozzle, suction pipe and flexible

hose are not blocked, as this would also lead to the

dust bag change indicator being triggered.

b)The handle can easily be detached from the hose to

Figure Opening the lid

฀ Open the lid by moving the locking lever in the

direction of the arrow.

a)Seal the dust bag by pulling the sealing tab, and

b)Insert the new dust bag fully into the holder.

Caution: the lid will only close if a dust bag has been

depending on model31

Cleaning the motor protection filter

The motor protection filter should be cleaned regularly

by tapping out the dirt and rinsing.

฀ Open the dust bag compartment lid. Figure

฀ Pull out the motor protection filter in the direction of

฀ Clean the motor protection filter by tapping out the

฀ If it is very dirty, the motor protection filter should

฀ The filter must then be left to dry for at least 24

฀ After cleaning, insert the motor protection filter into

the appliance and close the dust bag compartment

If required, you can purchase a replacement motor

protection filter through our after-sales service

(see after-sales service centres directory).

Replacing the exhaust filter

Replacing the micro-hygiene filter

This should be replaced with every replacement filter

฀ Open the dust bag compartment lid. Figure

฀ Release the filter holder by turning the locking lever

in the direction of the arrow.

฀ Remove the micro-hygiene filter. Insert the new

micro-hygiene filter into the appliance.

฀ Insert the filter holder in the appliance and lock it in

The Hepa filter can be rinsed out to clean it.

If you would like to replace the Hepa, the replacement

filter is available at retailers (see special accessories).

Rinsing the HEPA filter

With normal household use, the Hepa filter must be

฀ Open the dust bag compartment lid. Figure

฀ Unlock the Hepa filter by pressing the locking tab

and remove it from the appliance.

฀ Rinse the Hepa filter under running water and use a

brush to help you clean it.

฀ Do not re-insert the Hepa filter into the appliance

until it has dried completely (24 hrs.) and then close

the dust bag compartment lid.

If you have vacuumed up fine dust particles, clean the

motor protection filter and, if necessary, replace the

Always switch off the vacuum cleaner and disconnect it

from the mains before cleaning the vacuum cleaner.

The vacuum cleaner and plastic accessories can be

cleaned with a commercially available plastic cleaner.

Do not use a scourer, glass-cleaning agent or all-

purpose cleaning product. Never immerse the

vacuum cleaner in water.

The dust compartment can, if necessary, be cleaned

with a second vacuum cleaner or simply wiped with a

dry cloth or dusting brush.

Subject to technical modifications.

"るボΑホキ "≫≡ "ラョ "ケをミΕ "メタやヱゎョ "メミセよ "るシルミョャや "メΑピセゎ "るャゅェ "ヶプ

"るボΑホキ "≫≡ "ラョ "ケをミΕ "メタやヱゎョ "メミセよ "るシルミョャや "メΑピセゎ "るャゅェ "ヶプ

A E United A rab Emirates,

りギエ∂わヨャや る∂Βよゲバャや れやケゅョΗや

BSH Home Appliances FZE Round About 13,

HEATHERTON, Victoria 3202

Te l . : 1 3 0 0 3 6 8 3 3 9

mailto:bshau-as@bshg.com

www.siemens-home.com.au

European Trade Center Building,

BY Belarus, 

Milton Keynes MK12 5PT To arrange an engineer visit, to

order spare parts and accessories

or for product advice please visit:

www.siemens-home.co.uk

T e l . : 0 8 4 4 8 9 2 8 9 9 9 * *Calls from a BT landline will be charged atup to 3 pence per minute. A call set-up fee of up to 6 pence may apply. GR Greece, 

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

www.siemens-home.com/hr

mailto:alkatreszrendeles@bsh.hu

www.siemens-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Service Requests, Spares and

www.siemens-home.com/ie

Industrial Park North

Mahakali Caves Road,

www.siemens-home.com/it

General Serviss Limited

www.siemens-home.com/pt

www.siemens-home.com/ro

Union Industrial Building

US United States of America

BSH Home Appliances Corporation

1901 Main Street, Suite 600

gama-electronics.com

15th Road Randjespark

Rücknahme und Verwertung der Altgeräte vor.

This appliance is labelled in accordance with European

Directive 2012/19/EU concerning used electrical and

electronic appliances (waste electrical and electronic

equipment - WEEE). The guideline determines the fra-

mework for the return and recycling of used applian-

ces as applicable throughout the EU.

Cet appareil est marqué selon la directive européenne

electronic equipment - WEEE).

tronic equipment – WEEE).

electronic equipment - WEEE).

electronic equipment - WEEE).

tronic equipment - WEEE).

electrical and electronic equipment - WEEE).

electronic equipment - WEEE).

electrical and electronic equipment - WEEE).

((waste electrical and electronic equipment - WEEE

GB Conditions of guarantee

For this appliance the guarantee conditions as set

out by our representatives in the country of sale

apply. Details regarding same may be obtained

from the dealer from whom the appliance was

purchased. For claims under guarantee the sales

receipt must be produced.

FR Conditions de garantie
