USER MANUAL KIR41AD30 BOSCH

Safety and warning information 18

Information concerning disposal 19

Scope of delivery 20

Room temperature, ventilation

and cavity depth 20

Installation location 21

Connecting the appliance 21

Getting to know your appliance 22

Switching on the appliance 23

Setting the temperature 23

Refrigerator compartment 24

Interior fittings 25

Switching off and disconnecting

Cleaning the appliance 26

Tips for saving energy 28

Operating noises 28

Eliminating minor faults yourself 29

Appliance self-test 31

Customer service 31fr Table des matières

electrical and electronic

enInstruction for Use

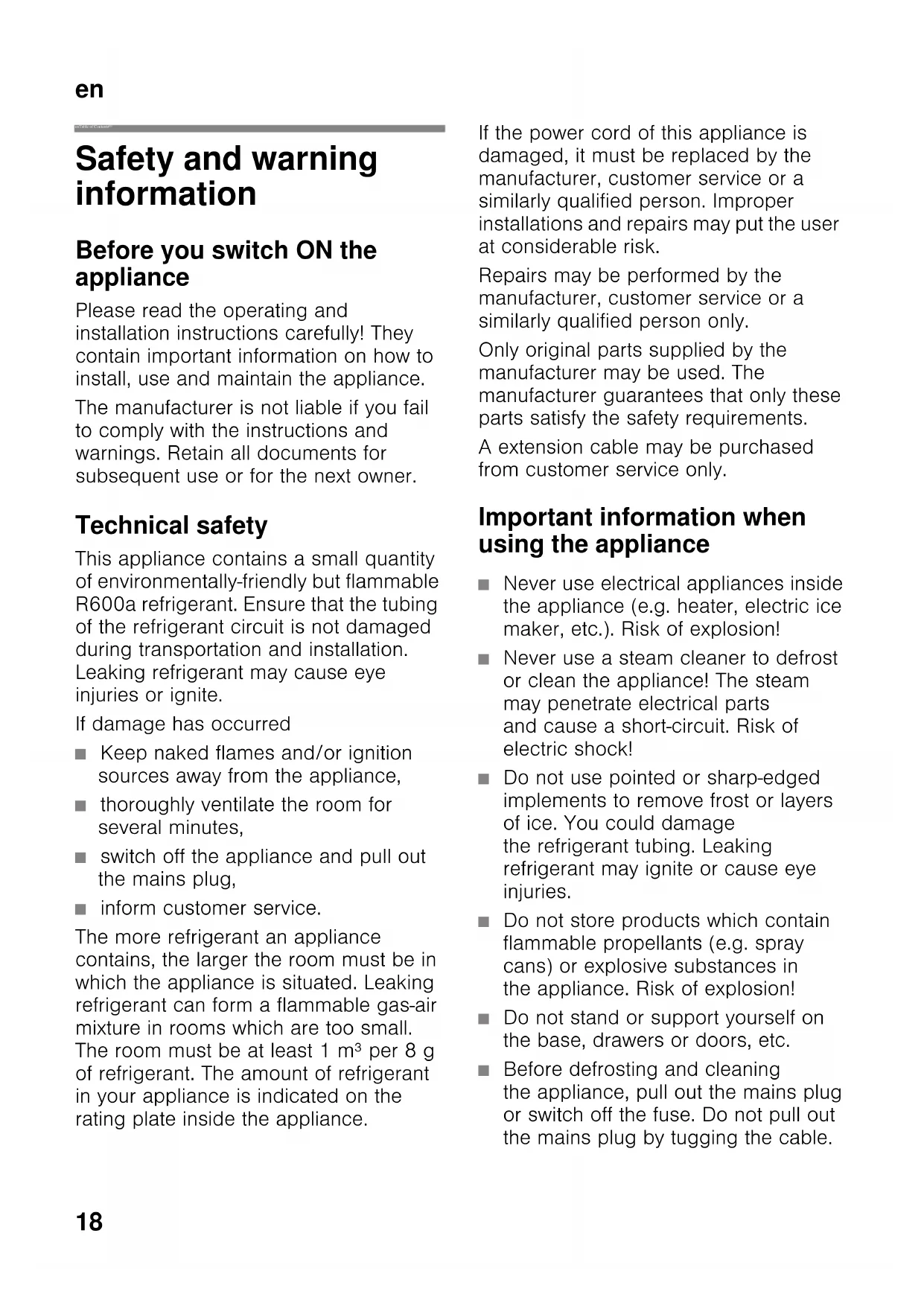

Before you switch ON the

Please read the operating and

installation instructions carefully! They

contain important information on how to

install, use and maintain the appliance.

The manufacturer is not liable if you fail

to comply with the instructions and

warnings. Retain all documents for

subsequent use or for the next owner.

This appliance contains a small quantity

of environmentally-friendly but flammable

R600a refrigerant. Ensure that the tubing

of the refrigerant circuit is not damaged

during transportation and installation.

Leaking refrigerant may cause eye

If damage has occurred

■ Keep naked flames and/or ignition

sources away from the appliance,

■ thoroughly ventilate the room for

■ switch off the appliance and pull out

■ inform customer service.

The more refrigerant an appliance

contains, the larger the room must be in

which the appliance is situated. Leaking

refrigerant can form a flammable gas-air

mixture in rooms which are too small.

The room must be at least 1 m³ per 8 g

of refrigerant. The amount of refrigerant

in your appliance is indicated on the

rating plate inside the appliance.

If the power cord of this appliance is

damaged, it must be replaced by the

manufacturer, customer service or a

similarly qualified person. Improper

installations and repairs may put the user

at considerable risk.

Repairs may be performed by the

manufacturer, customer service or a

similarly qualified person only.

Only original parts supplied by the

manufacturer may be used. The

manufacturer guarantees that only these

parts satisfy the safety requirements.

A extension cable may be purchased

from customer service only.

Important information when

the appliance (e.g. heater, electric ice

maker, etc.). Risk of explosion!

■ Never use a steam cleaner to defrost

or clean the appliance! The steam

may penetrate electrical parts

and cause a short-circuit. Risk of

■ Do not use pointed or sharp-edged

implements to remove frost or layers

of ice. You could damage

refrigerant may ignite or cause eye

■ Do not store products which contain

flammable propellants (e.g. spray

cans) or explosive substances in

the appliance. Risk of explosion!

■ Do not stand or support yourself on

the base, drawers or doors, etc.

■ Before defrosting and cleaning

the appliance, pull out the mains plug

or switch off the fuse. Do not pull out

the mains plug by tugging the cable.en

■ Bottles which contain a high

percentage of alcohol must be sealed

and stored in an upright position.

■ Keep plastic parts and the door seal

free of oil and grease. Otherwise,

parts and door seal will become

■ Never cover or block the ventilation

openings for the appliance.

■ People (childern incl.) who have

limited physical, sensory or mental

abilities or inadequate knowledge

must not use this appliance unless

they are supervised or given

meticulous instructions.

Children in the household

■ Keep children away from packaging

Danger of suffocation from folding

cartons and plastic film!

■ Do not allow children to play with the

■ If the appliance features a lock:

keep the key out of the reach of

The appliance is suitable for refrigerating

This appliance is intended for use in

the home and the home environment.

The appliance is suppressed according

to EU Directive 2004/108/EC.

The refrigeration circuit has been

This product complies with the relevant

safety regulations for electrical

appliances (EN 60335-2-24).

Information concerning

* Disposal of packaging

The packaging protects your appliance

from damage during transit. All utilised

materials are environmentally safe and

recyclable. Please help us by disposing

of the packaging in an environmentally

Please ask your dealer or inquire at your

local authority about current means of

* Disposal of your old

Old appliances are not worthless

rubbish! Valuable raw materials can be

reclaimed by recycling old appliances.

This appliance is identified

according to the European

guideline 2002/96/EC on waste

electrical and electronic

equipment – WEEE. The directive

specifies the framework for an

1. Pull out the mains plug.

2. Cut off the power cord and discard

with the mains plug.

3. Do not take out the trays

and receptacles: children are

therefore prevented from climbing in!

4. Do not allow children to play with

the appliance once it has spent its

useful life. Danger of suffocation!

Refrigerators contain refrigerant

and gases in the insulation. Refrigerant

and gases must be disposed

of professionally. Ensure that tubing

of the refrigerant circuit is not damaged

prior to proper disposal.

After unpacking all parts, check for any

If you have any complaints, please

contact the dealer from whom you

purchased the appliance or our

The delivery consists of the following

■ Built-in appliance

■ Interior fittings (depending on model)

■ Bag containing installation materials

■ Operating instructions

■ Installation manual

■ Customer service booklet

■ Warranty enclosure

■ Information on the energy

consumption and noises

ventilation and cavity

The appliance is designed for a specific

climate class. Depending on the climate

class, the appliance can be operated at

the following temperatures.

The climate class can be found on

the rating plate. Fig. .

The appliance is fully functional within

the room temperature limits

of the indicated climatic class. If

an appliance of climatic class SN

is operated at colder room temperatures,

the appliance will not be damaged up to

a temperature of +5 °C.

Climate class Permitted ambient

SN +10 °C to 32 °C N +16 °C to 32 °C ST +16 °C to 38 °C T +16 °C to 43 °Cen

The air on the rear panel of

the appliance heats up. Conduction of

the heated air must not be obstructed.

Otherwise, the refrigeration unit must

work harder. This increases power

consumption. Therefore: Never cover

or block the ventilation openings!

A cavity depth of 560 mm

is recommended for the appliance.

If the cavity depth is smaller – at least

550 mm – the energy consumption

Installation location

Install the appliance in a dry, well

ventilated room. The installation location

should neither be exposed to direct

sunlight nor near a heat source, e. g.

a cooker, radiator, etc. If installation next

to a heat source is unavoidable, use

a suitable insulating plate or observe

the following minimum distances to a

■ 3 cm to electric or gas cookers.

■ 30 cm to an oil or coal-fired cooker.

After installing the appliance, wait at least

1 hour until the appliance is switched on.

During transportation the oil in

the compressor may have flowed into

the refrigeration system.

Before switching on the appliance for

the first time, clean the interior of

the appliance (see chapter “Cleaning

Electrical connection

The socket must be near the appliance

and also freely accessible following

installation of the appliance.

The appliance complies with the

protection class I. Connect the appliance

to 220-240 V/50 Hz alternating current

via a correctly installed socket with

protective conductor. The socket must

be fused with a 10 to 16 A fuse.

For appliances operated in non-

European countries, check whether the

stated voltage and current type match

the values of your mains supply. This

information can be found on the rating

Never connect the appliance

to electronic energy saver plugs.

Our appliances can be used with mains

and sine-controlled inverters. Mains-

controlled inverters are used

for photovoltaic systems which

are connected directly to the national

grid. Sine-controlled inverters must be

used for isolated applications (e.g. on

ships or in mountain lodges) which are

not connected directly to the national

Getting to know your

Please fold out the illustrated last page.

These operating instructions refer

The features of the models may vary.

The diagrams may differ.

10 Vegetable container with humidity

11 Butter and cheese compartment

13* Vario door shelf

14 Shelf for large bottles

Serves to switch the appliance on

Is used to switch on the super

cooling (see chapter entitled

3 Temperature selection button

Press this button to set the

4 Temperature display

The numbers correspond

to the set refrigerator

compartment temperatures in °C.

Used to switch off the warning

signal, see chapter “Alarm

Switch on the appliance with the

The appliance begins to cool. Light is

switched on when the door is open.

We recommend a factory setting

of +4 °C in the refrigerator compartment.

Do not store perishable food warmer

■ After the appliance has been switched

on, it may take several hours until

the set temperature has been

Do not put any food in the appliance

■ While the refrigeration unit is running,

water droplets or hoarfrost may form

at the rear panel of the refrigerator.

This is due to functional reasons.

It is not necessary to scrape off

the frost or wipe off the water droplets.

The rear panel defrosts automatically.

The condensation collects

in the drainage channel and is carried

to the refrigeration unit where it

■ The front sides of the housing are

partly heated slightly. This prevents

condensation in the area of the door

Refrigerator compartment

The temperature can be set from

Keep pressing temperature setting

button 3 until the required refrigerator

compartment temperature is set.

The value last selected is saved. The set

temperature is indicated on temperature

The door alarm (continuous sound)

switches on if the appliance door is open

for longer than two minutes. Close

the door to switch off the warning signal.

Switching off the alarm

Press the alarm button 5 to switch off

Information on the usable capacity can

be found inside your appliance on

the rating plate. Fig. .en

The refrigerator compartment is the ideal

storage location for meat, sausage, fish,

dairy products, eggs, ready meals

■ Store fresh, undamaged food. The

quality and freshness will then be

retained for longer.

■ In the case of ready-made products

and bottled goods, observe the best-

before date or use-by date specified

by the manufacturer.

■ To retain aroma, colour

and freshness, pack or cover food

well before placing in the appliance.

This will prevent the transfer

of flavours and the discolouration

of plastic parts in the refrigerator

■ Allow warm food and drinks to cool

down before placing in the appliance.

Avoid contact between food and rear

panel. Otherwise the air circulation will

Food or packaging could freeze to

Note the chill zones in the

refrigerator compartment

The air circulation in the refrigerator

compartment creates different chill

■ Coldest zone is between the arrow

stamped on the side and the glass

shelf situated below. Fig. $

Store perishable food (e.g. fish,

sausage, meat) in the coldest zone.

■ Warmest zone is at the very top

Store e.g. hard cheese and butter

in the warmest zone. Cheese can then

continue to release its flavour and the

butter will still be easy to spread.

Vegetable container with

The vegetable container is the optimum

storage location for fresh fruit and

vegetables. A humidity controller and

a special seal can be used to adjust the

air humidity in the vegetable container.

This allows fresh fruit and vegetables

to be stored twice as long as with

conventional storage.

The air humidity in the vegetable

container can be set according to the

type and amount of products to be

■ Mainly fruit as well as for a large load

– lower air humidity

■ Mainly vegetables as well as for

a mixed load or small load – higher air

■ Fruit sensitive to cold (e.g. pineapple,

banana, papaya and citrus fruit) and

vegetables sensitive to cold (e.g.

aubergines, cucumbers, zucchini,

peppers, tomatoes and potatoes)

should be stored outside

the refrigerator at temperatures

of approx. +8 °C to +12 °C for

optimum preservation of quality and

■ Condensation may form in the

vegetable container depending on the

type and quantity of products stored.

Remove condensation with a dry cloth

and adjust air humidity in the

vegetable container with the humidity

Super cooling sets the refrigerator

temperature to the coldest temperature

setting for approx. 15 hours. Then

the appliance automatically switches

to the temperature set prior to super

Switch on super cooling mode, e.g.

■ before placing large quantities of food

in the refrigerator compartment.

■ for the fast cooling of drinks.

Switching on and off

Press “super” button 2.

The button is lit when super cooling is

When super cooling is switched on,

increased operating noises may occur.

If required, you can vary the shelves

inside the appliance: To do this, pull out

shelf, lift at the front and take out.

Extendable glass shelf

The extendable glass shelf can be pulled

out for a better overview of the food.

To facilitate the storage of tall items (e.g.

cans or bottles), the front part of the

Vario shelf can be taken out and pushed

under the rear part.

The position of the Vario door shelf can

be moved to the side so that tall bottles

can be stored on the lower shelf.

The bottle holder prevents bottles

from falling over when the door

is opened and closed.en

The “OK” temperature monitor

can be used to determine temperatures

below +4 °C. Gradually reduce

the temperature if the sticker

does not indicate “OK”.

When the appliance is switched on,

it may take 12 hours until

the temperature is reached.

Switching off the appliance

Press the On/Off button 1.

Temperature display goes out,

refrigerating unit switches off.

Disconnecting the appliance

If you do not use the appliance

for a prolonged period:

1. Switch off the appliance.

2. Pull out mains plug or switch off fuse.

3. Clean the appliance.

4. Leave the appliance door open.

Cleaning the appliance

■ Do not use abrasive, chloride or acidic

cleaning agents or solvents.

■ Do not use scouring or abrasive

sponges. The metallic surfaces could

■ Never clean the shelves or containers

in the dishwasher. The parts may

1. Before cleaning: Switch off

2. Pull out the mains plug or switch off

3. Take out the food and store in a cool

location. Place ice pack (if available)

4. Wait until the layer of frost has thawed.

5. Clean the appliance with a soft cloth,

lukewarm water and a little pH neutral

washing-up liquid. The rinsing water

must not run into the light or through

the drainage hole into the evaporation

6. Wipe the door seal with clear water

only and then wipe dry thoroughly.

7. After cleaning reconnect and switch

the appliance back on.

8. Put the food back into the appliance.en

All variable parts of the appliance

can be taken out for cleaning.

Take out glass shelves

To do this, pull out shelf, lift at the front

Taking out extendable glass shelf

Press levers on the underside on both

sides, pull forwards glass shelf, lower

and swivel out to the side.

Condensation channel

Regularly clean the condensation

channel and drainage hole with a cotton

bud or similar implement to ensure that

the condensation can drain.

Take out shelves in the door

Lift shelves upwards and take out.

Taking out glass shelf above vegetable

The glass shelf can be taken out and

disassembled for cleaning.

Before taking out the glass shelf, pull out

vegetable container.

Removing the container

Pull out the container all the way, lift at

the front and remove.

If you experience unpleasant odours:

1. Switch off the appliance with the

On/Off button. Fig. "/1

2. Take all food out of the appliance.

3. Clean interior (see chapter “Cleaning

4. Clean all packages.

5. Seal strong smelling food in order

to avoid odours from forming.

6. Switch the appliance on again.

7. Store food in the appliance.

8. Check whether the formation

of odours is still occuring after

Your appliance features a maintenance-

These lights may be repaired

by customer service or authorised

Tips for saving energy

■ Install the appliance in a dry, well

ventilated room! The appliance should

not be installed in direct sunlight

or near a heat source (e.g. radiator,

If required, use an insulating plate.

■ Select 560 mm cavity depth.

A smaller cavity depth will result in

a higher energy consumption.

■ Allow warm food and drinks to cool

down before placing in the appliance.

■ Thaw frozen food in the refrigerator

compartment and use the low

temperature of the frozen food to cool

■ Open the appliance as briefly as

■ Occasionally clean the rear

of the appliance to prevent an

increased power consumption.

■ The arrangement of the fittings does

not affect the energy rating of the

Motors are running (e.g. refrigerating

Bubbling, humming or gurgling noises

Refrigerant is flowing through the tubing.

Motor, switches or solenoid valves are

The appliance is not level

Please align the appliance with a spirit

level. If required, place something

Containers or storage areas wobble

Please check the removable parts

and re-insert them correctly if required.

Bottles or receptacles are touching

Move the bottles or receptacles slightly

away from each other.en

Eliminating minor faults yourself

Before you call customer service:

Please check whether you can eliminate the fault yourself based on the following

Customer service will charge you for advice – even if the appliance is still under

Fault Possible cause Remedial action

greatly from the set

In some cases it is adequate

to switch off the appliance

If the temperature is too high wait

a few hours and check whether

the temperature has approached

If the temperature is too low check

the temperature again the next day.

Power failure; the fuse

has been switched off;

has not been inserted

Connect mains plug. Check whether

the power is on, check the fuses.

See chapter “Light (LED)” section.

Light is switched off

after approx. 10 min.

When the appliance is closed

and opened, the light is on again.en

Clean the condensation channel

and the drainage hole. See chapter

Cleaning the appliance. Fig. #

the refrigerator com-

partment is too cold.

Temperature has been

Increase the temperature.

The refrigerating unit

is switching on more

Do not open the appliance

cooling, temperature

Hold down temperature selection

button fig. "/3 for 10 seconds until

an acknowledgement signal sounds.

After a short time check whether

your appliance is cooling.en

Your appliance features an automatic

self-test program which shows you

sources of faults which may be repaired

by customer service only.

Starting the appliance self-test

1. Switch off the appliance and wait

2. Switch on appliance and hold down

the super button, Fig. "/2, for

3-5 seconds within the first

10 seconds until an acoustic signal

The self-test programme starts.

While the self-test is running, a long

acoustic signal sounds.

When the self-test ends and an acoustic

signal sounds twice, your appliance is

If the Super button flashes for

10 seconds and 5 acoustic signals

sound, there is a fault. Inform customer

Ending the appliance self-test

When the programme has ended, the

appliance switches over to normal

Your local customer service

can be found in the telephone directory

or in the customer-service index. Please

provide customer service

with the appliance product number

(E-Nr.) and production number (FD).

These specifications

can be found on the rating plate. Fig. .

To prevent unnecessary call-outs, please

assist customer service by quoting

the product and production numbers.

This will save you additional costs.

Repair order and advice

Contact information for all countries can

be found on the enclosed customer

électroniques usagés (waste

electrical and electronic

equipment – WEEE). La directive

définit le cadre pour une reprise

minimum = 550 mm), la consommation

and Electronic Equipment –

and electronic equipment –
