USER MANUAL 40995 HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides, as well as

care Building - as well as delicious recipes, tins, and

to register your product online!

Please call us – our friendly

associates are ready to help.

USA: 1.800.851.8900

Questions?

Exterior view of a modern silver and black water heater (Hamilton Beach) with no visible text or symbols on its body.

Hamilton Beach®

Electric Kettle

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.
2. Do not touch hot surfaces or hot water. Use handles or knobs. Care must be taken since burns can occur from touching hot parts or from spilled hot liquid.
3. To protect against fire, electric shock, and personal injury, do not immerse cord, plug, power base, or electric kettle in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.

7. The use of accessory attachments not recommended by the manufacturer may result in fire, electrical shock, or personal injury.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces, including the stove.
10. Do not place electric kettle on or near a hot gas or electric burner or in a heated oven.
11. To disconnect electric kettle, turn any control to OFF (O) and then remove plug from wall outlet. Never pull on cord as this may damage the cord and eventually cause electric shock.
12. Do not use appliance for other than intended use.
13. Do not use for other than heating water. Other liquids or food will contaminate the interior and void warranty.
14. Do not allow kettle to boil dry.
15. To avoid circuit overload, do not operate another high-wattage appliance on the same circuit.
16. Scalding may occur if the lid is opened during the heating cycle.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING! Shock Hazard: This product is provided with either a polarized (one wide blade) or grounded (3-prong) plug to reduce the risk of electric shock. The plug fits only one way into a polarized or grounded outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. If the appliance is of the grounding type, the extension cord must also be a grounding-type, 3-wire cord. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

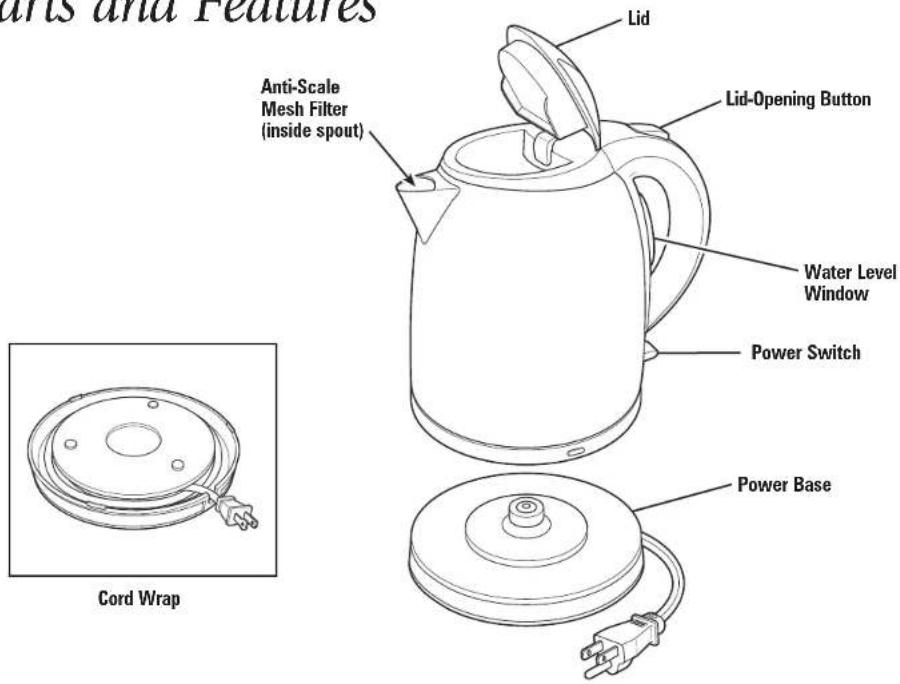

Parts and Features

Lid Anti-Scale Mesh Filter (inside spout) Lid-Opening Button Water Level Window Power Switch Power Base Cord Wrap

How to Use the Kettle

Line drawing of a hand holding a kettle with a handle, no text or symbols present

Line drawing of a kettle with a lid and handle, showing a black arrow indicating rotation (no text or symbols)

WARNING

Burn Hazard. Do not overfill kettle. Boiling water may spit out of the spout.

Diagram showing a mechanical component with a downward arrow indicating force or motion (no text or symbols present)

Electrical outlet with three power outlets connected to a plug (no text or symbols visible)

5

Kettle will automatically shut off when water has boiled.

Diagram showing a hand pouring liquid into a cup and plug, with an electrical outlet connected to a plug.

NOTE: Only use kettle to heat water. If kettle is used to heat other liquids, such as coffee or tea, the warranty will be voided.

TO REMOVE MESH FILTER TO

REPLACE MESH FILTER

The mesh filter is visible through the kettle lid opening. Pull upwards on the tab to remove. Rinse filter periodically.

WARNING! Burn Hazard: Allow kettle to cool before attempting to remove mesh filter.

To replace, slide the filter back into the slot, ensuring the tab is facing inwards. The filter will fit only one way.

Care and Cleaning

Illustration of a hand inserting an electrical socket into a plug (no text or symbols present)

To avoid scale/lime deposit build-up, empty kettle after each use.

Line drawing of a hand holding a kettle with a lid, no text or symbols present

Wipe the exterior of kettle with a damp cloth. Do not use abrasive scouring pads or powders since they may scratch the smooth surface of the kettle.

To remove discoloration or scale/lime deposit from heating element: Place 1/2 teaspoon cream of tartar (available in the spice aisle of grocery store) into the kettle. Then fill the kettle 1/2 full with water. Plug in, turn ON (I), and bring to boil. Turn OFF (O), let cool, and rinse several times with clean tap water.

WARNING Electrical Shock Hazard.

Do not immerse kettle, power base, or plug in water or other liquid.

If Kettle Floor Discolors: It is normal for stainless steel heating elements to discolor. This does not affect the performance of the kettle. Do not use abrasive scouring pads or cleaners since this may damage the stainless steel surface.

If Kettle Boils Dry: The heating element is protected by two automatic safety devices. If your kettle is accidentally switched on without being filled with water, or is allowed to boil dry, the kettle will automatically switch off. You should:

• Turn the switch to OFF (O), unplug, and wait about 20 minutes for the element to cool down.
• Refill the kettle; then use as normal and check that the kettle functions correctly.

If Kettle Does Not Work: Make these simple checks before calling the toll-free customer assistance number:

• Have you turned power switch to ON (I) position?
• If the kettle heats but does not boil, it might need descaling.
• Has the kettle been accidentally switched on without being filled with water or allowed to boil dry? Turn the switch to OFF (O), wait 20 minutes, and try again.
• Is cord firmly plugged into the outlet and kettle firmly seated in the base?

Anti-Scale Mesh Filter: Scale is caused by lime and calcium in hard water. The mesh filter will prevent these suspended particles from being poured out of the kettle. The filter should be cleaned periodically to ensure optimum performance. To clean the filter, unplug kettle and allow to cool. The mesh filter may be removed by pressing on filter tab, which is visible through the kettle opening. Rinse filter under running water and brush with a soft brush. An old, clean toothbrush works well.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of one (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

Line drawing of a hand pouring liquid from a kettle into a pipe (no text or symbols)

Line drawing of a kettle with an open lid and a curved handle, showing a rotation arrow (no text or symbols)

Diagram of a mechanical press or stamping device with a cylindrical component and a downward arrow indicating motion (no text or symbols)

Diagram showing a power outlet connected to an AC plug, with a black arrow pointing to the outlet.

5

Illustration of a hand pouring liquid into a mug and plug, with an electrical outlet nearby (no text or symbols)

Hand inserting a plug into an electrical socket (no text or symbols visible)

Line drawing of a hand holding a small object inside a kettle (no text or symbols)

Line drawing of a circular mechanical component with a cable and connector (no text or symbols)

Almacenaje de Cable

Line drawing of a hand holding a kettle with a handle, next to a wall-mounted shelf (no text or symbols)

Line drawing of a kettle with an open lid and a curved handle, showing a rotation arrow (no text or symbols)

Diagram showing a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Diagram showing a power outlet connected to an AC plug, with a black arrow pointing to the outlet (no text or symbols present)

5

Diagram showing a hand pouring liquid into a mug and plug into an electrical outlet (no text or symbols)

Simple line drawing of a mechanical component with an upward arrow and a triangular base (no text or symbols)

Simple line drawing of a mechanical component with a downward arrow and triangular base (no text or symbols)

Illustration of a hand inserting an electrical socket into a cable (no text or symbols present)

Line drawing of a hand holding a water heater (no text or symbols)
