USER MANUAL Patio Bistro 240 CHAR-BROIL

during assembly, please call 1-888-430-7870.

Use only with GFI (Ground Fault Interrupter) protected circuit.

14601877CAUTION For residential use only. Do not use for commercial cooking. DANGER Safety SymbolsThe symbols and boxes shown below explain what each heading means. Read and follow all of the messages found throughout the manual.DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING WARNING: Indicates an potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION CAUTION: Indicates a potentially hazardous situation or unsafe practice which, if not avoided, may result in minor or moderate injury.This instruction manual contains important information necessary for the safe use of the appliance.Follow all warnings and instructions when using the appliance. Product Record Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

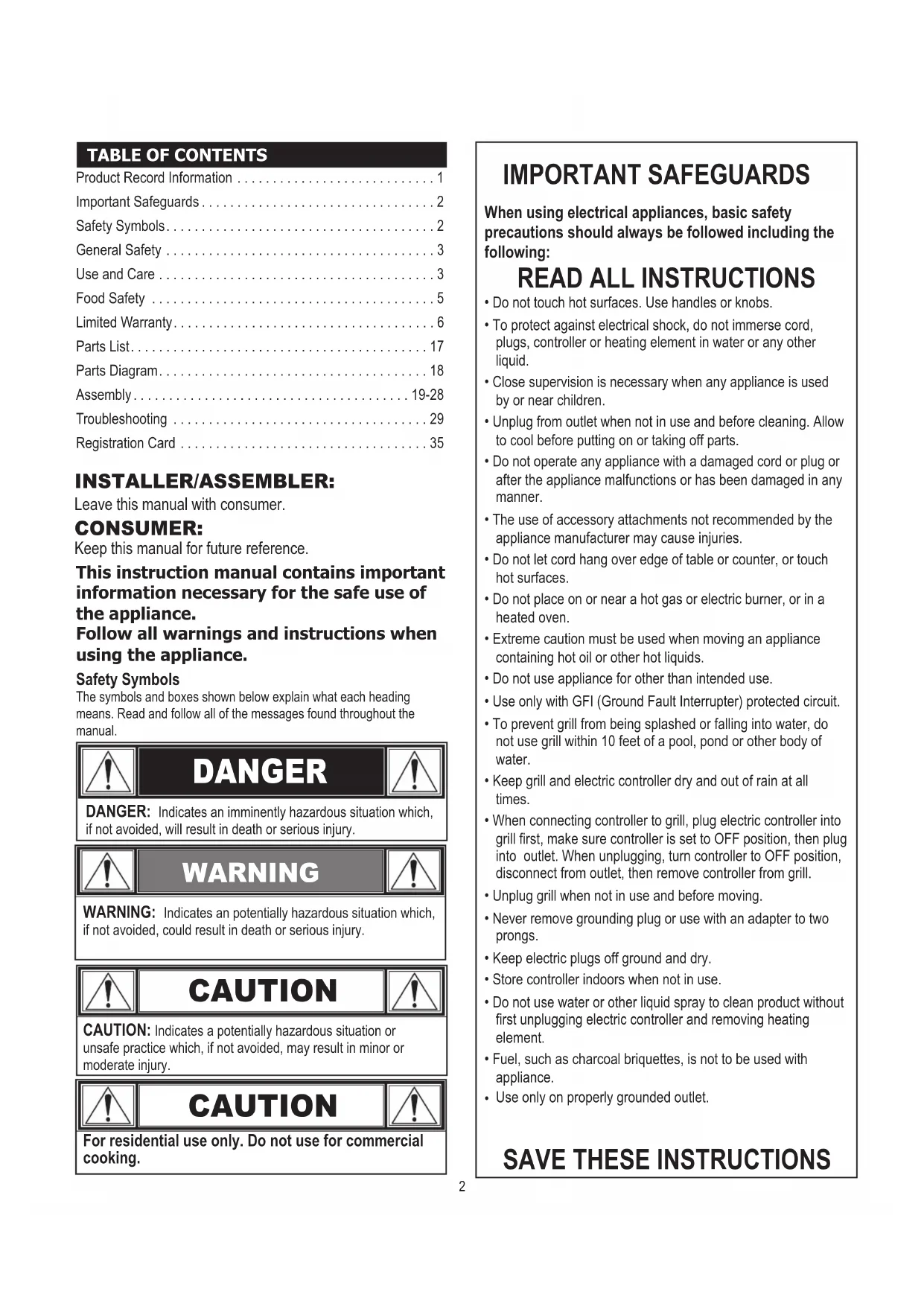

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Registration Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 TABLE OF CONTENTS IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: READ ALL INSTRUCTIONS • Do not touch hot surfaces. Use handles or knobs.• To protect against electrical shock, do not immerse cord, plugs, controller or heating element in water or any other liquid.• Close supervision is necessary when any appliance is used by or near children.• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. • The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.• Do not let cord hang over edge of table or counter, or touch hot surfaces. • Do not place on or near a hot gas or electric burner, or in a heated oven.• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.• Do not use appliance for other than intended use. • Use only with GFI (Ground Fault Interrupter) protected circuit.• To prevent grill from being splashed or falling into water, do not use grill within 10 feet of a pool, pond or other body of water.• Keep grill and electric controller dry and out of rain at all times.• When connecting controller to grill, plug electric controller into grill first, make sure controller is set to OFF position, then pluginto outlet. When unplugging, turn controller to OFF position, disconnect from outlet, then remove controller from grill.• Unplug grill when not in use and before moving.• Never remove grounding plug or use with an adapter to two prongs.• Keep electric plugs off ground and dry.• Store controller indoors when not in use.• Do not use water or other liquid spray to clean product without first unplugging electric controller and removing heating element.• Fuel, such as charcoal briquettes, is not to be used with appliance. • Use only on properly grounded outlet.

SAVE THESE INSTRUCTIONS INSTALLER/ASSEMBLER: Leave this manual with consumer.Keep this manual for future reference. CONSUMER:

2Extension Cord Use and Safety

For best grill performance use of extension cord is not

If you must use an extension cord for your safety:

• Use only outdoor type with 3 prong grounding plug, rated for 15

amperes or more, approved by UL, marked with a W-A and a

tag stating “Suitable for Use with Outdoor Appliance”.

• Use the shortest length extension cord required. Do not connect

2 or more extension cords together. A 12 or 14 gauge extension

cord of 50 ft. or less is acceptable.

• Keep connections dry and off ground.

• Do not let cord hang over edge of table top or other items where

it can be pulled by children or tripped over.

Ground Fault Interrupter

•Since 1971 the National Electric Code (NEC) has required

Ground Fault Interrupter devices on all outdoor circuits.

•If your residence was built before 1971, check with a qualified

electrician to determine if a Ground Fault Interrupter protector

•Do not use this appliance if the circuit does not have GFI

•Do not plug this appliance into an indoor circuit.

•Failure to follow all manufacturer’s instructions could result

in serious personal injury and/or property damage.

•Use care when operating your grill.

•Read and follow all the information and safeguards in this

product guide before attempting to assemble or operating

1. Do not touch hot surfaces with unprotected hands. Use

handles and knobs provided for operation.

2. Never leave grill unattended when ON.

3. Keep children away from grill both when hot and cold.

4. Use long barbeque utensils for cooking.

5. Allow grill to cool before moving, cleaning or storing.

Keep grill 24" (2 feet) away from

For outdoor household use

only. Do not use indoors or

for commercial cooking.

Do not use or store gasoline,

liquids within 20 feet of this

Store grill in weather

protected area or under grill

cover when not in use and

electric controller indoors

Use only accessory attachments recommended by

It is the responsibility of the assembler/owner to assemble,

install and maintain grill.

Use and Care of Your Grill

Before first use of grill:

• Remove all packaging and sale labels from the grill. Do not

use sharp tools to remove stickers.

• Wash cooking grate with warm soapy water, rinse and dry

Before each use of grill:

• Use grill only on a firm and level surface to prevent tipping

• To prevent household circuit breakers from tripping, keep

electric controller dry and do not use other electrical products

on the same circuit.

• Check grease tray to make sure it is empty and is mounted

under the drain hole.

• For stick-free cooking, apply a thorough coating of vegetable

oil or vegetable oil based spray to the cooking grate.

• Ensure electrical controller is turned fully counterclockwise to

• Plug power supply cord into a properly grounded, GFI

protected outlet. If extension cord must be used refer to

“Extension Cord Use and Safety” on page 3.

With controller fully seated in grill, turn knob clockwise.

Indicator light should come on.

Preheating the grill:

Preheat for searing, 15-20 minutes with controller set to 5 HIGH.

( See illustration below)

When the controller light turns off, the maximum temperature

has been reached for the knob setting. This light will cycle

on and off during use.

Align settings on controller knob with

light/pointer on controller casing as shown

CAUTION Do not use sharp or pointed tools to clean grill.

Do not use abrasive oven cleaners, steel wool or metal brushes

to clean porcelain grates or grill body. They will damage the

Replace damaged part(s) only with Char-Broil certified

replacement parts. Do not attempt to repair damaged parts.

Do not use 16 or 18 gauge extension cords.

Damage to household wiring and/or fire could result.

• For best results, cook with the lid closed to hold in heat and

provide complete cooking.

• Temperature gauge on the lid indicates approximate cooking

temperature inside the grill.

• Controller setting for various foods are dependant upon

outdoor conditions and personal cooking preferences.

• Turn controller knob fully counterclockwise to OFF position.

• Unplug cord from outlet.

• Remove controller from grill and store indoors.

Cleaning electrical controller and heating

• Clean controller case by wiping with a damp cloth using a mild

detergent or hot soapy water.

• It is not necessary to clean the heating element. However, the

element bracket may be cleaned with a damp cloth using a

mild detergent or hot soapy water.

• Dry electrical controller and heating element before use.

DANGER In case of fire turn controller to OFF position, unplug grill from

outlet and allow fire to burn out. Do not use water to put out a

fire in this or another electrical appliance.

To avoid electrical shock disconnect electric cord and remove

electric controller before removing heating element and

cleaning grill. Never immerse electric controller or heating

element in any liquid.

To avoid the possibility of burns be sure grill is cool before

removing and/or cleaning electric controller and heating

Controlling grease fires:

To aid in controlling grease fires use the following precautions:

• Keep grill free from grease; chance of fire is greatly increased

• Trim excess fat off meat and use less fatty cuts of meat to

reduce chance of grease fires.

• If flare-up occurs during cooking reduce controller setting and

• If flare-up continues turn controller to OFF position and unplug

Cleaning your grill:

Excess build up of burned grease and food particles will reduce

the grill’s cooking performance. To obtain optimum performance.

• Clean the porcelain bowl and frame at least once a season,

more often with heavy use.

• Best results are obtained by brushing particle buildup

downward and through drain hole in bottom of grill.

• Using a mild detergent or hot soapy water, moderately scrub

surface of the lower porcelain bowl with a plastic or brass

• Clean cooking grates regularly with warm soapy water or a

baking soda and water solution. Use non-abrasive scouring

powder for stubborn stains.

• Clean porcelain lid and body with a non-abrasive cleaner.

• Clean cooking grate.

• Remove electric controller from grill. Store controller indoors.

• Store grill in weather protected area or under grill cover when

If a bristle brush is used to clean

any of the grill cooking surfaces, ensure no loose bristles

remain on cooking surfaces prior to grilling. It is not

recommended to clean cooking surfaces while grill is hot.

WARNING CALIFORNIA PROPOSITION 65

1. Combustible by-products produced when using

this product contains chemicals known to the State

of California to cause cancer, birth defects, or

other reproductive harm.

2. This product contains chemicals, including lead

and lead compounds, known to the State of

California to cause cancer, birth defects or

other reproductive harm.

Wash your hands after handling this product.

• The grease tray must be inserted into appliance and emptied

• If you have an appliance problem see the "Troubleshooting

• Clean grill often, preferably after each cookout. If a bristle

brush is used to clean any of the grill cooking surfaces,

ensure no loose bristles remain on cooking surfaces prior to

grilling. It is not recommended to clean cooking surfaces

Clean the porcelain bowl under the heating element at least

once a season, more often with heavy use.

• Putting out grease fires by closing the lid is not

possible. This appliance is well ventilated for safety

• Do not leave appliance unattended while burning

off food residue. If appliance has not been regularly

cleaned, a grease fire can occur that may damage

For Safe Use of Your appliance and to Avoid Serious

• The use of alcohol, prescription or non-prescription

drugs may impair the consumer's ability to properly

assemble or safely operate the appliance.

• When cooking, the appliance must be on a level, stable

surface in an area clear of combustible material.

• Do not leave appliance unattended. Keep children and

pets away from the appliance at all times.

• Do not move the appliance when in use.

• This appliance is not intended for and should never be

• This appliance will be hot during and after use. Use

insulated oven mitts or gloves and long-handled

barbecue utensils for protection from hot surfaces or

splatter from cooking liquids.

• Keep appliance area clear and free from materials that

• Keep appliance area clear and free from combustible

materials, gasoline and other flammable vapors and

• Use only in well-ventilated space.appliance

How To Tell If Meat Is Cooked Thoroughly • Meat and poultry cooked in the appliance often browns very fast on the outside. Use only thawed meat and a meat thermometer to be sure food has reached a safe internal temperature, and cut into food to check for visual signs of doneness.• We recommend food to be at least 40°F before cooking in your appliance. • Whole poultry should reach 165° F. Juices should run clear and flesh should not be pink. • Beef, veal and lamb steaks, roasts and pork chops can be cooked to 160° F. • NEVER partially cook meat or poultry and finish cooking later. Cook food completely to destroy harmful bacteria.• Use a meat thermometer to ensure proper internal food temperatures. Food Safety

Food safety is a very important part of enjoying the outdoor

cooking experience. To keep food safe from harmful bacteria,

follow these four basic steps:

Clean: Wash hands, utensils, and surfaces with hot soapy water

before and after handling raw meat and poultry.

Separate: Separate raw meats and poultry from ready-to-eat

foods to avoid cross contamination. Use a clean platter and

utensils when removing cooked foods.

Cook: Cook meat and poultry thoroughly to kill bacteria. Use a

thermometer to ensure proper internal food temperatures.

Chill: Refrigerate prepared foods and leftovers promptly.

For more information call: USDA Meat and Poultry Hotline at

1-888-MPHOTLINE (888-674-6854) In Washington, DC Or E-mail: mphotline.fsis@usda.gov

Or visit the USDA website at www.fsis.usda.gov Ground MeatBeef, Pork, Veal, Lamb160°FTurkey, Chicken165°FFresh Beef, Veal, LambMedium Rare145°F(let stand 3 minutes before cutting)Medium160°FWell Done170°FPoultryChicken & Turkey, whole165°FPoultry Parts165°FDuck & Goose165°FFresh PorkMedium Rare145°F(let stand 3 minutes before cutting)Medium160°FWell Done170°F Internal Cooking Temperatures

• Apartment Dwellers:

Check with management to learn the requirements

and fire codes for using an electric grill in your

apartment complex. Use only as allowed.

DO NOT USE CHARCOAL. A charcoal fire will result and the

grill is not designed for charcoal. The fire will create an

unsafe condition and damage the grill.

5This warranty only applies to units purchased from an authorized retailer. Manufacturer warrants to the original consumer-purchaser only that this

product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods

indicated below beginning on the date of purchase*. The manufacturer reserves the right to require that defective parts be returned, postage and or

freight pre-paid by the consumer for review and examination.

*Note: A dated sales receipt WILL be required for warranty service.

The original consumer-purchaser will be responsible for all shipping charges for parts replaced under the terms of this limited warranty.

This limited warranty is applicable in the United States and Canada only, is only available to the original owner of the product and is not transferable.

Manufacturer requires proof of your date of purchase. Therefore, you should retain your sales slip or invoice. Registering your product is not a

substitute for proof of purchase and the manufacturer is not responsible for or required to retain proof of purchase records.

This limited warranty applies to the functionality of the product ONLY and does not cover cosmetic issues such as scratches, dents, corrosions or

discoloring by heat, abrasive and chemical cleaners or any tools used in the assembly or installation of the appliance, surface rust, or the

discoloration of stainless steel surfaces. Paint is not warranted and will require touch up. RUST is not considered a manufacturing or materials defect.

This limited warranty will not reimburse you for the cost of any inconvenience, food, personal injury or property damage.

ITEMS MANUFACTURER WILL NOT PAY FOR:

1. Shipping cost, standard or expedited, for warranty and replacement parts

2. Service calls to your home.

3. Repairs when your product is used for other than normal, single-family household or residential use.

acts of God, improper installation or maintenance, installation not in accordance with electrical or plumbing codes, or use

of products not approved by the manufacturer.

5. Any food loss due to product failures or operating difficulties.

6. Replacement parts or repair labor costs for units operated outside the United States or Canada.

7. Pickup and delivery of your product.

8. Repairs to parts or systems resulting from unauthorized modifications made to the product.

9. The removal and/or reinstallation of your product.

DISCLAIMER OF IMPLIED WARRANTIES and LIMITATION OF REMEDIES Repair or replacement of defective parts is your exclusive remedy under the terms of this limited warranty. In the event of parts availability issues,

Manufacturer will not be responsible for any consequential or incidental damages arising from the breach of either this limited warranty or any

applicable implied warranty, or for failure or damage resulting from acts of God, improper care and maintenance, grease fire, accident, alteration,

replacement of parts by anyone other than Manufacturer, misuse, transportation, commercial use, abuse, hostile environments (inclement weather,

acts of nature, animal tampering), improper installation or installation not in accordance with local codes or printed manufacturer instructions.

THIS LIMITED WARRANTY IS THE SOLE EXPRESS WARRANTY GIVEN BY THE MANUFACTURER. NO PRODUCT PERFORMANCE SPECIFICATION OR DESCRIPTION WHEREVER APPEARING IS WARRANTED BY MANUFACTURER EXCEPT TO THE EXTENT SET FORTH IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTY PROTECTION ARISING UNDER THE LAWS OF ANY STATE,

INCLUDING IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE, IS HEREBY LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.

Neither dealers nor the retail establishment selling this product has any authority to make any additional warranties or to promise remedies

in addition to or inconsistent with those stated above. Manufacturer's maximum liability, in any event, shall not exceed the purchase price of the

product paid by the original consumer.

NOTE: Some states do not allow an exclusion or limitation of incidental or consequential damages, so some of the above limitations or exclusions

may not apply to you. This limited warranty gives you specific legal rights as set foth herein. You may also have other rights which vary from state

to state. In the state of California only, if refinishing or replacement of the product is not commercially practicable, the retailer selling this product or

the Manufacturer will refund the purchase price paid for the product, less the amount directly attributable to use by the original consumer-purchaser

prior to discovery of the nonconformity. In addition, in the state of California only, you may take the product to the retail establishment selling this

product in order to obtain performance under this limited warranty.

If you wish to obtain performance of any obligation under this limited warranty, you should

Columbus, GA 31902-1240

Consumer returns will not be accepted unless a valid Return Authorization is first acquired. Authorized returns are clearly marked on the outside of

the package with an RA number and the package is shipped freight/postage pre-paid. Consumer returns that do not meet these standards will be

LIMITED WARRANTY WS_1 Rev05 4. Damage, failures, or operating difficulties resulting from accident, alteration, careless handling, misuse, abuse, fire, flood,

the manufacturer reserves the right to substitute like or similar parts that are equally functional.

SCOPE OF COVERAGE PERIOD OF COVERAGE TYPE OF FAILURE COVERAGE PERFORATION, MANUFACTURING,

AND MATERIAL DEFECTS ONLY Electric elements and controllers

1 year from date of purchase*

2 years from date of purchase*

1 year from date of purchase*

… 1 Product Guide, English, French, Spanish

… 1 Grilling Guide, English, French

… 1 Grilling Guide, Spanish, web only

17A Q X B E F G J K L M N O P S T U Y V W H C D I R

P K N J Wheel Retaining Clip

After cart assembly, if your cart

does not sit level, use these

screws to adjust the cart.

1/4-20x3/4" Hinge Screw

Be sure to route the controller cable behind the towel bar when installing the controller. The control knob should be facing up

as you engage the tip of the controller into the receptacle. Push the controller in all the way until you hear a click, this will

ensure your controller is installed properly.

Soyez sûr d'acheminer le cordon de la manette derrière le porte-serviettes en installant le contrôleur. Le bouton de

• Controller turned to OFF position.

• Faulty controller or heating element.

• Another appliance plugged into same circuit as grill.

• Moisture or water in controller or electrical

• Damaged cord or electrical connections.

• Lid of grill is left open.

• Insufficient preheat or temperature set too low.

• Inappropriate extension cord.

• Excessive buildup on porcelain bowl.

• Excess fat in meat.

• Excessive cooking temperature.

• Normal controller cycling.

• Faulty controller.

• Grease trapped by food build up.

• Turn controller knob to setting 5 HIGH.

• Be sure controller is fully seated in heating element bracket and grill is

properly plugged into outlet.

• Check for tripped household circuit breakers or GFI (Ground Fault

Interrupter). Reset or replace if necessary.

• Try a different outlet, preferably on a different circuit.

• Replace controller or heating element.

• Turn controller to OFF position before plugging into electrical outlet.

• Do not use other electrical appliances on the same circuit.

• Keep controller and all electrical connections dry. Do not operate unit when

• Replace damaged controller or extension cord.

• Close lid on grill while cooking.

• Preheat 15-20 minutes. Increase controller setting.

• Replace with appropriately rated cord (15 amps).

• Clean lower porcelain bowl.

• Trim fat from meat before grilling.

• Adjust (lower) temperature as needed.

• Increase knob setting or wait for light to cycle on.

• See “Grill not heating”.

• Replace controller or heating element.

• Turn controller knob to the OFF position. Keep lid on and let fire burn out.

After grill cools, clean insulation bowl.

• Do not apply water to fire. Personal injury may result.

Try a known, working appliance in the outlet.
