Product type	Sports MP3 player
Brand	Energy Sistem
Model	Active 2 Dark Iron
Screen	OLED 128x32 pixels
Supported audio formats	MP3, WMA
FM Radio	Built-in with 20 presets
Recording	Voice (built-in mic) and FM radio
Connectivity	USB 2.0 (data transfer and charging)
Battery	Rechargeable lithium-ion, charging time 2-3 hours
Included earphones	Ergonomic sports earphones and adjustable sports armband
Included accessories	Neck strap, USB cable, user manual
Playback modes	Normal, Repeat, Shuffle, Intro, A-B Repeat
Equalizer	7 preset modes (Normal, Rock, Pop, Classic, Soft, Jazz, DBB-Bass) + custom mode
Folder navigation	Yes
Firmware update	Yes
Power supply	Via USB port (cable included)
Weight (approx.)	Approximately 20 g
Dimensions (approx.)	Approximately 40 x 20 x 10 mm
Warranty	36 months (battery 12 months)
Country of manufacture	China

Frequently Asked Questions - Active 2 Dark Iron ENERGY SISTEM

How to turn the MP3 player on and off?

To turn on, press the PLAY button for a few seconds. To turn off, hold PLAY for 3 seconds. If you use the RESET button, you will lose your settings.

How to recharge the battery?

Connect the player to a USB port on your computer using the USB cable provided. The charging time is 2 to 3 hours. To preserve the battery, avoid charging for more than 8 hours and do not use the player while charging.

What to do if the player freezes or does not respond?

Insert a small pin or needle into the RESET button to restart the player. If the problem persists, consider reinstalling the firmware.

How to save an FM radio station?

In radio mode, use the VOLUME +/- buttons to navigate through presets. To save a new station, press MENU, select 'Save' and the station will be stored in the next free preset.

How to record voice with the built-in microphone?

From the main menu, select the microphone icon or press BACK. Press PLAY to start recording, then again to pause. Finish by pressing MENU.

How to use A-B repeat?

During music playback, press MENU to access options. Select 'A-B Repeat'. Mark point A with MENU, then point B with MENU again. The repetition continues until you press MENU again.

How to change the sound equalizer?

During playback, press MENU, choose 'Playback Set.' then 'Equalizer'. You can select from 7 preset modes (Normal, Rock, Pop, Classic, Soft, Jazz, DBB-Bass) or use the custom UserEQ mode.

How to transfer music from my computer?

Connect the player to a USB port on your PC using the USB cable. The device is automatically recognized as a removable disk. Simply copy your MP3 or WMA files to the player's internal memory. Then safely disconnect it using the device removal icon.

How to reset the firmware?

Make sure to back up your files as the reset formats the memory. Download the latest firmware version from the Energy Sistem website. Connect the empty player to the computer, copy the firmware file to the root, then disconnect and restart. Follow the specific instructions provided with the update.

What audio formats are supported?

The player supports MP3 and WMA files. For recordings, the format used is WAV. Synchronized lyrics files must be in LRC format (same name as the audio file).

USER MANUAL Active 2 Dark Iron ENERGY SISTEM

technology with heart

ENERGY SISTEM

Technical line drawing of a cylindrical device with internal components (no text or symbols)

Stick / Active Series

ENERGY SYSTEM

Pure technical line drawing of a cylindrical device with no text, numbers, or symbols

Manual de usuario

INTRODUCCIÓN

▶ Energy Sistem™ Energy MP3 Stick / Active Series.

▶ Auriculares intrauditivos Hi-Fi. (modelos MP3 Stick).

Auriculares deportivos adaptable y brazalete deportivo ajustable. (modelos MP3 Active).

Energy Sistem™ Energy MP3 Player Stick / Active Series

Pure technical line drawing of a cylindrical device with no text, numbers, or symbols

User manual

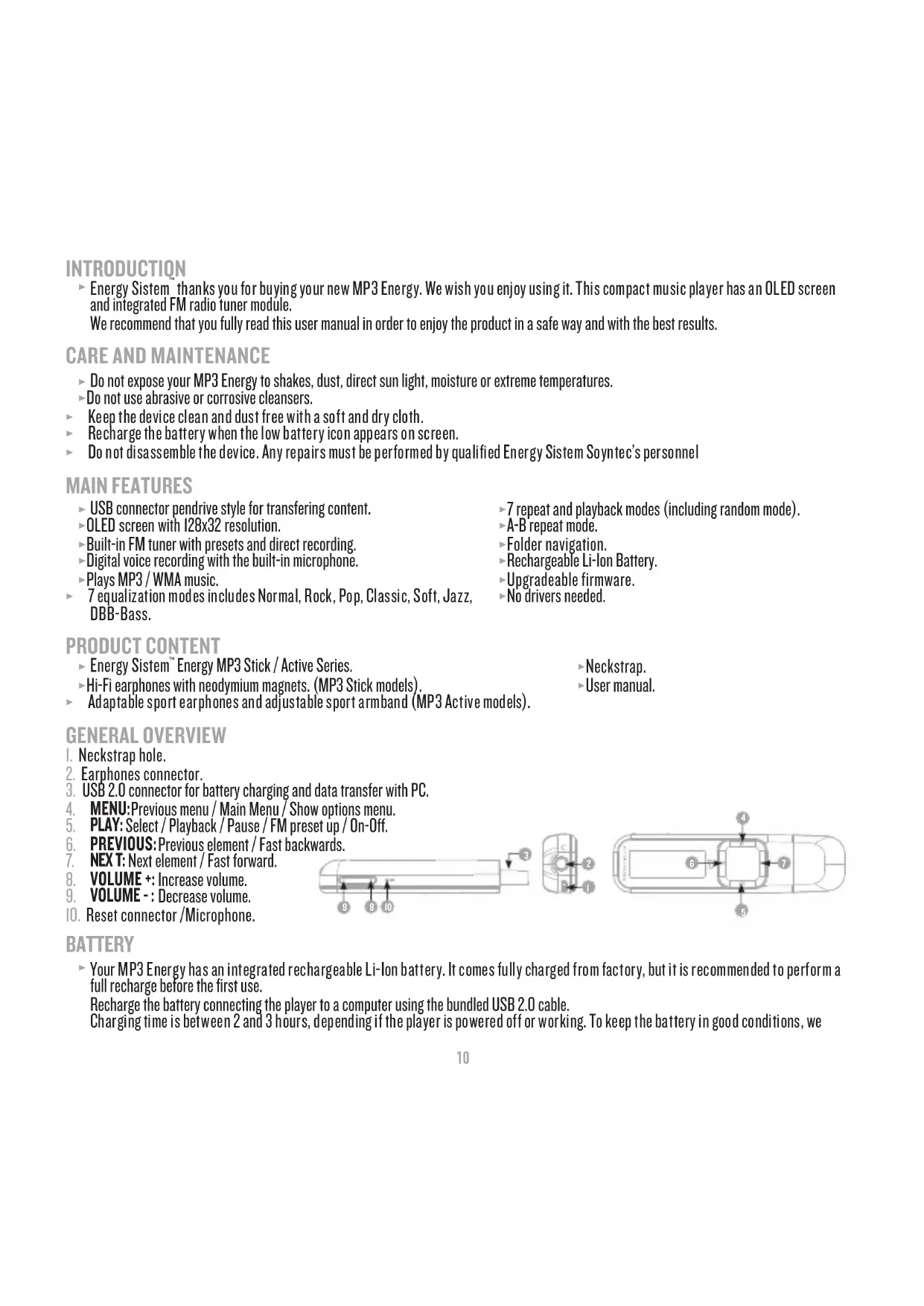

INTRODUCTION

Energy Sistem™ thanks you for buying your new MP3 Energy. We wish you enjoy using it. This compact music player has an OLED screen and integrated FM radio tuner module. We recommend that you fully read this user manual in order to enjoy the product in a safe way and with the best results.

CARE AND MAINTENANCE

• Do not expose your MP3 Energy to shakes, dust, direct sun light, moisture or extreme temperatures.
  ▶ Do not use abrasive or corrosive cleansers.
  Keep the device clean and dust free with a soft and dry cloth.
  ▶ Recharge the battery when the low battery icon appears on screen.
  Do not disassemble the device. Any repairs must be performed by qualified Energy Sistem Soyntec's personnel

MAIN FEATURES

USB connector pendrive style for transferring content.
▶ OLED screen with I28x32 resolution.
▶ Built-in FM tuner with presets and direct recording.
▶ Digital voice recording with the built-in microphone.
▶ Plays MP3 / WMA music.
7 equalization modes includes Normal, Rock, Pop, Classic, Soft, Jazz, DBB-Bass.

▶7 repeat and playback modes (including random mode).
▶A-B repeat mode.
▶ Folder navigation.
▶ Rechargeable Li-Ion Battery.
▶ Upgradeable firmware.
▶ No drivers needed.

PRODUCT CONTENT

▶ Energy Sistem™ Energy MP3 Stick / Active Series.
▶ Hi-Fi earphones with neodymium magnets. (MP3 Stick models).
Adaptable sport earphones and adjustable sport armband (MP3 Active models).

Neckstrap.
▶User manual.

GENERAL OVERVIEW

1. Neckstrap hole.
2. Earphones connector.
3. USB 2.0 connector for battery charging and data transfer with PC.
4. MENU: Previous menu / Main Menu / Show options menu.
5. PLAY: Select / Playback / Pause / FM preset up / On-Off.
6. PREVIOUS: Previous element / Fast backwards.
7. NEX T: Next element / Fast forward.
8. VOLUME +: Increase volume.
9. VOLUME -: Decrease volume.
10. Reset connector /Microphone.

yards. 3 9 8 10

4 6 7 5

BATTERY

Your MP3 Energy has an integrated rechargeable Li-Ion battery. It comes fully charged from factory, but it is recommended to perform a full recharge before the first use.
Recharge the battery connecting the player to a computer using the bundled USB 2.0 cable.
Charging time is between 2 and 3 hours, depending if the player is powered off or working. To keep the battery in good conditions, we

recommend not using the player while charging and not leaving it charging for more than 8 hours.

Your MP3 Energy uses two systems for battery saving: It can power off the OLED display after some seconds of inactivity, and it can power off completely after some minutes of inactivity. Both systems are configurable, respectively, browsing the menus SETTINGS -> Backlight time set, and SETTINGS -> Power off. In order to maximize the battery's lifespan, it is advised to not disable completely these power saving features.

POWER ON / OFF

To power on your MP3 Energy press PLAY for a few seconds.

Note: When powering on, the device performs a memory check. The power on time depends on the total amount of memory and the amount of used memory at that moment.

Press PLAY for a few seconds to power off the device while it is on. At that moment, the device will save your settings.

Note: If you power off the device directly with the reset button, your last changes in the settings will be lost, and it will not remember the last song played or the last equalization change, for example.

Additionally you can access the menu SETTINGS -> Power off and set the power off time for the player. With the option "Standby time" you can set the time that the player will remain on with no song being played and no interaction with any button. With the option "Sleep time" you can define when the player will power off, regardless if it is being used or not.

MAIN MENU

MUSIC

RECORD

VOICE

RADIO

SETTINGS

Your MP3 Energy allows you to enjoy MP3 / WMA codified music due to its high fidelity sound processor. To enter the play mode for MP3/ WMA files press the PLAY button over the MUSIC option.

To start, resume or pause the music playback press the PLAY button. Pressing briefly the PREVIOUS/NEXT buttons you access the previous/next music track. You can also rewind or fast forward the playback holding the PREVIOUS/NEXT button. Use the VOLUME+/- to set the volume up/down respectively.

While the playback is paused on the music playback screen, you can access the submenu by pressing MENU. Browse through the different options with the PREVIOUS/NEXT buttons and select one by pressing the PLAY button.

1. "Browser": It shows the music files inside the built-in memory. Use the PREVIOUS/NEXT buttons to find the song you want to play and press PLAY to select it. Press PLAY to enter folders and MENU to go back one folder.
2. "Delete file": Allows you to delete the currently selected song.
3. "Delete all": Eliminates all the MP3 and WMA inside the player's built-in memory.
4. "Exit": Brings you back to the music player screen. Alternatively you can go back at any time pressing MENU.

▶ You can access the play settings submenu by pressing the MENU button while the playback is under way. Browse through the different options with the PREVIOUS/NEXT buttons and select one by pressing the PLAY button:

1. "Repeat": Allows you to choose between the different available types of playback and repetition: Intro, Normal, Repeat one, Folder, Repeat folder, Repeat all and Random.

2. "Equalizer": You can choose the equalization that best fits your likings. You can find seven different preset options: Normal, Rock, Pop, Classic, Soft, Jazz and DBB-Bass.

3. "Replay": This is the A-B replay mode, which allows you to repeat a part of a song indefinitely. Once you select the option, mark the start point (A) pressing the NEXT button. Once the song reaches your desired end point, press NEXT again to mark the ending point (B). The selection will loop endlessly until you press once again the MENU button.

4. "Exit": Brings you back to the music player screen. Alternatively you can go back at any time pressing MENU.

You can watch the lyrics of a song while it is being played by holding the MENU button a couple seconds. The lyrics are text files with the same name as the music file but with the LRC file extension. If your songs do not have this LRC files, the lyrics will not be shown, but the music will playback with no problems.

To go back to the main menu of the player, hold the MENU button a few seconds. Going back to the main menu will pause the music playback.

Note: If your song has lyrics, pause first the playback to go back to the main menu.

FM RADIO

Your MP3 Energy has an integrated FM radio with 20 presets and direct recording. To listen to the radio, select the RADIO option in the main menu. The player will position at the same station that you had selected last time. With the NEXT/PREVIOUS buttons you can browse the FM frequency range. With single pressings you will advance/return one step, and holding the buttons will perform auto searches. In case you position the dial on a broadcast with a preset, its number will appear at the middle of the screen. With single pressing on the PLAY button you can browse up the presets available in memory. Holding VOLUME +/- will increase/decrease the volume respectively. You can access the radio options submenu by pressing the MENU button while on the FM radio frequency screen. Browse through the different options with the VOLUME+/- buttons and select one by pressing the PLAY button:

1. "Auto Search": It scans the frequency range and stores the first 20 broadcasts in the presets.
2. "Save": Allows you to save the broadcast currently selected inside the next free preset. If the 20 presets are all occupied the last one will be overwritten.
3. "Delete": Choose this option to erase the currently selected preset.
4. "Delete all": Erases all current presets.
5. "Record": You can record the current FM broadcast on WAV files. Press the PLAY button to begin recording, and pause/resume the recording by pressing PLAY button once again. To finish the recording press the MENU button. To exit the FM record mode back to the frequency screen, hold the MENU button.
6. "Exit": Brings you back to the frequency screen. Alternatively you can go back at any time pressing MENU. To go back to the main menu, hold the MENU button a few seconds. Going back to the main menu will close the FM reception.

- Your MP3 Energy is able to perform voice recording with its integrated microphone. To enter the voice record mode, select the RECORD option in the main menu.

Press PLAY to start recording. You can pause/resume the recording by pressing PLAY once again. To finish recording, press the MENU button. To exit the voice record mode, hold the MENU button.

The sound files that you recorded are stored at the root directory. The files are stored in WAV format. You can listen to these files by selecting the VOICE option at the main menu. Doing so will bring you to the recordings playback screen, where only the WAV files inside the memory are available. Select the file you want to hear using PREVIOUS/NEXT and press PLAY to begin the playback. To exit the RECORD mode, hold the MENU button. While the playback is paused on the record playback screen, you can access the "Browser" submenu by pressing MENU. Browse through the different options with the PREVIOUS/NEXT buttons and select one by pressing the PLAY button.

1. "Browser": It shows the recordings inside the built-in memory. Use the PREVIOUS/NEXT buttons to find the song you want to play and press PLAY to select it. Press PLAY to enter folders and MENU to go back.
2. "Delete file": Allows you to delete the recording currently selected.
3. "Delete all": Eliminates all WAV inside the player's built-in memory.
4. "Exit": Brings you back to the recordings player screen. Alternatively you can go back at any time pressing MENU. You can leave the VOICE mode back to the main menu by holding the MENU button at any time.

SCREEN AND LANGUAGE SETTINGS

- You can configure multiple aspects of your MP3 Energy very easily. At the main menu select the SETTINGS option and choose the one you seek pressing the PLAY button.

To adjust the time when the screen will get darker to save battery after the last button press choose "Backlight time" option. Choose 0 seconds if you want the screen always lit.

You can select the player language between English, Spanish and French selecting them from the "Language" menu.

To know the amount of free memory available in your player's memory, choose SETTINGS -> Memory info from the main menu.

FIRMWARE REINSTALLATION

Your MP3 Energy has an installed operating system, usually called firmware, which sometimes needs to be reinstalled. The process is easy, but has to be performed carefully, and only when it is really necessary. If you see that the player halts, reboots randomly, or you have problems to access the memory content from your computer, then try pressing the RESET button with a needle or clip. If the problem persists then the firmware might be damaged and you should reinstall the latest version available.

To reinstall the firmware, access manually from a web browser to www.energysistem.com. Select your model at the products section and download the latest version available from the download zone. Uncompress the file in your computer and follow the included instructions in PDF format.

PC CONNECTION

In order to enjoy the best sound for your favorite music with your MP3 Energy, you have to first copy the music files from your PC to its internal memory.

Connect your player to a free USB port of your computer using the USB connector. The device will be detected automatically without installing any driver. Once detected, you can read/write to the device's memory just as if you where using a regular disk drive. After all the data is transferred, disconnect the player from the computer.

IMPORTANT: To avoid any data loss, always perform a safe USB device extraction before disconnecting the USB cable from the device of the PC. In Windows XP, for example, you can find the safe extraction icon in the task bar, next to the system clock.

WARRANTY

Energy Sistem Soyntec SA is liable for any lack of conformity which exists at the time the goods were purchased during a period of 36 months. Batteries are excluded from the 36-month warranty, having a warranty period of 12 months.

This warranty covers any defects in workmanship or materials. This warranty doesn't cover any failure of the product due to accidents, misuse or alteration made by an unauthorized person.

The special 36-months warranty is valid for the European Union. For other countries, please refer to your specific legislation or your local distributor.

WARRANTY PROCEDURE

1. Visit the Support section at http://support.energysistem.com and select your product to view the FAQ (Frequently Asked Questions), user manuals, drivers and updates available. The solution to your problem is very likely to have been already published there.
   You can check the availability of the user manual in your language at http://www.energysistem.com/es-es/support/manuals

2. Alternatively, you may prefer to contact the distributor from which you purchased the product, presenting the purchase receipt or invoice.

Important: This warranty doesn't cover any damage or loss to any data stored in the product memory, therefore Energy Sistem's Technical Service will not assume any loss of the above mentioned information so it is recommended to make a backup of your data and to remove any data or personal info from its internal memory before you send the product, or to send it only with the original factory default values.

Specifications are subject to change without notice.

Trademarks. All companies, brands and product names are trademarks or registered trademarks of their respective companies.

© 2013 by Energy Sistem Soyntec S.A. All rights reserved.

DECLARATION OF CONFORMITY

Manufacturer Name: Energy Sistem Soyntec S.A.

15/05/2013

Address: Pol. Ind. Finestrat, C/.Calpe, I - 03509, Finestrat, Alicante (Spain)

Tel: [phone]

Fax: [phone]

NIF: A53107488

We declare under our own exclusive responsibility that the product:

Energy Sistem™ Energy MP3 Player Stick / Active Series

Manufacturing country: China

Is in compliance with the essential norms and standards of the Directive 2004/108/EC of the European Parliament and of the Council of December 15th 2004.
