S101 - Speaker ENERGY SISTEM - Free user manual and instructions

Product Type	2.0 Stereo Speaker
Brand	Energy Sistem
Model	S101
RMS Power	6 W
Frequency Response	150 Hz - 20 kHz
Power Supply	USB 5V port or 4 AA batteries (not included)
Connectivity	3.5 mm Jack audio input
Headphone Output	Yes, side 3.5 mm Jack
Dimensions (one speaker)	66 x 95 x 95 mm
Magnetic Protection	Yes
Box Contents	Speaker, 3.5 mm Jack cable, MP3/MP4 holder, warranty card, user manual
Care and Cleaning	Clean with a soft dry cloth. Do not use abrasive products. Avoid dust, humidity, extreme temperatures, direct sunlight, and shocks.
Safety	Do not disassemble the device. Repair by qualified personnel only. Disconnect the adapter if not used for a long time.
Warranty Period	36 months
Customer Service	Online support: support.energysistem.com. Email: [e-mail]
Manufacturer Website	www.energysistem.com

Frequently Asked Questions - S101 ENERGY SISTEM

How to power the S101 speakers?

You can power the speakers in two ways: via a USB 5V port (cable not provided) or by inserting 4 AA batteries (not included). It is recommended to use a USB power adapter for extended use.

How to connect an audio device to the speakers?

Use the provided 3.5 mm Jack cable. Plug one end into your device's audio output (computer, MP3, smartphone) and the other into the INPUT on the back of the speaker. Turn on the speaker and adjust the volume.

Can I use headphones with these speakers?

Yes, a 3.5 mm Jack headphone jack is available on the side of the speaker. Plug in your headphones for private listening; the speaker sound will be muted.

How to clean the Energy Sistem S101 speakers?

Use a soft dry cloth to dust the device. Never use abrasive or corrosive cleaners. Avoid any contact with water or moisture.

What to do if the speaker does not turn on?

First check the power: if using batteries, ensure they are inserted correctly and not depleted. If using USB, try a different cable or adapter. If the problem persists, see the support section on support.energysistem.com or contact customer service.

Can I use rechargeable batteries?

Yes, you can use rechargeable AA batteries (NiMH recommended). However, rechargeable batteries have a slightly lower voltage (1.2 V) compared to alkaline batteries (1.5 V), which may reduce maximum volume and battery life.

What is the power of the S101 speakers?

The total RMS power is 6 W (2 x 3 W), providing 2.0 stereo sound suitable for near-field listening.

How to download the manual or user guide?

Go to support.energysistem.com, select your product (S101) and you will be able to download the manual in PDF format, as well as drivers and possible updates.

Is the warranty transferable upon resale?

The 36-month warranty is valid for the original buyer. In case of resale, it is advisable to contact customer service ([e-mail]) to inquire about transfer conditions, but generally it is not transferable without agreement.

Where to find spare parts or accessories?

Energy Sistem does not directly sell spare parts for this model. If needed, contact customer service by email ([e-mail]) or check the support section on the website. For cables or adapters, universal equivalents are available on the market.

USER MANUAL S101 ENERGY SISTEM

❤ ENERGY SYSTEM the heart of your music

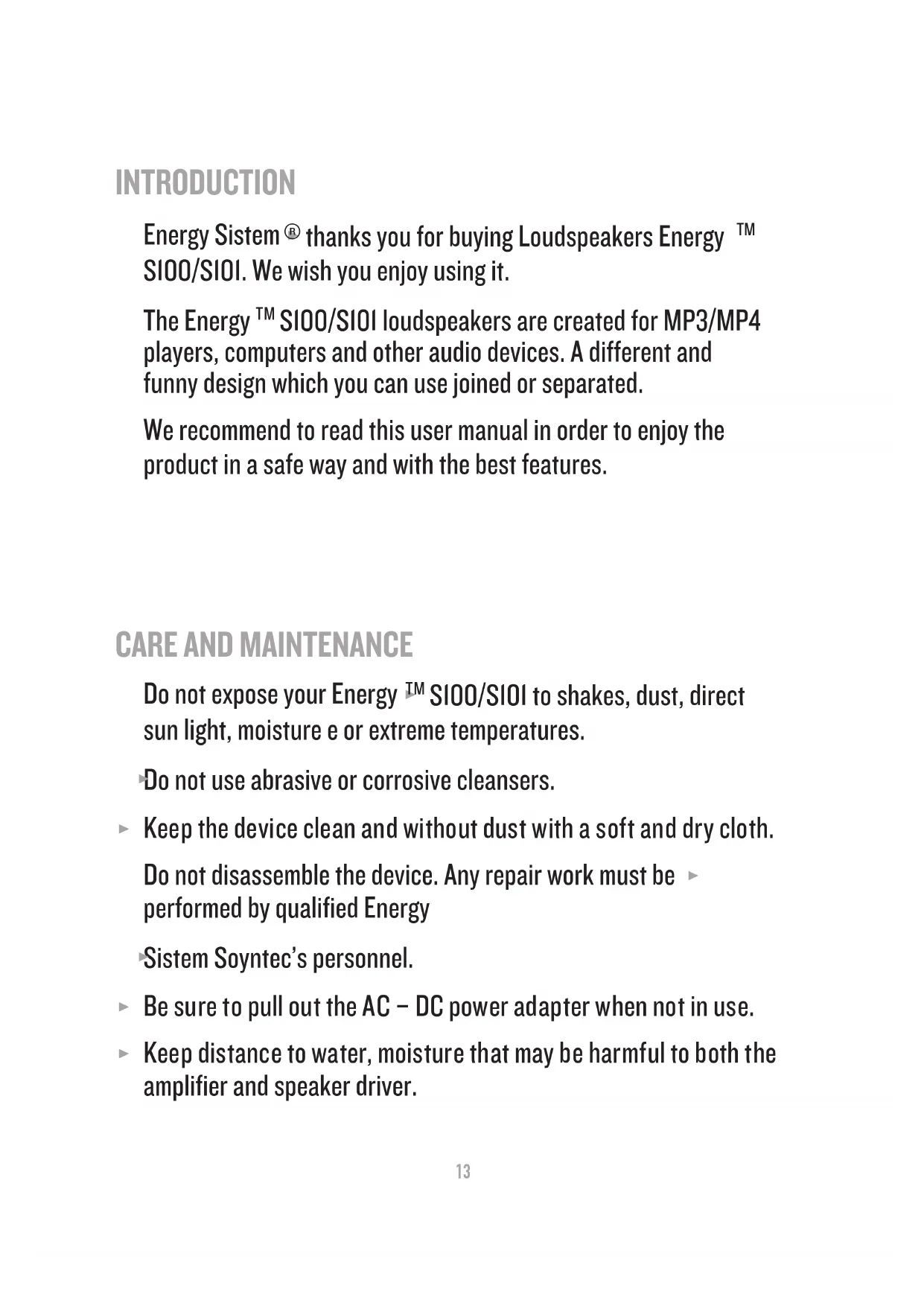

Energy Sistem® thanks you for buying Loudspeakers Energy™ SI00/SI01. We wish you enjoy using it.

The Energy™ SIOO/SI0I loudspeakers are created for MP3/MP4 players, computers and other audio devices. A different and funny design which you can use joined or separated.

We recommend to read this user manual in order to enjoy the product in a safe way and with the best features.

CARE AND MAINTENANCE

Do not expose your Energy™ S100/S101 to shakes, dust, direct sun light, moisture e or extreme temperatures.

Do not use abrasive or corrosive cleansers.

• Keep the device clean and without dust with a soft and dry cloth.

Do not disassemble the device. Any repair work must be performed by qualified Energy

Sistem Soyntec's personnel.

• Be sure to pull out the AC - DC power adapter when not in use.
• Keep distance to water, moisture that may be harmful to both the amplifier and speaker driver.

MAIN FEATURES

2.0 stereo sound.

RMS: 6 W.

Magnetically shielded.

Headphones output.

Powered by USB and batteries (4 x AA).

Response frequency: 150Hz - 20 KHz.

Dimensions: 66 × 95 × 95 ~mm .

PRODUCT CONTENT

Speaker.

Cable 3.5mm Jack.

MP3/MP4 desktop stand.

Warranty card.

User's manual.

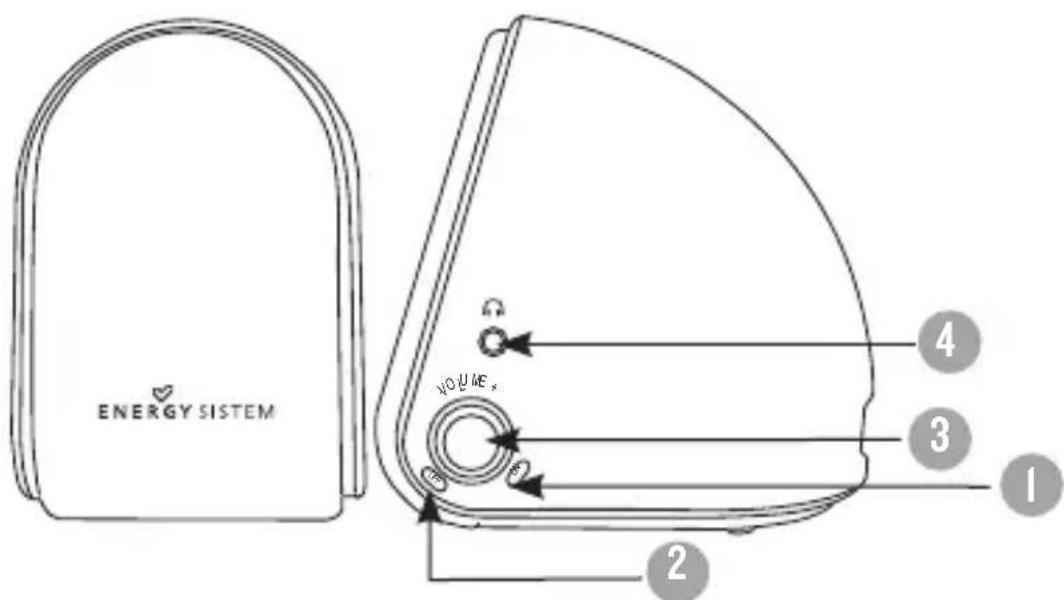

GENERAL OVERVIEW

Power on.
2. Power off.
3. Volume control.
4. Headphones output.

OPERATION

Plug the power adapter to the wall mount socket or insert into an extension.
Insert the Jack conductor to the MP3/MP4 or the player device for audio signal.
Use the volume control to adjust loudness.
- Additionally you can connect a headphone to the spaker in the side of the product.

Any other question?

Check the product's F.A.Q. section at www.energysystem.com.

Technical support email address: [e-mail]

WARRANTY

Energy Sistem Soyntec S.A. warrants its products to be free from defects in materials and workmanship at the time of purchase.

The warranty period is 36 months from the date of purchase for Speakers.

WARRANTY PROCEDURE

Visit the Support section at http://support.energysistem.com and select your product to view the FAQ (Frequently Asked Questions). The solution to your problem is very likely to have been already published there. You will also be able to download user manuals, user guides, drivers and updates.
2. If you cannot find an appropriate solution in the Support section, you may send us your enquiry or warranty service request by email: [e-mail]
3. Alternatively, you may prefer to contact the distributor from which you purchased the product, presenting the purchase receipt or invoice.

Specifications are subject to change without notice.

© 2008 by Energy Sistem. All rights reserved.

Trademarks.

All company, brand and product names are trademarks or registered trademarks of their respective companies.

CE

AGREEMENT DECLARATION

Supplier Name: Energy Sistem Soyntec S. A.

Address: Pol. Ind. Finestrat C/ Calpe esq. C/ Alicante S/N, 03509 Finestrat Alicante

Tel: [phone]

Fax: [phone]

NIF: A53107488

We declare under our own exclusive responsibility the product agreement:

Energy Sistem ® Loudspeakers 2.0 Energy ™ S100/S10I

which concern this agreement, with the norm(s) or other(s) formative(s) document(s). 2004/108/EC (EMC Directive)

Applicable standards:

EN55022: 2006

EN61000-3-2: 2006

EN61000-3-3: 1995+AI: 2001+A2: 2005,

EN55024: 1998+AI:2001+A2:2003

Manufacturing country: China

Certificate CE E0711135E, Date 04th December 2007

Support technique email adresse: [e-mail]

CONDITIONS DE GARANTIE

Standard applicable:

EN55022: 2006

EN61000-3-2: 2006

EN61000-3-3: 1995+AI: 2001+A2: 2005,

EN55024:1998+AI:2001+A2:2003
