USER MANUAL DPG 16B1 A NX EU INDESIT

Rumore in dB(A) re 1 pW

- bed and breakfast.

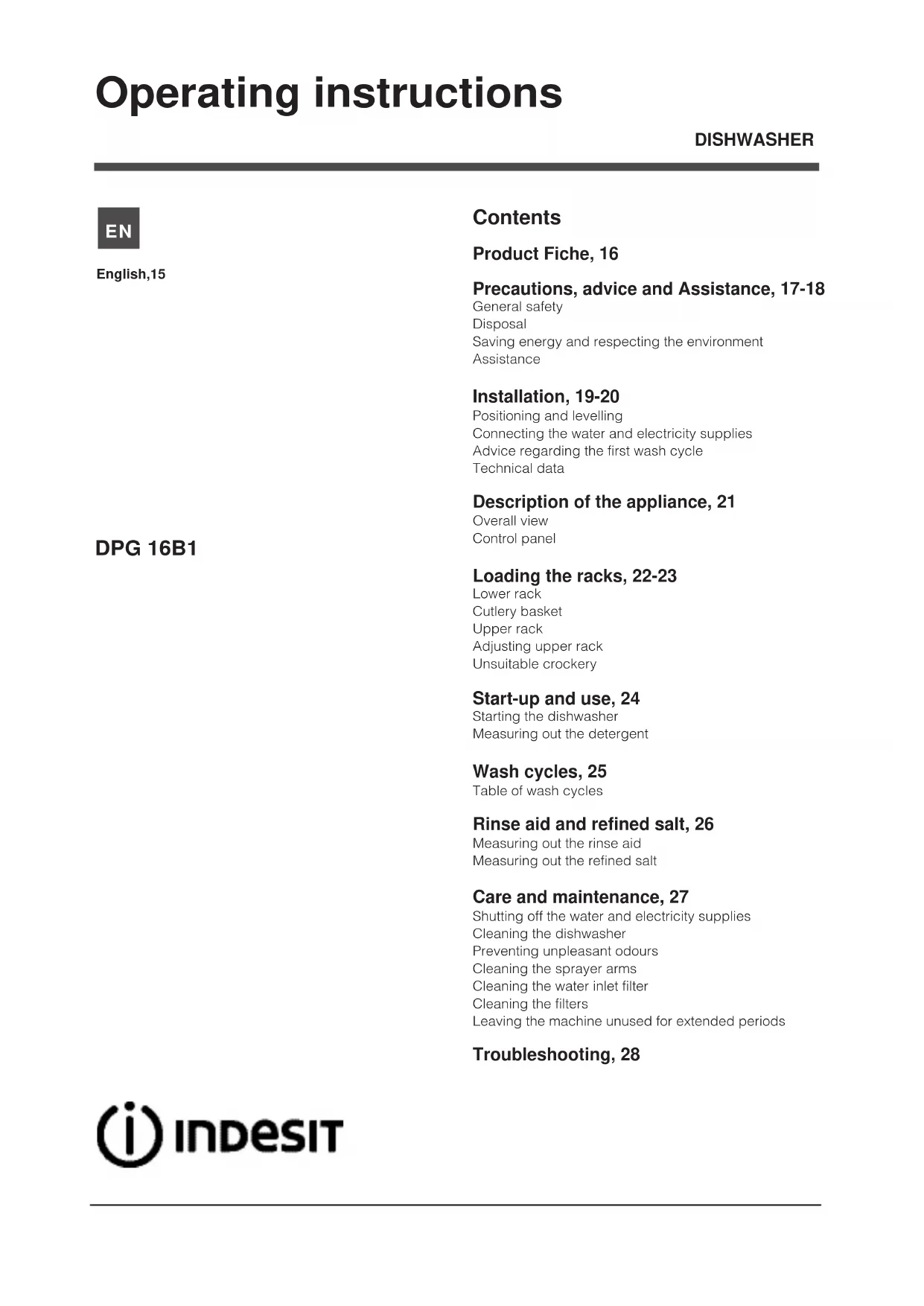

Precautions, advice and Assistance, 17-18

Saving energy and respecting the environment

Positioning and levelling

Connecting the water and electricity supplies

Advice regarding the first wash cycle

Description of the appliance, 21

Loading the racks, 22-23

Adjusting upper rack

Start-up and use, 24

Starting the dishwasher

Measuring out the detergent

Table of wash cycles

Rinse aid and refined salt, 26

Measuring out the rinse aid

Measuring out the refined salt

Care and maintenance, 27

Shutting off the water and electricity supplies

Cleaning the dishwasher

Preventing unpleasant odours

Cleaning the sprayer arms

Cleaning the water inlet filter

Cleaning the filters

Leaving the machine unused for extended periods

Rated capacity in standard place settings (1)

Energy efciency class on a scale from A+++ (low consumption) to D (high consumption)

Energy consumption per year in kWh (2)

Energy consumption of the standard cleaning cycle in kWh

Power consumption of the off-mode in W

Power consumption of the left-on mode in W

Water consumption per year in litres (3)

Drying efcacy class on a scale from G (low efcacy) to A (high efcacy)

A Programme time for standard cleaning cycle in minutes

The duration of the left-on mode in minutes

1) The information on the label and che relates to the standard cleaning cycle, this programme is suitable to clean normally

soiled tableware and it is the most efcient programme in terms of combined energy and water consumption. The standard

cleaning cycle corresponds to the Eco cycle.

2) Based on 280 standard cleaning cycles using cold water ll and the consumption of the low power modes. Actual energy

consumption depends on how the appliance is used.

3) Based on 280 standard cleaning cycles. Actual water consumption depends on how the appliance is used.

* Only available in selected models.

Precautions, advice and

This appliance was designed and

manufactured in compliance with international

safety standards The following information has

been provided for safety reasons and should

therefore be read carefully.

Keep this instruction manual in a safe place for

future reference. If the appliance is sold, given

away or moved, please ensure the manual is kept

Please read these instructions carefully: they

contain important information on installation, use

This appliance is designed for domestic use or

similar applications, for example:

- staff kitchen areas in shops, offices and other

- use by guests in hotels, motels and other

residential settings;

• Theapplianceshouldnotbeoperatedby

people (including children) with reduced

physical, sensory or mental capacities, or by

inexperienced people who are not familiar with

the product, unless supervision or instructions

on how to use it are provided by someone who

assumes responsibility for their safety.

• Anadultmustsupervisechildrenatalltimesto

prevent them from playing with the appliance.

• The appliance was designed for domestic

use inside the home and is not intended for

commercial or industrial use.

• Theappliancemustbeusedbyadultsonlyto

wash domestic crockery in accordance with

the instructions in this manual.

• Theappliancemustnotbeinstalledoutdoors,

even in covered areas. It is extremely dangerous

to leave the machine exposed to rain and

• Donottouchtheappliancewhenbarefoot.

plug from the mains socket. Do not pull on the

• Thewatersupplytapmustbeshutoffandthe

plug should be removed from the electrical

socket before cleaning or maintaining the

• Iftheappliancebreaksdown,donotunderany

circumstances touch the internal parts in an

attempt to perform the repair work yourself.

• Donotleanorsitontheopendoor of the

appliance: this may cause the appliance to

•Thedoorshouldnotbeleftopenasitmaycreate

a dangerous obstacle.

legislation so that the packaging may be

• The European Directive 2012/19/EU relating

toWasteElectricalandElectronicEquipment

(WEEE) states that household appliances

should not be disposed of using the normal

solidurbanwastecycle.Exhaustedappliances

should be collected separately in order to

optimise the re-using and recycling rate of the

materials inside the machine, while preventing

potential damage to the environment and public

health. The crossed-out dustbin symbol is

marked on all products to remind the owners

of their obligations regarding separated waste

For further information relating to the correct

disposal of household appliances, owners may

contact the relevant public authority or the local

Saving energy and respecting the

Saving water and energy

• Selectawashcyclethatissuitedtothetype

of crockery and to the soil level of the crockery

using the Table of wash cycles:

 -fordisheswithanormalsoillevelusetheEco

washcycle,whichensureslowenergy/water

- If the load is smaller than usual activate the

(see Start-up and use).

• Ifyourelectricitysupplycontractgivesdetailsof

electricity-saving time bands, run wash cycles

when electricity prices are lower. The Delayed

(see Start-up and use)

organise the wash cycles accordingly.EN

Phosphate-free and chlorine-free detergents

• Westronglyrecommendthatyouusedetergents

that do not contain phosphates or chlorine, as

these products are harmful to the environment.

• Enzymesprovideaparticularlyeffectiveaction

attemperaturesaround50°C.Asaresult

detergentscontainingenzymescanbeusedin

conjunction with low-temperature wash cycles

in order to achieve the same results as a normal

•Toavoidwastingdetergent,use theproduct

in appropriate quantities based on the

manufacturer’s recommendations, the hardness

ofthe water, thesoil level andthe quantity

ofcrockery to be washed. Evenif they are

biodegradable, detergents contain substances

which may alter the balance of nature.

Assistance Before contacting Assistance:• CheckwhethertheproblemcanberesolvedusingtheTroubleshooting guide (see Troubleshooting). • Restarttheprogrammetocheckwhethertheproblemhas ceased to exist.• Ifthe problem persists, contact theAuthorisedTechnical Assistance Service.Never use the services of unauthorised technicians.Please have the following information to hand:• Thetypeofmalfunction.• Theappliancemodel(Mod.).• Theserialnumber(S/N).This information can be found on the appliance data plate (see Description of the appliance)

* Only available in selected models. If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back. Positioning and levelling 1.Removetheappliancefromallpackagingandcheckthatit has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.2.Arrangethedishwashersothatitssidesorbackpanelareincontact with the adjacent cabinets or the wall. This appliance can also be recessed under a single worktop *

Instruction sheet.) 3. Position the dishwasher on a level sturdy floor. If the floor is uneven, the front feet of the appliance should be adjusted untilitreachesahorizontalposition.Iftheapplianceislevelledcorrectly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating. 4

*. To adjust the height of the rear foot, turn the red hexagonal bushing on the lower central part at the front of the dishwasher using a hexagonal spanner with an opening of 8 mm. Turn the spanner in a clockwise direction to increase the height and in an anticlockwise direction to decrease it (see Building-in Instruction

sheet attached to the documentation.)

Connecting the water and electricity supplies Connection to the water and electricity supplies should only beperformedbyaqualifiedtechnician.The dishwasher should not stand on the water hoses or electricity supply cable.The appliance must be connected to the water supply network using new hoses.Neveruseoldorsecondhandhosesets.Donotreusehosesets from any previously installed dishwasher.The water inlet and outlet hoses and the electricity supply cable may be positioned towards the right or the left in order to achieve the best possible installation. Connecting the water inlet hose • Toasuitablecoldwaterconnectionpoint:beforeattachingthe hose, run the water until it is perfectly clear so that any impurities that may be present in the water do not clog the appliance; after performing this operation, screw the inlet hose tightly onto a tap with a ¾ gas threaded connection.• Toasuitablehotwaterconnectionpoint:yourdishwashermay be supplied with hot water from the mains supply (if you have a central heating system with radiators) provided that it doesnotexceedatemperatureof60°C.Screw the hose to the tap as described for connection to a cold water supply.If the inlet hose is not long enough, contact a specialist store or an authorised technician (see Assistance.) The water pressure must be within the values indicated in the Technical Data table (see adjacent information.) The hose should not be bent or compressed. Connecting the water outlet hose Connect the outlet hose (without bending it) to a drain duct with a minimum diameter of 4 cm. Theoutlethosemustbeataheightrangingfrom40to80cmfromthefloor/surfacewherethedishwasherrests(A).Before connecting the water outlet hose to the sink drain, remove the plastic plug (B). Anti-flooding protection To ensure floods do not occur, the dishwasher:- is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance.Somemodelsarealsoequippedwiththesupplementarysafety device New Acqua Stop*, which guarantees anti-flooding protection even in the event of a supply hose rupture. WARNING: HAZARDOUS VOLTAGE! Under no circumstances should the water inlet hose be cut, as it contains live electrical parts. Electrical connection Before inserting the plug into the electrical socket, make sure that:• Thesocketisearthedandcomplieswithcurrentregulations.• thesocketcanwithstandthemaximumloadoftheappliance,which is indicated on the data plate located on the inside of the door

(see Description of the appliance); • Thepowersupplyvoltagefallswithinthevaluesindicatedonthe data plate on the inside of the door.• Thesocketiscompatiblewiththeplugoftheappliance.Ifthis is not the case, ask an authorised technician to replace the plug ( see Assistance ); do not use extension cables or multiple sockets.Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible.The cable should not be bent or compressed.If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical Assistance Service in order topreventallpotentialhazards (see Assistance.)EN

Anti-condensation strip* After installing the dishwasher, open the door and stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation which may form. Advice regarding the first wash cycle After the installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack, if any.Immediately before the fist washing, completely fill the salt dispenser with waterandaddonlythenapproximately1kg of salt (seechapterentitledRinseaidandrefinedsalt)

. The water may overflow: this is normal and is not a cause for concern. Select the water hardness value (see chapter

entitledRinseaidandrefinedsalt). - After the salt has been pouredintothemachine,theLOWSALTindicatorlight* switches off.If the salt container is not filled, the water softener and the heating element may be damaged as a result. Technical data Dimensionswidth 59,5 cmheight 82 cmdepth 57 cmCapacity 13 standard place-settingsWater supply pressure0,05 ÷ 1MPa (0.5 ÷ 10 bar)7,25 – 145 psiPower supply voltage See appliance data plateTotal absorbed power See appliance data plateFuse See appliance data plateThis dishwasher conforms to the following European Community Directives: -2006/95/EC (Low Voltage)-2004/108/EC (Electromagnetic Compatibility) -2009/125/EC (Comm. Reg. 1016/2010) (Ecodesign)-97/17/EC (Labelling)-2012/19/EU Waste Electrical and Electronic Equipment (WEEE)The machine has a buzzer/set of tones (depending on the

dishwasher model ) to inform the user that a command has been implemented: power on, cycle end etc. The symbols/indicator lights/LEDs on the control panel/display may vary in colour and may have a flashing or fixed light (depending on the dishwasher model)

* Only available in selected models.EN

***Only in completely built-in models.

* Only available in selected models.

The number and type of wash cycles and options may vary depending on the dishwasher model.

6. Lower sprayer arm

Tips Before loading the racks, remove all food residues from the crockeryandemptyliquidsfromglassesandcontainers.No preventive rinsing is needed under running water.Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwardsandtheconcave/convexpartsplacedobliquely,thus allowing the water to reach every surface and flow freely.Make sure that the lids, handles, trays and frying pans do not prevent the sprayer arms from rotating. Place any small items in the cutlery basket.Since plastic dishes and non-stick frying pans usually retain more water drops, their drying will be not so good as that of ceramic or stainless-steel dishes.Lightweight items such as plastic containers should be placed in the upper rack and arranged so that they cannot move.After loading the appliance, make sure that the sprayer arms can rotate freely. Lower rack The lower rack can hold pans, lids, dishes, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides.Very soiled dishes and pans should be placed in the lower rack because in this sector the water sprays are stronger and allow a higher washing performance.Several dishwasher models are fitted with tip-up sectors *. They can be used in a vertical position when arranging dishes orinahorizontalposition(lower)toloadpansandsaladbowlseasily. Cutlery basket Thebasketis equipped with top grilles for improved cutleryarrangement. The cutlery basket should be positioned only at the front of the lower rackKnives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards or they mustbepositionedhorizontallyinthetip-upcompartmentsonthe upper rack Upper rack Load this rack with delicate and lightweight crockery such as glasses, cups, saucers and shallow salad bowls. Several dishwasher models are fitted with tip-up sectors *. Theycanbeusedinavertical position when arranging tea/dessert saucers or in a lower position to load bowls and food containers. *Only available in selected models with different numbers and positions.EN

* Only available in selected models.

Adjusting the height of the upper rack In order to make it easier to arrange the crockery, the upper rack may be moved to a higher or lower position.The height of the upper rack should be adjusted WHEN THE RACK IS EMPTY.NEVER raise or lower the rack on one side only. IftherackisequippedwithaLift-Up device*

(see figure) , lift it up by holding its sides. To restore the lower position, press the levers (A) at the sides of the rack and follow the rack down. Unsuitable crockery • Woodencrockeryandcutlery.• Delicatedecoratedglasses,artistichandicraftandantiquecrockery. Their decorations are not resistant.• Parts insynthetic material which do notwithstand hightemperatures.• Copperandtincrockery.• Crockerysoiledwithash,wax,lubricatinggreaseorink.Thecoloursofglassdecorationsandaluminium/silverpiecescanchange and fade during the washing process. Some types of glass(e.g.crystalobjects)canbecomeopaqueafteranumberof wash cycles too. Damage to glass and crockery

Caused by: • Typeofglassandglassproductionprocess.• Chemicalcompositionofdetergent.• Watertemperatureofrinsecycle. Tips: • Onlyuseglassesandporcelain guaranteed by themanufacturer as dishwasher safe.• Useadelicatedetergentsuitableforcrockery.• Collectglassesandcutleryfromthedishwasherassoonasthe wash cycle is over.Theupperrackcanbeadjustedforheightbasedonrequirements:high position to place bulky crockery in the lower rack and low positiontomakethemostofthetip-upcompartments/sectorsby creating more space upwards. Tip-up compartments with adjustable position The side tip-up compartments can be positioned at three differentheightstooptimizethearrangementofcrockeryinsidethe rack.Wineglassescanbeplacedsafelyinthetip-upcompartmentsby inserting the stem of each glass into the corresponding slots.EN

* Only available in selected models.

Measuring out the detergent

A good wash result also depends on the correct

amount of detergent being used. Exceeding the stated

amount does not result in a more effective wash and

increases environmental pollution. Based on how soiled the items are, the amount can be adjusted to individual cases using powder or liquid detergent.In the case of normally soiled items, use approximately either 35 gr (powder detergent) or 35 ml (liquid detergent). If tablets are used, one tablet will be enough.If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly. For good washing results also follow the instructions shown on the detergent box.For further questions please ask the detergent producers' Advice Offices.To open the detergent dispenser use the opening device “A”. Introduce the detergent into the dry dispenser “B” only. Place the amount of detergent for pre-washing directly inside the tub. 1. WhenmeasuringoutthedetergentrefertotheTableofwashcyclestoaddtheproperquantity.CompartmentB comprises alevelshowingthemaximumquantityofliquidorpowderdetergent that can be added to each cycle. 2. Removedetergentresiduesfromtheedgesofthedispenserand close the cover until it clicks.3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.The detergent dispenser automatically opens up at the right time according to the wash cycle.If all-in-one detergents are used, we recommend using the TABS option, because it adjusts the cycle so that the best washing and drying results are always achieved.Only use detergent which has been specifically designed for dishwashers.DO NOT USE washing-up liquid.Using excessive detergent may result in foam residue remaining in the machine after the cycle has ended. The use of tablets is only recommended for models which offer the MULTI-FUNCTIONAL TABLETS option.To achieve the best results from each washing and drying cycle, powder detergent, liquid rinse aid and salt should be used. Starting the dishwasher 1.Turnthewatertapon.2.PresstheON/OFFbutton:3. Open the door and pour in a suitable amount of detergent.4. Load the racks (see Loading the racks) and shut the door. 5.

Select the wash cycle by turning the WASH CYCLE SELECT knob clockwise: align the notch in the knob with

thenumber/symbol representing thedesired wash cycle.

TheSTART/PAUSEindicatorlightwillgoon. 6. Select the wash options* (see Special wash cycles and options.)7.StartthecyclebypressingtheStart/Pausebutton:abeep will sound* and the indicator light corresponding to the wash

phase will go on to signal that the cycle has begun. 8. At the end a few beeps * will signal the end of the wash cycle and the END indicator light will go on. Switch off the appliance by pressingtheON/OFFbutton,shutoffthewatertapandunplugthe appliance from the electricity socket.9.Waitafewminutesbeforeremovingthecrockerytoavoidgetting burnt. Unload the racks, beginning with the lower level. - The machine will switch off automatically during

certain periods of inactivity in order to minimise

electricity consumption.

Changing a wash cycle in progress

If a mistake was made in the wash cycle selection process, it

is possible to change the cycle provided that it has only just

begun: once the wash cycle has started, in order to change

the wash cycle switch off the machine by pressing and

holdingtheON/OFF/Resetbutton.Switchitbackonusingthe

same button and select the desired wash cycle and options.

Adding extra crockery

PresstheStart/Pausebutton-thecorrespondingindicator

light will flash. Open the door, taking care to avoid the

escaping steam, and place the crockery inside the

appliance.Pressthe Start/Pause button (fixed light):the

IftheStart/Pausebuttonispressedsoastopausethe

machine, both the wash cycle and the Delayed Start function

(if selected) are interrupted.

At this stage the wash cycle cannot be changed.

Accidental interruptions

If the door is opened during the wash cycle or there is a

power cut, the cycle stops. It starts again from the point at

which it was interrupted once the door has been shut or the

electricity supply restored.EN

Wash cycles The number and type of wash cycles and options may vary depending on the dishwasher model. Wash-cycledataismeasuredunderlaboratoryconditionsaccordingtoEuropeanStandardEN50242.

Rinse aid and refined salt Only use products which have been specifically designed for dishwashers. Do not use table/industrial salt or washing-up liquid. Follow the instructions given on the packaging.If using a multi-functional product it is not necessary to add any rinse aid. However, we recommend that you add salt, especially if you live in an area where the water is hard or very hard. (Follow the instructions given on the packaging). If you do not add salt or rinse aid, the LOW SALT* and LOW RINSE AID indicator lights will stay lit. Measuring out the rinse aid Rinseaidmakesiteasierforthecrockerytodry,aswaterrunsoffthe surfaces more readily and therefore does not leave streaks or marks. The rinse aid dispenser should be filled: • WhentheLOWRINSEAIDindicatorlight* on the control panel is illuminated, a reserve supply of rinse aid is still available for1-2cycles;1.Openthedispenser“D” by pressing and pulling up the tabon the lid;2.Carefullyintroducetherinseaidasfarasthemaximumreference notch of the filling space - avoid spilling it. If this happens, clean the spill immediately with a dry cloth.3. Press the lid down until you hear a click to close it.NEVER pour the rinse aid directly into the appliance tub. Rinse-aid quantity setting If you are not completely satisfied with the drying results, you can adjustthequantityofrinseaid.Switchthedishwasheronandoff using the ON/OFF button. Press the Start/Pause button 3 times. Start it using the ON/OFF button. The rinse-aid indicator light will flash as many times as the level that was set (set to factory level).AdjustthelevelofrinseaidsupplyusingtheSELECTWASHCYCLEknob.Press the ON/OFF button to save the setting.IftherinseaidlevelissettoZERO(ECO),norinseaidwillbesupplied.TheLOWRINSEAIDindicatorlightwillnotbelitifyourun out of rinse aid.Up to maximum 4 levels can be set based on the dishwasher model. • Iftherearestreaksonthecrockery,setalownumber(1-2.)• Ifthere aredropsof waterorlimescale marks,seta highnumber (3-4.) Setting water hardness Everydishwasherisequippedwithawatersoftenerusingrefinedsalt designed specially for this type of appliance in order to supply water without limescale for crockery washing. This dishwasher has a setting that helps reduce pollution and optimises washing performance in accordance with the water hardness level in your area. Ask your local water supplier for this information. Switch the dishwasher on and off using the ON/OFF button. Press and hold down the Start/Pause button for a few seconds until you hear a beep *. Switch the dishwasher on using the ON/ OFF button. The salt indicator light will flash as many times as the level that was set (water softener set to medium level).AdjustthehardnesslevelusingtheSELECTWASHCYCLEknob(1-2-3-4-5* see the water hardness table) up to max. 5 levels.Press the ON/OFF button to save the setting.Evenifusingmulti-functionaltablets,fillthesaltdispenser.(°dH=hardnessmeasuredinGermandegrees-°f=hardnessmeasuredinFrenchdegrees–mmol/l=millimolesperlitre) Measuring out the refined salt In order to obtain the best possible results from a wash cycle, make sure that the salt dispenser is never empty. Refinedsaltremoveslimescalefromthewater,thusavoidingthe formation of deposits on crockery. The salt dispenser is located in the lower part of the dishwasher (see Description) and should be filled:• Whenthegreenfloat* cannot be seen by simply looking at the cap of the salt dispenser;• WhentheLOWRINSEAIDindicatorlightonthecontrolpanelis illuminated *;1.Removethelowerrackandunscrewthe cap (anticlockwise).2.Thefirsttimeyoudothis:fillthewatertank right up to its edge.3. Position the funnel * (see figure) and fill the salt dispenser up to the edge (approximately 1 kg). It is normal for alittle water to leak out.4.Removethefunnel*andwipeanysaltresiduesawayfromthe opening; rinse the cap under running water and then screw it on, the head facing downwards so as to let the water flow out of the four slots (star-shaped arrangement) in the lower part of the cap (cap with green float *). It is advisable to perform this procedure every time you add salt to the dispenser. Make sure the cap is screwed on tightly so that no detergent can get into the container during the wash cycle (this could damage the water softener beyond repair).Whennecessary,measureoutthesaltbeforeawashcycleso that any saline solution which has leaked out of the salt dispenser is removed. * Only available in selected models. Water Hardness TableAverage salt dispenser capacity duration ** level °dH °fH mmol/l months1 0 - 6 0 - 10 0 - 1 7 months 2 6 - 11 11 - 20 1,1 - 2 5 months

4 17 - 34 31 - 60 3,1 - 6 2 months

* 34 - 50 61 - 90 6,1 - 9 2/3 weeksFor values between 0°f and 10°f, we do not recommend the use of salt. * a setting of 5 may increase cycle duration.

** 1 wash cycle per day.

Care and maintenance

* Only available in selected models.

Shutting off the water and electricity

 performing maintenance work. Cleaning the dishwasher • The  external  surfaces 

 control  panelcan be cleaned using a non-abrasive cloth which has been dampened with water. Do not use solvents or abrasive products.• Any  marks 

 removed  using a cloth dampened with water and a little vinegar. Preventing unpleasant odours • Alwayskeep the door of

the applianceajar in order to avoid  moisture from forming and being trapped inside the machine.• Clean 

 detergent  dispensers  regularly using a damp sponge. This will avoid food becoming trapped in the seals, which is the main cause behind the formation of unpleasant odours. Cleaning the sprayer arms Food residue may become encrusted onto the sprayer arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.The two sprayer arms may both be removed.To remove the upper sprayer arm, turn the plastic locking ring in an anti-clockwise direction. The upper sprayer arm should be replaced so that the side with the greater number of holes is facing upwards.The lower sprayer arm can be removed by pressing on the side tabs and pulling it upwards. Cleaning the water inlet filter* If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.Clean the water inlet filter at the tap outlet regularly. - Turn off the water tap.- Unscrew the end of the water inlet hose, remove the filter and clean it carefully under running water. -

 position. Cleaning the filters The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water. They should be cleaned if you wish to achieve the best results in every wash.Clean the filters regularly.The dishwasher should not be used without filters or if the filter is loose.•Afterseveralwashes,checkthefilterassemblyandifnecessaryclean it thoroughly under running water, using a non-metallic brush and following the instructions below: 1. Turn the cylindrical filter C in an anti-clockwise direction and pull it out (fig.1). 2.RemovethecupfilterB by exerting a slight pressure on the side flaps (fig.2); 3. Slide out the stainless-steel plate filter A. (fig. 3). 4. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (fig.4). After cleaning the filters, re-place the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher. Leaving the machine unused for extended

Whenevertheappliancefailstowork,checkforasolutionfromthefollowinglistbeforecallingforAssistance.

* Only available in selected models.

Problem: Possible causes / Solutions: The dishwasher does not start or cannot be controlled.• Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the program. • The appliance has not been plugged in properly.• The dishwasher door has not been shut properly. The door won’t close. • The lock was released. Strongly push the door until a “clacking” noise is heard. No water drains out from the dishwasher.• The dishwasher cycle has not yet nished.• The water inlet hose is bent (see Installation).• The drain duct is blocked.• The lter is clogged up with food residues.The dishwasher makes excessive noise.• The dishes are rattling against each other or against the sprayer arms.• Excessive foam presence: the detergent has not been measured out correctly or it is not suitable for use in dishwashers. (see Start-up and use). The dishes and glasses are covered in a white lm or limescale deposits.• The level of the rened salt is low or the dosage setting is not suited to the hardness of the water (see Rinse aid and salt).• The lid on the salt dispenser is not closed properly.• The rinse aid has been used up or the dosage is too low.The dishes and glasses are streaked or have a bluish tinge.• The rinse aid dosage is too high.The crockery has not been dried properly.• A wash cycle without a drying programme has been selected.• The rinse aid has been used up or the dosage is too low (see Rinse aid and salt).• The rinse aid dispenser setting is not high enough. • The crockery is made from non-stick material or plastic.The dishes are not clean.• The racks are overloaded (see Loading the racks).• The crockery has not been arranged well.• The sprayer arms cannot move freely.• The wash cycle is too gentle (see Wash cycles).• Excessive foam presence: the detergent has not been measured out correctly or it is not suitable for use in dishwashers. (see Start-up and use). • The lid on the rinse aid compartment has not been shut correctly. • The lter is dirty or blocked (see Care and maintenance).• The rened salt level is low (see Rinse aid and salt).The dishwasher does not take any water in - Tap shut-off alarm.Beeps are heard * and the Washing indicator light is ashing quickly.Beeps are heard* and the Drying and End indicator lights are ashing quickly.• There is no water in the mains supply.• The water inlet hose is bent (see Installation.)• Turn on the tap and the appliance will start after a few minutes. • The appliance stopped because no action was taken when the beep sounded*. Switch off the machine using the ON/OFF button, turn on the tap and switch the machine back on after a few seconds by pressing the same button. Re-program the appliance and restart the wash cycle.Mode d’emploi
