USER MANUAL AS27222 KALORIK

2 USK AS 27222 – AS 29091 - 101209

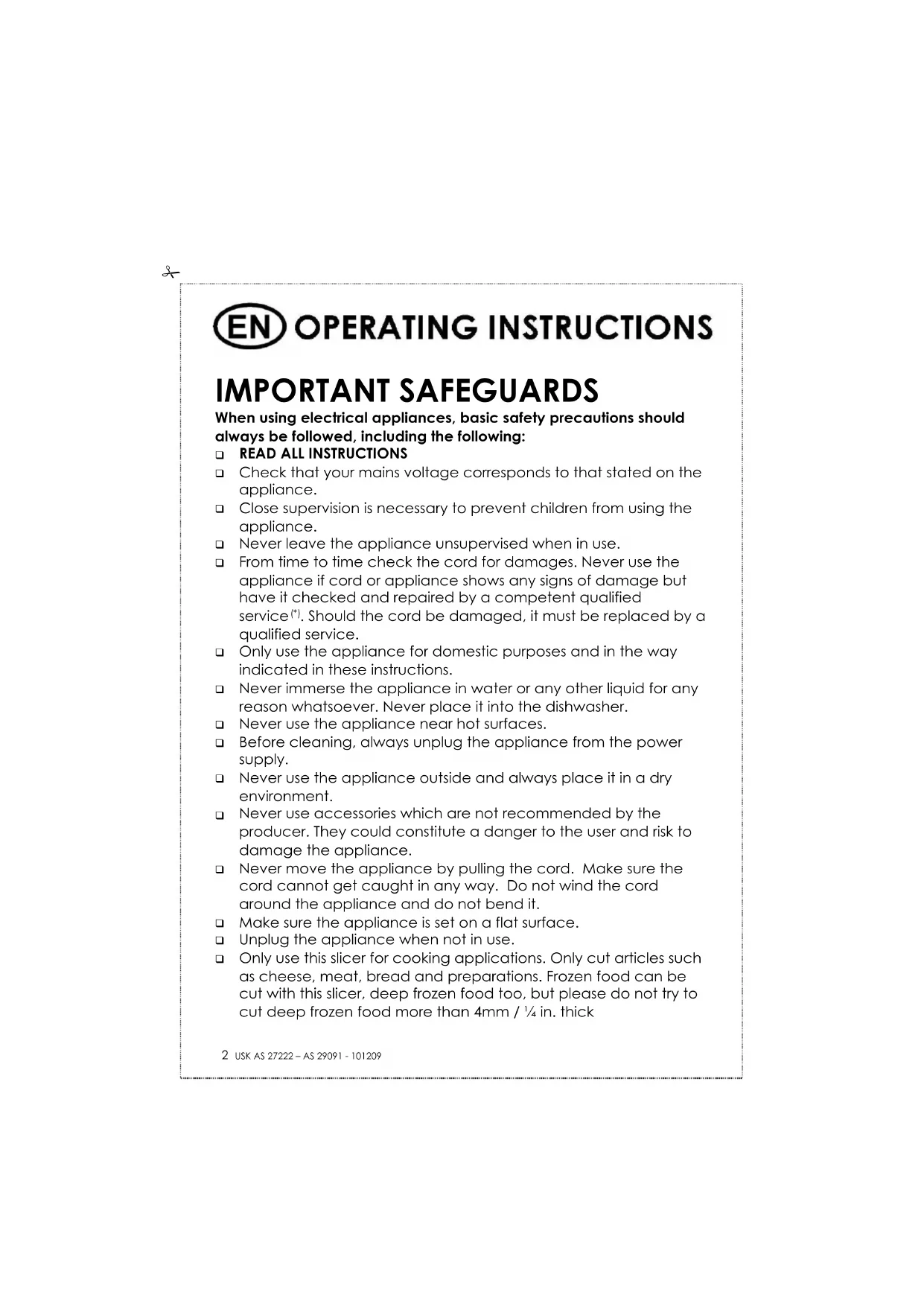

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should

always be followed, including the following:  READ ALL INSTRUCTIONS  Check that your mains voltage corresponds to that stated on the

appliance.  Close supervision is necessary to prevent children from using the

appliance.  Never leave the appliance unsupervised when in use.  From time to time check the cord for damages. Never use the

appliance if cord or appliance shows any signs of damage but

have it checked and repaired by a competent qualified

. Should the cord be damaged, it must be replaced by a

qualified service.  Only use the appliance for domestic purposes and in the way

indicated in these instructions.  Never immerse the appliance in water or any other liquid for any

reason whatsoever. Never place it into the dishwasher.  Never use the appliance near hot surfaces.  Before cleaning, always unplug the appliance from the power

supply.  Never use the appliance outside and always place it in a dry

environment.  Never use accessories which are not recommended by the

producer. They could constitute a danger to the user and risk to

damage the appliance.  Never move the appliance by pulling the cord. Make sure the

cord cannot get caught in any way. Do not wind the cord

around the appliance and do not bend it.  Make sure the appliance is set on a flat surface.  Unplug the appliance when not in use.  Only use this slicer for cooking applications. Only cut articles such

as cheese, meat, bread and preparations. Frozen food can be

cut with this slicer, deep frozen food too, but please do not try to

cut deep frozen food more than 4mm / ¼ in. thick

3 USK AS 27222 – AS 29091 - 101209

 Never cut food only by using your hands. Always use the slide

and its food guide unless it is impossible because of the size and

dimension of the article. Make sure never to touch the blade.  This kind of appliance cannot function continuously; it is not a

professional type of appliance. It is necessary to make temporary

stops. Check the section « Important information » in the

instruction manual.  The blade of this appliance is extremely sharp; always be very

careful when cleaning the appliance.  It is absolutely necessary to keep this appliance clean at all times

as it comes into direct contact with food.  Make sure the appliance is unplugged when disassembling it

before cleaning or other.  Never touch the blade when the appliance is in use. Furthermore,

never try to stop the movement of the blade in any way

SAVE THESE INSTRUCTIONS POLARIZED PLUG INSTRUCTIONS Some appliances are equipped with a polarized plug (one blade is

wider than the other). To reduce the risk of electric shock, this plug

will fit into the polarized outlet only one way. If the plug does not

properly fit into the outlet at first, reverse it. If it still does not fit,

contact a competent qualified electrician. Do not attempt to modify

the plug in any way.

For appliances equipped with a standard plug, simply insert the plug

into the outlet without paying attention to the way you plug it.

SHORT CORD INSTRUCTIONS A short power supply cord is provided to reduce the hazards resulting

from becoming entangled in, or tripping over a longer cord.

Extension cords may be used if care is exercised in their use.

• The electrical rating of the extension cord should be at least

that of the appliance. If the electrical rating of the extension

cord is too low, it could overheat and burn.

4 USK AS 27222 – AS 29091 - 101209

• The resulting extended cord should be arranged so that it will

not drape over the counter top or tabletop where it can be

pulled on by children or tripped over.

IMPORTANT INFORMATION This appliance is not for commercial use. You should follow the

requested breaks. Failure to follow this instruction carefully may result

in damage to the motor. Please refer to the rating label for the

maximum continuous usage time (KB xx min where xx is the

maximum usage time). The breaks should last at least 10 minutes.

4. Blade locking device

5 USK AS 27222 – AS 29091 - 101209

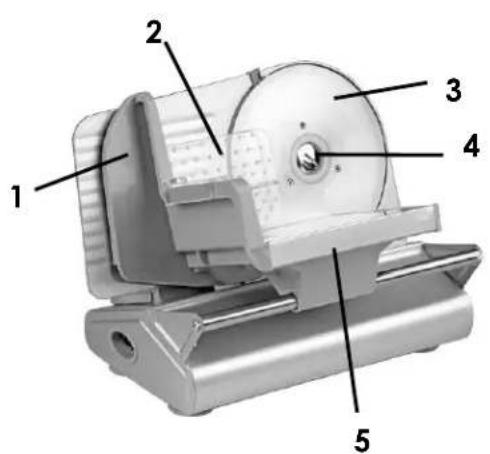

USING THE SLICER For a safe use, your appliance is fitted with a sliding food platform (5)

with a thumb guard (1) and pusher (2)), which allows to protect your

hands by giving an exceptional use comfort.

The platform allows making to and fro motions along the blade to

cut the slices. Use the handle to move it.

The pusher allows you to hold the food in position when slicing by

holding your hand far from the blade. Therefore it is recommended

to always use it except if the food is too large and in this case keep it

as far as possible from the blade.

• Clean all parts of the appliance before the first use.

• Make sure the appliance is steady and add the pusher (2) on the

• Plug in the appliance. The slicer is now ready for use.

• Place a plate or a dish below the blade to collect the slices.

• Move the platform away from the blade and lay the food to be

sliced on the stainless steel plate.

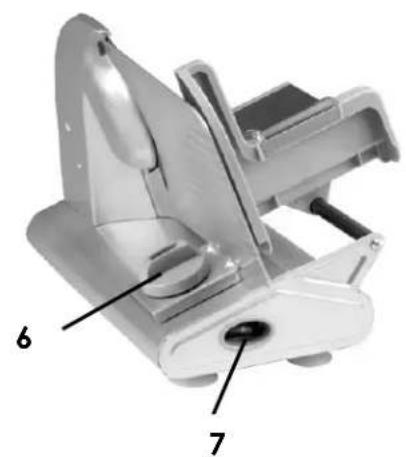

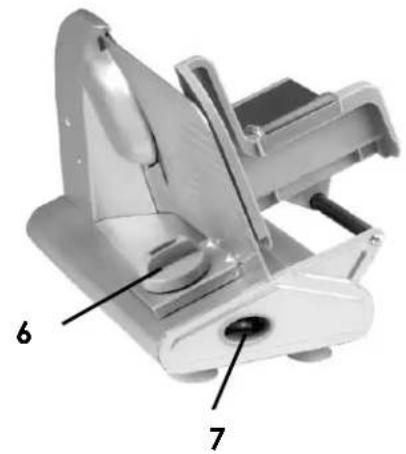

• Push the food against the mobile side of the appliance with the

pusher (2) and select the slicing thickness – up to1/2” - by turning

the adjusting knob (6).

• Place the switch (7) to the position I. The blade will start rotating

and the pilot light of the switch goes on.

• Push the platform using your thumb on the thumb guard (1) to

bring the food to the blade (3). Therefore use the handle of the

platform and keep the pressure on the mobile side of the

appliance thanks to the pusher. Do not apply too much pressure,

• If it becomes difficult to slice the food (important braking of the

blade), move back a little bit and start the operation again by

approaching the blade slowly.

• To avoid food sticking to the appliance and to improve the

slicing, you can moisten or oil the blade with a towel beforehand.

• Do not slice meat with bones, food with large seeds, or rolled

roast without removing the string, wrappers (i.e. aluminium foil).

6 USK AS 27222 – AS 29091 - 101209

STORAGE When not in use, it is recommended that the thickness adjustment

button is turned down all the way, so that the blade is not flush

anymore but concealed, in order to avoid any risk of accidental cuts

• Make sure the switch has is in “0” position and that the appliance

has to be unplugged from the power supply before cleaning the

• Wipe the inside and outside of the appliance with a paper towel

or a soft cloth. It should not be washed in a dishwasher (the

platform tips to make the cleaning easier).

• Do not clean the inside or outside with any abrasive scouring pad

or steel wool as this will damage the finish.

• Do not immerse in water or any other liquid.

• Dry all parts well before storage.

REMOVING BLADE FOR DEEP CLEANING

• Switch off the appliance and unplug it from the power socket.

• To remove the blade, turn the locking device (4) located in the

middle on the blade with the special plastic spanner or with a

coin (a US quarter works best) for example. You have to turn the

locking device counter-intuitively: clockwise to remove,

counterclockwise to tighten.

• To put the blade back into place, proceed inversely.

• Be very careful during this operation as the blade is very sharp.

IMPORTANT INFORMATION

• A lubricant paste is applied at the factory in order to ensure correct

lubrication for the first couple of usage. After this, the first time you

remove the blade, the user can remove the extra lubrication paste or

leave it. The paste is food safe. No extra lubrication will be needed

• Just cautiously cleaning the blade surface after use as indicated in the

user manual should avoid cross-contamination. Deep cleaning by

removing the blade shall only be necessary from time to time.

7 USK AS 27222 – AS 29091 - 101209

WARRANTY We suggest that you complete and return the enclosed Product

Registration Card promptly to facilitate verification of the date of

original purchase. However, return of the Product Registration Card is

not a condition of these warranties. You can also fill this warranty

card online, at the following address: www.KALORIK.com

This KALORIK product is warranted in the U.S.A. for 1 year from the

date of purchase against defects in material and workmanship. This

warranty is not transferable. Keep the original sales receipt. Proof of

purchase is required to obtain warranty performance.

During this period, the KALORIK product that, upon inspection by

KALORIK, is proved defective, will be repaired or replaced, at

Kalorik’s option, without charge to the customer. If a replacement

product is sent, it will carry the remaining warranty of the original

This warranty does not apply to any defect arising from a buyer's or

user's misuse of the product, negligence, failure to follow KALORIK

instructions noted in the user’s manual, use on current or voltage

other than that stamped on the product, wear and tear, alteration

or repair not authorized by KALORIK, or use for commercial purposes.

There is no warranty for glass parts, glass containers, filter basket,

blades and agitators, and accessories in general. There is also no

warranty for parts lost by the user.

ANY WARRANTY OF MERCHANTABILITY OR FITNESS WITH RESPECT TO THIS PRODUCT IS ALSO LIMITED TO THE ONE YEAR LIMITED WARRANTY PERIOD.

Some states do not allow limitation on how long an implied warranty

lasts or do not allow the exclusion of incidental or consequential

damages, so the above limitations may not apply to you. This

warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

If the appliance should become defective within the warranty

period and more than 30 days after date of purchase, do not return

8 USK AS 27222 – AS 29091 - 101209

the appliance to the store: often, our Consumer Service

Representatives can help solve the problem without having the

product serviced. If servicing is needed, a Representative can

confirm whether the product is under warranty and direct you to the

nearest service location.

If this is the case, bring the product (or send it, postage prepaid),

along with proof of purchase and indicating a return authorization

number given by our Consumer Service Representatives, to the

nearest authorized KALORIK Service Centre (please visit our website

at www.KALORIK.com or call our Customer Service Department for

the address of the nearest authorized KALORIK Service Centre).

If you send the product, please include a letter explaining the nature

of the claimed defect.
